Ubiquiti UniFi SWITCH 8 60W User manual

8-Port Managed Gigabit Switch
with 802.3af PoE
Model: US-8-60W

Introduction
Thank you for purchasing the Ubiquiti Networks® UniFi® 8-Port
Managed Gigabit Switch with 802.3af PoE. This Quick Start
Guide is designed to guide you through the installation and
also includes the warranty terms.

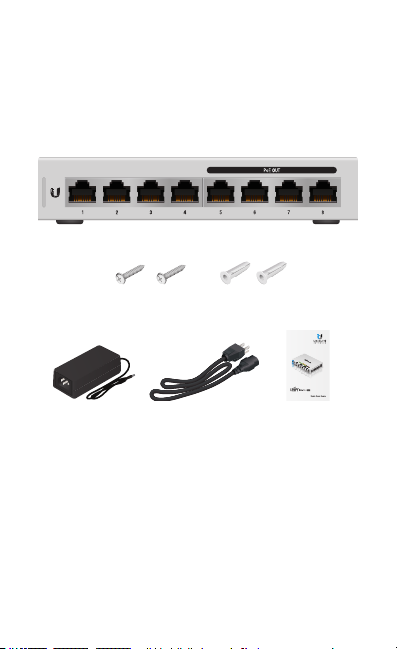

Package Contents
UniFi Switch
Mounting Screws
(Qty. 2)
Screw Anchors
(Qty. 2)
8-PortManaged Gigabit Switch
with802.3af PoE
Model:US-8-60W
Power Adapter Power Cord Quick Start Guide
System Requirements
• Linux, MacOSX, or Microsoft Windows 7/8/10
• Java Runtime Environment 1.8 or above recommended
• Web Browser: Google Chrome (Other browsers may have
limited functionality)
• UniFi Controller software v5.3.x (or newer), available at:
www.ubnt.com/download/unifi
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the professional
installer’s responsibility to follow local country regulations, including operation within legal
frequency channels, output power, indoor cabling requirements, and Dynamic Frequency
Selection (DFS) requirements.

Network Topology Requirements
• A DHCP-enabled network for the UniFi Switch to obtain an
IPaddress (connected devices will also obtain IP addresses
after deployment)
• A UniFi Cloud Key or management station running the UniFi
Controller software v5.3 (or newer), located either on-site
and connected to the same Layer2 network, or off-site in a
cloud or NOC
US-8-60W
USG-PRO-4
Internet
UAP-AC-PROUVC-G3-DOME
UAP-AC-IW
LAN
WAN
UniFi Cloud Key
(UniFi Controller)
Remote Access to
UniFi Controller
DOWNLOADTHROUGHPUT&LATENCY DEVICESON2.4GHZCHANNEL
DEVICESON5GHZCHANNEL
UPLOADTHROUGHPUT&LATENCY
LATENCY THROUGHPUT
SPEEDTEST
msec Mbps
70.94 1
2.33
25 22
597
0.9 116
200+0700+0
0.01 413
2290.2
2118
547
ACTIVEDEVICE
WAN
Inacve 0
Pending 0
Inacve 0
Pending 0
7
ACTIVEDEVICES
Inacve 0
Pending 0
118
ACTIVEDEVICES
LAN WLAN
DEEPPACKETINSPECTIONCLIENTSDEVICES
250
200
150
100
50
0
10
8
6
4
2
0
24HRS 12HRS NOW
Avg/MaxThroughput Latency
Latency[msec]
Throughput[Mbps]
100
80
60
40
20
0
10
8
6
4
2
0
24HRS 12HRS NOW
Latency[msec]
Throughput[Mbps]
NetworkProtocols
StreamingMedia
Web/Web2.0
FileTransfer
SocialNetwork
Other
Motorola
Lenovo
SamsungE
Dell
Acer
Other
WLAN
LAN
WAN
118
7
1
582GB
23.3GB
22.7GB
8.47GB
3.6GB
5.46GB
258
241
220
213
130
110
126
DEVICES
645GB
TRAFFIC
1172
CLIENTS
1 2 3 4 5 6 7 8 9 10 11
36 40 44 48 52 56 60 64
100 104 108 112 116 120 124 128
132 136 140 144 149 153 157 161 165
CURRENTSITE
Default
USERNAME
admin

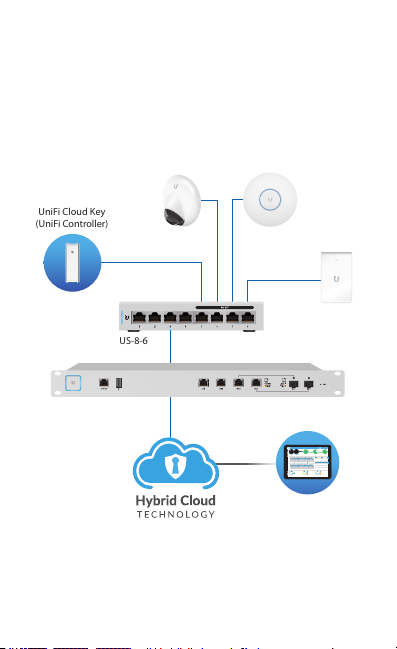

Sample Network Diagram
All UniFi devices support off-site management controllers.
For setup details, refer to the User Guide on the website:
www.ubnt.com/download/unifi

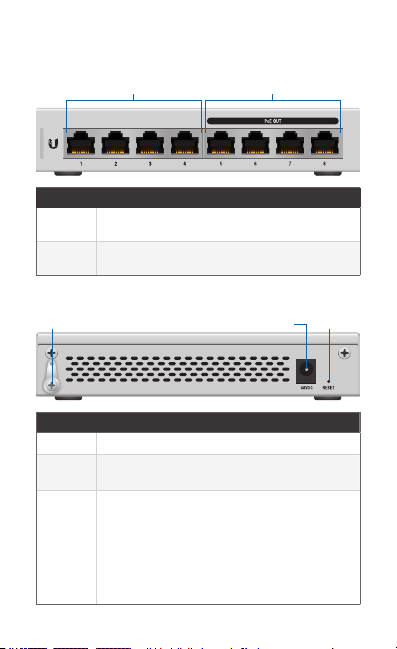

Hardware Overview
Front Panel
Ports 1-4 Ports 5-8
Port Description
1-4 RJ45 ports support 10/100/1000 Ethernet
connections.
5-8 RJ45 ports support 10/100/1000 Ethernet
connections and auto-sensing 802.3af PoE.
Back Panel
Reset
Button
PowerGround
Port Description
Ground Optional ancillary grounding point.
Power Connect the included Power Adapter to the
Power port.
Reset
Button
This button serves two functions for the UniFi
Switch:
• Restart Press and release the Reset button
quickly.
• Restore to Factory Default Settings Press
and hold the Reset button for more than five
seconds.

LEDs
System
System LED
State Status
Flashing White Initializing.
Steady White Factory defaults, waiting for integration.
Alternating
White/Blue
Device is busy; do not touch or unplug it.
This usually indicates that a process such
as a firmware upgrade is taking place.
Steady Blue Successfully integrated into a network
and working properly.
Flashing Blue This is used to locate a device.
When you click Locate in the UniFi
Controller software, the System LED
will flash blue. The software will also
display the location of the UniFi Switch
on themap.

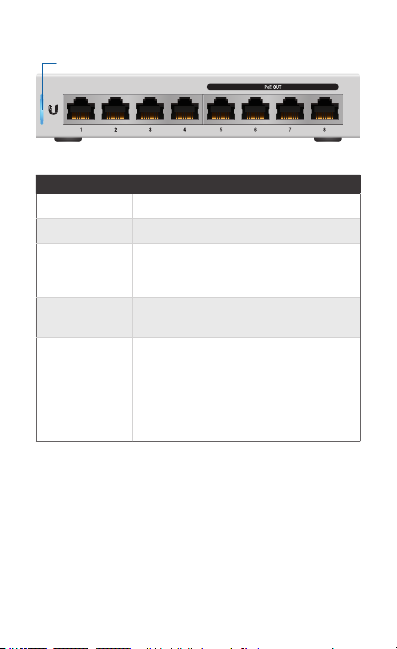

RJ45 LEDs
PoE
Link/Speed/Activity
LED State Status
PoE
Off PoE Off
Amber PoE On (IEEE 802.3af)
Link/
Speed/
Activity
Off No Link
Amber Link Established at 10/100Mbps
Flashing Indicates Activity
Green Link Established at 1 Gbps
Flashing Indicates Activity
*640-00253-05*
640-00253-05

Side Panels

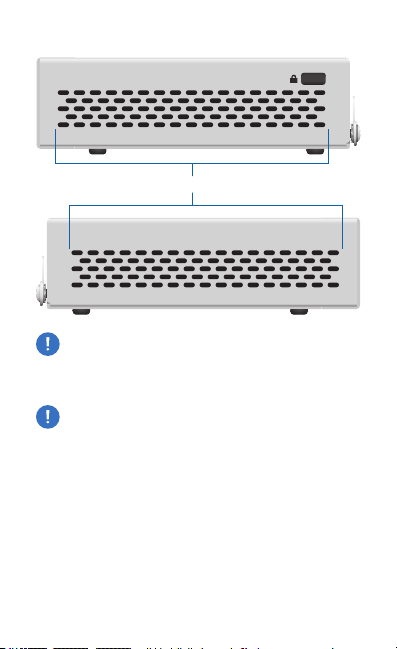

Ventilation Holes
WARNING: FAILURE TO PROVIDE PROPER VENTILATION
MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF
CLEARANCE NEXT TO THE VENTILATION HOLES FOR
ADEQUATE AIRFLOW.
WARNING: The US-8-60W must not be stacked. Do not
place it on top of another switch. Do not place anything
on top of the US-8-60W.

Hardware Installation
The UniFi Switch can be mounted on a vertical surface or
placed on a desktop. Follow the Wall Mounting instructions to
mount the switch using the included screws and anchors.
WARNING: To reduce the risk of fire or electric shock, do
not expose the switch to rain or moisture.

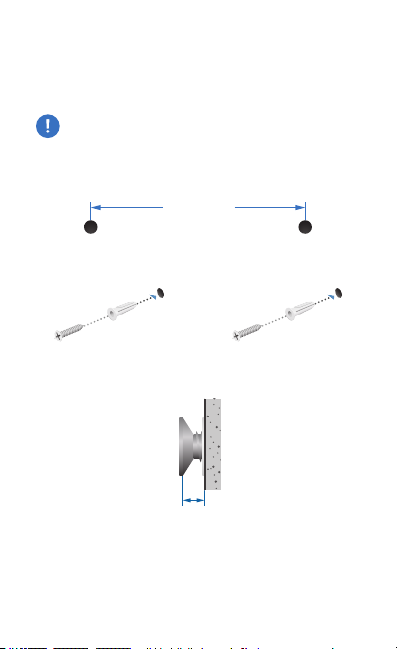

Wall Mounting
1. Drill two 6 mm holes set 73.5 mm apart.
73.5 mm
2. Insert a Screw Anchor into each hole, and fasten a Screw
into each anchor.
3. Leave a clearance of approximately 3mm between the
screw head and the wall.
3 mm

4. Mount the UniFi Switch by inserting the screw heads into
the mounting slots on the bottom of the switch. Then slide
the switch down to lock it in place.

Grounding (Recommended)
The UniFi Switch is grounded through the Power Adapter;
however, you can enhance ESD protection by connecting the
ancillary ground.
1. Loosen the ground screw and secure a ground wire (not
included) to the grounding point.
2. Secure the other end of the ground wire to a grounding
block or other grounded structure.
