Ubiquiti AmpliFi MeshPoint HD User manual

QUICK START GUIDE
MODEL: AFi-P-HD

1
Getting Started
Thank you for purchasing the AmpliFi™
MeshPoint. To get started, download and
install the AmpliFi app from the App Store®
or Google Play™store.
Package Contents
QUICK START GUIDE
MODEL: AFi-P-HD
MeshPoint Quick Start Guide

2
MeshPoint Overview
Signal LEDs
Magnetic Connector
MeshPoint Base
Adjustable Antenna

3
LED States
Ready to Add
The three middle LEDs will continually
ash on and o indicating a
MeshPoint is ready for conguration.
Booting Up
Once congured, the LEDs will
indicate the device is booting up with
a looping motion of the LEDs lighting
up from bottom to top.
Searching for Network
The LEDs will indicate the MeshPoint
is searching for the network by
lighting up from the middle outwards.
Connected
Once the MeshPoint is connected,
the LEDs will represent the signal
strength.

4
Installing the MeshPoints
For best performance, the MeshPoints
should be placed in dierent directions
between the Router and the areas
farthest from the Router. Mesh multi-hop
should only be used when necessary as
performance will degrade with each hop.
Mesh Multi-Hop
Best Performance

5
1 Plug the MeshPoint into a power
outlet.
2 The MeshPoint will be in the Ready to
Add state with the three middle LEDs
ashing on and o.

6
3 Launch the app and follow the
instructions for the router you are
connecting to.
• AmpliFi Router - Page 7
• Third-Party Router - Page 10
Ensure that Bluetooth is enabled
on your smartphone.

7
Connect to an AmpliFi Router
1 If your AmpliFi Router is already up
and running, once you launch the
app the new MeshPoint should be
displayed. Tap Add to Network.

8
2 Edit the name of the MeshPoint if
desired. Tap Continue.

9
3 After about a minute, the LEDs on the
MeshPoint will reect signal strength
once connected to the Router. The

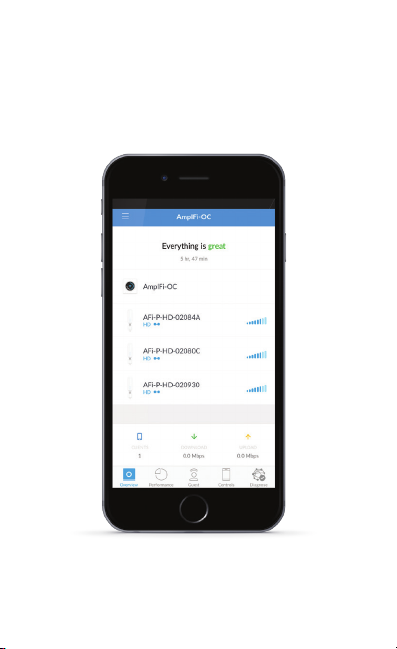

Overview screen in the app will appear
and show the MeshPoint connected.

10
Connect to a Third-Party Router
1 Select the device that needs to
be congured (if more than one
MeshPoint is being installed).

11
2 The app will display a list of available
Wi-Fi networks. Select the network
associated with your Router.

12

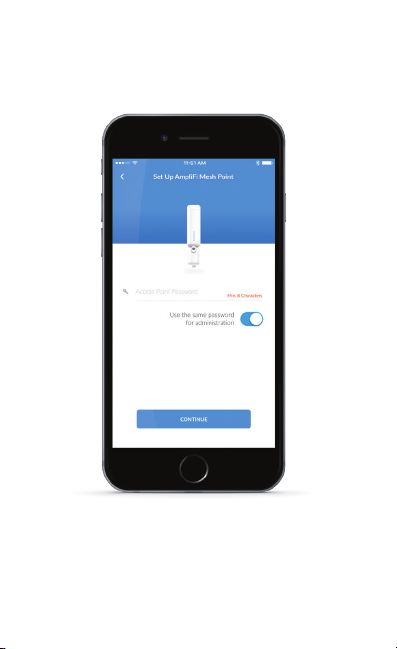

3 Enter the password associated
with the wireless network and tap
Continue.
An audible tone will indicate successful
conguration. After about a minute,
LEDs will reect signal strength once the
MeshPoint is connected to the Router.

13

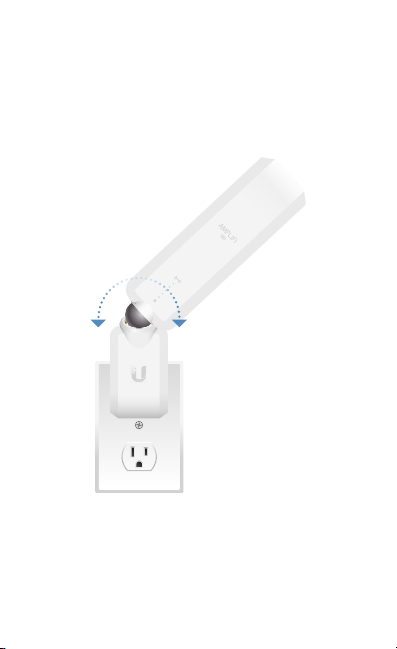

Adjusting the Antenna
The MeshPoint antenna can be adjusted to
provide optimal signal coverage for your
location.

14
Resetting to Factory Defaults
Factory default settings can be restored
by using an object such as a straightened
paper clip or pin to press the MeshPoint
Reset for approximately 10 seconds until
the LED turns o and an audible tone is
heard.
MeshPoint Reset
If the Router is reset, all MeshPoints
must also be reset.

15
MeshPoint Specifications
Dimensions 243.83 x 54 x 57.75 (9.60 x 2.13 x 2.27")
Weight 224 g (7.90 oz)
Max. TX Power 26 dBm
Radios 2
MIMO Chains 6
Speed 1750 Mbps
ESD/EMP Protection ± 24kV Air/Contact
Buttons Reset
Antennas (1) Dual-Band Antenna, Tri-Polarity
Wi-Fi Standard 802.11ac
Power Save Supported
Wireless Security WPA2-PSK AES/TKIP
OperatingTemperature 14 to 131°F (-10 to 55°C)
Operating Humidity 5 to 95% Noncondensing
Certications FCC / CE / IC
Supported Data Rates
802.11ac 13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80)
802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
