Ubiquiti UAP-PRO User manual

Enterprise WiFi System
Models: UAP-PRO

Introduction
Thank you for purchasing the Ubiquiti Networks™UniFi®
Enterprise WiFi System. This system includes the UniFi
Controller software, which allows you to manage your wireless
network using a web browser. The UniFi Controller software is
available for download at downloads.ubnt.com/unifi
This Quick Start Guide includes the warranty terms and is for
use with the UniFi AP‑PRO, model: UAP‑PRO.
Installation Requirements
• CAT5/6 cable
• Phillips screwdriver
• Drill and drill bit: 6 mm (¼") for wall-mounting or 3mm(⁄")
for ceiling‑mounting
• Optional: Drywall or keyhole saw to cut 25 mm (1 in) hole for
Ethernet cable feed

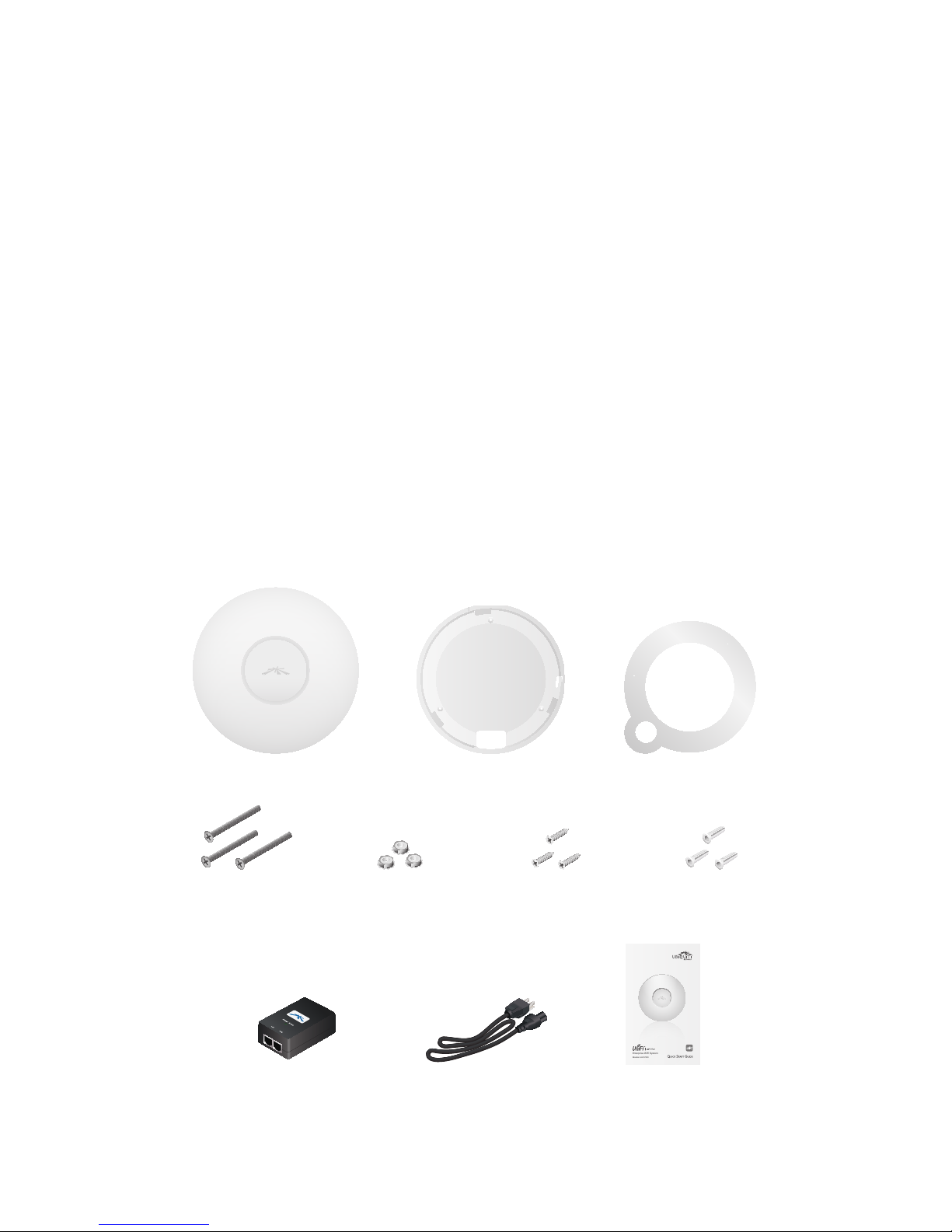

Package Contents
UniFi AP‑PRO Mounting Bracket Ceiling Backing Plate
Flat Head Screws
(M3x50, Qty. 3)
Keps Nuts
(M3, Qty. 3)
Screws
(M2.9x20, Qty. 3)
Screw Anchors
(M3x20, Qty. 3)
Enterprise WiFi System
Models: UAP-PRO
PoE GigE Adapter
(48V, 0.5A Gigabit)
Power Cord Quick Start Guide
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer’s
responsibility to follow local country regulations, including operation within legal frequency
channels, output power, indoor cabling requirements, and Dynamic Frequency Selection
(DFS) requirements.

System Requirements
• Linux, MacOSX, or Microsoft Windows 7/8
• Java Runtime Environment 1.6 (or above)
• Web Browser: Mozilla Firefox, Google Chrome, or Microsoft
Internet Explorer 8 (or above)
Network Topology Requirements
• A DHCP‑enabled network (for the AP to obtain an IP address
as well as for the wireless clients after deployment)
• A management station computer running the UniFi
Controller software, located either onsite and connected to
the same Layer‑2 network, or off‑site in a cloud or NOC
or
Router
O-Site
Cloud/NOC
On-Site
Management Station
UAP/UAP-LR UAP-Pro

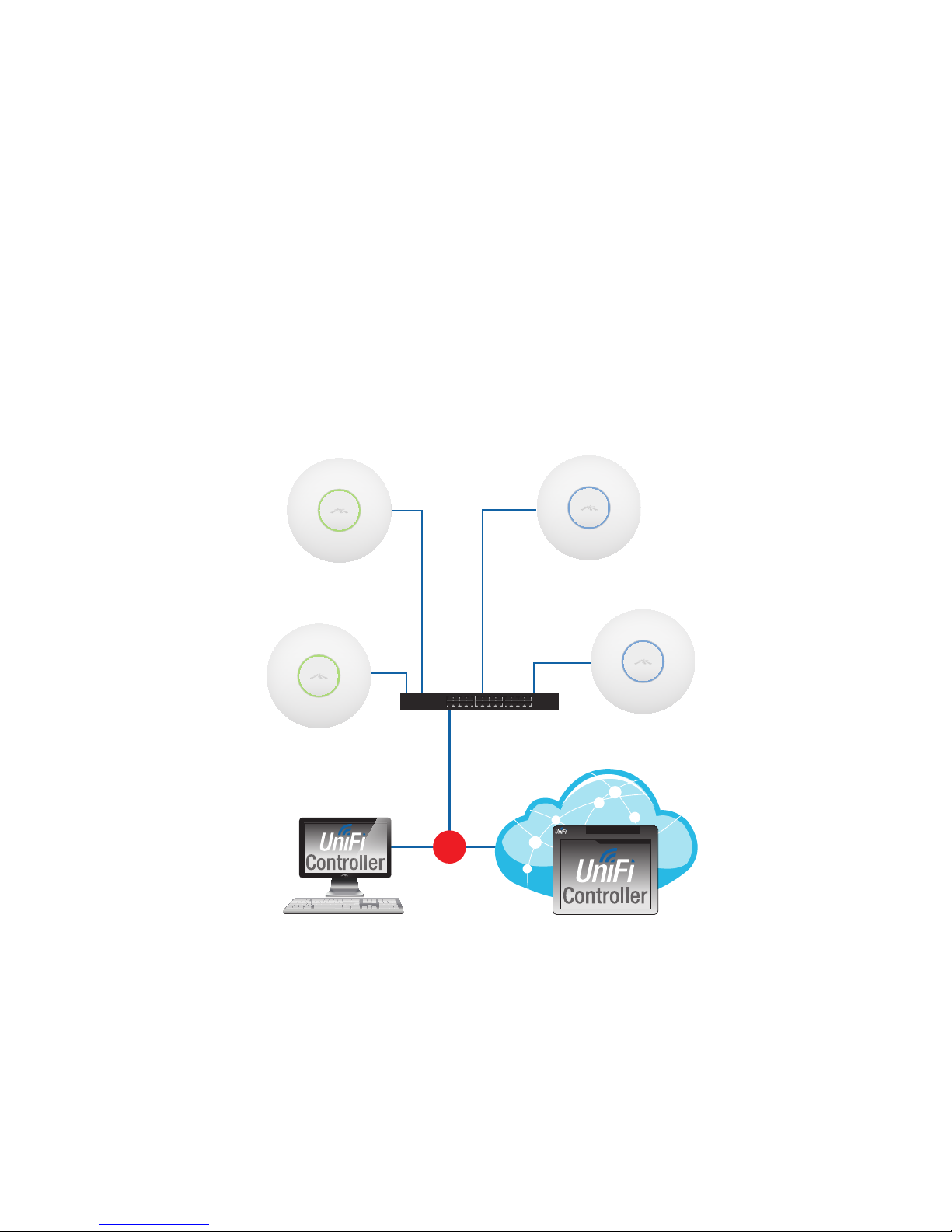

Sample Network Diagram
All UniFi APs support off‑site management controllers.
For setup details, see the User Guide on the website:
documentation.ubnt.com/unifi.

Hardware Overview
LED
LED Color Status
Flashing White Initializing.
Steady White Factory default, waiting to be integrated.
Alternating
White/Blue
Device is busy; do not touch or unplug it.
This usually indicates that a process such
as a firmware upgrade is taking place.
Quickly
Flashing Blue
This is used to locate an AP.
When you click Locate in the UniFi
Controller software, the AP will flash. It
will also display the location of the AP on
the map.
Steady Blue
Indicates the device has been successfully
integrated into a network and is working
properly.
Steady Blue
with occasional
flashing
Indicates the device is in an isolated state
(all WLANs are brought down until an
uplink is found).

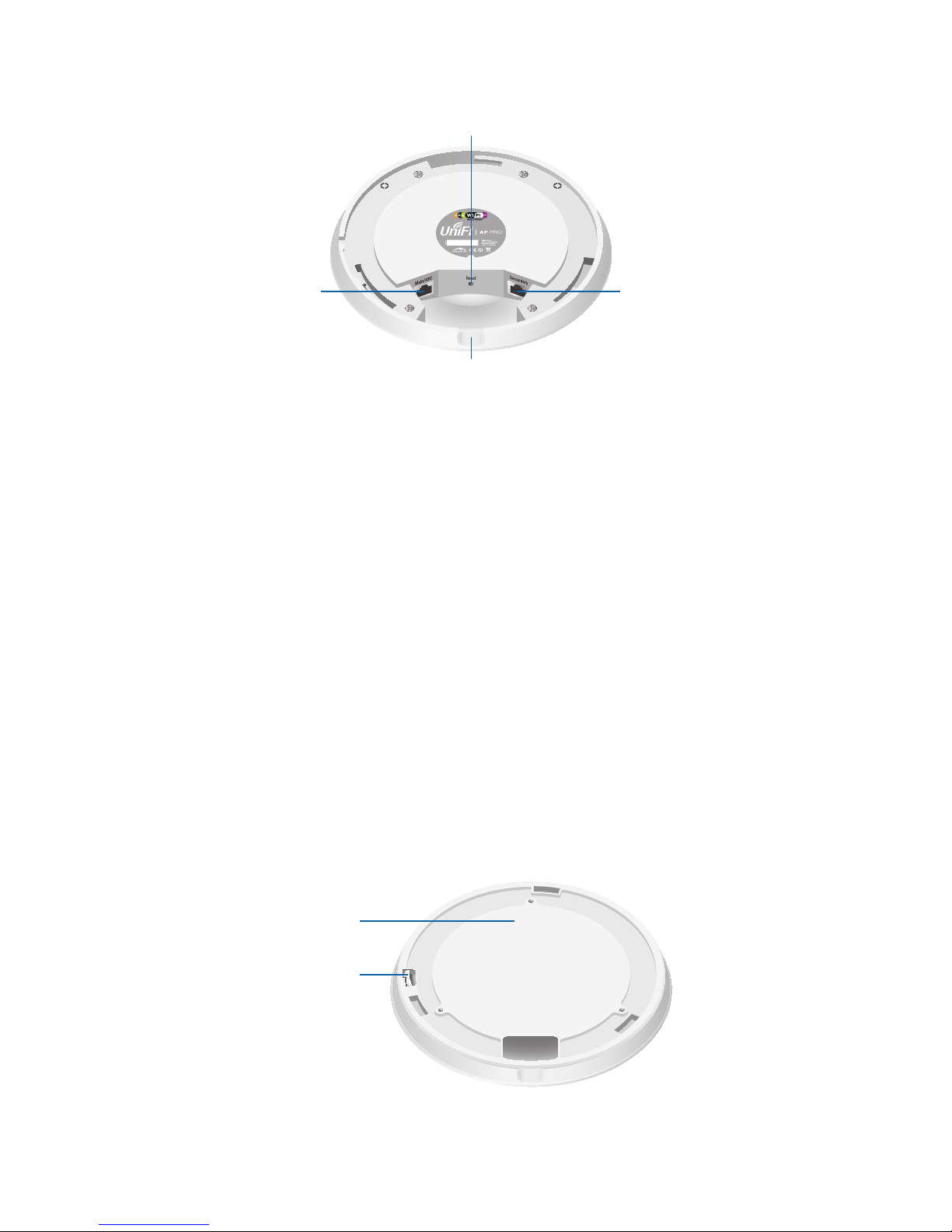

Ports
Main/48V
Ethernet Port
Secondary
Ethernet Port
Reset Button
Cable Feed Plug
Main/48V This Gigabit Ethernet port is used to connect the
power and should be connected to the LAN and DHCP server.
Power can be provided by any of the following:
• Included PoE GigE Adapter
• 48V, 802.3af compliant switch
• Ubiquiti Networks TOUGHSwitch™PRO, model TS‑8‑PRO
• Ubiquiti Networks EdgeRouter™PoE, model ERPoe‑5
Secondary This Gigabit Ethernet port is used for bridging.
Reset This button serves two functions for the UniFi AP‑PRO:
• Restart Press and release the Reset button quickly.
• Restore to Factory Default Settings Press and hold the
Reset button for more then five seconds.
Cable Feed Plug If your Ethernet cable feeds along the
mounting surface, remove theCable Feed Plug.
Locking
Clip
Mounting
Bracket
Locking Clip During installation, the Locking Clip on
the Mounting Bracket locks into the Locking Notch on the
UniFiAP-PRO to help prevent theft.

Hardware Installation
The UniFi AP‑PRO can be mounted to the wall or ceiling.
Perform the steps for the appropriate installation:
Wall Mount

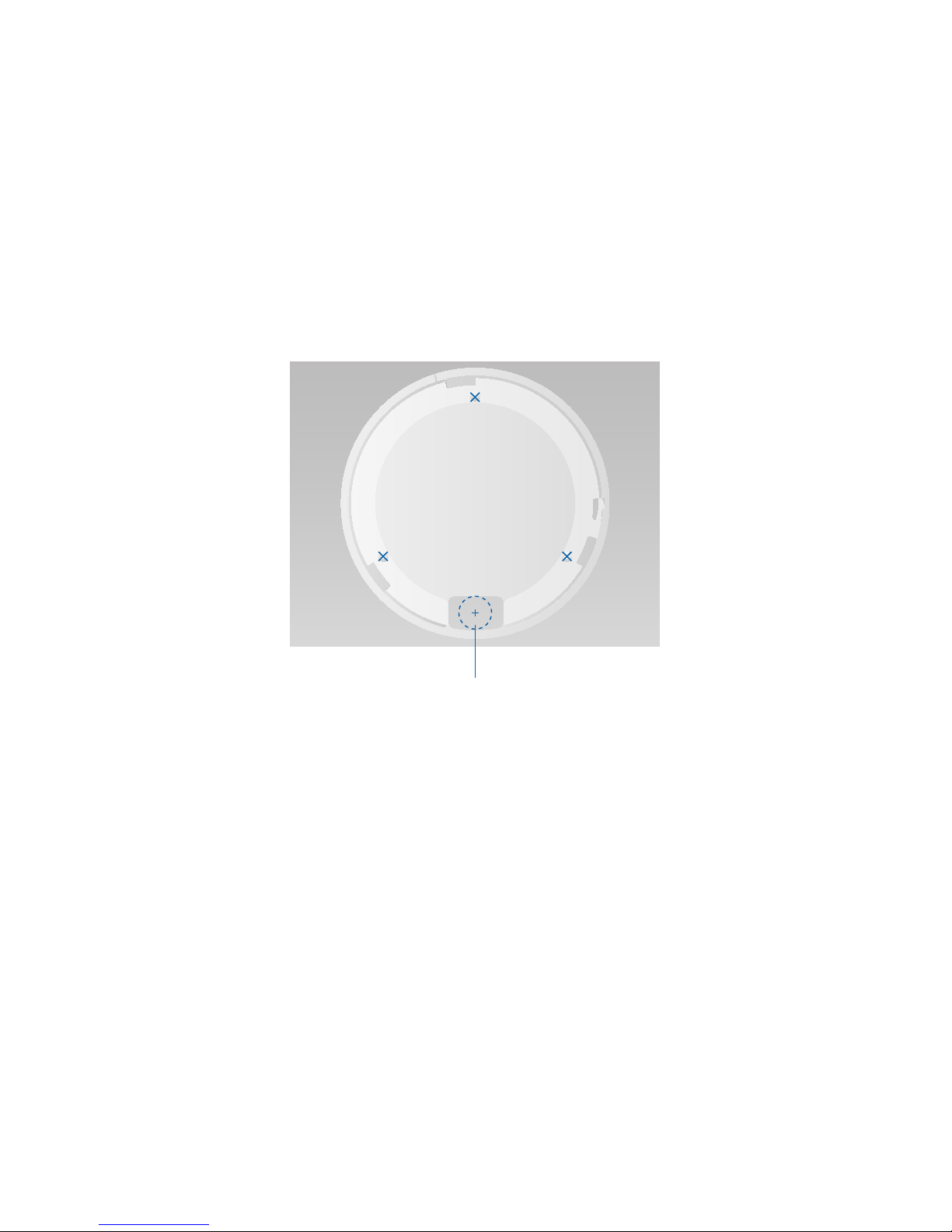

1. Position the Mounting Bracket at the desired location on
the wall with the cable feed slot pointed towards the floor.
2. Use a pencil to mark the three holes on the wall. Use a
6mm (¼") drill bit to drill the holes.
Top
Optional 25 mm (1 in) Hole for
Ethernet Cable Feed through Wall
3. Follow the instruction for your Ethernet cable feed:
‑ Feeds Through the Wall Cut or drill a circle
approximately 25 mm (1 in) in diameter, just below
the bottom center of the Mounting Bracket (as shown
above). Then feed the CAT5/6 cable through the hole.
‑ Feeds Along the Mounting Surface Remove the
Cable Feed Plug on the side of the UniFi AP‑PRO.
*640-00042-03*
640-00042-03

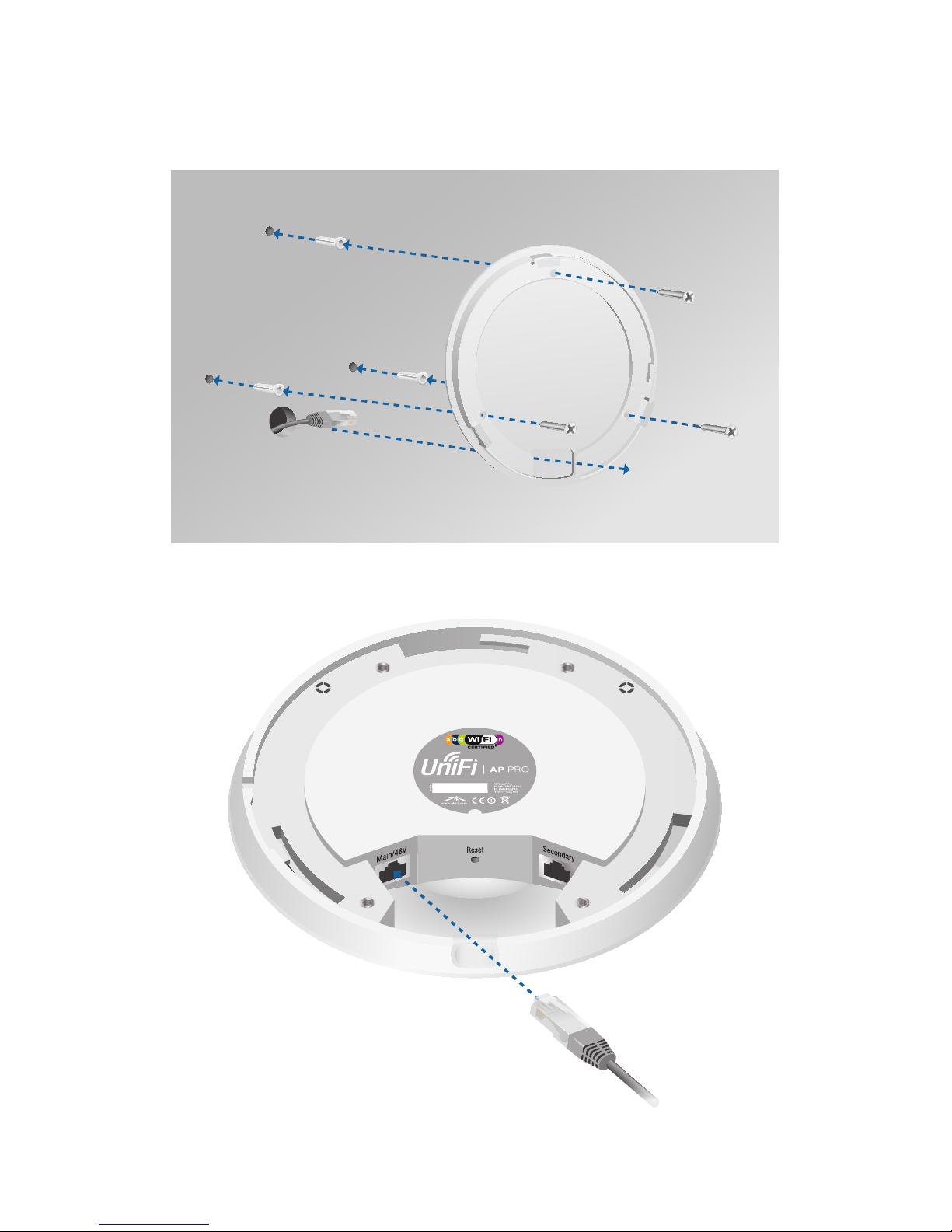

4. Insert the Screw Anchors into the 6 mm (0.24 in) holes.
Secure the Mounting Bracket to the wall by inserting the
Screws into the anchors.

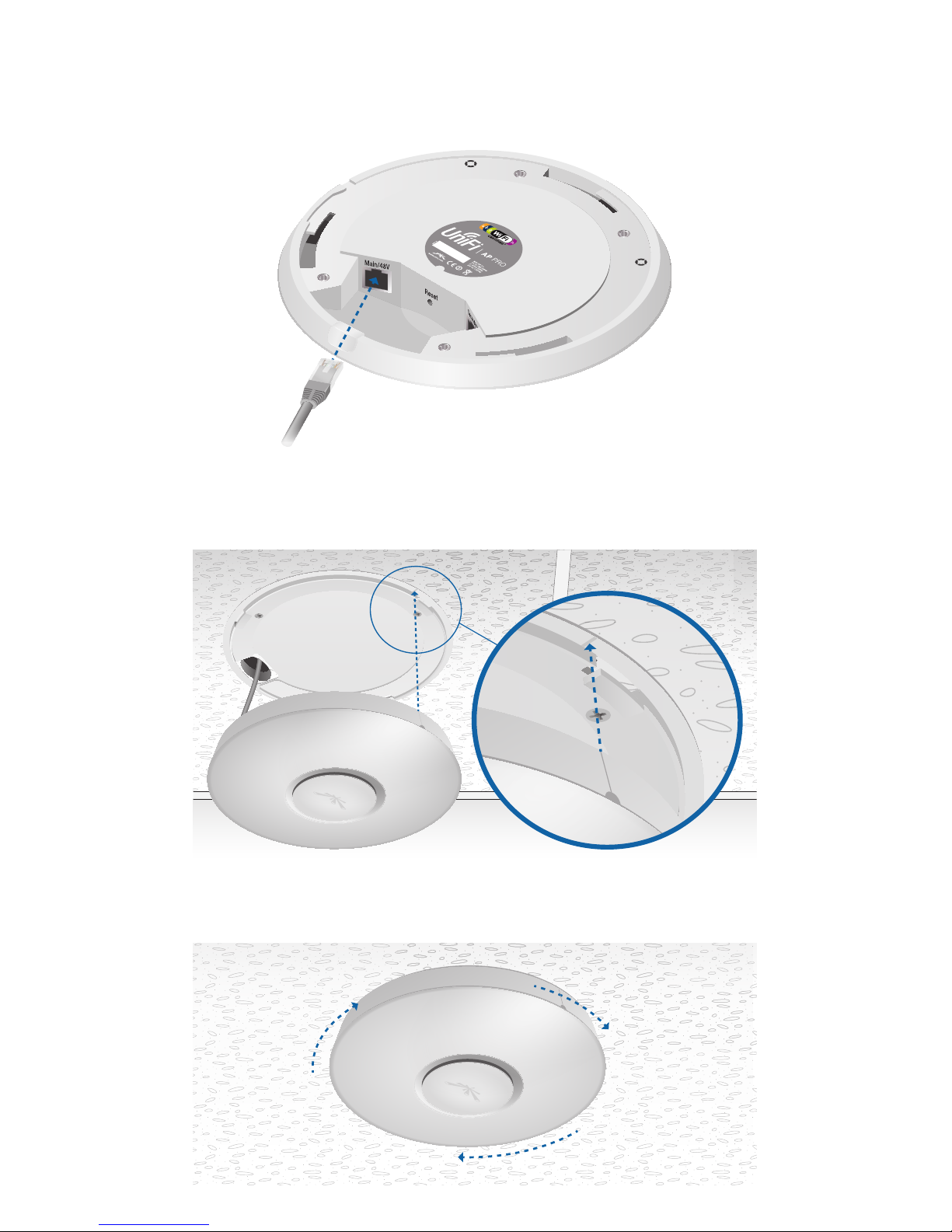

5. Connect the Ethernet cable to the Main/48V Ethernet port.

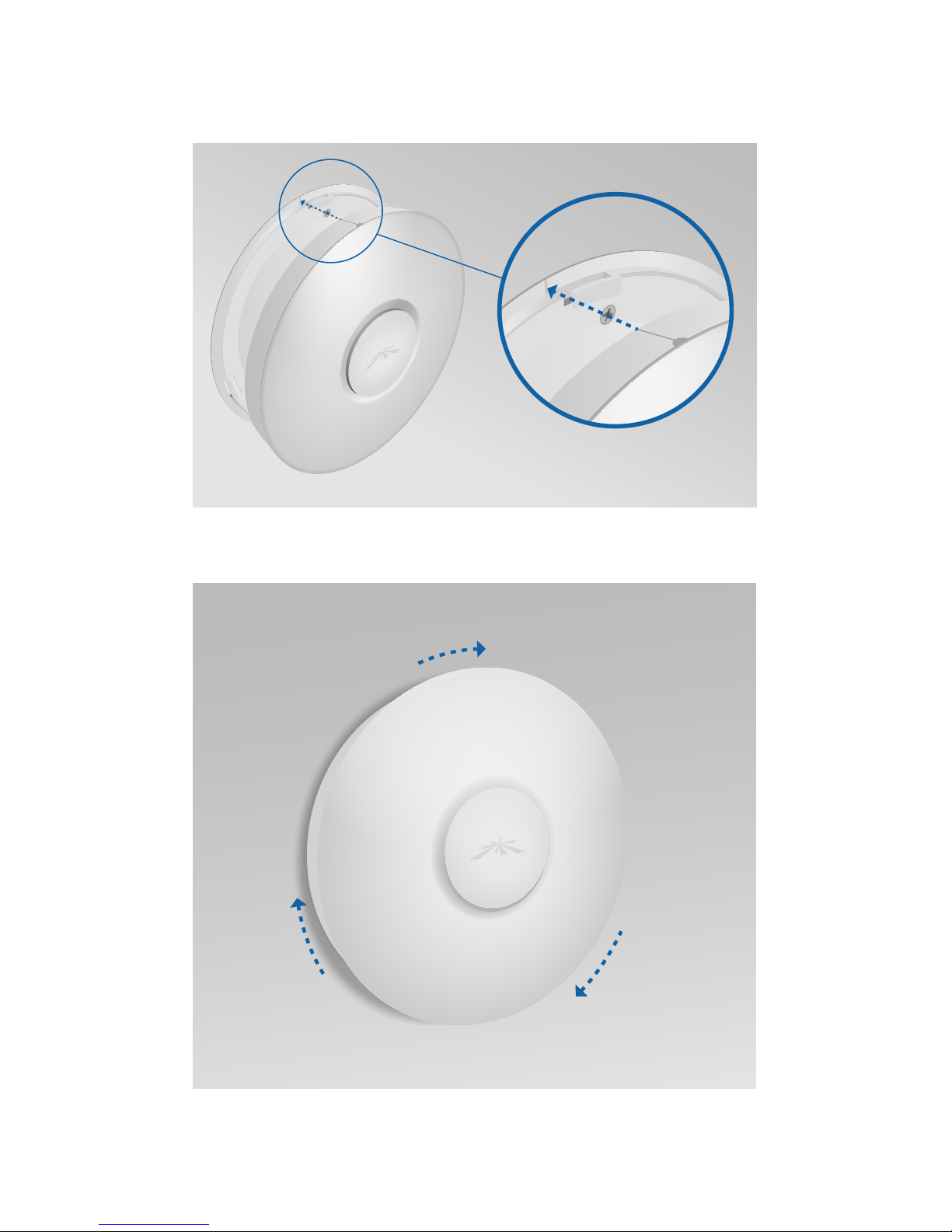

6. Align the notch on the UniFi AP‑PRO with the notch on the
Mounting Bracket.
7. Turn the UniFi AP‑PRO clockwise until it locks into place.

Ceiling Mount
1. Remove the ceiling tile.
2. Place the Mounting Bracket in the center of the ceiling tile.
Mark the three mounting screw holes and 25 mm (1 in)
hole for the Ethernet cable.
25 mm (1 in) Hole for Ethernet Cable Feed
3. Use a 3 mm (⁄") drill bit to drill the screw holes, and cut or
drill the 25 mm (1 in) hole for the Ethernet cable feed.

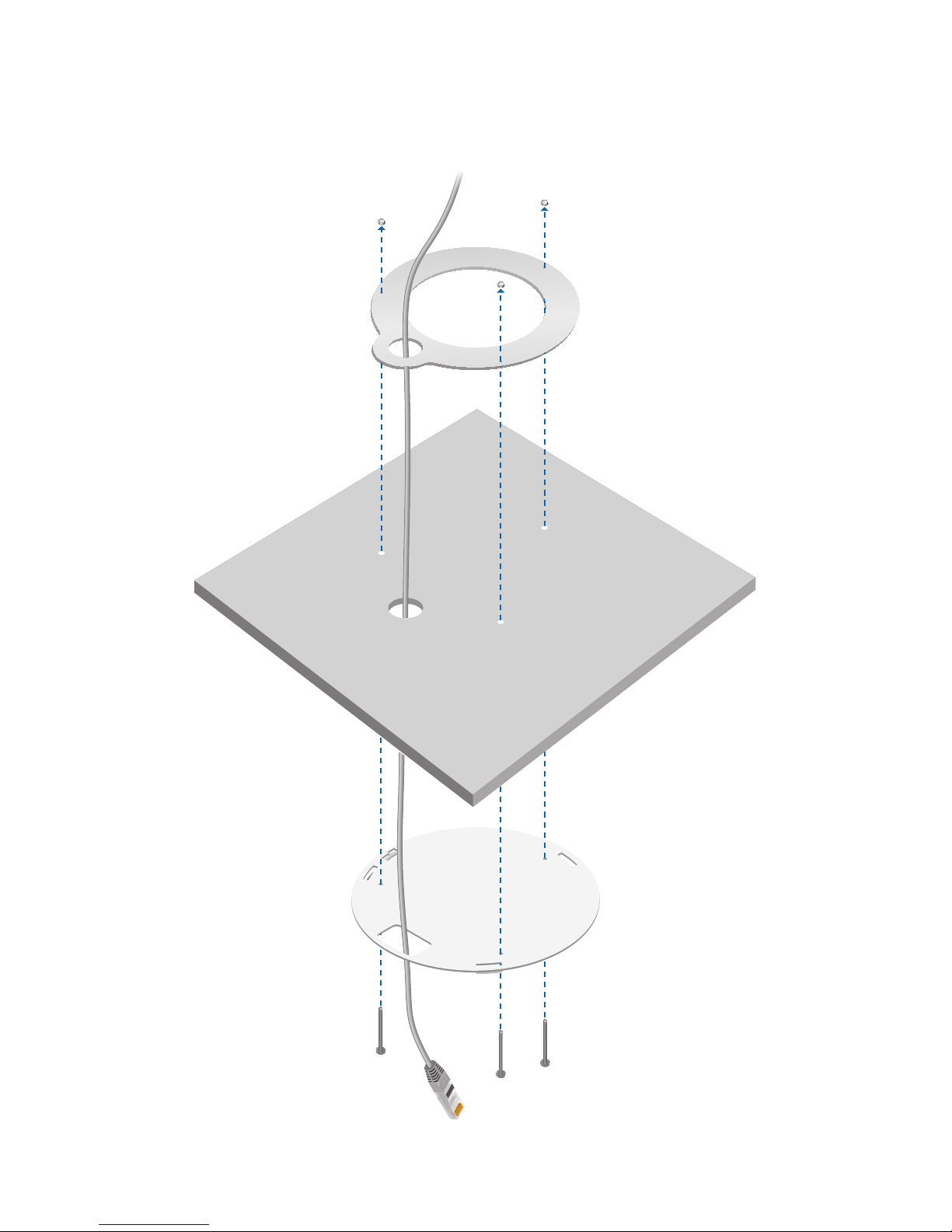

4. Secure the Mounting Bracket to the ceiling tile using the
Ceiling Backing Plate, Flathead Screws, and KepsNuts. Then
feed the Ethernet cable through the 25mm(1 in) hole.
