Ultimaker Original User manual

The fast, easy to use, Open-source 3D printer
assembly
instructions

2
Ultimaker Original Assembly manual
Dear customer,
Thank you for purchasing the Ultimaker Original DIY kit and welcome to our community!
This assembly manual will guide you through the build process step by step.
During the excitement of the build process you learn more and more. This will
help you understand the workings of a 3D printer even better and give you the
opportunity to get the most out of your Ultimaker.
Besides this assembly manual there’s also a user manual available online:
www.ultimaker.com/pages/support/manuals
Meet other Ultimaker users at our community forum:www.ultimaker.com/forum
Visit YouMagine for fun projects and free printable models: www.youmagine.com
Happy building and printing and we’ll be in touch!
Team Ultimaker
Contact information
We would love to hear from you. We are easy to reach and enjoy answering all
your questions. Technical assistance, sales enquiries or general information, we
are there for you. Find the information below to contact us.
General [e-mail]
Support [e-mail]
Sales [e-mail]
Marketing/PR [e-mail]
Phone [phone]
Meet us online at:

3
Table of contents
1 Introduction 5
1.1 Product description 5
1.2 Used symbols 5
2 Technical specifications 6
2.1 General product specifications 6
2.2 Environmental conditions 6
3 Precautions and safety instructions 7
4 Preparation before assembling 8
4.1 Engraving 8
4.2 Sanding 8
5 What to expect reading the assembly instructions 8
5.1 Structure of the assembly instructions 8
5.2 Dierent sides of the Ultimaker Original 8
6 Assembling the Ultimaker Original 10
6.1 Assembling
the frame 10
6.1.1. Step 1: Inserting the ball bearings 11
6.1.2. Step 2: Mounting the limit switches 12

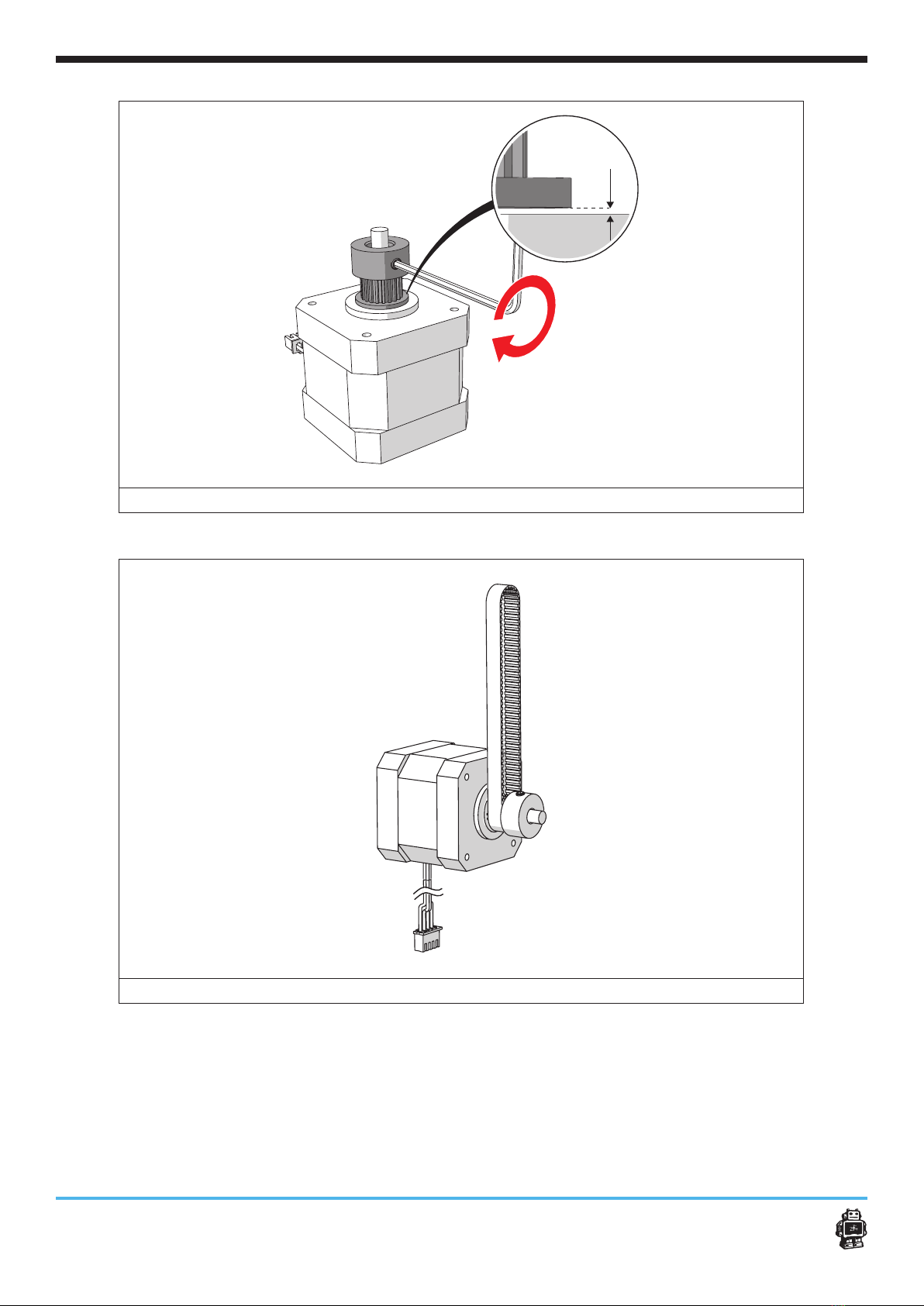

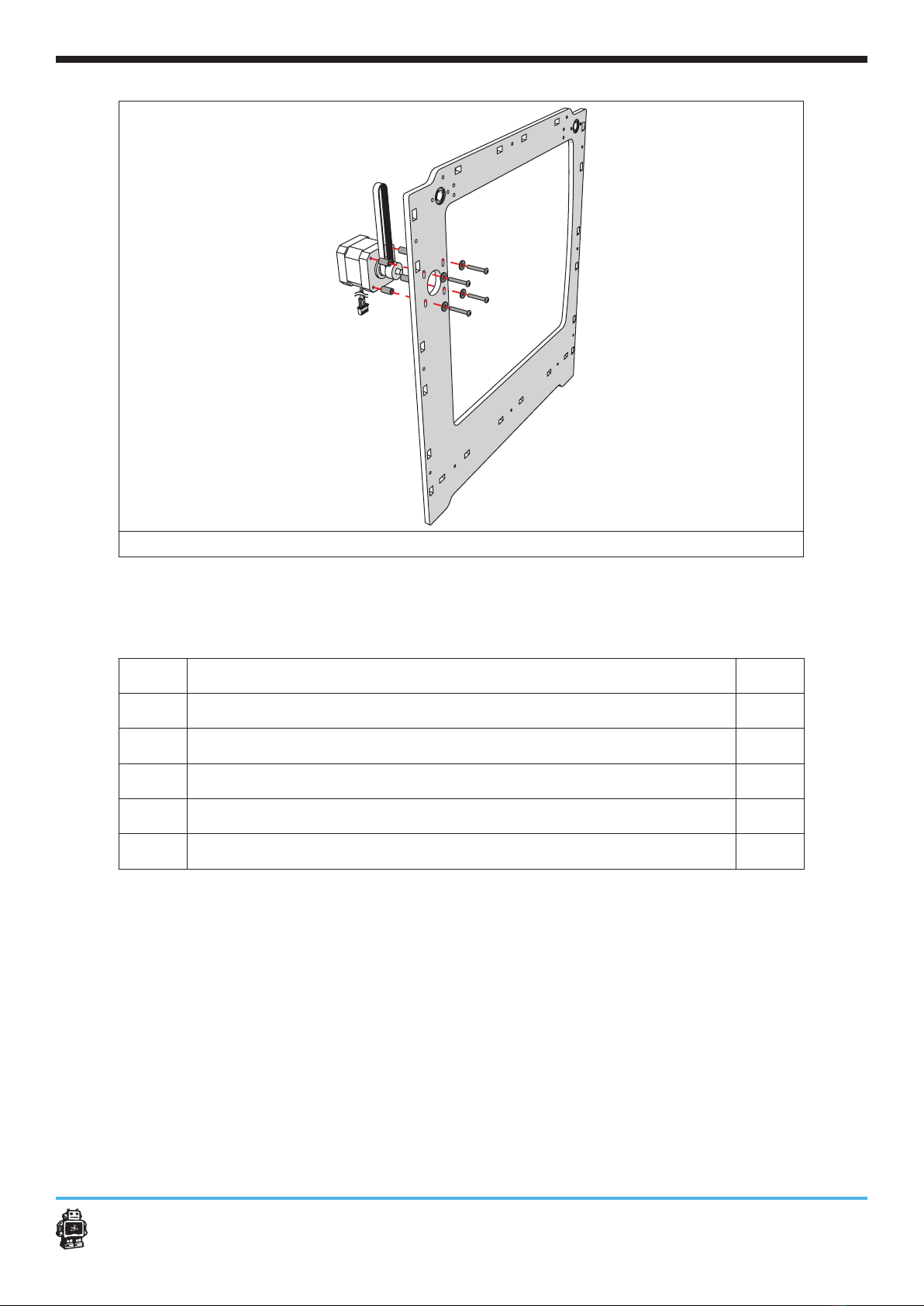

6.1.3. Step 3: Assembling the X and Y motor 16

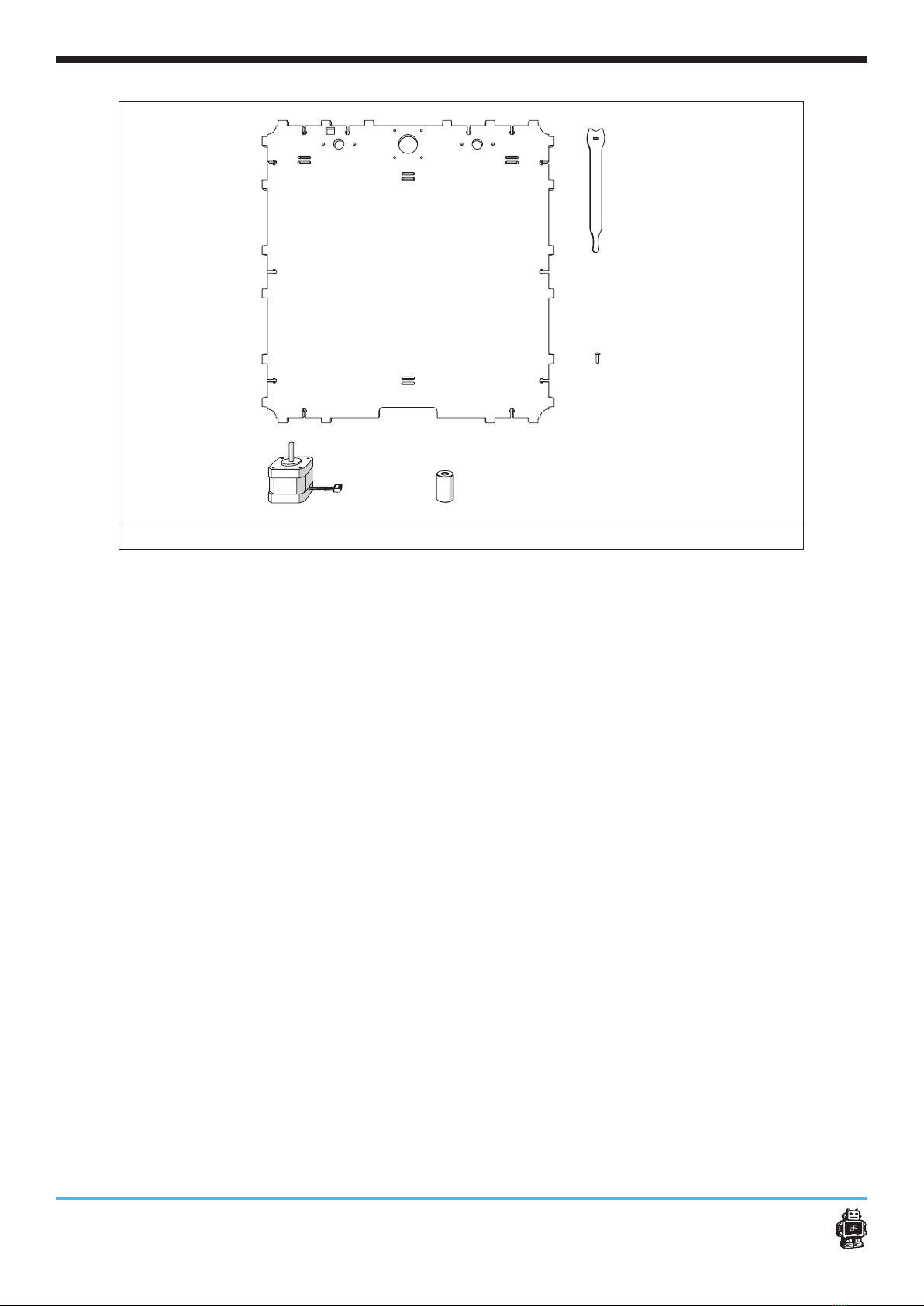

6.1.4. Step 4: Preparing the BOTTOM panel 19
6.1.5. Step 5: Assembling the ‘cube’-shaped frame 22
6.1.6. Step 6: attaching various parts 27
6.2 Assembling the X/Y axes 30
6.2.1. Step 1: Assembling the FRONT, BACK, RIGHT, LEFT slider
blocks 31
6.2.2. Step 2: Attaching the claws 32
6.2.3. Step 3: Mounting the caps 34
6.2.4. Step 4: Mounting the axes 38
6.3 Assembling the extrusion head 44
6.3.1. Step 1: Assemble the extrusion head housing 45
6.3.2. Step 2: cooling fan assembly 54
6.3.3. Step 3: attaching the housing on the XY frame 56
6.4 Assembling the Z stage 60
6.4.1. Step 1: Assembling the drive nut assembly 61

4
6.4.2. Step 3: LEFT and RIGHT arm assembly 62
6.4.3. Step 2: inserting the adjustable level screws 64
6.4.4. Step 4: finishing the Z stage assembly 66
6.4.5. Step 5: Applying tape to the bed. 68
6.4.6. Step 6: installing the Z stage in the machine 70
6.4.7. Step 7: greas it up 72
6.5 Assembling the material feeder 73
6.5.1. Step 1: drive mechanism main body assembly 74
6.5.2. Step 2: drive bolt assembly 76
6.5.3. Step 3: clamp assembly 78
6.5.4. Step 4: attaching the feeder to the machine 82
6.5.5. Step 5: assemble the filament holder 83
6.6 Mounting the electronics circuit board 85
6.6.1. Step 1: mounting the electronic circuit board 86
6.6.2. Step 1: preparing the electronic cooling system 87
6.6.3. step 3: connecting the heater 91
6.6.4. Step 4: connecting the print head electronics 92
6.6.5. Step 5: connecting the limit switches 93
6.6.6. Step 5: connecting the motors 93
6.6.7. Step 7: mounting the electronics cooling system 94
6.6.8. Step 7: strain relief 94
6.6.9. Step 9: checking and aligning the top-Z limit switch 95
6.7 Assembling and connecting the Ulticontroller 97
6.7.1. Step 1: assembling the Ulticontroller 98
6.7.2. Step 2: connecting the controller 100
7 Usage of the Ultimaker Original 101
7.1 Using the Ultimaker Original for the first time 101
7.1.1. Slicer software 102
Bijlage I EG verklaring van overeenstemming 105

5
1 Introduction
1.1 Product description
The parts of the Ultimaker Original can only be used for assembling the
Ultimaker Original. An assembled Ultimaker Original can only be used for
3Dprinting of products.
Ultimaking LTD cannot be held liable for any damage caused by improper,
incorrect or unwise use. Please read this manual completely and make sure
youunderstand it.
1.2 Used symbols
1 Warning! A warning indicates the risk of (serious) damage to the user or
the product if the user does not carry out the procedures with care.
1 Caution! A comment makes the user aware of possible problems
5 Notice: A notice makes the user aware of convenient functions and
additional options.

6
2 Technical specifications
2.1 General product specifications
Product description
Name: Ultimaker Original
Model/type: Revision 4
Year of production: 2014
Dimensions (W x D x H) 357 x 342 x 388mm
Mass 9 kg
Technical specifications
Power source 110V or 230 V
Operating system: Windows, MAC and Linux
Speed: Max. head travel speed between
30mm/s - 300mm/s.
Accuracy: Positioning < 0.05mm
Build volume (X,Y,Z): 210 x 210 x 205mm
Technology: FFF (Fused Filament Fabrication)
Ambient Operating Temperature: 15° - 32° C
Storage Temperature: 0° - 32° C
2.2 Environmental conditions
The Ultimaker Original can only be used in a dry environment. The product
cannot be used in a humid environment and in an environment with lots of
UV light. Usage in other environments can result in unwanted eects on the
performance of the product.

7
3 Precautions and safety instructions
Only use original accessories from the manufacturer.
The product should only be used for applications as described by
the manufacturer. All other applications are unprofessional and
considered dangerous. The manufacturer cannot be held liable for
damage resulting from errors, unintended or unprofessional use of
thedevice.
Do not install the product outdoors or in any place where it might
become wet.
Do not install the product in any place that might be exposed to
extreme heat or cold.
Keep the product out of reach of children.
Disconnect the device from all power sources before cleaning it.
Remove the adapter from the power outlet during storms, lightning
and whenever the product will not be used for a longer period of
time.
Install the product as indicated in this manual. If in doubt, consult a
recognized technician and always take account of local installation
codes and regulations.
The product should be kept out of direct sunlight.
The product must not be discarded as unsorted municipal waste, it
must be disposed of separately.
Find out about the options in your region for disposing of the
productafter use. Do not throw away electrical appliances or
components, but see whether the product (components) can be
turned in, recycled or reused.

8
4 Preparation before assembling
4.1 Engraving
All panels are marked with the side they belong to.
For all the panels except the FRONT panel and the BOTTOM panel, the
engraving face. The FRONT panel has the “Ultimaker” engraving facing
outward. The BOTTOM panel has the engraving facing downward.
4.2 Sanding
Before starting the assembly, you may want to sand the panels slightly to
remove any burn marks/blemishes from the laser cutting process. You can also
paint or stain your Ultimaker Original. Be aware that paint will not cover the
brown cutting edges very well.
5 What to expect reading the assembly
instructions
5.1 Structure of the assembly instructions
Before assembling the Ultimaker Original, separate sub assemblies have to be built.
The description of every sub assembly in this manual will contain:
• An overview of the needed tools;
• An estimation of the needed time to built the sub assembly;
• The steps;
Every step in this manual will be described using the following structure:
• Cautions and warnings (if applicable);
• The needed parts;
• The actions to perform the step.
To make this manual easy to understand, images are used as much as possible.

9
5.2 Dierent sides of the Ultimaker Original
In this manual, you will read about FRONT side, BACK side, LEFT side,
RIGHTside, TOP side and BOTTOM side. In image 1 these terms are clarified.
RIGHT side
LEFT side
FRONT side
BOTTOM side
BACK side
TOP side
image 1: sides of the Ultimaker Original

10
6 Assembling the Ultimaker Original
6.1 ASSEMBLING
THE FRAME
WHAT YOU’LL NEED TO BUILD
THIS SUB ASSEMBLY.
Time:
about 60 to 90 minutes
Tools:
hex key screwdriver (1,5mm)
hex key wrench (2mm)
5.5mm (M3) socket wrench or pliers

Step 1: Inserting the ball bearings Assembling the frame 11
6.1.1. Step 1: Inserting the ball bearings
The following parts are needed in this step.
Letter Description Qnty.
AFRONT panel 1
BLEFT panel 1
CRIGHT panel 1
DBACK panel 1
Eball bearings 8mm 8
8 x

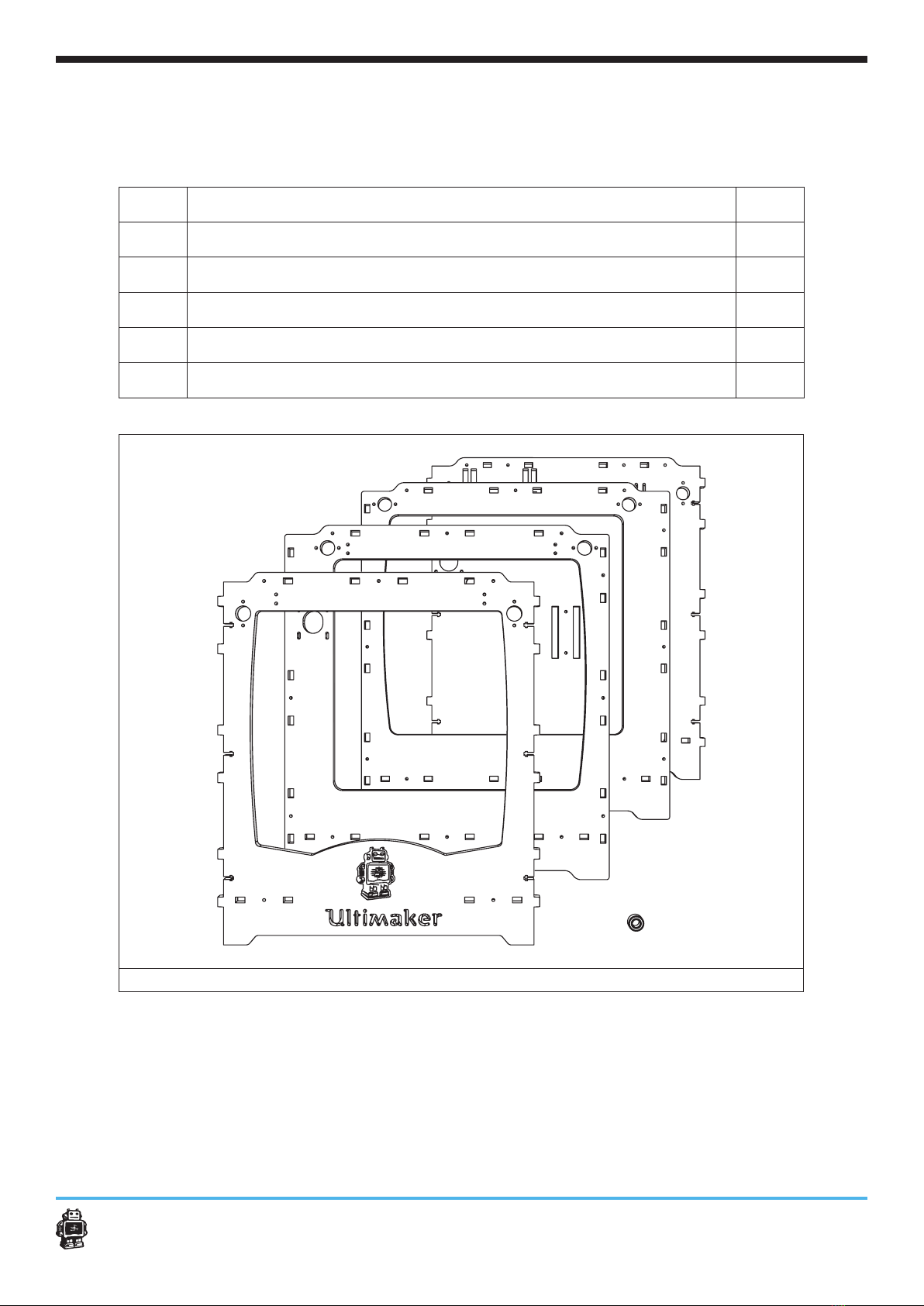

image 2: parts needed for this step
Every panel needed for this step has two corresponding holes.
To place the ball bearings, perform the following actions:
1. Get a panel.
2. Place the ball bearings.
Make sure you place the ball bearings as deep as shown in image 3.
3. Repeat action 1 and action 2 for all panels.
A
C
D
B
E

Step 2: Mounting the limit switches Assembling the frame12
image 3: placing the ball bearings into the panel
6.1.2. Step 2: Mounting the limit switches
Warning! Do not strain the tapped thread on the inside of the switch
housing by putting a lot of force on the bolts. All limit switches are
pre-tapped, you can fasten them directly with M3 bolts, no nuts
required here!
Caution! Note that all wires of limit switches need to be twisted,
seeimage 4.
The following parts are needed in this step.
Letter Description Qnty.
AFRONT panel 1
BLEFT panel 1
CBACK panel 1
DRED wired limit switches 2
EBLUE wired limit switches 2
FBLACK wired limit switches 2
Gbolts M3 x 12mm 8
Hbolts M3 x 16mm 4
Iwashers 2

Step 2: Mounting the limit switches Assembling the frame 13
8 x 4 x 2 x
2 x
2 x
Red
Blue
Black
image 4: parts needed for this step
The orientation of the limit switches are engraved on the panels, except for the
FRONT panel.
The machine has 6 limit switches:
• 2 with BLUE wires
• 2 with RED wires
• 1 with LONG BLACK wires
• 1 with SHORT BLACK wires
A
C
B
D
E
F
G H I

Step 2: Mounting the limit switches Assembling the frame14
To mount the BLUE wired limit switches to the front panel, perform the
following actions:
1. Place the BLUE wired limit switches as shown in image 5.
2. Attach each BLUE wired limit switch with two bolts M3x12mm.
image 5: attaching the RED wired limit switches
To attach the RED wired limit switches on the left panel, perform the following
actions:
1. Attach the RED wired limit switches as shown in image 6.
2. Attach each RED wired limit switch with two bolts M3 x 12mm.
image 6: attaching the BLUE wired limit switches

Step 2: Mounting the limit switches Assembling the frame 15

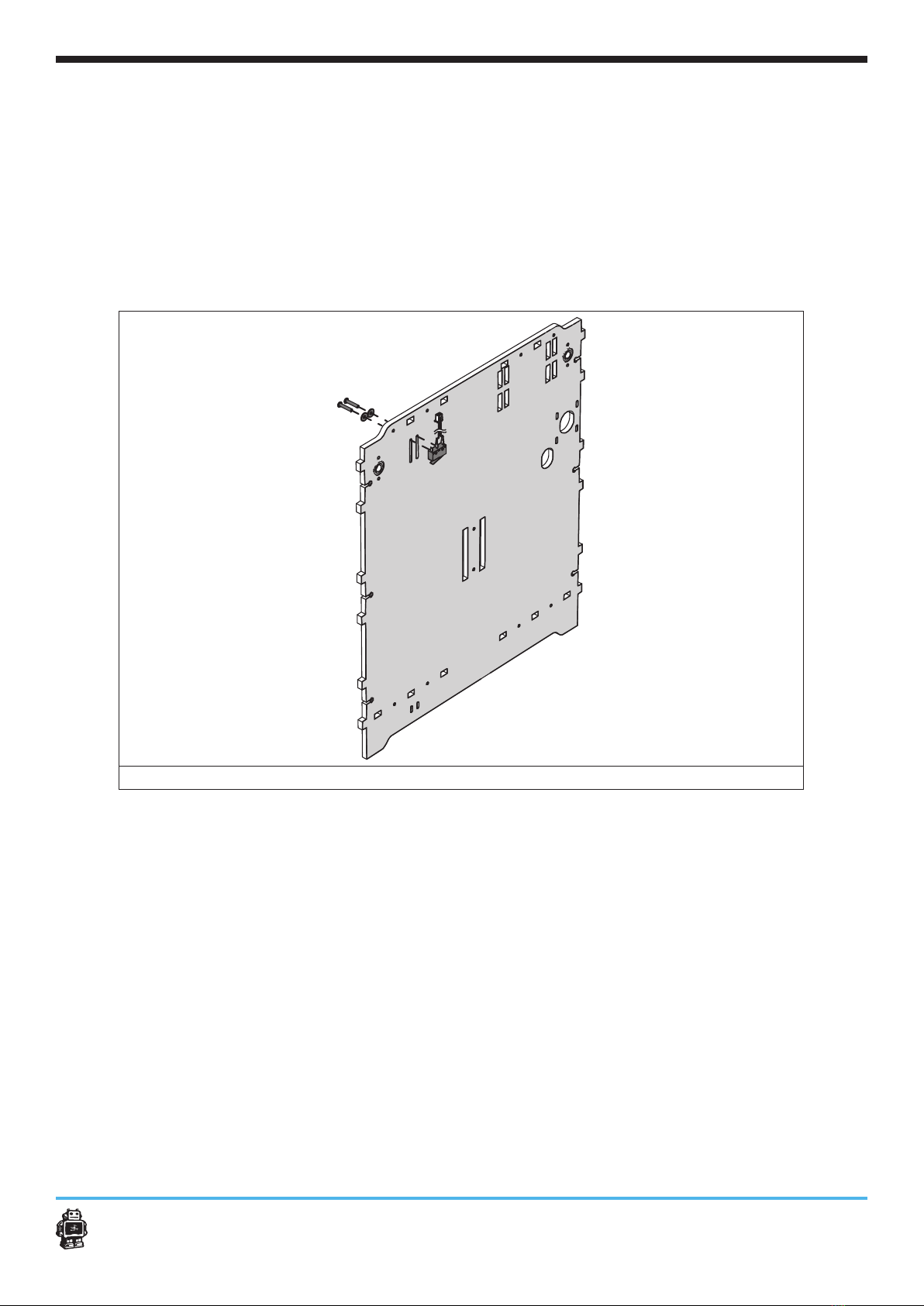

To attach the BLACK limit switch with LONG wires, perform the following
actions:
1. Attach the BLACK limit switch with LONG wires as shown in image 7.
Fine tuning the position will be described in another part of this
manual.
2. Attach the BLACK limit switch with LONG wires.
Use two bolts M3 x 16mm and two washers.
image 7: attaching the BLACK wired limit switch with LONG wires

Step 3: Assembling the X and Y motor Assembling the frame16
To attach the BLACK wired limit switch with SHORT wires, perform the
following actions:
1. Place the BLACK wired limit switch with SHORT wires as shown in
image 8.
Fine tuning the position will be described in another part of this
manual.
2. Attach the BLACK wired limit switch with SHORT wires.
Use two bolts M3 x 16mm.
1-2mm
image 8: attaching the BLACK wired limit switch with SHORT wires
6.1.3. Step 3: Assembling the X and Y motor
The following parts are needed in this step.
Letter Description Qnty.
ALEFT panel 1
BBACK panel 1
Cmotors with long wires and rounded axles 2
Dblack spacers 8
EM3 washers 8
Fshort timing belts 2
Gpulleys with a 5mm internal diameter 2
Hbolts M3 x 20mm 8

Step 3: Assembling the X and Y motor Assembling the frame 17
2 x
2 x
8 x
2 x
8 x
8 x
image 9: parts needed for this step
To assemble the Y motor, perform the following actions:
1. Place the pulley (5mm internal diameter) on the Y motor, see image 10.
When placing, make sure to keep a distance of 1-2mm between the
pulley and the Y motor.
2. Place the timing belt around the pulley, see image 11.
3. Attach the Y motor on the LEFT panel with Y motor engraved on the
inside,
see image 12.
5 Notice: Do not attach the X motor and Y motor too tight. The X motor
and Y motor must be able to move up and down.
5 Notice: Place the X motor and Y motor in position that the wires face
down in direction of the text.
4. To assemble the X motor repeat action 1-2.
5. Make sure to attach the X motor on the BACK panel with X motor
engraved on the inside.
A
C
B
E
F G H
D

Step 3: Assembling the X and Y motor Assembling the frame18
image 10: placing the pulley on the Y motor axis
image 11: placing the timing belt around the pulley

Step 4: Preparing the BOTTOM panel Assembling the frame 19
image 12: attaching the Y motor on the LEFT panel
6.1.4. Step 4: Preparing the BOTTOM panel
The following parts are needed in this step.
Letter Description Qnty.
ABOTTOM panel 1
Bpieces of Velcro 4
Cbolts M3 x 10mm 4
Dmotor with short wires and rounded axles 1
Ecoupling 1

Step 4: Preparing the BOTTOM panel Assembling the frame20
1 x 1 x
4 x
4 x
image 13: parts needed for this step
To prepare the BOTTOM panel, perform the following actions:
1. Move 4 pieces black Velcro through the 4*2 slots of the
BOTTOMpanel, see image 14.
Make sure the soft side is facing itself after placing.
2. Attach the Z-motor, see image 15.
Attach the motor such that the wires face out towards the center
ofthe BOTTOM panel.
3. Attach the coupling on the motor axis.
The 5mm opening of the coupling has to face towards the motor.
4. Tighten the screws, see image 16.
Make sure there’s a little space between the coupling and the
BOTTOMpanel.
5 Use the 1,5 mm hex key as a guide.
D
A
B
C
E
