Ultra-Fab Phoenix 5500 Guide

PHOENIX5500ELECTRICTONGUEJACK
P/N38‐944055
Page1of6   rev031317
ULTRA–FABPRODUCTS,INC.57985SR19,S.ELKHART,IN46517(800)860‐7571www.ultra‐fab.com


INSTALLATION/OPERATION






















APPLICATION
ThePhoenix5500ElectricTongue Jackisa12‐volt
motor‐drivenball‐screwjackforuseontravel
trailers,boattrailers,andcargotrailers.

SPECIFICATIONS
VerticalLoad–5500lbs.continuousover
fullstrokewith6000lbs.
instantaneoustongue
breakawaycapacity.

Travel–21″
PowerRequirement‐12VDC.
OuterTubeOD‐2
1
/
4
″
InnerTubeOD‐2″
RetractedHeight‐33″
RemovableFootPad‐7″dia.(Adjustable)
ApproximateShippingWeight–28lbs.


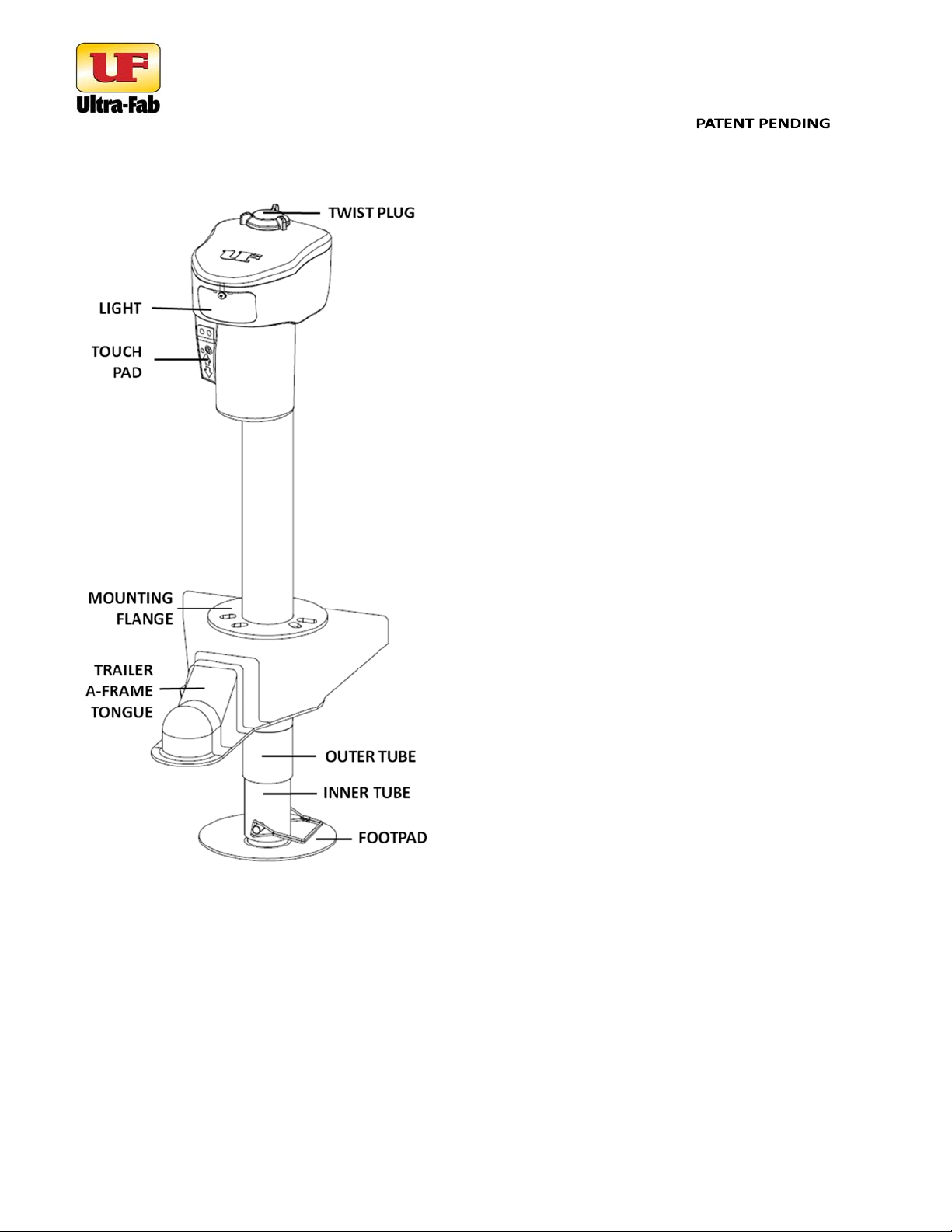

INSTALLATION
1. Blockthewheelsandsupportthetrailer″A″
framesecurely.
2. Removetheexistingjack.
NOTE:Savetheoriginalnuts,bolts,andwashers
thatcamewiththejackyouarereplacingfor
installingthePhoenix5500ElectricTongueJack.
3. InstalltheElectricTongueJackusingoriginal
nutsandbolts.Dependingonuser’s
personalpreference,alignthemotorheadso
thatthemotorhousingisfacingthefrontof
the“A”frameorsothatthemotorhousingis
facingthedriversideofthetrailer.
4. TheElectricTongueJackwasdesignedto
replaceanexistingmanualjack.Thediameter
oftheoutertubeofyourchosenjack,will
needtomatchtheexistingholesize,oryou
willneedtomodifytheholediametertofit.
5. InstallFuseHolder.BycuttingtheREDwire
loop,theneithercrimpingorsolderingthe
connections,attachoneendtothepositive
postofthetrailerbattery.Theotherendof
thefuseholder’sREDwirewillbeconnected
totheREDwirefromthejack.ThisREDwire
provides12Vpowertojack.
6. ConnecttheREDpositiveleadtothepositive
terminalofthebattery.ConnecttheBLACK
groundwiretonegativeterminalofthe
battery.


INSTALLATION/OPERATION

PHOENIX5500ELECTRICTONGUEJACK
P/N38‐944055
Page2of6   rev031317
ULTRA–FABPRODUCTS,INC.57985SR19,S.ELKHART,IN46517(800)860‐7571www.ultra‐fab.com


WARNING
Whenusinganextensionwire,DO
NOTusesmallerthan#10gauge
wire.

CAUTION
Wedonotrecommendusingthe
flip‐uptypefootpad.Doingso
requiresthetonguejacktobe
alteredwhichvoidsthewarranty
andcancausethefailureofthejack.

OPERATION
1. Blocktrailerwheelssecurely.
2. ThePhoenix5500ElectricTongueJackis
operatedbymeansofthetouchpadlocated
nexttothemotorhousing.
3. Toextendjack,push&holdExtendButton.
4. Toretractjack,push&holdRetractButton.
5. TheGREENlightshouldturnonandremain
on
whilejackisinExtend/Retractoperation.
6. IfasteadyREDlightcomesonin
Extend/Retractoperation,alowvoltage
situationexitsandthebatteryneedstobe
fullycharged.
7. IftheREDlightflashesquicklyforthree(3)
seconds,ahighampsituationexitsandjack
willturnoffafterthree(3)seconds.Thejack
willresetitselfinfive(5)secondsandcanbe
usedagainuntilahighampsituationoccurs.
A. Thehighampdrawsituationcanbe
causedbytoomuchload.Reducethe
tongueweightofthetrailer.
B. Thehighampdrawcanalsobecausedby
wornpartsandthejackneedstobe
servicedandownershouldcallUltra‐Fab
forserviceoptions.


AUTO‐EXTEND
& AUTO‐RETRACT
ThePhoenix5500ElectricTongueJackhastwo
newfeatures;Auto‐ExtendandAuto‐Retract.
AUTO‐EXTEND:Allowsusertoextendthejack
legtothegroundwithouthavingtocontinually
pressandholdtheExtendbutton.Thisis
especiallyhelpfulwhendetachingRVfromtow
vehicle.
1. InitiateAuto‐ExtendbypressingtheExtend
Buttonquicklytwotimes.Thejackwill
extendtothegroundandstop.
2. Forwhateverreason,theAuto‐Extendcanbe
cancelledbypressinganyotherbutton.
AUTO‐RETRACT:Allowsusertoretractjackleg
withouthavingtopressandholdtheRetract
button.Thisisespeciallyhelpfulwhenuser
wantstoattachRVtotowvehicle.
1. InitiateAuto‐RetractbypressingtheRetract
Buttonquicklytwotimes.Thejackwill
retracttothetoplimitandstop.
2. Forwhateverreason,theAuto‐Retractcanbe
cancelledbypressinganyotherbutton.

MANUALOPERATION
1. Disconnectthefuse.(unscrewandpullapart)
2. Removetwistplugintheaccesshole.(located
topcenterofthehousingcover)
3. Insertthesupplied
9
/
16
″socketintheaccess
hole,overthedrivehexhead.Usingyourown
sockethandle,rotatethesocketclockwiseto
retractandcounterclockwisetoextend.
4. Whencomplete,removesocketandreplace
twistplug,andreassemblethefuse
connection.
IMPORTANT:Recalibrationmustbeperformed
beforeresumingnormaloperation.Ordamage
couldresult.

INSTALLATION/OPERATION

PHOENIX5500ELECTRICTONGUEJACK
P/N38‐944055
Page3of6   rev031317
ULTRA–FABPRODUCTS,INC.57985SR19,S.ELKHART,IN46517(800)860‐7571www.ultra‐fab.com


CALIBRATIONMETHODTOSET
TRAVELLIMITS
Thejackiscalibratedatthefactoryandisready
forusewhentakenoutofthebox.IFTHEJACK
HASBEENMANUALLYOPERATED,SERVICEDOR
IFTHEJACKISSUSPECTEDTOBEOUTOF
CALIBRATIONFORWHATEVERREASON,THEN
USERSHOULDRECALIBRATETHETRAVELLIMITS.
Tocalibratethetravellimitsofthejack,follow
thesesteps:
1. PressandholdExtend/Retractbuttonfor
three(3)secondsandGREENlightwillflash
three(3)timesindicatingbothbuttonsare
pushed.
2. Afterthree(3)secondstheWHITElightwill
flashindicatingthejackisincalibrationmode.
PressExtendorRetractbuttonsothatthe
endoftheoutertubeislocatedonthetop
edgeofthecalibrationhole(seepartslist
view).
3. PressandholdLIGHTbuttonuntilWHITElight
goesoffindicatingthatthejackisnow
calibrated.Afterthewhitelightgoesoff,the
jackwillimmediatelymove(upordown
aboutᶟ⁄₈”)tosetthelocationsensor.The
calibrationholeshouldnotbevisibleafterthe
locationsensorhasset.
4. JackisnowreadytousebypushingExtendor
Retractbuttons.










TWOMEMORYBUTTONS
(Mem1&Mem2)
Thesecanbeusedtoremembercertainheight
locationssuchashookingandunhookingfrom
towvehicleandasecondmemoryoptionto
rememberasecondheightlocationsuchas
heightrequiredtoattachchainsforaweight
distributinghitch.

Whileunhookingfromthetowvehicle,
Extend/Retractthejacktothedesiredlocation
thatallowsthecouplertoclearthehitchballand
unhookthetrailerfromthetowvehicle.Thisis
thepositionthatjackwillreturntowhilehooking
backuptothetowvehiclebyfollowingthese
steps:

1. PushandholdtheMem1MemoryButtonfor
three(3)secondsandtheGREENlightflashes
three(3)timestosetthememorizedposition
ofthejackatthedesiredheight.
2. OncetheMemorypositionhasbeenset,
pushingtheMem1buttonwilltakethejack
tothememorizedlocation.
3. Oncethejackistravelingtothememory
locationanduserwantstostopthejackfor
whateverreason,pressthememorybutton
againandthejackwillstop.Toresumethe
memoryfunction,pressthememorybutton
andthejackwillproceedtothememory
location.
4. Otherwise,usetheExtendandRetract
buttonstooperatethejack.Thememory
buttonshouldonlybeusedtosetthe
memorylocationandtotraveltothememory
location.
5. Tosetthesecondmemorypositionfollow
steps1through4usingtheMem2button
insteadoftheMem1button.


INSTALLATION/OPERATION

PHOENIX5500ELECTRICTONGUEJACK
P/N38‐944055
Page4of6   rev031317
ULTRA–FABPRODUCTS,INC.57985SR19,S.ELKHART,IN46517(800)860‐7571www.ultra‐fab.com





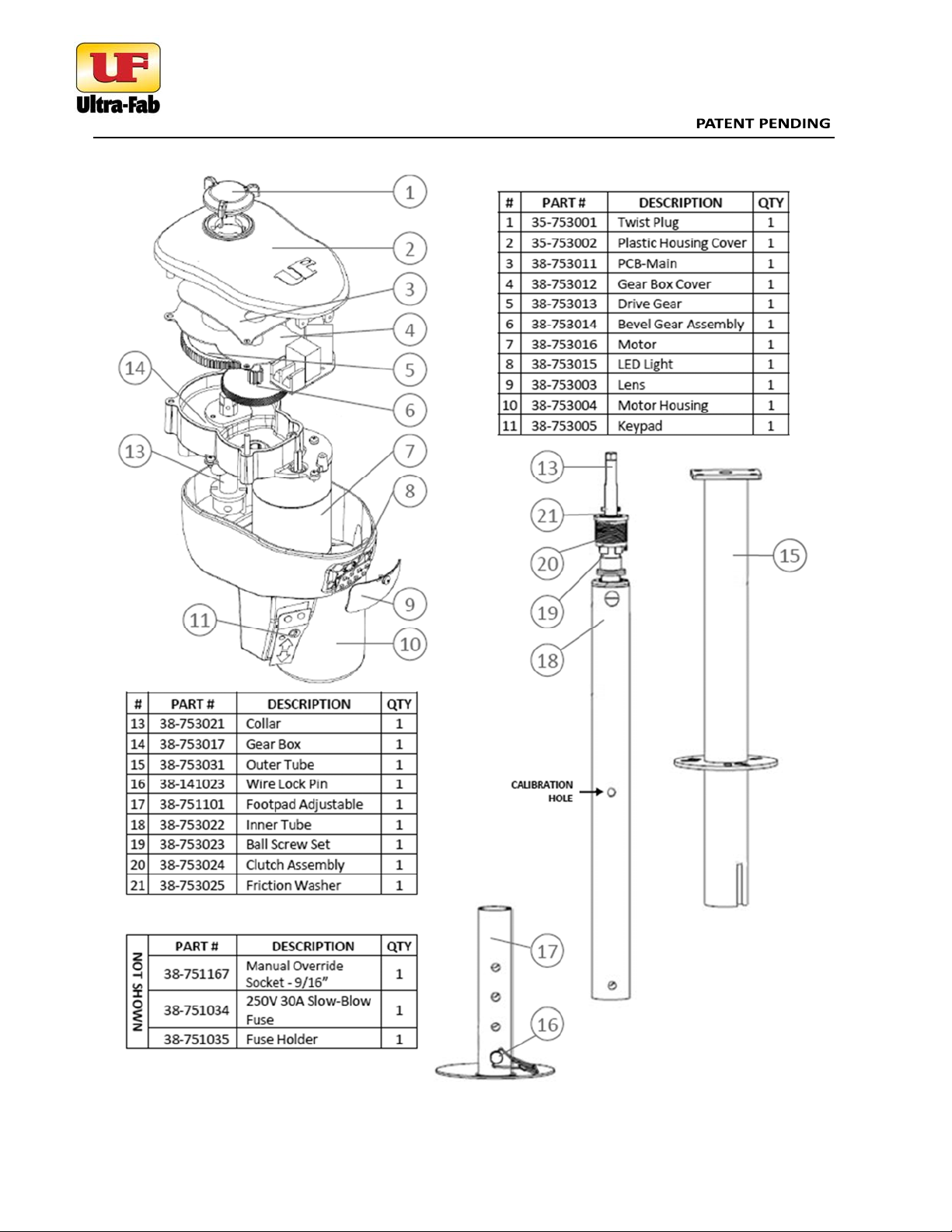

MOTOR/GEARASSEMBLY
LOWERSTEMASSEMBLY
PARTSVIEW

PHOENIX5500ELECTRICTONGUEJACK
P/N38‐944055
Page5of6   rev031317
ULTRA–FABPRODUCTS,INC.57985SR19,S.ELKHART,IN46517(800)860‐7571www.ultra‐fab.com





PHOENIX5500WIRINGDIAGRAM









































WIRINGDIAGRAM

PHOENIX5500ELECTRICTONGUEJACK
P/N38‐944055
Page6of6   rev031317
ULTRA–FABPRODUCTS,INC.57985SR19,S.ELKHART,IN46517(800)860‐7571www.ultra‐fab.com


T
TW WO O‐ ‐Y YE EA AR R L LI IM MI IT TE ED D W WA AR RR RA AN NT TY Y 
ULTRA3502/3502‐7/4000/4002&PHOENIX4000/5500TONGUEJACKS
THEMANUFACTURERNAMEDBELOWMAKESTHEFOLLOWING
WARRANTYWITHRESPECTTOTHEABOVEULTRA‐FABPRODUCTS
1. ThisWarrantyismadeonlytothefirstPurchaser(hereinaftercalledthe“OriginalPurchaser”)whoacquiresthisproductfortheirownuse.
2. ThisWarrantywillbeineffectfortwoyearsfromthedateofpurchasebytheOriginalPurchaser.ItissuggestedthattheOriginalPurchaser
retainacopyofthedatedbillofsaleasproofofthedateofpurchase.
3. ThisWarrantycoversonlyspecifiedpartswhichshallbefreefromdefectsinmaterialandworkmanshipundernormaluse.ThisWarrantydoes
notcoverconditionsunrelatedtothematerialandworkmanshipoftheproduct.Suchunrelatedconditionsinclude,butarenotlimitedto(a)
faultyinstallationandanydamageresultingfromsuch;(b)theneedfornormalmaintenanceandanydamageresultingfromthefailureto
providesuchmaintenance;(c)failuretofollowManufacturer’sinstructionsforuseofthisproduct,and(d)anyaccidentto,ormisuseof,anypart
ofthisproductandanyalterationbyanyoneotherthantheManufactureroritsauthorizedrepresentative.
4. InordertoobtainthebenefitsofthisWarranty,youshouldreturntheproductwhichyoufinddefectivetotheManufacturernamedbelow
duringtheperiodthatthisWarrantyisineffect.AllchargesincurredindeliveryoftheproducttotheManufacturer,andinpickingitupafter
theWarrantyservicehasbeencompleted,mustbepaidbytheOriginalPurchaser.
5. Anyitemreturnedinthemannerdescribedinparagraph4willbeexaminedbytheManufacturer.Ifitisfoundthatthereturneditemwas
defectiveinmaterialorworkmanship,theManufacturerwillrepairitwithoutchargeformaterialandlabor.
6. Ultra‐Fabwillpayfreightonreplacementpartsduringthefirst90daysofownershipbytheOriginalPurchaser.
7. TheManufacturerdoesnotauthorizeanypersonorcompanytocreateanyWarrantyobligationorliabilityontheirbehalf.
8. INNOEVENTSHALLTHEMANUFACTURERBELIABLEFORINCIDENTALORCONSEQUENTIALDAMAGES.SOMESTATESDONOTALLOWTHE
EXCLUSIONORLIMITATIONOFINCIDENTALORCONSEQUENTIALDAMAGESSOTHEABOVELIMITATIONOREXCLUSIONMAYNOTAPPLYTOYOU.
9. ANYIMPLIEDWARRANTY,INCLUDINGTHEIMPLIEDWARRANTYOFMERCHANTABILITYANDFITNESSFORANYPURPOSE,ISLIMITEDTOTHE
DURATIONOFTHISLIMITEDWARRANTY.SOMESTATESDONOTALLOWLIMITATIONSONHOWLONGANIMPLIEDWARRANTYLASTS,SOTHE
ABOVELIMITATIONMAYNOTAPPLYTOYOU.
10. THISWARRANTYGIVESYOUSPECIFICLEGALRIGHTS,ANDYOUMAYALSOHAVEOTHERRIGHTSWHICHVARYFR0MSTATETOSTATE.



