Ultrawave IND Series Assembly instructions

C6000507-01 issued October 2021
IND Series Operator Instruction Manual

IND Operating Manual 2 C6000507
Contents
SafetyInstructions.........................................................................................................................3
OperatingConditions....................................................................................................................5
Installation........................................................................................................................................7
Filling thetank.................................................................................................................................8
Type ofINDunit..............................................................................................................................9
TheUserInterfaceExplained....................................................................................................10
Setting the cycletime andtemperature..................................................................................11
UltrasonicUnitOperating Instructions...................................................................................12
HeatedUnitOperating Instructions.........................................................................................13
TechnicalInformation.................................................................................................................14
Ultrasoniccleaningdetergents.................................................................................................15
Maintenance..................................................................................................................................16
ReturningequipmenttoUltrawave..........................................................................................16
Disposal ofthis ultrasonic equipment....................................................................................17
Warranty.........................................................................................................................................17
Troubleshooting...........................................................................................................................20
CompliancewiththeControlofNoiseatWorkregulations..............................................21
Service record...............................................................................................................................22
Notes...............................................................................................................................................24

IND Operating Manual 3 C6000507
Safety Instructions
Use of products
The following products are covered by this operating manual:
•IND30, IND45, IND75, IND80, IND90, IND90L, IND100, IND100L, IND145,
IND145L, IND155L
The products listed above are a series of ultrasonic cleaning baths designed for indoor
use by a professional user.
Electrical:
The mains plug (BS 1363) is fitted with a 13A fuse. NEVER FIT A FUSE OF
A HIGHER RATING.
The IND machines are rated at up to 3000W
Connect to a 230 VAC fully earthed supply via a BS 1363 3 pin plug socket.
It can be dangerous to operate equipment without an earth connection.
The mains switch is the disconnect device and should remain accessible while
the machine is in use.
Ensure that excess mains cable is stored neatly.
Temperature:
Care should be taken when operating the equipment at higher temperatures as
external surfaces may become hot.
When the temperature is set to 54°C or above, the unit will become hot and care
should be taken when touching the case.
A risk assessment should be conducted –see BS EN ISO 13732-1:2008 for full details
The liquid level float switch is the safety device ensuring that the heaters only operate
if there is water in the tank. It should be free to move on its stem. This should be
checked every time the tank is emptied

IND Operating Manual 4 C6000507
Noise:
The noise level at which employers must assess the risk to workers' health and
provide them with information and training is now 80 decibels.
To help you calculate your workers’ exposure, Ultrawave publish the noise generated
by your ultrasonic equipment on the Certificate of Test. The figure is that experienced
by a worker standing in the operating position.
A risk assessment should be conducted –see page 16 for further details
General use
Do not place fingers, hands, or other parts of the body in the liquid in the
bath when it is sonicating.
Always ensure the liquid is above the float switch when in operation.
Do not place parts or containers directly on the bottom of the cleaning tank.
Always use a basket or instrument cassette to support items to be cleaned.
Not doing so may damage the bath and invalidate your warranty.
Never use toxic, flammable, acidic, caustic, or corrosive solutions in the
bath.
Do not move the bath when it is full of water.
Before cleaning, drain the bath. Clean by wiping with a clean non-abrasive
cloth.
The user should familiarize themselves with this user manual before operating the
equipment. Safety may be impaired if they are not followed.
Ultrawave will not be responsible for damage or injury caused by incorrect use of the
equipment.
The user should apply to Ultrawave or its agent for advice on cleaning techniques or
detergents.
IMPORTANT: Once the cleaning cycle has finished, remove the cleaned
items, and rinse them immediately in clean running water.

IND Operating Manual 5 C6000507
REMEMBER
•Ensure that the tank is filled to operate the liquid level sensor before you switch
on the machine.
•Do not put hot water (above 50°C) into the equipment.
•Always use the basket to support items to be cleaned.
•Never expose hands, fingers, or other body parts to cleaning solutions.
•Never use toxic, flammable, or corrosive solutions.
•Never breathe the fumes from strong solutions.
•Rinse the cleaned items in fresh water once the cycle is complete.
Subjecting the equipment to improper treatment or misuse will invalidate the
warranty.
Operating Conditions
Ambient Temperature
5 to 40oC
Maximum relative humidity
80% R.H. at room temperatures up to 31oC
decreasing linearly to 50% R.H. at 40oC
Altitude above sea level
Up to 2,000m (6,500ft)
Operating environment
Indoor use only
Protection rating
IP54 (IP65 control panel)
Mains supply:
230V / 50Hz
Pollution degree:
2
Installation category:
II

IND Operating Manual 6 C6000507
Safety Symbols
Danger
Indicates an imminently hazardous situation which
will result in serious or fatal injury. This symbol is
used only in the most extreme conditions.
Caution
Indicates a potentially hazardous situation which may
result in minor or moderate injury. It may also be
used to alert against unsafe practices.
Equipment Alert
Indicates a potentially hazardous situation which could result
in equipment damage.
Other Symbols
Proper shipping
orientation
Keep dry
Fragile
Catalogue Number
Date of Manufacture
Serial Number
Manufacturer
Country of
manufacture
Unique Device
Identifier

IND Operating Manual 7 C6000507
Installation
The following parts and accessories are included with the Ultrawave IND-Series
ultrasonic units:
1 x Basket
1 x Lid
1 x Hose connector
1 x Ultraclean detergent sample

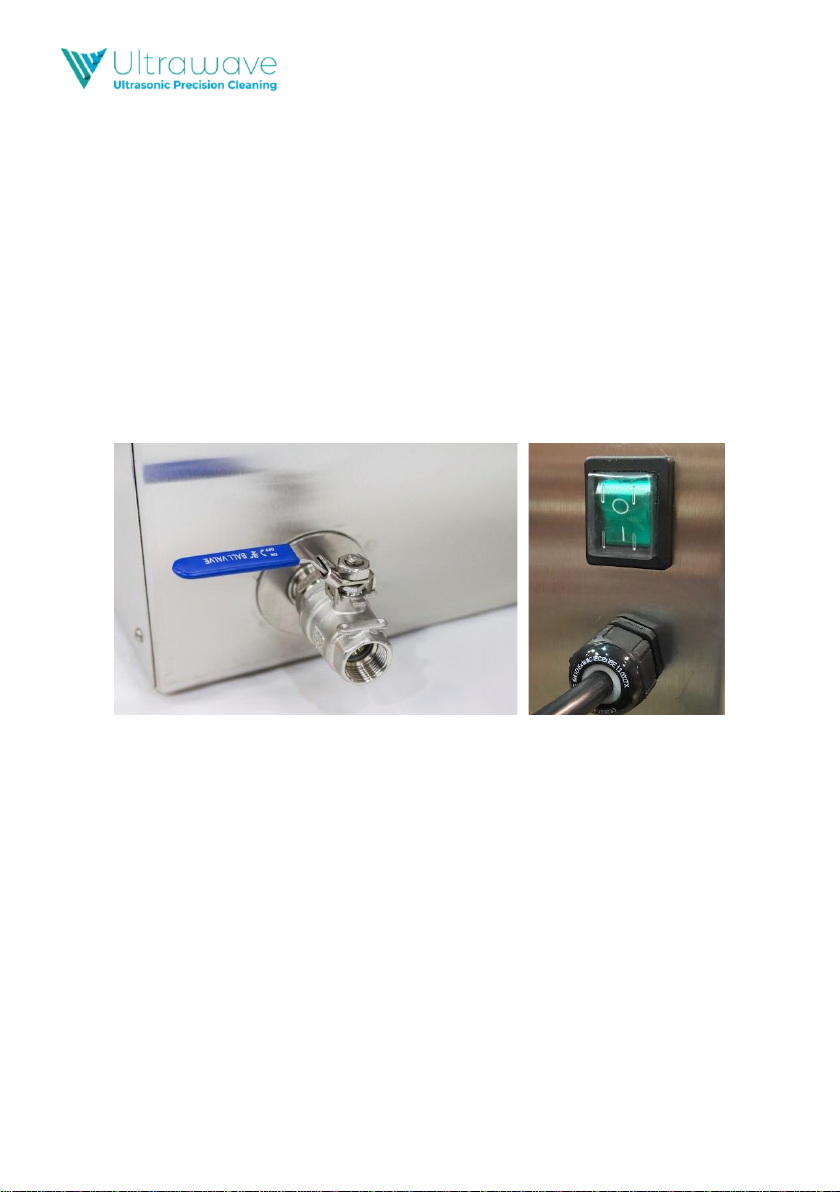

How to install
Locate the ultrasonic equipment close to a drain or sink to allow easy drainage of the
tank.
Screw the hose connector into the drain valve located on the rear of the unit.
Connect a drain hose to the hose connector and locate the other end over a drain or
sink.
Connect the electrical mains lead into a suitable mains outlet.
The mains ON/OFF switch is located on the rear of the unit.

IND Operating Manual 8 C6000507
Filling the tank
Pour cold or hand warm water into the tank the liquid reaches the float level sensor.
If there is insufficient fluid in the tank to activate the float level sensor, the digital
control panel will display the scrolling message “LEVEL”.
Where this message displays, the unit will not operate until more fluid is poured into
the tank to activate the sensor. Once this is done this message will no longer display.

IND Operating Manual 9 C6000507

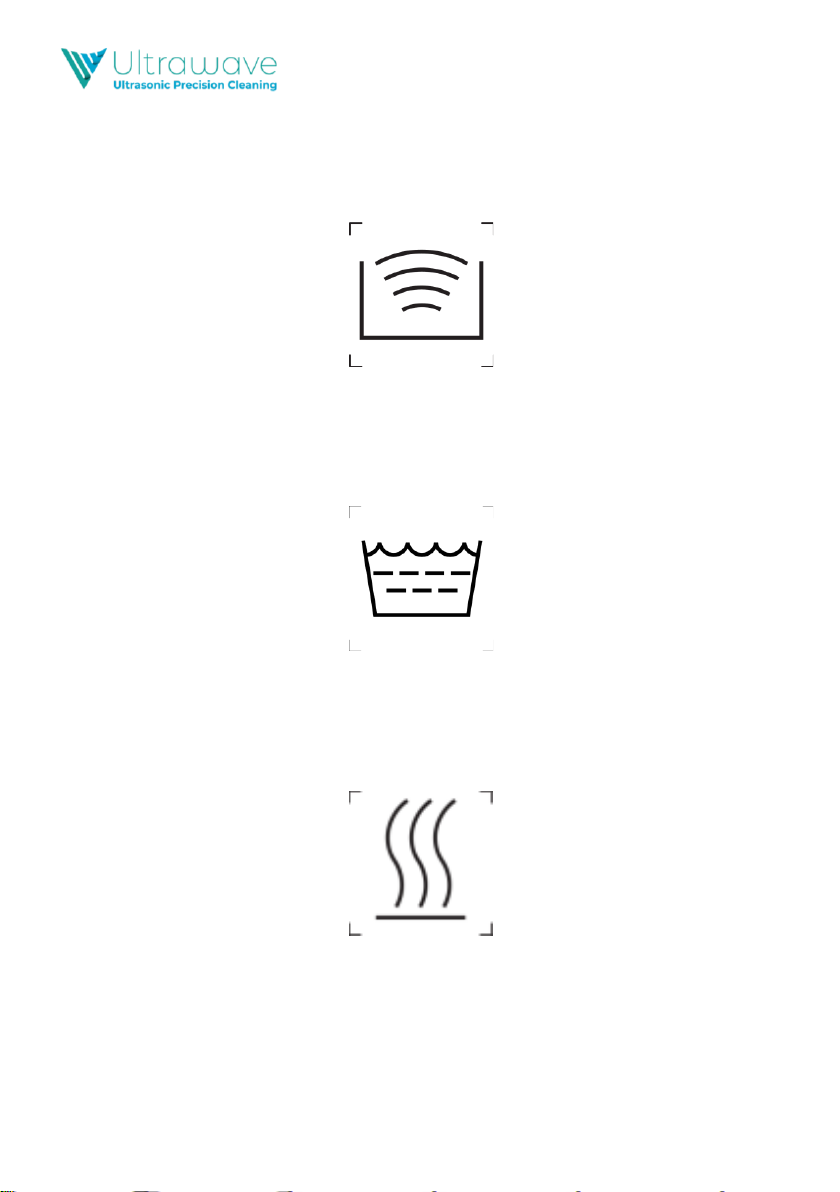

Type of IND unit
There are three versions of the IND series:
Ultrasonic & heated
This is a fully functional ultrasonic unit with an ultrasonic generator & transducers
and heaters
Heated only
In certain circumstances, ultrasonic activity is not required, e.g., when used as a
rinse tank. In this instance only water heaters are provided
Dryer
The IND dryer is covered in a separate user guide.
Never attempt to fill the dryer with liquid

IND Operating Manual 10 C6000507

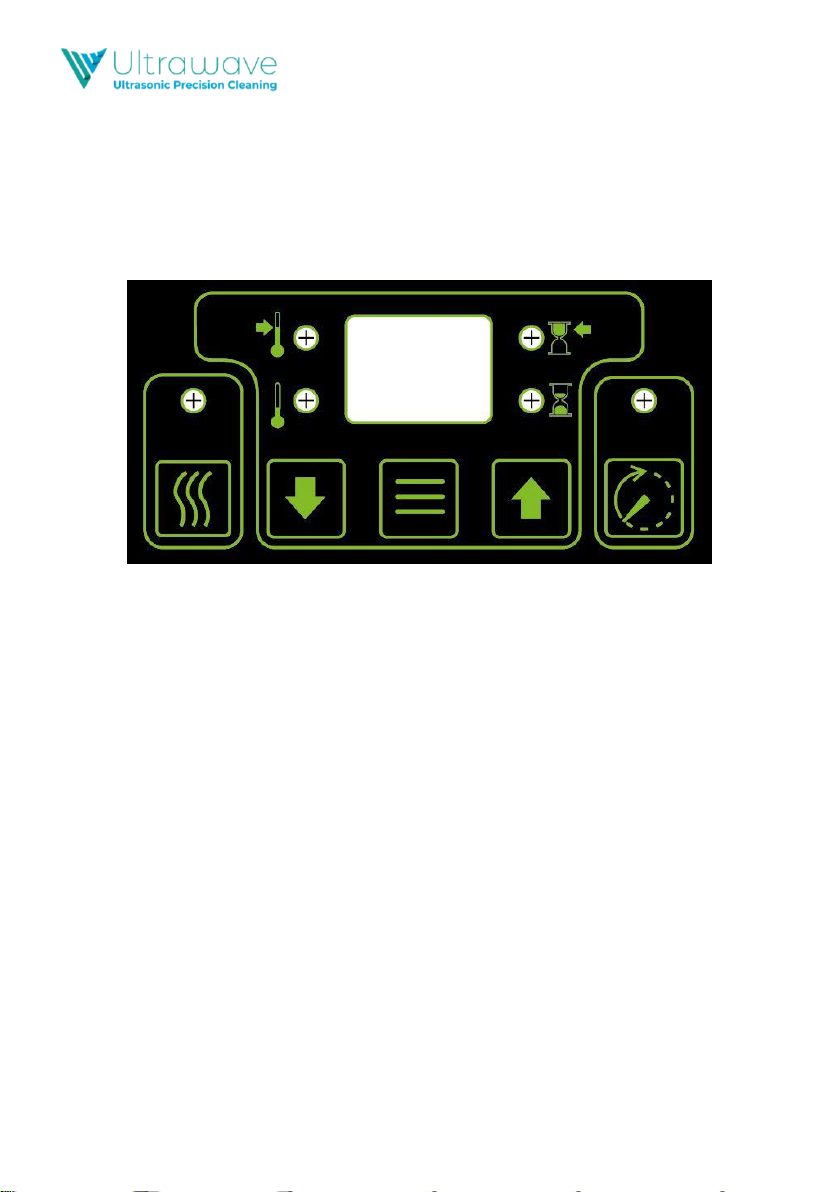

The User Interface Explained
Five buttons are provided
Heat
Starts and stops the heat function
Down
Used to scroll down when programming cycle time or
set temperature
Mode
Toggles between Normal Cycle, Set Cycle Time and
Set Temperature
Up
Used to scroll up when programming cycle time or
set temperature
Cycle
Starts and stops a timed cycle
Six individual LEDs are provided
Heat
Illuminated when the unit is heating, flashing when the set
temp is at or above the set temperature
Temp
Set
Illuminated when in temperature setting mode
Temp
Now
Illuminated to indicate that the screen is displaying the water
temperature
Time
Set
Illuminated when in cycle time setting mode
Time
Now
Illuminated to indicate that the screen is displaying cycle
time remaining
Cycle
Illuminated when a cycle is running

IND Operating Manual 11 C6000507
Setting the cycle time and temperature
To set the cycle time (settable 1-99 minutes):
Press the centre MODE key until the TIME SET light glows. Press the Up or Down
arrows until the required time in minutes is indicated.
To set the cycle temperature (ambient to 80°C):
Press the centre MODE key until the TEMP SET light glows. Press the Up or Down
arrows until the required heat setting in degrees Celsius is indicated.
The new programmed settings will be stored in the software memory once the
equipment has completed a cycle. These settings will remain even if the machine is
disconnected from the electricity supply.
The centre MODE button can be pressed at any time to view the time set, time
remaining, the temperature set or actual temperature.

IND Operating Manual 12 C6000507
Ultrasonic Unit Operating Instructions
Before placing items in the IND-Series to be cleaned, the liquid will need to be
degassed. Turn on the ultrasonics for at least 10 minutes to degas the cleaning liquid.
(See page 15 for more details on degassing).
The IND-Series is now ready to use.
To switch on the ultrasonic activity:
Press the CYCLE key. The CYCLE light will glow, activity will commence in the liquid
and the display will count down from the set time.
(The factory pre-set time is 10 minutes.)
At the end of the timed period the activity will stop and the timer will revert to the
pre-set time, ready for a repeat of the operation.
To stop the sonic activity at any time, press the CYCLE key.
To operate the heater:
Press the HEAT key. The HEAT light will glow, and the liquid temperature will rise until
it reaches the set temperature (the factory pre-set temperature is 50 °C.)
Once the desired temperature has been reached, the HEAT light will flash indicating
that the set temperature has been reached.
NOTE: Ultrasonic activity itself will heat the liquid, meaning that the liquid
temperature may rise above the set level. When the °C NOW Mode is selected, the
display will show the actual liquid temperature.
At the end of the cycle, remove the basket from the ultrasonic cleaner and rinse the
items under clean running water.
Change the cleaning liquid at regular intervals. Your cleaning process will determine
how often to change the liquid –the more soiled your items, the more often you will
need to change the liquid.

IND Operating Manual 13 C6000507
Heated Unit Operating Instructions
To start a timed cycle:
Press the CYCLE key. The CYCLE light will glow, activity will commence in the liquid
and the display will count down from the set time.
(The factory pre-set time is 10 minutes.)
At the end of the timed period the activity will stop and the timer will revert to the
pre-set time, ready for a repeat of the operation.
To stop the cycle at any time, press the CYCLE key.
To operate the heater:
Press the HEAT key. The HEAT light will glow, and the liquid temperature will rise until
it reaches the set temperature (the factory pre-set temperature is 50 °C.)
Once the desired temperature has been reached, the HEAT light will flash indicating
that the set temperature has been reached.

IND Operating Manual 14 C6000507
Technical Information
The need to degas
In order to allow optimum ultrasonic activity, the gases present in ordinary tap water
need to be driven out of the cleaning solution.
The time needed to degas the liquid varies depending on the amount of gas present
in the liquid and the quantity of water in the tank. Ultrawave recommends a degas
period of at least 10 minutes, although larger tanks will require a longer degas period.
During the degas cycle, you will see bubbles of gas forming on the inside of the
equipment, and slowly rising to the surface. Degassing is complete when you can no
longer see these bubbles. Another indication of increased “cold-boiling” at the liquid
surface indicates that the liquid is degassed.
Once the liquid is degassed, the equipment is ready for use.
The effect of heat
Heating the liquid in the equipment
will aid the cleaning process.
Normally a temperature of
between 30 to 75°C is sufficient to
accelerate the process. You will see
from the graph that optimum
cleaning will be obtained at 60°C
Ultrasonic activity itself will heat up the liquid at a rate of approximately 10-15°C per
hour if in continuous use.
Cleaning time
Cleaning time will depend on application, type and amount of contamination. General
light contamination should be removed in less than 10 minutes.
An indication of cleanliness is when stains are no longer visible, and contamination
no longer appears in a stream from the item being cleaned.
Average power
0
20
40
60
15 25 35 45 55 65 75 85
Temp (Deg C)
Power
(Watts/Inch^2)
AvPower
-3dB point

IND Operating Manual 15 C6000507
Ultrasonic cleaning detergents
Detergents are a vital component in the ultrasonic cleaning process, aiding in the
removal and loosening of debris from the surfaces of items placed in the tank while
also intensifying the power of the ultrasonic activity.
Ultrawave offers a range of specially formulated ultrasonic detergents for use in
applications including medical and industrial cleaning requirements.
Ultrawave recommends a dosage of between 2 and 5% by volume for all the
following detergents
Ultraclean SA: A general purpose cleaning detergent suitable for use on aluminium
and other soft metals.
Ultraclean M2: A general purpose cleaning detergent for all plastics, glass and
metals (except aluminium and other soft metals), which is also suitable for use on
medical instruments.
Ultraclean CS: Moderate grease and heavy contaminant removal for industrial
cleaning applications. Not suitable for use on aluminium and other soft metals.
Ultraclean CBX: An alkaline detergent for heavy grease and carbon removal. Not
suitable for use on aluminium and other soft metals.
Ultraclean SPX: A strong alkaline detergent for removal of tough grease and heavy
carbon deposits. Not suitable for use on aluminium and other soft metals.
Ultraclean PH: A strong acidic based detergent for heavy descaling, light rust
removal and metal brightening. Not suitable for use on aluminium and other soft
metals.
Ultraclean CTA: An acidic based detergent for descaling, degreasing and
brightening of metals. Fair compatibility with aluminium.
Ultraclean RI: Rust inhibitor for corrosion prevention of ferrous metals.
Ultraclean Test Kit: A sample pack of 1L each of the Ultraclean: SA, M2, CS, CBX,
SPX and PH.
Each of these detergents is available from Ultrawave. The required detergent dose
may vary depending on the component being cleaned and the level of contamination.

IND Operating Manual 16 C6000507
Maintenance
It is important to keep your equipment clean. Not only will contaminated liquid reduce
the performance of the ultrasonic equipment, but it may also damage it. Change the
cleaning liquid regularly. Your cleaning process will determine how often to change
the liquid –the more soiled your items, the more often you will need to change the
liquid. Change the cleaning liquid at least daily.
The base of the tank generates the ultrasonic activity by vibrating at high frequency.
If any contaminants are in contact with bottom of the tank, they act as an abrasive,
causing wear on the metal surface. In extreme cases, the tank will develop holes and
start to leak.
There are no user serviceable parts inside the IND-Series. All service and repair must
be conducted by suitably trained and qualified engineers approved by Ultrawave.
Service contracts for your ultrasonic equipment are available from Ultrawave.
Contact us for more information on
Tel: [phone]
e-mail [e-mail]
Returning equipment to Ultrawave
Ultrasonic equipment which has been used in medical/healthcare applications should
be decontaminated/packaged in accordance with MHRA guideline document
DB2006(5) ‘Managing Medical Devices - Guidance for healthcare and social services
organisation’, this can be found at www.mhra.gov.uk.
A decontamination declaration is available to download at
www.ultrawave.co.uk/downloads.html “Ultrawave product return form”
This policy is designed to protect the health and safety of Ultrawave employees
reducing the risk of potential injury or infection
If you require further information please contact the After Sales Dept. on:
Tel: [phone]
E-mail: [e-mail]

IND Operating Manual 17 C6000507

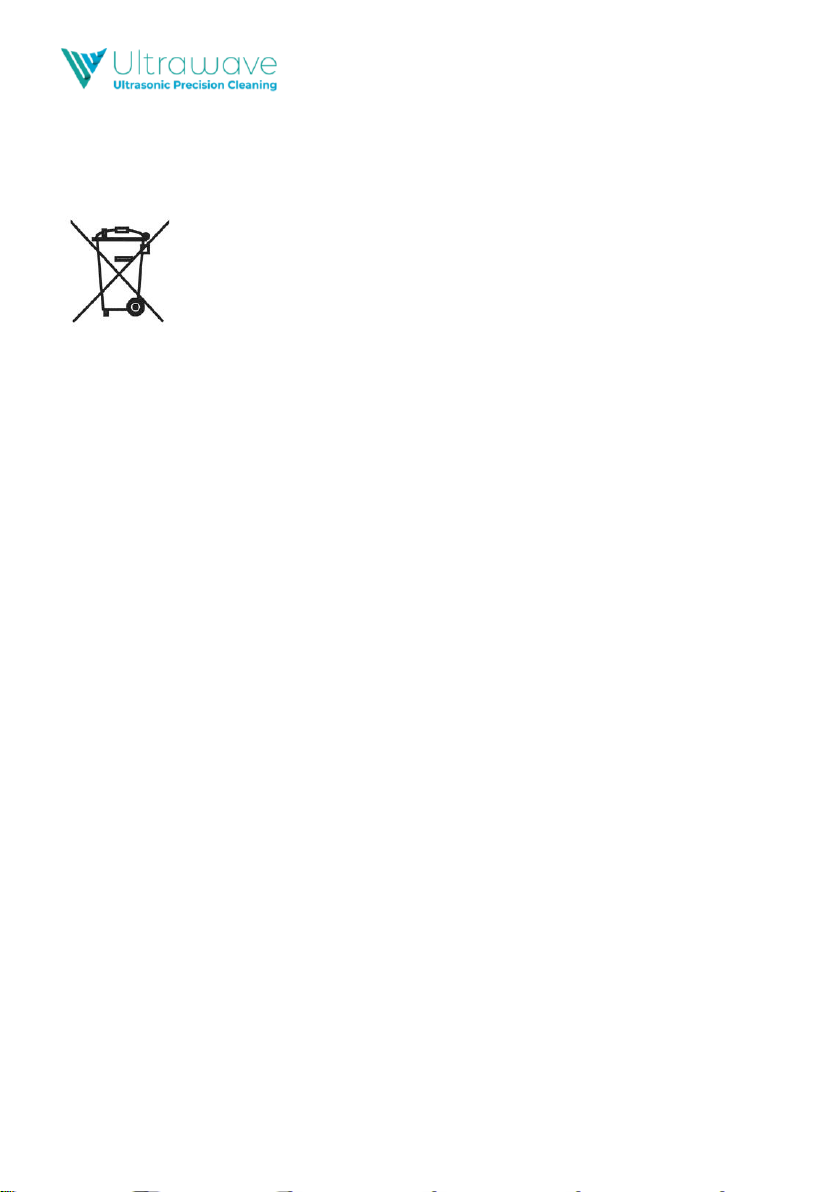

Disposal of this ultrasonic equipment
At the end of its useful life, please ensure that you dispose of this product in
accordance with national regulations.
WEEE Compliance:
Ultrawave is complying with the WEEE regulations by contracting-out our obligations
to a Producer Compliance scheme. Once it is deemed that this model is no longer
effective, please contact Ultrawave to arrange collection by our compliance scheme
provider, who will pick up the machine from your premises.
Warranty
Ultrawave Industrial Cleaning Systems and Equipment, when used in
accordance with the instructions, are covered by the following warranty:
Ultrawave Ultrasonic Generators and all electrical, electronic and mechanical
components are made of the highest quality materials and are guaranteed for 12
months from the date of commissioning on site by our engineer but no greater than
13 months after shipment date, against failure caused by genuine defective material
or workmanship, unless otherwise agreed.
Ultrawave Ultrasonic PZT transducers are guaranteed not to crack, deteriorate or
become detached from the radiating surface (bonding process), for five years from
date of shipment. If exposed to liquid or chemicals the warranty will be invalidated.
Within the warranty period Ultrawave will repair or replace free of charge, Ex Works,
all defective parts in the system/equipment but Ultrawave shall not be liable for costs
for removing (disassembling) or installing (assembling) parts.
For repairs and replacements effected under these warranty conditions, same
warranty conditions are applicable. The warranty period for such repairs and
replacements shall, however, be only until the end of the warranty period valid for
the originally delivered system/equipment.
Damage caused by improper handling or misuse is not covered by warranty
and costs mays be incurred.

IND Operating Manual 18 C6000507
The warranty does not cover normal wear and tear of e.g. motors, pumps, cavitation
erosion of vibrating surfaces and such like, so far as this wear is not caused by
structural failures. The warranty does not cover defects or failures arising out of non-
observance, improper or faulty maintenance or faulty repair or by alterations carried
out without Ultrawave’s consent in writing.
Additionally, any damage caused by the use of toxic, flammable, acidic, caustic or
corrosive chemicals or fluids not recommended by Ultrawave will invalidate the
warranty. If in any doubt, contact Ultrawave to ensure compatibility in the first
instance.
The warranty excludes consumable items such as filters, seals and detergents which
would need to be replaced as part of any routine maintenance. Furthermore any
external services to and from the system/equipment shall be excluded, which may
be subjected to external forces outside the control of Ultrawave.
Extended Warranty
An Extended warranty on the system/equipment is offered with two options:
Option 1 - for a period of 36 months from the date of commissioning on site by our
engineer but no greater than 37 months after shipment date;
Option 2 - for a period of 60 months from the date of commissioning on site by our
engineer but no greater than 61 months after shipment date.
The warranty will remain in force for the stated period of the option taken out above,
provided always that any system/equipment which includes the extended warranty
is serviced at regular intervals as part of a separate Planned Preventative
Maintenance Service (PPMS) agreement. All PPMS functions under any PPMS
agreement must be performed by Ultrawave personnel or organisations authorised
by Ultrawave. Services under any PPMS agreement must be carried out at intervals
of a minimum of once per year or more for the full term of the extended warranty,
as designated by Ultrawave for each individual system/equipment.
Warranties will not apply if any fault has been caused by failure of the Customer to
carry out routine maintenance, in addition to any PPMS carried out by Ultrawave as
part of the extended warranty, or the Customer fails to ensure the required services
are maintained.
Ultrawave will accept no liability for any loss of production or business interruption
resulting from any system/equipment failure whether or not any such failure is
covered by any Ultrawave warranty.

IND Operating Manual 19 C6000507
Warranties are not transferrable to other users in the event of the system/equipment
being sold or otherwise transferred to third party users. Warranties will become void
in the event of the system/equipment being moved in any way from any location
where the system/equipment was originally commissioned by Ultrawave unless
Ultrawave are notified in writing prior to any such move.

IND Operating Manual 20 C6000507
Troubleshooting
Ultrawave has a dedicated After Sales Department who are able to resolve any
problems that occur with your equipment. However, on many occasions it is possible
that the problem can be rectified by the operator.
The unit fails to turn on (no
display is shown)
Check that the unit is plugged in, and that mains electricity is present.
There is no ultrasonic
activity
Check that the indicators illuminate when the unit is switched on.
If the indicators fail to illuminate, check the mains supply and fuse in
the mains plug, as well as the fuses in the mains socket (if fitted) on
the rear of the equipment.
If the fuses and mains electricity supply are OK, and the unit fails to
operate, the equipment should be returned to your supplier for
service.
The heaters do not work
Check that the heater indicator illuminates when the unit is switched
on.
Check the set temperature.
If the indicators fail to illuminate, check the mains supply and fuse in
the mains plug, as well as the fuses in the mains socket (if fitted) on
the rear of the equipment.
If the fuses and mains electricity supply are OK, and the heaters fail
to operate, the equipment should be returned to your supplier for
service.
Display shows “LEVEL”
Ensure there is sufficient water in the tank so that the float level
sensor activates.
Display shows “ot”
The water temperature has risen above the maximum allowable, i.e.,
85 degrees Celsius, wait for the equipment to cool down.
Display shows “SF”
The temperature sensor is faulty, contact the Ultrawave After Sales
Department.
If any of these problems persist, the Ultrawave After Sales Department can be
contacted on [phone] or [e-mail].
Please have to hand your model and serial number together with information on the
problem prior to contacting us.
If we are unable to solve your problem over the phone, we may suggest returning
your product to the distributor from whom you purchased or directly to Ultrawave.
Where appropriate, we operate a Return to Base (RTB) warranty and repairs policy.
