INTRODUCTION
Congratulations on choosing your New UM®
Chill. By Purchasing a new UM®, you became
part of worldwide family of satisfied customers;
people who appreciate UM’s commitment for
building quality into every product.
Your Chill was designed as a street motorcycle.
Before riding, take time to get acquainted with
your motorcycle and how it works. To protect
your investment, we urge you to take responsi-
bility for keeping your motorcycle well maintai-
ned. Scheduled service is a must, of course. But
it is just as important to observe the break-in
guidelines, and perform all the pre-ride and
other periodic checks detailed in this manual.
The next 2000 km are the most important for
the life of your motorcycle’s engine. The proper
usage during the first kilometers will achieve *This manual should be considered a permanent part of the motorcycle and
should remain with the motorcycle when it is resold.
**This publication includes the latest production information available before
printing. UM®Motorcycles reserves the right to make changes at any time
without notice and without incurring any obligation.
maximum life and maximum performance of
your motorcycle. It is especially important that
you do not operate the motorcycle in a manner
that will cause over heating of the engine.
We also recommend that you read the owner’s
manual carefully before you ride. It is full of
facts, instructions, safety information, and
helpful tips.
If you have any questions, or if you ever need a
special service or repairs, remember that your
UM®dealer knows your motorcycle best and is
dedicated to your complete satisfaction.
Please report any change of address or owne
ship to your dealer so we will be able to contact
you.
5
USER’S MANUAL
UM MOTORCYCLES CHILL EURO V 50 - 125

THANK YOU,
AND WELCOME TO THE WORLD OF UM®

A FEW WORDS ON SAFETY
IMPORTANT POINTS
Your safety, and the safety of others, is very
important. And operating this motorcycle safely
is an important responsibility.
To help you make informed decisions about
safety, we have provided operating procedures
and other information in this manual. This
information alerts you to potential hazards that
could hurt you or others. It does not and could
not warn you of all hazards associated with
operating or maintaining a motorcycle. You
must use your own good judgment.
You will find important safety information in a
variety of forms, including:
• Safety Labels – on the motorcycle
• Safety Messages – preceded by a safety alert
symbol and one of the three signal words:
DANGER, WARNING, or CAUTION.
CAUTION
DANGER
if you don t follow instructions.
WARNING
You will be killed or seriously hurt
if you d follow instructions.
instructions.
7
USER’S MANUAL
UM MOTORCYCLES CHILL EURO V 50 - 125

8
FOR MORE DETAILS ON THE WARRANTY OF THIS PRODUCT,
PLEASE CONTACT YOUR UM®DEALER.
• Safety Headings – such as Important Safety
Reminders or Important Safety Precautions.
• Safety Section - such as Motorcycle Safety.
• Instructions – how to use this motorcycle
correctly and safely.
This entire book is filled with important safety
information. Please read it carefully.
USER’S MANUAL
UM MOTORCYCLES CHILL EURO V 50 - 125

OWNERSHIP INFORMATION
The UM®dealers are required to register the
sale of the motorcycle with up to date informa-
tion regarding the original owner, in order to
activate the Warranty.
If the owner of the vehicle has changed, please
submit an “Owner Registration” form via fax or
regular mail.
This information is necessary for notification, in
case your motorcycle is affected by a service
bulletin or campaign.
9
USER’S MANUAL
UM MOTORCYCLES CHILL EURO V 50 - 125

OWNER REGISTRATION FORM
MODEL & COLOR COMPLETE VIN (VEHICLE IDENTIFICATION NUMBER)
OWNER INFORMATION
OWNERSHIP NUMBER
ADDRESS
CITY & STATE
POSTAL CODE
TELEPHONE NUMBER
EMAIL
BIRTH DATE
DEALERSHIP
IMPORTANT: TO ACTIVATE THE VEHICLE WARRANTY, THIS REGISTRATION FORM MUST BE DILIGATED AND REGISTERED WITH YOUR UM®DEALER
IMMEDIATELY AFTER YOU HAVE PURCHASED THE VEHICLE.
10 USER’S MANUAL
UM MOTORCYCLES CHILL EURO V 50 - 125

CONTENTS
PRECAUTIONS
SIDE VIEW
CONTROLS AND INSTRUMENTS
VEHICLE IDENTIFICATION NUMBER (VIN)

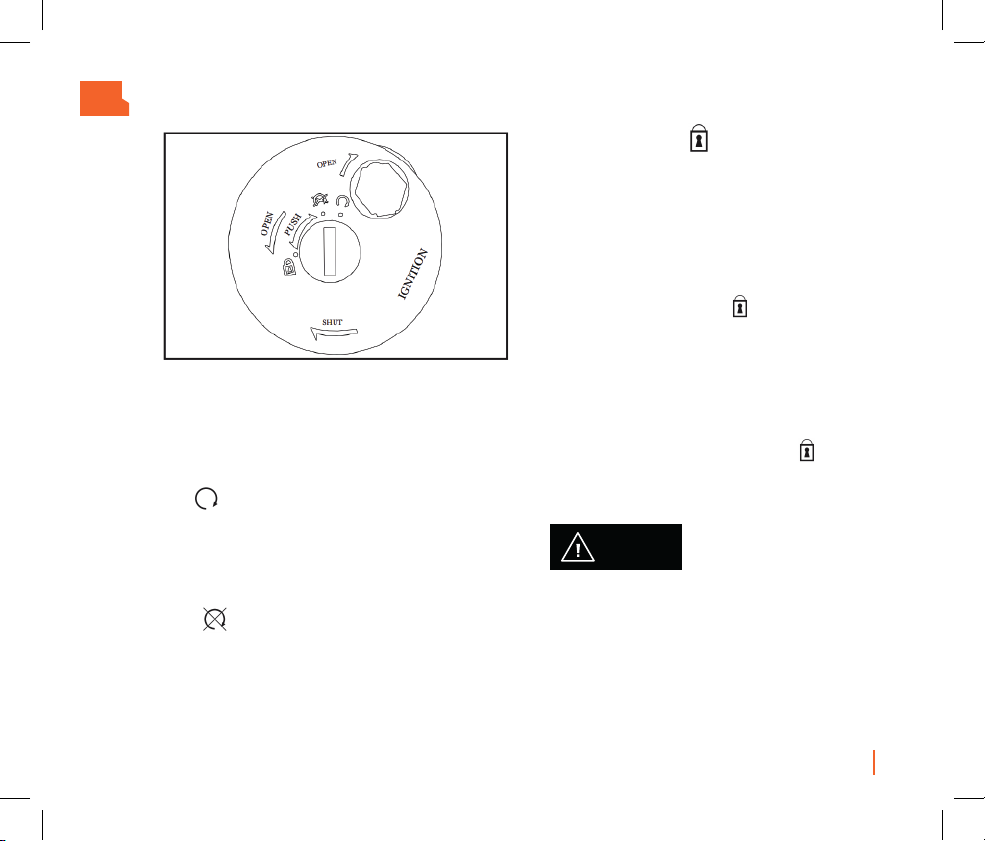

MAIN SWITCH
LOCK THE STEERING
UNLOCK THE STEERING
DASHBOARD UNIT
HANDLEBAR SWITCHES - LEFT
HANDLEBAR SWITCHES /R
BRAKE LEVER
FUEL TANK CAP
REMOVE THE FUEL TANK CAP
INSTALL THE FUEL TANK CAP
FUEL
CATALYTIC CONVERTER
KICK STARTER
SEAT
FRONT HOOK, HELMET
SIDE STAND
14
16
17
18
19
19
19
20
21
21
22
22
22
23
23
23
24
24
25
25
MAIN STAND
COMBINED BRAKE SYSTEM (CBS)
PRE-OPERATION CHECK LIST
STARTING THE ENGINE
STARTING WITH THE ELECTRIC STARTER
STARTING WITH THE KICK STARTER
STARTING OFF
ACCELERATION / DECELERATION
BRAKING
PARKING
ENGINE BREAK IN
OWNER’S TOOL KIT
BATTERY
SPARK PLUG
CHECK THE SPARK PLUG
ENGINE OIL
FINAL TRANSMISSION OIL
CHANGE THE FINAL TRANSMISSION OIL
AIR FILTER
REPLACE THE AIR FILTER
26
26
28
29
29
29
30
31
31
31
32
32
33
33
33
35
35
35
36
36
11
USER’S MANUAL
UM MOTORCYCLES CHILL EURO V 50 - 125

CONTENTS
ECU
THROTTLE CABLE FREE PLAY
TIRES
TIRE AIR PRESSURE
TIRE INSPECTION
RIMS
BRAKE LEVER FREE PLAY
BRAKE PADS
BRAKE PADS - FRONT
BRAKE SHOES - REAR
BRAKE FLUID
CHANGING THE BRAKE FLUID
CABLES
THROTTLE GRIP AND CABLE
FRONT BRAKE LEVER
REAR BRAKE LEVER
SIDE STAND / MAIN STAND
FRONT FORK
STEERING
WHEEL BEARINGS
37
37
37
37
38
39
39
40
41
41
41
42
42
43
43
43
43
44
44
45
BATTERY
CHARGE THE BATTERY
STORE THE BATTERY
FUSE
REPLACING THE FUSE
LIGHTING
TROUBLESHOOTING CHART
CLEAN THE VEHICLE
BEFORE CLEANING
CLEANING AFTER NORMAL USE
CLEANING AFTER RIDING IN THE RAIN, NEAR
THE SEA OR ON SALT-SPRAYED ROADS
AFTER CLEANING
STORAGE
SHORT-TERM (FOR A FEW DAYS)
LONG-TERM (FOR WEEKS)
EFI SYSTEM INTRODUCTION
TECHNICAL SPECIFICATIONS
PERIODICAL MAINTENANCE
TROUBLE SHOOTING
RECOMMENDATIONS
WARRANTY POLICY
WARRANTY REGISTRATION FORM
45
46
46
46
46
47
48
50
50
50
50
50
51
51
51
51
52
53
54
57
64
65
66
12 USER’S MANUAL
UM MOTORCYCLES CHILL EURO V 50 - 125

OPERATING INSTRUCTIONS
Thanks for your purchasing of this vehicle. This
model is designed for safety, built for durability,
and perfected for daily street use. The unique
vehicle design, enrich of stylish and personality,
represents your outstanding taste and favor to
pursue the state of the art living attitude.
This manual describes the correct usage of this
motorcycle including safety riding, simple
inspection methods and so on.
For a more comfortable and safety riding,
please read this manual carefully. If any
questions concerning the operation or mainte-
nance of your vehicle, please consult a dealer.
13
USER’S MANUAL
UM MOTORCYCLES CHILL EURO V 50 - 125

PRECAUTIONS
• Please observe traffic laws and regulations
carefully and drive safely.
• Make sure not to lend this motorcycle to be
driven by a person not holding a driver’s license.
• Make sure not to hang anything on the
direction handgrip, otherwise the driving safety
may be affected.
• Please wear your protective articles such as
helmet, dust goggles, gloves for the sake of
your safety.
• Make sure not to use this model to participate
in any kind of competition. Otherwise, any
mechanical breakdown, injury or death arising
where from shall be on your own account.
• The temperature of exhaust silencer is high
when the motorcycle is running. Drivers shall be
careful not to touch it to burn them.
• Don’t wear loose clothes or slippers when
driving it. Otherwise, it may hook the control
grip and accessories, and thus cause potential
safety hazards.
WARNING
14 USER’S MANUAL
UM MOTORCYCLES CHILL EURO V 50 - 125

• After opening the packaging box, please
check the accessories and various documents
delivered with the motorcycle according to the
packing list.
• The motorcycle accommodates two persons,
and the maximum payload is 150 kg. The
moped accommodates 1 person, and the
maximum payload is 75 kg.
• It is not allowed to modify any part of the
motorcycle. Otherwise, the reliability, stability
and comfortableness of the motorcycle may be
affected.
• Only the fuel with a grade specified on the
fuel tank or above can be used. Otherwise, the
dynamic performance, economy, and safety of
the motorcycle may be damaged, and the
service life of the motorcycle will be shortened.
If any mechanical breakdown occurs due to
this, you shall be solely responsible for it.
CAUTION
• This Manual is a necessity for the use of the
motorcycle. If the motorcycle is transferred to
any other person, this Manual should be
transferred together with the motorcycle.
• When it is necessary to adjust the air valve
clearance of the motorcycle, please do it in a
professional motorcycle maintenance shop or
in a designated after-sales service center.
15
USER’S MANUAL
UM MOTORCYCLES CHILL EURO V 50 - 125

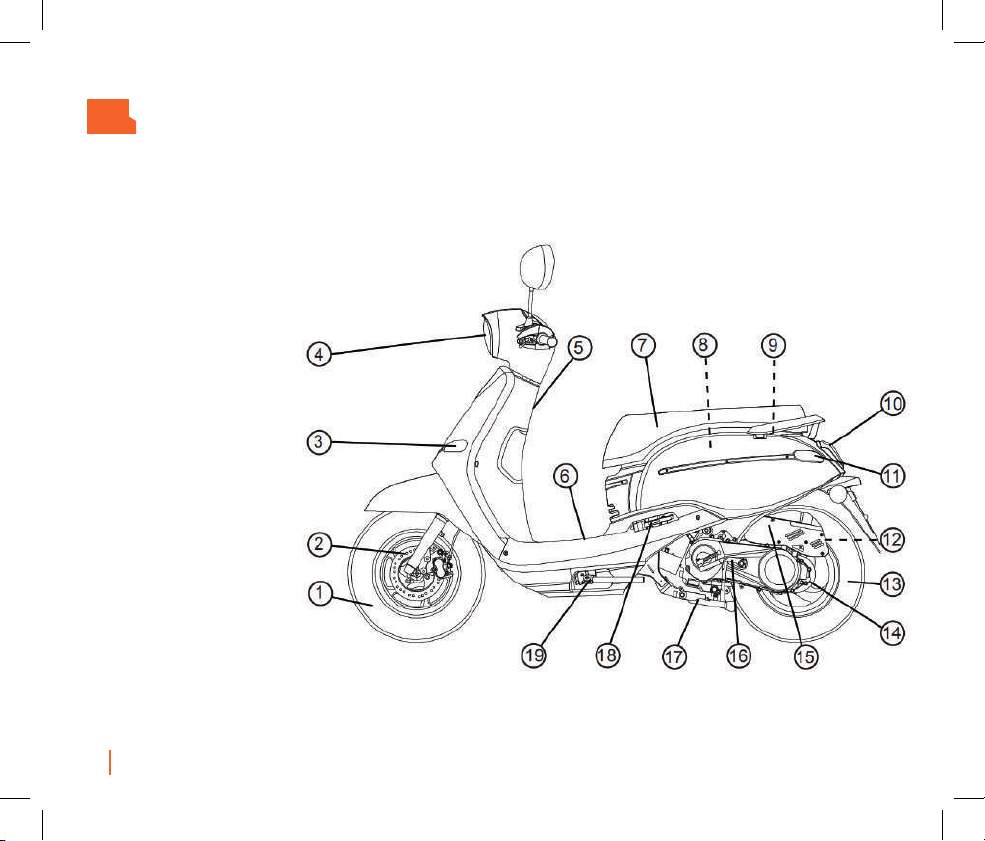

SIDE VIEW
1. Front wheel
2. Front disc brake
3. Front turn signal light
4. Headlight
5. Helmet holder
6. Fuel tank cap
7. Seat
8. Storage compartment
9. Battery
10. Tail/brake light
11. Rear turn signal light
12. Muffler
13. Rear wheel
14. Rear drum brake
15. Air filter
16. Kick starter
17. Main stand
18. Passenger footrest
19. Side stand
16 USER’S MANUAL
UM MOTORCYCLES CHILL EURO V 50 - 125

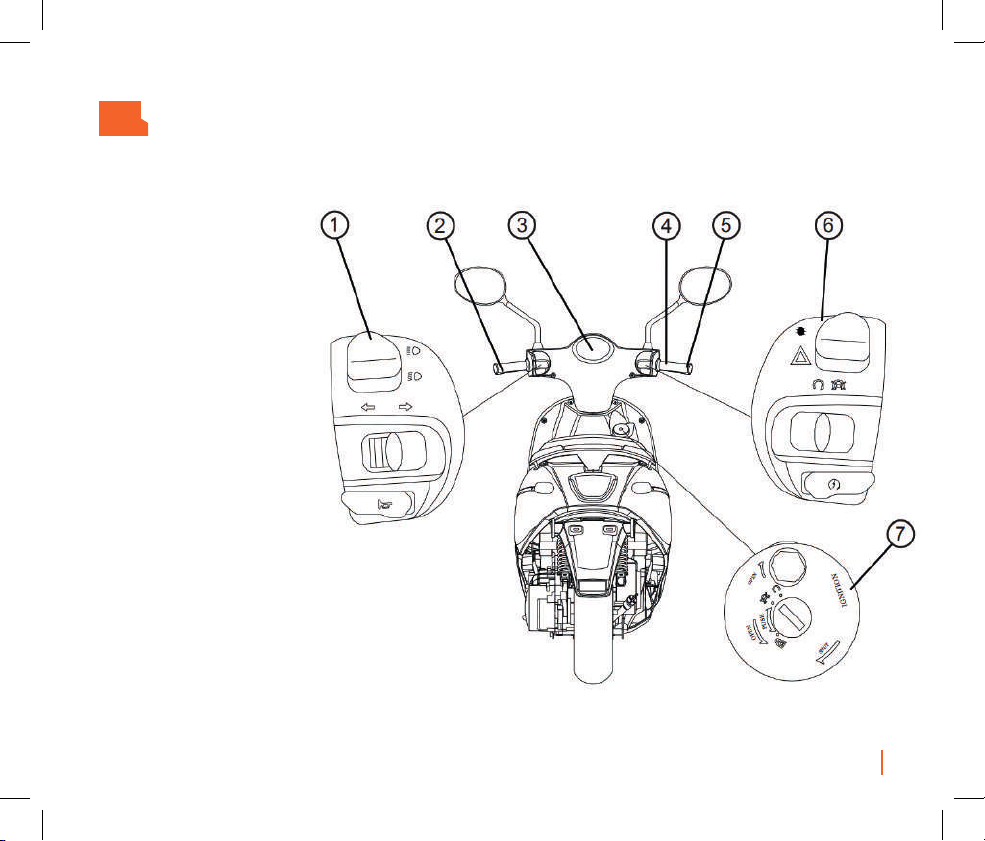

CONTROLS AND INSTRUMENTS
1. Left handlebar switches
2. Rear brake lever
3. Dashboard unit
4. Front brake lever
5. Throttle grip
6. Right handlebar switches
7. Main switch
17
USER’S MANUAL
UM MOTORCYCLES CHILL EURO V 50 - 125

VEHICLE IDENTIFICATION NUMBER (VIN)
Please write down the VIN (vehicle identifica-
tion number) to order replacement parts from
your dealer or the vehicle should be stolen.
The chassis number is stamped into the frame.
To see this, take the cover (1) from the inner
lining in the foot.
This number completely identifies your vehicle.
This number is used by all state, district, federal
and government entities, for regulation,
emission purposes and registration. This identi-
fication number is stamped on the chassis, and
is located on the steering column.
Furthermore, our warranty system is based on
this identification number and the engine
number. Your engine number will be used by a
UM authorized dealer for vehicle identification
purposes only.
This number is stamped on the left engine
case, below the shift pedal. It is a crime to
remove or tamper with the identification
numbers.
CAUTION
The vehicle identification number is used to
identify your motorcycle and may be used to
register your vehicle with the licensing authority
in your area.
18 USER’S MANUAL
UM MOTORCYCLES CHILL EURO V 50 - 125

MAIN SWITCH
The main switch controls the ignition and
lighting systems, and also used to Lock the
steering. The various positions are described as
below.
ON
All electrical circuits are supplied with power,
the engine can be started. The key cannot be
removed.
OFF
All electrical systems are off . The key can be
removed.
STEERING LOCK
The steering is locked, and all electrical
systems are off. The key can be removed.
LOCK THE STEERING
1. Turn the handlebar fully to the left.
2. Insert the key into the main switch.
3.Turn the key while you apply pres-sure to it,
counterclockwise in the position. If the lock
does not engage immediately, move the
handlebars back and forth slightly.
4. Remove the key.
UNLOCK THE STEERING
1. Insert the key into the main switch.
2. Turn the key clockwise to the position. If
the lock does not engage immediately, move
the handlebars back and forth slightly.
WARNING
Never turn the key to or , while the vehicle is
moving, otherwise the electrical systems will be
switched off, which may result in loss of control
or an accident. Make sure that the vehicle is
stopped before turning the key.
19
USER’S MANUAL
UM MOTORCYCLES CHILL EURO V 50 - 125

OPEN THE GLOVE COMPARTMENT
When in „OFF“ position, turn the key counter-
clockwise without pushing it in to open the
glove compartment.
DASHBOARD UNIT
1. Turn signal indicator light /.
2. High beam indicator lamp.
3. Engine warning light (EOBD).
4. Odometer.
5. Speedometer.
6. Fuel warning indicator.
1. TURN SIGNAL INDICATOR LIGHT
This indicator light flashes when the turn signal
light is activated.
2. HIGH BEAM INDICATOR LAMP
Lights up whenever high beam is switched on.
3. ENGINE WARNING LIGHT (EOBD)
When you turn on the ignition, the lamp lights
up. After starting the engine, it disappears. If
your vehicle detects a failure in the system, the
check engine lamp lights up. Contact a dealer
to check with a diagnosis tool.
4. ODOMETER
The dashboard unit is equipped with an odome-
ter. The odometer shows the total distance
traveled.
5. SPEEDOMETER
The dashboard unit is equipped with a speedo-
meter. The speedometer showsthe riding
speed.
6. FUEL WARNING INDICATOR
The fuel warning indicator shows if you have
little fuel left in the tank. Refuel immediately.
The fuel gauge indicates the amount of fuel in
the fuel tank. The needle moves towards „E“
(Empty) as the fuel level decreases.
20 USER’S MANUAL
UM MOTORCYCLES CHILL EURO V 50 - 125
