UniData Communication Systems WPU-7800 User manual

WPU-7800 Global
Admin’s Manual
UniData Communication Systems, Inc
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

1
Copyright Notice
UniData Communication Systems is registered trademarks of UniData Communication Systems
Inc. Other referenced trademarks are trademarks (registered or otherwise) of the respective
trademark owners.
This document is confidential and proprietary to UniData Communication Systems Inc. No part
of this document may be reproduced, stored, or transmitted in any form by any means
without the prior written permission of UniData Communication Systems Inc.
Information furnished herein by UniData Communication Systems Inc., is believed to be
accurate and reliable. The authors have used their best efforts in preparing this material.
These efforts include the development, research, and testing of the theories and programs to
determine their effectiveness.
However, UniData Communication Systems assumes no liability for errors that may appear in
this document, or for liability otherwise arising from the application or use of any such
information or for any infringement of patents or other intellectual property rights owned by
third parties which may result from such application or use. The products, their specifications,
and the information appearing in this document are subject to change without notice.
UniData Communication Systems Inc
© 2011 by UniData Communication Systems Inc. All rights reserved.
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

2
Manual Introduction
Before use, kindly read this “Administrator Manual” thoroughly to have an understanding of
the contents
After reading, place it within reach at all times such as at the side of this product.
This manual is for administrator who has working knowledge of fundamental terms and
concepts of computer networking, converged voice and data networks to include LANs, WANs,
and IP switching and routing.
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

3
Safety Precautions
Since this is provided to make safe and right use of WPU-7800G to prevent any accidents or
risks, be sure to carefully read it, follow instructions, and keep it where it is easily noticed.
Warning
This mark is intended to warn users of the risk of a serious injury or death when they violate
instructions.
Do not put WPU-7800G in heating appliances such as heaters and microwave ovens to
dry them if they are wet. It can cause explosions, deformation, or troubles. In this case, free
services shall not be provided.
Do not use WPU-7800G in places that are too hot or too wet (keep them indoors
between 0 ℃and + 50 ℃). If they get wet with rain, have drinks spilled, or are used in
extremely hot/wet places such as public sauna bathroom, it can cause battery explosions.
Put WPU-7800G and chargers in places out of reach of children or pets. If one puts
batteries his or her mouth, or uses broken batteries, it can hurt his or her body, or cause
electric shocks.
Do not disassemble WPU-7800G, or apply shocks to them as you please. If they get
damaged while you disassemble them, or inflict shocks on them, you cannot have free
services.
You should stop charging the phone and separate it from battery if the phone is
overheating during charging the phone. Doing so may get burned.
Be aware of much ESD (Electrostatic Discharge simulator) environment. The product may
have the abnormal condition
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

4
Be sure to use designated batteries and accessories only for WPU-7800G provided by our
company. If you use unauthorized batteries or accessories, it can reduce the life of WPU-
7800G, cause explosions, or damage them. In this case, you cannot have free services.
Be careful for conductors such as necklaces, keys, and coins not to contact battery
terminals (metal section). Since short circuits can cause explosions, be careful for such events
never to take place.
Neither throws batteries, which can inflict shocks on them, nor put them near to heating
appliances such as heaters and microwave ovens. It can cause the leak of battery contents, or
explosions.
Use standard chargers that obtained Unidata authentication for batteries. Otherwise,
batteries will have their life reduced, face explosions, or damage WPU-7800G. In this case, free
services shall not be provided.
Refrain from the use of WPU-7800G, and leave the power cord of chargers unplugged
when thunders and lightening are severe. Thunderbolts can cause severe physical injuries, or
fires.
Do not hold WPU-7800G to your ears to turn on the power. It can cause hearing
impairments, or physical injuries. Do not look at the infrared window in a direct way when
using remote control. It can cause visual impairments.
Do not use chemical detergents such as benzene, thinner, and alcohol to clean WPU-
7800G. It can cause fires.
Never push the power button when WPU-7800G are wet, nor touch WPU-7800G,
chargers, or power cords with wet hands. It can cause fires or electric shocks.
Precautions
This mark is intended to caution users against violating instructions since it can cause a slight
physical injury or product damage.
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

5
Correctly install WPU-7800G in compliance with instructions. Otherwise, it can cause an
abnormal operation of WPU-7800G, or reduce their life.
Be aware of radio interference. Since this radio equipment can have radio interference,
services related to life safety are not provided.
Do not install WPU-7800G in places exposed to direct sunlight, and on carpets or
cushions. It can cause fires or troubles.
Do not install WPU-7800G in narrow places with poor ventilation, or near heat sources. It
can cause fires or troubles.
Do not install WPU-7800G in places with much dust. It can cause operational problems,
or reduce phone life.
Install WPU-7800G on flat places, not on shelves or slopes. Otherwise, it can hurt you, or
cause troubles when they drop.
Since emergency calls are available only within call coverage, check in advance whether
or not calls are available.
Do not use WPU-7800G covered wrap or vinyl. Coating can be removed.
Record and keep the information contained in WPU-7800G separately.
Since the important information stored in WPU-7800G can be removed due to unavoidable
circumstances such as users’ carelessness, maintenance, and product upgrade, please keep a
record of important information. Take note that manufacturer will not take responsibility for
any damage from the loss of information. If batteries are not used for a long time, keep them
at room temperature after charging.
If you want to use again after leaving them for a long time, it is recommended to use them
after fully charging.
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

6
Keep in mind that WPU-7800G can produce much heat while using for a long time.
Do not install WPU-7800G in heavily shaking places. It can cause performance degradation, or
reduce the life of products.
After using WPU-7800G for a long time, they can produce a weak sound due to their liquid
crystal protective vinyl covering the speaker.
If WPU-7800G is separated from AP or chargers for a long time, they cannot work due to
battery discharge.
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

7
Contents
Chapter 1
Basics..................................................................................................................................9
WPU-7800G at a Glance........................................................................................................... 9
Basic Key Function.................................................................................................................. 10
Chapter 2
Administrator Menu and Changing Password .....................................................................11
Chapter 3
Network............................................................................................................................12
Seaching an Available Access Point........................................................................................ 12
Creating a new Access Point .................................................................................................. 13
Deleting Registered Access Point........................................................................................... 14
Changing Priority Access Point............................................................................................... 15
Configuring Security............................................................................................................... 15
Authentication ....................................................................................................................... 16
Certification Manager ............................................................................................................ 16
TCP/IP..................................................................................................................................... 17
Chapter 4
VoIP ..................................................................................................................................18
SIP........................................................................................................................................... 18
QoS......................................................................................................................................... 19
Coder...................................................................................................................................... 20
SIP Outbound Proxy ............................................................................................................... 21
Chapter 5
Time..................................................................................................................................22
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

8
Chapter 6
Diagnostic .........................................................................................................................23
Diagnose Network .........................................................................................................23
Diagnose WLAN.............................................................................................................24
DSP Test........................................................................................................................26
LCD/LED Test.................................................................................................................26
Speaker Test .................................................................................................................27
Ping test........................................................................................................................27
Chapter 7
Auto Provisioning Guide ....................................................................................................29
General Sequence of Autoprovisioning ...........................................................................29
Setting Auto Provisioning Server Address........................................................................30
Web Configuration Tool.................................................................................................30
Setting the .ini file in Autoprovisioning Server .................................................................32
Firmware Upgrade.........................................................................................................40
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

9
Basics

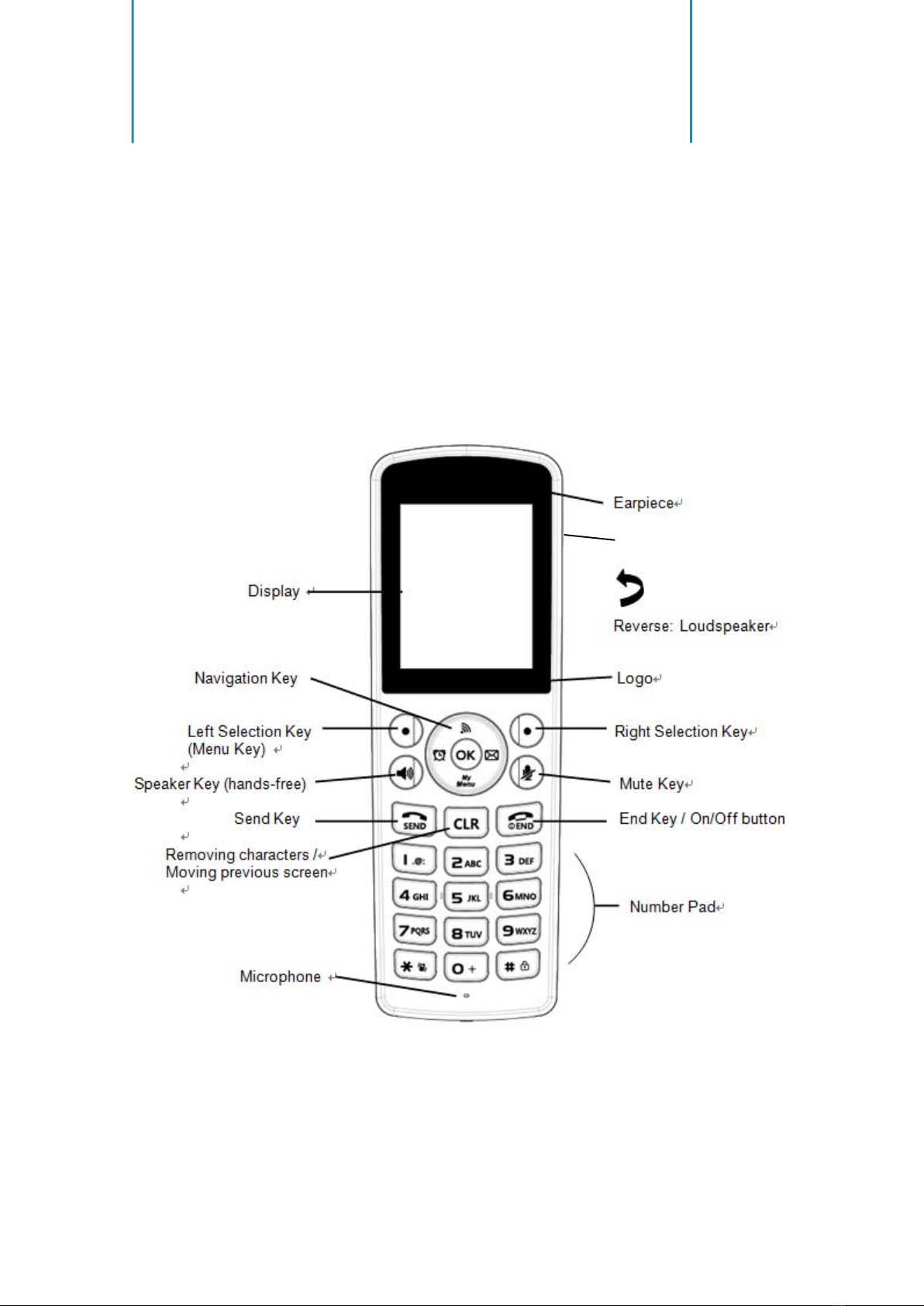

WPU-7800G at a Glance
UniData
Earphone Jack
1
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

10
Basic Key Function
Key Name
Icon
Basic functions
Navigation key
Navigation Key –In the idle state, this button opens
each function. Within a menu or a list, you can use
this as direction keys.
Left selection key
Right selection key
L R
Soft keys(Selection) –the function of an individual
button is depicted in the display depending on status.
Options will appear.
Send key
Equivalent to “Answer” on a standard phone and
“hold” during a call.
End key
Equivalent to “hang up” on a standard phone. Return
to idle state. Pressing and holding the key in the idle
state turns the handset On/Off.
OK key
Confirmation(OK), Select, View, Connect on each
display screen
AP search key
Search WLAN key / Scroll up in the menu list
Alarm key
Setting up alarm and wakeup call /
Move to left in the menu and editor.
My menu key
Quick access to personal shortcuts / Scroll down in
the menu list
Message key
Using message function
Speaker key
Using speaker function
Mute key
Mute key is used when calling on the phone.
Pressing the key during a call turns “Mute” mode.
Vibration key
Pressing and holding the key in the idle state:
Switch the ringer (buzzer) On/Off
Clear key
CLR Key is used to return to previous menu list.
Cancel (ESC) and removing characters.
Lock key
The pound is for entering the pound sign.
Pressing and holding the key in the idle state:
Switches on the key lock.
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

11
Admin Menu and Changing Password
1
Press the left selection key Lto enter menu in
standby mode
2
Press the direction key ▲▼◄► to go to settings
section and press the Admin Menu
3
Default administrator password is 000000 and user
password is 0000
4
Administrator can only change the Administrator
password and User password. To change Password,
select “Admin Pwd” or “User Pwd”
2
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

12
Network
Searching an available Access Point
1
Press L → ◄( ) →3. WLAN Search Or
Press AP search key to shortcuts to search an
available Wi-Fi Access Points
2
Select an access point from the list that you will connect
then press .
3
If you using password for connect to AP then select
configuring security as 64-bits WEP and Enter the
password into line number 1, then press .
Select authentication and network type then press .
Please refer to Configuring Security (p.15 Configuring
Security and Authentication)
Registered or added AP Search results of AP
(Default Registered AP is VoIP.)
3
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

13
Creating a new Access Point
If there is no AP that you’re connecting for from the list, you can refresh the search or add
access point.
1
Press L → ◄( ) →3. WLAN Search Or
Press AP search key to shortcuts to search an
available Wi-Fi Access Points
2
Select “Menu” and “3. Add Profile” using the Left soft
key Lto make new profile, then enter the admin
password.
L → 3 → Enter the admin Password.
3
Enter SSID, security and authentication type of access
point.
If 4 Access Points are saved already, it is not able to add.
4
You can input the special characters as well.
Press Left selection key L and select symbol.
To change Alphanumeric to numeric, press the right
selection key R.
5
Enter network type of Wi-Fi access point. Please refer to
Security and TCP/IP chapter (p.17 TCP/IP)
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

14
Deleting Registered Access Point
WPU-7800G supports to delete saved Access Point. In WLAN search mode, select Menu then 4.Delete to
remove Wi-Fi Access Point. After confirm with entering administrator password, select “Yes”, it will be
deleted.
1
Press the AP search key to enter WLAN search mode in
Standby mode
2
Select an access point from the list that you will delete then
press Left selection key L, choose 4.Delete to delete and
press with entering password
L→4 → → Enter the admin Password.
3
If you want to delete all Access Point that you registered
already, press Left selection key L, select “5. Delete all”
follow by entering password.
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

15
Changing Priority Access Point
The higher position of Access Point in the registered screen has higher priority when connect
automatically
1
Press the AP search key to enter WLAN search
mode in Standby mode
2
Select the Access Point from the registered list that you
want to change priority, press Left selection key L
then select Up or Down in menu to change the position
for priority.
Default Access Point “VoIP” can be changed by the Auto-
provisioning configuration only
Configuring Security
While creating a new access point or edit existing access point, security option can be set.
To setup the type of security using the direction key ▲▼◄► and press key when
you’re sure to setting the type of security. WPU-7800G supports various types of security 64-
bits WEP, 128-bits WEP, WPA-PSK, WPA2-PSK, WPA-EAP and WPA2-EAP.
If your AP does not necessary to these kinds of security, this procedure can be passed.
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

16
Authentication
If you and your Access Point are using 802.1x authentication then select “Yes”to configure.
Enter your ID and Password for authentication and select your types of authentication among
the mode list.
Certification Manager
In case of EAP-TLS, Select “Certs manger” in administrator menu.
L→ ◄( ) → 9. Admin Menu → Enter Password → 7. Certs Manager
Reference and download of the Root CA and Private CA are possible in order to use 802.1x
(EAP-TLS, PEAP, TTLS). You can select which of TFTP, HTTP or HTTPS as a download system.
Root certificate
Supporting .der, .cer and .pem Encode system
Private certificate
Supporting .pfx and .p12 Encode system
Certificate will be deleted when select “Delete CA”
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

17
TCP/IP
WPU-7800G supports DHCP and manual IP. You can select “DHCP” automatically or “Manual
IP” manually to configuring network using the direction key ▲▼◄► in network setup
screen.
IP, Net mask, Gateway and DNS should be entered in case of using manual IP in network setup.
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

18
VoIP
SIP Setting
L→ ◄() → 9. Admin Menu → Enter Password → 5. VoIP setting
1
Select “5.VoIP setting” in System mode
2
Display name: type the display name of phone
User name: type phone number or user name registered
in SIP.
Auth. User name: User ID for SIP Proxy
3
Auth. Password: User Password for SIP Proxy
Domain: Domain Server
4
If you have secondary or backup proxy server, you can
also input IP address in 2nd_Proxy section.
In Domain section, you should put the domain name
server only if SIP header includes Domain Name.
4
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

19
QoS
Qos: Quality of Service
L→ ◄() → 9. Admin Menu → Enter Password → 8. QoS → 1.VoIP
1
Select “8.QoS” in System menu
2
Select “VoIP” in QoS menu
3
Enter Signal DSCP and Voice DSCP.
VoIPon www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]
