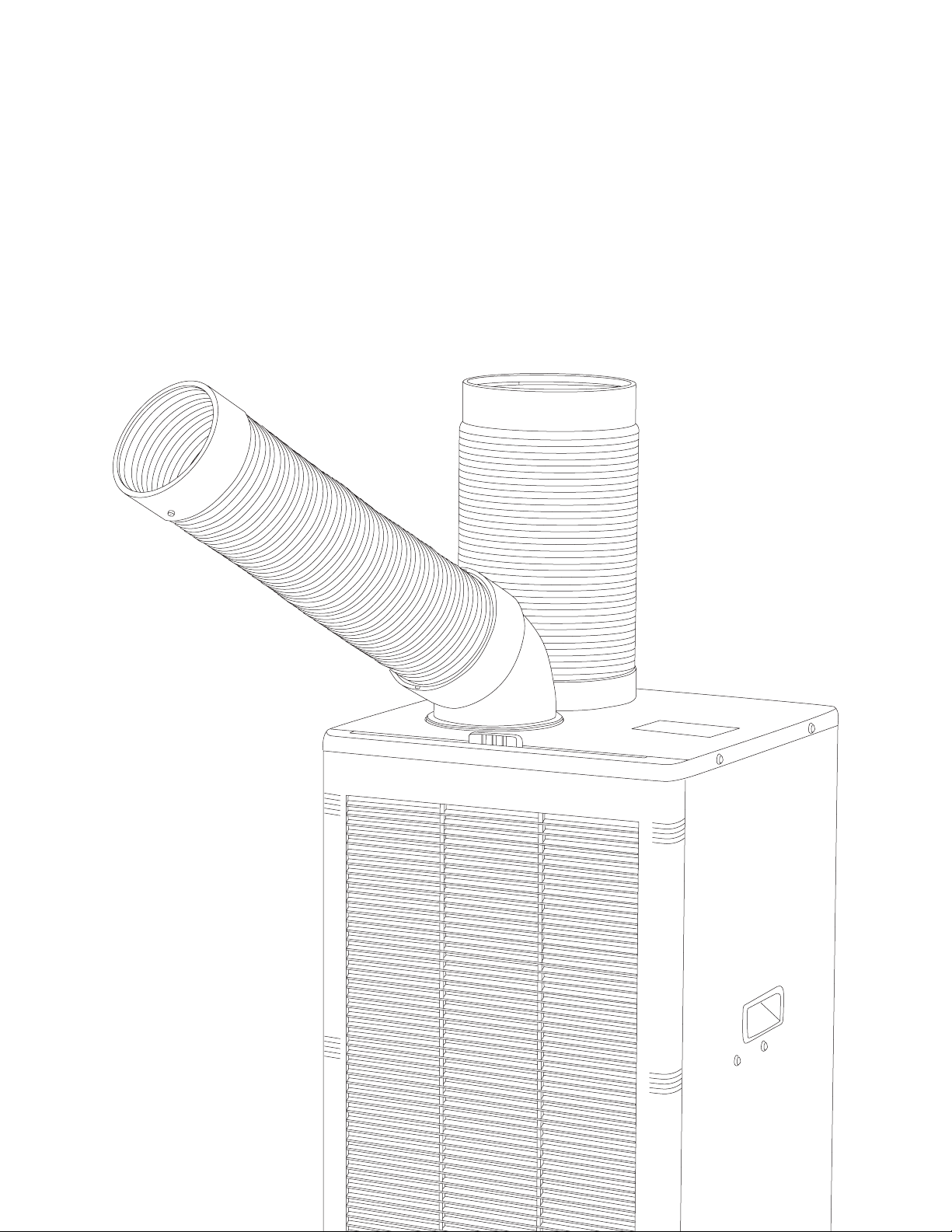

UNINEX KoolBase MSC407NE User manual

USER MANUAL
MSC407NE
KoolBase
MOBILE SPOT COOLER
A PORTABLE STREAM OF AIR FOR
INDOOR AND OUTDOOR USE

THANK YOU FOR PURCHASING THE KOOLBASE MOBILE SPOT COOLER.
PLEASE READ THE INSTRUCTIONS BEFORE USING.
KEEP THESE INSTRUCTIONS FOR REFERENCE.
KoolBase
2

TABLE OF CONTENTS
1. SAFETY PRECAUTIONS ··································· PAGE 4,5
2. SPECIFICATIONS ················································· PAGE 6
3. ACCESSORIES ····················································· PAGE 6
4. PARTS OF THE MACHINE ··································· PAGE 7
5. INSTALLATION ····················································· PAGE 7
6. OPERATING INSTRUCTION ································ PAGE 8
7. MAINTENANCE AND INSPECTION ··················· PAGE 11
8. TROUBLESHOOTING ········································· PAGE 12
KoolBase
3

KoolBase
4
1. SAFETY PRECAUTIONS
Please read “Safety Precautions” carefully before operating the unit to reduce the risk of injury or
damage.
Please read carefully. The following should be read and understood.
STOP
STOP
FORBIDDEN
AS DIRECTED
NOTIFICATIONS / CAUTION
FOR YOUR SAFETY, PLEASE FOLLOW THESE INSTRUCTIONS.
It may cause personal injury, re, or other property damage
if you neglect this mark and operate in the wrong way.
Please do not use the unit where ammable materials are used or stored (such as thinner,
gasoline, kerosene, LPG, aluminum, magnesium, and plumbum). They could cause
possible re or explosion.
Only a professional repair service should disassemble the unit in order to avoid warranty
voidance or safety issues such as re, electric shock, and injury. If you need repairs,
please contact the manufacture or qualied repair service.
This mark stands for under any circumstances this unit should
not be used.
This mark stands for only use as directed.
The power supply use only 115V single phase, otherwise it will cause the unit not to
function properly.
This mark stands for notication of use or to be aware of
possible hazardous or unsafe situations.
Please do not operate the unit in the rain or wet areas.

KoolBase
5
Keep unit away from excessive heat or re. It may cause damage to the unit.
Do not change or modify the unit. It could cause damage to the unit or property and will
void warranty.
Use only grounded outlet.
Turn o the unit to move location or lock casters.
Hold plug when pulling out of outlet. Otherwise, the plug may be damaged or sparking
could occur.
The unit operates in the temperature range from 64°F to 104°F, otherwise it may cause the
unit to slow the air ow or shutdown.
To prevent an accident or damage, the unit can not be used in the following locations:
• Not grounded.
• Unlevel ground.
• Stairs, emergency exit or entrance.
• Area of strong wind, heavy dust or metal powder.
Unplug unit for repair or installation.
Do not bend, pull, bind, clip, or change the power cord. It may cause accidents such as
re or electrical shock.
Do not use unit on a boat.
Unplug unit if storing or non-use for a period time.
If the unit is stopping, has excessive noise, or abnormal odor, please stop use immediately.
STOP

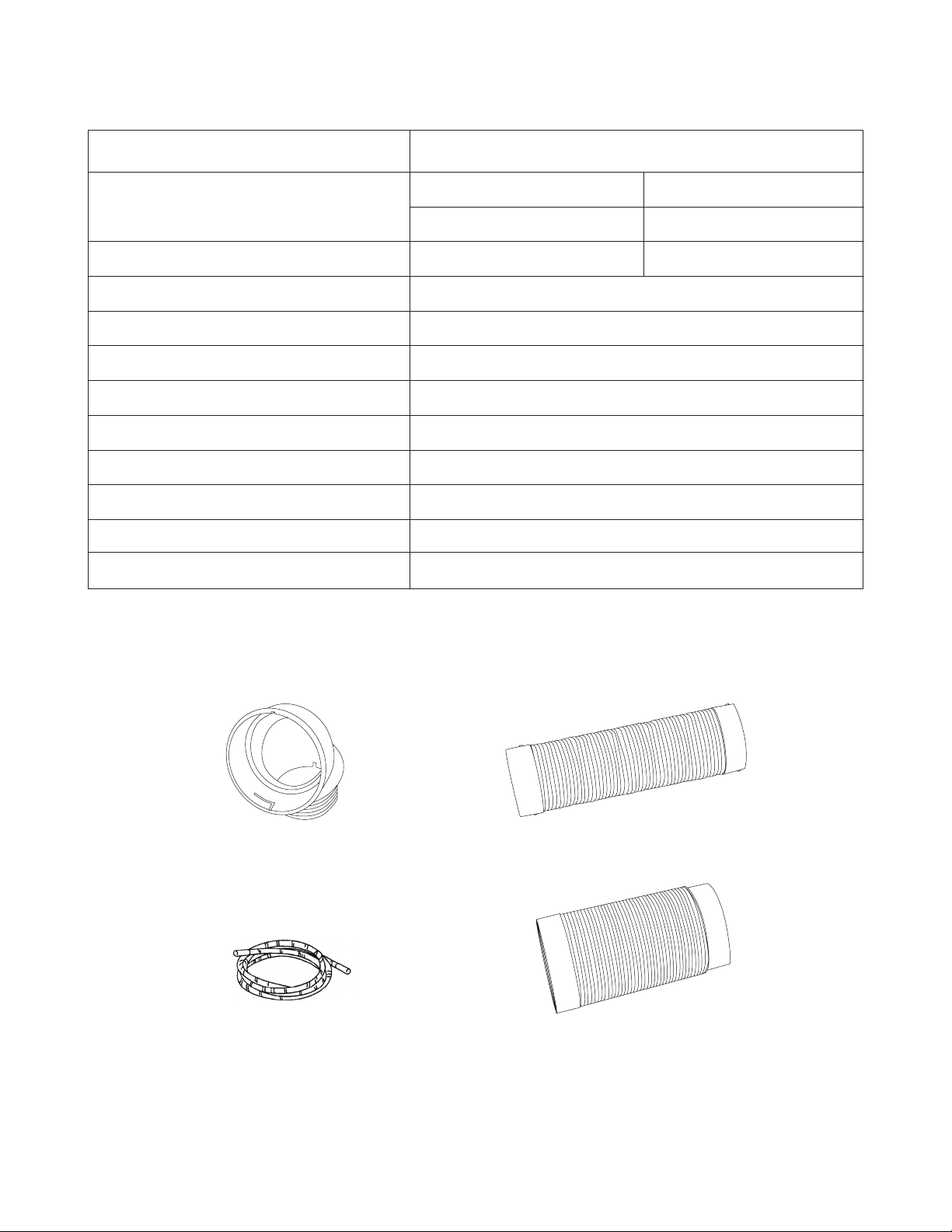

2. SPECIFICATIONS
3. ACCESSORIES
POWER / FREQUENCY
LOAD CURRENT
CONSUMPTION POWER
COOLING CAPACITY
COMPRESSOR
REFRIGERANT
Curved Duct Cooling Duct
Drain Hose Heat Exhaust Duct
REFRIGERANT (RATED CHARGE)
WATER STORAGE CAPACITY
CONDENSATE WATER HANDLING METHOD
SIZE
WEIGHT
OPERATING TEMPERATURE LIMIT
Single Phase 115 V / 60 Hz
High
8.8 A
1050 W
Low
7.9 A
950 W
8,500 BTU
Fully Closed Type Rotary
R410 A
440 g
4 L
Condensation Tank / Drain Pipe
15” × 17” × 31”
81.6 LB
(77℉ - 113℉)
KoolBase
6

Heat Exhaust Duct
Cooling Duct
Curved Duct
Service Cover
Condensation Tank (4L)
Caster Wheel
4. PARTS OF THE MACHINE
5. INSTALLATION
•INSTALLING THE CURVED DUCT
Center it above the cold air exit and push down until curved duct clicks in place. It will rotate 360°.
• INSTALLING THE COOLING DUCT
Slide the cooling duct raised nub in to the slot of the curved duct. Then turn clockwise to lock.
Make sure the duct is connected properly before using. When adjusting the direction, turn the curved
duct instead of the cooling duct.
KoolBase
7
Raised Nub
Slot
Curved Duct
Cooling Duct
Cold Air Exit
Cooling Duct Installation

Heat Exhaust Duct
Heat Exhaust Duct Socket

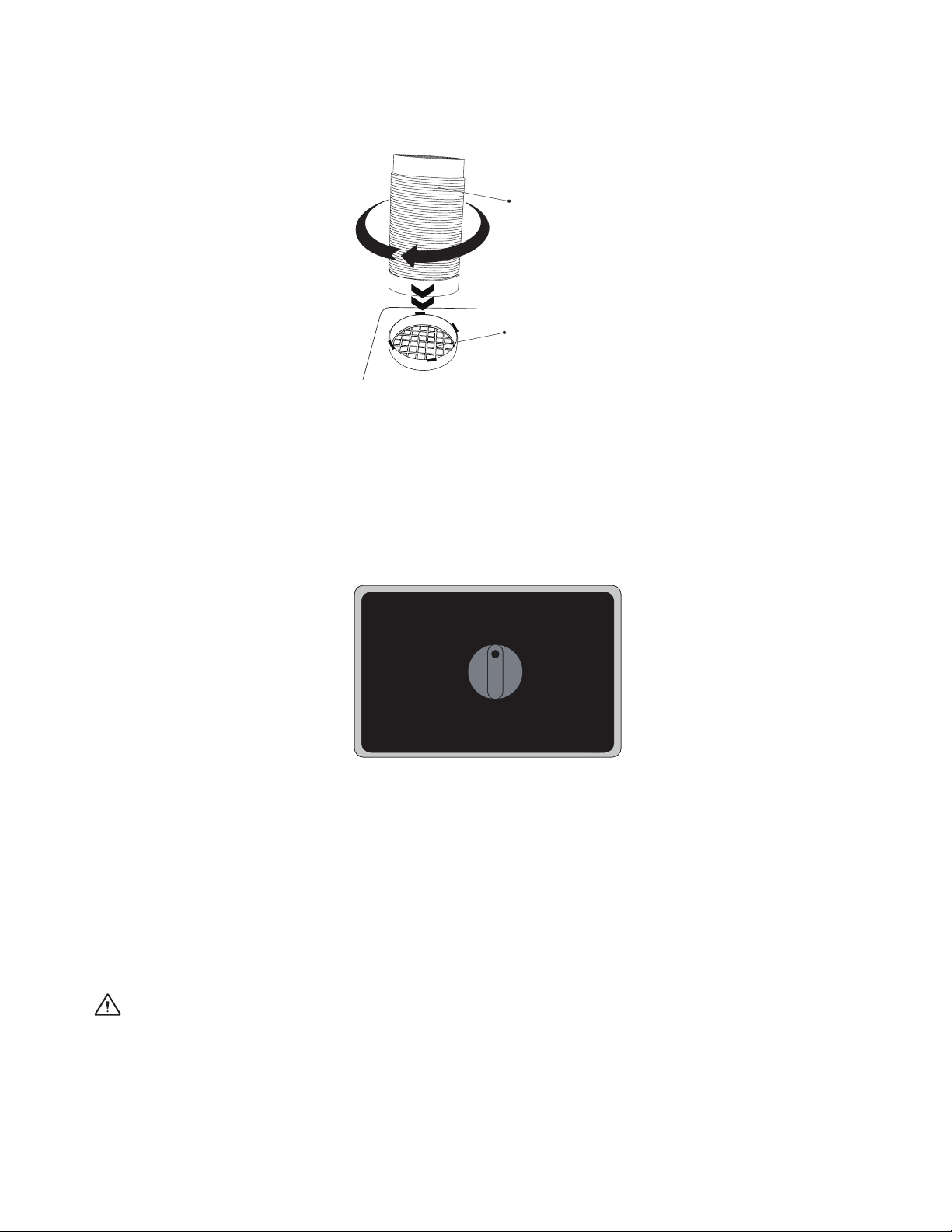

•INSTALLING THE HEAT EXHAUST DUCT AND SOCKET
Center it above the heat exhaust duct socket and twist until the heat exhaust duct is in place.
• POWER SUPPLY CONNECTION
Please use a dedicated power outlet.
Please use a grounded circuit breaker with a 15A capacity.
6. OPERATING INSTRUCTION
KoolBase
8
OPERATION SWITCH INFORMATION
O
Low Fan
Low Cooling High Cooling
High Fan
• To power on, turn on the switch at the top of the unit to either low or high fan or low or high cooling
for operation.
There are 4 options:
1. Low Fan - Light air ow at ambient temperature.
2. High Fan - Strong air ow at ambient temperature.
3. Low Cooling - Sends a ow of cold air at low fan speed.
4. High Cooling - Sends a ow of cold air at high fan speed.
• Operating temperature is between 64°F to 104°F.
• If you use the unit out of the temperature range, it may not work properly.
• Do not overload the electrical system by using too many devices off one outlet.
NOTIFICATION

50°
40°
200°
KoolBase
9
When the overload protection is working, the air ow from the unit will be at the ambient temperature
of the room, but will not cool the air.
If overload protection works frequently, nd out, and x the problem before using the unit.

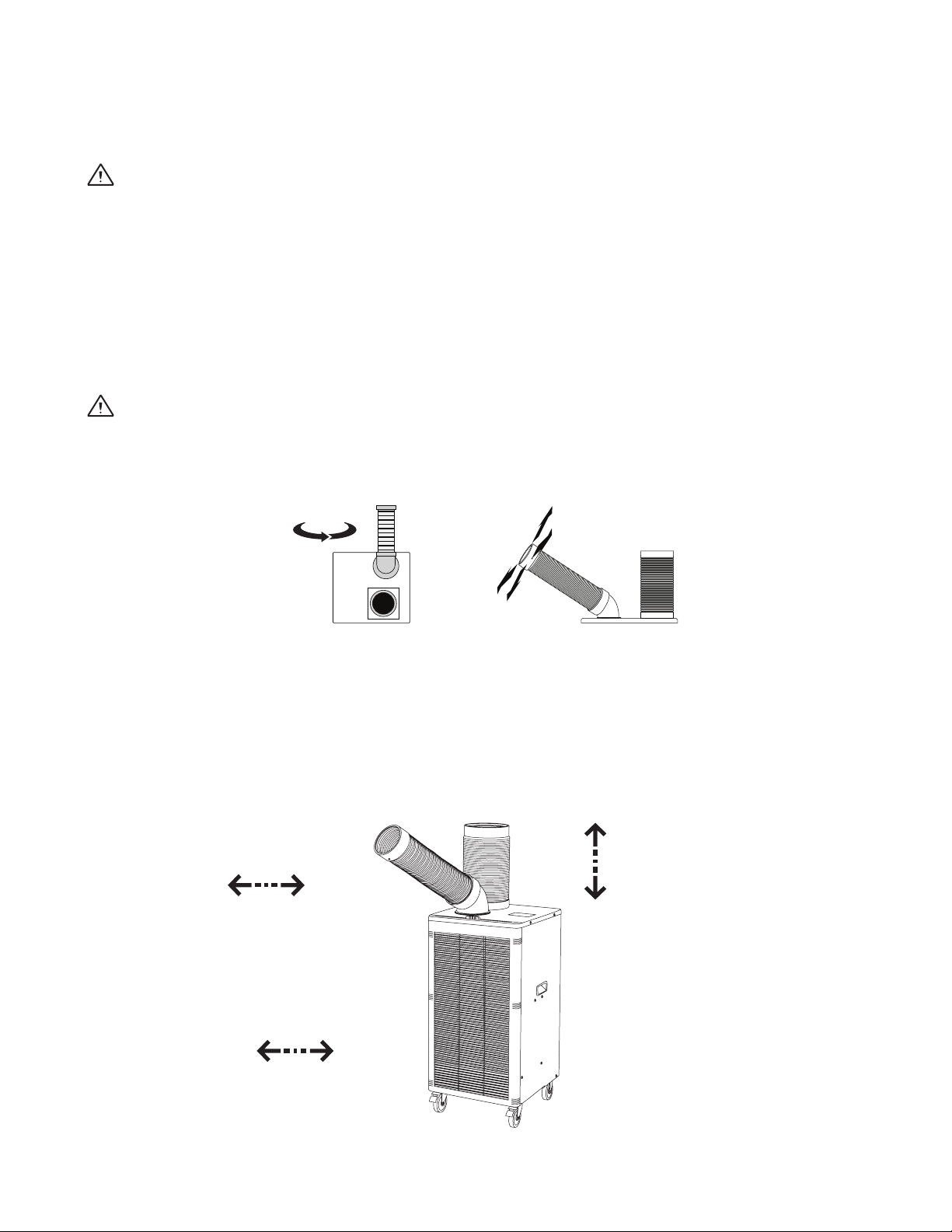

Please adjust the angle of the cooling duct and heating exhaust duct before using the unit. Hold the
curved duct and bend the cooling duct for angle adjustment.
•COMPRESSOR OVERLOAD / OVERHEAT PROTECTION
If the compressor overheats or overloads due to high or low voltage or high ambient temperature,
the built in safety protection for the compressor will start working and turn o the unit.
•ADJUSTING THE AIR FLOW DIRECTION.
Please adjust the duct to get the desired cooling and heating direction. The cooling duct adjustment
range is 200° horizontal and 50° vertical. The heat exhaust duct adjustment range is 40°.
NOTIFICATION
NOTIFICATION
•KEEP DISTANCE
Make sure the unit has minimum distance from any wall, ceiling, or object as illustrated below.
In order to prevent accidents, the unit should be placed on level ground. Unlevel ground, stairs,
emergency exits should not be used.
Minimum distance needed is 12” from any wall. While the unit operates, please do not place
obstructions in front of the lter, cooling, or heating exhaust duct.
Heating Outlet
Direction above 32”
Air Intake
Direction above 12”
Cooling Outlet
Direction above 12”

ON
Caster Wheel
Locked OFF
Caster Wheel
Unlocked

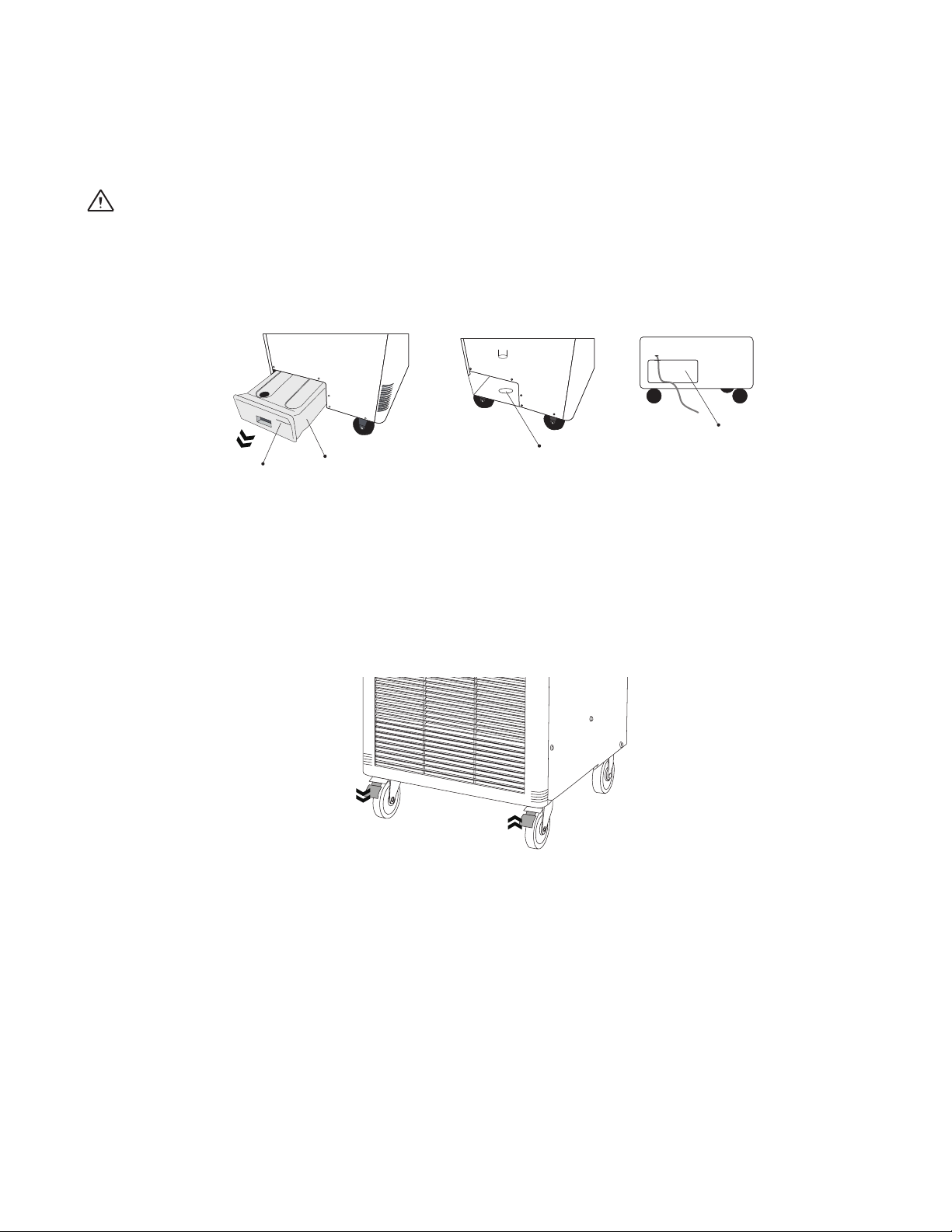

•CONDENSATION TANK.
The dehumidied water will ow into condensation tank. The capacity of the tank is 4L.
The condensation tank can be taken out manually from the unit.
Red Overfill Line
Condensation Tank (5L)
Drain Tank Using Hose
Connection (Included)
Hose Hole
Manual Extraction
•CASTER WHEEL LOCK / UNLOCK
The front wheels come with locks. For safety, lock the casters and check the unit for movement.
KoolBase
10
Please check the amount of the water periodically. Drain the water before moving the unit.
Empty the water immediately when the water gets to the red line. The unit does not have a warning
device.
NOTIFICATION

Pull Out
KoolBase
11

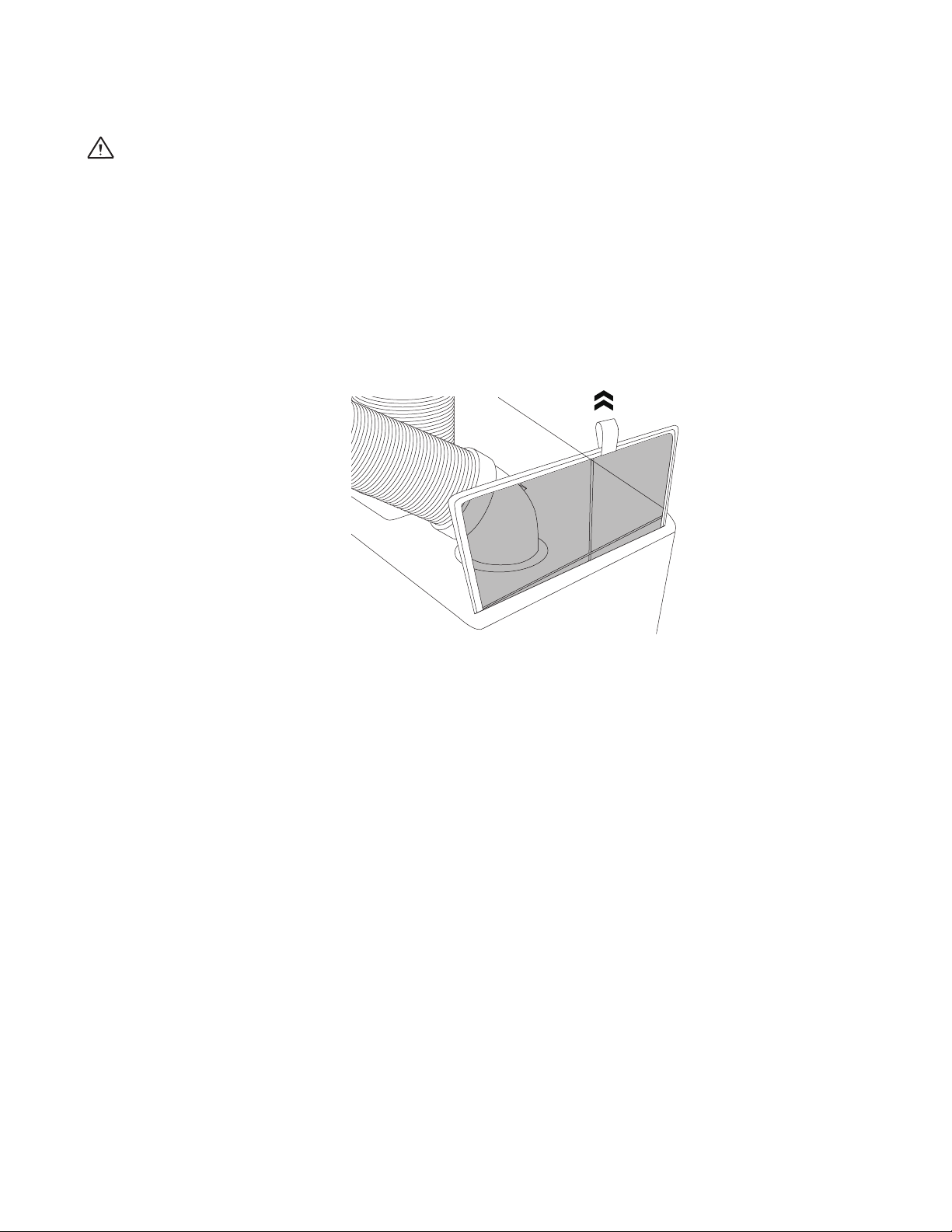

7. MAINTENANCE AND INSPECTION
• When cleaning lter with heavy use, consider vacumming lter before rinsing. Rinse with water and
dry thoroughly before reuse.
• When cleaning the surface of the unit, do not use abrasive materials or chemicals which could
damage the unit surface.
Please clean the lter regularly.
NOTIFICATION

KoolBase
12
8. TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
NOT RUNNING
NO REFRIGERATION
WATER LEAKS OUT
• The power plug is loose or
disconnected.
• The breaker switch has turned
o.
• The condenser surface is dirty
and blocked.
• The heat exhaust fan not
working.
• The external environment
temperature is too high.
• The compressor is not working.
• The refrigeration system
pipeline is blocked.
• Possible power overload.
• The drain pipe is blocked.
• The lter is dirty.
• The condensation tank is full
of water.
• Clean out the drain pipe.
• Clean the lter.
• Remove tank and empty
the water.
• Clean the condensor surface
and vents.
• Check fan.
• Move to more a suitable place
to use.
• Check the capacitor to the
compressor.
• Check pipeline system and
clean.
• Check for proper voltage.
• Insert the plug into the wall outlet.
• Check breaker on main panel and
reset.
• Ask the technical service
department for assistance.
•The warranty period of this machine is one year. Our company has a technical department to
provide sevice to our customers.
• If the customer disassembles or modies the unit in any way, the unit is not covered by the warranty.
• If the unit is out of warranty, the customer is responsible for service and additional costs if needed.

KoolBase
13
KOOLBASE MANUFACTURER’S
RECOMMENDATIONS
12
AWG
1. USE A DEDICATED OUTLET. DO NOT SHARE AN OUTLET WITH OTHER DEVICES.
SHARING AN OUTLET MAY CAUSE A POWER OUTAGE.
2. IF USING AN EXTENSION CORD, A 12 AWG IS RECOMMENDED.
3. DO NOT BLOCK THE HEAT EXHAUST DUCT.
BLOCKING THE HEAT EXHAUST COULD CAUSE THE UNIT
TO OVERHEAT AND STOP WORKING PROPERLY.

PLEASE NOTE
KoolBase
14
OPTIMUM OPERATING TEMPERATURE RANGE FOR
KOOLZONE MOBILE SPOT A/C COOLER
IS FROM 64 - 104° FAHRENHEIT.
WHEN USING THIS UNIT ON COOLING MODE,
THE AMBIENT TEMPERATURE WILL BE REDUCED
BETWEEN 10 - 15° FAHRENHEIT.
