Unipulse TM500 User manual

01JUN2016REV.1.02
TORQUE MONITOR
TM500
OPERATION MANUAL

Introduction
I
Introduction
Thank you very much for purchasing our Torque Monitor TM500.

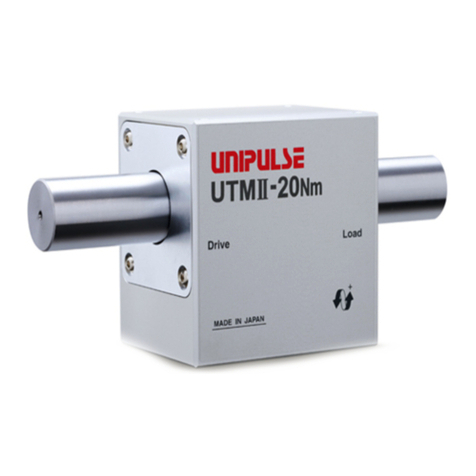

The TM500 is an indicator only for our company UTMⅡseries. Being equipped with the waveform
comparison and hold functions, the TM500 can be used for multipurposes, such as in automatic
assembling machines, testing machines, etc.
For good performance, and proper and safe use of the TM500, be sure to read this instruction manual and
properly understand the contents of it before use. Also, carefully keep this instruction manual so that it can
be referred to at any time.
Safety Precautions
In order to have an TM500 Digital Indicator used safely, notes we would like you to surely follow divide
into " " and " ", and are indicated by the following documents. Notes indicated
here are the serious contents related to safely. Please use TM500 after understanding the contents well.
For safety reasons, please read the following safety precautions thoroughly.
WARNING
This sign forewarns the presence of hazards that could result in serious injury or
fatality when incorrectly handled.
CAUTION
This sign forewarns the presence of hazards that could result in personnel injury or
property damage when incorrectly handled.
WARNING
CAUTION

WARNING
II
WARNING
●For the entire system to function safely when the TM500 becomes faulty or malfunctions,
provide a safety circuit outside the TM500.
●Before using the TM500 as described below, make sure to consult with our sales personnel.
- Use in environments not described in the operation manual.
- Use greatly impacting human lives and assets, such as medical devices, transport devices
entertainment devices, and safety devices.
●Do not modify the TM500. Doing so may cause fire or electric shocks.
●Do not install in the following environments.
- Places containing corrosive gas or flammable gas.
- Where the product may be splashed with water, oil or chemicals.
●Do not connect a commercial power source directly to the signal input/output terminals.
●Be sure to ground the protective ground terminal.
●Before performing the following, make sure that no power is applied.
- Attachment/detachment of each connectors.
- Wiring/connection of cables to the power input terminals.
- Wiring/connection of cables to the signal input/output terminals.
- Connection to the ground terminal.
●For connection to the signal input/output terminals, check the signal names and pin
assignment numbers, and then carry out wiring properly.
●Be sure to install the attached terminal block cover after wiring to the power input terminals.
Otherwise, electric shocks may result.
●Before applying power, carefully check the wiring, etc.
●Use power supply voltage and load within the specified range and rating.
●Do not damage the power cord. Doing so may cause fire or electric shocks.
●Do not touch any signal input/output terminal while applying power. Doing so may cause
electric shocks or malfunctions.
●If the cover of the main body is opened, it may cause an electric shock internally. Even if the
power is off, the internal capacitor is charged. Contact us for internal inspection or repair.
●In the case of smoke, an abnormal smell or strange sound, immediately turn off the power,
and disconnect the power cable.
This sign forewarns the presence of hazards
that could result in serious injury or fatality
when incorrectly handled.
Warning on design
Warning on installation
Warning on wiring
Warning during startup and maintenance

CAUTION
III
CAUTION
●Use the TM500 as it is incorporated in a control panel, etc.
●Do not install in the following environments.
- Where the temperature/humidity exceeds the range of the specifications.
- Locations subjected to drastic temperature fluctuations or icing and condensing;
- Outdoors, or where the altitude exceeds 2000m.
- Places exposed to direct sunlight
- Dusty places
- Poor-ventilated places
- Places containing large quantities of salt or iron powder.
- Where the main body is directly affected by vibrations or shocks.
●Take adequate shielding measures when using at the following locations.
- Near a power line.
- Where a strong electric field or magnetic field is formed.
- Where static electricity, relay noise or the like is generated.
●Install as far away as possible from equipment generating high frequency, high voltage,
large current, surge, etc. Perform wiring of cables separately from these power lines. Do not
perform parallel wiring and identical wiring.
●Do not use the product if damaged.
●Tighten the screws for the signal input/output terminals at the specified torque.
If they are loose, shorts, fire or malfunctions may occur.
Tightening torque: 0.5N •m
●For external inputs/outputs, RS-232C and options, use shielded cables.
●The temporary overvoltage applied to the power should not exceed 1500V.
●For turning on/off the power, be sure to keep intervals of 5 seconds or more.
●Use after warming up for 30 minutes or longer following the startup of power supply.
●If the TM500is not used by the specified method, its protective performance may be
impaired.
●Maintenance
- When performing maintenance, disconnect the power.
- Do not wipe with a wet rag, or with benzine, thinner, alcohol, etc. Doing so may cause
discoloration or deformation of the TM500. In the case of heavy contamination, wipe off
the contamination with a cloth after dipping it into a diluted neutral detergent and wringing
it well, and then wipe with a soft, dry cloth.
This sign forewarns the presence of hazards
that could result in personnel injury or property damage
when incorrectly handled.
Caution on installation
Caution on wiring
Caution during startup and maintenance

CAUTION
IV
About the Built-in Lithium Battery
RoHS-compliant product
The parts and attachments (including the instruction manual, packaging box, etc.) used for this unit are
compliant with the RoHS Directive restricting the use of hazardous substances with regard to adverse
effects on the environment and human body.
What is RoHS?
It is an abbreviation for Restriction on Hazardous Substances, which is implemented by the European
Union (EU). The Directive restricts the use of six specific substances in electric and electronic equipment
handled within EU borders. The six substances are lead, mercury, cadmium, hexavalent chromium, PBB
(polybrominated biphenyls), and PBDE (polybrominated diphenyl ethers).
CAUTION
●When the TM500 is shipped, spacers made of corrugated cardboard are used as cushioning
materials.
Though it is factory-designed so that shocks can sufficiently be absorbed, breakage may
result if shocks are applied when the spacers are reused for transportation. If you send the
TM500 to us for repair, etc., take adequate measures against shocks by using polyurethane
materials, etc., separately.
●If you dispose of the product, handle it as industrial waste.
WARNING
●Never disassemble, deform under pressure or throw the battery
into fire.The battery may explode, catch fire or leak.
- Battery
Model: BR2450A made by Panasonic Corporation Energy Company
Nominal voltage: 3V
Nominal electric capacity: 550mAh
Battery life: approx 5 years or more
This sign forewarns the presence of hazards
that could result in personnel injury or property damage
when incorrectly handled.
Caution during transportation
Caution during disposal
This sign forewarns the presence of hazards
that could result in serious injury or fatality
when incorrectly handled.

Contents
V
Contents
1 OUTLINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1-1. Contents of the package. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1-2. Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1-3. About connectable devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1-4. Part names and functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
■Front panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
■Rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1-5. Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2 INSTALLATION AND CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2-1. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2-2. Sensor connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
■UTM Ⅱconnection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
■Rotary encoder connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
■Voltage output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
2-3. External control equipment connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
■External output equivalent circuits and example connections (sink type) . . . . . . . . . . . . 11
■External input equivalent circuits and example connections
(Plus common/minus common shared) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
■Connector pin assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
■How to assemble the connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
■How to check wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2-4. RS-232C Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
■Connector Pin Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
■Communication establishment procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2-5. Power-on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2-6. Protective Ground Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3 SCREENS AND OPERATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3-1. Screen configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
3-2. Explanation of each screen and key operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
■Main screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
■Comparison result screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
■Wave Check screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
■Setting screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
■Item group screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
■Each setting item screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
■Set value input screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4 SETTINGS AND CALIBRATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4-1. Release of parameter protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Contents
VI
4-2. Y-axis setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4-3. X-axis setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
4-4. Work No. selection and work copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
■Work No. selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
■Work copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
4-5. Measurement start condition setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
■Measurement data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
■When the displacement advances suddenly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
4-6. Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
4-7. Adjustment of waveform display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
4-8. Hold setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
■What is the hold function? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
■Section control setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
■Types of holds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
4-9. Waveform comparison setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
■What is the waveform comparison function? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
■Waveform comparison in continuous mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
■Waveform Comparison Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
4-10.Parameter protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
4-11.Measuring work specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
4-12. Judgment timing chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
■Example timing chart by the hold function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
■Example timing chart using the waveform comparison function . . . . . . . . . . . . . . . . . . . 77
5 COMMUNICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
5-1. RS-232C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
■Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
■RS-232C setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
■Communication method (when the Communication Mode is Normal) . . . . . . . . . . . . . . . 83
■Communication method (when the Communication Mode is Hold Point Mode) . . . . . . 123
■Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123
6 SYSTEM SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
6-1. System setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
7 OPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
7-1. SD card slot option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130
■Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
■SD memory card insertion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
■SD memory card ejection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
■Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
■Setting a wave No. on a measurement waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
■Preservation of set values on an SD memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
■Reading of set values from an SD memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
■Format of an SD memory card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
■Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Contents
VII
■Error Release. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
■SD memory card self-check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
8 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
8-1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
■Analog section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
■Display section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
■Setting section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
■Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
■Input/output section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
■Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
■General performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
8-2. Outside dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
8-3. Block diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
9 SUPPLEMENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
9-1. Setting tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
9-2. Setting item list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
9-3. Unit setting list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
9-4. Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150
■Load errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150
■Displacement errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
■Error release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
9-5. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .153
9-6. Conformity with EC directives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
■Connection of a lightning surge protector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Contents
VIII
M E M O

1 OUTLINE
1
Chapter
1
OUTLINE
1-1. Contents of the package
The packaging box contains the following.
Be sure to check them before use.
The following is optionally available. Cable for UTMⅡconnection (2m)・・・1
- RS-232C cable (cross)[CA81-232X]
1-2. Features
TM500 is a torque monitor that enables waveform display of changes in torque with respect to
displacement (mainly angles), combined with UTMⅡseries with optional rotary encoder. Changes
in torque that are hard to grasp numerically can be grasped visually on waveform display.
With the color liquid crystal touch panel display adopted, twists have been provided in many places
by thoroughly paying attention to ease of understanding so that all operations can be performed
without the instruction manual. Also, having a high-speed processing capability of 4,000 times/sec
ready for fine changes in values, and being equipped with the waveform display, HI/LO limit
comparison and other various hold and judgment functions, it can be used for a wide range of
applications, such as in production control systems, automatic equipment, and testing machines.
1OUTLINE
05JAN2005REV.1.00
TORQUEMONITOR
TM500
Cable for rotary encoder
connection (Gray: 2m)・・・1
SD card・・・1
* When the SDC option
TM500 body・・・1 TM500 operation manual・・・1 External input/output
Connector : FCN-361J040-AU
Cover
: FCN-360C040-B
connector・・・1set
Cable for UTMⅡ
connection (Black: 2m)・・・1
(with connector)(with connector) is mounted.

1 OUTLINE
2
Chapter
1
OUTLINE
●Drawing of torque-angle waveforms
Waveforms of torque with respect to angles at low rotation, linear motion application can be
drawn.
●Repetitive drawing of waveforms
For applications with large fluctuation or low repeatability, inspection can be repeated several
times for judgment.
●Measurement waveform control as divided by using the hold function
A measurement waveform can be divided into up to five sections, and the waveform can be
judged on each section by specifying each HI limit, LO limit, and method of judgment.
Each section can be specified by Setting (time or displacement) or external input signal “Hold.”
The method of judgment can be changed by selection under “Use Hold.”
Judgment point(s) can be kept depending on the selection under “Use Hold.”
Time
Load
< In case of continuous > < In case of average >
Waveforms being acquired repeatedly Average of waveforms acquired repeatedly
Repetitive displacement Repetitive displacement
< In case of time >
Time
Load
< In case of displacement >
Displacement
Load
Sct 1
Inflection Sct 2 Always
Sct 2
Inflection
Section Start-End specified by time or Section Start-End specified by displacement or
Sct 1
Bottom
Judgment point (hold point) Judgment point (hold point)
EP SP
external inputexternal input
Point
Point
SP EP EP SP
SP EP
SP:Start point
EP:End point
SP:Start point
EP:End point

1 OUTLINE
3
Chapter
1
OUTLINE
●Control of the position at the measurement completion
The position of the measurement completion can be judged by using the End Displacement for
the Use Hold.
The End Displacement is different from other hold types, so it judges not based on a wave
starting point but based on an original point of the displacement.
●Entire waveform control by using the waveform comparison function
Comparisons can be made to judge whether or not a measurement waveform is between HI limit
and LO limit waveforms.
●Measurement-waveform-following control by using the relative comparison function
Waveforms fluctuating up and down with each measurement can be relatively compared.
By this function, comparison waveforms are relatively moved according to the load at the
Reference Point of Relative Comparison, which should previously be set by time or
displacement, on a measurement waveform.
* Relative movement can only be made in the Y-axis direction.
●Change of the control reference to the point at which loading is started or the point at
which it is finished
In the case where the X-axis of the waveform represents displacement, the reference for the hold
function and waveform comparison function can be selected from either the measurement start
point or measurement stop point.
Displacement
Load
010 50
Section
Measurement
LO limit of HI limit of
displacement displacement
< Non-defective >
Load
< Defective >
Measurement waveform
Comparison waveform
Load
Time or
displacement
Time or
displacement
< Before relative movement >
Load
< Relative movement of comparison
Load
Measurement waveform
Comparison waveform
waveforms >
Time or
displacement
Time or
displacement
Reference Point
of Relative Comparison
Reference Point
of Relative Comparison

1 OUTLINE
4
Chapter
1
OUTLINE
For the measurement start point and measurement stop point, set “Front” and “Back,”
respectively, as “Waveform Reference.”
Normally, “Front” is used; however, use “Back” if displacement of the measurement stop point
is set as reference.
* In case of “Front”, the waveform of which 0°is the measurement start point is displayed.
In case of “Back”, the waveform of which 0°is the measurement stop point is displayed.
●Various measurement start and stop conditions
Measurement start and stop conditions can be selected according to application.
- Measurement Start Condition
< Measurement waveform >
Displacement
Load
< Comparison waveform >
Displacement
Load
<In case of “Front” >
Displacement
Load
< In case of “Back” >
Displacement
Load
Front Back
Measurement
Front
Back
Same back
Same front
0 ° 0 °
Measurement waveform
Comparison waveform
waveform
5 ° -5 °
0 ° 5 ° 10 °
< Only External Input > < External Input + Load >
< External Input + Displacement >
Start
OFF
ON
Load
Section
Load
Start
OFF
ON
Start
load
Load
Displacement
Start
OFF
ON
Start
displacement
Time or
displacement
Time or
displacement
Measurement
Section
Measurement
Section
Measurement

1 OUTLINE
5
Chapter
1
OUTLINE
- Measurement Stop Condition
1-3. About connectable devices
< Forced-Stop (maximum data acquisition) > < Forced-Stop (external input) >
< Load > < Time >
Load
Maximum data
Load
Stop
load
Load
Time
< Displacement > < Displacement Stop >
Load
Displacement
Stop
displacement
Load
Displacement
Displacement not having
Load
Time or
Stop
OFF
ON
2048 points
advanced for the set time
displacement
Time or
displacement
Time or
displacement
Time or
displacement
Section
Measurement
Section
Measurement
Section
Measurement
Section
Measurement
Section
Measurement
Section
Measurement
PC
PLC
㪬㪫㪤㸈series
(with rotary encoder)
Load input
Displacement
input
RS-232C
SD card
(option)

1 OUTLINE
6
Chapter
1
OUTLINE
1-4. Part names and functions
■Front panel
Liquid crystal touch panel display
Indicated values and graphs are displayed, and various items are set on this liquid crystal touch
panel display.
SD card slot cover
When the SD card slot option is mounted, insert/eject an SD memory card from here.
Power lamp
This lamp indicates the power and internal processing status.
Lamp condition Power and internal processing status
Lights (green) Power ON
Flashes (red)
Writing in the internal NOV RAM (nonvolatile memory); or processing
with an SD memory card when the SD card slot option is mounted.
Do not turn off the power of the main unit while this lamp is flashing.
Flashes (yellow) The voltage of the lithium battery for internal memory backup has dropped.
The battery needs to be replaced. Ask us for replacement of the battery.
TM500 TORQUE
MONITOR
Power lamp
Liquid crystal
SD card slot cover
touch panel display

1 OUTLINE
7
Chapter
1
OUTLINE
■Rear panel
DC power input terminal block
Connect the DC power cord. The power supply voltage is 24V DC (±15%).
Frame ground
Please ground the frame ground terminal to prevent failures due to static electricity.
(The frame and the frame ground terminal are conducted.)
It may be better to remove depending on the environment of the installation location.
Protective ground
Be sure to ground the protective ground terminal to prevent electric shocks.
UTMⅡconnection connector
Connect a UTMⅡwith a dedicated cable.
Rotary encoder connection connector
Connect a UTMⅡrotary encoder with a dedicated cable.
Voltage output terminal
Input voltage from the UTMⅡcan be checked.
(This terminal is directly connected to the UTMⅡvoltage output terminal.)
RS-232C connector
RS-232C connector to transmit/receive measurement data and status information, etc.
The adaptable plug is HOSIDEN-manufactured TCP8080-015267 or equivalent.
Optionally available RS-232C cable (cross) [CA81-232X] is connectable.
Frame ground
DC power input
Option board mounting
Protective ground
RS-232C connector
Rotary encoder
Control connector
terminal block
connection connector
slot
UTMⅡconnection
Voltage output terminal
connector

1 OUTLINE
8
Chapter
1
OUTLINE
Control connector
Connector to input external signals and output control signals.
The input/output and internal circuits are photocoupler-isolated electrically.
Input: Plus common/minus common shared
Output: Sink type
The adaptable connector is manufactured by FUJITSU COMPONENT.
Connector: FCN-361J040-AU
Cover: FCN-360C040-B
Option board mounting slot
This slot is not in use as it is for future extension.
1-5. Ter m s
Terms used in this manual are explained below.
- Load
Analog and digital values of torque meter (UTMⅡ) input are expressed as load.
- Displacement
Analog and digital values of rotary encoder input are expressed as displacement.
- Waveform comparison
Checking to see if the acquired waveform is between the HI limit and LO limit waveforms having
been prepared in advance is called waveform comparison.
- Hold function
Controlling a measurement waveform by dividing it into up to five sections and specifying the
method of judgment for each section is called the hold function.
Judgment point(s) can be kept depending on the selected method of judgment (“Use Hold”).
- Measurement
Acquiring a waveform from the start until it stops is called measurement.
- Waveform reference
A reference point is required for controlling a measurement waveform. Such a reference point for
controlling a measurement waveform is called the waveform reference. The reference can be the
measurement start point or measurement stop point.
(attachments) or equivalent.

2 INSTALLATION AND CONNECTION
9
Chapter
2
INSTALLATION AND CONNECTION
2-1. Installation
To install the TM500 into a control panel, use the following procedure.
1. Make a hole in the panel according to the
panel-cut dimensions.
2. Remove the screws (two), and remove the
guide rails from both sides.
* Do not use other screws than those installed
to the TM500 body.
3. Fit in the TM500 from the front of the panel.
4. Install from the rear the guide rails having
been removed from both sides in Step 2,
and fix them with the screws (two).
2 INSTALLATION AND CONNECTION
92mm
Panel-cut
+1
0
–
Panel thickness
1.6 to 3.2mm
dimensions
92mm+1
0
–
Guide rail
Guide rail
Screws

2 INSTALLATION AND CONNECTION
10
Chapter
2
INSTALLATION AND CONNECTION
2-2. Sensor connection
■UTMⅡconnection
A UTMⅡcan easily be connected with the attached dedicated cable. The cable is nonpolar.
Connect paying attention to the orientation of the connector.
●Pin assignments
* The wiring colors are those of the cable attached to the UTMⅡ.
* Compatible connector: HR30-6P-6P (HIROSE) (connector optional type: CN90)
■Rotary encoder connection
A UTMⅡrotary encoder can easily be connected with the attached dedicated cable. The cable is
nonpolar. Connect paying attention to the orientation of the connector.
Pin arrangement Pin No. Cable color Signal name
1Red PWR＋(+24V)
2Black PWR－(0V)
3Green SIG IN (±5V DC)
4White SIG GND
5Yellow (Unused)
6Brown (Unused)
Shield Braided wire * The shield is not connected to
the UTMⅡhousing.

2 INSTALLATION AND CONNECTION
11
Chapter
2
INSTALLATION AND CONNECTION
●Pin assignments
* The wiring colors are those of the cable attached to the UTMⅡrotary encoder.
* Compatible connector: HR30-6P-6S (HIROSE) (connector optional type: CN91)
■Voltage output
The monitor output terminal is directly connected to the UTMⅡvoltage output terminal.
Input voltage from the UTMⅡcan be checked with voltmeter probe, etc.
Since the output voltage is taken out in a step prior to A/D conversion of the sensor input signal, it
is not synchronized with indicated values processed digitally, such as Digital Zero and digital filter.
The ±MONITOR terminals are not insulated from the internal circuit.
Use terminal: C-55-111A (manufactured by Miraial or an equivalent) φ2, Depth: 6mm
Compatible terminal: C-55-155B (manufactured by Miraial or an equivalent)
2-3. External control equipment connection
External input signals can be connected to sink type or source type; however, external output
signals can be connected to sink type only.
■External output equivalent circuits and example connections (sink type)
Pin arrangement Pin No. Cable color Signal name
1－NC
2Red PWR＋(+5V)
3Transparent Z-phase input (Unused)
4Black B-phase input
5Blue A-phase input
6Shield (Green) PWR GND
CAUTION
●Do not short-circuit. Doing so will cause a failure.
●Do not apply voltage externally. Doing so will cause breakage.
Vceo=30V(max)
Output
Output COM
Ic=30mA(max)
COM
Input
TM500
Sink type
PLC, etc.
Plus common connection
A13 to A20
B13 to B20
A11
， 12
B11
， 12
DC24V
(Minus common connection)
+24V
0V
