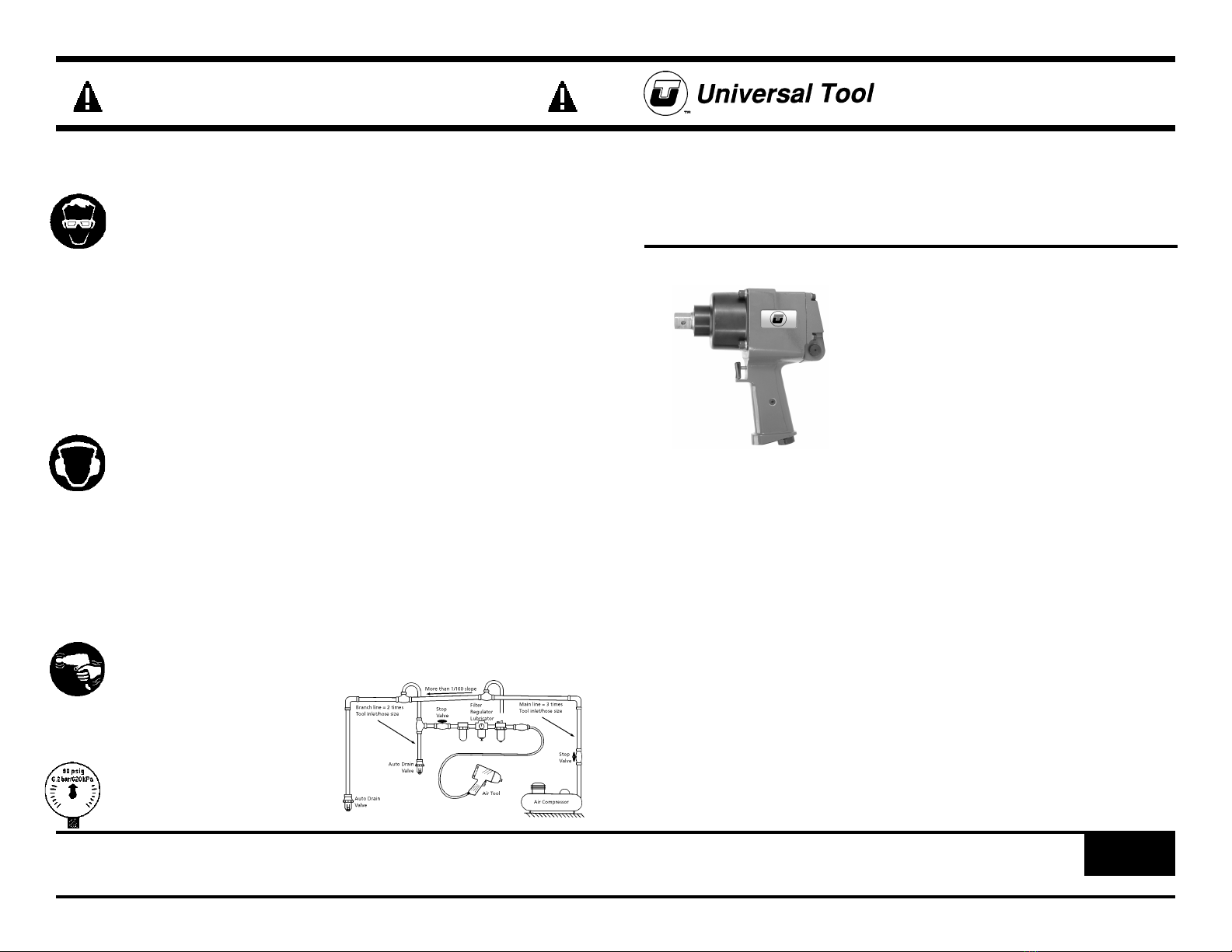

Universal Tool UT7520C-75 User manual

UT7520C-75
PLEASE READ AND FOLLOW ALL WARNINGS
Read Operating Instructions
Always become familiar with all the
instructions and warnings before
operating any power tool.
Always Wear Approved
Eye Protection
Impact resistant eye protection
should meet or exceed the
standards as set forth in the United
States ANSI Z87.1, Occupational
and Educational Eye and Face
Protection. Look for the marking
Z87.1 on your eye protection to
insure that it is an approved style.
For further information, ANSI Z87.1,
Occupational and Educational Eye
and Face Protection, is available
from the American National
Standards Institute, Inc., 11 West
42nd Street, New York, NY 10036.
Hearing Protection is
Recommended
Hearing protection should be used
when the noise level exposure
equals or exceeds an 8 hour time-
weighted average sound level of 85
dBA. Process noise, reflective
surfaces, other tools being
operated nearby, all add to the
noise level present in your work
area. If you are unable to determine
your noise level exposure, we
recommend the use of hearing
protection.
Avoid Prolonged Exposure to
Vibration
Tools can vibrate during use.
Prolonged exposure to vibration or
very repetitive hand and arm
movements, can cause injury.
Stop using any tool if discomfort,
tingling feeling or pain occurs. You
should consult your physician
before resuming use of the tool.
90 PSIG Maximum
This tool is designed to operate at
an air pressure of 90 pounds per square
inch gauge pressure (90 PSIG) maximum,
at the tool. Use of higher air pressure
can, and may cause injury. Also, the use
of higher air pressure places the internal
components under loads and stresses
they were not designed for, causing
premature failure. The air supply should
be clean and dry, preferably lubricated.
For best results, drain the moisture from
Universal Tool
A Division of Florida Pneumatic Manufacturing Corporation
851 Jupiter Park Lane, Jupiter, Florida 33458
Toll Free 1-800-327-9403
Read these instructions carefully before attempting to install, operate
or service this Florida Pneumatic product. Failure to comply with the
instructions could result in personal injury and/or property damage!
Retain these instructions for future reference.
Tool Installation
Pressure regulators shall be used to limit
air pressure to the rated pressure where
the supply pressure exceeds the tool’s
rated pressure. Air hoses and lines shall
be relieved of compressed air before being
disconnected or disjointed, unless there is
automatic valve closing protection at the
joint being separated. Synthetic lubricants
which can cause deterioration of elastomer
seals shall not be used in air systems of air
tools.
Tool Maintenance
It shall be the tool owner’s and/or
employer’s responsibility to assure that
tools are maintained in a safe operating
condition. Tool maintenance and repair
shall be performed by authorized, trained,
competent personnel. Tools shall be
disconnected from their compressed air
supply before repairs are attempted.
Repairs shall be consistent with the
manufacturer’s recommended procedures.
Tool, hoses and fittings shall be replaced if
unsuitable for safe operation. It shall be the
tool owner’s and/or employer’s responsibil-
ity to keep required rating markings and
warnings on the tool in legible condition.
FPMC
WARNING:
Some dust created by power sanding,
sawing, grinding, drilling, and other
construction activities contains chemicals
known to cause cancer, birth defects or
reproductive harm. Some examples of
these chemicals are:
•Lead from lead-based paints
•Crystalline silica from bricks, cement
and other masonry products
•Arsenic and chromium from chemi-
cally treated lumber
Your risk from these exposures varies,
depending on how often you do this type
of work. To reduce your exposure to
these chemicals, work in a well-ventilated
area and work with approved safety
equipment such as those dust masks that
are specially designed to filter out
microscopic particles.
3/4” PISTOL IMPACT WRENCH
employer’s responsibility to instruct each
operator in the safe use of the tool. Tools
shall not be used without guards and safety
devices as furnished by the manufacturer.
Safety Instructions
The following instructions are furnished as
general guidelines for use of your pneumatic
tool. They cannot comprehensively cover all
possible or conceivable uses of the subject
tool. For additional information on the safe
use of air tools, we advise you to obtain a
copy of ANSI B186.1 Safety Code for Portable
Air Tools, available from the following source:
American National Standards
Institute, Inc.
11 West 42nd Street
New York, NY 10036.
The use of the word “shall” in the following
instructions, indicates that adherence to the
particular requirement is necessary to
conform to ANSI B186.1.
Where an air tool is modified or altered, the
modifier shall provide the safeguards to
enable it to be safely used in the operations
intended and to comply with any applicable
provisions as contained in ANSI B186.1
Tool Application and Usage
Portable tools shall be used only for the
purposes intended in their design and within
the capacity for which they were intended and
rated. It shall be the tool owner’s and/or
Description
The Universal Tool professional tools feature alloy steel hammer cases that are machined
from solid bar, not drawn or cast. The model number is laser etched on the hammer case
for permanent identification. There is a high power to weight ratio, plus 100% parts
interchangeability to the equivalent competitor’s tool. The features include steel hammer case
and three piece housing construction for ease of maintenance. Also included are an
adjustable power regulator, ergonomic handle and a sound reducing muffler

Parts Breakdown for UT7520C-75
Replacement Parts for UT7520C-75
UT7520C-75
USE ONLY IMPACT SOCKETS & ACCESSORIES
Sockets and accessories used shall be of the impact socket type. Always check sockets,
retainers and drives regularly for wear or damage and replace whenever necessary
Limited Warranty
Universal Tool warrants its tools to be free from defects in material and workmanship for one year from the
date of purchase. This warranty does not apply to tools which have been abused, misused, modified or repaired.
by someone other than Universal Tool or its authorized service centers. If a Universal Tool proves defective in
material of workmanship within one year after purchase, return it to any authorized service center or to Universal
Tool, freight prepaid. Please enclose your name, address and adequate proof of purchase date with a brief
description of the defect. Universal Tool will, at its option, repair or replace defective tools, free of charge. Repairs
or replacements are warranted as described above for the remainder of the warranty period. Universal Tool's sole
liability and your exclusive remedy under this warranty is limited to repair or replacement of the defective tool.
There are no other warranties expressed or implied and Universal Tool shall not be liable for incidental, consequential
or special damages, or any other damages, costs or expense of repair or replacement as described above.
Specifications:
Shank ......................................................................................................................................3/4”
Speed.............................................................................................................................5,000 RPM
Working Torque......................................................................................................232-800 ft. lbs.
Max. Torque ................................................................................................................1100 ft. lbs.
Weight..................................................................................................................................12 lbs.
Overall length......................................................................................................................12.5 in.
Average air consumption.....................................................................................................9 CFM
Recommended hose size...................................................................................................1/2" I.D.
Air inlet..............................................................................................................................3/8" NPT
Maximum operating pressure...............................................................................................90 psi
3/4” PISTOL IMPACT WRENCH
UT7520C-75
3/4” PISTOL IMPACT WRENCH
Index # Part Desc
1.1 2910-726 3/4" SQ. DRIVE ANVIL
22910-724 HAMMER
3910-36 HAMMER CASE GASKET
42920B-A727 HAMMER CASE ASSY. (INCL. # 7)
5NL8 5/16 NORD LOCK WASHER
634U-103 HAMMER CASE CAP SCREW
7910-641 HAMMER CASE BUSHING
82910-704 HAMMER PIN
92920P-A93 TRIGGER ASSY.
10 2920P-311 EXHAUST SILENCER
11 2920P-310 SILENCER SCREEN
12 2910-A703 HAMMER FRAME ASSEMBLY (INCL. # 8)
13 910-706 REAR FRAME WASHER
14 2920P-A40 HOUSING (INCL. 9, 10, 11, 26, 27, 28, 30, 32, 33, 34, 36, 37)
15 2920-207 WASHER
16 910-98 CYLINDER DOWEL
17 2920-74 END PLATE DOWEL
18 2920-11 FRONT END PLATE
19 2920-3 CYLINDER
20 260-42 VANE
21 MVA008-218 BEARING RETAINER
22 4E-510 BALL BEARING
23 2920-12 REAR END PLATE
24 2910B-53 ROTOR
25 834-24 BALL BEARING
26 DG230-303 THROTTLE VALVE SEAL
27 DG230-302 THROTTLE VALVE
28 2920P-51 THROTTLE VALVE SPRING
29 85H-167 SEAL
30 2920P-A198 OILER BODY ASSY. (INCL. # 29, 31, 35)
31 85H-167 SEAL
32 SML8-24 OILER RETAINING RING
33 2920P-23 EXHAUST DEFLECTOR
34 2920P-465 INLET BUSHING
35 77H-75 OIL PLUG
36 D92-227 OILER PLUG
37 R3-92A OIL PLUG WASHER
38 2920P-A202 MOTOR HOUSING COVER ASSY.(INCL. # 40, 41, 42, 43, 47, 48, 49, 50)
39 2920P-739 GASKET
40 261-283 REVERSE VALVE SEAL
41 231-666 REVERSE VALVE KNOB
42 231-665 KNOB SCREW
43 130SR-188 GREASE FITTING
44 2920P-301 NAMEPLATE
45 5080-638 CAP SCREW 1/4-20X1
46 NL6 1/4 NORD LOCK WASHER
47 231-664 REVERSE VALVE DETENT SPRING
48 AV1-255 STEEL BALL
49 2910B-329 REVERSE VALVE
50 261-283 REVERSE VALVE SEAL
