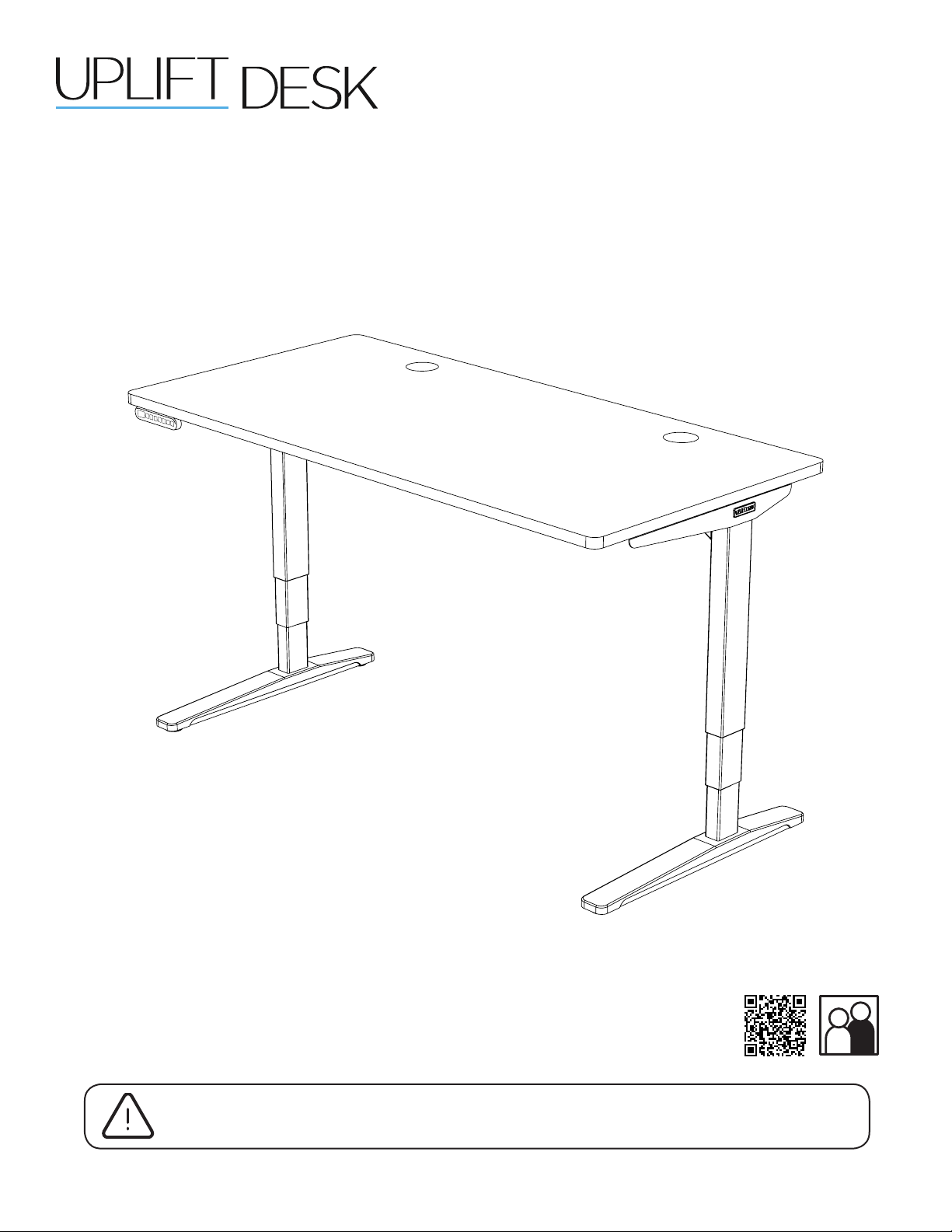

Uplift desk V2 User manual

For assembly assistance,

visit upliftdesk.com/2leg-srd or scan QR code,

call 800-349-3839 or email [email protected]

ATTENTION: If you are assembling a 3-leg desk, refer instead to the 3-leg

instructions in the 3rd Leg Box, and disregard this 2-leg instruction booklet.

355 lb

two person

assembly

V2 Standard 2-Leg

Height Adjustable C-Frame

upliftdesk.com/2leg-srd

Thank you for choosing UPLIFT Desk.

SAFETY AND WARNINGS

WARNING: Designed for use in dry work environments only. Risk of re, electric shock, or personal in-

jury if used outdoors or in a damp location. Use only indoors.

WARNING: Only plug the desk into a properly grounded 120V outlet. Unplug the desk from the electri-

cal outlet before moving the desk or before adding/removing parts or accessories. Risk of electric shock.

WARNING: Do not open any desk component or insert any object in a desk component. Risk of electric

shock.

WARNING:

In case of spilled liquids, immediately unplug desk. Then clean spill with a dry cloth. Risk of

desk failure or electric shock if desk components become wet.

WARNING: Keep heated surfaces away from plug. Never use desk with a damaged cord or plug. Risk

of electric shock. Call us for a free replacement cord.

WARNING: Keep ngers and all body parts clear of the moving desk. Check surroundings on all sides

before using the desk to ensure there are no immobile obstacles within the desk’s range of motion. En-

sure all cords are the appropriate length so they don’t pull as the desk moves.

WARNING: Keep unsupervised children away from desk. Before use, teach children about desk

safety with this manual. Risk of personal injury and electric shock if the desk is misused.

Please read this manual carefully. This desk is height adjustable so that it may be positioned at a user’s ergo-

nomic height as described in this manual. Inappropriate use of this desk can cause property damage or bodily

injury. Under no circumstances does the manufacturer accept warranty or liability claims for damages caused

from improper use or handling of this desk. Provide this manual to any new user.

355 lb

You’ll also need:

Phillips-head

screwdriver

COMPONENTS Box 1 COMPONENTS Box 2

PACKAGE CONTENTS

Leg

(qty 2)

Control box

Crossbar end

(qty 2)

Anchor plate

(qty 2)

Wire management tray

Crossbar rail

(qty 2)

Side bracket

(right and left, qty 2) Keypad

(qty 1)

Leg cable

(qty 1)

Power cable

(qty 1)

Crossbar end adapter

(qty 2)

Foot

(includes leveling pads, qty 2)

C10 C11 C12

C8C7

C5C1 C4

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

ATTENTION: If you are assembling

a 3-leg desk, refer instead to the

3-leg instructions in the 3rd Leg

Box, and disregard this 2-leg

instruction booklet.

(either in main components box

or in the desk’s accessory box)

HARDWARE Box 2

#10-24x3/4’’

Machine screw

(qty 8)

#10x3/4’’

Wood screw

(qty 8)

Washer

(qty 8)

Cable mount

(qty 10)

#10x5/8’’

Wood screw

(qty 4)

M6x14

Machine screw

(qty 8)

M6x10

Machine screw

(qty 12)

4mm

Allen wrench

M8x8

Set screw

(qty 8)

M8x10

Machine screw

(qty 4)

5mm

Allen wrench

H8 H9

H4 bH4 a

H3H2H1

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

H14

Step 2

Place Crossbar ends (C5) upside down as shown. In-

sert the Leg (C4) so that the back of the Leg and the

back of the Crossbar end are ush.

To avoid cross-threading and to ensure all the screw

holes are lined up, start the four M6x10 Machine screws

(H1) by rotating each for only a few turns through the

Crossbar end holes into the Leg as shown, but do not

tighten them all the way.

Once all four screws have been started, tighten them

all the way using the 4mm Allen wrench (H6).

Repeat this step for the 2nd Leg.

Step 1

Count all pieces before disposing of any packing ma-

terial. Inspect both sides of your desktop for dam-

age. To avoid any damage to your oor or your desk,

assemble on top of a debris-free carpeted area or a

blanket.

For ease and safety, we recommend two people for

assembly.

Before assembly, consider where you want your desk

to be located. Since your new desk is height adjust-

able, you will want it located a safe distance from win-

dow frames, furniture, radiators, or anything else that

could obstruct the desk from raising or lowering. Do

not place any objects underneath the desk that are

taller than 21”, and consider any accessories mounted

to your desk that would lower even further than the

desk itself.

Step 3

Slide the Side bracket (C2) tabs into the Crossbar end

(C5) and, just like the last step, secure it loosely by us-

ing two M6x10 screws (H1).

Rotate each screw by hand for only a few turns to

avoid cross-threading.

Once both screws are started, tighten all the way us-

ing the 4mm Allen wrench (H6).

Repeat this step for the 2nd Leg.

DESK ASSEMBLY INSTRUCTIONS

ATTENTION: If you are assembling a 3-leg desk, refer instead to the 3-leg

instructions in the 3rd Leg Box, and disregard this 2-leg instruction booklet.

Slide the Crossbar rails into one of the Crossbar ends

(C5).

Step 4

Orient the Crossbar rails (C6) so that the Center indi-

cator marks are facing up, the slots are facing inward

(towards each other) and the slot on the Crossbar rails

is farther from the oor, as shown below

Center indicator marks

Step 5

Place your Desktop upside down on a debris-free

carpeted area or a blanket. Make sure the Desktop is

upside down. If your Desktop has pre-drilled holes or

threaded inserts, they should be visible and facing up.

When placing your frame on your Desktop, lift it up.

DO NOT SLIDE IT. This will help protect your desk-

top and keep the rubber grommets on the frame as-

sembly from dislodging. If they do become dislodged,

they can be easily re-inserted.

For Desktops that have Pre-Drilled Holes or Thread-

ed Screw Inserts: Move the frame assembly by lifting,

and line it up with the pre-drilled holes or threaded

inserts on the Desktop.

For Desktops without Pre-Drilled Holes: Move the Leg

assembly by lifting, and place it where you would like.

Measure from the Desktop edges to ensure symme-

try unless you have an asymmetrical Desktop. Make a

pencil mark at each hole location.

If you own a drill, you can make pilot holes to make this

a little easier. Use it with a 1/8” diameter drill bit and,

ensuring that you DO NOT DRILL DEEPER THAN 1/2”,

drill pilot holes where you’ve made your marks.

Check

that the frame assembly is in the right location prior

to drilling by conrming that your marks are lined up.

The slots on the Crossbar rails are offset, and should be farther from the oor.

Step 7

Attach one of the Leg assemblies to the Desktop us-

ing four of the washers and screws chosen in Step 6.

Do not tighten all the way.

If the hole in the Crossbar end (C5) does not line up

with the pre-drilled hole or threaded insert on the

Desktop, use a Crossbar end adapter (C3) and loosely

attach it with the Screw chosen in step 6 and a Washer

(H5) as shown in Figure 1. Do not tighten all the way.

For Desktops without Pre-Drilled Holes or Threaded

screw Inserts: Loosely fasten the Crossbar end (C5)

to the Desktop using a Wood screw (H4a) with a

Washer (H5).

Do not tighten all the way.

Step 8

Once the rst side is done, slide the other Leg assem-

bly onto the Crossbar rails.

Attach the Leg assembly to the Desktop by following

the same instructions as Steps 6 and 7.

After all eight screws are started, go back and tighten

them all the way. Be careful to not over-tighten, to

avoid stripping.

Step 6

For Desktops with Threaded Screw Inserts: You’ll be

using the #10-24x3/4” Machine screws (H4b) along

with Washers (H5) for the following two steps.

For Desktops without Threaded Screw Inserts: You’ll

be using the #10x3/4” Wood screws (H4a) along with

Washers (H5) for the following two steps.

Machine screw: at end

Wood screw: pointy end

H4 b

H4 a

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

Figure 1

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

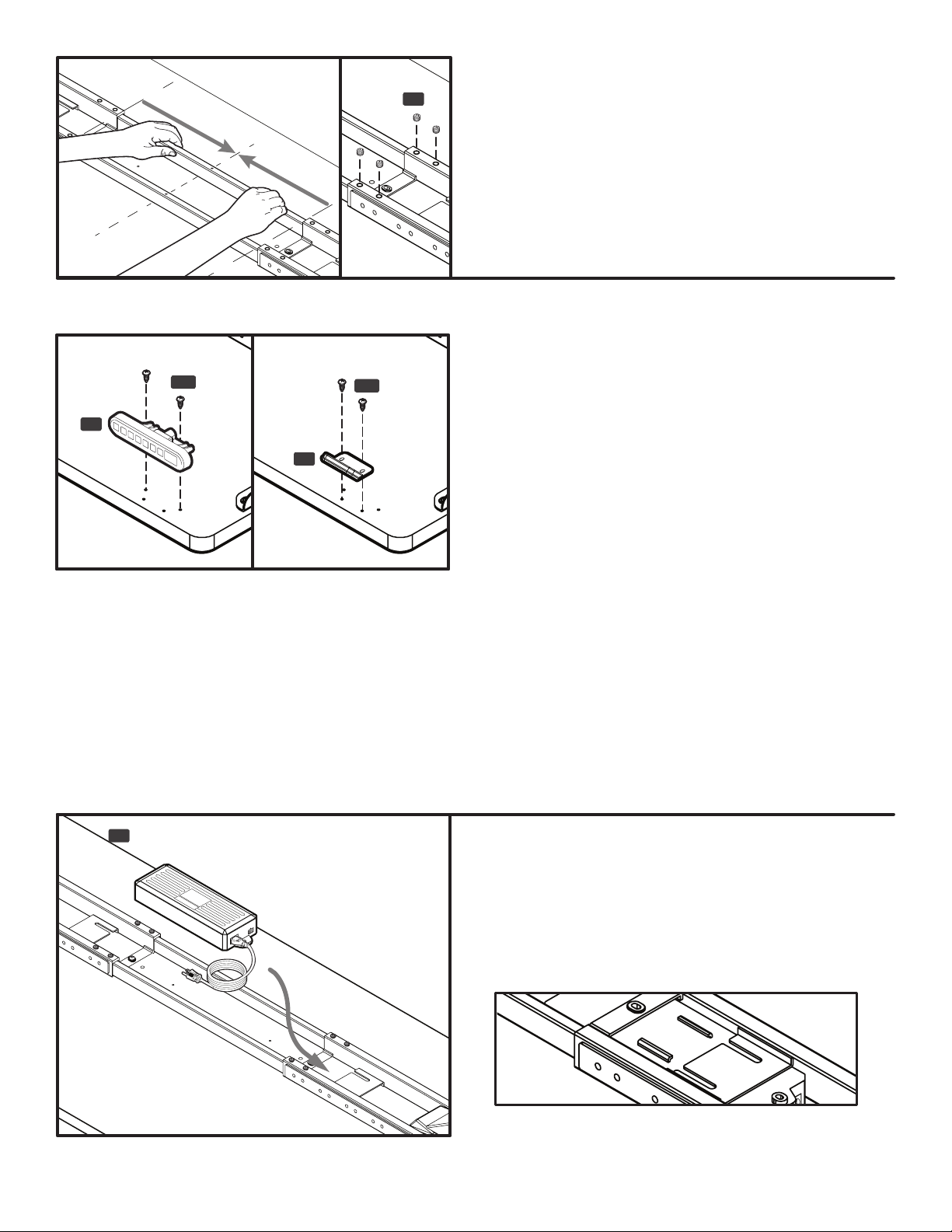

Step 9

Slide each Crossbar rail (C6) until the

Center indicator

mark

is in the middle. Once this is done, the Crossbar

rail will be centered and in the proper position.

Insert the eight M8x8 Set screws (H3) into the Cross-

bar ends (four on each side) to secure each Crossbar

rail, then tighten using the 4mm Allen wrench (H6).

Step 11

Plug the Power cable (C9) into the power socket on

the Control box (C7) marked “AC”. Next, position the

Control box with the power cord end pointing towards

the Leg on the side of your desk that has the Keypad.

Slide the tabs of the Control box to interlock with the

slots on the Crossbar end (C5). See diagram below.

Top view of Control box tabs & Crossbar end slot. This is just an il-

lustration, you won’t be able to see this when installing.

Step 10

Choose which side of the Desktop you’d like your

Keypad to be on. Remember that you’re installing

your desk upside down, so the nal location of the

Keypad will be opposite of what you’re seeing during

assembly.

For Desktops with Pre-Drilled Holes: There are two

sets of holes to accommodate different Keypads. Line

up your Keypad (C8) with the pre-drilled holes, and

attach it to the Desktop with two #10x5/8’’ Wood

screws (H14).

For Desktops without Pre-Drilled Holes: The Keypad

(C8) can be placed anywhere along the front edge

of the Desktop. Typically you will want it to the side

where it won’t interfere with your legs, your chair, or

any accessories. After carefully considering the place-

ment, hold the Keypad in the desired location and

make a pencil mark at each hole location.

If you own a drill, you can make pilot holes to make this

a little easier. Use a 1/8” diameter drill bit and, ensur-

ing that you DO NOT DRILL DEEPER THAN 1/2”, drill

pilot holes where you’ve made your marks.

Or you can

drive the screws directly into the desktop if you do

not own a drill. Then fasten the keypad with the two

#10x5/8” Wood screws (H14).

H14 H14

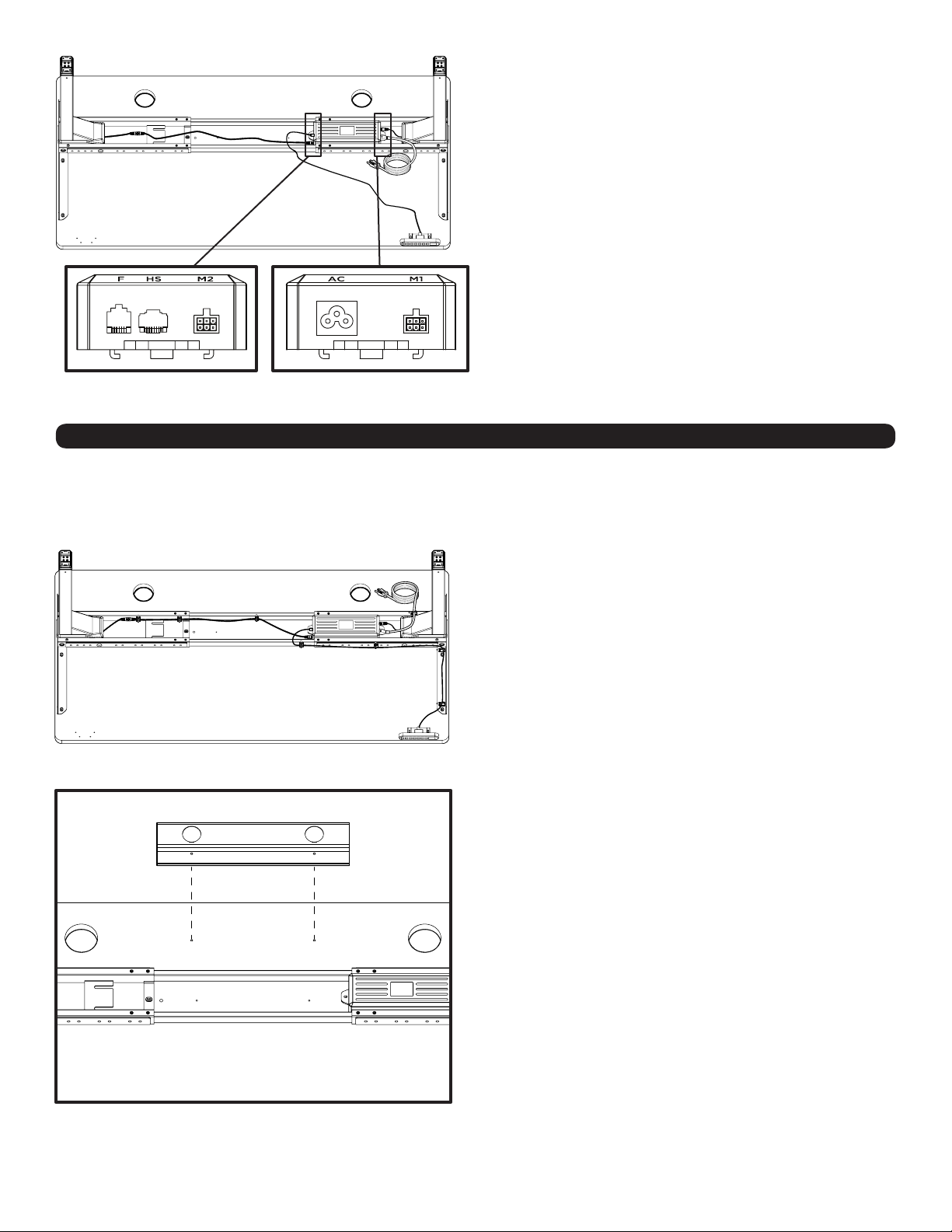

Step 12

Plug the Leg closest to the Control box (C7) directly

into the white port marked “M1” which is on the same

end as the Power cable.

Plug the other leg into the Leg cable (C10), and then

plug the Leg cable into the white port on the Control

box marked “M2”.

Now, plug the Keypad (C8) into the Control box port

labeled “HS”.

Installing Wire Management Tray:

Install the Wire management tray (C12) to help wrangle

your wires. Imagine where all of your wires will be once

your desk is entirely set up with all your peripherals.

We recommend placing an outlet strip into the Wire

management tray, and plugging everything on your

desk into that outlet strip to allow for cords to travel

along with the desk and only have one cable running

to a wall outlet.

Once you know where you want the tray, make a pen-

cil mark at each hole location and attach it to your

desktop using

two #10x5/8’’ Wood screws (H14).

If you own a drill, you can make pilot holes to make this

a little easier. Use it with a 1/8” diameter drill bit and,

ensuring that you DO NOT DRILL DEEPER THAN 1/2”,

drill pilot holes where you’ve made your marks.

Desk Cable Management:

Use the included Cable mounts (H9) to organize your

wires, keep a clean presentation, and prevent any wires

from snagging on anything when adjusting height. The

Cable mounts work best when stuck directly to the

metal desk frame. Attach Cable mounts to the inside

of frame parts. You might want to save some for once

you have everything on your desk plugged in.

Note: Before securing all wires, check that the Frame

screw under the Control box is tight.

Now is a good time to install accessories such as wire management, CPU holders, keyboard trays, or anything

else that fastens to the bottom of your desk. This section will cover Accessories that are included with this

Frame. For additional accessories, refer to the instructions that came with those accessories.

ACCESSORY INSTALLATION

Future desk accessories:

UPLIFT Desk offers various desk accessories that will

mount easily to our innovative, patent-pending desk

frame. Accessories will either mount directly to the

Crossbar ends, or will require the two included Anchor

plates (C11).

Read your accessory’s instructions to see if you’ll need

the Anchor plates for installation. If so, attach them to

the frame using four M8x10 machine screws (H7), and

tighten using the 5mm Allen wrench (H8) at the loca-

tions mentioned in the accessory’s instructions.

C11

patent pending

Step 14

Double check that all screws on the desk are tight.

And then check all screws again and make sure they’re

tight. This isn’t a typo, it’s important and it’s far easier

to tighten them with the desk upside down than it is

later.

Be careful not to miss the screws marked with an

arrow in the diagram. Don’t forget that one of the

screws is under the Control box.

Step 13

Make sure the long end of the C-frame feet (C1) are

facing towards the front of the desk, in the same di-

rection as the Side brackets.

Place the foot onto the Leg (C4) as shown. Loosely

start four M6x14 Machine screws (H2) by hand.

Once all four screws have been started, tighten all the

way using the 4mm Allen wrench (H6). Repeat this

step for the 2nd foot.

Note: If you purchased Casters, remove the leveling

pads and install the Casters now.

ACCESSORY INSTALLATION (continued)

Step 15

With you and your friend on opposite ends of the

desk, grab the Desktop AND Side bracket with one

hand and a Leg in the other. Be aware and be care-

ful of the cables, any attached components or acces-

sories especially an accessory that might move on a

track like a Keyboard tray or CPU holder. Support the

desk frame and the Desktop equally and tilt it gently

rotating it 90 degrees back, so the Keypad is facing

up.

Readjust your grip at the Desktop and Side bracket

with one hand and keep the other hand on the Leg.

Lift and rotate 90 more degrees until your Desk is

right-sideup. Adjust the leveling studs or Casters as

needed to make the desk level.

Step 16

Position your desk where you’d like it to be. Keep it

close to a wall outlet and away from obstacles which

may interfere with the desk’s height adjustability range.

If your desk has Casters:

Moving is easy! Make sure the

casters are unlocked and roll it to the desired position.

If your desk does not have Casters: Using two people,

lift your desk (do not drag it) by holding onto the Side

bracket (marked with arrows, to the left).

Note: Never lift by holding on to the Desktop itself, as

this will put undue stress on the screws.

Once the desk is in position, proceed to the next step.

Step 17

Check your desk’s surroundings to make sure there

will be no obstacles in the desk’s path and that all

cords are long enough to accommodate the motion

of your desk.

Plug your desk into a 120V outlet.

Before using your desk, you’ll need to sync all the com-

ponents by using the reset procedure.

Initial Desk Reset Procedure

Press and hold the DOWN button for 10 seconds, then

release the button.

Press and hold the DOWN button again, the desk will

lower a little, then rise a little, and then stop. Release

the button. Your desk is now ready for use!

If you are using a Memory keypad, see additional key-

pad instructions for further information on how to use

your keypad

These UPLIFT Desk programming instructions

are compatible only with Memory keypads.

HEIGHT CALIBRATION

Make sure the numeric display matches the actual height of the desktop in its lowest position.

1. Hold the DOWN button on the Keypad until the desk reaches its lowest height, then release.

2. Measure the height from the oor to the underside of the desktop. If the displayed height does

not match your measurement, follow the next steps.

Hold the DOWN button again until the LED display reads “RST”.

4. Press the “M” button until the numeric display begins ashing.

5. Press the UP or DOWN button to set the desk to the measured height.

6. Once display changes back to “RST”, Hold the DOWN button until the desktop lowers slightly,

then rises slightly and the display changes back to the numeric height setting, then release.

*Note: “RST” will look like

“ASr” on the display

PROGRAMMING (Memory keypad only)

C3 C4 C5

H4a

H1 H2 H3 H5

H4b

KEYPAD LOCK

The Keypad can be locked to prevent accidental activation or movement of the desk and to pre-

vent desk settings from being accidentally changed by children or coworkers.

To lock: Press and hold “M” button. The display will rst show “S-”, then it will

change to the current numeric height setting of the desk and nally will change

to “LOC”. Please continue to hold the “M” button until “LOC” is displayed.

To unlock: Press and hold “M” button until display changes to numeric height setting.

NOTE: If a power outage occurs, the program will automatically return to the unlocked setting.

MEMORY SETTINGS

Save up to four commonly used desk heights and recall them quickly.

l. Use the UP or DOWN button to move the desk to the desired height.

2. Press the “M” button.

3. Press the “1, 2, 3, or 4” button to assign the current height to a number on the keypad.

4. To bring the desk back to any of those assigned heights, press the numbered button.

CONSTANT-TOUCH & ONE-TOUCH

These steps allow the desktop to be set to either One-Touch or Constant-Touch. One-Touch requires

only a single touch of the “1, 2, 3, or 4” button to move the desktop to a preset memory location.

One-Touch is the default setting. Constant-Touch requires a continuous touch of the “1, 2, 3, or 4” but-

ton to move the desktop to a preset memory location.

Change between One-Touch and Constant-Touch:

l. Hold the DOWN button on the Keypad until the desk reaches the lowest height, then release.

2. Hold the DOWN button again until display ashes “RST”.

3. Press the “1” button until display shows “10.1” (One-Touch) or “10.2” (Constant-Touch)

and goes back to “RST”.

Note: While “RST” is still ashing, you can press the “1” button as many times as you’d like

to toggle between the two settings.

4. Hold the DOWN button until the desktop lowers slightly, then raises slightly, and the display

changes back to the numeric height setting, then release.

PROGRAMMING (continued)

DISPLAY UNITS

Change the numeric display to show heights in either inches or centimeters.

l. Hold the DOWN button on the Keypad until the desk reaches the lowest height, then release.

2. Hold the DOWN button again until display ashes “RST”.

3. Press the “2” button until display shows “10.3” (centimeters) or “10.4” (inches) and goes

back to “RST”.

Note: While “RST” is still ashing, you can press the “2” button as many times as you’d like

to toggle between the two settings.

4. Hold the DOWN button until the desktop lowers slightly, then raises slightly, and the display

changes back to the numeric height setting, then release.

MINIMUM & MAXIMUM HEIGHT SETTINGS

The desk frame ships with default minimum and maximum height limits. These steps allow the upper

and lower limits to be changed to your preference.

Note: If memory settings were previously set outside of the new minimum and maximum height

settings, they will default to the new minimum and maximum settings. To set new minimum and

maximum height settings outside of the current settings, you will need to rst remove the current

minimum and maximum settings.

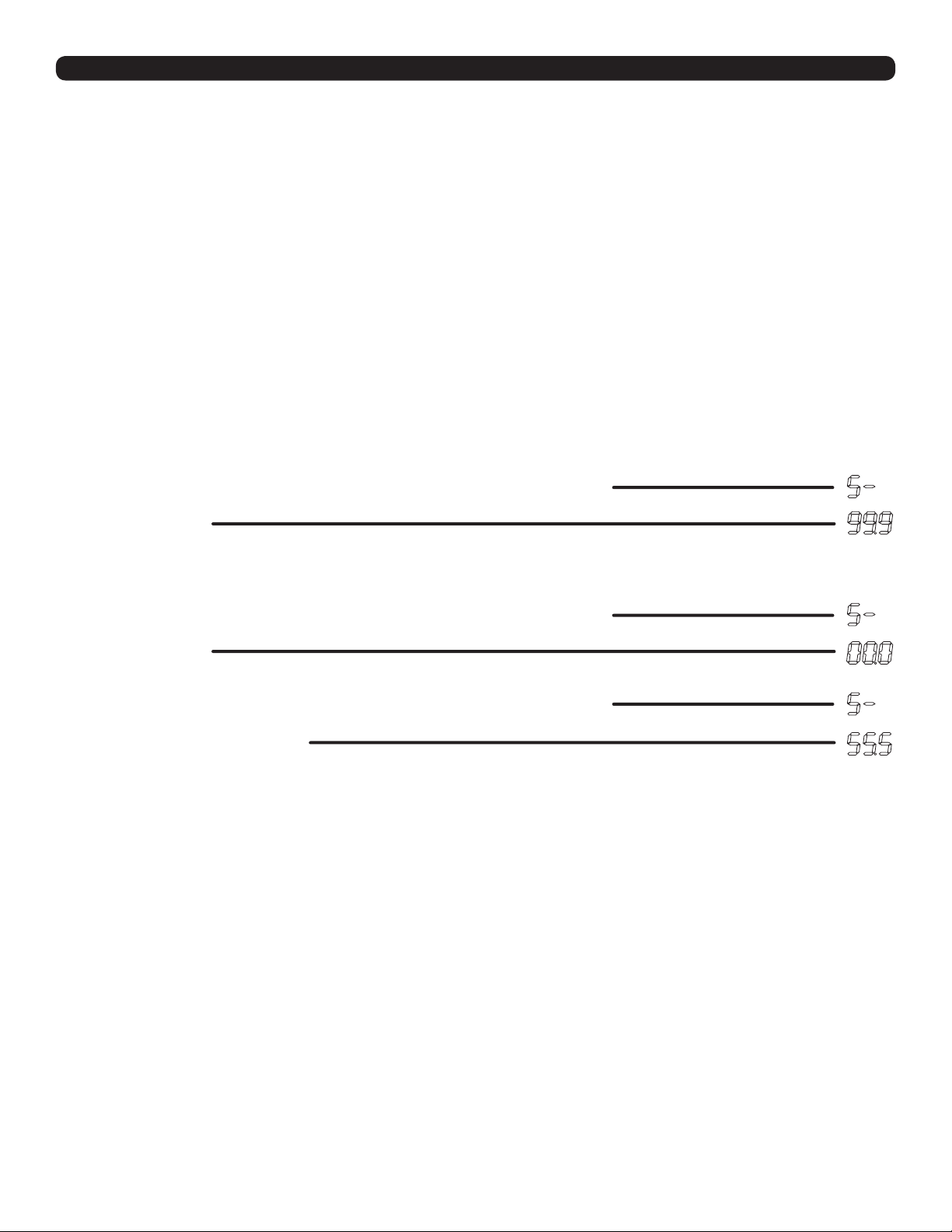

To set a new maximum desk height:

l. Use the UP or DOWN button to bring the desk to the desired maximum height.

2. Press the “M” button once, and “S-” will appear on the Display. Immediately follow by

pressing the UP button once, so the “S-” ashes once.

3. Hold the “M” button until the Display shows “999” then changes to numeric value of new

upper limit.

To set a new minimum desk height:

l. Use the UP or DOWN buttons to bring the desk to the desired minimum height.

2. Press the “M” button once, and “S-” will appear on the Display. Immediately follow by

pressing the DOWN button once, so the “S-” ashes once.

3. Hold the “M” button until the Display shows “000” then changes to numeric value of new

lower limit.

Removing adjusted maximum and minimum heights:

l. Press the “M” button once and the display will show “S-”.

2. Hold the “M” button again until the display shows “555” then changes to the current

numeric height setting.

If your desk does not respond when you try to raise it or lower it, or if the Keypad displays error messages

(“EO1” through “EO12”), check to make sure all the cables are secure (Legs to cables, cables to Control box).

If the problem persists, perform the reset procedure below.

*Note: “RST” will look like

“ASr” on the display

RESET PROCEDURE

1. Unplug the power cord and hold the DOWN button on the Keypad for 30 seconds.

2. Plug the power cord back in.

3. Hold the DOWN button until the desk reaches its lowest height, then release.

Hold the DOWN button again until the LED display reads “RST”

(or for about 10 seconds on non-LED keypads), then release.

Hold the DOWN button again until the desk lowers a bit more, then

slightly rises and stops, then release.

Your desk is now ready to use.

4. The Advanced Keypad will then display the current height, and you should be able

to operate the desk.

5. You may also need to do this if the desktop is ever unplugged or loses power.

TROUBLESHOOTING

If the error message persists after performing the Reset procedure, or if there is a height difference between

the legs which exceeds 1.5’’, contact UPLIFT Desk at the email address or phone numbers listed at the bot-

tom of each page of these instructions.

CODE DESCRIPTION TROUBLESHOOTING SOLUTION

H01 Overheated

The desk motor has a 10% duty cycle to protect from overheating. For

example, in a 20 minute period if your desk motor is activated for 2 minutes

you will want to let it rest for 18 minutes. Otherwise you may see an H01

code on your keypad.”

E01-E06 Firmware or

connectivity issues

Check all cables to ensure they’re all rmly plugged in, and perform Reset

procedure above

E07-E012 Legs are uneven Perform Reset procedure above

Notes

512-614-3152

800-349-3839

[email protected]

upliftdesk.com

Work Better. Live Healthier

Copyright Notice: This guide is a component of the UPLIFT Desk™. This guide is a part of the scope of delivery, even if the item is resold. This guide

is also available on the UPLIFT Desk website: upliftdesk.com. Excerpts or copies may not be forwarded to third parties or used in any other published

form without the prior written consent of UPLIFT Desk. These instructions are subject to United States copyright law.

90.014.01.0654v.C - AI-FRMA-2-SRD-C-2.1

4933053182293 - THS056

SAVE THESE INSTRUCTIONS

Study this manual carefully. If this desk is sold, please provide this

manual to the buyer, installers, or support personnel operating the product.

4933053182293

Other manuals for V2

Table of contents

Other Uplift Desk Indoor Furnishing manuals

Uplift Desk

Uplift Desk V2 User manual

Uplift Desk

Uplift Desk FRM240 User manual

Uplift Desk

Uplift Desk MoPac STR029 User manual

Uplift Desk

Uplift Desk UPL960 User manual

Uplift Desk

Uplift Desk FRM300 User manual

Uplift Desk

Uplift Desk Vert Ergonomic Chair CHR458 User manual

Uplift Desk

Uplift Desk UPLIFT Adapt Freestand User manual

Uplift Desk

Uplift Desk Intuition Ergonomic Chair CHR472 User manual

Uplift Desk

Uplift Desk 2-Leg Height Adjustable Standing Desk User manual

Uplift Desk

Uplift Desk UDA116-SML User manual

Uplift Desk

Uplift Desk ACU021-60x27.4x31 User manual

Uplift Desk

Uplift Desk UPL940 Quick setup guide

Uplift Desk

Uplift Desk Coffee Table Legs User manual

Uplift Desk

Uplift Desk 2-Leg Side Table Quick setup guide

Uplift Desk

Uplift Desk ACU011 User manual

Uplift Desk

Uplift Desk Starling CHR464 User manual

Uplift Desk

Uplift Desk E7 Electric User manual

Uplift Desk

Uplift Desk SoCo User manual

Uplift Desk

Uplift Desk ACU069 User manual

Uplift Desk

Uplift Desk FRM421 User manual

Uplift Desk

Uplift Desk CHR456 User manual

Uplift Desk

Uplift Desk CHR458 User manual

Uplift Desk

Uplift Desk UPL127 User manual

Uplift Desk

Uplift Desk CHR467 User manual

Popular Indoor Furnishing manuals by other brands

Acme Furniture

Acme Furniture AC00274-1 Assembly instruction

Costway

Costway HW58978 user manual

kingsley-bate

kingsley-bate Nantucket Settee NT55 Assembly instructions

heute wohnen

heute wohnen HWC-L38 Assembly instructions

Kaboodle

Kaboodle corner base cabinet quick start guide

Styleworks

Styleworks SEOUL Series operating instructions

Seconique

Seconique NEVADA DRESSING TABLE SET Assembly instructions

Dedeman

Dedeman LISABON 3K4F manual

Rauch

Rauch M9988 Assembly instructions

Napofix

Napofix Secretaria GMD1130R installation manual

Coaster

Coaster 115101 Assembly instructions

Castleton Home

Castleton Home V-KHB446 Product instructions

Finori

Finori NIKB/168 Assembly instructions

Better Homes and Gardens

Better Homes and Gardens Ashwood Road 2-pk Dining Chairs... Assembly instructions

MAZIN FURNITURE

MAZIN FURNITURE TUXEDO 7382-30GN Assembly instructions

Kettler

Kettler garden-boy 04402-100 Assembly instructions

Jumbo

Jumbo SF-3175 Assembly instructions

Schüco

Schüco 170178.00.00 Assembly instructions
