Uplift Desk 2-Leg Height Adjustable Standing Desk User manual
DIRECTIONS FOR ASSEMBLY AND USE
90.014.01.0158v.G
UPLIFT 2-Leg Height Adjustable Standing Desk
(Version v4 Control Box)
®
Also watch our assembly video
http://bit.ly/2qvkeUF
SAVE THESE INSTRUCTIONS:
Any user or installer of desk base must study this manual carefully. If this desk is sold,
please provide the manual to the buyer, installers, or support personnel operating the product.
TABLE OF CONTENTS PAGE
1 Safety and Warnings 2
2 Usage 2
3 Parts List 3
4 Assembly Instructions 4
5 Desk Placement 7
6 Programming 7
7 Troubleshooting 9
8 TechnicalSpecications 9
FRM200/R06
UPLIFT Height Adjustable Standing Desk Step-by-...
https://www.youtube.com/watch?v=Kk8UgqpEoBg
http://kaywa.me/n8M0D
Download the Kaywa QR Code Reader (App Store &Android Market) and scan your code!
4933053179415 - THS607
2
This height adjustable desk has an electric motor and is designed for use in dry work areas only. The desk
height is adjustable so that it can be positioned at the most ergonomically suitable height. These desks are
designed only for the purposes included in this manual. They should not be used in environments with high
humidity or dampness. Any other use is at user’s risk.
Do not move around, crawl, or lie under the desk frame. Do not sit or stand on the desk frame.
Children should never use the desk unless they are supervised by adults.
Liability: Under no circumstances does the manufacturer accept warranty claims or liability claims for dam-
ages caused from improper use or handling of the desk frame other than that which is described in this
operation manual.
When using an electrical furnishing, basic precautions should always be followed, including the following:
Read all instructions before using the desk.
FAILURE TO COMPLY WITH OR OBSERVE ALL ASSEMBLY, SAFETY, AND OPERATION INSTRUCTIONS
AND WARNINGS REGARDING THE USE OF THIS PRODUCT MAY RESULT IN SERIOUS PROPERTY
DAMAGE OR BODILY INJURY.
DANGER - To reduce the risk of electric shock, always unplug this furnishing from the electrical outlet
before moving, cleaning, or before adding or removing parts and accessories.
WARNING - Toreducetheriskofburns,re,electricshock,injurytopersons,orpropertydamage:
• Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled
persons. Keep children away from electric height-adjustable desks, control units, and keypads.
There is a risk of injury and electric shock.
• Use this table only for its intended use as described in these instructions. Do not use attachments
not recommended by the manufacturer.
• Keep the table close to the power socket/outlet to be easily accessible.
• Never operate this table if it has a damaged cord or plug, if it is not working properly, if it has been
dropped or damaged, or dropped into water.
• Keep the cords away from heated surfaces.
• Do not open any of the components: legs, control box, or keypad. There is a danger of electric
shock. Do not insert anything into any seam or opening.
• Keep all electrical components away from liquids.
•
Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not use outdoors.
• Inappropriate use of this product may cause property or bodily injury.
• Check surroundings on all sides before using the desk. Body parts and property can be crushed if
trapped between an immobile obstacle and the desk’s range of motion.
• Ensure the length of power cords are of appropriate length for desk travel. Monitors, computers,
speakers, anything with a cord that is not long enough for the desk’s range of motion could be
pulled down and cause other items to fall, and cause damage to property.
• Please provide this manual to any users, installers, or support personnel operating the product.
• Make sure no obstacles are in the desk’s path.
•
If casters are not installed, use a two-person lift and lift the desk so that it can be moved without
dragging. Dragging the desk may cause the frame and screws to pull loose from the desktop.
•
Maximum weight capacity of this product is 355 Ib. Do not overload your desk.
•
Deskcontainspinchpoints.Keephandsandngersclearofmovingparts.
2. USAGE
1. SAFETY AND WARNINGS
Part Description Qty
Leg 2
Foot 2
Crossbar end 2
Crossbar rail 2
Side bracket 2
Adhesive pads 10
Control box 1
Keypad 1
Cables (Power & two connector cables) 3
Cable clips (not pictured) 10
M6x14 Machine screw 24
M6x10 Machine screw 8
#10x5/8’’ Wood screw (not pictured) 12
#10-24x5/8’’ Machine screw (not pictured) 8
or
Please count all pieces before disposing of any carton or packing material. Use a padded or carpeted
area for assembly to avoid damage. For ease and safety, we recommend two people for assembly.
Connector cables, qty 2
Power cable, qty 1
Leg
(qty 2)
Control box
(qty 1)
Adhesive
pads
(qty 10)
Cables M6x10
Machine screw
(qty 8)
#10x5/8’’
Wood screw
(qty 12)
#10-24x5/8’’
Machine screw
(qty 8)
Cable clip
(qty 10)
Crossbar end
(qty 2)
Crossbar rail
(qty 2)
Side bracket
(qty 2)
M6x14
Machine screw
(qty 24)
Keypad
(one of two types, qty 1)
or
Philips Head Screwdriver
and/or Power Drill
Tape Measure
Allen wrench
(included)
Tools required
Components
1
1
1
2
2
2
3
3
4
4
5
5
5
6
6
7
7
7
8
8
8
9
9
10
10
11
11
12
12
11
11
11
11
11
11 11
11
a
a
b
b
13 13
13
13
Conguration
9
6
3. PARTS LIST
12
Foot
(includes leveling pads
qty 2)
4

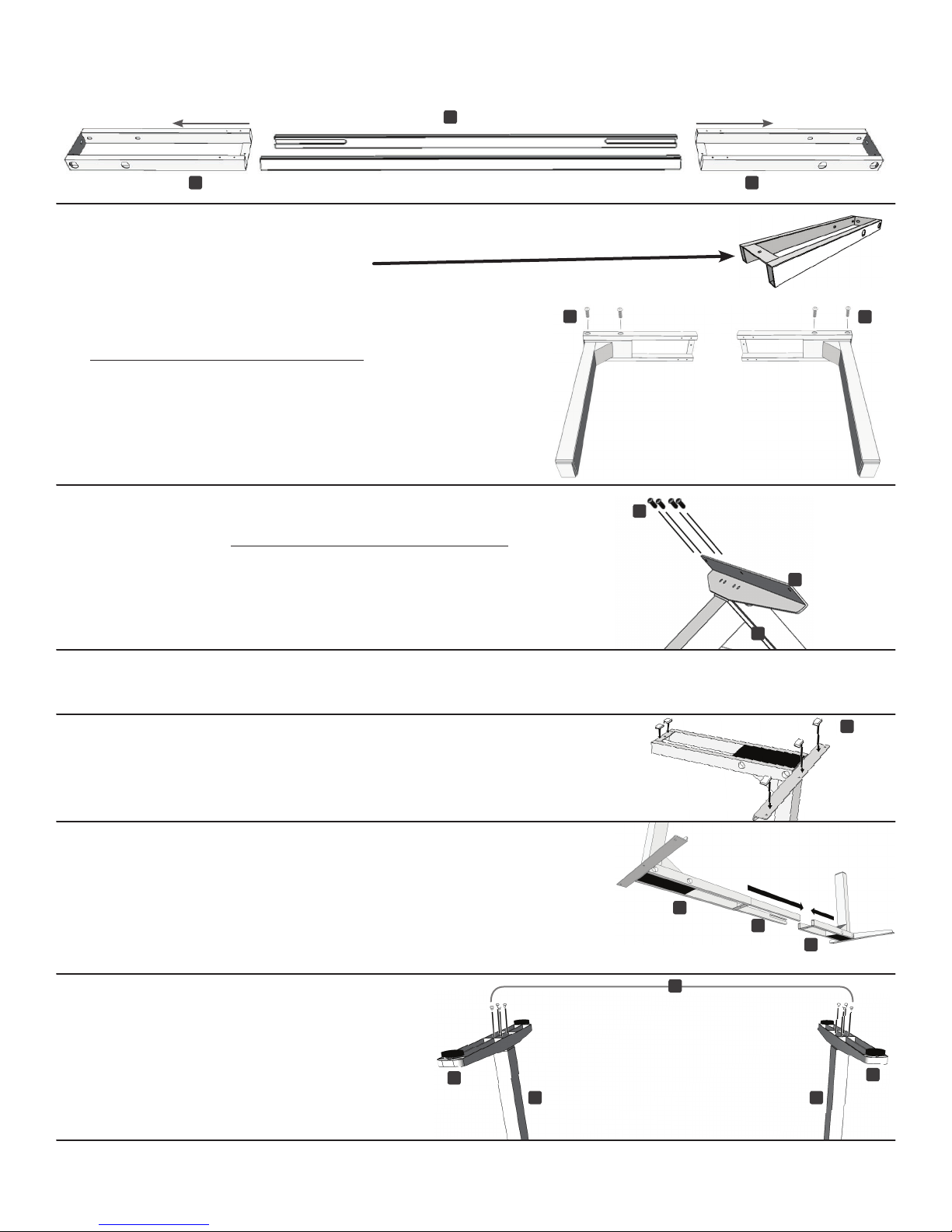

B. Position the Crossbar ends (part 3) on their sides. You will be inserting
the Legs (part 1) into the Crossbar ends from below. When positioned correctly,
themounttabswillbefacingup(g.1).
Now, place the Legs (part 1) into the Crossbar ends from the
bottom(g.2).UsingthesuppliedAllenwrench,insertfour
(4) M6x14 Machine screws (part 11) into the Crossbar ends,
and rotate each screw only a few turns. Do not tighten fully
until step D.
If you drop a screw inside the Crossbar end, simply tilt
to retrieve the screw.
A. FullyseparatetheCrossbarends(part3)youwillndtheCrossbarrails(parts4)inside.
C. Take the two Side brackets (part 5) and attach them to the Leg
assemblies, using four (4) M6x14 Machine screws (part 11) each. Use
the Allen wrench, and rotate each screw only a few turns. Do not
tighten fully until step D.
If you are having trouble getting all the screws started, it is because
other screws are too tight. You’ll need to back out some screws in
order to loosen the tolerance of the screw holes.
D. Once all of the parts are connected, you can now tighten the eight (8) Screws from Step B and the
eight (8) Screws from Step C (16 screws in total).
E.
Remove backing from the Adhesive pads (part 6) and position
along the assembly as shown. Be sure to not cover any of the holes.
F. Slide Crossbar rails (part 4) back into Crossbar ends (part 3).
Ensure the slots of the Crossbar rails are facing inward. The slot on
theCrossbarrailisoffset;itwillneedtobealignedinaspecicway
totaroundtheMachinescrews.MakesurethattheCrossbarrail
(part 4) can slide all the way to the end of the Crossbar end (part 3).
Ifitdoesn’tt,taketheCrossbarrailoutandipitover,withtheslots
facinginwardandnearthetopoftheedge,furtherfromtheoor.
g.1
g.2
3
3
3
3
3
4
4
11
11
11
5
6
4. ASSEMBLY INSTRUCTIONS
G. Attach each Foot (part 2) with four (4)
M6x14 Machine screws (part 11) and tighten
bolts in a cross pattern.
Be sure to point the long end of the Foot in
the same direction as the long end of the Side
bracket. 11
2
2
11
12
H. Your desktop may be pre-drilled or include threaded inserts.
Please check both sides of the desktop for holes before placing
the desk frame! If there are holes, carefully line up the frame to
match the holes on the underside of the desktop.
Adjustthewidthofthebasetotthedesktopbyslidingthetwo
halves outward. (33’’ max between the inside edge of Crossbar
ends)
If your desktop is not pre-drilled & does not include threaded in-
serts, place the base where you want it. We recommend leaving at
least 1/2” of desktop width on either side of the Side brackets.
The desk feet are deeper than the Side brackets. If your top is
25.5”-27.5” deep and you want the rear edge of the top in line with
the rear edges of the feet, offset your desktop toward the back.
If you are using your own desktop, please note that the Minimum desktop size is 43’’ wide x 24’’ deep.
Theframewillnottonanydesktopsmallerthanthis.
I. Secure the Center rails at both ends using
eight (8) M6x10 Machine screws (part 12), four
(4) per side. Ensure all eight (8) Machine screws
hit the metal Crossbar rails to prevent them
from sliding.
Double-check that the desk frame is properly positioned
on the underside of the desktop.
Attach the desk frame assembly to the underside of the
desktop using eight (8) of the screws that you have chosen.
J. Choose the screw to fasten your frame to your desktop.
If your desktop does not have metal threaded inserts,
use the #10x5/8’’ Wood screws (part 13-a)
If your desktop does have metal threaded inserts,
use the #10-24x5/8’’ Machine screws (part 13-b)
3 per Side bracket 6 total
1 per Crossbar end 2 total
a
b
13
13
Note: The UPLIFT Desk 120° desktop
If you are attaching your frame to an UPLIFT Desk 120° desktop, All you need
to do is line up your frame with the threaded-inserts. All UPLIFT Desk 120°
desktops come standard with threaded inserts for your convenience.
6

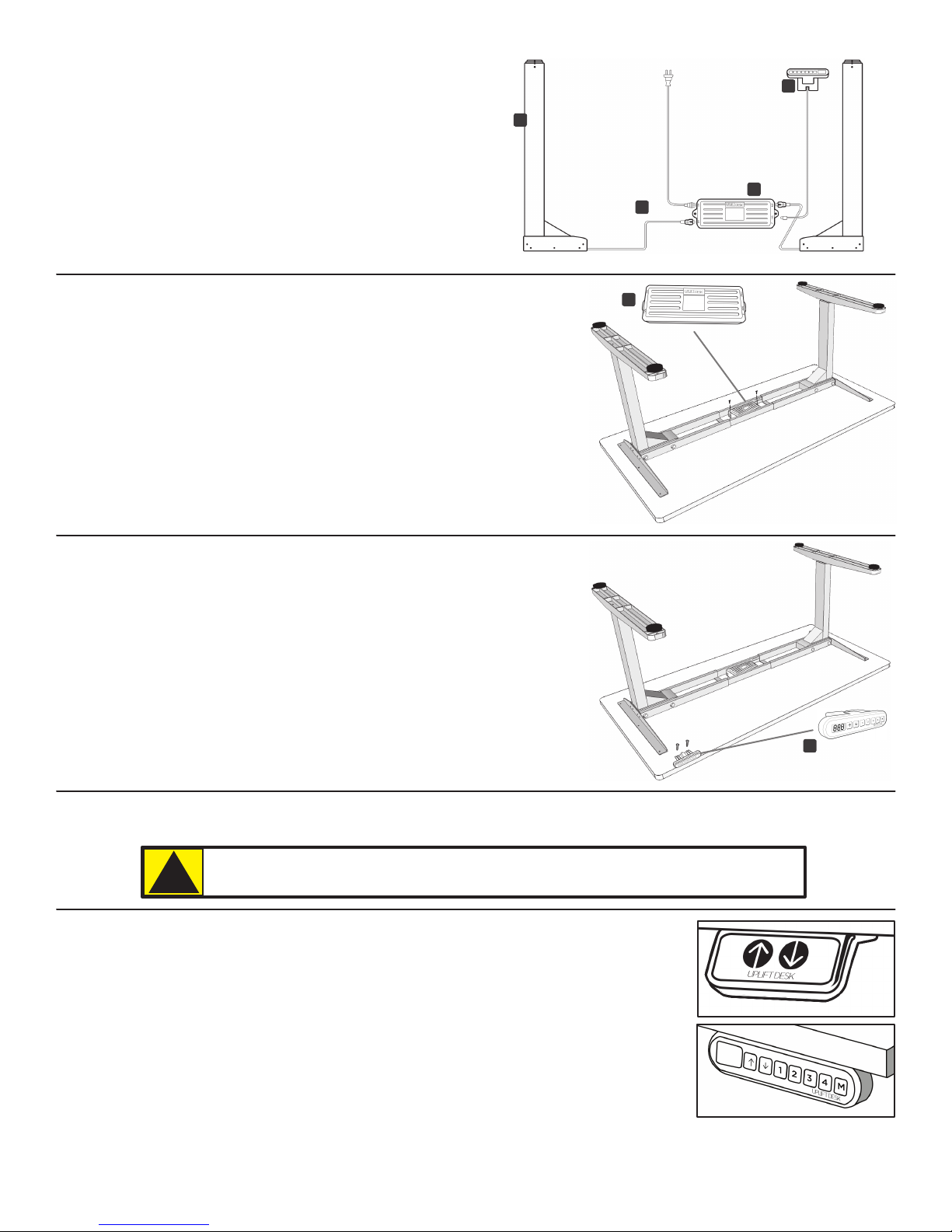

K. Using the Cables, connect the Legs (part 1)
and the Keypad (part 8) to the Control box
(part 7) as per the diagram below.
Do this so you can place the Keypad and Control
Box under your desk in such a way so that the
cables can reach.
L. Use two (2) of the #10x5/8 Wood screws (part 13-a) to
attach the Control box (part 7). Ensure enough clearance at
the ports for the cable connections. Use the pre-drilled hole
locations, or place where preferred.
Note: Do not over-tighten the screws, it may break the
plastic or strip out the holes in the desktop.
M. PlacetheKeypad(part8)sothefrontoftheKeypadrunsush
with the desktop edge (or recessed up to 1/8”). The Keypad can
be placed anywhere along the front edge of the desk, but we
recommend placing it near the side so it doesn’t interfere with
your chair or legs when seated. Use the pre-drilled hole locations,
or place where preferred.
Use two (2) of the #10x5/8 Wood Screws (part 13-a) to attach
the Keypad (part 8) to the desktop. Use the adhesive-backed
Cable clips (part 10) to secure all cables so they don’t sag.
N. Turn the assembled desk right-side up. With two people, grab the desk by the frame and desktop
equally, and turn the desk right-side up. Adjust the Leveling studs (part 9) on the Feet (part 2) as needed.
NOTE: Make sure no obstacles are in the desk’s path.
Make sure cords are a length that will accommodate the change in height.
!
1
7
7
8
10
8
O. Plug the Power Cable into a 120v outlet.
IMPORTANT! You must RESET the desk prior to use!
Press and hold the DOWN button on the Keypad until the desk reaches its
lowest height, then release the button. Press and hold the DOWN button again
until the desk lowers a little bit more, slightly rises, then stops. Release the button.
Your desk has been reset, and is now ready to use.
IfyouhavetheAdvanced1-touchdigtalkeypad,thedigitaldisplaywillash
“RST” when you press the DOWN button a second time. For more programming
options with the Advanced 1-touch digital keypad, refer to the “Programming”
section on page 7.
Following desk assembly, adjust the Leveling studs or casters (sold separately) on the feet so that the desk
is level and does not shift its position.
When moving the desk, if casters are not installed, use a two-person lift and lift the desk so that it can be
moved without dragging. Dragging the desk may cause the frame and screws to pull loose from the desktop.
When moving the desk, DO NOT lift the desk by the desktop alone, or the frame, alone. Support both the
frame and the desktop equally. Favoring one over the other can stress the fasteners connecting the desk
frame to the desktop. Lower the desk completely and lift the desk by grasping the frame.
Choose a placement for the desk that’s a safe distance from window frames, radiators, furniture, etc., so
that people do not get stuck or trapped by the desk.
Check cord clearance, so that they don’t get jammed. Then connect the desk to the 120v outlet and the
desk is ready for use.
Do not place any objects underneath the desk that are taller than 20’’.

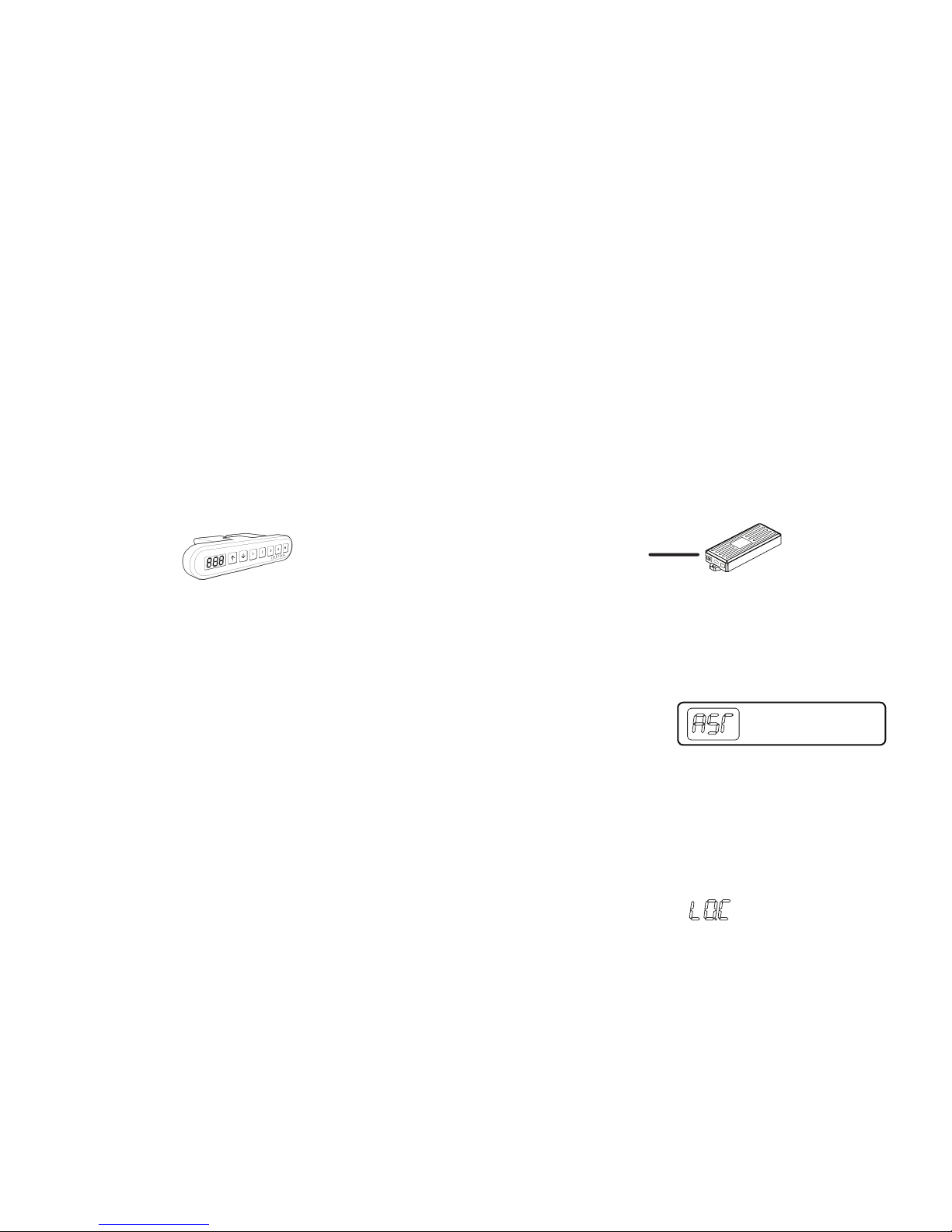

KEYPAD LOCK
The keypad can be locked to prevent accidental activation or movement of the desk.
To lock: Press and hold “M” button until display changes to “LOC”
To unlock: Press and hold “M” button until display changes to numeric height setting.
NOTE: If a power outage occurs, the program will automatically return to the unlocked setting.
These UPLIFT Desk programming instructions are compatible only with the Advanced 1-Touch
Digital Memory Keypad and control boxes with the following numbers located on the silver sticker:
MEMORY SETTINGS
Save up to four commonly used desk heights and recall them quickly.
l. Press the UP or DOWN button to move the desk to the desired height.
2. Press the “M” button.
3. Press the “1, 2, 3, or 4” button to assign the current height to a number on the keypad.
4. To recall any of those heights, press the numbered button to bring desk to assigned height.
6. PROGRAMMING (Advanced 1-touch digital keypad only)
5. DESK PLACEMENT
Two-leg frame: 99.039.14.0050-V4
HEIGHT CALIBRATION
Make sure the numeric display matches the actual height of the desktop in its lowest position.
1. Press the DOWN button until the desk reaches the lowest position.
2. Measuretheheightfromtheoortotheundersideofthedesktop.Ifthedisplayedheight
does not match your measurement, follow the next steps.
3. PresstheDOWNbuttonuntildisplayashes“RST”.
4. Pressthe“M”buttonuntilthenumericdisplaybeginsashing.
5. Press the UP or DOWN button to set desk to the measured height.
6. Once display changes back to “RST”, press the DOWN button until the desktop lowers slightly,
then rises slightly and the display changes back to the numeric height setting.
*Note: “RST” will look like
“ASr” on the display
8
CONSTANT-TOUCH & ONE-TOUCH
These steps allow the desktop to be set to either One-Touch or Constant-Touch. One-Touch requires
only a single touch of the “1, 2, 3, or 4” button to move the desktop to a preset memory location. One-
Touch is the default setting. Constant-Touch requires a continuous touch of the “1, 2, 3, or 4” button to
move the desktop to a preset memory location.
Change between One-Touch and Constant-Touch:
l. Press the DOWN button until the desk reaches the lowest position.
2. PresstheDOWNbuttonagainuntildisplayashes“RST”.
3. Press the “1” button until display shows “10.1” (One-Touch) or “10.2” (Constant-Touch)
and goes back to “RST”.
Note:While“RST”isstillashing,youcanpressthe“1”buttonasmanytimesasyou’dlike
to toggle between the two settings.
4. Press the DOWN button until the desktop lowers slightly, then rises slightly and the display
changes back to the numeric height setting.
MINIMUM & MAXIMUM HEIGHT SETTINGS
The desk frame ships defaulted to its minimum and maximum height limits. These steps allow the
upper and lower limits to be adjusted to your preference.
Note: If memory settings were previously set outside of the new minimum and maximum height
settings, they will default to the new minimum and maximum settings. To set new minimum and
maximumheightsettingsoutsideofthecurrentsettings,youwillneedtorstremovethecurrent
minimum and maximum settings.
DISPLAY UNITS
Change the numeric display to show heights in either inches or centimeters.
l. Press the DOWN button until the desk reaches the lowest position. Release button.
2. PresstheDOWNbuttonuntildisplayashes“RST”.
3. Press the “2” button until display shows “10.3” (centimeters) or “10.4” (inches) and goes
back to “RST”.
Note:While“RST”isstillashing,youcanpressthe“2”buttonasmanytimesasyou’dlike
to toggle between the two settings.
4. Press the DOWN button until the desktop lowers slightly, then rises slightly and the display
changes back to the numeric height setting.
6. PROGRAMMING (continued):
To Set a new maximum desk height:
l. Press the UP or DOWN button to move the desk to the desired maximum height.
2. Pressthe“M”buttononce,andthentheUPbuttononce.TheDisplaywillash“S-”
3. Press and hold the “M” button until the Display shows “999”,
and then changes to numeric value of new upper limit.
To Set a new minimum desk height:
l. Press the UP or DOWN button to move the desk to the desired minimum height.
2. Pressthe“M”buttononce,andthentheDOWNbuttononce.TheDisplaywillash“S-”
3. Press and hold the “M” button until the Display shows “000”
and then changes to numeric value of new lower limit.
Removing adjusted maximum and minimum heights:
l. Press the “M” button (the display will show “S-”).
2. Press the “M” button again until the display shows “555”
and changes to the current numeric height setting.
Height Range 24.5” - 50.25” (without desktop)
Base Width 42.125” min - 74.75” max
Travel Speed 1.5” per second (varies, slowest w/ maximum load)
Weight Capacity 355 lbs
Duty Cycle 10%, Max. 2 mins on, 18 mins off
Input 120Vac/60Hz, 400W
Output 24Vdc
If your desk does not respond when trying to raise or lower it, or if the Keypad displays error messages
(“Er1” through “Er13”) check to make sure all the cables are secure (legs to cables, cables to control box).
If the problem persists, perform the reset procedure below.
- Reset Instructions -
1- Unplug the power cord and hold the DOWN button for 30 seconds.
2- Plug the power cord back in.
3- Press and hold the DOWN button on the Keypad until the desk reaches its lowest height.
Release the DOWN button. Press and hold the DOWN button again until
the LED display reads “RST” or about 10 seconds on non-LED keypad
models. Release the DOWN button. Press and hold the DOWN button
again until the desk lowers a little bit more, slightly rises and stops.
Release the DOWN button. Your desk is now ready to use.
4- The Keypad will then display the current height, and you should be able to operate it now.
5- You may need to do this if the desktop is ever unplugged or loses power.
If the error messages persist after the reset procedure, or if there is a height difference between the legs
which exceeds 1.5’’, stop the reset procedure and contact The Human Solution (800.531.3746 or info@
thehumansolution.com).
If the Keypad displays “HO1”, then it is hot. Let the base cool down for 20 minutes.
If the desk seems to be uneven, try the reset instructions above. If that does not work you may need to
adjust the leveling studs at the bottom of the foot.
*Note: “RST” will look like
“ASr” on the display
6. PROGRAMMING (continued):
7. TROUBLESHOOTING
8. TECHNICAL SPECIFICATIONS
Copyright Notice:
This guide is a component of the UPLIFT Desk
™
. This guide is a part of the scope of delivery, even if the item is resold. This guide is also available on the UPLIFT
Desk website: upliftdesk.com. Excerpts or copies may not be forwarded to third parties or used in any other published form without the prior written consent of UPLIFT Desk.
These instructions are subject to United States copyright law.
©
ANTI-COLLISION SENSITIVITY
The desk has an Anti-Collision Sensitivity that will stop the desk’s movement if it hits something on the way
down or up. You can change this Sensitivity level by doing the following:
l. Press the DOWN button until the desk reaches the lowest position. Release button.
2. PresstheDOWNbuttonuntildisplayashes“RST”.
3. Press the UP button until display shows “10.5”, “10.6”, or “10.7” and goes back to “RST”.
“10.5” is code for the 10 kg (22 lbs) setting (most sensitive setting, false positives are
sometimes possible).
“10.6” is code for the 15 kg (33 lbs) setting
“10.7” is code for the 20 kg (44 lbs) setting (least sensitive setting).
Note:While“RST”isstillashing,youcanpresstheUPbuttonasmanytimesasyou’dlike
to toggle between the three settings.
4. Press the DOWN button until the desktop lowers slightly, then rises slightly and the display
changes back to the numeric height setting.
Table of contents
Other Uplift Desk Indoor Furnishing manuals
Uplift Desk
Uplift Desk V2 F500 C-Frame User manual
Uplift Desk
Uplift Desk Starling CHR464 User manual
Uplift Desk
Uplift Desk T-Frame User manual
Uplift Desk
Uplift Desk CHR466 User manual
Uplift Desk
Uplift Desk Dillo ACC101 User manual
Uplift Desk
Uplift Desk UPL961 User manual
Uplift Desk
Uplift Desk KBT001 User manual
Uplift Desk
Uplift Desk UPL140 User manual
Uplift Desk
Uplift Desk V2 User manual
Uplift Desk
Uplift Desk 99.039.14.0050-V4 Operating instructions
Uplift Desk
Uplift Desk CHR469 User manual
Uplift Desk
Uplift Desk Flex Chair Dolly ACC074 User manual
Uplift Desk
Uplift Desk UPL127 User manual
Uplift Desk
Uplift Desk CHR458 User manual
Uplift Desk
Uplift Desk FRM300 User manual
Uplift Desk
Uplift Desk Steelcase Think User manual
Uplift Desk
Uplift Desk C-Frame User manual
Uplift Desk
Uplift Desk STR041 User manual
Uplift Desk
Uplift Desk Adapt Pogo UDA130 User manual
Uplift Desk
Uplift Desk CHR458 User manual
Popular Indoor Furnishing manuals by other brands
emob
emob Elias Glass Cabinet BC 70099G-S5V-P Assembly instruction
Birlea
Birlea FAIRMONT Assembly instruction
Simplified Building
Simplified Building Simple Table Kit instructions
John Lewis
John Lewis JL Bilbao 820/31102 quick start guide
VERSARE
VERSARE VP6 Assembly instructions
J.Burrows
J.Burrows ASHTON 3 DRAWER PEDESTAL Assembly instructions
Multimo
Multimo A 751 SIMPLE TWIN 100 CM Assembly instructions
Noble House Home Furnishings
Noble House Home Furnishings Club Chair Assembly instructions
Next
Next BOSWORTH 116704 Assembly instructions
VABCHES
VABCHES J3L210BS01 manual
Unfinished Furniture of Wilmington
Unfinished Furniture of Wilmington CU-167 Assembly instructions
Wallbeds Australia
Wallbeds Australia AB-4b Assembly instructions
ZEITRAUM
ZEITRAUM SIMPLE HI Assembly instructions
Riverside Furniture
Riverside Furniture Corinne 21533 Assembly instructions
Dorel
Dorel DA7043-T manual
ARTANY
ARTANY Arquivo 4 Gavetas - Y 37 Assembly instrucons
Atlantic Furniture
Atlantic Furniture LEXI Assembly instructions
Article
Article CALIPER SKU3448 Assembly instructions
