Uplift Desk FRM067 User manual

Flip Top Table
FRM067
355 lb
two person
assembly
©2022 UPLIFT Desk®. All Rights Reserved
For assembly assistance,
visit upliftdesk.com/contact,
or call 800-349-3839,
or email [email protected]

2
Under no circumstances does the manufacturer accept warranty or liability claims for damages caused from
improper use of this table. Please provide these instructions to any new user or owner of the table.
Safety and Warnings
CAUTION: Read all instructions before assembly. Failure to assemble or operate properly may result in
damage or personal injury. Retain manual for future reference.
WARNING: Keep children away from operating the tabletop surface ip unless supervised by an adult.
Misuse of the table can cause personal injury.
WARNING: To avoid a pinch/crush injury, keep ngers and body parts clear of the Leg Assemblies while
ipping the top surface up or down. Check the table’s surroundings on all sides before ipping the top
up or down to ensure there are no obstacles that can cause damage. Flipping the tabletop up or down
can pinch or crush body parts trapped between the tabletop and stationary objects.
WARNING: Inspect the table regularly and stop using immediately if you notice any damaged or loose
parts. Only replace damaged parts with authorized UPLIFT Desk parts and instructions.
WARNING: The table is designed for use in dry environments, indoors only.
WARNING: Two people are recommended for assembly when lifting.

3
© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com
Tools required (not provided)
Tape Measure
355 lb
Phillips Head Screwdriver
355 lb
Hardware
M6 x 10 Set Screw
qty 14
M8 x 20 Machine
Screw
qty 4
M6x10 Set screwM8x16 Machine screw M6x10 Socket Cap screw
L. Upper Crossbar end R. Upper Crossbarend Lower Crossbar end Crossbar rail
#10x3/4’’ Wood screw
#10-24x3/4’’
Machine screw5mm Allen wrench3mm Allen wrench Rubber Bumper
M6 x 16 Machine
Screw
qty 4
M6x10 Set screwM8x16 Machine screw M6x10 Socket Cap screw
L. Upper Crossbar end R. Upper Crossbarend Lower Crossbar end Crossbar rail
#10x3/4’’ Wood screw
#10-24x3/4’’
Machine screw5mm Allen wrench3mm Allen wrench Rubber Bumper
#10-24 X 3/4”
Machine Screw
qty 8
M6x10 Set screwM8x16 Machine screw M6x10 Socket Cap screw
L. Upper Crossbar end R. Upper Crossbarend Lower Crossbar end Crossbar rail
#10x3/4’’ Wood screw
#10-24x3/4’’
Machine screw5mm Allen wrench3mm Allen wrench Rubber Bumper
#10 Flat Washer
qty 8
C3 C4 C5
C9
H4a
H7
C6
H1 H2 H3 H5
H4b
H6
C7
5mm Allen
Wrench
M6x10 Set screwM8x16 Machine screw M6x10 Socket Cap screw
L. Upper Crossbar end R. Upper Crossbarend Lower Crossbar end Crossbar rail
#10x3/4’’ Wood screw
#10-24x3/4’’
Machine screw5mm Allen wrench3mm Allen wrench Rubber Bumper
3mm Allen
Wrench
M6x10 Set screwM8x16 Machine screw M6x10 Socket Cap screw
L. Upper Crossbar end R. Upper Crossbarend Lower Crossbar end Crossbar rail
#10x3/4’’ Wood screw
#10-24x3/4’’
Machine screw5mm Allen wrench3mm Allen wrench Rubber Bumper
Flat Wrench
17mm + 14mm
Rubber Bumper
qty 2
M6x10 Set screwM8x16 Machine screw M6x10 Socket Cap screw
L. Upper Crossbar end R. Upper Crossbarend Lower Crossbar end Crossbar rail
#10x3/4’’ Wood screw
#10-24x3/4’’
Machine screw5mm Allen wrench3mm Allen wrench Rubber Bumper
H8 H9H6
H1
H7
H2 H3 H4 H5

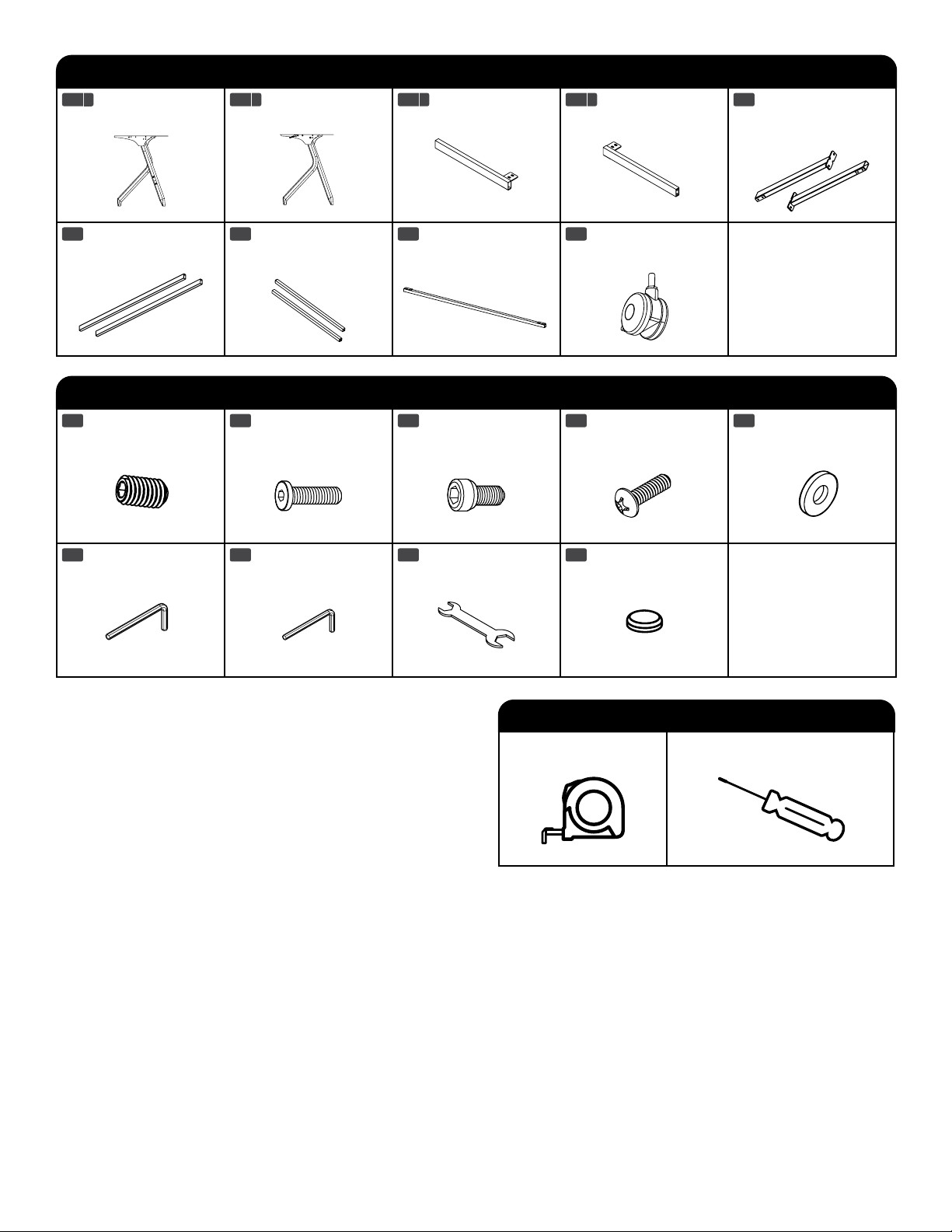

Package Contents
Left Leg
Assembly
Right Leg
Assembly
Left Upper
Crossbar End
Right Upper
Crossbar End
Lower Crossbar
End
qty 2
M6x10 Set screwM8x16 Machine screw M6x10 Socket Cap screw
L. Upper Crossbar end R. Upper Crossbar end Lower Crossbar end Crossbar rail
#10x3/4’’ Wood screw
#10-24x3/4’’
Machine screw5mm Allen wrench3mm Allen wrench Rubber Bumper
Crossbar Rail
qty 2
M6x10 Set screwM8x16 Machine screw M6x10 Socket Cap screw
L. Upper Crossbar end R. Upper Crossbar end Lower Crossbar end Crossbar rail
#10x3/4’’ Wood screw
#10-24x3/4’’
Machine screw5mm Allen wrench3mm Allen wrench Rubber Bumper
Latch Release
Crossbar End
qty 2
Latch Release
Crossbar Rail
Casters
qty 4
P1 P1 RP2 LP2 R
P6 P7P4
P3
P5
L

4

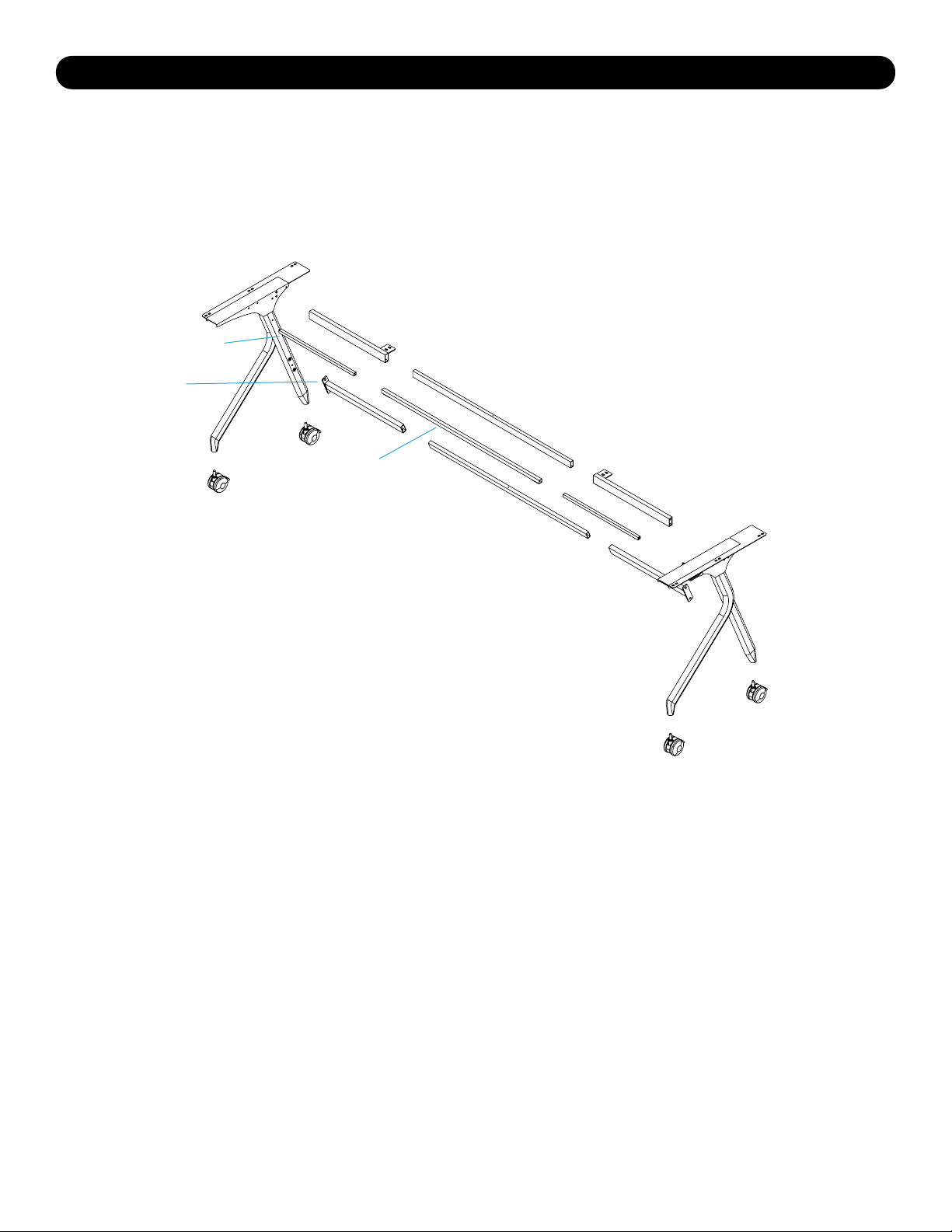

Component Diagram
Left Leg Assembly
Left Upper Crossbar End
Right Upper Crossbar End
Right Leg Assembly
Crossbar Rail
Crossbar Rail
Lower Crossbar End
Lower Crossbar End
Latch Release Crossbar End
Latch Release Crossbar Rail
Caster

5
© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com
Table Assembly Instructions
Step 1 - Inventory of Parts
A. Two people are recommended for assembly.
B. To avoid damage to your oor or Flip Top Table, we recommend assembling your table on a clean carpet, rug, or blanket.
C. Ensure you have received all components and hardware before disposing of any packing material. Lay out the
components from all boxes and make sure the items and quantities match what is shown in each of the package
contents sections in these instructions.
Step 2 - Upper Crossbar End Attachment
Upper Crossbar Ends and Leg Assemblies are marked with “L” and
“R” labels to mark the left and right sides.
A. Starting with the Right Leg Assembly (P1R), rotate the legs so
they lock into place, perpendicular to the at mounting plate
as shown, then turn the assembly so the ends of the legs are
facing up as shown.
B. Align the Right Upper Crossbar End (P2R) with the Right Leg
Assembly as shown, with the circled holes facing up. The tab on
the Upper Crossbar End will be facing toward the straight leg of
the Leg Assembly as shown.
C. Loosely insert two M6 x 16 Machine Screws (H3) through the Leg
Assembly plate and into the end of the Upper Crossbar End, but
do not tighten them yet.
D. Using the long end of the 5mm Allen Wrench (H6) through the
access holes in the Leg Assembly mounting plate, tighten the
screws.
E. Repeat this step for the Left Leg Assembly (P1L) and Left Upper
Crossbar End (P2L).
H3

6
Step 3 - Lower Crossbar End Attachment
A. Starting with the Right Leg Assembly (P1R), align one of the
Lower Crossbar Ends (P3) with the circled end in the image
facing up.
B. Loosely insert two M8 x 20 Machine Screws (H2) through the
Lower Crossbar End holes and into the Leg Assembly, but do not
tighten them yet.
C. Once both screws have been inserted, tighten them using the
5mm Allen Wrench (H6).
D. Repeat this step for the Left Leg Assembly (P1L) and second
Lower Crossbar End.
Step 4 - Leg Assembly Attachment
(Right Side)

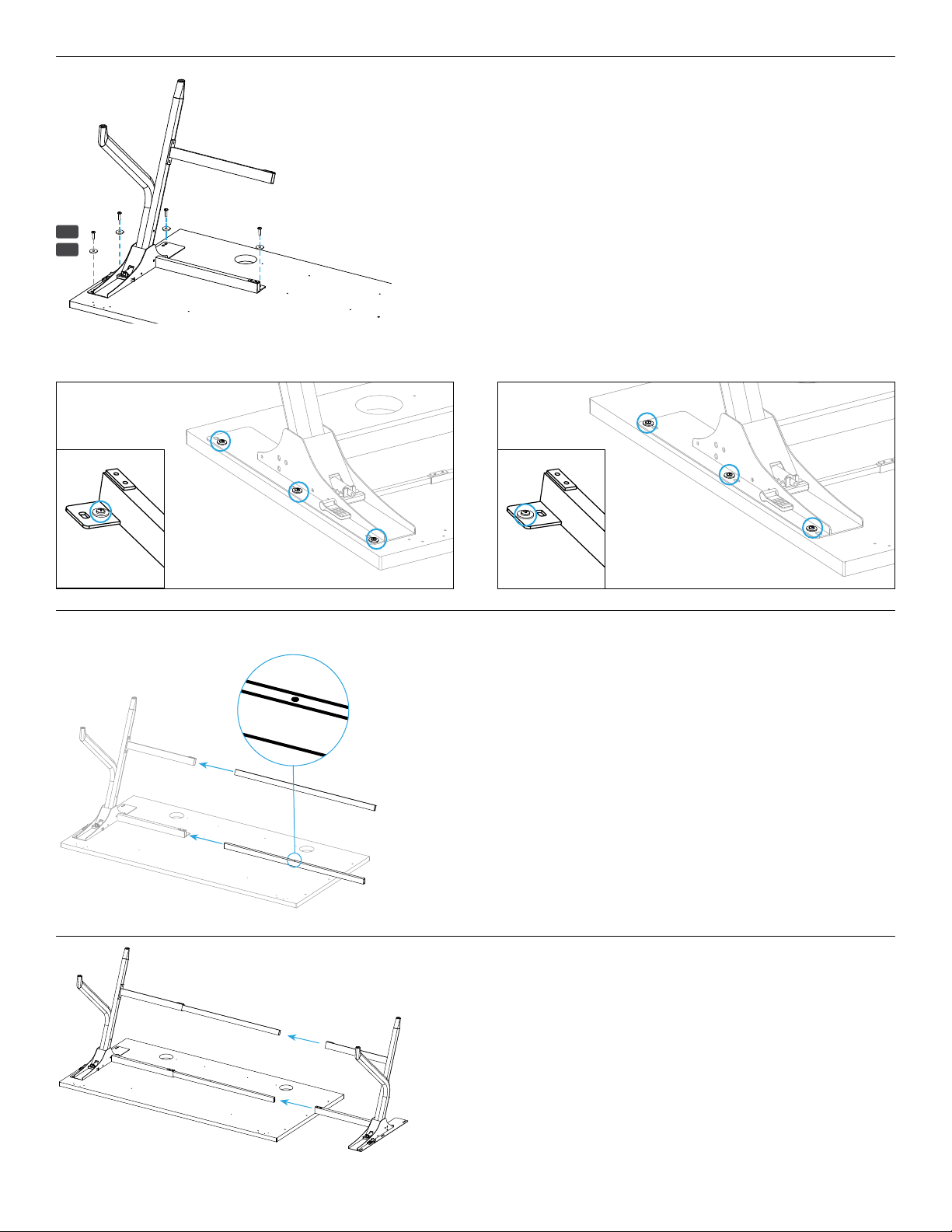

A. Place the tabletop upside down so the pre-drilled holes and
metal threaded inserts are facing up as shown.
B. The Leg Assembly mounting plate and Upper Crossbar Ends
include two sets of attachment holes to accommodate 24” deep
and 30” deep tabletops. Choose the correct set of holes for your
tabletop depth based on the following information.
Use the holes shown circled in this image for
attaching to tabletops that are 24” deep:
Use the holes shown circled in this image for
attaching to tabletops that are 30” deep:
C. Place the Right Leg Assembly onto the side of the tabletop as
shown. This will be the right side of the table when it is ipped
upright. When positioning a Leg Assembly on your tabletop, lift
it up to move it instead of sliding it to avoid scratching. Align
the holes determined above with the holes in the desktop that
have metal threaded inserts installed.
H2

7
© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com
Screw attachment location on 24” deep tabletop: Screw attachment location on 30” deep tabletop:
Step 5 - Crossbar Rail Installation
A. Orient the Crossbar Rails (P4) so the center indicator
holes are facing up and away from the tabletop.
B. Slide one Crossbar Rail into the Right Upper Crossbar End
(P2R) and the other into the Lower Crossbar End of the
Right Leg Assembly (P1R).
Center indicator hole
Step 6 - Leg Assembly Attachment (Left Side)
A. Slide the Upper Crossbar End (P2L) and Lower Crossbar End (P3)
of the Left Leg Assembly (P1L) onto the ends of the two Crossbar
Rails (P4) as shown.
D. Loosely insert four #10-24 x 3/4” Machine Screws (H4) and #10
Flat Washers (H5) through the frame holes and into the four
metal threaded inserts in the tabletop, but do not tighten them
yet.
E. Conrm the correct holes were used per the following images:
H4
H5

8
B. Align the holes in the Left Leg Assembly with the metal threaded
inserts in the tabletop.
C. Loosely insert four #10-24 x 3/4” Machine Screws (H4) and #10
Flat Washers (H5) through the frame holes and into the four
metal threaded inserts in the tabletop.
D. Now that all eight screws have been inserted, tighten all of them
(four screws on each side). Be careful to avoid stripping by not
overtightening.
Step 7 - Crossbar Rail Positioning
A. Slide each Crossbar Rail (P4) left or right until the center
indicator holes are approximately centered between the two
Upper Crossbar Ends and the two Lower Crossbar Ends.
B. Insert the M6 x 10 Set Screws (H1) into each of the holes in the
Upper and Lower Crossbar Ends and tighten them using the
3mm Allen Wrench (H7).
H4
H5
H1
H1
Shown is a 30” deep tabletop

9
© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com
Step 8 - Latch Release Crossbar Installation
A. Slide a Latch Release Crossbar End (P5) onto each end of the
Latch Release Crossbar Rail (P6) with the holes on all three parts
aligned to the same side. Holes on the ends of the two Latch
Release Crossbar Ends for the M6 x 10 Set Screws (H1, circled)
should be facing the same sides as shown.
B. Slide the Latch Release Crossbar Ends together, just enough for
the assembly to t between the two Leg Assemblies as shown.
C. Slide one of the Latch Release Crossbar Ends onto the square
latch release handle post with the hole facing up as shown.
D. Position the Latch Release Crossbar End approximately ⅜”
(10mm) away from the inside of the Leg Assembly bracket.
Insert one M6 x 10mm Set Screw (H1) in the hole and tighten
using the 3mm Allen Wrench.
Insert one M6 x 10mm Set Screw
3/8”

10

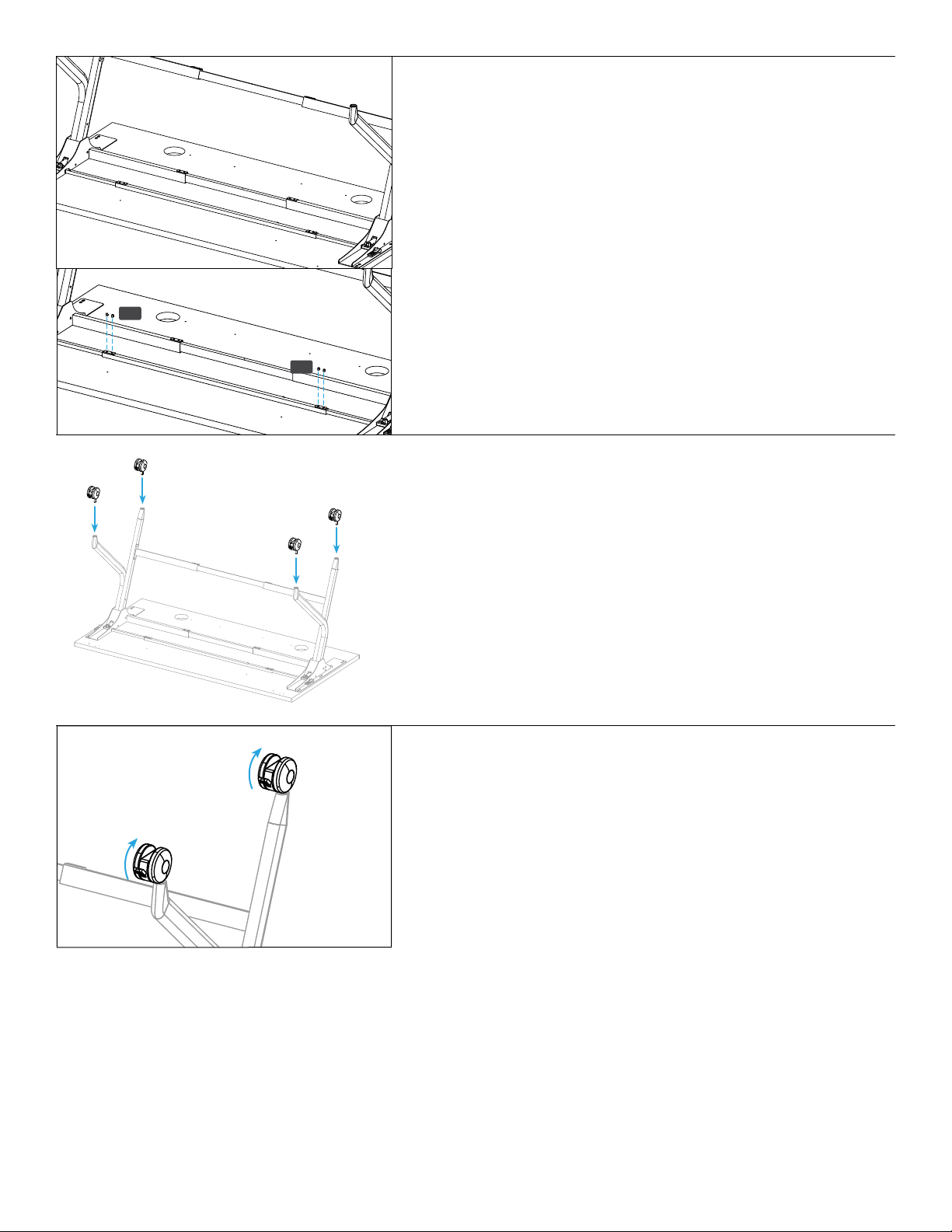

Step 9 - Caster Installation
A. Insert each of the Casters (P7) into the ends of the four legs of
the Leg Assemblies.
B. Tighten the Casters with the included Flat Wrench (H8).
Step 10 - Turning the Flip Top Table Upright
A. Flip the lever on each of the Casters (P7) to lock them for safety
and ensure they do not roll. Test each Caster to make sure it’s
locked properly and does not turn.
B. IMPORTANT: To prevent the table from folding while being
ipped over, ensure the release levers on the Leg Assemblies are
latched so the legs are locked in the upright position as shown.
E. Repeat previous two steps to attach the other Latch Release
Crossbar End to the opposite Leg Assembly.
F. Slide the Latch Release Crossbar Rail left or right as needed
until it is approximately centered between the two Leg
Assemblies as shown.
G. Insert four M6 x 10 Set Screws (H1) into the Latch Release
Crossbar Rail and tighten using the 3mm Allen Wrench (H7).
H1
H1

11
© UPLIFT Desk • 800-349-3839 • [e-mail] • upliftdesk.com
Step 11 - Flipping Tabletop Up
A. When the table is not in use, the tabletop can be ipped up for
storage.
B. Depress the latch release lever on either leg assembly and
gently lift the front edge of the tabletop until the back edge is
resting gently on the back of the Leg Assemblies as shown.
C. With one person located at each end of the table, support the
table frame and the tabletop equally and begin to tilt it slowly
towards the back of the table.
D. Readjust your grip and continue to rotate the table until it is
upright with the Casters on the oor.
E. Unlock the Casters and move the table to the desired location.
F. Lock the Casters again to keep the table from moving while in
use.
C. To return the tabletop to its original position, pull the front edge
of the tabletop down until you hear and feel the spring-loaded
latches on each Leg Assembly engage. Gently lift up to ensure
the tabletop is locked in place.
Step 12 - Rubber Bumper Installation
The Rubber Bumpers (H9) prevent damage from contact between
the underside of the tabletop and the Leg Assemblies.
A. With the tabletop ipped up, locate where the tabletop makes
contact with each Leg Assembly.
B. Remove the backing on each Rubber Bumper and press it rmly
for 20 to 30 seconds onto the bottom side of the tabletop where
it makes contact with one of the Leg Assemblies.
Latch release lever

Study this manual carefully. If this product is sold,
please provide this manual to the buyer, installers, or
support personnel operating the product.
SAVE THE INSTRUCTIONS
Work Better. Live Healthier
Copyright Notice: This guide is a component of this UPLIFT Desk product. This guide is a part of the scope of delivery, even if the item is resold.
This guide is also available on the UPLIFT Desk website: upliftdesk.com. These specications are subject to United States copyright law.
©
upliftdesk.com
[email protected]
800-349-3839
512-614-3152
AI-FRM067-1.0
For compact storage, multiple tables can be “nested” as shown.
Refer to instructions provided with the Flip Top Table Ganging
Brackets (FRM069) if you purchased those and are planning to
“gang” multiple tables together to keep them from becoming
separated.
Nested Table Gangs
