Uplift Desk PDC005 User manual

For further info or assistance, visit upliftdesk.com
call 800-349-3839 or email [email protected]
Patent Pending, ©2020 UPLIFT Desk®. All Rights Reserved
355 lb
two person
assembly
Power & Data Rail
Modular system for power and data solutions.
®

UPLIFT Power & Data Rail Components
Dual Row
Center Foot
80” desks
(PDC005-FOOT-DC80)
Single Row
Center Foot
80” desks
(PDC005-FOOT-SC80)
15mm Panel Bracket
(ACU071)
(Privacy Panels shipped separately)
Short Wire Trays
(PDC005-TRAY-SHT)
Long Wire Trays
(PDC005-TRAY-LNG)
Long Rail Assembly
(PDC005-RAIL-LNG)
Short Rail Assembly
(PDC005-RAIL-SHT)
Square Post
(PDC005-POST-SQ)
Dual Row
End Foot
(PDC005-FOOT-DE)
Single Row
End Foot
(PDC005-FOOT-SE)
Dual Row
Center Foot
(PDC005-FOOT-DC)
Single Row
Center Foot
(PDC005-FOOT-SC)
120-Degree Post
(PDC005-POST-120)
All components to make any conguration available on upliftdesk.com
Part numbers in parenthesis indicate how components are separated and shipped.

© UPLIFT Desk • 800-349-3839 • [email protected] • upliftdesk.com 3
Serving as a central spine in a group of benched workstations or a border around other con-
gurations, the Power and Data Rail allows you to provide power and data to the following
common congurations and many more.
Dual Sided Row
H-Shape
3-Pack
Single Sided Row
Comprised of customizable features you won’t nd on any other power rail solution, our patent-pend-
ing Power and Data Rail is the most capable and exible solution for open ofce environments. Use
wherever access to power outlets is limited and eliminate cable clutter and the need for extension
cords.
The Power and Data Rail was designed to position UPLIFT V2 and V2-Commercial desks with con-
sistent alignment and spacing throughout your oor plan, but you can use it with virtually any desk.

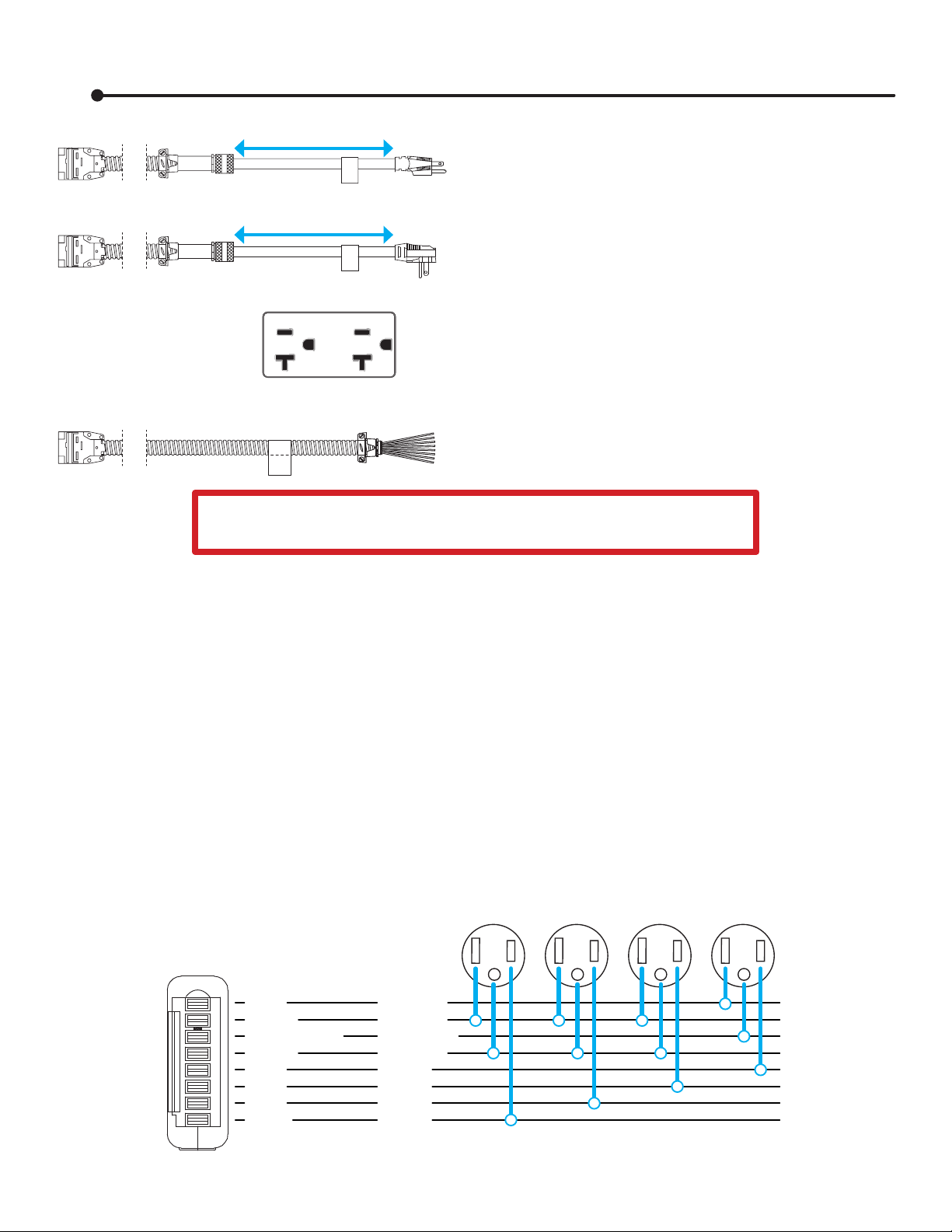

The Power and Data Rail accepts both Byrne 8-Trac or Dekko 8-Wire UL recognized electrical com-
ponents. Both of these electrical systems offer quick-connect components for fast and simple installa-
tion. Connect up to 4 desks with the plug-in power infeed or 16 desks with the hardwire power infeed.
Note: A licensed electrician is required for connection of the hardwire power infeed cables.
UPLIFT Power and Data Rail
4-Pack
C-Shape Herringbone
Dog Bone Shape

© UPLIFT Desk • 800-349-3839 • [email protected] • upliftdesk.com
4
M6x6 Set Screw
(installed in post)
Comes pre-assembled
Consists of:
Upper Post
Inner Sleeve
(inside)
Bottom Post
Height setting for
V2-Commercial Frames
Height setting for
V2 Frames
3mm Allen
Wrench
Square Post
Parts needed for this part of the assembly
Square Post Assembly
Step 1
A. The posts are designed with recommended height
setting indicator lines on the Bottom Post for UP-
LIFT V2 and UPLIFT V2-Commercial desks. Using
the included 3mm Allen Wrench, loosen the the
two M6x6 Set Screws so the Upper Post can slide.
B. If you are using the Power and Data Rail with UP-
LIFT V2-Commercial desks, slide the Upper Post
until the bottom edge is aligned with the rst indi-
cator line. For UPLIFT V2 frames, slide the Upper
Post to the second indicator line.
C. Once in place, tighten the Set Screws again and
continue this process with the rest of your Posts.
UPLIFT V2 Desks
UPLIFT V2-Commercial Desks

© UPLIFT Desk • 800-349-3839 • [email protected] • upliftdesk.com 5
Parts needed for this part of the assembly
Single Sided Row
Dual Sided Row
or
Square Post Foot Selection & Assembly
M5x10 Flat
Head Screw
(qty 4)
Dual Row
Center Foot
(qty 1)
Dual Row
Center Foot
80” desks
(qty 1)
Single Row
Center Foot
(qty 1)
Single Row
Center Foot
80” desks
(qty 1)
Single Row
End Foot
(qty 1)
Dual Row
End Foot
(qty 1)
Power
Infeed
hole
Power
source
3mm Allen
Wrench
or
Step 1
A. The Square Post Feet are designed for Single Sid-
ed or Dual Sided Row congurations as shown in
the diagrams.
B. Regardless of the length of the row of desks, if you
are using UPLIFT V2 and UPLIFT V2-Commercial
desks, the end posts in the run will require End
Feet. The remainder of the posts in the middle of
the row will use Center Feet. Use Foot part num-
bers ending in either -SC or -DC for UPLIFT Desks
less than 80” wide. Use foot part numbers end-
ing in either -SC80 or -DC80 for 80” wide UPLIFT
Desks.
• Important note: The large holes in each of
the Feet are designed to accept the level-
ing glides at the back of the UPLIFT V2 and
UPLIFT V2-Commerical desk feet. This pat-
ent-pending feature helps to keep your desks
aligned and spaced properly.
• For any non-UPLIFT V2 desks, we recom-
mend using End feet with ALL posts as the
larger Center feet may interfere with the feet
of other desk styles.
Step 2
A. Use the M5x10 Flat Head Screws that were includ-
ed with each post to attach the feet as shown to
the bottom of each post assembly. The oval power
infeed hole should be facing to the left or right of
the foot. This way the holes will be below the rails.
B. Hand tighten each screw a few turns at rst. Once
all screws are started, tighten them with the in-
cluded 3mm Allen Wrench.
Step 3
A. Position posts approximately where they will be
located once the Power and Data Rail assembly is
complete.
B. We recommend locating one of the end posts in
close proximity to the power outlet (for plug-in
power infeeds) or the junction box (for direct-wire
power infeeds) with the Power Infeed hole facing
the power source.
C. After the legs are generally where they need to be,
move on to the Assembly sections.

© UPLIFT Desk • 800-349-3839 • [email protected] • upliftdesk.com
6
Pictured here: Short Rail
(34.75” - 51.5” width adjustment between posts)
All rails come pre-assembled
Consisting of:
Cover
Rail Housing
Rail Extensions
(qty 2)
Also available: Long Rail
(51.75” - 82.75” width adjustment between posts)
M5x12 Screw
(qty 2)
Extension Washer
(qty 2)
Parts needed for this part of the assembly
Assembly - Linear Congurations
Step 1
A. The Covers are not attached with screws during
shipment. Remove the Covers from each of the
Rail assemblies and set them aside for later.
B. Remove the hardware and other components
from inside the Rail assemblies and set them aside
for later also.
Step 3
A. Move one of the Rail assemblies to the rst two
Posts in your conguration. Slide the Rail Exten-
sions in or out as needed so that they can be hung
on the Posts.
• Note: Be sure that the upper and lower tabs on
each Rail Extension are hooked over each Post
top and opening as shown.
B. Attach each Rail Extension to each Post with an
M5x12 Machine Screw and tighten using the 3mm
Allen Wrench.
Step 2
Turn each Rail assembly over and loosen the two
screws in each of the Extension Washers using the
3mm Allen Wrench. Do not remove the screws com-
pletely.
• Note: This will allow the Rail Extensions to slide
in and out of the Rail Housing.

© UPLIFT Desk • 800-349-3839 • [email protected] • upliftdesk.com 7
Center post foot
End post foot
34.75’’ - 51.5’’
51.75’’ - 82.75’’
Short and Long Rail Lengths
Rail lengths needed are determined by the desk di-
mensions. As a general rule, the length of the rail
should be the same length as the desktop it is being
placed adjacent to. This will create a gap of about 4
inches between desktops.
Rail measurements are taken from the furthest ends
of the Rail Extensions where the Rail meets the inside
of the Post. See diagrams to the left.
• Short Rails have a length adjustment range
of 34.75’’ to 51.5’’ (16.75” range) and are used
with UPLIFT 42”, 48”, and 120-degree desks.
• Long Rails have a length adjustment range of
51.75’’ to 82.75’’ (31” range) and are used with
UPLIFT 60”, 72”, and 80” desks.
Step 4
Move an UPLIFT V2 desk up to your rst Rail and Post
assembly. Slide the Posts in or out to align the holes in
the Post feet with the leveling glides in the back of the
desk feet as shown. Then, lift the desk slightly on each
side and set the desk glides into the Post feet holes.
• If you are assembling a Dual Sided Row congu-
ration, we recommend placing the desks on the
opposite side of the Power and Data Rail after
all the electrical components have been installed
and the assembly is complete.
• If you are not using UPLIFT V2 desks, slide the
Posts until the Rail assembly is about the same
length as the desktop and the Posts sit outside
both sides of the desk. You’ll want a 4 inch gap
between sides of desktops
Step 5
A. Continue adding Posts and Rail assemblies down
the row following Steps 3 and 4 above until all of
the Rail assemblies are attached to the posts.
B. Then continue to move your UPLIFT V2 desks into
place, locating the desk feet glides into the Post
feet holes.
• Note: If you are assembling a Single Sided Row
along a wall, once all of the Posts are aligned
with the desk glides move the desks away from
the Rail again. This will make the rest of the as-
sembly much easier.

© UPLIFT Desk • 800-349-3839 • [email protected] • upliftdesk.com
8
Use Single Row End Feet at “A” locations, facing inward.
Use Single Row Center Feet (PDC005-FOOT-SC, or
PDC005-FOOT-SC80) at “B” locations, facing inward.
Use Dual Row End Feet at “C” locations, perpendicular
to the rails.
Use Single Row End Feet at “A” locations, facing inward.
Use Single Row Center Feet (PDC005-FOOT-SC, or
PDC005-FOOT-SC80) at “B” locations, facing inward.
For non-linear congurations such as the C-Shape, H-Shape, 4-Pack, and Herringbone Shape, you will be
connecting Rail assemblies to other sides of the Square Posts. Follow the same Rail Extension attachment
process as shown in the section “Assembly - Linear Congurations” Page 6, Step 3.
The type of feet used in non-linear congurations are dependent upon the type of desks used and where
the desk feet glides are.
Herringbone & C-Shapes H-Shape 4-Pack
Assembly - Non-Linear Congurations
AA
AA
C C BB
AA
AA B B
B
B
A
A
Use Dual Row End Feet at “A” locations.
Use Single Row Center Foot (PDC005-FOOT-SC) at
“B” locations, facing the desks.
Use Dual Row End Feet at “A” locations.
Use a Dual Row Center Foot (PDC005-FOOT-DC) at
the center location, “B.”
4-Pack
Herringbone
H-Shape
C-Shape
AA
A
A
B

© UPLIFT Desk • 800-349-3839 • [email protected] • upliftdesk.com 9
M5x10 Flat Head Screw
(qty 6)
120-Degree Foot
(qty 3)
3mm Allen Wrench
Height setting for
V2-Commercial Frames
Height setting for
V2 Frames
Parts needed for this part of the assembly
120-Degree Post Assembly
M6x6 Set Screw
(installed in post)
Comes pre-assembled
Consists of:
Upper Post
Inner Sleeve
(inside)
Bottom Post
120-Degree Post
UPLIFT V2 Desks
UPLIFT V2-Commercial Desks
Step 1
A. The posts are designed with recommended height
setting indicator lines on the Bottom Post for UP-
LIFT V2 and UPLIFT V2-Commercial desks. Using
the included 3mm Allen Wrench, loosen the the
two M6x6 Set Screws so the Upper Post can slide.
B. If you are using the Power and Data Rail with UP-
LIFT V2-Commercial desks, slide the Upper Post
until the bottom edge is aligned with the rst indi-
cator line. For UPLIFT V2 frames, slide the Upper
Post to the second indicator line.
C. Once in place, tighten the Set Screws again and
continue this process with the rest of your posts.
Step 2
A. Using six M5x10 Flat Head Screws, attach the
120-Degree Feet (two screws per foot) as shown
to the bottom of each post assembly.
B. Hand tighten each screw a few turns at rst. Once
all screws are started, tighten them with the in-
cluded 3mm Allen Wrench.

© UPLIFT Desk • 800-349-3839 • [email protected] • upliftdesk.com
10
Step 2 (3-Pack Conguration)
A. For the 3-Pack Conguration, you will need one
120-Degree Post and three Square Posts. Position
them as shown to the left approximately where
they will be located once the Power and Data Rail
assembly is complete.
B. Power Infeeds can be introduced through the
120-Degree Post or any of the Square Posts. Lo-
cate the Power Infeed Post close to the power
outlet (for plug-in power infeeds) or the junction
box (for hardwire power infeeds) with the Power
Infeed hole facing the power source.
Step 3 (3-Pack Conguration)
Attach the Rails following the instructions in the sec-
tion “Assembly - Linear Congurations” Page 6, Step 3.
Step 1
Determine if you will be using the 3-Pack Congura-
tion, or the Dog Bone Shape Conguration.
3-Pack Conguration: If you are just putting togeth-
er three 120 Degree desks, follow the instructions in
Steps 2 - 4 on this page.
Dog Bone Shape Conguration: If you want to put
together two 3-packs and two rectangular desks, skip
Steps 2 - 4 and follow Steps 5 - 7 on page 11.
3-Pack Dog Bone Shape
Assembly - 3-Pack & Dog Bone Congurations
Step 4 (3-Pack Conguration)
When assembled, the 3-Pack conguration will ac-
commodate three 120-degree desks. Adjust the Rail
lengths so that they are ush with end of the desks
as shown. This will put the Square Post in the proper
location for converting into a Dog Bone conguration
later if desired. Position the desks as shown.
• If you are using UPLIFT V2 desks, the Rail
lengths should be adjusted to 42.25” between
the 120-Degree and Square Posts.
• Note: We highly recommend using our Desk
Benching System for V2 Desks (FRM028) with
120-Degree desks to create consistent spac-
ing between the desks.

© UPLIFT Desk • 800-349-3839 • [email protected] • upliftdesk.com 11
Step 5 (Dog Bone Shape Conguration)
A. For the Dog Bone Shape Conguration, you will
need two 120-Degree Posts and six Square Posts.
• Note: two of the Square Posts will need to have
Dual Row Center Feet (PDC005-FOOT-DC, cir-
cled). If the desks being used are not UPLIFT V2
Desks, we recommend using Dual Row End Feet
like the other Posts.
• Position the Posts as shown to the left and ap-
proximately where they will be located once the
Power and Data Rail assembly is complete.
B. Power Infeeds can be introduced through the
120-Degree Post or any of the Square Posts. Lo-
cate the Power Infeed Post close to the power
outlet (for plug-in power infeeds) or the junction
box (for hardwire power infeeds) with the Power
Infeed hole facing the power source.
Step 6 (Dog Bone Shape Conguration)
A. Assemble the 3-Pack congurations per the in-
structions in the previous section. Attach the Rails
following the instructions in the section “Assembly
- Linear Congurations” Page 6, Step 3.
B. Then move your Rails for the rectangular desktops
into place between the 3-Packs and adjust the Rail
length following the instructions on Page 7, Step 4.
Step 7 (Dog Bone Shape Conguration)
When assembled, the Dog Bone Shape Conguration
will accommodate six 120-degree desks and two rect-
angular desks in the middle.
• If you are using UPLIFT V2 desks, the Rail
lengths should be adjusted to 42.25” between
the 120-Degree and Square Posts.
• Note: We highly recommend using our Desk
Benching System for V2 Desks (FRM028) with
120-Degree desks to create consistent spac-
ing between the desks.

© UPLIFT Desk • 800-349-3839 • [email protected] • upliftdesk.com
12
Byrne
JumpersPower Infeed
- Hardwire Infeed -
- Plug-In Infeed -
Dekko
Quantity and length
depends on conguration.
Available Lengths of Power Infeed & Jumpers: between 12 and 1800 inches
Dekko
Byrne Straight Plug
Byrne Right-Angle Plug
Byrne - or -
- or -
Parts needed for this part of the assembly
Electrical Assembly
Step 1
A. Standard Power Infeeds are 72” long, but can be
ordered longer if needed. Keep the Power Infeed
length and power source location in mind when
planning your space. There will be about 36.5” of
the infeed coming out of the post if you are build-
ing a row of 42” desks but only 21.5” for a row of
72” desks.
B. Run your Power Infeed, in the orientation shown,
from the middle of the Rail, through the Rail ex-
tension and down the Post that is nearest to the
Power source. Lift up the plastic Inner Sleeve that
is covering the Power Infeed hole and pull out the
end of the Power Infeed.
Step 2
A. As a rule of thumb, required Byrne Jumper length
equals the distance between the midpoints of two
Rails, minus 10.25”. Feed the appropriate length
Jumper from the middle of one Rail, through the
Rail extension, Post, and next Rail extension to the
middle of the next Rail.
B. Continue on until all of the Jumpers are in place
within the Power & Data Rail assembly.

© UPLIFT Desk • 800-349-3839 • [email protected] • upliftdesk.com 13
Step 3
A. In a 3-Pack conguration, Power Infeeds can be in-
troduced through either the 120-Degree or Square
Posts and will require two Jumpers to connect all
three Rails.
B. Follow the Power Infeed and Jumper installation
procedures described in Steps 1 and 2 of this sec-
tion.
C. You may nd it helpful to temporarily detach one
of the Rails in order to feed the Jumpers as shown
in the example to the left. Detaching one Rail will
allow access through the open “window” of the
120-Degree Post.

© UPLIFT Desk • 800-349-3839 • [email protected] • upliftdesk.com
14
M5x12 Screw
(qty 4)
M5x12 Screw
(qty 4)
Byrne Power Block
(qty 1)
Dekko Power Block
(qty 1)
Byrne Duplex
Receptacle
(2 each, per side of Power Block)
Dekko Duplex
Receptacle
(2 each, per side of Power Block)
Byrne Faceplate*
(qty 1)
*Byrne Faceplates are marked on the back with a “B” *Dekko Faceplates are marked on the back with a “D”
Dekko Faceplate*
(qty 1)
Blank Faceplate
(qty 1)
Blank Faceplate
(qty 1)
Byrne Bracket
(qty 1)
These instructions will cover the installation of Byrne components. Dekko component installation
is similar but the Bracket is replaced with four L-brackets that are pre-installed on the Dekko Power Block.
curved edge
Parts needed for this part of the assembly
Installing Power Components
Byrne assembly Dekko assembly
Tab
Undercut Step 1
Slide the Byrne Bracket onto the bottom of the By-
rne Power Block in the orientation shown so that the
Bracket “tabs” slide into the “undercuts” on each end
of the Power Block.
• You should hear a “click” when the Bracket is
completely in place and centered underneath
the Power Block.
Step 2
A. You will notice that the Jumpers and Power Blocks
have a “curved edge” towards the bottom side
indicating orientation for connection. Make sure
these are aligned.
B. With the Power Block and Bracket assembly in
the orientation shown, and still outside of the Rail,
connect a Jumper to one end.
• Pull back on each cable after connection to
Power Block to ensure they are completely
locked in place.
C. There are two Jumper connection points on each
end of the Power Block. You can use either one
or both as needed per your conguration. Connect
the Jumper(s) to the other end of the Power Block.
With short Rails, it may help to slide one of the Rail
Extensions out a bit to give yourself more room.

© UPLIFT Desk • 800-349-3839 • [email protected] • upliftdesk.com 15
Step 3
A. Carefully insert the Power Block and Jumper as-
sembly down into the Rail Housing, tilting it slight-
ly to the front or back side of the Rail to get it
through the opening at the top.
B. Once in place, attach the Power Block from the
bottom of the Rail Housing using four M5x12
Screws. Tighten using the 3mm Allen Wrench, but
be careful not to over tighten to avoid stripping.
• Note: If you are planning to attach optional Wire
Trays, do not tighten these screws all the way.
Step 4
A. Byrne Duplex Receptacles are keyed to install one
way, make sure the “tab” on each Receptacle is
facing up. Insert each Receptacle into one of the
cavities in the Power Block and slide it outwards
to lock it in place.
• Pull back on the Receptacles to ensure they are
locked in.
B. Snap a Faceplate into the opening and around
the Receptacles and repeat these steps for the re-
maining Power Blocks.
• If one side of the Rail is not receiving Recep-
tacles, cover the opening with the included
Blank Faceplate.
Step 5
Once all of the electrical components are installed and
connected, tighten all of the Rail Extension Washer
Screws using a 3mm Allen Wrench, but do not over
tighten to avoid stripping.

© UPLIFT Desk • 800-349-3839 • [email protected] • upliftdesk.com
16
Power Infeeds
The recommended electrical system for the UPLIFT Pow-
er and Data Rail is the Byrne 8-Trac System. However, we
have also designed the Power and Data Rail to accept the
Dekko 8-Wire System. This can help prevent any delays if
one of those two suppliers is experiencing long lead times.
The rst type of power infeeds for the UPLIFT Power and
Data Rail is the Plug-In Infeed (see g.1) which plugs into
either a wall outlet or a oor outlet and can be installed
by anyone. Plug-in feeds are supplied by a single 20 amp
circuit that typically supplies your ofce wall outlets.
Outlets for Plug-in Power Infeeds must be 20 amp
type conguration (see g.2) to maintain UL in order
to maintain UL listing. Do not use plug adapters to
plug infeed into a 15 amp type outlet.
The second type of Power Infeed is the Hardwire In-
feed (see g.3). The hardwire infeed connections must
be made by a licensed electrician.
The Power Infeed accommodates up to four 20 amp circuits and consists of four line conductors,
two neutrals, and two grounds. Per National Electrical Code (NEC) requirements, up to 13 duplex
receptacles may be used per circuit, with a total of 52 available receptacles if all four circuits are
used. The line conductors are 12 AWG, and share a 12 AWG ground and a 10 AWG neutral conduc-
tor. The fourth circuit is isolated and dedicated and is serviced by its own line, neutral, and isolated
ground conductors. The Byrne 8-Trac System can be wired in both single and three-phase cong-
urations, 240/120V, 208/120V respectively (see Byrne 8-Trac wiring diagram below).
This power rail system utilizes (4) circuits; (3) for general purpose that share a common neutral and
ground, and (1) circuit that has a dedicated neutral and ground. This dedicated circuit is sometimes
used as the “computer” circuit since it does not share a neutral conductor, thereby reducing the
chance for electrical noise originating from other loads that may be plugged in. But many users plug
their computers into any of the 4 circuits without issues. Byrne duplex receptacles are marked as 1, 2,
3, and 4. Receptacles marked 1, 2, and 3 connect to the three general purpose circuits and the recep-
tacle marked 4 connects to the dedicated circuit. IF you optionally choose to only plug computers
into the dedicated circuit you may need to use additional power infeeds and an electrical designer
can help with this - as a general rule, you can assume 250W (2.08A) for each computer receptacle
and 180W (1.5A) for each general purpose receptacle when calculating for each 20A circuit.
Electrical Wiring
Fig. 1 - Plug-In Power Infeeds
Fig. 3 - Hardwire Power Infeeds
Fig. 2 - required outlet type
for Plug-In Power Infeed
24’’
24’’
Hardwire Power Infeed wiring diagram
Circuit 1 Circuit 2
Circuit 3 Circuit 4
Gray
White
Green/Yellow
Green
Pink
Blue
Red
Black
Neutral 2
Neutral 1
Iso Ground
Ground
Hot 4
Hot 3
Hot 2
Hot 1
IMPORTANT:
All hard wired electrical connections must be made by a licensed electrician.
Refer to all warnings at the beginning of this manual.

© UPLIFT Desk • 800-349-3839 • [email protected] • upliftdesk.com 17
Adapter Manufacturer Website
AA
Systimax/CommScope www.Commscope.com/Systimax
Uniprise/CommScope www.Commscope.com/Uniprise
BB
L-Com Keystone Modular www.L-Com.com
NETCONNECT, and 110 Connect Series Modular Jack www.Anixter.com
Siemon ZMAX Style www.Siemon.com
Allen Tel Versa Tap Series www.Graybar.com
Leviton Quick Port® Series www.Leviton.com
Belden REVconnect www.Belden.com
CC Hubbell Nextspeed™ Keystone Series www.Hubbell-premise.com
DD Blank (no coupler/jack) -
EE Ortronics TracJack Series www.Ortronics.com
FF Panduit Mini-Com Series www.Panduit.com
GG Microphone Jack/3-pin XLR, solder type only www.Byrne.com
HH Video Monitor Jack/DB-15, panel mount solder style www.Byrne.com
Note: Please verify t of jack in adapter before ordering large quantities as manufacturer designs may
change without notice.
Data Cable
Hanger
(qty 2)
Blank Plate
(qty 2, optional)
Data Plate
(qty 2, optional)
Data Plate
Adapter Kit
(qty 2, optional)
BB EE
FF
CCDD AA
BB EE
CCDD AA
HH
FF
GG
BB EE
FF
CCDD AA
BB EE
CCDD AA
HH
FF
GG
BB EE
FF
CCDD AA
BB EE
CCDD AA
HH
FF
GG
BB EE
FF
CCDD AA
BB EE
CCDD AA
HH
FF
GG
BB EE
FF
CCDD AA
BB EE
CCDD AA
HH
FF
GG
BB EE
FF
CCDD AA
BB EE
CCDD AA
HH
FF
GG
BB EE
FF
CCDD AA
BB EE
CCDD AA
HH
FF
GG
BB EE
FF
CCDD AA
BB EE
CCDD AA
HH
FF
GG
Parts needed for this part of the assembly
Installing Data Components
Cables
(not included)
Jacks
(not included)
Step 1
A. If you are running data cables, UL Listed (DUXR)
or Recognized (DUXR2) jacks are required. Jacks
and cables are not included.
B. Pick the Data Plate Adapter which will t your jack
from the kit provided. The Double-letter code is
stamped on the back of each piece.

© UPLIFT Desk • 800-349-3839 • [email protected] • upliftdesk.com
18
Step 2
Install the Data Cable Hangers into the holes located
in the Rail Housing near the top and above the Pow-
er Block. These will keep the data cables suspended
above the Power Block and out of the way.
Step 6
With both cable assemblies snapped into the Data
Plate, t the assembly into the data window in the side
of the Power & Data Rail.
Step 7
If you are not installing data in a particular data open-
ing, insert one of the included Blank Plates.
Step 3
A. Pull your cables out through the data window in
the side of the Power & Data Rail from the inside.
B. Connect a cable to one of the jacks following the
instructions provided with the jack.
Step 4
A. Pull the nished cable & jack through one of the
square holes in the Data Plate, from the back side.
B. Snap the jack into the one of the Data Plate Adapt-
ers you selected in Step 1.
Step 5
A. Snap the Data Plate Adapter into the notches of
the square hole in the Data Plate in the orientation
shown.
B. Repeat Steps 3 through 5 with the second cable.

© UPLIFT Desk • 800-349-3839 • [email protected] • upliftdesk.com 19
Rail Cover
(qty 1)
Post Plates
(max 3 per post)
M5x6 Screw
(qty 6 per cover)
Square Post Cap
(qty 1 per post)
3-Way Post Cap
(qty 1 per post)
Step 2
If you’re installing Wire Trays, refer to the instructions
that come with the Wire Trays.
Parts needed for this part of the assembly
Finishing your assembly
Step 1
A. Place the Rail Covers on the Rail Housings and
align the holes in each part.
B. Install the six M5x6 Screws and tighten using the
3mm Allen Wrench, but do not over tighten to
avoid stripping.
• If you are installing Privacy Panels on top of the
Rails, install only two of the M5x6 Screws in the
center of the Rail Cover and refer to the instruc-
tions that came with the Privacy Panel Brackets.
Step 3
A. Install Post Plates into the openings at the tops of
each Post where Rails are not attached by slid-
ing them into place from the top down. The Post
Plates have a lip at the bottom and two small clips
at the top which hold them to the post.
B. Finally, press the Square and 120-Degree Post
Caps onto the tops of each Post by aligning the
pegs on the caps with the holes in the top of the
Posts.

512-614-3152
800-349-3839
[email protected]
upliftdesk.com
Copyright Notice: This guide is a component of this UPLIFT Desk Product. This guide is a part of the scope of delivery, even if the item is resold. This
guide is also available on the UPLIFT Desk website: upliftdesk.com. Excerpts or copies may not be forwarded to third parties or used in any other
published form without the prior written consent of UPLIFT Desk. These instructions are subject to United States copyright law.
©
SAVE THESE INSTRUCTIONS
Study this manual carefully. If this desk is sold, please provide this
manual to the buyer, installers, or support personnel operating the product.
INS-PDC005-REV1 - AI-PDC005-REV1-1.0
®
INS-PDC005-REV1
