Uplift Desk E7 Electric User manual

For assembly assistance,
visit upliftdesk.com/e7-converter or call 800-349-3839
or email [email protected]
355 lb
one person
assembly
Patent Pending, ©2018 UPLIFT Desk®. All Rights Reserved

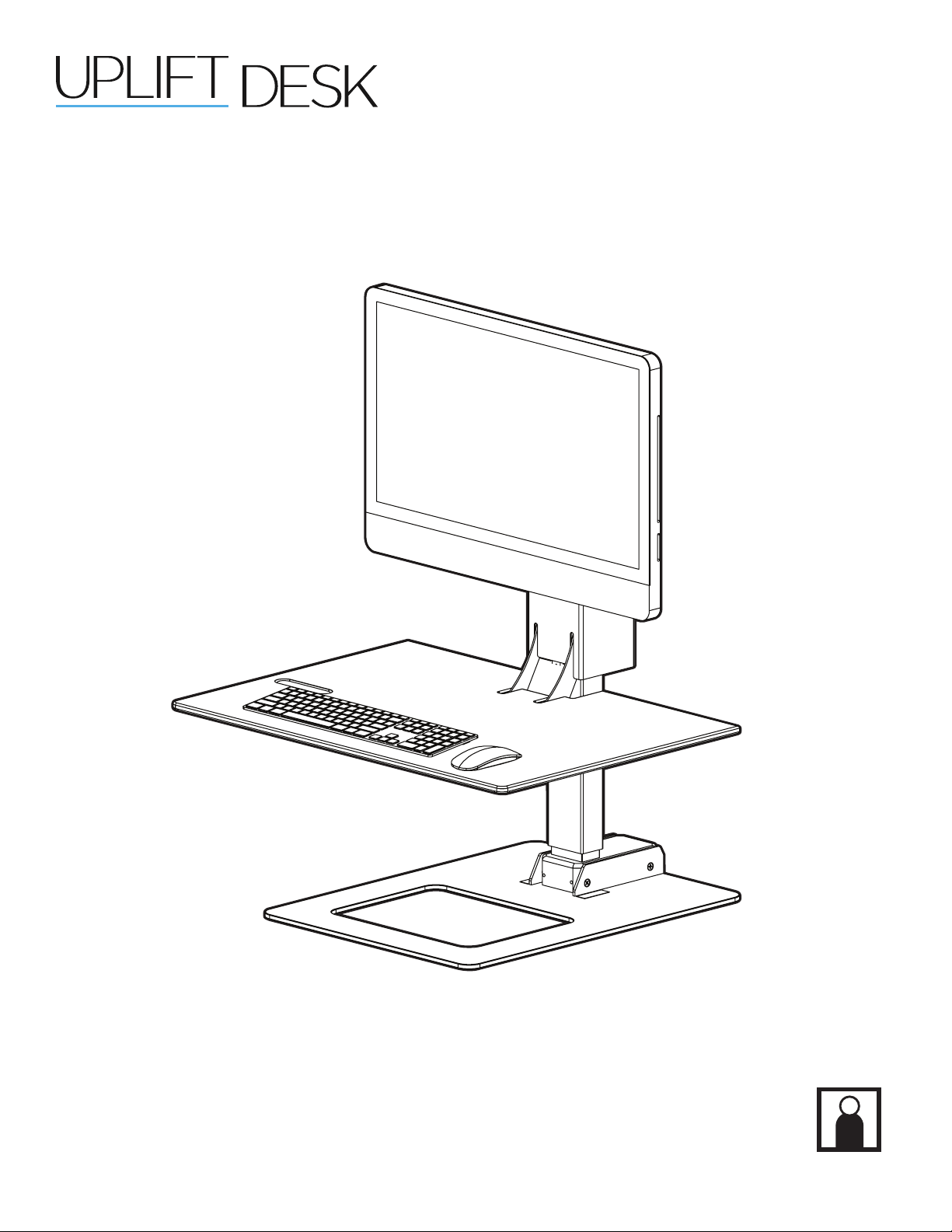

E7 Electric
Standing Desk Converter
®

© UPLIFT Desk • 800-349-3839 • 512-614-3152 • [email protected]om • upliftdesk.com
2
Thank you for choosing UPLIFT Desk.

© UPLIFT Desk • 800-349-3839 • 512-614-3152 • [email protected]om • upliftdesk.com 3
Package contents
Flat head screws (M6x14; qty 8)
Pan head screws (M6x14; qty 2)
VESA mount
VESA bracket
Slot cover
Keypad
Power cable
Connecting cable
Base
Lifting column
Housing
Keyboard tray
bracket
Keyboard tray
Worksurface
Worksurface
bracket
Pan head screws
(#10-24x5/8’’; qty 13)
Pan head screws (M6x10; qty 4)
Pan head screws (M4x12; qty 4)
VESA screws (qty 1)
Cable clips (qty 2) Felt pads (qty 4)
[x] POWER CABLE
[x] CONNECTING CABLE
(get from FRM200 instructions)
VESA screw
#10-24x1/2’’
Pan Head
M5x10
Pan Head
M6x10
Flat Head
Socket cap
[x] POWER CABLE
[x] CONNECTING CABLE
(get from FRM200 instructions)
VESA screw
#10-24x1/2’’
Pan Head
M5x10
Pan Head
M6x10
Flat Head
Socket cap
[x] POWER CABLE
[x] CONNECTING CABLE
(get from FRM200 instructions)
VESA screw
#10-24x1/2’’
Pan Head
M5x10
Pan Head
M6x10
Flat Head
Socket cap
[x] POWER CABLE
[x] CONNECTING CABLE
(get from FRM200 instructions)
VESA screw
#10-24x1/2’’
Pan Head
M5x10
Pan Head
M6x10
Flat Head
Socket cap
[x] POWER CABLE
[x] CONNECTING CABLE
(get from FRM200 instructions)
VESA screw
#10-24x1/2’’
Pan Head
M5x10
Pan Head
M6x10
Flat Head
Socket cap
[x] POWER CABLE
[x] CONNECTING CABLE
(get from FRM200 instructions)
VESA screw
#10-24x1/2’’
Pan Head
M5x10
Pan Head
M6x10
Flat Head
Socket cap
[x] POWER CABLE
[x] CONNECTING CABLE
(get from FRM200 instructions)
VESA screw
#10-24x1/2’’
Pan Head
M5x10
Pan Head
M6x10
Flat Head
Socket cap
[x] POWER CABLE [x] CONNECTING CABLE (get from FRM200 instructions)
VESA screw
#10-24x1/2’’ Pan Head
M5x10
Pan Head
M6x10
Flat Head
Socket cap
[x] POWER CABLE [x] CONNECTING CABLE (get from FRM200 instructions)
VESA screw
#10-24x1/2’’ Pan Head
M5x10
Pan Head
M6x10
Flat Head
Socket cap
[x] POWER CABLE
[x] CONNECTING CABLE
(get from FRM200 instructions)
VESA screw
#10-24x1/2’’
Pan Head
M5x10
Pan Head
M6x10
Flat Head
Socket cap
Step 2
(a) Attach the Lifting column to the Base using four M6x14
Flat head screws. Make sure the vertical column is facing to-
wards the front.
(b) Attach the Worksurface bracket to the front of the Lifting
column using four M6x10 Pan head screws.
Step 1
Position your base upside down, and place the Felt pads at
the four corners of the Base. Once in place, ip it over and
place the base on your desk, with the front lined up with the
front edge of your desk.
(a) (b)
Keypad
Power cable
Connecting
cable
Step 3
Plug the Lifting column’s cable into the Connecting cable,
then plug the Connecting cable into the port marked “M1” in
the Control box. Plug the Keypad into the port marked “HS”
and nally plug the Power cable into the control box, and then
into a 120Vac wall outlet. Press the “up” arrow on the Keypad
to raise the Worksurface to a higher level for Steps 4 and 5.
IMPORTANT: While raising the Worksurface keep the Keypad
steady by rmly holding it against the base or desktop.
Note: If surface does not rise perform the reset instructions
in the TROUBLESHOOTING section on page 6-7.
Step 4
Unplug the Keypad only! Feed the end of the Keypad’s wire
through the top side of the Worksurface and t the Keypad
into the pocket as shown. Press Keypad cable into the wire
channel on the underside of the Worksurface. Attach Work-
surface onto the Worksurface bracket using ve #10-24x5/8’’
Pan head screws. Plug the Keypad back into the Control box.
Step 5
Attach the Keyboard tray bracket to the Worksurface using four
#10-24x5/8’’ Pan head screws. Then attach the Keyboard tray to
the Keyboard tray bracket also using four #10 24x5/8’’ Pan head
screws.
Caution: Make sure that Keyboard tray of the assembled unit is
clear of the desk edge. When the unit is at it’s lowest position, the
Keyboard tray will be lower than the desk’s surface.
front
of base

© UPLIFT Desk • 800-349-3839 • 512-614-3152 • [email protected]om • upliftdesk.com
4
(a) (b) Step 6
Take a moment to group your wires tightly together, to prevent
them from splaying too widely, getting caught in moving parts,
or interfering in Step 7. We recommend using the two Cable
clips with adhesive here:
(a)Above theControl boxto keepthe Powercord closeto theLifting
column. For additional securing, the cable can run behind the
Control box.
(b) About 2’’ below the Control box, on the top segment of the
lifting column (as shown). Leave slack to allow the lifting column
to rise all the way up.

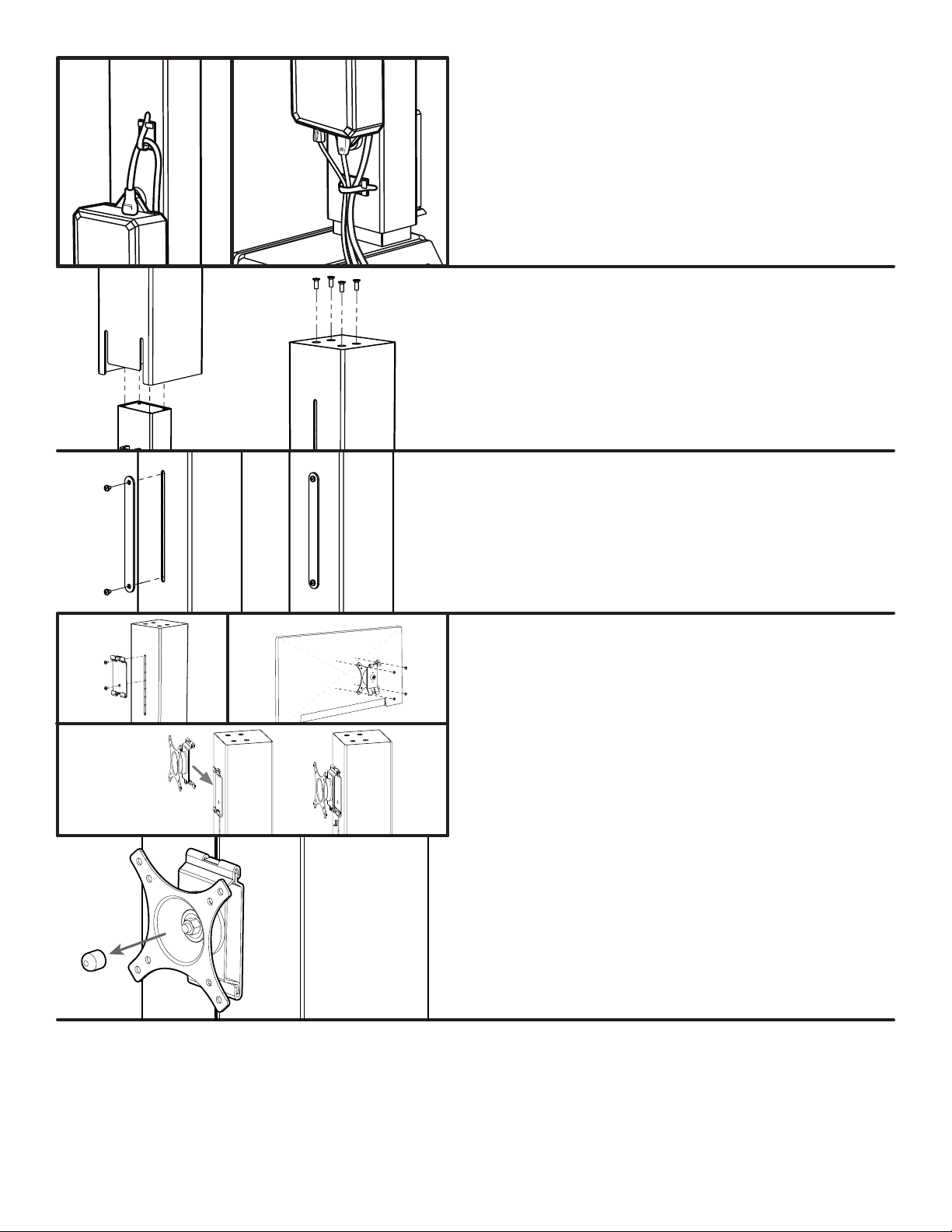

Step 7
Press the down button on the Keypad and lower the unit down to
lowest setting. Slide the Housing over the Lifting column.
Caution: As you slide on the Housing, be mindful of where the
cables are.
Make sure the screw holes on the Housing match up with the
screw holes on the Lifting column and attach using four M6x14
Flat head screws.
Step 8
(a) Attach the VESA bracket to the Lifting column using two M6x14
Pan head screws. Note: there are ve different height settings;
choose the height that is best suited for your monitor.
(b) Attach the VESA mount to your Monitor using the four M4x12
Pan head screws. Ensure that the hooks on the VESA mount are
facing down and toward the bottom of the Monitor, as shown. Max-
imum monitor weight should not exceed 17.6 lbs (8 kg.)
(c) Hook the Monitor assembly to the VESA bracket, and secure
with the VESA screw, which is provided with the VESA mount.
NOTE 1:
If you have a free standing monitor or laptop and do not plan
on attaching a monitor directly to the Lifting column using the
provided VESA mount, you may cover up the open slot with a
Slot cover and two M6x14 Pan head screws.
(monitor
not pictured)
(a) (b)
(c)
NOTE 2:
The VESA mount provides multiple axis adjustment for your mon-
itor. If you nd that your monitor does not stay in place after ad-
justment, remove the VESA mount from the monitor, remove the
plastic cap from the inside of the VESA mount and tighten the nut.
Alternately, if the Monitor is not adjustable at all, loosening the
nut slightly will allow it the necessary give to move the Monitor. It
might take a few attempts to nd the right balance.

© UPLIFT Desk • 800-349-3839 • 512-614-3152 • [email protected]om • upliftdesk.com 5
KEYPAD LOCK
The keypad can be locked to prevent accidental activation or movement of the unit.
To lock: Press and hold “M” button until display changes to “LOC”
To unlock: Press and hold “M” button until display changes to numeric height setting.
NOTE: If a power outage occurs, the program will automatically return to the unlocked setting.
MEMORY SETTINGS
Save up to two commonly used heights and recall them quickly.
l. Press the UP or DOWN button to move the unit to the desired height.
2. Press the “M” button.
3. Press the “1 or 2” button to assign the current height to a number on the keypad.
4. To recall any of those heights, press the numbered button to bring unit to assigned height.
HEIGHT CALIBRATION
Make sure the numeric display matches the actual height of the worksurface at its lowest position.
1. Press the DOWN button until the desk reaches the lowest position.
2. Measure the height from the oor to the underside of the worksurface. If the displayed height
does not match your measurement, follow the next steps.
3. Press the DOWN button until display ashes “RST”.
4. Press the “M” button until the numeric display begins ashing.
5. Press the UP or DOWN button to set unit to the measured height.
6. Once display changes back to “RST”, press the DOWN button until the unit lowers slightly, then
rises slightly and the display changes back to the numeric height setting.
*Note: “RST” will look like
“ASr” on the display
CONSTANT-TOUCH & ONE-TOUCH
These steps allow the unit to be set to either One-Touch or Constant-Touch. One-Touch requires only
a single touch of the “1 or 2” button to move the unit to a preset memory location. One-Touch is the
default setting. Constant-Touch requires a continuous touch of the “1 or 2” button to move the unit to
a preset memory location.
Change between One-Touch and Constant-Touch:
l. Press the DOWN button until the unit reaches the lowest position.
2. Press the DOWN button again until display ashes “RST”.
3. Press the “1” button until display shows “10.1” (One-Touch) or “10.2” (Constant-Touch)
and goes back to “RST”.
Note: While “RST” is still ashing, you can press the “1” button as many times as you’d like
to toggle between the two settings.
4. Press the DOWN button until the unit lowers slightly, then rises slightly and the display
changes back to the numeric height setting.
[x] POWER CABLE
[x] CONNECTING CABLE
(get from FRM200 instructions)
VESA screw
#10-24x1/2’’
Pan Head
M5x10
Pan Head
M6x10
Flat Head
Socket cap
These programming instructions are compatible only with
the Keypad that is included in this package.
PROGRAMMING (Memory keypad only)

© UPLIFT Desk • 800-349-3839 • 512-614-3152 • [email protected]om • upliftdesk.com
6
Note: If memory settings were previously set outside of the new minimum and maximum height
settings, they will default to the new minimum and maximum settings. To set new minimum and
maximum height settings outside of the current settings, you will need to rst remove the current
minimum and maximum settings.
DISPLAY UNITS
Change the numeric display to show heights in either inches or centimeters.
l. Press the DOWN button until the unit reaches the lowest position. Release button.
2. Press the DOWN button until display ashes “RST”.
3. Press the “2” button until display shows “10.3” (centimeters) or “10.4” (inches) and goes
back to “RST”.
Note: While “RST” is still ashing, you can press the “2” button as many times as you’d like
to toggle between the two settings.
4. Press the DOWN button until the unit lowers slightly, then rises slightly and the display
changes back to the numeric height setting.
PROGRAMMING (continued)
To set a new maximum desk height:
l. Use the UP or DOWN button to bring the desk to the desired maximum height.
2. Press the “M” button once, and “S-” will appear on the Display. Immediately follow by
pressing the UP button once, so the “S-” ashes once.
3. Hold the “M” button until the Display shows “999” then changes to numeric value of new
upper limit.
To set a new minimum desk height:
l. Use the UP or DOWN buttons to bring the desk to the desired minimum height.
2. Press the “M” button once, and “S-” will appear on the Display. Immediately follow by
pressing the DOWN button once, so the “S-” ashes once.
3. Hold the “M” button until the Display shows “000” then changes to numeric value of new
lower limit.
Removing adjusted maximum and minimum heights:
l. Press the “M” button once and the display will show “S-”.
2. Hold the “M” button again until the display shows “555” then changes to the current
numeric height setting.
MINIMUM & MAXIMUM HEIGHT SETTINGS
The unit ships defaulted to its minimum and maximum height limits. These steps allow the upper
and lower limits to be adjusted to your preference.
If your converter does not respond when you try to raise it or lower it, or if the Keypad displays error mes-
sages (“EO1” or “EO7”), check to make sure all the cables are secure (Lifting column to cable, cable to Con-
trol box). If the problem persists, perform the reset procedure below.
*Note: “RST” will look like
“ASr” on the display
RESET PROCEDURE
1. Unplug the power cord and hold the DOWN button on the Keypad for 30 seconds.
2. Plug the power cord back in.
3. Hold the DOWN button until the Lifting column reaches its lowest height, then release.
Hold the DOWN button again until the LED display reads “RST”
(or for about 10 seconds on non-LED keypads), then release.
Hold the DOWN button again until the Lifting column lowers a
bit more, then slightly rises and stops, then release. Your desk is
now ready to use.
4. The Advanced Keypad will should display the current height, and the unit should be operational.
5. You may also need to do this if the unit is ever unplugged or loses power.
TROUBLESHOOTING

© UPLIFT Desk • 800-349-3839 • 512-614-3152 • [email protected]om • upliftdesk.com 7
CAUTION: Read all instructions before assembly. Failure to assemble properly may result in
damage or personal injury.
WARNING: Keep hands clear of the column while it is rising and falling. Do not touch it.
CAUTION: Only plug into 120Vac outlets. ( Input: 120Vac, 60Hz, 200W max)
CAUTION: The maximum load capacity of the unit is 110 lbs. Do not overload.
CAUTION: Keep devices centered and away from the edge of the main worksurface,
to prevent them from falling.
CAUTION: Make sure that the wires for your monitor and devices have enough slack to prevent
your devices from being pulled off the unit workstation when raising the unit.
CAUTION: When relocating the unit, remove all devices to avoid harm or damage,
and adjust the unit to its lowest position.
CAUTION: When relocating the unit, move it carefully with two people, to avoid injury and
damage to the product and surroundings.
CAUTIONS & WARNINGS
!
!
!
!
!
!
!
!
!
If the error message persists after performing the Reset procedure, contact UPLIFT Desk at the email ad-
dress or phone numbers listed at the bottom of each page of these instructions.
CODE DESCRIPTION TROUBLESHOOTING SOLUTION
H01 Overheated
The desk motor has a 10% duty cycle to protect from overheating. For
example, in a 20 minute period if your desk motor is activated for 2 minutes
you will want to let it rest for 18 minutes. Otherwise you may see an H01
code on your keypad.”
E01 Firmware or
connectivity issues
Check all cables to ensure they’re all rmly plugged in, and perform Reset
procedure above.
E07 Hall sensor error Perform Reset procedure described previously.
TROUBLESHOOTING (continued)

512-614-3152
800-349-3839
[email protected]
upliftdesk.com
Work Better. Live Healthier
Copyright Notice: This guide is a component of the UPLIFT Desk E7 Electric Standing Desk Converter. This guide is a part of the scope of delivery, even
if the item is resold. This guide is also available on the UPLIFT Desk website: upliftdesk.com. Excerpts or copies may not be forwarded to third parties
or used in any other published form without the prior written consent of UPLIFT Desk. These instructions are subject to United States copyright law.
©
90.014.01.0500v.G - AI-UDA115-A-3.2
SAVE THESE INSTRUCTIONS
Study this manual carefully. If this desk is sold, please provide this
manual to the buyer, installers, or support personnel operating the product.
®
