UR75 Edge
Quick Start Guide
Ursalink Technology Co., Ltd.

www.ursalink.com
1
Welcome
Thank you for choosing Ursalink UR75 Edge gateway.
This guide describes how to install the UR75 Edge gateway and how to log in the Web GUI to configure the
device. Once you complete the installation, refer to the Ursalink UR75 Edge User Guide for instructions on
how to perform configurations on the device.
Related Documents
This Start Guide only explains the installation of Ursalink UR75 Edge gateway. For more functionality and
advanced settings, please refer to the relevant documents as below.
Document
Description
Ursalink UR75 Edge Datasheet
Datasheet for the Ursalink UR75 Edge gateway.
Ursalink UR75 Edge User Guide
Users could refer to the guide for instruction on how to log in the
web GUI, and how to configure all the settings.
The related documents are available on Ursalink website: http://www.ursalink.com.
Declaration of Conformity
UR75 Edge are in conformity with the essential requirements and other relevant provisions of the CE, FCC,
and RoHS.
For assistance, please contact
Ursalink technical support:
Email: [e-mail]
Tel: [phone]
Fax: [phone]

Ursalink UR75 Quick Start Guide
www.ursalink.com
2
Before you begin to install the UR75 Edge gateway, please check the package contents to verify that you
have received the items below.
1.1 Package Contents
1 × UR75 Edge gateway
1 × Ethernet Cable
1 × Power Adapter
1 × 10-Pin Pluggable
Terminal
2 × SIM Card Slots
1 × DIN Rail Kit
2 × Magnetic Mount
Cellular Antennas
1 × Warranty Card
1 × 2-Pin Pluggable
Terminal (Optional)
1 × GPS Antenna
(Optional)
2 × Stubby Wi-Fi
Antennas (Optional)
2 × Stubby Cellular
Antennas (Optional)
1 × Wall Mounting Bracket
(Optional)
If any of the above items is missing or damaged, please contact your Ursalink sales
representative.
1. Packing List

Ursalink UR75 Quick Start Guide
www.ursalink.com
3
2.1 Overview
A. Front Panel
UR75 Edge Front Panel
B. Left Side Panel
1SIM Card Slot
2Power Connector
3Grounding Stud
2.2 Dimensions (mm)
2. Hardware Introduction
1Main Cellular Antenna Connector
2Reset Button
3LED Indicator Area
POWER: Power Indicator
STATUS: Status Indicator
WLAN: Wi-Fi Indicator
VPN: VPN Indicator
SIM 1: SIM 1 Status Indicator
SIM 2: SIM 2 Status Indicator
: Signal Strength Indicator
4Ethernet Port Indicator
Orange for data transmission;
Green for network rate
5AUX Cellular Antenna
6WLAN 2: Wi-Fi Antenna Connector 2
7Serial Port & I/O
8GPS: GPS Antenna Connector
9WLAN 1: Wi-Fi Antenna Connector 1

Ursalink UR75 Quick Start Guide
www.ursalink.com
4
2.3 Pinouts
2.4 LED Indicators
LED
Indication
Status
Description
POWER
Power Status
On
The power is switched on
Off
The power is switched off
STATUS
System Status
Green Light
Static: Start-up
Blinking slowly: the system is running properly
Red Light
The system goes wrong
VPN
VPN Status
Green Light
VPN is connected
Off
VPN is disconnected
WLAN (Wi-Fi)
WLAN Status
Green Light
Static: Wi-Fi is enabled
Blinking slowly: sending or receiving data via Wi-Fi
Off
Wi-Fi is disabled
SIM1/SIM2
SIM Card Status
Off
SIM1 or SIM2 is registering or fails to register (or
there are no SIM cards inserted)
Green Light
Blinking slowly: SIM1 or SIM2 has been registered
and is ready for dial-up
Blinking rapidly: SIM1 or SIM2 has been registered
and is dialing up now
Static: SIM1 or SIM2 has been registered and dialed
up successfully
Signal Strength
Signal 1/2/3
Off
No signal
PIN
RS232
RS485
DI
DO
Description
1
TXD
---
---
---
Transmit Data
2
RXD
---
---
---
Receive Data
3
---
A
---
---
Data +
4
---
B
---
---
Data -
5
GND
---
GND
---
Ground
6
---
---
IN1
---
Digital Input1
7
---
---
IN2
---
Digital Input2
8
---
---
---
OUT1
Digital Output1
9
---
---
---
OUT2
Digital Output2
10
---
---
---
COM
Common
Ground
PIN
Description
11
Positive
12
Negative

Ursalink UR75 Quick Start Guide
www.ursalink.com
5
Green Light
Static/Off/Off: weak signals with 1-10 ASU (please
check if the antenna is installed correctly, or move the
antenna to a suitable location to get better signal)
Static/Static/Off: normal signals with 11-20 ASU
(average signal strength)
Static/Static/Static: strong signals with 21-31 ASU
(signal is good)
2.5 Reset Button
Function
Description
STATUS LED
Action
Reboot
Blinking
Press and hold the reset button for about 5-15 seconds.
Static Green
Release the button and wait for system to reboot.
Reset
Blinking
Press and hold the reset button for more than 15 seconds.
Static Green →
Rapidly Blinking
Release the button and wait.
Off → Blinking
The gateway is now reset to factory defaults.
2.6 Ethernet Port Indicator
Indicator
Status
Description
Link Indicator (Orange)
On
Connected
Blinking
Transmitting data
Off
Disconnected
Rate
Indicator (Green)
On
1000 Mbps mode
Off
100 Mbps mode

Ursalink UR75 Quick Start Guide
www.ursalink.com
6
Environmental Requirements
- Power Input: 9-48 VDC
- Power Consumption: Typical 4.0 W (Max 6.7 W)
- Operating Temperature: -40°C to 70°C (-40°F -158°F)
- Relative Humidity: 0% to 95% (non-condensing) at 25°C/77°F
3.1 SIM Card/Micro SD Card/SSD Installation
3.1.1 SIM Card Installation
A. Push the yellow button on the left panel of the B. Put SIM card onto the slot then insert the
slot gateway, and then you will see the SIM card back into the hole.
slot popping out directly.
3.1.2 Micro SD Card Installation
A. Unscrew the cover on the left panel B. Insert Micro SD card.
of the gateway and then take it off.
3. Hardware Installation

Ursalink UR75 Quick Start Guide
www.ursalink.com
7
C. Close the cover and screw it back to the gateway.
3.1.3 SSD Installation
Before installing SSD, please turn off the power.
A. Unscrew the enclosure, and then remove the cover.

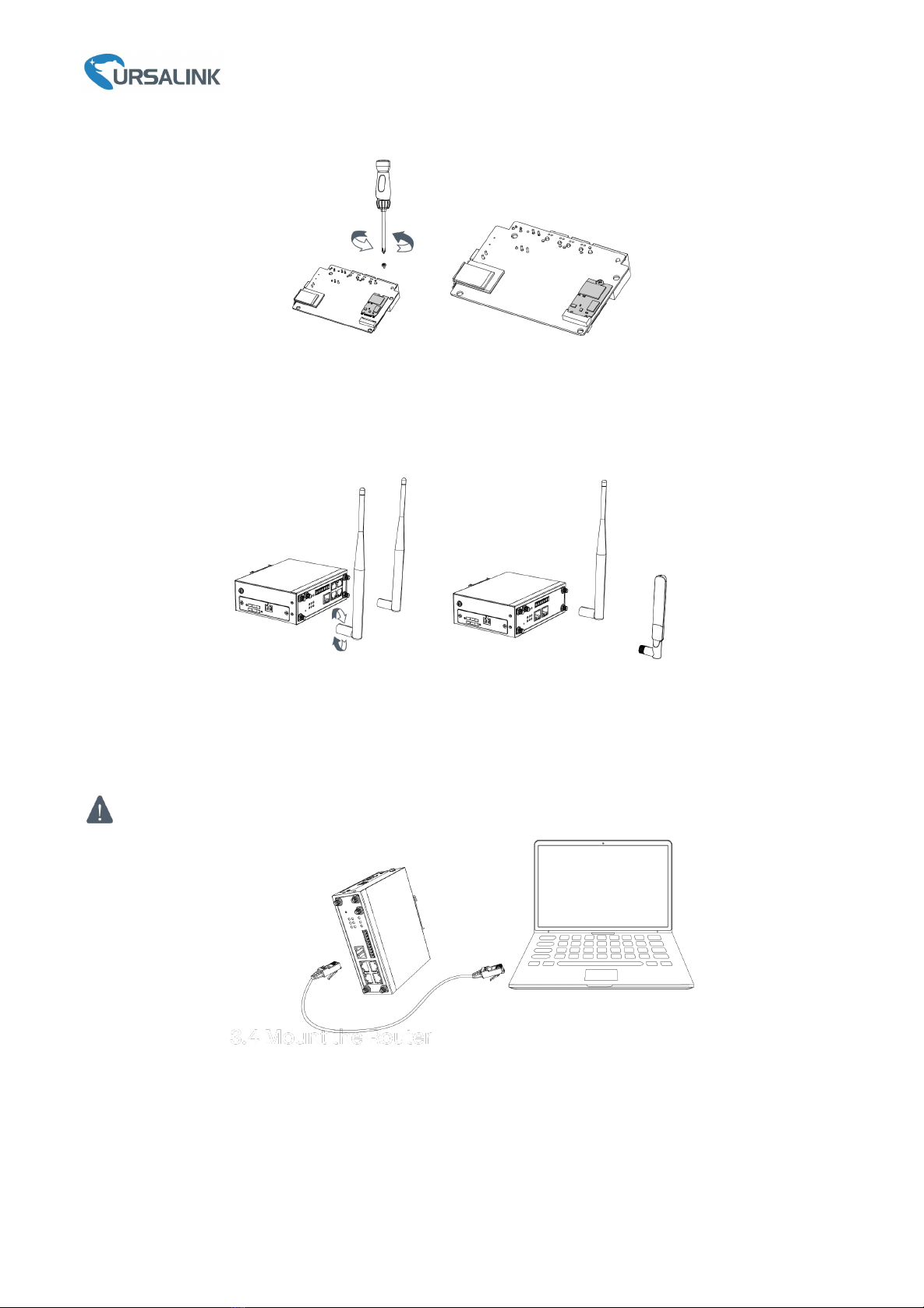

B. Unscrew the main-board, find the interface on the rear side of the main-board and then insert SSD.

Ursalink UR75 Quick Start Guide
www.ursalink.com
8
C. Screw the main-board on the cabinet and close the cover.
3.2 Antenna Installation
Rotate the antenna into the antenna connector accordingly.
The external antenna should be installed vertically always on a site with a good cellular signal.
3.3 Connect the Gateway to a Computer
Please connect PC to any port among GE 1/1-GE 1/4 of UR75 Edge gateway directly.
3.4 Mount the Gateway
The gateway can be placed on a desktop or mounted to a wall or a DIN rail.

Ursalink UR75 Quick Start Guide
www.ursalink.com
9
3.4.1 Wall Mounting (Measured in mm)
Use 2 pcs of M3 × 6 flat head Phillips screws to fix the wall mounting kit to the gateway, and then use 2 pcs
of M3 drywall screws to mount the gateway associated with the wall mounting kit on the wall.
Recommended torque for mounting is 1.0 N·m, and the maximum allowed is 1.2 N·m.
3.4.2 DIN Rail Mounting (Measured in mm)
Use 2 pcs of M3 × 6 flat head Phillips screws to fix the DIN rail to the gateway, and then hang the DIN rail on
the mounting bracket. It is necessary to choose a standard bracket.
Recommended torque for mounting is 1.0 N·m, and the maximum allowed is 1.2 N·m.
3.5 Power Supply Installation
A. Take out the terminal from the gateway and unscrew the bolt on terminal.
B. Screw down the bolt after inserting power cable into the terminal.
Connecting the Power Cable
If you insert wires into the reverse holes, the gateway will not start and you must switch the wires
into the correct holes.
Color
Polarity
Red
+
Yellow
-

Ursalink UR75 Quick Start Guide
www.ursalink.com
10

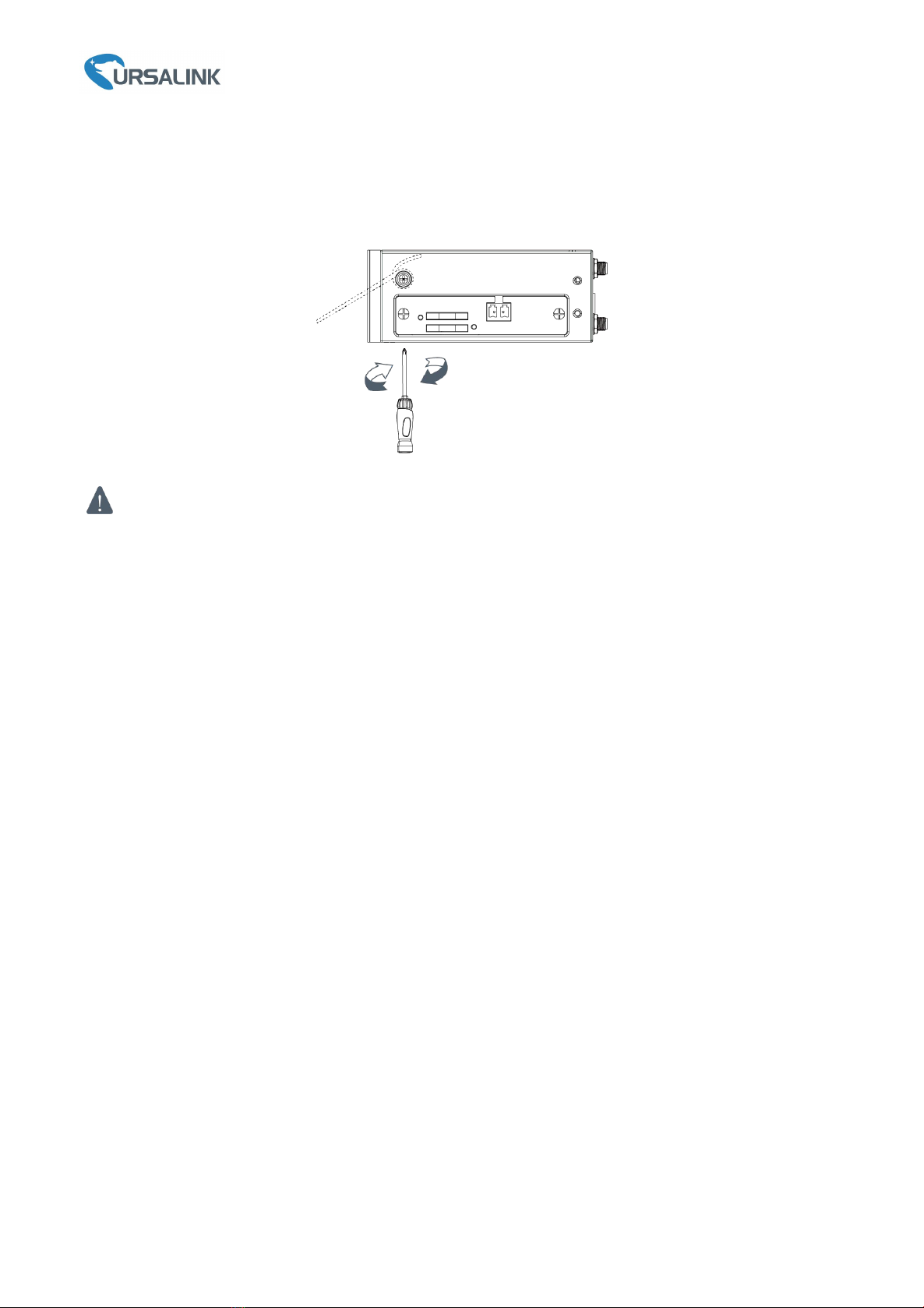

3.6 Protective Grounding Installation
A. Remove the grounding nut.
B. Connect the grounding ring of the cabinet’s grounding wire onto the grounding stud and screw up the
grounding nut.
The gateway must be grounded when deployed. According to operating environment, the ground
wire should be connected with grounding stud of gateway.

Ursalink UR75 Quick Start Guide
www.ursalink.com
11
Getting Started
Please connect PC to any port among GE 1/1-GE 1/4 of UR75 Edge gateway directly. PC can obtain an IP
address, or you can configure a static IP address manually. The following steps are based on Windows 10
operating system for your reference.
(Note: As remote access is disabled by default, you can't access to the gateway's Web GUI if you connect PC
to GE 0 of the gateway. But it will function properly if you enable it on the Web GUI.)

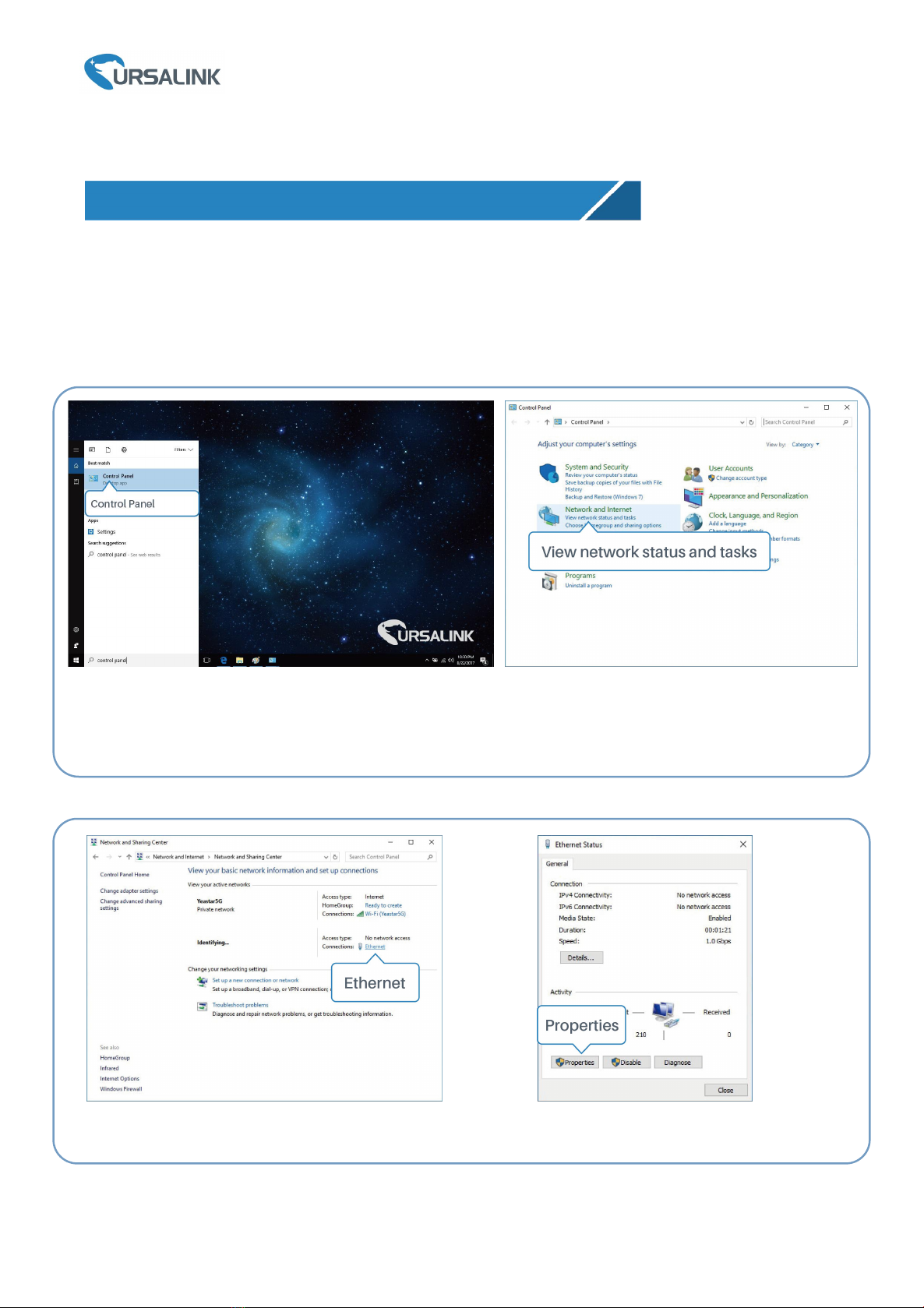

③Click “Ethernet” (May have different names). ④Click “Properties”.
4. PC Configuration for Web GUI Accessing to Gateway
①Click “Search Box” to search “Control Panel” on the
Windows 10 taskbar.
②Click “Control Panel” to open it, and then click
“View network status and tasks”.

Ursalink UR75 Quick Start Guide
www.ursalink.com
12
(Note: Remember to click “OK” to finish configuration.)

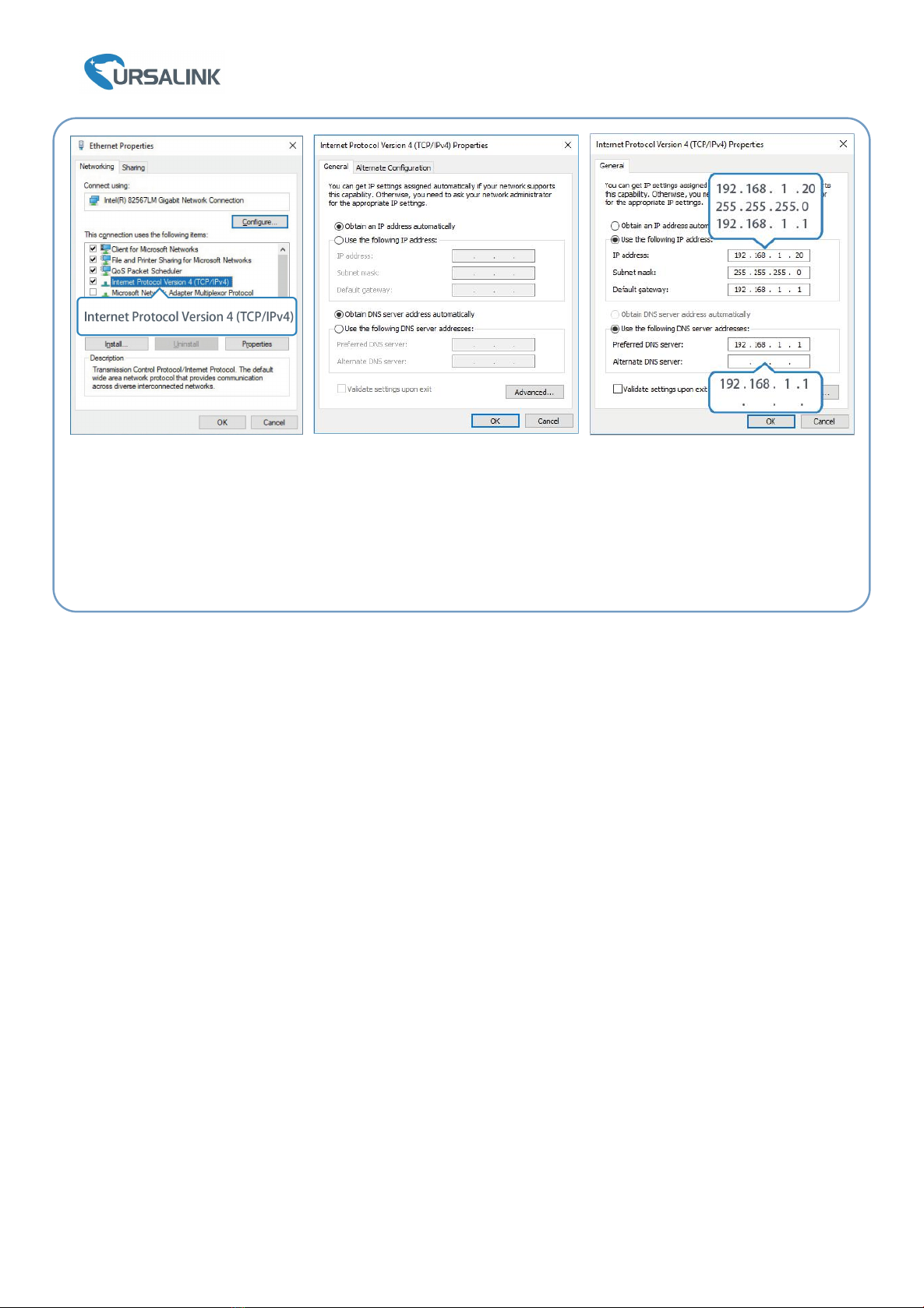

⑤Double Click “Internet
Protocol Version 4
(TCP/IPv4)” to configure IP
address and DNS server.
⑥Method 1: click “Obtain an IP
address automatically”;
Method 2: click “Use the
following IP address” to assign a
static IP manually within the
same subnet of the gateway.

Ursalink UR75 Quick Start Guide
www.ursalink.com
13
This chapter explains how to log in UR75 Edge gateway’s Web GUI, and connect the gateway to cellular
network.
Ursalink gateway provides Web-based configuration interface for management. If this is the first time you
configure the gateway, please use the default settings below:
IP Address: 192.168.1.1
Username: admin
Password: password
5.1 To Log in the Gateway
Make sure your PC is connected to the same network as the gateway as per Section 4.
A. Start a Web browser on your PC (Chrome and IE are recommended), type in the IP address, and press
Enter on your keyboard.
B. Enter the username and password, click “Login”.
If you enter the username or password incorrectly more than 5 times, the login page will be locked
for 10 minutes.
C. When you log in with the default username and password, you will be asked to modify the password. It’s
suggested that you change the password for the sake of security. Click “Cancel” button if you want to modify
it later.
5. Access to Web GUI of Gateway for Cellular Connection

Ursalink UR75 Quick Start Guide
www.ursalink.com
14

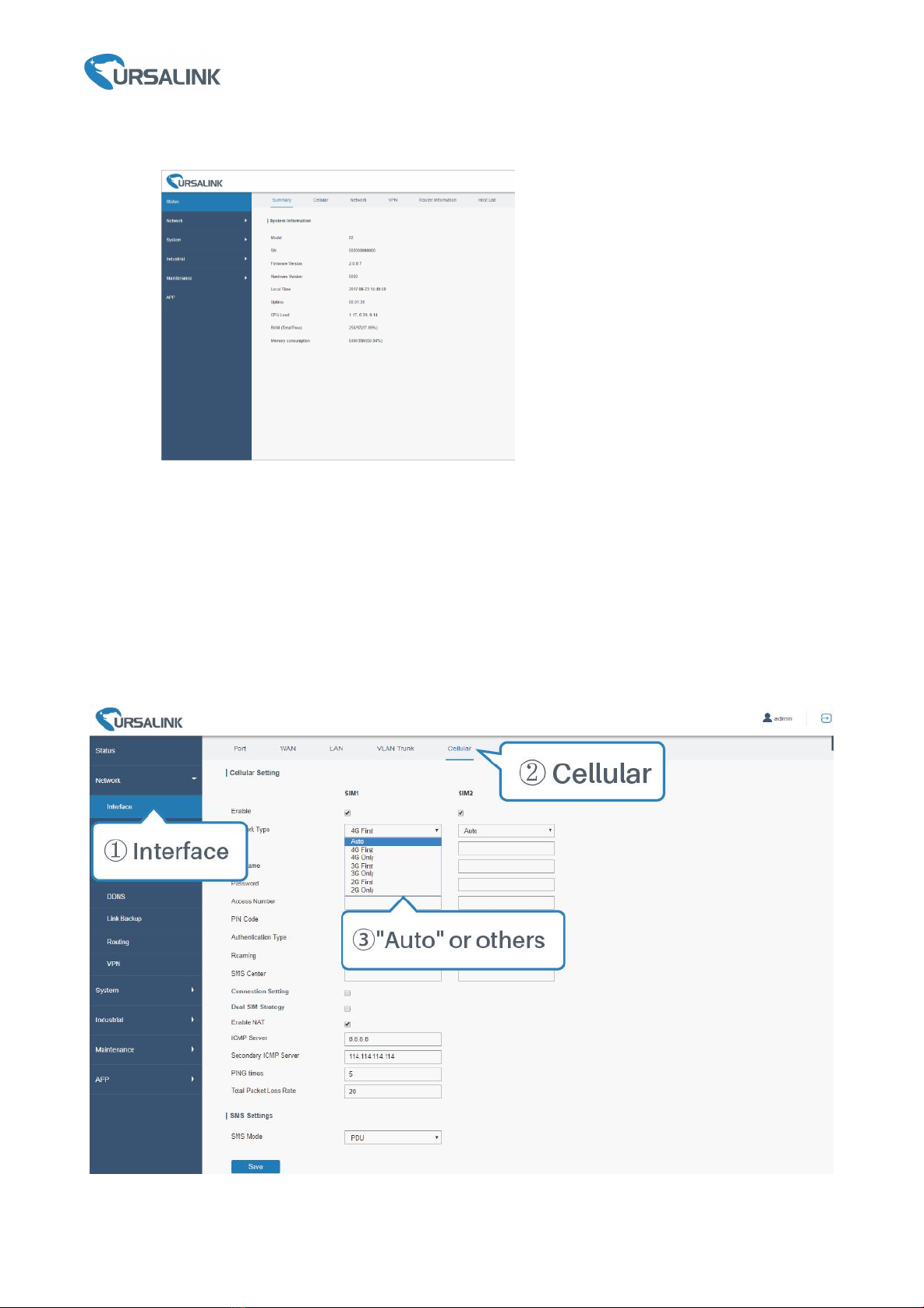

D. After you log in the Web GUI, you can view system information and perform configuration on the
gateway.
5.2 Configure the Cellular Connection
Take inserting SIM card into SIM1 slot as an example; please refer to the following detailed operations.
A. Click “Network” → “Interface” → “Cellular” → “Cellular Setting” to configure the cellular info.
B. Enable SIM1.
C. Choose relevant network type. “Auto”, “4G First”, “4G Only”, “3G First”, “3G Only”, “2G First” and “2G
Only” are optional.

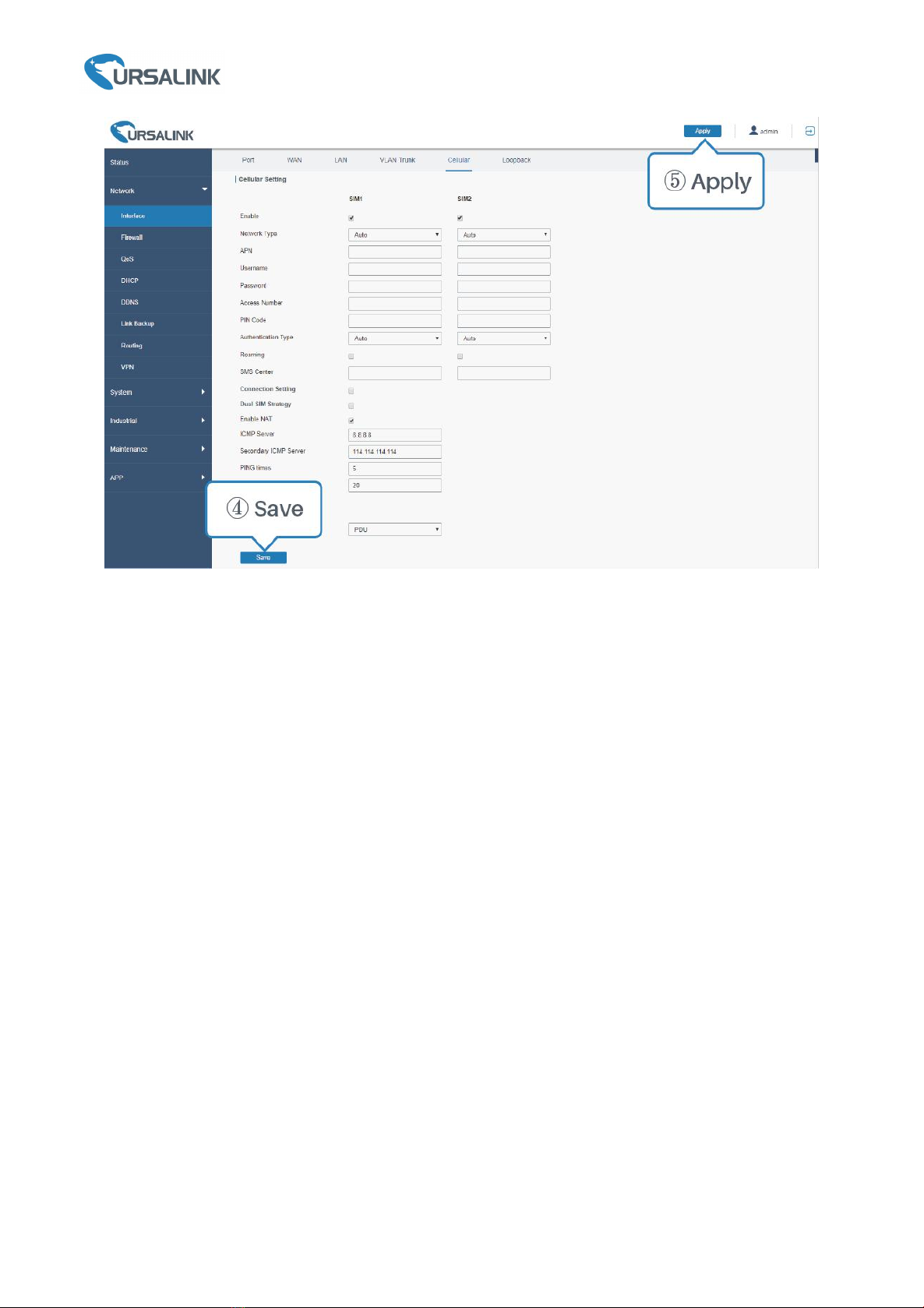

D. Click “Save” and “Apply” for configuration to take effect.

Ursalink UR75 Quick Start Guide
www.ursalink.com
15
If you select “Auto”, the gateway will obtain ISP information from SIM card to set APN, Username, and
Password automatically. This option will only be taken effect when the SIM card is issued from a well-known
ISP.
If you select “4G First” or “4G Only”, you can click “Save” to finish the configuration directly.
If you select “3G First”, “3G Only”, “2G First” or “2G Only”, you should manually configure APN, Username,
Password, and Access Number.
UR75 Edge gateways have two cellular interfaces, named SIM1 & SIM2. Only one cellular interface is active
at one time. If both cellular interfaces are enabled, SIM1 interface takes precedence by default.
5.3 Check the Cellular Connection Status
5.3.1 Check the Cellular Connection Ctatus by Web GUI of Gateway

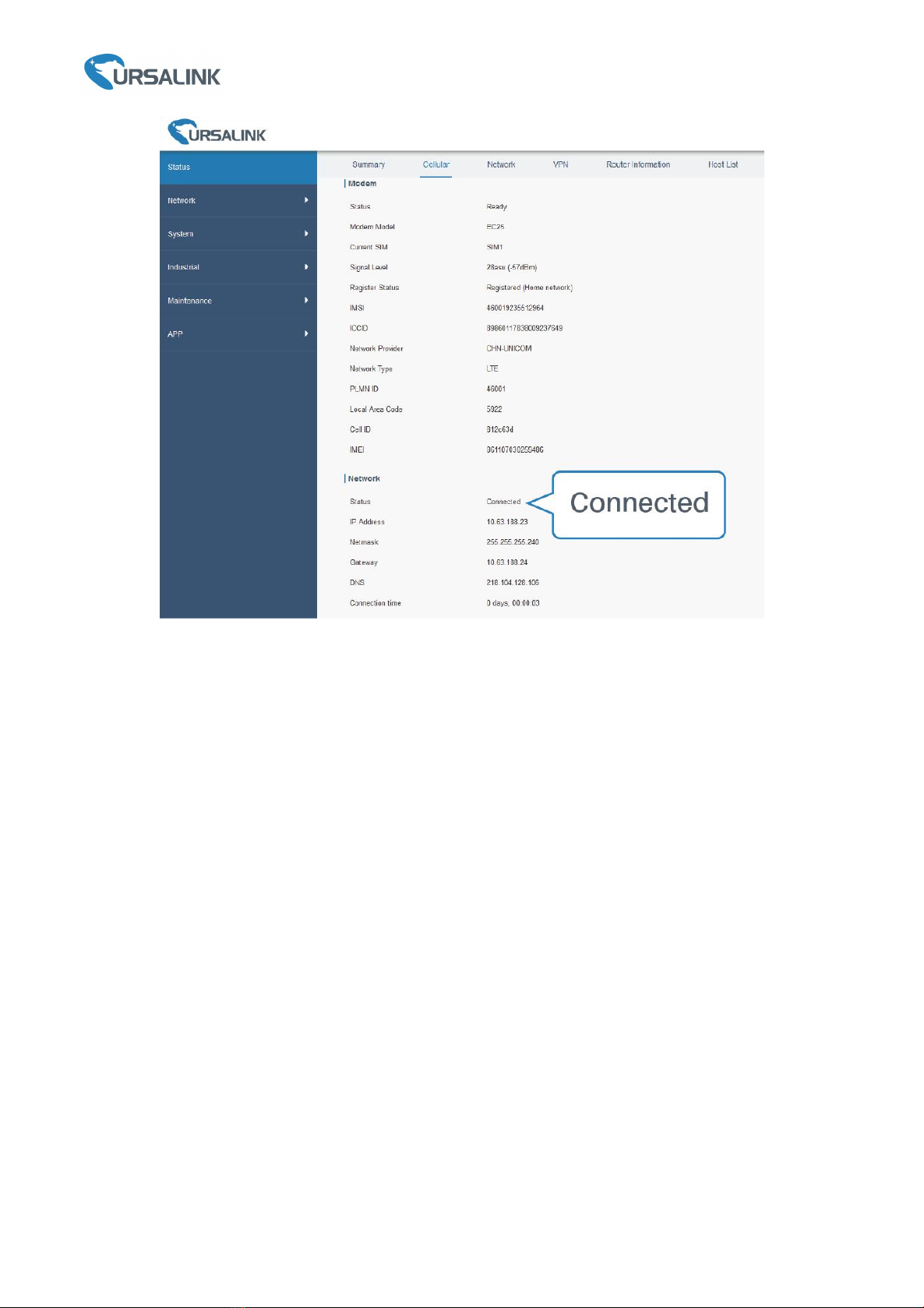

Click “Status” → “Cellular” to view the status of the cellular connection. If it shows “Connected”, it means
SIM1 has dialed up successfully.

Ursalink UR75 Quick Start Guide
www.ursalink.com
16
5.3.2 Check the Cellular Connection Status by Hardware
On the other hand, you can check the status of SIM1 indicator. If it keeps on green light statically, it means
SIM1 has dialed up successfully.
5.4 Check out if Network Works Properly by Browser on PC
Open your preferred browser on PC, then type any available web address into address bar and see if it is
able to visit Internet via UR75 Edge gateway.
[END]
