V-TAC VT-4012-3 User manual

SAFETY PRECAUTIONS
When using electrical appliances, basic safety precautions should always be followed. These
instructions should be saved for future reference:
• Read and familiarise yourself with all operating instructions before using this Pedestal Fan.
• Before plugging your unit into the mains, visually check that the unit is intact and has not
suffered any transit damage.
• Do not use this product with a programmer, timer, separate remote-control system or any
other device.
• Check that the voltage indicated on the data plate corresponds with that of the local network
before connecting the appliance to the mains power supply.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for
their safety. And Children should be supervised to ensure that they do not play with the appli-
ance
• Do not immerse the appliance or its cord in water or any other liquids.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• Always use this appliance on a solid, level, surface.
• Do not use this appliance outdoors.
• It is imperative to unplug the power cord after the appliance has been used, before it is
cleaned and whilst being repaired.
• Repairs to electrical appliances should only be performed by a qualified electrician. Improper
repairs may place user at serious risk.
• Do not operate this appliance with a damaged plug or cord, after a malfunction or after being
dropped or damaged in any way.
• Regular, periodic checks should be carried out on the mains cable to ensure no damage is
evident. Should there be any signs of damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced by the manufacturer or a suitable
qualified after-sales-service in order to avoid a hazard.
• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.
• Do not run the mains cable under carpets, rugs, etc.

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read
these instructions carefully before starting the installation and keep this manual handy for
future reference. If you have any another query, please contact our dealer or local vendor from
whom you have purchased the product. They are trained and ready to serve you at the best.
INTRODUCTION
This marking indicates that this
product should not be disposed
of with other household wastes. Caution, risk of electric shock.
• This appliance is intended for household use only and should not be used for industrial
purposes.
• Do not use any accessories or attachments with this appliance other than those supplied or
recommended by the supplier.
• Do not use this appliance for anything other than its intended use.
• Do not push objects (including fingers) into the fan grill or any openings as this could risk
injury, damage to the appliance and/or electric shock.
• Unplug after each use. Grasp the plug, not the cord.
• Please make sure to turn off the power before starting the installation.
• Installation should only be done by a certified electrician.

INSTRUCTION MANUAL
DESK FAN
MULTI-LANGUAGE MANUAL QR CODE
Please scan the QR code to
access the manual in multiple
languages.

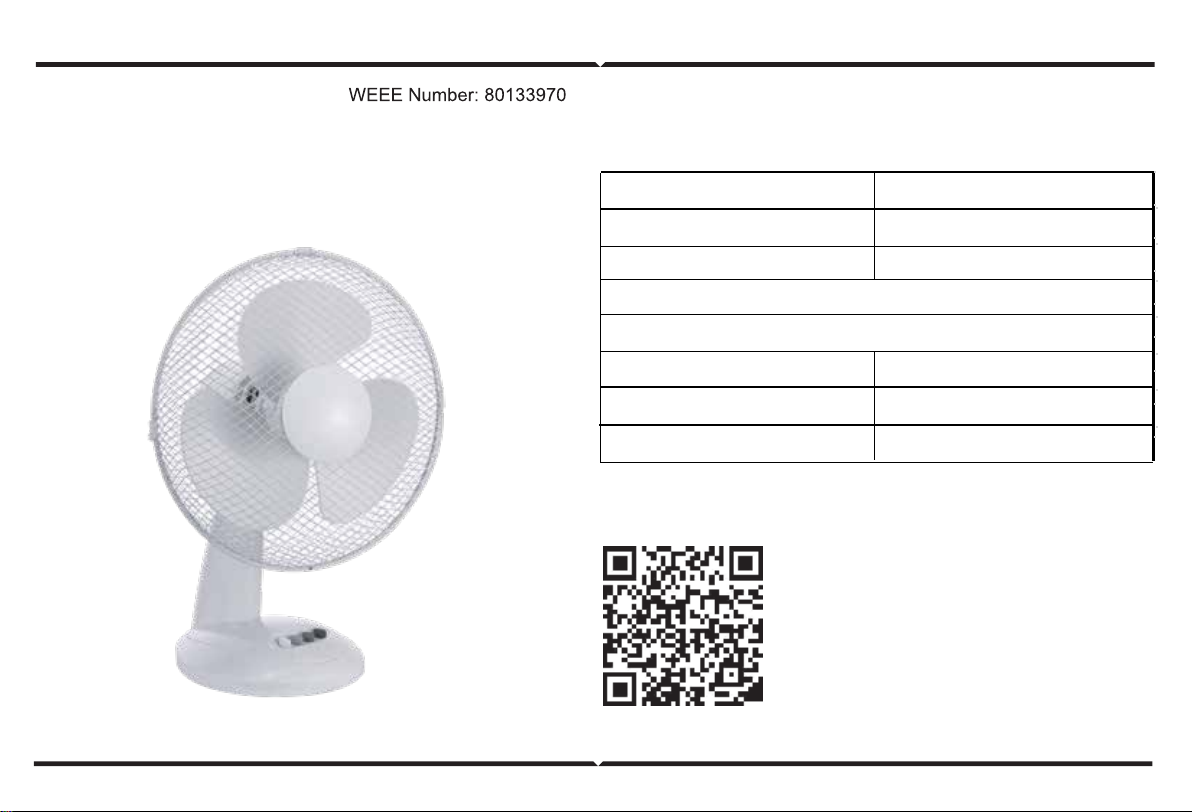

TECHNICAL DATA
VT-4012-3 VT-4017-3
40W 40W
12” DESK FAN 16” DESK FAN
OSCILLATION FUNCTION [LOW, MEDIUM, HIGH]
3 FAN SPEED CONTROL [LOW, MEDIUM, HIGH]
G.W. 2.0 KGS G.W. 2.15 KGS
Size: 340x260x480mm
AC: 220-240V~, 50/60Hz
Size: 410x260x510mm
AC: 220-240V~, 50/60Hz

ENGLISH
1. Front Guard
2. Guard Nut and Screw
3. Fan Blade
4. Rear Guard Fixing Nut
5. Rear Guard
6. Motor Housing
7. Oscillating Control
8. Power cord
9. Speed Control Switches
10. Motor Spindle
11. Blade Retaining Nut
12. Base Surround
13. Base Fastening Screws
14. Carry Handle
15. Guard Fastening Clips

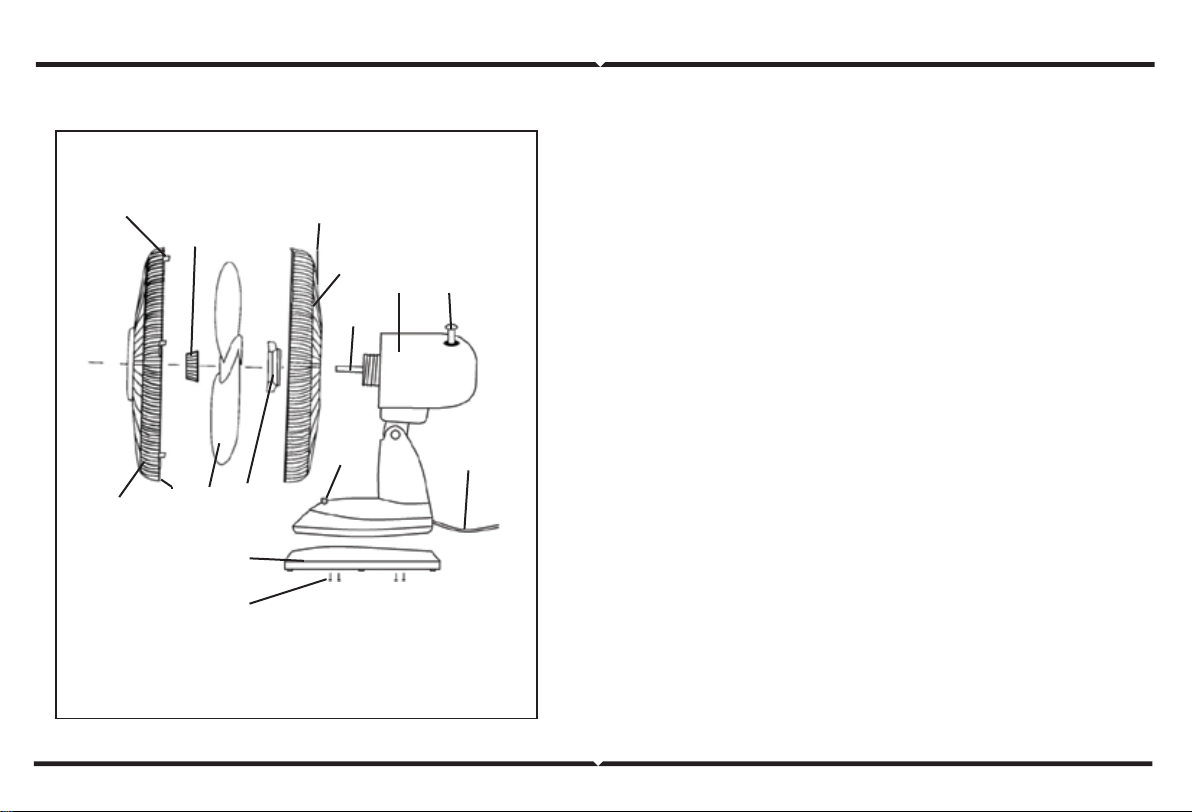

DESCRIPTION OF PARTS
1. 2. 3. 4.
5. 6. 7.
8.
9.
10.
11.
12.
13.
14.
15.

ENGLISH
ASSEMBLY
1: First attach the
Base Surround (12)
to the base of the fan
using the four pozid-
rive screws supplied
(13) Take care not to
overtighten the
screws

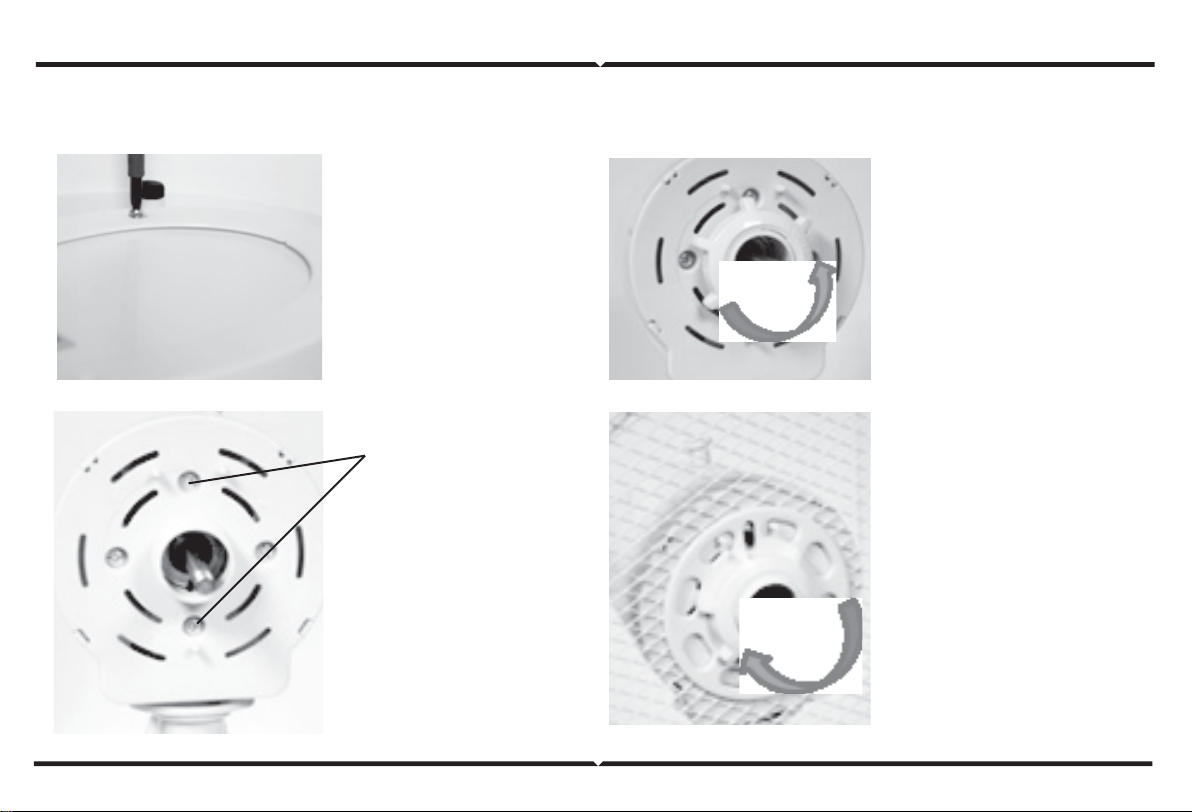

2: Next place the fan
on its base and
remove the Rear
Guard Fixing nut (4)
from the Motor
Housing (6) by
unscrewing anti-
clockwise (arrowed).
Rear guard
locating pins
3: Note the two Rear
Guard locating pins
on the Motor Housing
shown right.
4. Place the Rear
Guard(5) over the
two pins on the
Motor Housing(6)
and replace the Rear
Guard Fixing nut(4)
and screw it back on
clockwise.
NB ensure that the
guard is fitted such
that Carry Han-
dle(14) is at the top.

ENGLISH
5. Take the Fan Blade(3); slide it onto the Motor Spindle(10),
after first removing the plastic spindle cover. Ensure that the
notch on the rear of the fan blade fits over the splines on the
spindle (arrowed right).
NB Rear Guard removed for clarifty.
6. Secure the fan blade to the motor spindle by screwing on the
Blade Retaining Nut(11) in an anticlockwise direction.
NB the retaining nut is reverse threaded.
7. Remove the small Guard Nut & Screw from the Front Guard.

ENGLISH

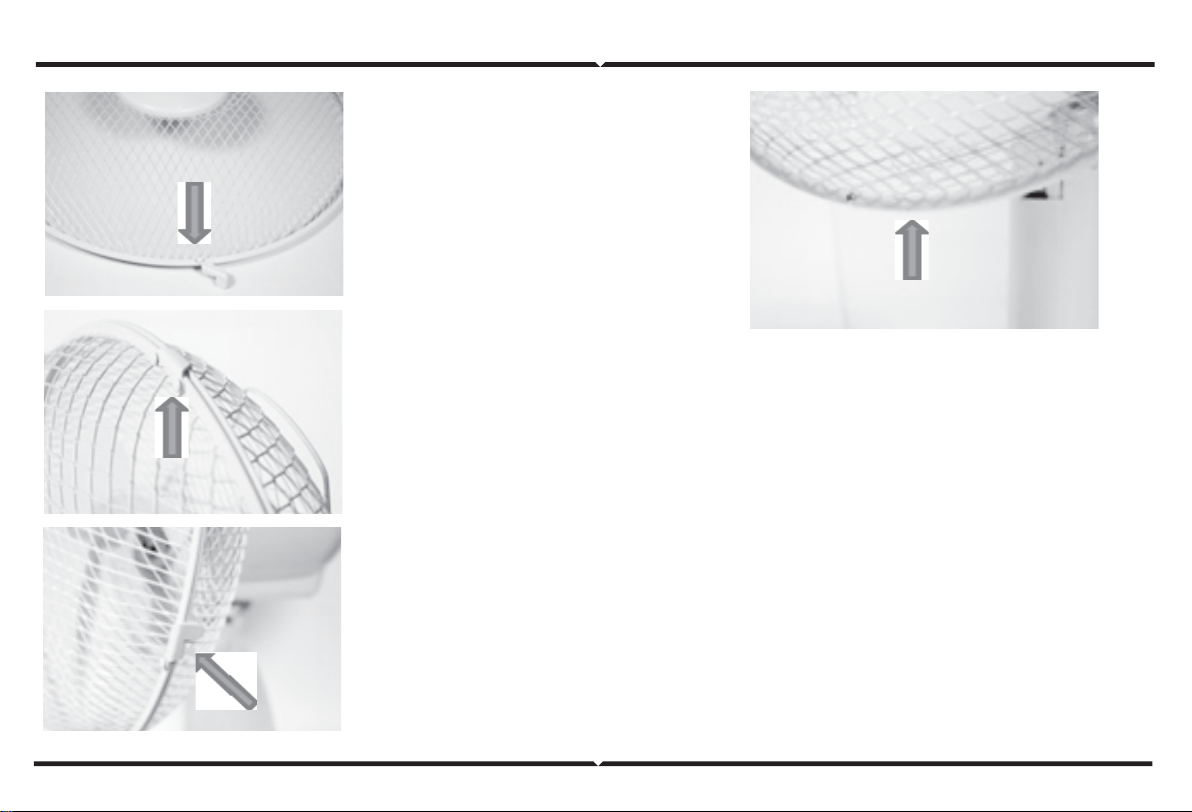

8. Move the Clips(15) at the
edge of the front guard
outwards.
9. Hang the front guard(1)
by its hook over the top of
the rear gaurd(5).
10. Bring the front guard
down to meet the rear
guard and push the clips
inwards until the front guard
is fastened to the rear
guard.
11. Finally fit the Guard Nut
and Screw(2-arrowed) through
the holes in the bottom edge of
the guard and tighten with a
suitable pozidrive screwdriver
(not supplied).
NB this screw and nut must be
fitted so that the guard cannot
be removed accidentally

ENGLISH
In case of any query/issue with the product, please reach out to us at: [e-mail] For More products range,
inquiry please contact our distributor or nearest dealers. V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
OPERATING YOUR DESK FAN
• Place the fan in the desired position ensuring that it is stable.
• If desired, the fan guard can be tilted up and down to alter the direction of the airflow. NB do
not adjust the fan whilst connected to the mains and/or switched on.
• Press the ‘0’ button on the base to ensure the fan is off.
• Insert the mains plug into the nearest socket.
• Press the 1 button for the low speed.
• Press the 2 button for the medium speed Press the 3 button for the high speed
NB Press the ‘0’ button to switch the fan off.
MAKING YOUR FAN OSCILLATE FROM SIDE TO SIDE
• Press the oscillation control (7) down to enable the fan to oscillate from side to side.
• Pull the control up to stop the fan oscillating.
CARE AND USE OF YOUR FAN
• Ensure that the fan is not connected to the mains supply before cleaning.
• Wipe the fan body clean with a clean, soft damp cloth.
• Do not immerse the fan or its cord in water or any other liquid.
