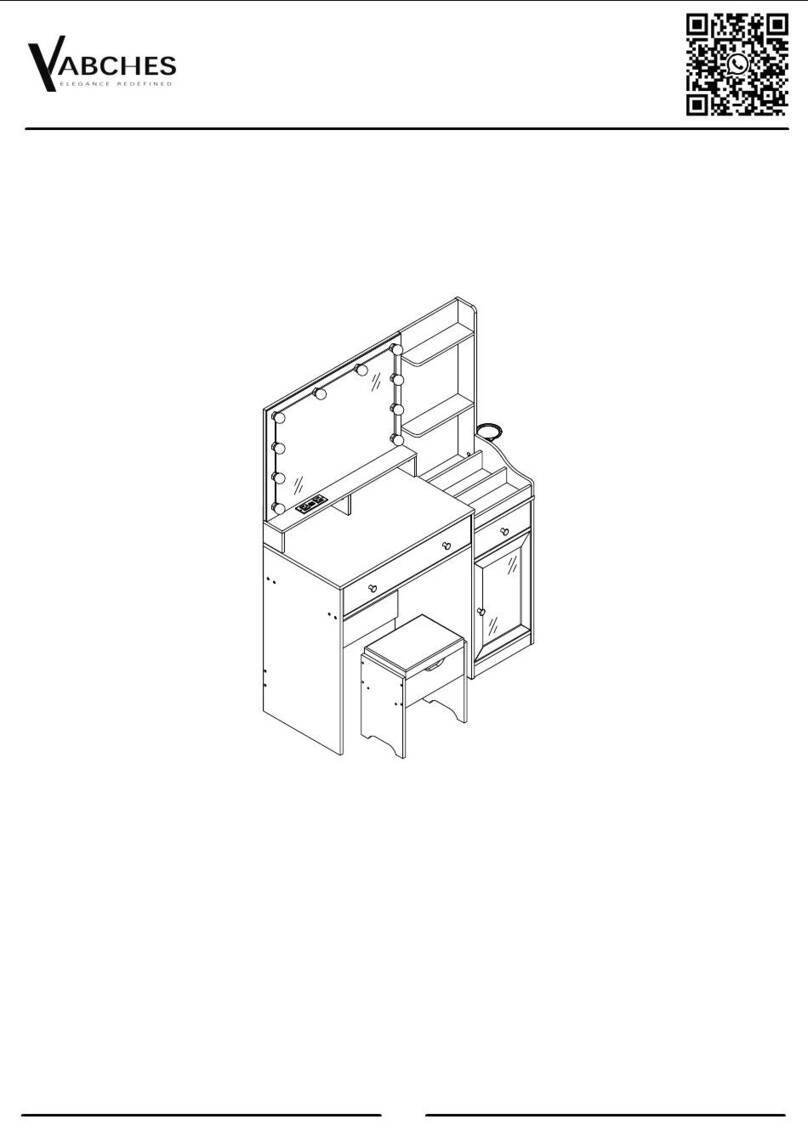

VABCHES D3M555 User manual

1-36
D3M555
As this item contains many parts, please read the installation
instruction carefully before installation and complete the
installation with the cooperation of your partner. Please use
tools properly and carefully. If you have any questions about
the product and installation, please contact us.
Our professional after-sales team will serve you online all
[e-mail]
day.

Before You Start
Read through each step carefully and follow the proper order
Separate and count all your parts and hardware
Give yourself enough room for the assembly process
Have the following tools: Flat Head Screwdriver, #2 Phillips Head
Screwdriver and Hammer
Caution: If using a power drill or power screwdriver for screwing,
please be aware of to slow down and stop when screw is tight.
Failure to do so may result in stripping the screw.
Helpful Hints
- Open your item in the area you plan to keep it to avoid excessive heavy lifting.
- Identify, sort and count the parts before attempting assembly.
- Compression dowels are lightly tapped in with a hammer.
- Slides are labeled with an R (right) and L (left) for proper placement.
- Make sure to always face the point on the top of the Cam Lock towards the
outer edge.
- Use all the nails provided for the back panel and spread them out equally.
- Back panel must be used to make sure your unit is sturdy.
- Do NOT use harsh chemicals or abrasive cleaners on this item.
- Never push, pull, or drag your furniture.
PEOPLE NEEDED FOR ASSEMBLY: 1-2
2-36

Board Identification
Not actual size
TOP
Qty:1
A
RIGHT SIDE PANEL
Qty:1
C
LEFT SIDE PANEL
Qty:1
3-36
B
MIDDLE PANEL
Qty:1
D
UPPER BACKPANEL
Qty:1
F
DRESSING MIRROR
Qty:1
E
UPPER RIGHT SIDE PANEL
Qty:1
G
DOOR
Qty:1
I
FIXED SHELF
Qty:2
H

Board Identification
Not actual size
BOTTOM
Qty:1
J
BOTTOM APRON
Qty:1
L
ADJUSTABLE PLATE
Qty:1
4-36
K
RIGHT BACK RAIL
Qty:1
M
LEFT BACK RAIL
Qty:1
O
LEFT FRONT RAIL
Qty:1
N
RIGHT BACK PANEL
Qty:1
P
STOOL SIDE PANEL
Qty:2
R
DRAWER BOTTOM
Qty:1
Q

Board Identification
Not actual size
STOOL FRONT APRON
Qty:1
S
SPONGE CUSHION
Qty:1
U
STOOL BOTTOM BOARD
Qty:1
5-36
T
DRAWER FRONT
Qty:1
V
DRAWER LEFT PANEL
Qty:1
X
STOOL BACK APRON
Qty:1
W
DRAWER RIGHT PANEL
Qty:1
Y
DRAWER BACK PANEL
Qty:1
Z

Not actual size
Board Identification
6-36
H
A
B
D
C
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
R
S
W
T
U
V
X
Y
Z

Part List
15X11mm
1
CAM LOCK
X8
7-36
∅6.5X35mm
2
CAM BOLT
X8
∅8X40mm
3
WOOD DOWEL
spare:2
X57
∅6.3X50mm
4
SCREW
spare:2
X41
M6X12mm
5
SCREW
X4
50*15*1.5mm
6
IRON SHEET
X2
108X13X19mm
7
HANDLE
X2
M4X20mm
8
SCREW
X4
∅3X12mm
9
SCREW
spare:1
X14
∅3.5X14mm
10
SCREW
spare:1
X32
∅4X35mm
11
SCREW
X4
∅5X17mm
12
SHELF SUPPORT
X4
30X16X10mm
13
STOPPER
X1
∅25mm
14
HINGE
X2
∅25mm
15
HINGE
X2
∅21mm
16
PERFECT STICKERS
spare:2
X38

8-36
4X65mm
17
HEXAGON WRENCH
X1
14"
18CL
LEFT CABINET MEMBER
X1
RLGHT CABINET MEMBER
X1
LEFT DRAWER RUNNER
X1
18DR
RIAHT DRAWER RUNNER
X1 19
LIGHT BULB
X10 20
TIPPING RESTRAINT
HARDWARE KIT
X1 set
14"
18CR
14"
18DL
14"
Part List
Insert the cam bolt into the hole first, then insert the cam lock and lock it.
13 24
Cam Lock Fastening System
The opening must point toward the
edge of the board
21
SCREW
spare:1
22
SOCKET
23
HAIR DRYER RACK
24
SCREW
spare:1
X2X1X1
Ø3X12mm
X2
Ø4X14mm

X10
STEP1
9-36
3
Ø8X40mm
16
X2
4
Ø6.3X50mm
X2
16
Ø21mm
4
3
HG x 2
H
H
G

X6
STEP2
10-36
4
Ø6.3X50mm
X3
3
Ø8X40mm
4
X6
16
Ø21mm
16
G
F
F
E
3
G

STEP3
11-36
X4 X2 X6
5 6 17
M6X12mm 50X15X1.5mm 4X65mm
F
E
G
6
5

3
STEP4
12-36
X4 X1 X2
3 22 24
Ø8X40mm Ø3X12mm
A
24
22

STEP5
13-36
X6 X2 X1
2 9 13
A
2
9
13
Ø6.5X35mm Ø3X12mm

STEP6
14-36
X4
4
Ø6.3X50mm
A
E
F
X4
16
Ø21mm
4
16

STEP7
15-36
X1
4
Ø6.3X50mm
A
E
F
4

STEP8
16-36
X6 X1
10 18CL
B
UP
Ø3.5X14mm
X1
18CR
10
10
10
LEFT CABINET MEMBER
18CL
D
18CR
RIGHT CABINET MEMBER
10
10
10
UP

STEP9
17-36
X18
3
J
M
L
3
O
N
Ø8X40mm

STEP10
18-36
X5
J
L
4
4
J
L
D
4
16 X3
16
unedge banded
N
16
Ø6.3X50mm Ø21mm
Note: Please carefully observe the hole
direction as shown in the figure during
installation.
M

STEP11
19-36
X8 X6
M
D
C
J
L
DO
B
4
16
4 16
N
N
16
Ø6.3X50mm Ø21mm
4
4

STEP12
20-36
X6
3
Ø8X40mm
D
C
B
3
