Vanguard EZCT-2KA User manual

EZCT-2KATM
DIGITAL CURRENT-TRANSFORMER TESTER
USER’S MANUAL
Vanguard Instruments Company, Inc.
1520 S. Hellman Ave.
Ontario, California 91761, USA
TEL: [phone]
FAX: [phone]
November 2016
Revision 1.1

EZCT-2KA USER’S MANUAL REV 1.0
i
SAFETY SUMMARY
FOLLOW EXACT OPERATING PROCEDURES
Any deviation from the procedures described in this User’s Manual may create one or more safety hazards, may
damage the EZCT-2KA, or cause errors in the test results. Vanguard Instruments Company, Inc. assumes no liability
for unsafe or improper use of the EZCT-2KA.
All safety precautions provided in this manual must be observed during all phases of testing including test
preparation, test lead connection, actual testing, and test lead disconnection.
SAFETY WARNINGS AND CAUTIONS
The EZCT-2KA can produce a voltage up to 2,000 Vac that can cause severe injury and/or equipment damage. Due
to this reason, the EZCT-2KA shall be used only by trained operators.
The EZCT-2KA’s X output terminals are rated to 2,000 Vac working voltage. Any voltage above 2,000 Vac will
damage the input circuitry. Please see section 3.2 for further information.
All devices under test shall be off-line and fully isolated. Never attempt to test any current transformer still
connected to a circuit. All current transformer terminals shall be isolated before conducting any test with the EZCT-
2KA. Always ground the EZCT-2KA to a substation ground before connecting the test cables to a transformer.
SERVICE AND REPAIR
• Do not install substitute parts or perform any unauthorized modifications to any EZCT-2KA test unit.
• Repairs must be performed only by Vanguard Instruments Company factory personnel or by an authorized
repair service provider. Unauthorized modifications can cause safety hazards and will void the manufacturer's
warranty.
EQUIPMENT RATINGS
IP Rating: The EZCT-2KA enclosure has an IP rating of 32.
Pollution Degree: The EZCT-2KA has a pollution rating of 2.
Operating Voltage: The EZCT-2KA is rated for use with an operating voltage of 120V or 240V (factory pre-set) ±10%
of selected voltage.
Power Cord: The EZCT-2KA is supplied with a 16 AWG, 16A power cord with a NEMA 5-15P plug. A replacement
cable must have the same or better rating and is available through the manufacturer.
VENTILATION REQUIREMENTS
The EZCT-2KA must be operated with the enclosure lid open.
SAFETY SYMBOLS
Indicates that caution should be exercised
Indicates location of chassis ground terminal
CLEANING
To clean the EZCT-2KA:
• Disconnect all cables and turn the unit off.
• Use a soft, lint-free cloth to wipe all surfaces clean.
• Avoid getting moisture in openings and connectors.
• Don't use any cleaning products or compressed air.

REV 1.0 EZCT-2KA USER’S MANUAL
ii
TABLE OF CONTENTS
CONVENTIONS USED IN THIS DOCUMENT ....................................................................... 1
1.0 INTRODUCTION .................................................................................................................... 2
1.1 General Description and Features ................................................................................... 2
1.2 Furnished Accessories ...................................................................................................... 4
1.3 Technical Specifications ................................................................................................... 5
1.4 EZCT-2KA Controls and Indicators ................................................................................... 6
2.0 PRE-TEST SETUP ................................................................................................................... 8
2.1 Operating Voltages .......................................................................................................... 8
2.2 LCD Screen Contrast Control ............................................................................................ 8
2.3 Printer Paper Control ....................................................................................................... 8
2.4 Printer Paper .................................................................................................................... 8
3.0 OPERATING PROCEDURES ................................................................................................. 10
3.1 EZCT-2KA Cable Connections ......................................................................................... 10
3.2 EZCT-2KA X Input Voltage Warning ............................................................................... 12
3.3 Performing Tests ............................................................................................................ 13
3.3.1. Entering Test Record Header Information ............................................................. 13
3.3.2. Performing Resistance, Excitation, and Ratio Tests ............................................... 16
3.4 Working With Test Records ........................................................................................... 27
3.4.1. Restoring and Printing a Test Record From Flash EEPROM ................................... 27
3.4.2. Restoring and Printing a Test Record From a USB Flash Drive .............................. 31
3.4.3. Printing a Restored Test Record ............................................................................. 33
3.4.4. Printing a Directory of Test Records Stored in the EZCT-2KA’s Memory ............... 35
3.4.5. Printing a Directory of Test Records Stored in a USB Flash Drive .......................... 38
3.4.6. Copying Test Records to a USB Flash Drive ............................................................ 40
3.4.7. Erasing Test Records From the Flash EEPROM ...................................................... 42
3.4.8. Erasing Test Records From a USB Flash Drive ........................................................ 46
3.5 Working With Test Plans ................................................................................................ 49
3.5.1. Extracting the Test Plan From a Test Record ......................................................... 49
3.5.2. Printing a Directory of Test Plans Stored in the EZCT-2KA’s Memory ................... 51
3.5.3. Printing a Directory of Test Plans Stored in a USB Flash Drive. ............................. 53
3.5.4. Printing a Test Plan ................................................................................................. 55
3.5.5. Erasing Test Plans From the Flash EEPROM ........................................................... 57
3.5.6. Erasing Test Plans From a USB Flash Drive ............................................................. 61
3.5.7. Loading a Test Plan from the EZCT-2KA’s Flash EEPROM ...................................... 64
3.5.8. Loading a Test Plan from a USB Flash Drive ........................................................... 66
3.5.9. Running a Test Using a Loaded Test Plan ............................................................... 68
3.5.10. Unloading a Test Plan from the Working Memory ................................................ 73
4.0 CHANGING SETUP PARAMETERS ....................................................................................... 74
4.1 Setting the Knee Point Marker ...................................................................................... 74
4.2 Enabling and Disabling the Buried CT in Transformer Delta Option ............................. 76
4.2.1. Enabling the Buried CT in Transformer Delta Option............................................. 76
4.2.2. Disabling the Buried CT in Transformer Delta Option ............................................ 77

EZCT-2KA USER’S MANUAL REV 1.0
iii
4.3 Setting the Clock ............................................................................................................ 80
4.4 Toggling the Printing of Impedance Values ................................................................... 82
4.5 Toggling the Calibration Notification Feature ............................................................... 84
4.6 Re-setting the List of Paired Bluetooth Devices ............................................................ 86
4.7 Printing Raw Memory Buffer Data ................................................................................. 88
5.0 DIAGNOSTICS, VERIFICATION, AND TROUBLESHOOTING ................................................. 89
5.1 Performing a Diagnostics Test ....................................................................................... 89
5.2 Verifying the EZCT-2KA’s Vx Sense Circuit Using an External Meter ............................. 91
5.3 Verifying the EZCT-2KA’s Ix Sense Circuit Using an External Meter ............................... 92
5.4 Quickly Verifying the EZCT-2KA’s Turns Ratio Circuit .................................................... 93
5.5 Troubleshooting Guide .................................................................................................. 94
7.0 Appendix A - Calculating Turns Ratio on a Shunt Reactor ................................................. 96
LIST OF TABLES
Table 1. EZCT-2KA Technical Specifications .................................................................................... 5
Table 2. Functional Descriptions of EZCT-2KA Controls and Indicators ......................................... 7
Table 3. Descriptions of Tabulated Test Results Elements ........................................................... 25
Table 4. Description of Test Plan Elements .................................................................................. 56
LIST OF FIGURES
Figure 1. EZCT-2KA Controls and Indicators ................................................................................... 6
Figure 2. Typical EZCT-2KA Excitation and Ratio Test Cable Connection ..................................... 10
Figure 3. Bushing CT Connection on Delta Transformer .............................................................. 11
Figure 4. Bushing CT Connection on Y Transformer ..................................................................... 11

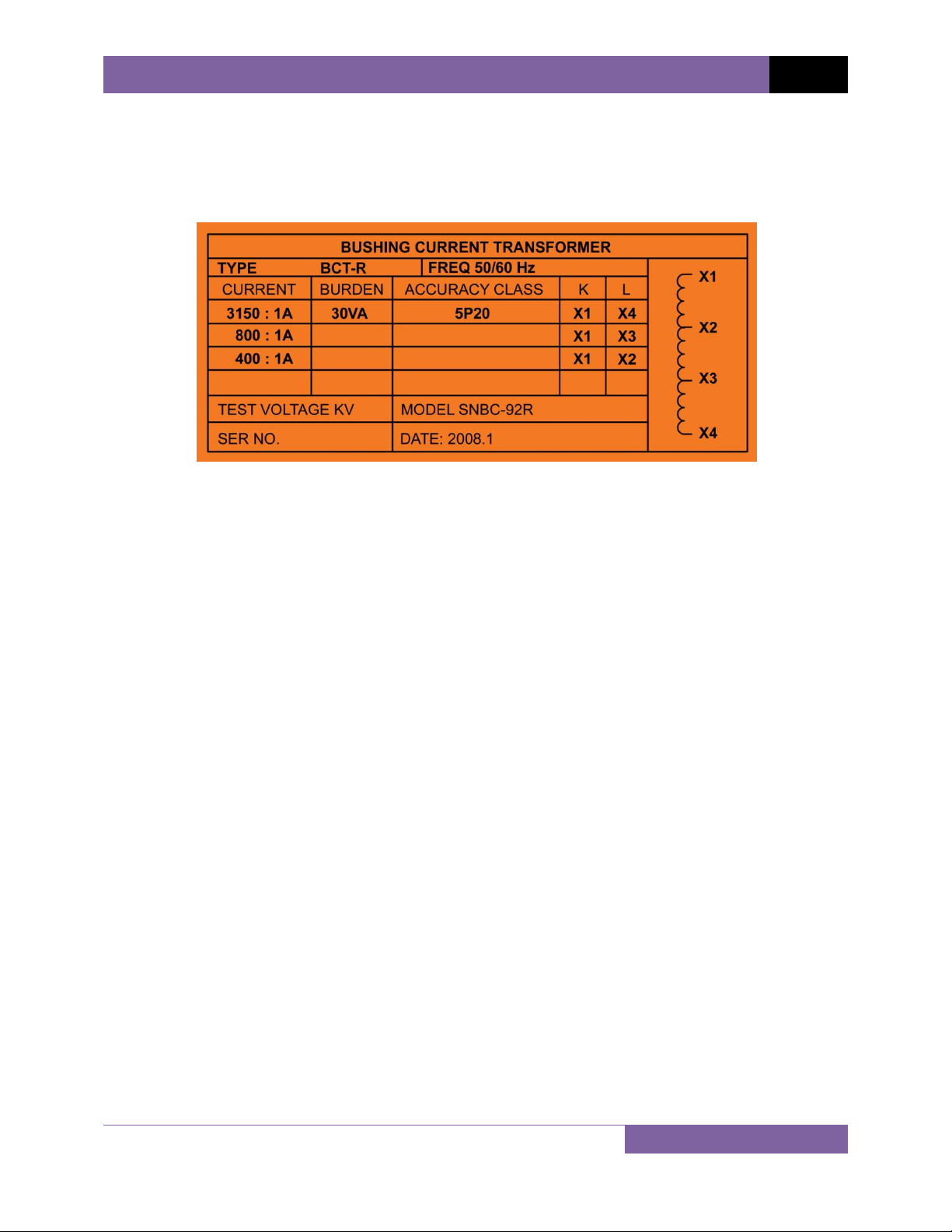

Figure 5. Sample CT Name Plate ................................................................................................... 12
Figure 6. Typical EZCT-2KA Tabulated Report Printout ................................................................ 24
Figure 7. Typical EZCT-2KA Graphic Report .................................................................................. 26
Figure 8. Typical EZCT-2KA Graphic Report with Multiple Plot Curves ........................................ 26
Figure 9. Typical Internal Test Record Directory Printout ............................................................ 37
Figure 10. Typical USB Flash Drive Record Directory Printout ..................................................... 39
Figure 11. Typical EZCT-2KA Flash EEPROM Test Plan Directory Printout ................................... 52
Figure 12. Typical USB Flash Drive Test Plan Directory Printout .................................................. 54
Figure 13. Typical Test Plan Printout ............................................................................................ 56
Figure 14. Graphic Report Showing Knee Point Marker ............................................................... 75
Figure 15. Buried CT in a Delta Transformer Illustration 1 ........................................................... 78
Figure 16. Buried CT in a Delta Transformer Illustration 2 ........................................................... 79
Figure 17. CT Data Points Printed With Impedance Values .......................................................... 83
Figure 18. CT Data Points Printed Without Impedance Values .................................................... 83
Figure 19. Sample Test Report Printout with Calibration Due Date ............................................. 85
Figure 20. EZCT-2KA Vx Verification Test Connections ................................................................. 91
Figure 21. EZCT-2KA Ix Verification Test Connections .................................................................. 92
Figure 22. EZCT-2KA Turns Ratio Verification Test Connections .................................................. 93
Figure 23 ....................................................................................................................................... 96
Figure 24 ....................................................................................................................................... 97

REV 1.0 EZCT-2KA USER’S MANUAL
iv
Figure 25 ....................................................................................................................................... 98
Figure 26 ....................................................................................................................................... 99
Figure 27 ..................................................................................................................................... 100
Figure 28 ..................................................................................................................................... 101
Figure 29 ..................................................................................................................................... 102
Figure 30 ..................................................................................................................................... 103
Figure 31 ..................................................................................................................................... 103

REV 1.0
1
This doc
u
• A ke
y
• Men
u
• Scre
e
• The
t
• EZCT
-
• Whe
n
sho
w
• War
n
W
A
• Imp
o
N
1.R
2.
T
3.
T
4
.
S
5.
D
1
.
R
2.
T
3.
T
4
.
S
5.
D
EZCT-2KA
C
u
ment uses
y
or switch
o
u
options ar
e
n and men
u
t
erms “test
r
-
2KA LCD sc
n
instructio
n
w
n below (o
p
n
ing messag
e
A
RNING
W
a
o
rtant notes
OTE
No
RUN TEST
TEST RECO
TEST
PLAN
SETUP
DIAGNOSTI
RUN
TEST
TEST
RECO
TEST
PLAN
SETUP
DIAGNOSTI
USER’S MA
C
ONVEN
T
t
he followi
n
o
n the EZCT-
e
reference
d
u
names are
r
ecord” and
reen outpu
t
n
s are provi
d
p
tion 4 shou
e
s are indic
a
a
rning mes
s
are indicat
e
te details
ORDS
NS
CS
ORDS
NS
CS
NUAL
T
IONS U
S
n
g conventi
o
2KA is indic
a
d
as (MENU
referenced
“test shot”
a
t
is shown a
s
d
ed, the me
n
ld be select
e
a
ted as:
s
age
e
d as:
S
ED IN T
H
o
ns:
a
ted as [KE
Y
OPTION).
as “SCREEN
a
re used int
e
s
:
n
u item tha
t
e
d):
H
IS DOC
U
Y
] and [S
W
/MENU NA
M
e
rchangeab
t
should be
s
U
MENT
W
ITCH] .
M
E”.
ly.
s
elected is s
h
h
own in bol
d
d
as

EZCT-2KA USER’S MANUAL REV 1.0
2
1.0 INTRODUCTION
1.1 General Description and Features
The EZCT-2KA is Vanguard’s third-generation microprocessor-based current transformer test
set. The EZCT-2KA can perform the current transformer (CT) excitation test, measure the CT
winding resistance and CT current-ratio automatically. All of the EZCT-2KA’s test leads can be
connected to the CT output terminals (X1, X2, X3, X4 and X5), eliminating the need for lead
switching during testing. Test voltage output is automatically raised and lowered by the EZCT-
2KA without any operator intervention. With up to 2000 Vac excitation test voltage available,
the EZCT-2KA can easily perform excitation tests on very large CT’s.
Excitation Test
The CT excitation test is performed using the ANSI/IEEE C57.13.1, IEC 60044-1 test method. The
test voltage range for the CT excitation test (50 Vac, 300 Vac, 500 Vac, 1200 Vac or 2000 Vac)
can be selected, and then the test voltage is raised and lowered automatically by the EZCT-2KA.
The excitation test voltage and current data is collected and stored in the unit’s internal
memory. Any of the 10 possible combinations of X1 to X5 can be tested since all of the unit’s
test leads can be connected to all of the CT output terminals at the same time. Up to 10
excitation tests can be stored in one record. Once the test is completed, test results can be
printed and excitation curves can be plotted on the built-in 4.5-inch wide thermal printer.
CT Ratio and Polarity Tests
The EZCT-2KA determines the CT current-ratio using the ANSI/IEEE C57.12.90 measurement
method. A test voltage is applied on any two terminals of the CT (X1 to X5), and the induced
voltage is measured through the CT’s H1 and H2 terminals. The CT current-ratio is displayed on
the screen and stored in memory. The current ratio measuring range is from 0.8 to 10,000 to 1.
The CT winding polarity is displayed as a “+” sign (in-phase) or a “-” sign (out-of-phase) and is
annotated with the phase angle in degrees.
Demagnetization
The EZCT-2KA automatically demagnetizes the CT under test when performing an excitation
test.
CT Winding Resistance Test
The EZCT-2KA can also measure the DC resistance of the CT winding under test. The DC winding
resistance measuring range is from 100 micro-ohms to 20 ohms.
User Interface
The EZCT-2KA features a back-lit LCD screen (240 x 128 pixels) that is viewable in both bright
sunlight and low-light levels. A rugged, "QWERTY"-style, membrane keypad is used to control
the unit.

REV 1.0 EZCT-2KA USER’S MANUAL
3
Internal Test Record Storage
The EZCT-2KA can store up to 1,000 test records in Flash EEPROM. Each test record may contain
up to 10 excitation curves, current-ratio readings, polarity and DC resistance readings. Test
records can be recalled and printed on the built-in thermal printer.
External Data Storage
The EZCT-2KA features a standard USB Flash drive interface that makes it very convenient to
store and transfer test records and test plans. By plugging in a USB Flash drive, you can quickly
transfer your test records and test plans between a computer and the EZCT-2KA without the
need to connect the unit to the computer.
Internal Test Plan Storage
The EZCT-2KA can store up to 128 CT test plans in Flash EEPROM. A test plan defines the
excitation test voltage and current range selection, CT nameplate ratio, and CT winding
terminals (X1 to X5) for each of the tests. Up to 10 test definitions can be stored per test plan.
The use of a test plan greatly simplifies the CT testing process; the EZCT-2KA is connected to the
CT terminals and a test plan is simply selected and run. Test plans can be created on the EZCT-
2KA itself or created on a PC and downloaded to the EZCT-2KA via the unit’s built-in USB or
Bluetooth interfaces or transferred to the unit using a USB flash drive.
Test Record Header Information
Test record header information can include the company name, substation name, circuit ID,
manufacturer, CT serial number, operator’s name and test record comments. In addition to the
test record header, a 20-character test description for each test in the record (10 tests per
record) can also be entered.
Computer Interface
The EZCT-2KA can be used as a stand-alone unit or can be computer-controlled via the built-in
USB or Bluetooth interface. Windows®-based Current Transformer Analysis software is
provided with each EZCT-2KA. This software can be used to retrieve test records from the EZCT-
2KA, create test plans, download test plans to the EZCT-2KA, and can also be used to run CT
tests from the PC. Tabulated test records can be exported in PDF, Excel, and XML formats for
further analysis.
Built-in Thermal Printer
A built-in 4.5” wide thermal printer can print the current transformer test report and plot the
excitation curves.

EZCT-2KA USER’S MANUAL REV 1.0
4
1.2 Furnished Accessories
The EZCT-2KA comes furnished with the following:
• One 20' (6.1 m) X cable set (P/N 8000-0108)
• One 35' (10.69 m) H cable set (P/N 8000-0157)
• One power and ground combination cable (P/N 8000-0016)
• One USB cable (P/N 8000-0005)
• One cable carrying bag (P/N 8000-0111)

REV 1.0
5
1.3
T
P
H
O
RES
I
V
O
C
U
E
X
I
NO
EZCT-2KA
T
echnical
S
H
YSICAL SPE
C
I
N
CURRENT R
A
MEASURI
N
O
UTPUT TES
T
I
STANCE ME
A
O
LTAGE REA
D
U
RRENT REA
D
P
H
ME
A
COMPUTER I
N
P
C
X
TERNAL DA
T
I
NTERNAL T
E
INTERNA
L
TE
M
TE
The
a
tem
p
USER’S MA
S
pecificati
o
Table
TYPE
C
IFICATION
S
N
PUT POWER
A
TIO RANGE
N
G METHO
D
T
VOLTAGE
S
A
SUREMENT
D
ING RANGE
D
ING RANGE
H
ASE ANGLE
A
SUREMENT
DISPLAY
PRINTER
N
TERFACE
S
C
SOFTWARE
T
A STORAGE
E
ST RECORD
STORAGE
L
TEST PLAN
STORAGE
CABLES
SAFETY
M
PERATURE
HUMIDITY
ALTITUDE
OPTIONS
WARRANTY
a
bove specif
p
erature of
2
NUAL
o
ns
1. EZCT-2K
A
Portable cur
r
Dimensions
Weight: 48 l
b
100 – 120 V
a
0.8 – 999: ±
0
1000 – 1999
:
2,000 – 4,99
9
5,000 – 10,0
0
ANSI/IEEE
C
0 – 50 Vac
@
0 – 300 Vac
0 – 500 Vac
0 – 1,200 Va
0 – 2,000 Va
Range: 100
accuracy:
100 µΩ – 1.
9
2 Ω – 20 Ω (
1
0 – 2,200 Va
0 – 10 A, ac
c
0 – 360 degr
e
accuracy: ±
1
back-lit LCD
light levels
Built-in 4.5-i
n
one USB po
r
Windows
®
-b
a
one USB fla
s
stores 1,000
excitation, re
stores 128 t
e
and current
s
one 20-foot (
cord, USB c
a
designed to
m
standards
Operating: -
Storage: -3
0
90% RH @
4
2,000 m (6,5
6
shipping cas
e
One years o
n
ications are
2
5°C (77°F).
A
Technical
S
r
ent-transform
e
: 17”W x 12.5”
b
s (21 Kg)
a
c or 200 – 24
0
0
.1%,
:
±0.3%,
9
: ±1%,
0
0: ±1.5%
C
57.12.90 and
A
@
10A max;
@ 8A max;
@ 5A max;
c @ 2A max;
c @ 1.2A max
µΩ to 20 Ω; re
s
9
9 Ω (2% of re
a
1
.5% of readin
g
c; accuracy:
±
c
uracy: ±1.0%
o
e
es
1
.0 degree
screen (240 x
n
ch wide therm
r
t, bluetooth
a
sed CT Analy
s
s
h drive interfa
c
test records.
E
sistance and r
a
e
st plans. Each
s
ettings
6.10m) X cabl
e
a
ble, cable car
r
m
eet UL 6101
0
10˚ to 50˚ C (1
0
˚ C to 70˚ C (-
2
4
0°C (104°F) n
o
6
2 ft) to full sa
f
e
n
parts and lab
valid at no
m
Specificatio
n
S
pecificatio
n
e
r test set
H x 12”D (42.
7
0
Vac (factory
p
A
NSI/IEEE C
5
s
olution: 1 µΩ
a
ding ±10 µΩ),
g
±2 mΩ)
±
1.0% of readi
n
o
f reading, ±0.
0
128 pixels); vi
e
al printer
s
is software is
c
e port (flash
d
E
ach test recor
d
a
tio data
test plan can
s
e
sets, one 35
-
r
ying bag
0
A-1 and CAN
/
5˚F to +122˚
F
2
2˚F to +158˚
F
o
n-condensin
g
f
ety specificati
o
or
m
inal opera
t
n
s may cha
n
n
s
7
cm x 32.0 cm
p
re-set), 50/60
5
7.13.1 standa
r
n
g, ±1 volt
0
2A
e
wable in brig
h
included with
p
d
rive not includ
e
d
may contain
s
tore 10 excit
a
-
foot (10.69m)
/
CSA C22.2 N
o
F
);
F
)
g
o
ns
t
ing voltage
a
n
ge without
x 26.9 cm)
Hz
r
ds
h
t sunlight and
p
urchase pric
e
e
d)
up to 10 sets
o
a
tion test volta
g
H cable set, p
o
o
. 1010.1-92
a
nd at a
prior notice
low-
e
o
f
g
e
o
wer
.

EZCT-2KA USER’S MANUAL REV 1.0
6
1.4 EZCT-2KA Controls and Indicators
The EZCT-2KA’s controls and indicators are shown in Figure 1 below. A leader line with an index
number points to each control and indicator, which is cross-referenced to a functional
description in Table 2. The table describes the function of each item on the control panel. The
purpose of the controls and indicators may seem obvious, but users should become familiar
with them before using the EZCT-2KA. Accidental misuse of the controls will usually cause no
serious harm. Users should also be familiar with the safety summary found on the front page of
this User’s Manual.
Figure 1. EZCT-2KA Controls and Indicators

REV 1.0 EZCT-2KA USER’S MANUAL
7
Table 2. Functional Descriptions of EZCT-2KA Controls and Indicators
Item
Number Panel Markings Functional Description
1-5 X1, X2, X3, X4, X5
Current transformer excitation voltage connectors. Each set of connectors
contains a test voltage connector and sensing connector. The EZCT-2KA’s X
output terminals are rated to 2000 Vac working voltage. Any voltage above
2000 Vac will damage the input circuitry.
6 H Current transformer primary input test cable connector.
7 GROUND Grounding stud.
8 AC receptacle.
9 Back-lit LCD Screen (240 x 128 dot graphic; 114mm x 64mm).
10 Power switch with built-in circuit breaker.
11 Rugged, "QWERTY"-style membrane keypad
12 USB MEM USB Flash drive port
13 USB PC USB PC interface
14 Built-in 4.5-inch wide thermal printer.
15 HIGH VOLTAGE
PRESENT
LED warning indicator that is illuminated when high voltage is present
16 BLUETOOTH Bluetooth indicator
17
EMERGENCY
TURN OFF
"PUSH"
Emergency turn off switch

EZCT-2KA USER’S MANUAL REV 1.0
8
2.0 PRE-TEST SETUP
2.1 Operating Voltages
The EZCT-2KA’s operating voltage is preset at the factory for 100-120 Vac, 50/60 Hz or 200-240
Vac, 50/60 Hz.
2.2 LCD Screen Contrast Control
To increase the LCD screen contrast, press and hold the [] key for two seconds. Release the
button when the desired contrast level has been reached.
To decrease the LCD screen contrast, press and hold the [] key for two seconds. Release the
button when the desired contrast level has been reached.
2.3 Printer Paper Control
To advance the thermal printer paper, press and release the [] key.
To retract the thermal printer paper, press and release the [] key.
2.4 Printer Paper
The EZCT-2KA’s built-in thermal printer uses 4.5-inch wide thermal paper for printing test
results. To maintain the highest print quality and to avoid paper jams, the use of thermal paper
supplied by Vanguard Instruments Company is highly recommended. Additional paper can be
ordered from the following sources:
Vanguard Instruments Co, Inc.
1520 S. Hellman Avenue
Ontario, CA 91761
Tel: [phone]
Fax: [phone]
Part Number: VIC TP-4 paper
BG Instrument Co.
13607 E. Trent Avenue
Spokane, WA 99216
Tel: [phone]
Fax: [phone]
Part Number: VIC TP-4 paper

REV 1.0
9
2.5
R
The roll
o
the pap
e
•
U
• R
•
U
• F
e
T
• P
• L
i
• R
NOTE
2.6
C
The EZC
T
interfac
e
2KA. For
EZCT-2KA
R
eplacing
t
o
f thermal p
e
r, follow th
e
U
nscrew the
emove the l
U
nroll the ne
e
ed the the
r
he printer
w
lace the pa
p
i
ft the ther
m
e-install th
e
Thermal
facing t
h
the ther
m
The the
r
of pape
r
C
omputer I
T
-2KA can b
e
e
. Windows-
further inf
o
USER’S MA
t
he Therm
a
aper is hou
s
e
steps belo
w
two large p
r
eftover the
r
w thermal
p
r
mal paper i
w
ill automati
p
er roll into
t
m
al head an
d
e
printer cov
e
paper has
a
h
e thermal p
m
al paper.
r
mal paper
w
.
nterface
P
e
connected
based “Curr
o
rmation, pl
e
NUAL
a
l Printer
P
s
ed inside a
w
:
r
inter cover
r
mal paper
r
p
aper roll.
nto the slot
cally pull th
e
t
he paper h
o
d
align the t
h
e
r.
a
chemical c
o
rint head. I
n
w
ill show a r
e
P
orts
to a PC via
e
ent Transfo
r
e
ase see th
e
P
aper
dispenser u
n
screws and
r
oll from th
e
between th
e
paper und
o
lder.
h
ermal pap
e
o
ating on o
n
n
correct pa
p
e
d stripe to
e
ither the U
r
mer Analys
e
EZCT-2000
n
derneath t
remove the
e
paper hold
e paper po
c
er the ther
m
e
r if necessa
n
e side of th
e
p
er loading
m
indicate tha
SB interfac
e
is” softwar
e
Software U
s
he printer c
o
printer cov
e
er.
c
ket and the
m
al head.
ry.
e
paper. Thi
m
ay result i
n
t the roll is
a
e
or the wir
e
e
is supplied
s
er’s Manua
o
ver. To rep
e
r.
rubber roll
e
s side shoul
d
n
blank outp
a
bout to ru
n
e
less blueto
o
with the EZ
C
l.
lace
e
r.
d
be
ut on
n
out
o
th
C
T-

EZCT-2KA USER’S MANUAL REV 1.0
10
3.0 OPERATING PROCEDURES
3.1 EZCT-2KA Cable Connections
Always connect the EZCT-2KA to the substation ground before connecting any test cables. The
EZCT-2KA is supplied with one 20-foot X cable set and one 35-foot H cable. The X cable
connections are required to run the current transformer excitation test. The H and X cable
connections are required to run the transformer turns-ratio test. A typical excitation and ratio
test connection is shown in Figure 2. Transformer bushing CT connections for Delta and Y
transformers are shown in Figure 3 and Figure 4, respectively.
Figure 2. Typical EZCT-2KA Excitation and Ratio Test Cable Connection

REV 1.0 EZCT-2KA USER’S MANUAL
11
Figure 3. Bushing CT Connection on Delta Transformer
Figure 4. Bushing CT Connection on Y Transformer

EZCT-2KA USER’S MANUAL REV 1.0
12
3.2 EZCT-2KA X Input Voltage Warning
The EZCT-2KA X output terminals are rated to 2,000 Vac working voltage. Any voltage present
at these terminals above 2,000 Vac may damage the X sense circuitry, cause false readings, or
both. An example of a typical situation where this may occur is shown in Figure 5 below.
Figure 5. Sample CT Name Plate
For the above example CT, the turns ratio between X1-X4 is 3150 to 1. The turns ratio between
X1-X2 is 400 to 1. The turns ratio between X1-X4 and X1-X2 is 7.88 (3150/400). If a test voltage
of 300 Vac is applied to the X1-X2 terminals, a voltage of 2,364 Vac (300 Vac x 7.88) will be
induced at the X1-X4 terminals. If all the test leads are connected to the EZCT-2KA and the
excitation test is performed on the X1-X2 terminals, the voltage induced at the X1-X4 terminals
will exceed 2,000 Vac as the voltage across the X1-X2 terminals increases above 250 Vac. A
“Flash-Over” condition may occur and damage the EZCT-2KA. In this case, the user should only
connect the X1-X2 leads and run its excitation test, then connect the X4 lead before running the
X1-X4 excitation test.

REV 1.0 EZCT-2KA USER’S MANUAL
13
3.3 Performing Tests
3.3.1. Entering Test Record Header Information
You can enter the test record header information before performing tests. The record header
includes identifying information such as the company, station, circuit, model number, etc. Once
the header information has been entered, it will apply to all subsequent test records. To enter
the header information:
a. When the unit is turned on and the firmware has been loaded, you will be presented
with the “START-UP” menu as shown below:
Press the [4] key (SETUP).
b. The following screen will be displayed:
Press the [1] key (SHOT DESCRIPTION)
c. The following screen will be displayed:
Type the company name using the keypad. To erase the character at the cursor position,
press the [CLEAR] key. To edit your entry, press the [] key to move to the previous
character or the [] key to move to the next character. Press the [ENTER] key when
you are done typing the company name.
COMPANY:
VANGUARD
↑↓ TO POSITION
"ENTER" TO ACCEPT
1.SHOT DESCRIPTION
2.KNEE POINT MARKER
3.BURIED CT IN DELTA
4.SET Z PRINT ON/OFF
5.SET DATE & TIME
6.NEXT PAGE
1.RUN TEST
2.TEST RECORDS
3.TEST PLANS
4.SETUP
5.DIAGNOSTICS
04/15/16
09:09:53

EZCT-2KA USER’S MANUAL REV 1.0
14
d. The following screen will be displayed:
Type the station name using the keypad and then press the [ENTER] key.
e. The following screen will be displayed:
Type the circuit information using the keypad and then press the [ENTER] key.
f. The following screen will be displayed:
Type the manufacturer name using the keypad and then press the [ENTER] key.
g. The following screen will be displayed:
Type the model information using the keypad and then press the [ENTER] key.
MODEL:
↑↓ TO POSITION
"ENTER" TO ACCEPT
MANUFACTURER:
↑↓ TO POSITION
"ENTER" TO ACCEPT
CIRCUIT:
↑↓ TO POSITION
"ENTER" TO ACCEPT
STATION:
↑↓ TO POSITION
"ENTER" TO ACCEPT

REV 1.0 EZCT-2KA USER’S MANUAL
15
h. The following screen will be displayed:
Type the serial number using the keypad and then press the [ENTER] key.
i. The following screen will be displayed:
Enter any relevant comments using the keypad and then press the [ENTER] key.
j. The following screen will be displayed:
Type the operator’s name using the keypad and then press the [ENTER] key. All
header information will be saved, and you will be returned to the “START-UP” menu.
OPERATOR:
↑↓ TO POSITION
"ENTER" TO ACCEPT
COMMENTS:
↑↓ TO POSITION
"ENTER" TO ACCEPT
SERIAL NUMBER:
↑↓ TO POSITION
"ENTER" TO ACCEPT
