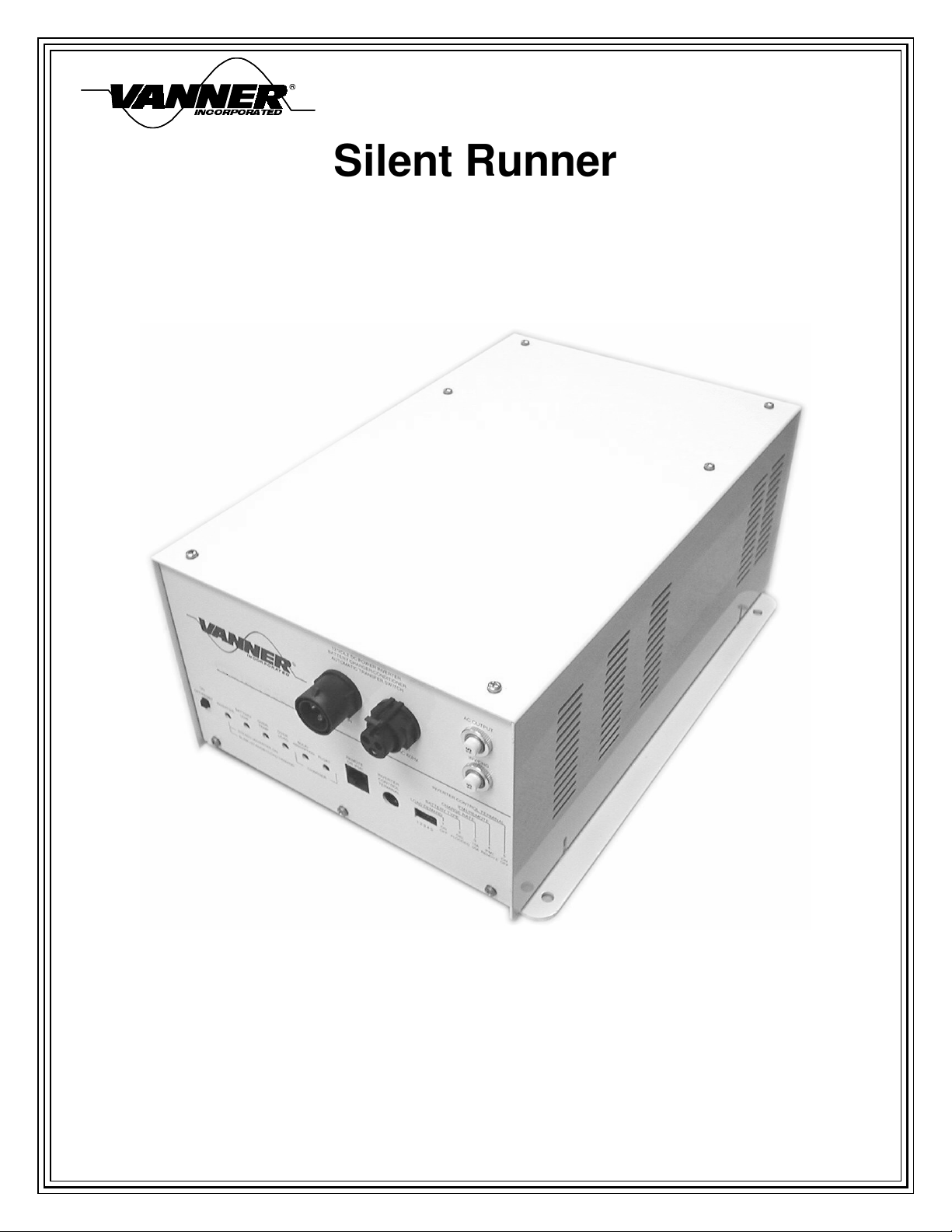

Vanner Silent Runner SRC12-1100PT User manual

Owners Manual
SILENT RUNNER INVERTER/CHARGER POWER SYSTEM
1
          
Silent Runner
Inverter/Charger Power System
Model
SRC12-1100PT
Owners Manual A911426-E

Owners Manual
SILENT RUNNER INVERTER/CHARGER POWER SYSTEM
2
          

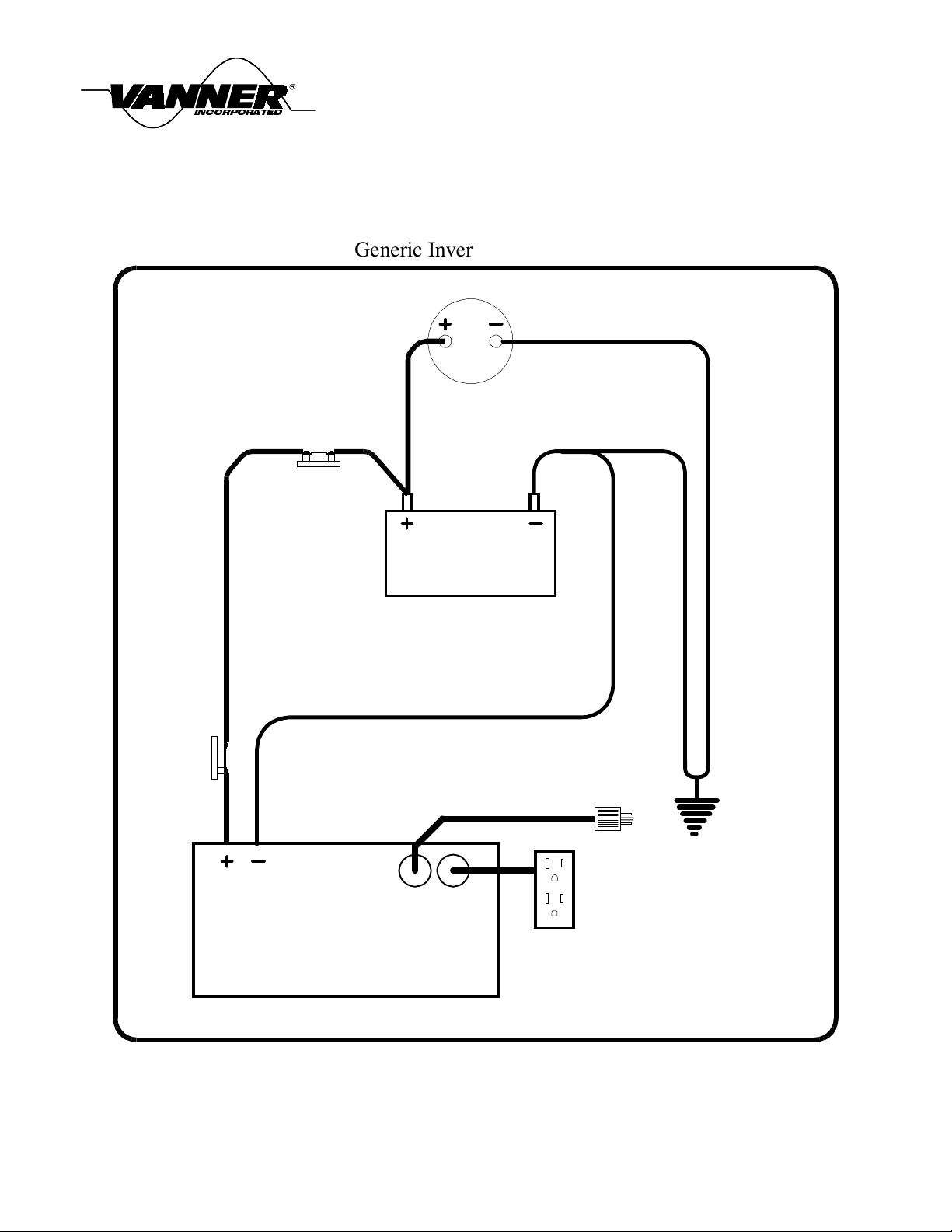

Generic Inverter Installation
12 Volt
Battery
Inverter
OEM
Alternator
OEM
Battery
Common
OEM ground
at Starter or
Engine Block
Fuse block
within 18" of
Battery
Fuse
block

Owners Manual
SILENT RUNNER INVERTER/CHARGER POWER SYSTEM
3
          
Table of Contents
1 Introduction
................................
................................
................................
............................
4
1.1 Specifications
................................
................................
................................
..............................
5
1.2 Standard Features on the SRC12-1100PT
................................
................................
...................
6
1.3 Definitions
................................
................................
................................
................................
...
6
1.4 Parts and Accessories
................................
................................
................................
.................
7
2 SAFETY INSTRUCTIONS
................................
................................
................................
.......
8
2.1 General Precautions
................................
................................
................................
....................
8
2.2 Explosive Gas Precautions
................................
................................
................................
..........
9
2.3 Precautions When Working with Batteries
................................
................................
...................
9
3 Component Identification
................................
................................
................................
....
10
(1) ON/OFF/RESET
................................
................................
................................
........................
11
(2) “Inverter” Indicator Light
................................
................................
................................
...........
11
(3) “Battery Low” Indicator Light
................................
................................
................................
......
11
(4) “Over Temp” (Temperture) Indicator Light
................................
................................
................
11
(5) Overload Indicator Light
................................
................................
................................
...........
11
(6) “BULK/ABSORPTION” Indicator Light
................................
................................
.......................
11
(7) “FLOAT” Indicator Light
................................
................................
................................
.............
12
(8) “REMOTE OR IFM1” CONTROL JACK
................................
................................
.....................
12
(9) “INVERTER CONTROL TERMINAL”
................................
................................
.........................
12
(10)“Load Demand” (Switch 1)
................................
................................
................................
........
12
(11)“Battery Type” (Switch 2)
................................
................................
................................
..........
12
(12) “Charging Rate” (Switch 3)
................................
................................
................................
.......
12
(13)Select IFM1/Remote
................................
................................
................................
.................
12
(14)Select Inverter Control Terminal
................................
................................
...............................
12
(15)15 Amp INV/CHG Circuit Breaker
................................
................................
.............................
13
(16)15 Amp AC Output Circuit Breaker
................................
................................
...........................
13
(17)120V, 60Hz @ 15A Max. AC Output
................................
................................
.........................
13
(18)120V, 60Hz @ 15A Max. AC Input
................................
................................
............................
13
(19)Air Exhaust Vents
................................
................................
................................
.....................
13
(20)Mounting Flanges with 5/16 mounting holes
................................
................................
..............
13
(21)Air Intake Vents (three sides)
................................
................................
................................
....
13
(22)Chassis Ground Bonding Lug
................................
................................
................................
....
13
(23)Positive DC Input Connection (Red)
................................
................................
..........................
13
(24)Negative DC input Connection (Black)
................................
................................
......................
13
4 INSTALLATION
................................
................................
................................
....................
14
4.1 Unpacking the Inverter
................................
................................
................................
..............
14
4.2 Inverter Installation Considerations
................................
................................
............................
14
4.3 DC Wiring Considerations
................................
................................
................................
.........
14
4.4 DC Wiring Installation Procedure
................................
................................
...............................
15
4.5 AC Wiring Installation Procedure
................................
................................
...............................
16
4.6 Remote Monitor and Control Panel Installation
................................
................................
..........
16
5SYSTEM START-UP AND TESTING PROCEDURES
................................
..........................
17
5.1 Inverter Start-up and Testing
................................
................................
................................
.....
17
5.2 Procedure to Check Battery Charger Operation
................................
................................
.........
18
6 THEORY OF OPERATION
................................
................................
................................
....
19
7 PREVENTIVE MAINTENANCE
................................
................................
.............................
21
7.1 Maintenance Items
................................
................................
................................
....................
21
7.2 Troubleshooting Procedures
................................
................................
................................
......
21
8 APPENDICES
................................
................................
................................
........................
23
8.1 Problem Loads
................................
................................
................................
..........................
23
8.2 DC Power Consumption
................................
................................
................................
............
24
9 International and North American Warranties
................................
................................
....
25

Owners Manual
SILENT RUNNER INVERTER/CHARGER POWER SYSTEM
4
 ! " # $ " # %& ' (
1Introduction
Thank you for purchasing Vanner’s, Silent Runner (SR) Series Inverter/Charger. We are confident that you will be
satisfied with its performance and its many features. With proper installation and care, you can look forward to years
of service from this high performance product.
This document will describe the operation, technical specifications, installation procedures and accessories offered
for the SR-Series. We suggest that you familiarize yourself with the model numbers of the inverter and optional
accessories you have purchased before proceeding with this manual. If you require additional information please
contact Vanner at 800-227-6937 (800-AC Power) or 614-771-2718.
WARNING: Before you install and use your SR-Series Inverter/Charger
be sure to read and save these safety instructions.
PLEASE NOTE YOUR MODEL AND SERIAL NUMBER HERE FOR FUTURE REFERENCE
Model Number ____________________________ Serial Number _________________________________________
Date of Installation ____________________________

Owners Manual
SILENT RUNNER INVERTER/CHARGER POWER SYSTEM
5
) * + , - . , - /0 1 2
1.1 Specifications
Inverter SRC12-1100PT
Output at 120 VAC RMS (Continuous Power Rating) 1500 Watts @ 25°C (77°F)
Total Surge Capacity 2600 Watts
Input Voltage, VDC 12 VDC, Nominal
(Deep Cycle Battery Recommended) 10.5 VDC min., 16.0 VDC max.
Output Voltage 120 VAC ± 10%
DC Current Draw (Battery)
OFF 0.025 Amps Typical
Load Demand (waiting)* 0.055 Amps Typical
Full ON at No Load 0.650 Amps Typical
Full ON with Load Approx. AC Load Watts ÷ 10 or
AC Load Amps x 12
Frequency 60 Hz ± 0.1%
Output Wave Form Modified Sine Wave
Battery Charger
Charging Capacity* 55 Amps (High)
15 Amps (Low)
Input Voltage 120 VAC ± 10%
Input Current 12.3 Amps
Bulk Voltage* 14.2 VDC (flooded), 14.1 VDC (gel)
Float Voltage* 13.2 VDC (flooded), 13.6 VDC (gel)
Bypass Transfer
Output Current at 77°C (25°C) 12.5 Amps
Other Specifications
AC Input Termination Molded Connector
AC Output Termination Molded Connector
Ambient Temperature -40° to +104°F, -40° to + 40.0°C
Cooling Air Fan Cooled
Chassis Powder Coated Aluminum
Dimensions 10.4”W x 6.0”H x 14.4”D
Weight 25 lbs.
*Determined by Setup Switch setting on front panel

Owners Manual
SILENT RUNNER INVERTER/CHARGER POWER SYSTEM
6
3 4 5 6 7 8 6 7 9: ; <
STANDARD FEATURES
1.2 Standard Features on the SRC12-1100PT
1True RMS regulated 120 volt ±10% AC 60 Hz Quasi-sine wave output
2Output Short circuit / overload protection through electronic sensing
3Output circuit breakers
4Automatic shutoff for Low Battery
5Automatic shutoff for Overload
6Automatic momentary shutoff/restart for Over temperature
7Load Demand enable/disable switch
8Built-in Phillips & Temro receptacle protected by a 15 amp circuit breaker.
9Remote Operating Panel and Remote ON/OFF Switch (capable of single wire control)
10 Three Stage Battery Charger
11 Adjustable charge rate
12 Charging settings for gel or wet batteries
13 Automatic Power Management (charger input power control prevents overloading )
14 Automatic Transfer Switch with 5 second acceptance time delay
15 Thermostatically controlled cooling intake fan.
16 Indicator lights for Low Battery Warning/Shutoff, Over Temperature Shutoff, Overload, Inverter
ON/OFF/Load Demand status and two charger status lights.
Please note: The Battery Charger, Automatic Transfer Switch and Automatic Power Management are operational
only when AC input power (shore power) is present.
1.3 Definitions
Quasi Sine Wave:
Quasi Sine Wave Inverters are sometimes called "modified sine wave inverters" or "modified square wave inverters."
Quasi sine wave inverters produce an AC output wave different from the power produced by the electric utility
companies and rotating generators.
Load Demand Feature and Load Demand Mode:
The Load Demand Feature is an energy conserving feature which allows the inverter to enter the ‘Load Demand
Mode’ whenever the inverter is ON and the AC load has been less than 5 watts for approximately 5 seconds. While
in the ‘Load Demand Mode’ the inverter does not produce 120 volts AC but instead produces pulses of 120 volts AC
which the inverter uses to look for a load at a one second rate. When an AC load greater than 5 watts is sensed, the
inverter will turn fully ON to produce a constant 120 Volts AC. The ‘Load Demand Mode’ is often also described as
‘stand-by mode’ or ‘sleep mode’. While in the ‘Load Demand Mode’ the inverter consumes approximately 140
milliamps of 12 volt DC power.
The Load Demand Feature can be turned OFF by setting Selector Switch 2 to the OFF position. This will cause the
inverter to remain fully ON, producing 120 Volts AC, whenever the inverter switch is ON and regardless of AC load.
It is desirable to do this when the device being powered draws less than 5 watts. With the Load Demand Feature
turned OFF and operating no AC load the inverter consumes approximately 1.8 amps of 12 volt DC power.

Owners Manual
SILENT RUNNER INVERTER/CHARGER POWER SYSTEM
7
= > ? @ A B @ A CD E F
Automatic Transfer Switch:
The Transfer Switch is a standard feature provided on the Silent Runner. The Transfer Switch automatically allows
input power, from an external AC power source such as shore power or a generator, to pass through the inverter
output circuit used to operate loads.
1.4 Parts and Accessories
Part Number
Name
Description
SR10 Silent Runner Series Remote Remote Display with On/Off Switch
011486 Silent Runner Communication Cable 10 foot Communication Cable

Owners Manual
SILENT RUNNER INVERTER/CHARGER POWER SYSTEM
8
G H I J K L J K MN O P
2SAFETY INSTRUCTIONS
README
This manual contains important safety and operating instructions for the Vanner Incorporated Silent Runner Series
Power Inverter/Charger System. The SR-Series Inverter/Charger is designed to be compliant with UL 458, Power
Converters/Inverters and Power Converter/Inverter Systems for Land Vehicles.
SAVE THESE INSTRUCTIONS
WARNING This equipment employs components that tend to produce arcs and sparks. To prevent fire or
explosion, DO NOT install in confined areas or compartments that contain batteries or flammable
materials.
WARNING Risk of electrical shock. Use only the circuit breaker(s) specified in the installation and operating
instructions supplied with this inverter. Other types may fail to operate properly when connected to
this equipment.
CAUTION Read Owners Manual BEFORE wiring or powering up.
CAUTION DO NOT cover or obstruct ventilation openings. DO NOT mount in zero-clearance compartments.
Overheating may result which may diminish system capacity.
NOTICE The output of this device in not sinusoidal. The SR-SERIES inverter has a total harmonic distortion
of 34.6 percent and maximum single harmonic of 24 percent.
2.1 General Precautions
1Do not expose the SR-Series Inverter to direct water spray or snow.
2To reduce the risk of a fire hazard, do not cover or obstruct the ventilation openings.
3Do not install this unit in a zero clearance compartment the result may be overheating or diminished
performance.
4To avoid the risk of fire, electric shock, or injury to persons, do not use attachments, breakers, fuses, etc. not
recommended or sold by Vanner Incorperated.
5Vanner recommends that all DC and AC electrical wiring be performed by a certified electrician or technician to
ensure compliance with all proper national and local wiring regulations.
6To avoid a risk of fire and/or electric shock, always verify wiring connections are in good electrical condition. All
external conductors must use proper wire size to avoid dangerous overheating or diminished performance.
7If the Vanner inverter system has been dropped or damaged in any way, do not operate until its operation has
been verified to be safe by a qualified technician.
8To reduce the risk of electric shock always disconnect the AC and DC connections to the Vanner Inverter system
before attempting any maintenance. Simply turning the unit off does not prevent electric shock.
9The SR-Series inverter system must be properly grounded in accordance with local and national codes and
ordinances before operation. For most installations the negative (ground) conductor should be bonded to the
grounding system at one and only one point in the system.
10 Do not disassemble the SR-Series Inverter/Charger; see the service section of this manual for instructions on
obtaining service for your Inverter/Charger. Attempting to service the unit yourself may result in a risk of
electrical shock or fire

Owners Manual
SILENT RUNNER INVERTER/CHARGER POWER SYSTEM
9
Q R S T U V T U WX Y Z
2.2 Explosive Gas Precautions
This equipment contains components, which tend to produce arcs or sparks. To prevent fire or explosion do
not install in compartments containing batteries or flammable materials or in locations, which require
ignition, protected equipment. This includes any space containing gasoline-powered machinery, fuel tanks, or
joints, fittings, or other connection between components of the fuel system.
Working in the vicinity of a lead-acid battery is dangerous. Batteries generate explosive gases during normal
battery operation. To reduce the risk of battery explosion, follow these instructions and those published by
the battery manufacturer and the manufacturer of the equipment in which the battery is installed.
2.3 Precautions When Working with Batteries
1Always have someone within range of your voice to come to your aid when you work near a lead-acid battery.
2Have access to plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes.
3Always wear complete eye protection and clothing protection. Avoid touching eyes while working near batteries.
4If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters eye, immediately
flood eye with running cold water for at least 20 minutes and get medical attention immediately.
5NEVER smoke or allow a spark of flame in the vicinity of batteries. Gases produced by batteries are explosive.
6Be careful when working with metal tools around batteries. Potential for spark exists or short-circuit of the
battery or other electrical part that may cause an explosion.
7Never charge a frozen battery. Battery temperature needs to be above 32°F (0°C)before charging.

Owners Manual
SILENT RUNNER INVERTER/CHARGER POWER SYSTEM
10
[ \ ] ^ _ ` ^ _ ab c d
3Component Identification
Figure 2 SRC-Series Illustration
22
21
19
23
24
20
1
2
3
4
5
6
7
8
9
11
12
13
14
10
18
17
16
15
INV/CHG
STEADY=INVERTER ON
BATTERY
LOW
OVER
TEMP
OVER
LOAD
FLOAT
BULK/
ABSORPTION
ON
OFF/RESET
REMOTE
OR IFM1
CHARGER
INVERTER
BLINK=STANDBY/LOAD DEMAND
120 VAC 60Hz
MATING ATTACHMENT PLUG/CABLE
AVAILABLE FROM PHILLIPS & TEMRO
AC OUTPUT
INVERTER
CONTROL
TERMINAL
AC IN
AC OUT
1 2 3 4 5
OFF
ON
FLOODED
GEL
55A
15A
REMOTE
IFM1
ON
OFF
1
2
3
4
5
INVERTER CONTROL TERMINAL
IFM1/REMOTE
CHARGE RATE
BATTERY TYPE
LOAD DEMAND
e fhgi j k i j lnm o p
AC INPUT
P/N: 8500640
AC OUTPUT
P/N: 8500641
FOR DISCONNECT USE ONLY - NOT FOR CURRENT INTERUPTION
