CM1500A
OPERATION & PARTS MANUAL
VACUUM CHAMBER MACHINE
419 E. 11TH AVE. NORTH KANSAS CITY, MO 64116 USA
[phone] [email protected]

Safe Operation Practices
General Operation
炽Read, understand, and follow all instructions in the manual and on the machine before
starting. Keep this manual in a safe place for further and regular reference and for ordering
replacement parts.
炽Only allow people who familiar with the instructions to operate the machine. Be sure to
know controls and how to stop the machine quickly.
炽Do not put your hands near moving parts.
炽Remove all obstacles, which may interfere with the machine functions.
炽Clear the work area such as electrical wires, gloves, knives etc.
炽Be sure that everyone else is clear of your work area before operating the machine.
炽Do not sit nor stand on the machine.
炽Be sure turn off the machine after your work is finished. Never leave a running machine
unattended.
炽Always disconnect and wait until the machine has cooled before doing any maintenance.
炽Do not wear loose fitting clothes or jewelry as they may get caught in moving parts of the
machine.
炽Please wear security shoes, to avoid injury caused by moving the machine or objects falling
from the machine.
炽Never exceed the time limit to seal, which is suggested by the manufacturer. This is to avoid
any damage that may be caused to the sealing bars and to reduce the risk of fire in the
machine.
炽Never touch the sealing bars after they have been used, this will avoid corporal burns. Wait a
few minutes to let the machine cool down before touching.
炽Make sure the sealing bars are well installed in their “Guide Blocks” before starting package.
炽Never incline the machine more than 30 degrees, it may tip over and hurt someone seriously.
Your responsibility
This machine should only be operated by personal who can read, understand and respect
warnings and instruction regarding this machine in the owners manual.

1
Content
Chapter 1烉Safety precautions
1.1 Precautions of transportation, installation and packing
1.2 Precautions before and after machine starting
Chapter 2烉Overall description of the machine
2.1 Features of the machine
2.2 Function of the machine
2.3 Product proper for this machine
2.4 Usage life of the machine
2.5 Marking location and content description
2.6 Specification of the machine
Chapter 3烉Function description of the pushbuttons on
the panel
Chapter 4烉Instructions of operation, maintenance and
troubleshooting
4.1 Operation sequence
4.2 Maintenance
4.3 Troubleshooting
Chapter 5烉Related environment and accessories of the
machine
5.1 Accessory
5.2 Airborne noise level
5.3 Storage condition
5.4 Operation environment

2
Chapter 1烉Safety precautions
1.1 Precautions of transportation, installation and packing
1.1.1 Preparations before installation
1.1.1.1 Power requirement:
Voltage: Look at the nameplate
Current: Look at the nameplate
Frequency: 50/60Hz
Phase: 3Ø
1.1.1.2 Installation requirement
1.1.1.2.1 Prevent to install the machine in the environment full of dust and corrosive
atmosphere with acid and alkali.
1.1.1.2.2 Prevent to install the machine in the environment with abnormal vibration.
1.1.1.2.3 Prevent to install the machine under direct sunlight or near vapor. Such will
affect its vacuum degree.
1.1.1.2.4 The ground circuit should be independently or parallel.
1.1.1.2.5 Don’t install the machine in the potentially explosive atmosphere.
1.1.1.2.6 Installation space includes the requirement of the operator and machine
Length × Width × Height = 2M×2M×2.5M

3

4
Preparations during transportation
1.1.1.3 The weight of this machine is 180-220kg, so that the loading capacity of any
handling device is recommended to be more than 1000kg. If you are not sure of the
safe loading capacity, please contact the manufacturer of such handling device. If
the situation is clearly understood, don’t try to handle the machine by yourselves.
1.1.1.4 Either by lifting or by handling, it’s necessary to check the balance carefully in
advance.
1.1.1.5 The work of lifting or by handling should be carried out by means of qualified
operator.
1.1.1.6 During machine handling, any people or car is not allowed to approach the
surrounding of the machine.
1.1.1.7 During handling, notice that whether there is any person or barrier on the handling
path and the surrounding of the machine. If it is, clear it before machine handling.
1.1.2 Precautions during packing
1.1.2.1 Packing material: The base is wood and main part is cardboard box.
1.1.2.2 Packing sequence: Put the wood base on the ground. Then, put the machine on it.
Next, pack the machine with plastic film and put vibration-absorbing board around
the machine. Then, put the cardboard box on the machine. Use nails to fix the
cardboard box and wood base. At last, bind it with pp stripes.
1.2 Precautions before and after machine starting
1.2.1 Precautions before machine starting
1.2.1.1 Before using this machine, read and realize the contents of this manual in detail.
1.2.1.2 Check that whether the voltage is correct.

5
1.2.1.3 Confirm that whether the electric power and its rating is sufficient.
1.2.1.4 Check that whether all the safety related devices are normal, and notice that
whether anyone within the danger zone.
1.2.1.5 Visual check that whether all mechanical and electric parts are normal, and also
notice that whether the surrounding environment is clean.
1.2.1.6 Sequences of power on:
1.2.1.6.1 Turn on the factory power.
1.2.1.6.2 Turn on the main switch of the machine.
1.2.2 Precautions after machine starting
1.2.2.1 Confirm that whether the display is correct.
1.2.2.2 Confirm that whether the sound coming from pump running is normal (refer to
clause 3.12.2).
1.2.2.3 Wear safety shoes, protection clothes and mask to ensure safety and hygiene of the
operator.

6
Chapter 2烉Overall description of the machine
2.1 Features of the machine
2.1.1 The machine main body is made of stainless steel with features of well endurance. Also,
it’s flat packing table design make easy loading/unloading and cleaning without space
limit.
2.1.2 The machine adopts high vacuum pump (imported from Europe) micro-computerized
auto control system with water-resistance design.
2.1.3 The machine is fitted with 10 sets of friendly memory function with independent display.
2.1.4 Equip with moving wheels (with brake device) for easy movement without limit of
environment.
2.1.5 It is adequate for any processing factory or laboratory.
2.2 Function of the machine
2.2.1 Keep food fresh, original taste, anti-septic
2.2.2 Extend the preservation limit.
2.2.3 Prevent humidity and stain on electronic and ironmongery components.
2.3 Product proper for this machine
2.3.1 Meat, sea-food, agriculture products, dehydrated food, herbs, vegetarian food, pickles
and spices.
2.3.2 Electronic components, ironmongery components, medical equipment, powder and
flavoring.

7
2.5 Marking location and content description
2.5.1 Nameplate: stuck on the right/upper side of the machine
2.5.2 Warning sign: stuck on the rear side of the machine
2.6 Specification of the machine

8
Type &01500$
Machine dimension 1500x 746x 1107 mm
Vacuum chamber
dimension
1438 x 677 x 240 mm
Sealing line dimension 610 mm x2
Optional accessory Nitrogen filling function
Machine weight 250 kg
Motor 5.6 kW
Heater 2.2 kW
Available bag length
1270mm

9
Chapter 3烉Function description of the pushbuttons on the
panel
SFQSPH 烟DBO
烟
BC D EF
GHIJ
K
L
TUPQ
A Memory set display (10 sets)
B Vacuum time display
C Nitrogen filling time display
D Sealing time display
E Cooling time display
F Memory release key
G Memory input key
H Reserved key
I E-stop key
J Time increase key
K Time decrease key

10
3.1 Memory set display (A): display the current memory set (e.g.”3” means the 3rd set)
3.2 Vacuum time display (B): display the current setting of vacuum time (unit: 1/s)
3.3 Nitrogen filling time display (C): display the current setting of nitrogen filling time
(unit: 1/s)
3.4 Sealing time display (D): display the current setting of sealing time (unit: 0.1/s)
3.5 Cooling time display (E): display the current setting of cooling time (unit: 0.1/s)
3.6 Memory release key (F): press key for modifying memory function
3.7 Memory input key (G): press key for locking memory function
3.8 Reserved key (H): key reserved for further use.
3.9 E-stop key (I): make timing function stop, and release the upper lid.
3.10 Time increase key (J): press key for time adding
3.11 Time decrease key (K): press key for time reducing
3.12 Sequence of trial run:
3.12.1 Connect the power.
3.12.2 If the running condition sounds smoothly, it’s clockwise rotating. If there is abnormal
noise coming out, it’s counterclockwise rotating, and please turns off the machine
immediately. Then, change the power wires.
ɈAttention: remember to ground the machine.
3.12.3 Packaging test:
(A) Test the sealing temperature and adjust the sealing time in accordance with Chapter 3
page 10(D).
(B) Test the vacuum degree and adjust the vacuum time in accordance with Chapter 3 page
10(B).
3.12.4 If everything is OK, operate the machine according to the instructions in Chapter 4 for
normal production.

11
Chapter 4烉Instructions of operation, maintenance and
troubleshooting
4.1 Operation sequence:
4.1.1 Press power switch, then the indicator of the display screen is lit.
4.1.2 Press “memory release” key, then the display screen starts flashing.
4.1.3 Press “Ĺ” or “Ļ” to input set number and time.
4.1.4 Then, press “Memory input” key to set program. After that, start packaging process.
4.2 Maintenance:
4.2.1 Cleaning of vacuum chamber
4.2.1.1 If the working process is finished, use clean and wet cloth to wipe the vacuum
chamber and sealing set.
4.2.2 Vacuum oil replacement.
4.2.2.1 Recommended vacuum oil: BP Engergol RC100, Esso Nuto H100, Mobil Rarus
427.
4.2.2.2 Drain the oil completely before filling new oil.
4.2.2.3 Oil capacity should be kept at least two-thirds of total amount.

12
4.2.3 If the heat-resistance cloth on the heater is damaged, please replace it immediately.
4.2.4 Change the oil of the vacuum pump for every 300 hours. If the packaged product is full
of juice, shorten the oil replacing cycle time. Also check the oil level from oil sight
glass every week. Oil capacity should be kept at least two-thirds of total amount. If the
oil is dirty, please replace it immediately.
4.2.5 The disposal of discarded material should be in accordance with the local
environmental regulations.
4.2.6 Detail drawing of the oil pump
1. Air release hole
2. Oil filling hole
3. Oil sight glass
4. Oil draining hole

13
4.3 Troubleshooting
Situation Reason Measure
Sealing line is not
complete
Heat-resistance cloth is
damaged
Replace it
Poor sealing on bag mouth Heating wire is burned Replace it
Insufficient vacuum Vacuum oil is not enough
Oil quality becomes worse
Rubber gasket is damaged
Fill it
Replace it
Replace it

14
Chapter 5烉Related environment and accessories of the
machine
5.1 Accessory:
5.1.1 Standard accessory:
5.1.1.1 Heat-resistance cloth: 1 piece
5.1.1.2 Heating wire: 3 pieces
5.1.2 Optional accessory
5.1.2.1 Nitrogen filling function
5.1.2.2 Nitrogen container: 6000 liters.
5.1.2.3 High pressure hose: inner diameter 7.5 mm
5.1.2.4 Solenoid valve for nitrogen filling: 7 mm
5.2 Airborne noise level: 80 dB (A)
5.3 Storage condition:
5.3.1 Temperature: 0-45ºC
5.3.2 Humidity: 20-95 %RH
5.4 Operation environment
5.4.1 Temperature: 0-45ºC
5.4.2 Humidity: 20-95 %RH
5.4.3 Attitude: 0-1000 m sea level.
5.4.4 Space requirement:
5.4.4.1 It is necessary to provide enough space for heat emission, handling and maintenance.
5.4.4.2 The machine should be installed in separation of others. Do not too close.

15

16

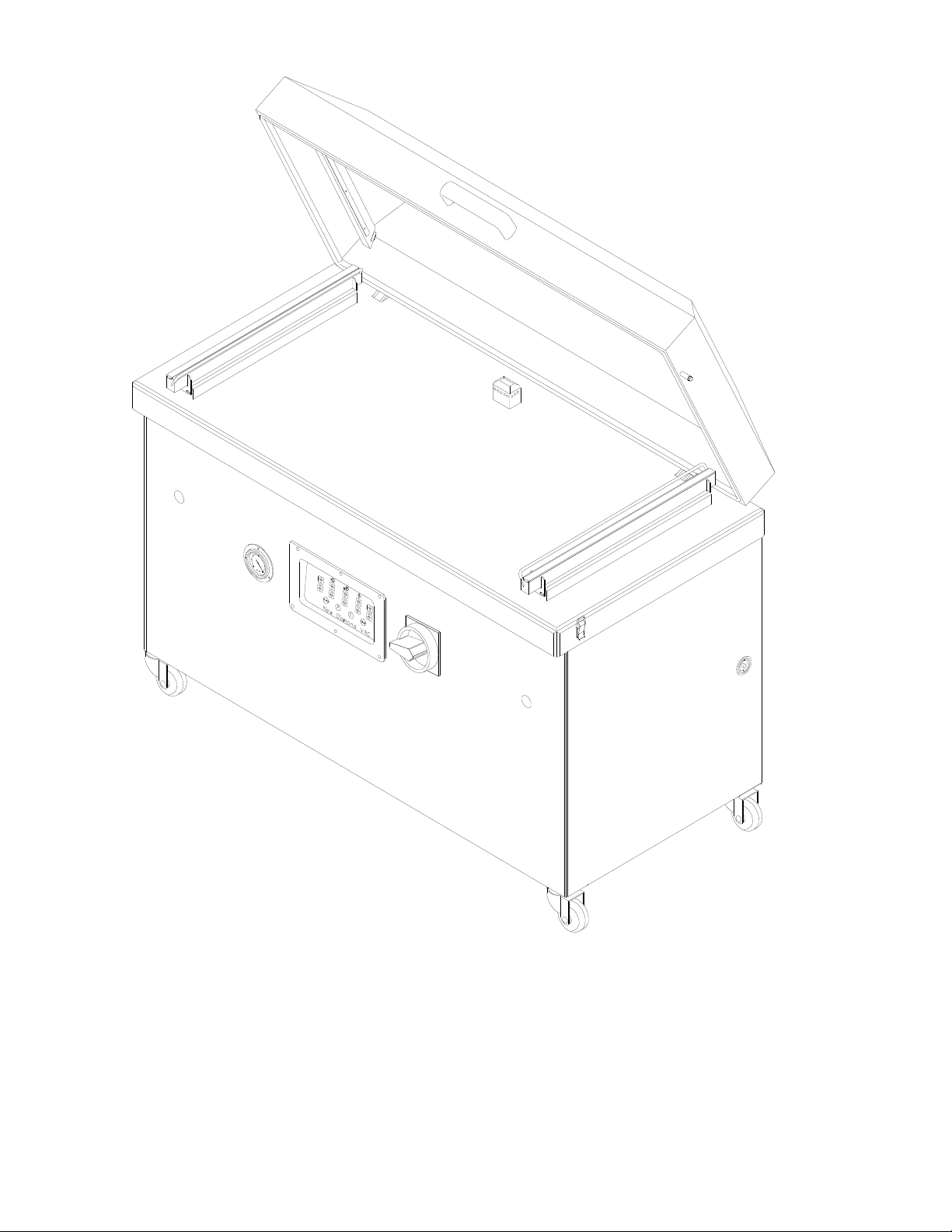

&01500A
Spare Parts List
No. Description Component No. Description
01 Hex. screw 004-04-01-012
02 Hinge 003-06-01-001
03 Flat Washer 004-06-01-006
04 Hex. Nut 004-05-02-004
05 Limit switch 006-05-01-001
06 Limit switch metal plate 004-03-19-003
07 Flat washer 004-06-01-007
08 Spring washer 004-06-02-007
09 Round head screw 004-04-03-003
10 Hex. Nut 004-05-02-004
11 Flat Washer 004-06-01-006
12 Hex. screw 004-04-01-012
13 Shaft core 004-01-01-004
14 Flat Washer 004-06-01-001
15 Hinge 003-06-01-002
16 Upper lid 004-03-03-011
17 Rubber pad 009-11-01-002
18 Spring 009-07-01-016
19 Hex. Nut 004-05-02-002
20 Hex. screw 004-08-02-001
21 Power cable 006-11-04-008
22 Gland 006-14-01-004

17

18
&01500 -B
Spare Parts List
No. Description Component No. Description
01 Heat-resistance cloth 009-03-02-001
02 Heating wire 009-03-03-001
03 Round head screw 004-04-03-003
04 Round head screw 004-04-03-003
05 Round head screw 004-04-03-003
06 Rubber gasket 009-09-02-022/4200
07 Heating wire fixing plate 009-03-06-001
08 Hex. Nut 004-05-02-004
09 Heating wire fixing support 009-03-04-002
10 Heating unit(610) 009-03-01-005
11 Round head screw 004-04-03-003
12 Heat-resistance cloth fixing plate(610) 009-03-05-004
13 Round head screw 004-04-03-003
14 Round head screw 004-04-03-003
15 Round head screw 004-04-03-003
16 Round head screw 004-04-03-003
17 Round head screw 004-04-03-003
18 Heating wire fixing plate 009-03-06-001
19 Round head screw 004-04-03-003
20 Heating wire fixing support 009-03-04-002
21 Round head screw 004-04-03-003
22 Round head screw 004-04-03-003
23 Round head screw 004-04-03-003
24 Seal bar complete set 009-03-01-005
