Vecow RES-3000 User manual

USER
Manual
USER
Manual
1.0.0 Edition 20200204
8th Gen Intel®Core™i7/i5/i3 SoC IP67 Rugged Embedded System
High Performance, Fanless -30°C to 70°C Extended Temperature
RES-3000

ii
Version Date Page Description Remark
1.00 2020/02/04 All Ofcial Release
Record of Revision

iii
This manual is released by Vecow Co., Ltd. for reference purpose only. All
product offerings and specications are subject to change without prior notice.
It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable
for direct, indirect, special, incidental, or consequential damages arising out of
the use of the product or documentation or any infringements upon the rights of
third parties, which may result from such use.
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used
in accordance with the instruction manual, it may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
FCC
The products described in this manual complies with all applicable European
Union (CE) directives if it has a CE marking. For computer systems to
remain CE compliant, only CE-compliant parts may be used. Maintaining CE
compliance also requires proper cable and cabling techniques.
CE
This document contains proprietary information protected by copyright. No part
of this publication may be reproduced in any form or by any means, electric,
photocopying, recording or otherwise, without prior written authorization
by Vecow Co., Ltd. The rights of all the brand names, product names, and
trademarks belong to their respective owners.
Disclaimer
Declaration of Conformity
Copyright and Trademarks

iv
Model Name Processor GigE LAN COM USB 2.0
RES-3000-8665U Intel® Core™ i7-8665UE
222
RES-3000-8365U Intel® Core™ i5-8365UE
RES-3000-8145U Intel® Core™ i3-8145UE
RES-3000-4305U Intel® Celeron® 4305UE
Order Information
Part Number Description
DDR4 32G Certied DDR4 32GB 2666MHz RAM
DDR4 16G Certied DDR4 16GB 2666/2400/2133MHz RAM
DDR4 8G Certied DDR4 8GB 2666/2400/2133MHz RAM
DDR4 4G Certied DDR4 4GB 2666/2400/2133MHz RAM
2.5" SATA HDD Certied 2.5" SATA HDD
2.5" SATA SSD Certied 2.5" SATA SSD
mSATA SSD Certied mSATA SSD
IP67 Rated DVI
Cable IP67 Rated DVI-D Cable, 200 cm
IP67 Rated Ethernet
Cable IP67 Rated M12 to RJ45 Ethernet Cable, 200 cm
IP67 Rated COM
Cable IP67 Rated M12 to COM Cable, 200 cm
PWA-120W 120W, 24V, 90V AC to 264V AC Power Adapter with 3-pin
Terminal Block
Order Accessories

v
Table of Contents
CHAPTER 1 GENERAL INTRODUCTION 1
1.1 Overview 1
1.2 Features 2
1.3 Product Specication 2
1.4 Supported CPU List 4
1.5 Mechanical Dimensions 4
CHAPTER 2 GETTING TO KNOW YOUR RES-3000 5
2.1 Packing List 5
2.2 Front Panel I/O Functions 6
2.3 Rear Panel I/O and Functions 6
CHAPTER 3 SYSTEM SETUP 10
3.1 How to Use Your RES-3000 10
3.2 Mount Your RES-3000 14
CHAPTER 4 BIOS SETUP 16
4.1 BIOS Settings 16
4.2 Main 17
4.3 Advanced Functions 17
4.4 Chipset Functions 29
4.5 Security 34
4.6 Boot 36
4.7 Save & Exit 37

vi
APPENDIX A : Watchdog Function 38
APPENDIX B : Software Functions 40
APPENDIX C : RAID Functions 41
APPENDIX D : Power Consumption 45
APPENDIX E : Supported Memory & Storage List 49

1
GENERAL INTRODUCTION
1
GENERAL INTRODUCTION
RES-3000 is an IP67 certified rugged Ultra-compact Fanless Embedded Box
PC. Powered by 8th generation Intel® Core™ i7/i5/i3 processor (Whiskey Lake),
DDR4 2400MHz up to 32GB memory, RES-3000 supports up to 40% greater
productivity than former generation solutions; Advanced Intel® UHD Graphics
620 graphics engine supports DirectX 12, OpenGL 4.5 and OpenCL 2.1 API;
DVI-D display interface supports 1080p full HD resolution. Multiple Gen 3
PCIe (8GT/s), SATA III (6Gbps) and GigE (1Gbps) LAN make high-speed data
conveying possible. Vecow RES-3000 Series Ultra-compact Fanless Embedded
System delivers you outstanding Power-Efficient Performance for demanding
workloads.
Featured with 2 independent rugged X-coded M12 GigE LANs support iAMT
11.0, 2 M12 COM RS-232/422/485, 1 M12 2-port USB 2.0, 1 IP67 waterproof
DVI-D connector, 1 mSATA socket and 1 internal 2.5” SSD/HDD bracket, smart
remote manageability, 9V to 48V wide range power input with M12 power
connector, fanless -30°C to 70°C extended operating temperature, all-in-one
IP67 compliant designs, RES-3000 is your trusted embedded engine for strict
environmental requirements.
Vecow RES-3000 IP67 Certified Ultra-compact Fanless Embedded System
delivers outstanding performance, compact integrated functions, smart
manageability and rugged reliability for Smart Manufacturing, Rolling Stock,
Environment Monitoring, Wayside Surveillance, Logging & Mining and any
performance driven IIoT/Industry 4.0 applications in harsh environments.
1.1 Overview

2
GENERAL INTRODUCTION
©Vecow RES-3000 User Manual
1.2 Features
• Compact & slim design, IP67 protection
• Fanless, -30°C to 70°C Operating Temperature
• 8th Generation Intel® Core™ i7/i5/i3 U-series Processor (Whiskey Lake)
• DDR4 2400MHz memory, up to 32GB
• Intel® UHD Graphics 620 supports DirectX 12, OpenGL 4.5 and OpenCL 2.1
• IP67 waterproof DVI-D display interfaces supports 1080p full HD display
• Dual X-coded M12 GigE LAN, iAMT 12.0 supported
• 2 M12 COM RS-232/422/485, 1 M12 for 2-port USB
• 9V to 48V DC Power Input, M12 waterproof connector
• Optional supports TPM 2.0
• One-stop customized Design and Manufacturing Services
1.3 Product Specication
System
Processor Intel® Core™ i7/i5/i3/Celeron® U-series Processor
(Whiskey Lake)
Chipset Intel® SoC (Cannon Lake)
BIOS AMI
SIO IT8786E
Memory 1 DDR4 2400MHz SO-DIMM, up to 32GB
I/O Interface
Serial 2 COM RS-232/422/485, A-coded M12 Connector
USB 1 supports 2-port USB 2.0, A-coded M12 Connector
LED Power, HDD
Graphics
Graphics Processor Intel® UHD Graphics 620
Interface IP67 Waterproof DVI-D Connector, up to 1920 x 1200
@60Hz
Storage
SATA 1 SATA III (6Gbps)
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
Storage Device • 1 mSATA Socket
• 1 Internal 2.5" SSD/HDD Bracket (Optional)

3
GENERAL INTRODUCTION
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0, X-coded M12
Connector
LAN 2 Intel® I210 GigE LAN, X-coded M12 Connector
Power
Power Input 9V to 48V, DC-in
Power Interface A-coded M12 Connector
Power Switch IP67 Waterproof Power Button
Others
TPM Optional Inneon SLB9665 supports TPM 2.0
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control
when CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimensions (WxDxH) 250mm x 180mm x 44mm (9.8” x 7.1” x 1.7”)
Weight 2.3 kg (5.07 lb)
Mounting • Wallmount by mounting bracket
• VESA Mount
Environment
Operating Temperature -30°C to 70°C (-22°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Shock • IEC 60068-2-27
• SSD : 50G @ Wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2

4
GENERAL INTRODUCTION
©Vecow RES-3000 User Manual
1.4 Supported CPU List
Processor No. Cores TDP Cache Max.
Frequency
ECC
Memory
Intel® Core™ i7-8665UE 415W 8M Up to 4.4 GHz N
Intel® Core™ i5-8365UE 415W 6M Up to 4.1 GHz N
Intel® Core™ i3-8145UE 215W 4M Up to 3.9 GHz N
Intel® Celeron® 4305UE 215W 2M Up to 2.0 GHz N

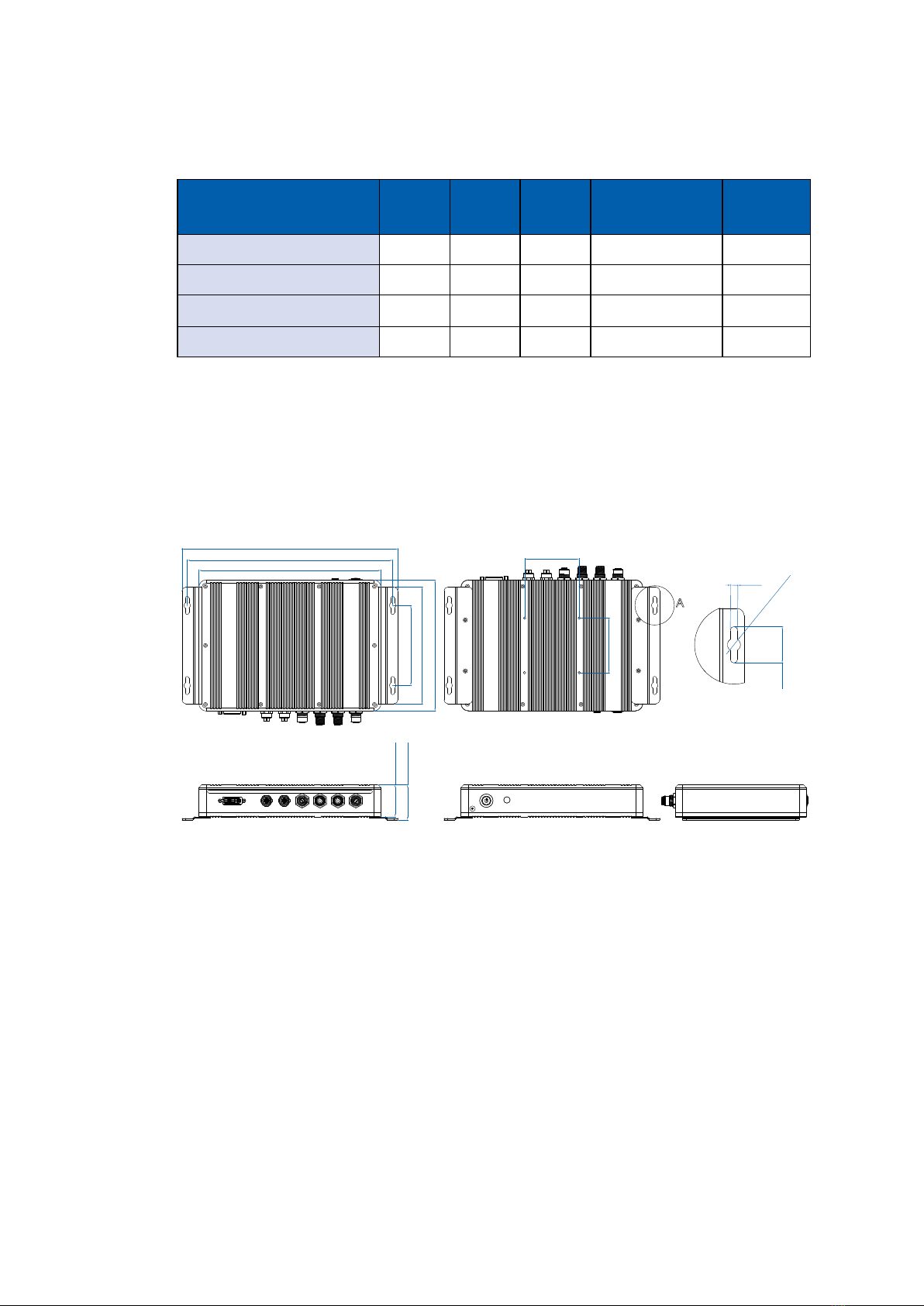

1.5 Mechanical Dimensions
A
A Detail
2:1
75.0 (2.95")
75.0 (2.95")
25.0 (0.98")
Ø9.0 (Ø0.35")
5.0 (0.20")
44.0 (1.73") 48.3 (1.90") 110.0 (4.33")
160.0 (6.30") 180.0 (7.09")
250.0 (9.84")
282.2 (11.11")
296.2 (11.66")
Unit: mm (inch)

5
GETTING TO KNOW YOUR RES-3000
2
GETTING TO KNOW YOUR RES-3000
2.1 Packing List
Item Description Qty
1RES-3000 Rugged Embedded System 1
2Driver/User Manual DVD 1
3 Wall Mount Kit 2
4PHILLIPS F#6-32 screws for wall mount kit 4
5 M12 to USB cable (2M Length) 1
6 M12 to DC terminal block cable (2M Length) 1

6
GETTING TO KNOW YOUR RES-3000©Vecow RES-3000 User Manual
2.2 Front Panel I/O Functions
2.2.1 Power Button
The power button is a non-latched switch. In case of system halts, you can
press and hold the power button for 4 seconds to compulsorily shut down the
system. Please note that a 4 seconds interval is kept by the system between
two on/off operations (i.e. once turning off the system, you shall wait for 4
seconds to initiate another power-on operation).
LED Color Power Status System Status
Blue Power System power status (on/off)
HDD
2.2.2 HDD LED Indicator
Orange-HDD LED: A hard disk LED. If the LED is on, it indicates that the
system’s storage is functional. If it is off, it indicates that the system’s storage is
not functional. If it is ashing, it indicates data access activities are in progress.
LED Color Power Status System Status
Orange HDD • On/Off : Storage status, function or not.
• Twinkling : Data transferring.
HDD
2.3 Rear Panel I/O and Functions
In Vecow’s RES-3000, all I/O connectors are located on the Rear panel. Most
of the general connections to the computer device, such as DVI-D, M12 jack for
LAN,USB2.0,COM port and DC-IN , are placed on the Rear panel.

7
GETTING TO KNOW YOUR RES-3000

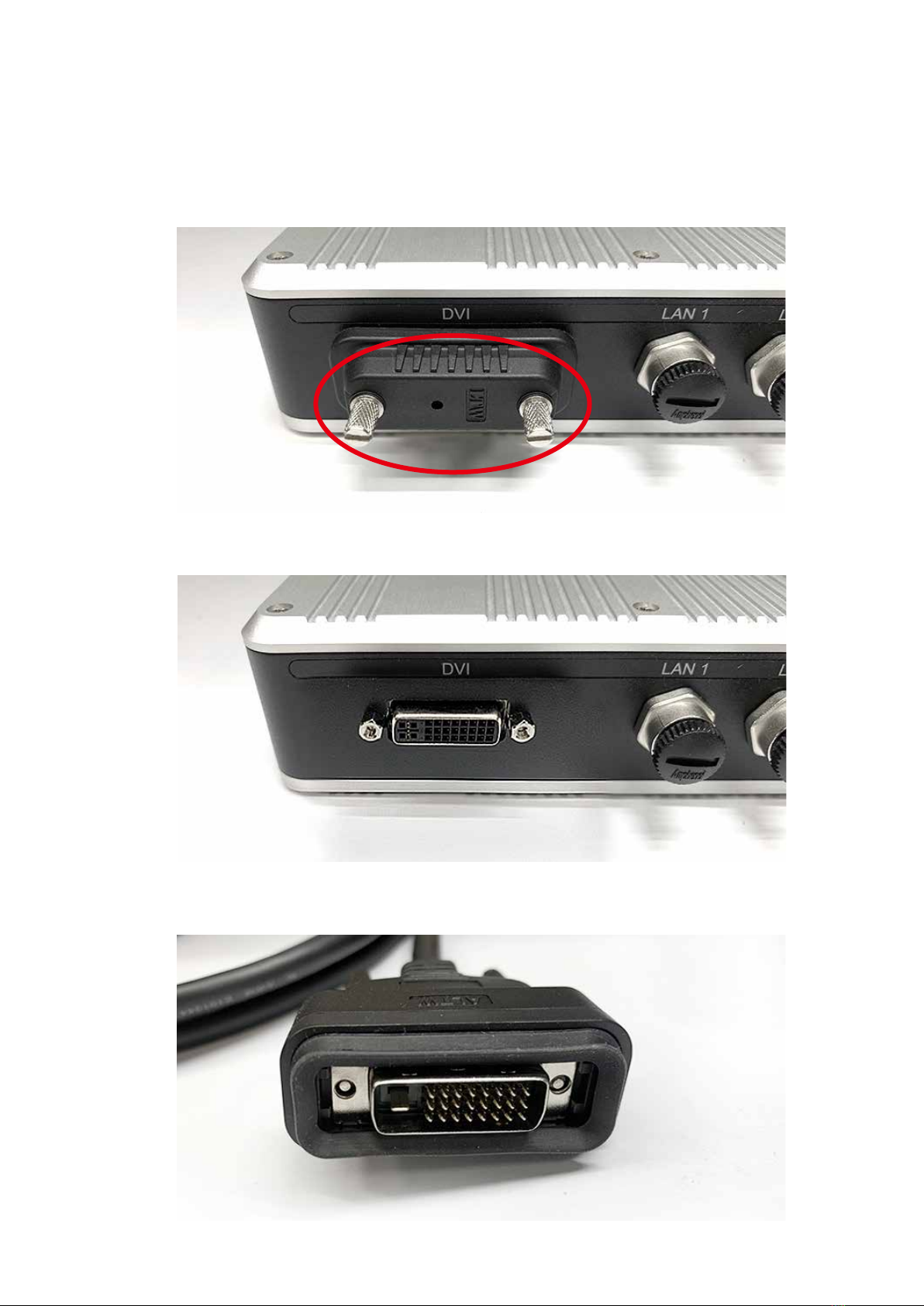

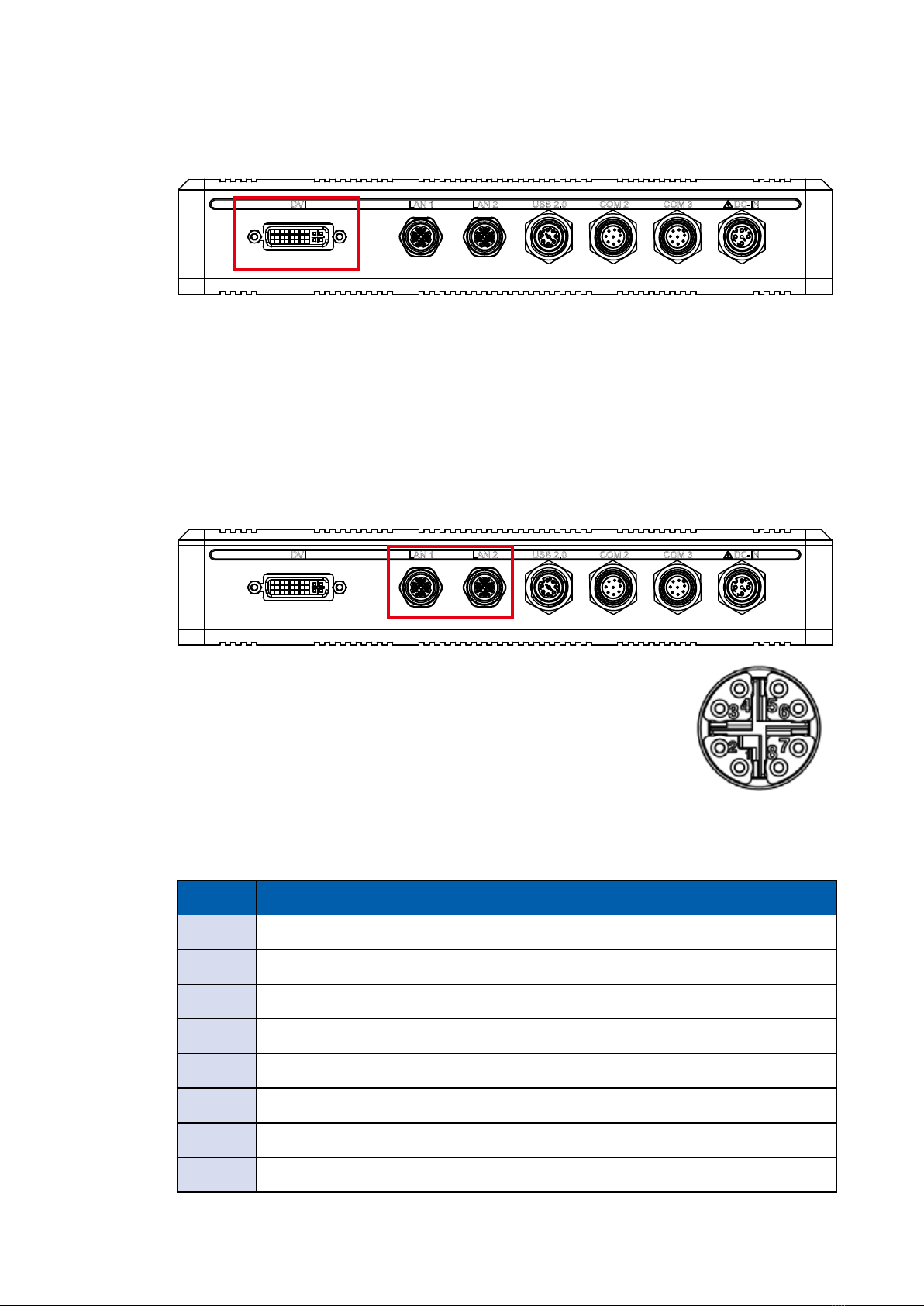

2.3.1 DVI Connector
The DVI connector on the rear panel supports only DVI-D display. This
connector can either output DVI signal. The DVI output mode supports up to
1920 x 1200 resolution and output mode supports up to 1920 x 1200 resolution.
The DVI is automatically selected according to the display device connected.
You will need a DVI-D cable when connecting to a display device.
DVI LAN 1 LAN 2 USB 2.0 COM 2 COM 3 DC-IN
Pin No. LAN1 LAN2
1LAN0_MDI_1P LAN1_MDI_1P
2LAN0_MDI_1P LAN1_MDI_1P
3 LAN0_MDI_2N LAN1_MDI_2N
4LAN0_MDI_2P LAN1_MDI_2P
5 LAN0_MDI_4P LAN1_MDI_4P
6 LAN0_MDI_4N LAN1_MDI_4N
7 LAN0_MDI_3N LAN1_MDI_3N
8 LAN0_MDI_3P LAN1_MDI_3P
2.3.2 10/ 100/ 1000 Mbps Ethernet Port
DVI LAN 1 LAN 2 USB 2.0 COM 2 COM 3 DC-IN
There are 2 M12 jacks supporting 10/ 100/1000 Mbps
Ethernet connections in the rear side. LAN 1 is powered by
Intel I219 Ethernet engine; LAN 2 is powered by Intel i210
Ethernet Phy. When both LAN 1 and LAN 2 work in normal
status, iAMT 11.0 function is enabled. Using suitable M12
LAN cable, you can connect the system to a computer, or
to any other devices with Ethernet connection, for example, a hub or a switch.
Moreover, both of LAN 1 and LAN 2 supports Wake on LAN and Pre-boot
functions. The pin-outs of LAN 1 and LAN 2 are listed as follows:

8
GETTING TO KNOW YOUR RES-3000©Vecow RES-3000 User Manual
Pin No. USB2.0 Pin No. USB2.0
1USB_1D- 5 USB_2D-
2USB_1D+ 6 USB_2D+
3 USB_VCC 7 USB_VCC
4USB_GND 8 USB_GND

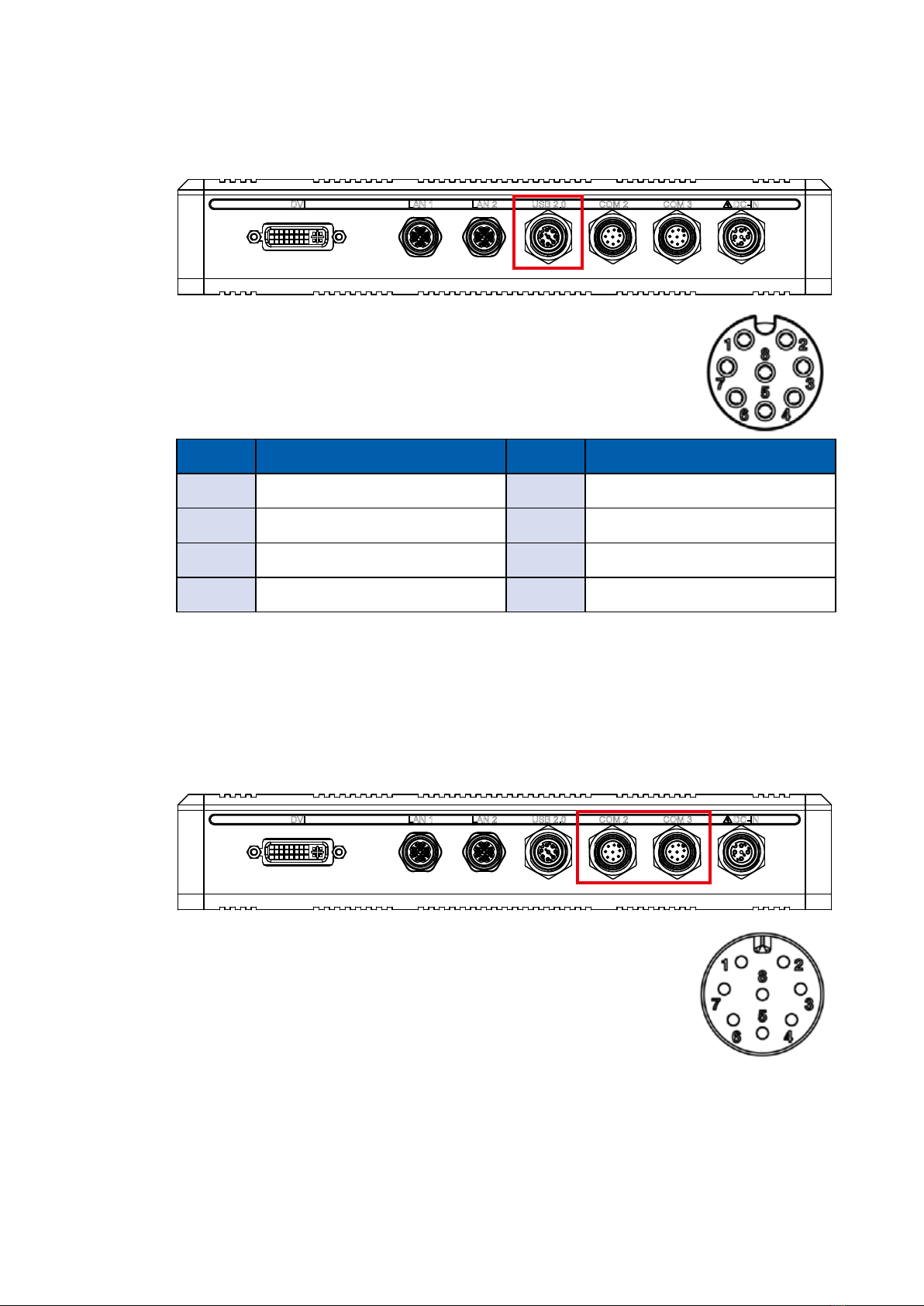

2.3.3 USB 2.0
DVI LAN 1 LAN 2 USB 2.0 COM 2 COM 3 DC-IN
There are 2 USB 2.0 connections available
supporting up to 480MB per second data rate.
The pin-outs of USB2.0 are listed as follows:
2.3.4 Serial Port COM 2 and COM 3
DVI LAN 1 LAN 2 USB 2.0 COM 2 COM 3 DC-IN
Serial port COM2and COM3 can be congured for RS-232,
RS-422, or RS-485 with auto flow control communication.
The default definition of COM 1 and COM 2 is RS-232, if
you want to change to RS-422 or RS-485, you can nd the
setting in BIOS.
The pin-outs of COM2 and COM3 are listed as follows:

9
GETTING TO KNOW YOUR RES-3000
Serial
Port
Pin No. RS-232 RS-422
(5-wire)
RS-422
(9-wire)
RS-485
(3-wire)
COM2
COM3
1DCD TXD- TXD- DATA-
2RXD TXD+ TXD+ DATA+
3 TXD RXD+ RXD+ -----------
4DTR RXD- RXD- -----------
5 DSR ----------- RTS- -----------
6RTS ----------- RTS+ -----------
7 CTS ----------- CTS+ -----------
8 GND GND GND GND
Pin No. DC-IN Pin No. USB2.0
1VIN 4GND
2VIN 5 NC
3 GND
2.3.5 DC JACK
DVI LAN 1 LAN 2 USB 2.0 COM 2 COM 3 DC-IN
This system supports 9V to 48V DC power input by M12
DC Cable in the rear side.
The pin-outs of DC-IN jack are listed as follows:

10
SYSTEM SETUP©Vecow RES-3000 User Manual
SYSTEM SETUP
3.1 How to Use Your RES-3000
3

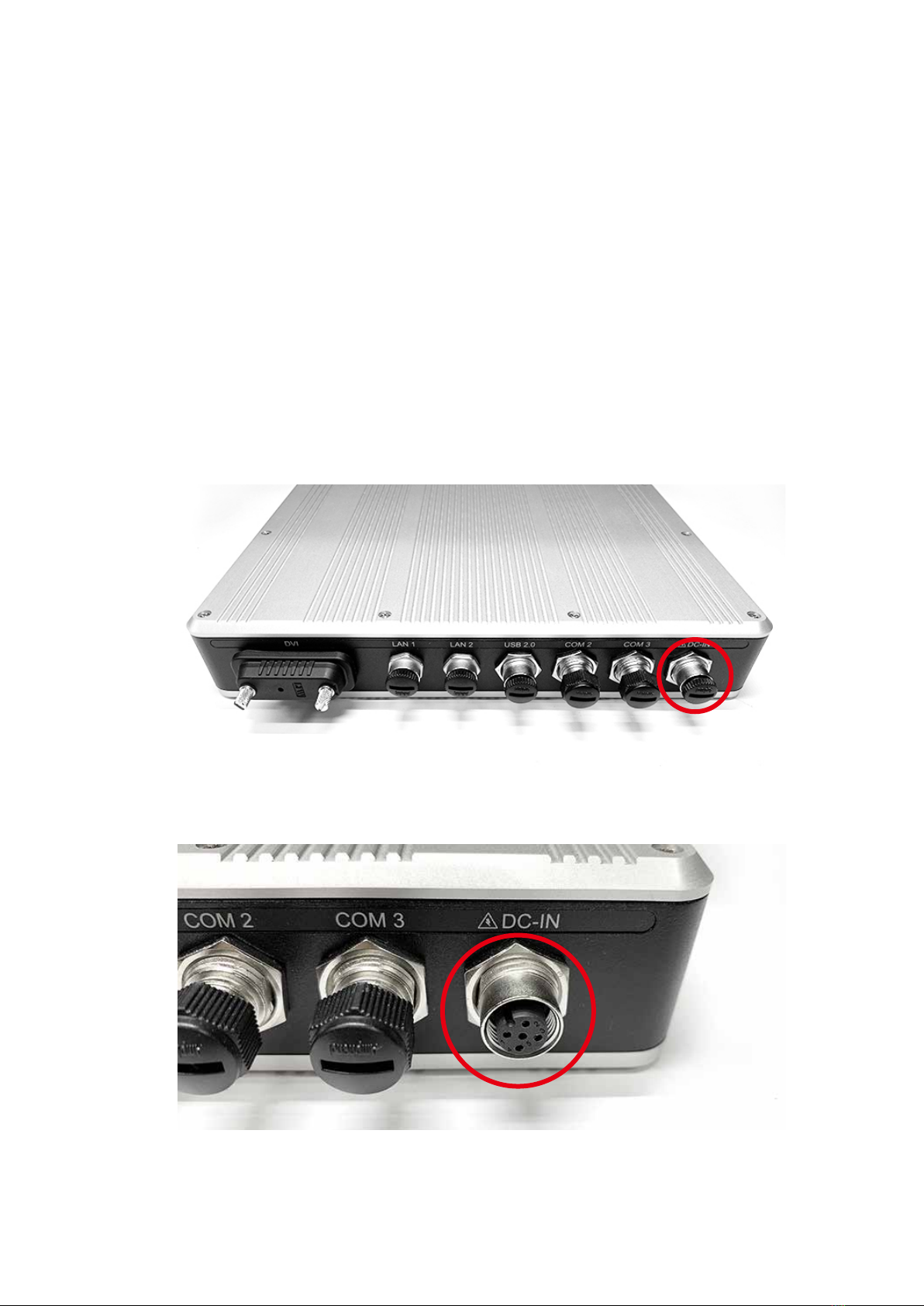

Step 1 Remove M12 cover. (Example DC-IN)
Step 2 Conrm M12 connector pin dened.
3.1.1 M12 A code/X code

11
STSTEM SETUP

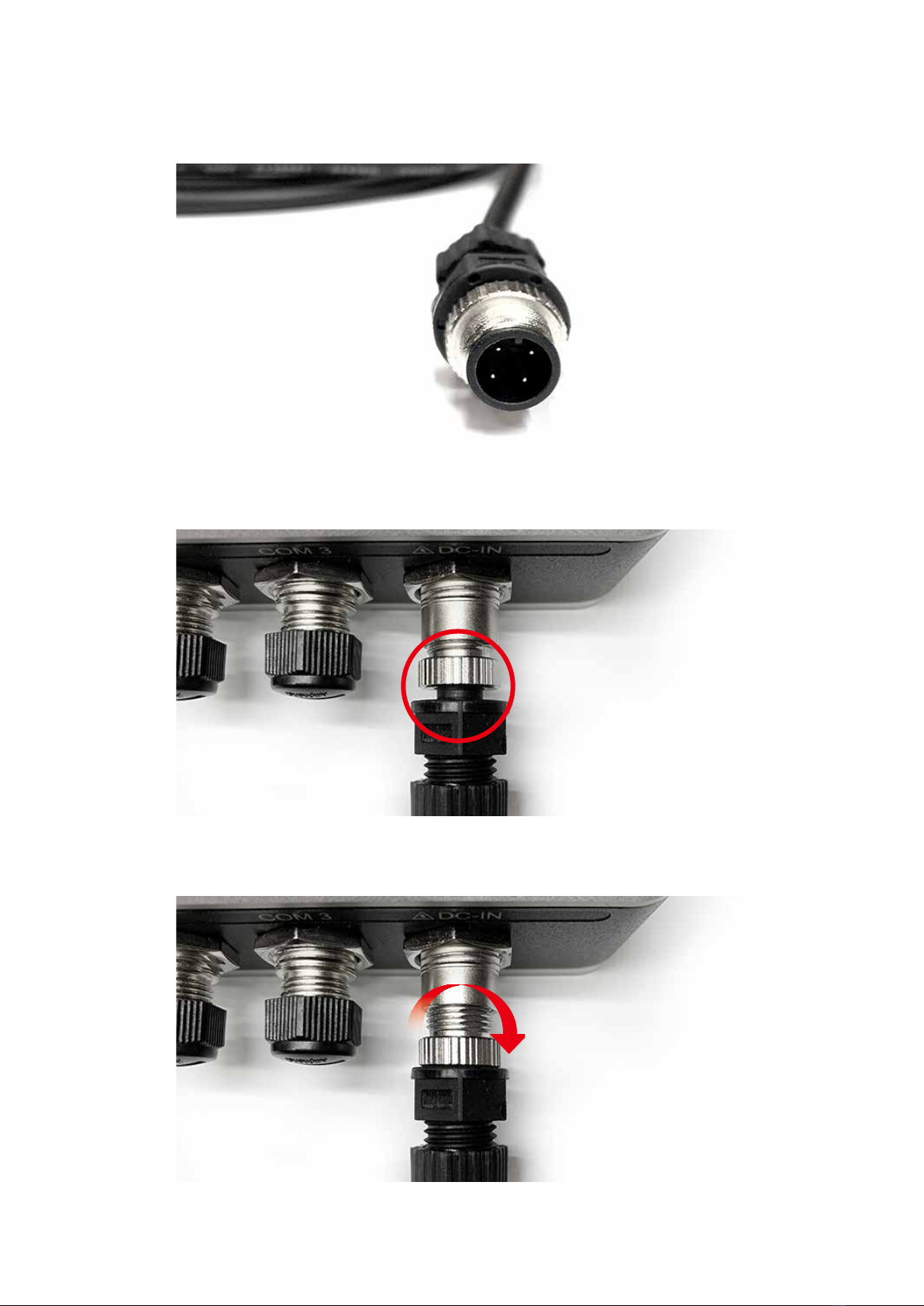

Step 3 Conrm wire.
Step 4 Turn wire connector.
Step 5 Locked.

12
SYSTEM SETUP©Vecow RES-3000 User Manual
Step 2 Conrm DVI connector pin dened.
3.1.2 DVI
Step 3 Conrm wire.
Step 1 Remove DVI cover.

13
STSTEM SETUP

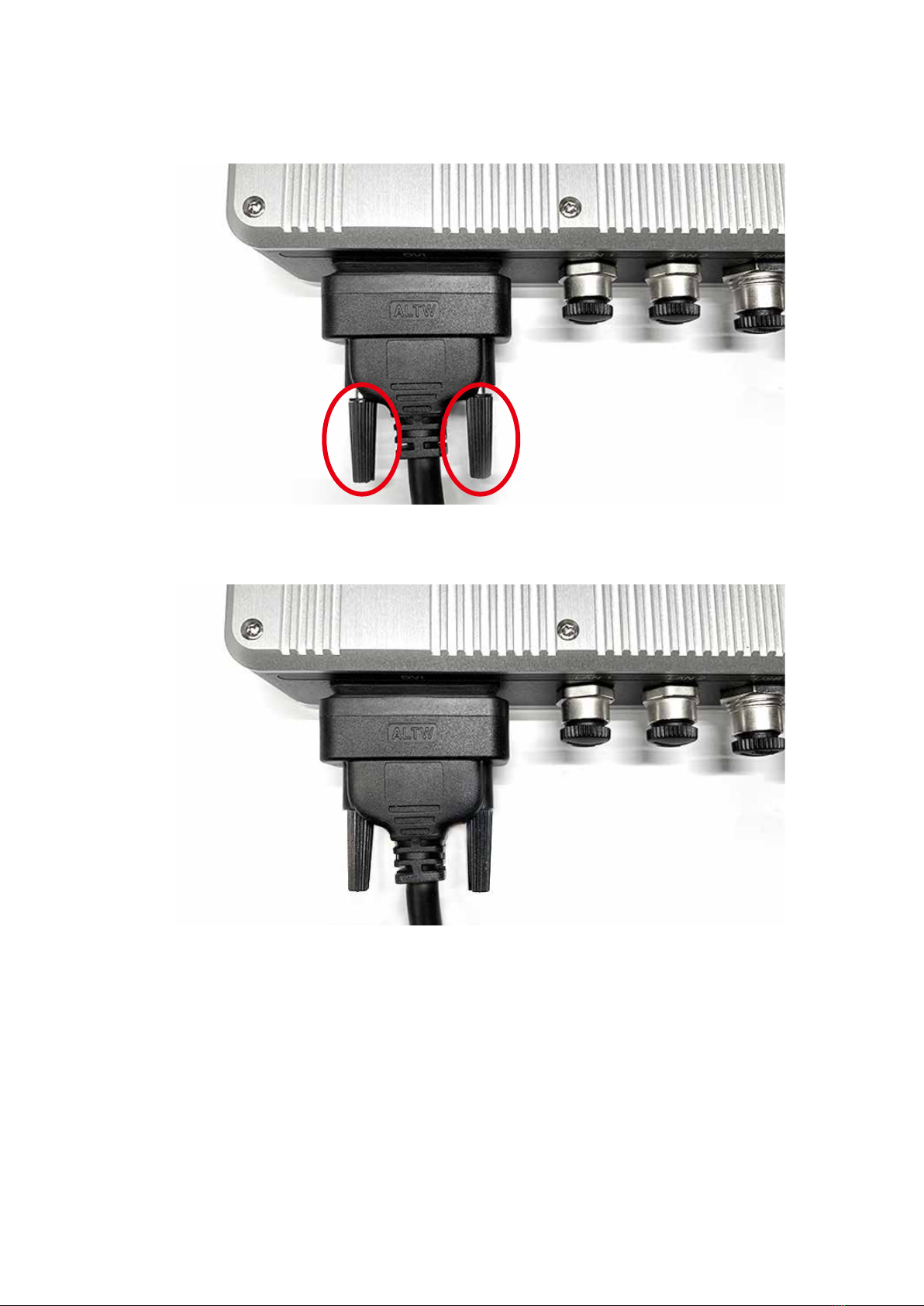

Step 5 Locked.
Step 4 Turn wire connector.

14
SYSTEM SETUP©Vecow RES-3000 User Manual
3.2 Mount Your RES-3000
Step 1 Fasten four PHILLIPS #6-32 screws.
110.0 (4.33”)
160.0 (6.30”)
180.0 (7.09”)
250.0 (9.84”)
282.2 (11.11”)
296.2 (11.66”)
44.0 (1.73”) 48.3 (1.90”)
3.2.1 Wall Mount
