Vecow SPC-5600 User manual

USER
Manual
USER
Manual
Intel®Core™ i7/i5/i3 Processor (CFL-R) Fanless Embedded System
4 GigE LAN, 4 USB 3.1, 4 COM, 1 SIM Socket, EN50155
SPC-5600
1.1.0 Edition 20191202

ii
©Vecow SPC-5600 User Manual
Record of Revision
Version Date Page Description Remark
0.10 2019/09/30 All Preliminary Release
1.00 2019/10/05 O󰀩cial Release
1.10 2019/10/05 9, 10, 11, 12, 13, 14 Update

iii
©Vecow SPC-5600 User Manual
This manual is released by Vecow Co., Ltd. for reference purpose only. All
product o󰀨erings and specications are subject to change without prior notice.
It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable
for direct, indirect, special, incidental, or consequential damages arising out of
the use of the product or documentation or any infringements upon the rights of
third parties, which may result from such use.
Disclaimer
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used
in accordance with the instruction manual, it may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
FCC
The products described in this manual complies with all applicable European
Union (CE) directives if it has a CE marking. For computer systems to
remain CE compliant, only CE-compliant parts may be used. Maintaining CE
compliance also requires proper cable and cabling techniques.
CE
Declaration of Conformity
This document contains proprietary information protected by copyright. No part
of this publication may be reproduced in any form or by any means, electric,
photocopying, recording or otherwise, without prior written authorization
by Vecow Co., Ltd. The rights of all the brand names, product names, and
trademarks belong to their respective owners.
Copyright and Trademarks

iv
©Vecow SPC-5600 User Manual
Order Information
Part Number Description
SPC-5600 SPC-5600, 4 GigE LAN, 4 USB 3.1, 4 COM, 1 SIM, 12V DC-in
SPC-5600A SPC-5600, 4 GigE LAN, 4 USB 3.1, 4 COM, 1 SIM, 9V to 36V DC-in

v
©Vecow SPC-5600 User Manual
Optional Accessories
Part Number Description
DDR4 32G Certied DDR4 32GB 2666MHz RAM
DDR4 16G Certied DDR4 16GB 2666MHz RAM
DDR4 8G Certied DDR4 8GB 2666MHz RAM
DDR4 4G Certied DDR4 4GB 2666MHz RAM
PWA-160W-WT 160W, 24V, 85V AC to 264V AC Power Adaptor with 3-pin
Terminal Block, Wide Temperature -30°C to +70°C
PWA-160W-WT-12V 160W, 12V, 85V AC to 264V AC Power Adaptor with 3-pin
Terminal Block, Wide Temperature -30°C to +70°C
PWA-120W 120W, 24V, 90V AC to 264V AC Power Adaptor with 3-pin
Terminal Block
PWA-120W-12V 120W, 12V, 90V AC to 264V AC Power Adaptor with 3-pin
Terminal Block
Fan Bracket Fan Bracket for SPC-5600
VESA Mount VESA Mounting Kit
DIN-RAIL Kit DIN Rail and VESA Mounting Kit
4G Module Mini PCIe 4G/GPS Module with Antenna
WiFi & Bluetooth WiFi & Bluetooth Module with Antenna

vi
©Vecow SPC-5600 User Manual
Table of Contents
CHAPTER 1 GENERAL INTRODUCTION 1
1.1 Overview 1
1.2 Features 2
1.3 Product Specication 3
1.3.1 Specications of SPC-5600 3
1.3.2 Specications of SPC-5600A 5
1.4 Supported CPU List 7
1.5 Mechanical Dimension 8
1.5.1 Dimensions of SPC-5600 8
1.5.2 Dimensions of SPC-5600A 8
CHAPTER 2 GETTING TO KNOW YOUR SPC-5600 9
2.1 Packing List 9
2.2 Front Panel I/O & Functions 10
2.3 Rear Panel I/O & Functions 16
2.4 Connector/Jumper Locations 18
2.5 Jumper Settings 29
CHAPTER 3 SYSTEM SETUP 33
3.1 How to Open Your SPC-5600 33
3.2 Installing CPU 35
3.3 Installing DDR4 SO-DIMM Modules 36
3.4 Installing Mini PCIe Card 37
3.5 Installing Antenna Cable 38
3.6 Installing SIM Card 39
3.7 Installing SSD/HDD 40
3.8 Installing Fan Bracket 42
3.9 Mounting Your SPC-5600 44

vii
©Vecow SPC-5600 User Manual
CHAPTER 4 BIOS SETUP 46
4.1 Entering BIOS Setup 46
4.2 Main 47
4.3 Advanced 47
4.4 Chipset 58
4.5 Security 64
4.6 Boot 66
4.7 Save & Exit 67
APPENDIX A : SOFTWARE GUIDE 68
APPENDIX B : Software Functions 70
APPENDIX C : RAID Functions 71
APPENDIX D : Power Consumption 75
APPENDIX E : Supported Memory & Storage List 77

1
©Vecow SPC-5600 User Manual GENERAL INTRODUCTION
1
GENERAL INTRODUCTION
1.1 Overview
Vecow SPC-5600 Series is a high-performance compact Fanless Embedded
System. LGA1151 Socket supports 8-core 9th/8th Generation Intel® Core™ i7/i5/
i3 processor (CFL-R/CFL-S) running with Intel® H310 chipset, dual channel DDR4
2666MHz up to 64GB ECC memory, advanced Intel® UHD Graphics 630 supporting
DirectX 12 and OpenGL 4.5 API, up to Ultra HD 4K resolution, SPC-5600 delivers
new generation CPU & chipset performance, power efficiency, and graphics
performance; multiple PCIe 3.0 (8GT/s), SATA III (6Gbps), USB 3.1 (5Gbps),
GigE (1Gbps) LAN and wireless connections make high-speed data conveying
possible. Vecow SPC-5600 Series Fanless Embedded System delivers
outstanding performance, compact integrated features, user-friendly, smart
manageability and trusted reliability for your edge computing applications.
Fanless -25°C to 60°C operating temperature, onboard DVI-D and dual
DisplayPort display interfaces for dual display, 4 GigE LAN ports with iAMT 12.0,
4 external USB 3.1 connections, WiFi/4G/3G/LTE/GPRS/UMTS wireless data
transfer, 2 SATA III support software RAID function, 4 COM RS-232/422/485,
9V to 36V wide range power input or 12V DC power input, TPM 2.0, Watchdog
Timer, Wake on LAN and PXE smart remote management, remote power
switch, EN50155 and EN50121-3-2 compliant, Vecow SPC-5600 Series Fanless
Embedded System serves compact integrated & flexible functions for your
project requirements.
Powered by 8th gen Intel® Core™ i7/i5/i3 processor (Co󰀨ee Lake) running with
Intel® H310 chipset, outstanding performance, compact integrated features,
user-friendly, smart manageability and trusted reliability, Vecow SPC-5600
Fanless Embedded System is your smart solution for Machine Vision, Vehicle
Computing, Smart Manufacturing, In-vehicle Infotainment, Intelligent Control
and any AIoT/Industry 4.0 applications.

2
©Vecow SPC-5600 User Manual GENERAL INTRODUCTION
1.2 Features
• 8 Core 9th/8th Gen Intel® Core™ i7/i5/i3 Processor (CFL-R/CFL-S) running
with Intel® H310 Chipset
• DDR4 2666MHz memory, up to 64GB
• Fanless -25°C to 60°C Operating Temperature, optional supports operation with fan
• 2 DisplayPort and 1 DVI display interfaces support dual independent displays,
up to 4K resolution
• 4 USB 3.1, 4 COM RS-232/422/485
• 4 Independent Intel® GigE LAN, iAMT 12.0 supported
• Supports WiFi/4G/3G/LTE/GPRS/UMTS
• 2 Mini PCIe sockets for PCIe/USB/SIM Card/mSATA expansions
• 9V to 36V wide range DC Power Input
• TPM 2.0 supported

3
©Vecow SPC-5600 User Manual GENERAL INTRODUCTION
1.3 Product Specication
1.3.1 Specications of SPC-5600
System
Processor 8 cores Intel® Xeon®/Core™ i7/i5/i3 Processor (CFL-R/CFL-S)
Chipset Intel® H310 Chipset
BIOS AMI
SIO IT8786E
Memory
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 64GB
• 2 260-pin SO-DIMM Socket
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
USB • 4 USB 3.1 (External)
• 2 USB 2.0 (Internal)
LED Power, HDD
SIM Card 1 SIM Card Socket (Internal)
Expansion
Mini PCIe
2 Mini PCIe sockets
• 1 Full-size for PCIe/USB/SIM Card
• 1 Full-size for PCIe/USB/mSATA
Graphics
Graphics Processor Intel® UHD Graphics 630
Interface
Supports dual display :
• 2 DisplayPort : Up to 4096 x 2304 @60Hz
• 1 DVI-D : Up to 1920 x 1080 @60Hz
Storage
SATA 2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
Storage Device 2 2.5" SSD/HDD Bracket (Internal)
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN
LAN 3 Intel® I210 GigE LAN
LAN 4 Intel® I210 GigE LAN

4
©Vecow SPC-5600 User Manual GENERAL INTRODUCTION
Power
Input Voltage 12V DC-in (±5%)
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Remote Switch 2-pin Terminal Block
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension (W x D x H) 209.0mm x 150.0mm x 75.0mm (8.23" x 5.93" x 2.95")
Weight 1.3 kg (2.87 lb)
Mounting • Wallmount by mounting bracket
• DIN Rail Mount (Optional)
Environment
Operating Temperature 35W TDP CPU : -25°C to 60°C (-13°F to 140°F)
65W TDP CPU w/Fan Bracket : -25°C to 60°C (-13°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 60°C
Shock • IEC 60068-2-27
• SSD : 50G @ wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2

5
©Vecow SPC-5600 User Manual GENERAL INTRODUCTION
1.3.2 Specications of SPC-5600A
System
Processor 8 cores Intel® Xeon®/Core™ i7/i5/i3 Processor (CFL-R/CFL-S)
Chipset Intel® H310 Chipset
BIOS AMI
SIO IT8786E
Memory
• DDR4 2666MHz (ECC/Non-ECC)
• Up to 64GB
• 2 260-pin SO-DIMM Socket
I/O Interface
Serial 4 COM RS-232/422/485 (ESD 8KV)
USB • 4 USB 3.1 (External)
• 2 USB 2.0 (Internal)
LED Power, HDD
SIM Card 1 SIM Card Socket (Internal)
Expansion
Mini PCIe
2 Mini PCIe sockets
• 1 Full-size for PCIe/USB/SIM Card
• 1 Full-size for PCIe/USB/mSATA
Graphics
Graphics Processor Intel® UHD Graphics 630
Interface
Supports dual display :
• 2 DisplayPort : Up to 4096 x 2304 @60Hz
• 1 DVI-D : Up to 1920 x 1080 @60Hz
Storage
SATA 2 SATA III (6Gbps) support S/W RAID 0, 1
mSATA 1 SATA III (Mini PCIe Type, 6Gbps)
Storage Device 2 2.5" SSD/HDD Bracket (Internal)
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I219LM GigE LAN supports iAMT 12.0
LAN 2 Intel® I210 GigE LAN
LAN 3 Intel® I210 GigE LAN
LAN 4 Intel® I210 GigE LAN

6
©Vecow SPC-5600 User Manual GENERAL INTRODUCTION
Power
Input Voltage 9V to 36V DC-in
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Remote Switch 2-pin Terminal Block
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Software Support
OS Windows 10, Linux
Mechanical
Dimension (W x D x H) 209.0mm x 150.0mm x 75.0mm (8.23" x 5.93" x 2.95")
Weight 1.3 kg (2.87 lb)
Mounting • Wallmount by mounting bracket
• DIN Rail Mount (Optional)
Environment
Operating Temperature 35W TDP CPU : -25°C to 60°C (-13°F to 140°F)
65W TDP CPU w/Fan Bracket : -25°C to 60°C (-13°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% humidity, non-condensing
Relative Humidity 95% at 60°C
Shock • IEC 60068-2-27
• SSD : 50G @ wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2

7
©Vecow SPC-5600 User Manual GENERAL INTRODUCTION
1.4 Supported CPU List
Processor No. TDP Cache Max. Frequency ECC Memory
Intel® Core™ i7-9700E 8 65W 12M Up to 4.4GHz
Intel® Core™ i7-9700TE 8 35W 12M Up to 3.8GHz
Intel® Core™ i7-8700 6 65W 12M Up to 4.6GHz
Intel® Core™ i7-8700T 6 35W 12M Up to 4.0GHz
Intel® Core™ i5-9500E 6 65W 9M Up to 4.2GHz
Intel® Core™ i5-9500TE 6 35W 9M Up to 3.6GHz
Intel® Core™ i5-8500 6 65W 9M Up to 4.1GHz
Intel® Core™ i5-8500T 6 35W 9M Up to 3.5GHz
Intel® Core™ i3-9100E 465W 6M Up to 3.7GHz
Intel® Core™ i3-9100TE 4 35W 6M Up to 3.2GHz
Intel® Core™ i3-8100 465W 6M Up to 3.6GHz
Intel® Core™ i3-8100T 4 35W 6M Up to 3.1GHz

8
©Vecow SPC-5600 User Manual GENERAL INTRODUCTION
1.5 Mechanical Dimension
1.5.1 Dimensions of SPC-5600
75.0 (2.95)
209.0 (8.23)
150.5 (5.93)
100.0 (3.94)
246.0 (9.69)
209.0 (8.23)
231.0 (9.09)
Unit : mm (inch)
1.5.2 Dimensions of SPC-5600A
75.0 (2.95)
209.0 (8.23)
150.5 (5.93)
100.0 (3.94)
246.0 (9.69)
209.0 (8.23)
231.0 (9.09)
Unit : mm (inch)

9
©Vecow SPC-5600 User Manual GETTING TO KNOW YOUR SPC-5600
2
GETTING TO KNOW YOUR SPC-5600
2.1 Packing List
Item Description Qty
1SPC-5600 Fanless Embedded System 1
2
SPC-5600 accessory box, which contains
• Vecow Drivers & Utilities DVD
• Wall-mounting bracket(SET)
• KHS#6-32x6 screw for wall-mounting
• M2.5x6 screw for Mini PCIe Slot
• 3-pin pluggable terminal block
• 2-pin pluggable terminal block
• Foot Pad
• SSD/HDD Bracket KH-M3x6L Ni
• PHILLPISM4x16L withwasher, Ni
1
1
4
2
1
1
4
8
4

10
©Vecow SPC-5600 User Manual GETTING TO KNOW YOUR SPC-5600
2.2 Front Panel I/O & Functions
In Vecow SPC-5600 series family, all I/O connectors are located on front panel
and rear panel. Most of the general connections to computer device, such as
USB, LAN Jack, DVI-D, Display Port and any are placed on the front panel.
2.2.1 Reset Tact Switch
It is a hardware reset switch. Use this switch to reset the system without power o󰀨
the system. Press the Reset Switch for a few seconds, then reset will be enabled.
DVI-D
COM 1 COM 2
DP
DP
Switch On | Off
LAN 3
LAN 4
LAN 1 LAN 2
2.2.2 Power Button
The Power Button is a non-latched switch.
To power o󰀨 the system, you can either command shutdown by OS operation, or
just simply press the power button.
If system error, you can just press the power button for 4 seconds to shut down the
machine directly.
Please do note that a 4-second interval between each 2 power-on/power-off
operation is necessary in normal working status. (For example, once turning o󰀨 the
system, you have to wait for 4 seconds to initiate another power-on operation).
DVI-D
COM 1 COM 2
DP
DP
Switch On | Off
LAN 3
LAN 4
LAN 1 LAN 2

11
©Vecow SPC-5600 User Manual GETTING TO KNOW YOUR SPC-5600

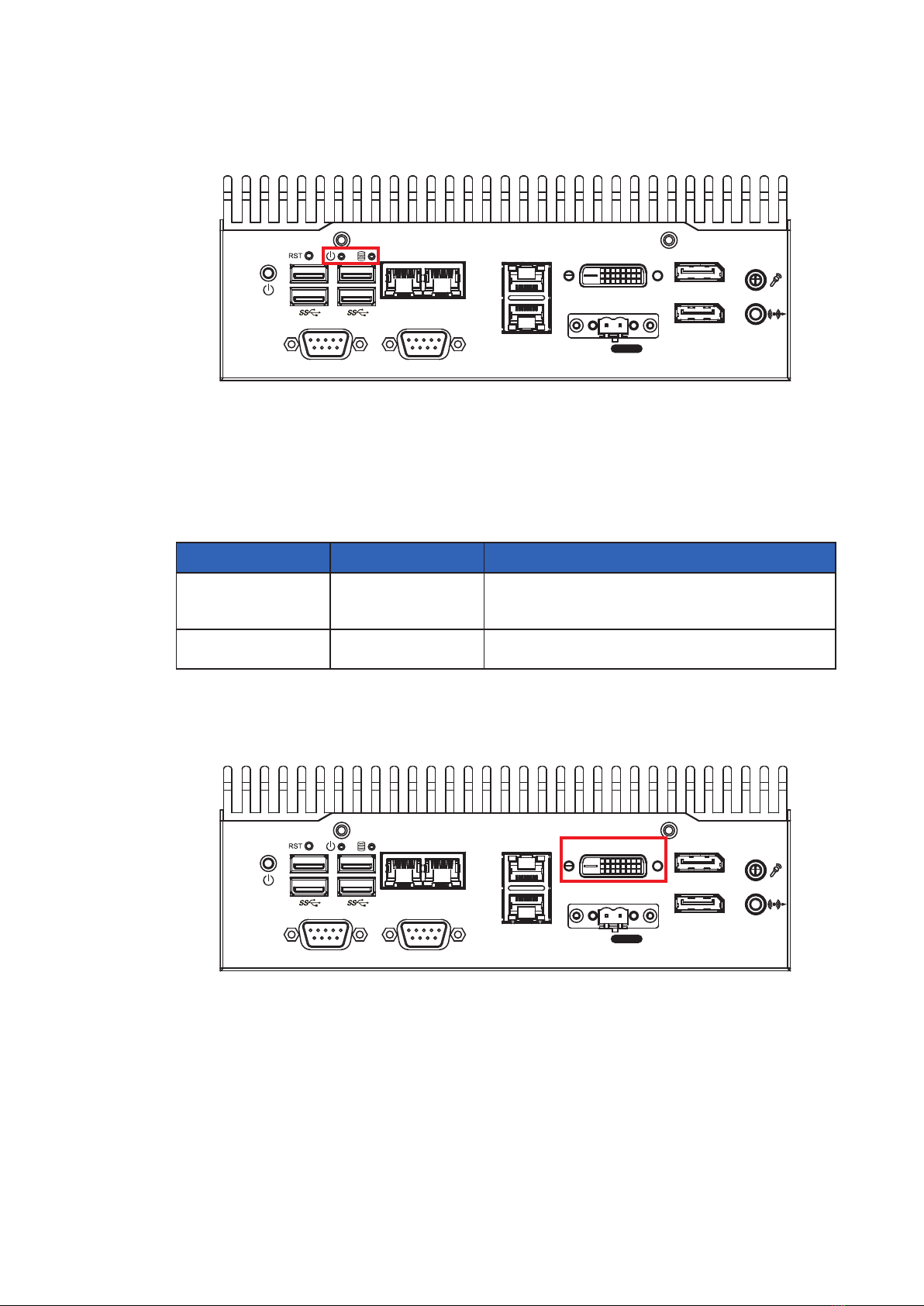

2.2.3 PWR & HDD LED Indicator
HDD LED/Yellow : A Hard Disk. If the LED is on, it indicates that the system's
storage is functional. If it is off, it indicates that the system's storage is not
functional. If it is ashing, it indicates data access activities.
Power LED/Green : If the LED is solid green, it indicates that the system is
powered on.
LED Color Indication System Status
Yellow HDD • On/Off : Storage status, function or not.
• Twinkling : Data transferring.
Green Power System power status (on/o󰀨)
DVI-D
COM 1 COM 2
DP
DP
Switch On | Off
LAN 3
LAN 4
LAN 1 LAN 2
2.2.4 DVI-D Connector
The DVI-D connector on the front panel supports DVI display. This connector
can either output DVI signal. The DVI output mode supports up to 1920 x 1200
resolution and output mode supports up to 1920 x 1200 resolution. The DVI is
automatically selected according to the display device connected. You will need
a DVI-D cable when connecting to a display device.
DVI-D
COM 1 COM 2
DP
DP
Switch On | Off
LAN 3
LAN 4
LAN 1 LAN 2

12
©Vecow SPC-5600 User Manual GETTING TO KNOW YOUR SPC-5600
2.2.5 DisplayPort
Onboard Display Port support auxiliary channel dual mode, connection supports
up to 4096 x 2304 resolution at 60Hz.
DVI-D
COM 1 COM 2
DP
DP
Switch On | Off
LAN 3
LAN 4
LAN 1 LAN 2
2.2.6 USB 3.1
There are 4 USB 3.1 connections available supporting up to 10GB per second
data rate in the front side of EXBC-1000. It also compliant with the requirements
of Super Speed (SS), high speed (HS), full speed (FS) and low speed (LS).
DVI-D
COM 1 COM 2
DP
DP
Switch On | Off
LAN 3
LAN 4
LAN 1 LAN 2
2.2.7 Ethernet Port
DVI-D
COM 1 COM 2
DP
DP
Switch On | Off
LAN 3
LAN 4
LAN 1 LAN 2
There are 4 8-pin RJ-45 jacks supporting 10/100/1000 Mbps Ethernet
connections in the front side. LAN 1 is powered by Intel® i219 Ethernet Phy;
LAN 2, LAN 3, LAN 4 is powered by Intel® I210 Ethernet engine. When LAN 1
work in normal status, iAMT 11.0 function is enabled.

13
©Vecow SPC-5600 User Manual GETTING TO KNOW YOUR SPC-5600

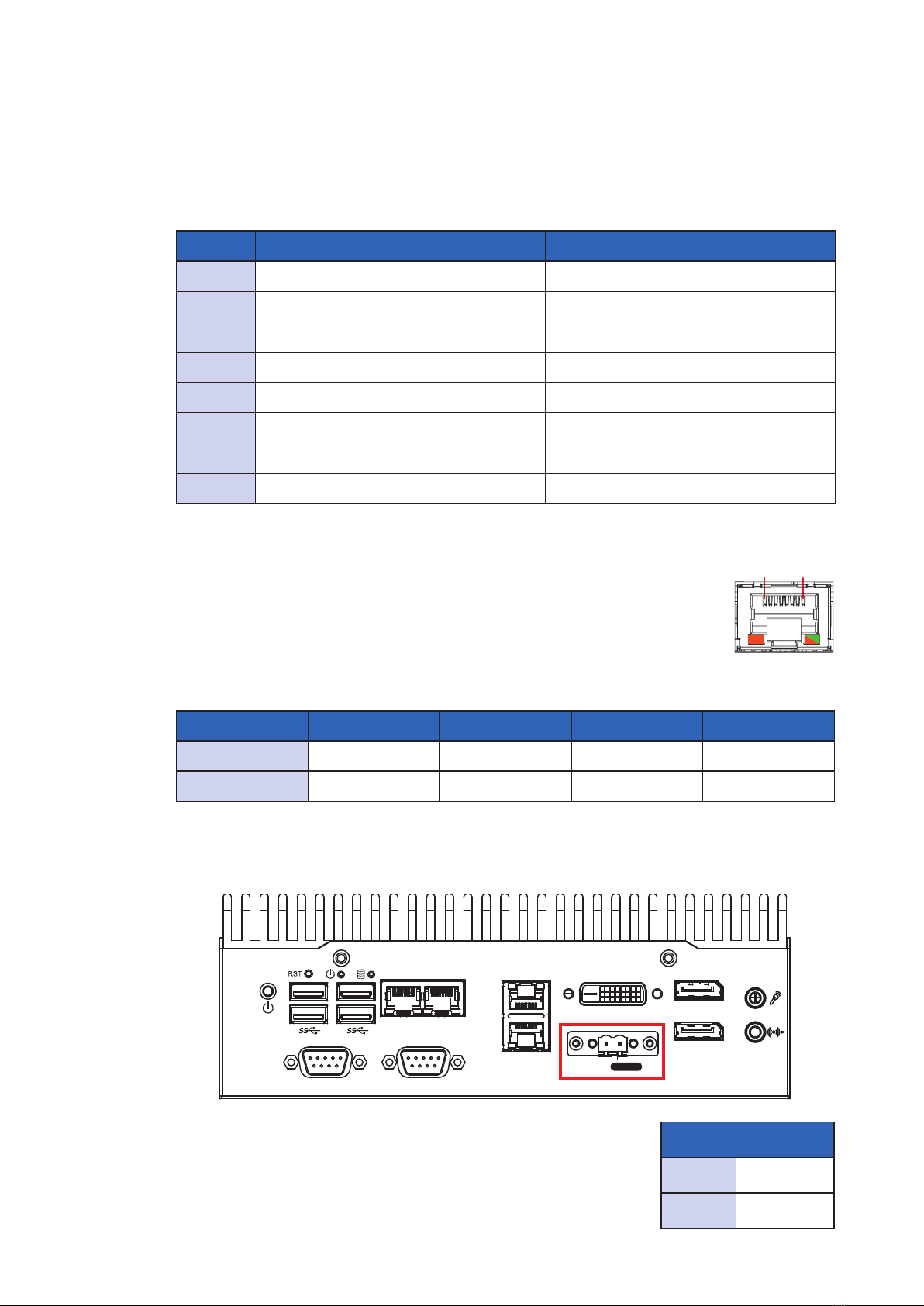

Using suitable RJ-45 cable, you can connect the system to a computer, or to any
other devices with Ethernet connection, for example, a hub or a switch. Moreover,
both of LAN 1 and LAN 2, LAN 3, LAN 4 supports Wake on LAN and Pre-boot
functions. The pin-outs of LAN 1 and LAN 2, LAN 3, LAN 4 are listed as follows :
Pin No. 10/100 Mbps 1000Mbps
1E_TX+ MDI0_P
2E_TX- MDI0_N
3E_RX+ MDI1_P
4------ MDI2_P
5------ MDI2_N
6 E_RX- MDI1_N
7 ------ MDI3_P
8 ------ MDI3_N
Each LAN port is supported by standard RJ-45 connector with LED
indicators to present Active/Link/Speed status of the connection.
The LED indicator on the right bottom corner lightens in solid
green when the cable is properly connected to a 100Mbps
Ethernet network; The LED indicator on the right bottom corner
lightens in solid orange when the cable is properly connected to a
1000Mbps Ethernet network; The left LED will keep twinkling/o󰀨
when Ethernet data packets are being transmitted/received.
1 8
LED Location LED Color 10Mbps 100Mbps 1000Mbps
Right Green/Orange O󰀨 Solid Green Solid Orange
Left Yellow Twinkling Yellow Twinkling Yellow Twinkling Yellow
2.2.8 Remote Power On/O Switch
It is a 2-pin power-on or power-off switch through
Phoenix Contact terminal block. You could turn on or o󰀨
the system power by using this contact. This terminal
block supports dual function of soft power-on/power-o󰀨
(instant o󰀨 or delay 4 second), and suspend mode.
DVI-D
COM 1 COM 2
DP
DP
Switch On | Off
LAN 3
LAN 4
LAN 1 LAN 2
Pin No. Denition
1SW+
2SW-
