Vecow SEC-2000 Series User manual

USER
Manual
USER
Manual
1.1.0 Edition 20190314
Intel Atom®x7-E3950 (Apollo Lake) Expandable Fanless System,
Isolated COM, PCI/PCIe Slots, -40°C to 75°C Operation
SEC-2000

ii
©Vecow SEC-2000 User Manual
Version Date Page Description Remark
0.10 02/27/2019 All Preliminary Release
1.00 03/05/2019 All O󰀩cial Release
1.10 03/14/2019 2, 4, 13, 18, 19, 22 Update
Record of Revision

iii
©Vecow SEC-2000 User Manual
This manual is released by Vecow Co., Ltd. for reference purpose only. All
product o󰀨erings and specications are subject to change without prior notice. It
does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable for
direct, indirect, special, incidental, or consequential damages arising out of the
use of the product; documentation; or for any infringements upon the rights of
third parties, which may result from such use.
Disclaimer
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if it is not installed and used
in accordance with the instruction manual, it may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
FCC
The products described in this manual comply with all applicable European
Union (CE) directives if it has a CE marking. For computer systems to
remain CE compliant, only CE-compliant parts may be used. Maintaining CE
compliance also requires proper cable and cabling techniques.
CE
Declaration of Conformity
This document contains proprietary information protected by copyright. No part
of this publication may be reproduced in any form or by any means, electric,
photocopying, recording or otherwise, without prior written authorization
by Vecow Co., Ltd. The rights of all the brand names, product names and
trademarks belong to their respective owners.
Copyright and Trademarks

iv
©Vecow SEC-2000 User Manual
Part Number Description
SEC-2220
SEC-2000, Intel Atom® x7-E3950 SoC, 2 GigE LAN support
IEEE 1588 (PTP), 2 PCIe x1, 4 USB, 4 COM w/2 Isolated,
1 SIM, 16 GPIO
SEC-2211
SEC-2000, Intel Atom® x7-E3950 SoC, 2 GigE LAN support
IEEE 1588 (PTP), 1 PCIe x1, 1 PCI, 4 USB,
4 COM w/2 Isolated, 1 SIM, 16 GPIO
Order Information
Part Number Description
DDR3L8G Certied DDR3L-1866/1600 8G RAM
DDR3L4G Certied DDR3L-1866/1600 4G RAM
PWA-160W-WT-12V 160W, 12V, 85V AC to 264V AC Power Adapter with 3-pin
Terminal Block, Wide Temperature -30°C to +70°C
PWA-120W-12V 120W, 12V, 90V AC to 264V AC Power Adapter with 3-pin
Terminal Block
4G Module Mini PCIe 4G/GPS Module with Antenna
WiFi & Bluetooth WiFi & Bluetooth Module with Antenna
FAN Module Non-Adjustable Fan Module for SEC Series
Order Accessories

v
©Vecow SEC-2000 User Manual
Table of Contents
CHAPTER 1 GENERAL INTRODUCTION 1
1.1 Overview 1
1.2 Features 2
1.3 Product Specication 2
1.3.1 Specications of SEC-2220 2
1.3.2 Specications of SEC-2211 4
1.4 Mechanical Dimension 5
1.4.1 Dimensions of SEC-2000 series 5
CHAPTER 2 GETTING TO KNOW YOUR SEC-2000 6
2.1 Packing List for SEC-2000 6
2.2 Front Panel I/O & Functions 7
2.3 Main Board Expansion Connectors 15
2.4 Main Board Jumper Settings 34
CHAPTER 3 SETUP 37
3.1 How to Open Your SEC-2000 37
3.2 Installing DDR3L Module 39
3.3 Installing Mini PCIe Card 40
3.4 Installing Antenna Cable 41
3.5 Installing SIM Card 42
3.6 Installing SSD/HDD 44
3.7 Installing PCI/PCIe Card 47
3.8 Mounting Your SEC-2000 48

vi
©Vecow SEC-2000 User Manual
CHAPTER 4 BIOS SETUP 49
4.1 Entering Setup 49
4.2 Main Menu 50
4.3 Advanced 50
4.4 Chipset 56
4.5 Security 62
4.6 Boot 63
4.7 Save & Exit 64
APPENDIX A : GPIO Guide 65
APPENDIX B : Software Functions 68
APPENDIX C : RAID Functions 70
APPENDIX D : Power Consumption 74
APPENDIX E : Supported Memory & Storage List 76

1
©Vecow SEC-2000 User Manual GENERAL INTRODUCTION
GENERAL INTRODUCTION
1.1 Overview
SEC-2000 is an Expandable Fanless Embedded System for smart industrial-
grade IoT applications. With low-power quad-core Intel Atom® x7-E3950
processor (Apollo Lake) engine, single DDR3L SO-DIMM supports up to 8GB
memory; Advanced Intel® HD graphics 505 supports DirectX 12, OpenGL 4.3
and OpenCL 2.1 API, up to 4K resolution; Vecow SEC-2000 delivers more than
150% system performance improved and up to 300% graphics performance
enhanced than the embedded engine powered by the former generation Intel
Atom® E3845 SoC.
Supports VGA and lockable HDMI dual display, built-in dual GigE LAN
supporting IEEE 1588 Precision Time Protocol (PTP), 4 COM RS-232/422/485
with 2 Isolated protection, 16 GPIO, 4 USB, SIM socket for WiFi/4G/3G/LTE/
GPRS/UMTS, 2 PCI/PCIe slots, 2 Mini PCIe expansion, 1 SATA III, 1 mSATA, 1
internal 2.5" SSD/HDD bracket for storage, 12V DC power input, remote power
switch, TPM 2.0 supported, EN50155 & EN50121 compliant, rugged design for
fanless -40°C to 75°C operation, Vecow SEC-2000 features compact integrated
functions with flexible configurations to meet your requirements for smart
embedded applications.
With outstanding system performance, compact integrated functions, rugged
reliability, system-oriented solution and versatile configurations, Vecow SEC-
2000 Series Expandable Fanless Embedded System is your smart solution
for Smart Manufacturing, Intelligent Surveillance, Factory Automation, Robotic
Control or any Industrial IoT/Industry 4.0 applications.
1

2
©Vecow SEC-2000 User Manual GENERAL INTRODUCTION
1.2 Features
• Quad Core Intel Atom® x7-E3950 SoC (Apollo Lake-I) delivering lower power
consumption
• Compact & Fanless design, -40°C to 75°C operating temperature
• Supports HDMI & VGA dual display, up to 4K resolution
• DDR3L 1866MHz memory supports up to 8GB
• 2 GigE LAN support IEEE 1588 (PTP)
• 4 COM RS-232/422/485 with 2 Isolated
• 4 USB, 16 GPIO, 1 SIM socket
• Expansions : 2 PCIe x16 slots, 2 Mini PCIe, 1 SATA III
• SIM socket for WiFi/4G/3G/LTE/GPRS/UMTS
• 12V DC Power Input
• TPM 2.0 supported
1.3 Product Specication
1.3.1 Specications of SEC-2220
System
Processor Intel Atom® x7-E3950 processor (Apollo Lake-I)
BIOS AMI
SIO IT8786E
Memory 1 DDR3L 1866MHz SO-DIMM, up to 8GB (Non-ECC)
OS Windows 10, Linux
I/O Interface
Serial 4 COM RS-232/422/485 with 2 Isolated
USB • 2 USB 3.0 (External)
• 4 USB 2.0 (2 External, 2 Internal)
DIO 16 GPIO
LED Power, HDD, wireless
SIM 1 Internal SIM socket
Expansion
Mini PCIe
2 Mini PCIe sockets :
• 1 Mini PCIe for PCIe/USB/SIM card
• 1 Mini PCIe for PCIe/USB/Optional mSATA
PCI/PCIe 2 PCIe x16 slot (PCIe x1 signal supported)

3
©Vecow SEC-2000 User Manual GENERAL INTRODUCTION
Graphics
Processor Intel® HD Graphics 505
Interface • HDMI : Up to 3840 x 2160 @30Hz (Lockable)
• VGA : Up to 1920 x 1440 @60Hz
Storage
SATA 1 SATA III (6Gbps)
mSATA 1 SATA III (Mini PCIe type, 6Gbps)
Storage Device 1 2.5" SSD/HDD bracket (Internal)
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I210 GigE LAN supports IEEE 1588
LAN 2 Intel® I210 GigE LAN supports IEEE 1588
Power
Power Input Single 12V DC power input
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Remote Switch 2-pin Terminal Block
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Mechanical
Dimension 125mm x 210mm x 160mm (4.9" x 8.3" x 6.3")
Weight 3.5 kg (7.7 lb)
Mounting Wallmount by mounting bracket
Environment
Operating
Temperature -40°C to 75°C (-40°F to 167°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 85°C
Shock • IEC 60068-2-27
• SSD : 50G @ wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2

4
©Vecow SEC-2000 User Manual GENERAL INTRODUCTION
1.3.2 Specications of SEC-2211
System
Processor Intel Atom® x7-E3950 processor (Apollo Lake-I)
BIOS AMI
SIO IT8786E
Memory 1 DDR3L 1866MHz SO-DIMM, up to 8GB (Non-ECC)
OS Windows 10, Linux
I/O Interface
Serial 4 COM RS-232/422/485 with 2 Isolated
USB • 2 USB 3.0 (External)
• 4 USB 2.0 (2 External, 2 Internal)
DIO 16 GPIO
LED Power, HDD, wireless
SIM 1 Internal SIM socket
Expansion
Mini PCIe
2 Mini PCIe sockets :
• 1 Mini PCIe for PCIe/USB/SIM card
• 1 Mini PCIe for PCIe/USB/Optional mSATA
PCI/PCIe • 1 PCIe x16 Slot
• 1 PCI Slot (PCIe x1 signal supported)
Graphics
Processor Intel® HD Graphics 505
Interface • HDMI : Up to 3840 x 2160 @30Hz (Lockable)
• VGA : Up to 1920 x 1440 @60Hz
Storage
SATA 1 SATA III (6Gbps)
mSATA 1 SATA III (Mini PCIe type, 6Gbps)
Storage Device 1 2.5" SSD/HDD bracket (Internal)
Audio
Audio Codec Realtek ALC892, 5.1 Channel HD Audio
Audio Interface 1 Mic-in, 1 Line-out
Ethernet
LAN 1 Intel® I210 GigE LAN supports IEEE 1588
LAN 2 Intel® I210 GigE LAN supports IEEE 1588
Power
Power Input Single 12V DC power input
Power Interface 3-pin Terminal Block : V+, V-, Frame Ground
Remote Switch 2-pin Terminal Block

5
©Vecow SEC-2000 User Manual GENERAL INTRODUCTION
Others
TPM Optional Inneon SLB9665 supports TPM 2.0, LPC interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
HW Monitor Monitoring temperature, voltages. Auto throttling control when
CPU overheats.
Mechanical
Dimension 125mm x 210mm x 160mm (4.9" x 8.3" x 6.3")
Weight 3.5 kg (7.7 lb)
Mounting Wallmount by mounting bracket
Environment
Operating
Temperature -40°C to 75°C (-40°F to 167°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% Humidity, non-condensing
Relative Humidity 95% at 85°C
Shock • IEC 60068-2-27
• SSD : 50G @ wallmount, Half-sine, 11ms
Vibration • IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
EMC CE, FCC, EN50155, EN50121-3-2
1.4 Mechanical Dimension
1.4.1 Dimensions of SEC-2000 series
125.0 (4.92”)
160.0 (6.30”) 164.3 (6.47”) 160.0 (6.30”)
210.0 (8.27”)
125.0 (4.92”)
155.0 (6.10”)
175.0 (6.89”)
A
5.0 (0.20”)
25.0 (0.98”)
Ø
9.0 (
Ø
0.35”)
A Detail
2:1
Unit : mm (inch)

6
©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000
2
GETTING TO KNOW YOUR SEC-2000

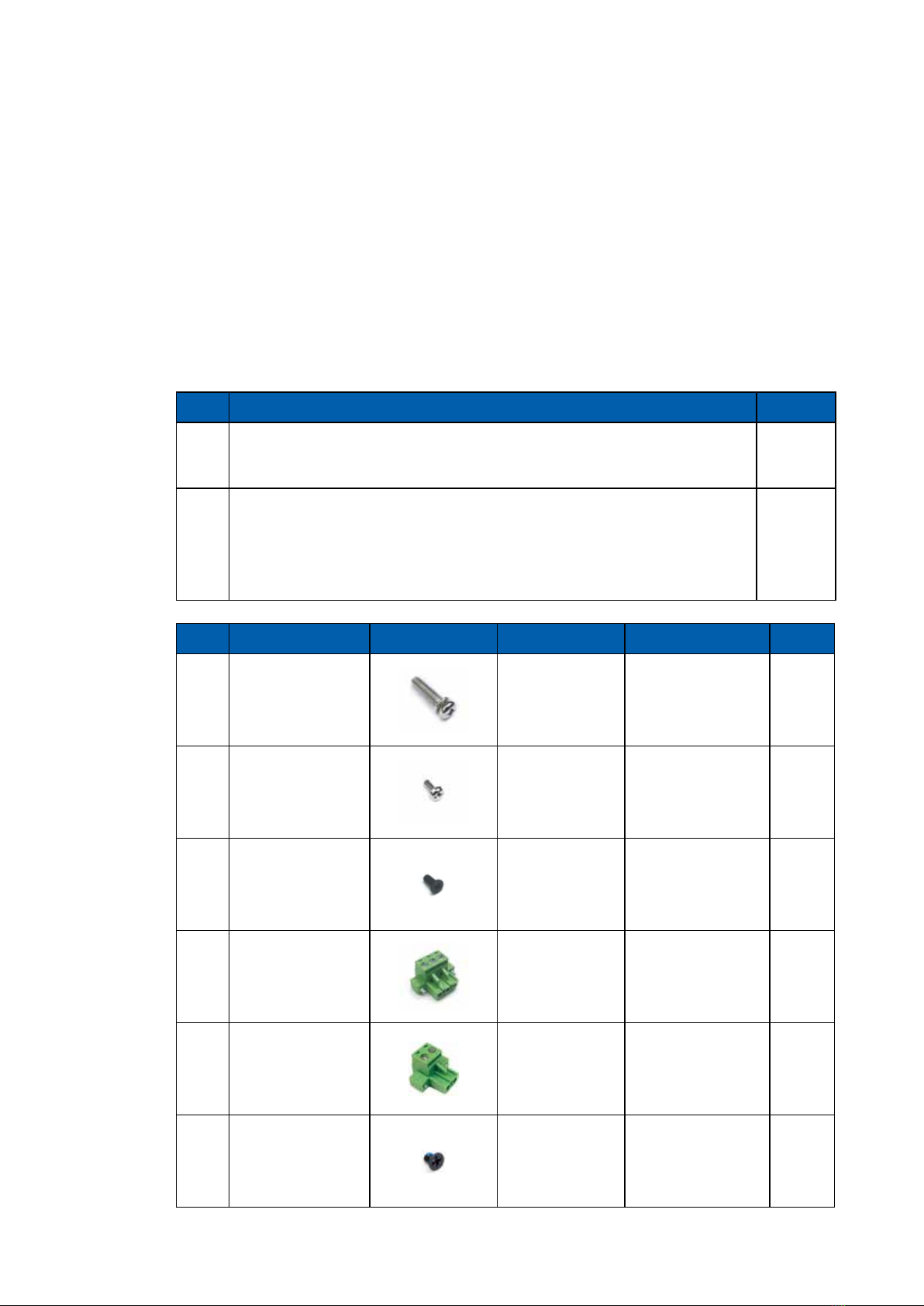

2.1 Packing List for SEC-2000
Item Description Qty
1SEC-2220/2211 Embedded System 1
2
SEC-2000 accessory box, which contains
• Vecow Drivers & Utilities DVD
• Wall-mounting bracket
• Foot Pad
• Screws & Terminal block
1
2
4
(Below)
Item Description Outlook Usage P/N Qty
1
PHILLPIS
M4x16L with
washer, Ni
Mount 53-24D6416-30B 4
2PHILLPIS
M2.5x6L, Ni Mini PCIe slot 53-2426906-30B 2
3PHILLPIS
M3x6L SSD/HDD 53-2450000-215 8
4Terminal block
3-pin (5.0mm) DC-IN 51-2411R03-S1B 1
5Terminal block
2-pin (5.0mm) Switch 51-2411R02-S1B 1
8PHILLPIS
M3x4L
Wall mount
bracket 53-M000450-301 4

7
©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000
2.2 Front Panel I/O & Functions
In Vecow's SEC-2000 series family, all I/O connectors are located on the front
panel, such as audio, USB, VGA, HDMI, and serial ports.

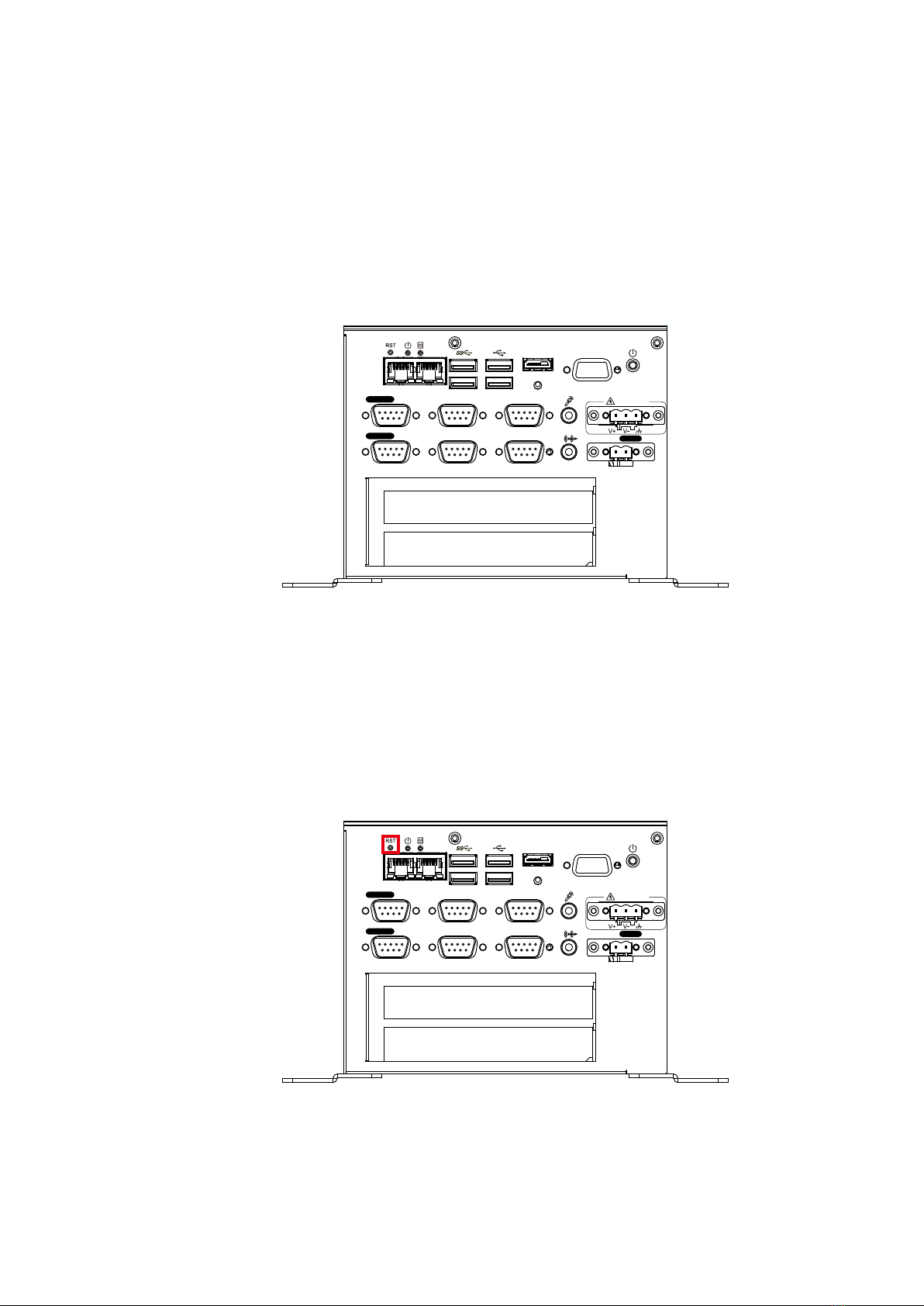

2.2.1 SEC-2000 Front I/O & Functions
Isolated COM 1
Isolated COM 2
COM 3
COM 4
DIO 1
DIO 2
LAN 1 LAN 2
VGAHDMI
Switch On | Off
DC-IN 12V
2.2.1.1 Reset Tact Switch
It is a hardware reset switch. Use this switch to reset the system without power
o󰀨 the system. Press the Reset Switch for a few seconds, and then the reset
function will be enabled.
Isolated COM 1
Isolated COM 2
COM 3
COM 4
DIO 1
DIO 2
LAN 1 LAN 2
VGAHDMI
Switch On | Off
DC-IN 12V

8
©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000
2.2.1.2 Power Button
Isolated COM 1
Isolated COM 2
COM 3
COM 4
DIO 1
DIO 2
LAN 1 LAN 2
VGAHDMI
Switch On | Off
DC-IN 12V
Isolated COM 1
Isolated COM 2
COM 3
COM 4
DIO 1
DIO 2
LAN 1 LAN 2
VGAHDMI
Switch On | Off
DC-IN 12V
2.2.1.3 PWR and HDD LED Indicator
The Power Button is a non-latched switch. To power on the system, press the power
button and then the Green LED is lightened. To power o󰀨 the system, you can either
command shutdown by OS operation or just simply press the power button. If system
error, you can just press the power button for 4 seconds to shut down the machine
directly. Please do note that a 4-second interval between each 2 power-on/power-o󰀨
operation is necessary in normal working status. (For example, once turning o󰀨 the
system, you have to wait for 4 seconds to initiate another power-on operation.)
Power LED/Green (Left) : If the LED is solid green, it indicates that the system
is powered on.
HDD LED/Orange (Right) : If the LED is on, it indicates that the system's storage
is functional. If it is o󰀨, it indicates that the system's storage is not functional. If it
is ashing, it indicates data access activities.
LED Color Indication System Status
Orange HDD • On/Off : Storage status, function or not.
• Twinkling : Data transferring.
Green Power System power status (on/o󰀨)

9
©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000
2.2.1.4 VGA
Isolated COM 1
Isolated COM 2
COM 3
COM 4
DIO 1
DIO 2
LAN 1 LAN 2
VGAHDMI
Switch On | Off
DC-IN 12V
Onboard VGA Port supports auxiliary channel mode. The connection supports
up to 1920 x 1440 resolution at 60Hz.
Isolated COM 1
Isolated COM 2
COM 3
COM 4
DIO 1
DIO 2
LAN 1 LAN 2
VGAHDMI
Switch On | Off
DC-IN 12V
2.2.1.5 HDMI
Onboard HDMI Port supports DDC channel mode. The connection supports up
to 3840 x 2160 resolution at 30Hz.

10
©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000
2.2.1.6 USB 2.0
Isolated COM 1
Isolated COM 2
COM 3
COM 4
DIO 1
DIO 2
LAN 1 LAN 2
VGAHDMI
Switch On | Off
DC-IN 12V
There are 2 USB 2.0 connections available supporting up to 480MB per second
data rate.
Isolated COM 1
Isolated COM 2
COM 3
COM 4
DIO 1
DIO 2
LAN 1 LAN 2
VGAHDMI
Switch On | Off
DC-IN 12V
2.2.1.7 USB 3.0
There are 2 USB 3.0 connections available supporting up to 5GB per second
data rate. It is also compliant with the requirements of Super Speed (SS), High
Speed (HS), Full Speed (FS) and Low Speed (LS).

11
©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000
2.2.1.8 Audio Jack
Isolated COM 1
Isolated COM 2
COM 3
COM 4
DIO 1
DIO 2
LAN 1 LAN 2
VGAHDMI
Switch On | Off
DC-IN 12V
There are 2 audio connectors, Mic-in (Top) and Line-out (Bottom). Onboard
Realtek ALC892 audio codec supports 5.1 channel HD audio and fully complies
with Intel® High Definition Audio (Azalia) specifications. To utilize the audio
function in Windows platform, you need to install corresponding drivers for
Realtek ALC892 codec.
Isolated COM 1
Isolated COM 2
COM 3
COM 4
DIO 1
DIO 2
LAN 1 LAN 2
VGAHDMI
Switch On | Off
DC-IN 12V
2.2.1.9 10/100/1000 Mbps Ethernet Port
There are 2 8-pin RJ-45 jacks supporting 10/100/1000 Mbps Ethernet
connections. LAN 1 (Left side) and LAN 2 (Right side) are powered by Intel® I210
Ethernet engine with IEEE 1588, The Precision Time Protocol (PTP) function.
When both LAN 1 and LAN 2 work in normal status, basic iAMT function is
enabled. Using suitable RJ-45 cable, you can connect SEC-2000 system to a
computer, or to any other devices with Ethernet connection; for example, a hub or
a switch. Moreover, both LAN 1 and LAN 2 support Wake on LAN and Pre-boot
functions. The pinouts of LAN 1 and LAN 2 are listed as follows :

12
©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000
Each LAN port is supported by standard RJ-45 connector with LED indicators
to present Active/Link/Speed status of the connection. The LED indicator on the
right bottom corner lightens in solid green when the cable is properly connected
to a 100Mbps Ethernet network; The LED indicator on the right bottom corner
lightens in solid orange when the cable is properly connected to a 1000Mbps
Ethernet network; The left LED will keep twinkling/off when Ethernet data
packets are being transmitted/received.
LED Location LED Color 10Mbps 100Mbps 1000Mbps
Right Green/
Orange O󰀨 Solid Green
Solid
Orange
Left Yellow Twinkling
Yellow
Twinkling
Yellow
Twinkling
Yellow
1 8
Isolated COM 1
Isolated COM 2
COM 3
COM 4
DIO 1
DIO 2
LAN 1 LAN 2
VGAHDMI
Switch On | Off
DC-IN 12V
2.2.1.10 Serial Port COM
Serial port can be configured for RS-232, RS-422, or RS-485 with auto flow
control communication. The default denition is RS-232. If you want to change
to RS-422 or RS-485, you can nd the setting in BIOS.
BIOS Setting Function
COM 1, 2 (Isolated)
COM 3, 4
RS-232
RS-422 (5-wire)
RS-422 (9-wire)
RS-485
RS-485 w/z auto-ow control

13
©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000
The pin assignments are listed in the following table :
Serial
Port Pin No. RS-232 RS-422 (5-wire)
RS-422
(9-wire)
RS-485
(3-wire)
1 to 4
1DCD TXD- TXD- DATA-
2RXD TXD+ TXD+ DATA+
3TXD RXD+ RXD+ -----------
4 DTR RXD- RXD- -----------
5GND GND GND GND
6DSR ----------- RTS- -----------
7RTS ----------- RTS+ -----------
8CTS ----------- CTS+ -----------
9RT ----------- CTS- -----------
2.2.1.11 GPIO
Isolated COM 1
Isolated COM 2
COM 3
COM 4
DIO 1
DIO 2
LAN 1 LAN 2
VGAHDMI
Switch On | Off
DC-IN 12V
There is a 16-bit GPIO connection. Please refer to below table to see the pin
denition in details. DIO1 and DIO2 Pin dene are as below.
Pin No. DIO1 Denition DIO2 Denition
1SIO_GPO70 SIO_GPI80
2SIO_GPO71 SIO_GPI81
3SIO_GPO72 SIO_GPI82
4SIO_GPO73 SIO_GPI83
5SIO_GPO74 SIO_GPI84
6 SIO_GPO75 SIO_GPI85
7SIO_GPO76 SIO_GPI86
8SIO_GPO77 SIO_GPI87
9GND GND

14
©Vecow SEC-2000 User Manual GETTING TO KNOW YOUR SEC-2000
Isolated COM 1
Isolated COM 2
COM 3
COM 4
DIO 1
DIO 2
LAN 1 LAN 2
VGAHDMI
Switch On | Off
DC-IN 12V
2.2.1.13 Remote Power On/O Switch
It is a 2-pin power-on or power-off switch through Phoenix Contact terminal
block. You could turn on or off the system power by using this contact. This
terminal block supports dual function of power-on/power-o󰀨 (instant o󰀨 or delay
4 second), and suspend modes.
Isolated COM 1
Isolated COM 2
COM 3
COM 4
DIO 1
DIO 2
LAN 1 LAN 2
VGAHDMI
Switch On | Off
DC-IN 12V
2.2.1.12 Power Terminal Block
This system supports 12V DC only power input by terminal block. In the normal
power operation, power LED lightens in solid green and supports up to 65V
surge protection.
