1 For your safety
VEGABAR 82 • 4 … 20 mA/HART
46306-EN-190404
1 For your safety
1.1 Authorised personnel
All operations described in this documentation must be carried out
onlybytrained,qualiedpersonnelauthorisedbytheplantoperator.
Duringworkonandwiththedevice,therequiredpersonalprotective
equipment must always be worn.
1.2 Appropriate use
The VEGABAR 82 is a pressure transmitter for process pressure and
hydrostatic level measurement.
Youcannddetailedinformationabouttheareaofapplicationin
chapter "Product description".
Operational reliability is ensured only if the instrument is properly
usedaccordingtothespecicationsintheoperatinginstructions
manual as well as possible supplementary instructions.
1.3 Warning about incorrect use
Inappropriate or incorrect use of this product can give rise to applica-
tion-specichazards,e.g.vesseloverllthroughincorrectmounting
or adjustment. Damage to property and persons or environmental
contaminationcanresult.Also,theprotectivecharacteristicsofthe
instrument can be impaired.
1.4 General safety instructions
This is a state-of-the-art instrument complying with all prevailing
regulations and directives.The instrument must only be operated in a
technicallyawlessandreliablecondition.Theoperatorisresponsi-
ble for the trouble-free operation of the instrument. When measuring
aggressive or corrosive media that can cause a dangerous situation
iftheinstrumentmalfunctions,theoperatorhastoimplementsuitable
measures to make sure the instrument is functioning properly.
Duringtheentiredurationofuse,theuserisobligedtodeterminethe
compliance of the necessary occupational safety measures with the
current valid rules and regulations and also take note of new regula-
tions.
Thesafetyinstructionsinthisoperatinginstructionsmanual,thena-
tional installation standards as well as the valid safety regulations and
accident prevention rules must be observed by the user.
Forsafetyandwarrantyreasons,anyinvasiveworkonthedevice
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer. Arbi-
traryconversionsormodicationsareexplicitlyforbidden.Forsafety
reasons,onlytheaccessoryspeciedbythemanufacturermustbe
used.
Toavoidanydanger,thesafetyapprovalmarkingsandsafetytipson
the device must also be observed and their meaning read in this oper-
ating instructions manual.

4
1 For your safety
VEGABAR 82 • 4 … 20 mA/HART
46306-EN-190404
1.5 EU conformity
ThedevicefullsthelegalrequirementsoftheapplicableEUdirec-
tives.ByaxingtheCEmarking,weconrmtheconformityofthe
instrument with these directives.
YoucanndtheEUconformitydeclarationonourwebsiteunder
www.vega.com/downloads.
1.6 Permissible process conditions
Forsafetyreasons,theinstrumentmustonlybeoperatedwithinthe
permissibleprocessconditions.Youcannddetailedinformationon
the process conditions in chapter "Technical data" as well as on the
type label.
Thepermissibleprocesspressurerangeisspeciedby"MWP"
(MaximumWorkingPressure)onthetypelabel,seechapter"Struc-
ture".The MWP takes the element of the measuring cell and process-
ingttingcombinationwiththeweakestpressureintoconsideration
andmayappliedpermanently.Thespecicationreferstoareference
temperature of +20 °C (+68 °F). It also applies when a measuring cell
with a higher measuring range than the permissible pressure range of
theprocessttingisinstalledorder-related.
Inordertopreventdamagetothedevice,thetestpressuremayonly
exceedthespeciedMWPbrieyby1.5timesatreferencetempera-
ture.Thepressurestageoftheprocessttingaswellastheoverload
resistance of the measuring cell are taken into consideration here
(see chapter "Technical Data").
Inaddition,atemperaturederatingoftheprocesstting,e.g.with
anges,canlimitthepermissibleprocesspressurerangeaccording
to the respective standard.
1.7 NAMUR recommendations
NAMUR is the automation technology user association in the process
industry in Germany. The published NAMUR recommendations are
acceptedasthestandardineldinstrumentation.
ThedevicefullstherequirementsofthefollowingNAMURrecom-
mendations:
• NE 21 – Electromagnetic compatibility of equipment
• NE 43 – Signal level for fault information from measuring transduc-
ers
• NE53–Compatibilityofelddevicesanddisplay/adjustment
components
• NE107–Self-monitoringanddiagnosisofelddevices
For further information see www.namur.de.
1.8 Environmental instructions
Protection of the environment is one of our most important duties.
That is why we have introduced an environment management system
with the goal of continuously improving company environmental pro-

5
1 For your safety
VEGABAR 82 • 4 … 20 mA/HART
46306-EN-190404
tection.Theenvironmentmanagementsystemiscertiedaccording
to DIN EN ISO 14001.
Pleasehelpusfullthisobligationbyobservingtheenvironmental
instructions in this manual:
• Chapter "Packaging, transport and storage"
• Chapter "Disposal"

6
2 Product description
VEGABAR 82 • 4 … 20 mA/HART
46306-EN-190404
2 Product description
2.1 Conguration
Thetypelabelcontainsthemostimportantdataforidenticationand
use of the instrument:
9
10
8
6
7
2
4
3
1
5
Fig. 1: Layout of the type label (example)
1 Instrument type and product code
2 Field for approvals
3 Power supply and signal output, electronics
4 Technical data
5 Order number
6 Serial number of the instrument
7 QR code
8 Symbol of the device protection class
9 ID numbers, instrument documentation
10 Reminder to observe the instrument documentation
The type label contains the serial number of the instrument. With it
youcanndthefollowinginstrumentdataonourhomepage:
• Product code (HTML)
• Delivery date (HTML)
• Order-specicinstrumentfeatures(HTML)
• Operating instructions and quick setup guide at the time of ship-
ment (PDF)
• Order-specicsensordataforanelectronicsexchange(XML)
• Testcerticate(PDF)-optional
Move to "www.vega.com"andenterinthesearcheldtheserial
number of your instrument.
Alternatively,youcanaccessthedataviayoursmartphone:
• Download the VEGA Tools app from the "Apple App Store" or the
"Google Play Store"
• Scan the Data Matrix code on the type label of the instrument or
• Enter the serial number manually in the app
Type label
Serial number - Instru-
ment search

7
3 Mounting
VEGABAR 82 • 4 … 20 mA/HART
46306-EN-190404
3 Mounting
3.1 General instructions for use of the instrument
Protect your instrument against moisture ingress through the following
measures:
• Use a suitable connection cable (see chapter "Connecting to
power supply")
• Tighten the cable gland or plug connector
• Whenmountinghorizontally,turnthehousingsothatthecable
gland or plug connector point downward
• Lead the connection cable downward in front of the cable entry or
plug connector
Thisappliesmainlytooutdoorinstallations,inareaswherehigh
humidity is expected (e.g. through cleaning processes) and on cooled
or heated vessels.
Tomaintainthehousingprotection,makesurethatthehousinglid
is closed during operation and depending on the housing version
locked,ifnecessary.
Makesurethatthedegreeofcontaminationspeciedinchapter
"Technical data" meets the existing ambient conditions.
3.2 Ventilation and pressure compensation
1 2 3
6
6
6 6
6
5
4
Fig. 2: Position of the lter element
1 Plastic, stainless steel single chamber (precision casting)
2 Aluminium - single chamber
3 Stainless steel single chamber (electropolished)
4 Plastic double chamber
5 Aluminium, stainless steel double chamber housing (precision casting)
6 Filter element
With the following instruments a blind plug is installed instead of the
lterelement:
Protection against mois-
ture
Filter element - Position

8
3 Mounting
VEGABAR 82 • 4 … 20 mA/HART
46306-EN-190404
• Instruments in protection IP 66/IP 68 (1 bar) - ventilation via capil-
laries in non-detachable cable
• Instruments with absolute pressure

9
4 Connecting to power supply
VEGABAR 82 • 4 … 20 mA/HART
46306-EN-190404
4 Connecting to power supply
4.1 Connecting
The voltage supply and signal output are connected via the spring-
loaded terminals in the housing.
Connection to the display and adjustment module or to the interface
adapter is carried out via contact pins in the housing.
Information:
The terminal block is pluggable and can be removed from the
electronics.Todothis,lifttheterminalblockwithasmallscrewdriver
andpullitout.Whenreinsertingtheterminalblock,youshouldhearit
snap in.
Proceed as follows:
1. Unscrew the housing lid
2. Ifadisplayandadjustmentmoduleisinstalled,removeitbyturn-
ing it slightly to the left
3. Loosen compression nut of the cable gland and remove blind
plug
4. Removeapprox.10cm(4in)ofthecablemantle,stripapprox.
1 cm (0.4 in) of insulation from the ends of the individual wires
5. Insert the cable into the sensor through the cable entry
1 2
Fig. 3: Connection steps 5 and 6
1 Single chamber housing
2 Double chamber housing
6. Insert the wire ends into the terminals according to the wiring plan
Information:
Solidcoresaswellasexiblecoreswithwireendsleevesareinsert-
eddirectlyintotheterminalopenings.Incaseofexiblecoreswithout
endsleeves,presstheterminalfromabovewithasmallscrewdriver,
theterminalopeningisthenfree.Whenthescrewdriverisreleased,
the terminal closes again.
Youcanndfurtherinformationonthemax.wirecross-sectionunder
"Technical data - Electromechanical data".
7. Check the hold of the wires in the terminals by lightly pulling on
them
Connection technology
Connection procedure

10
4 Connecting to power supply
VEGABAR 82 • 4 … 20 mA/HART
46306-EN-190404
8. Connectthescreentotheinternalgroundterminal,connectthe
external ground terminal to potential equalisation
9. Tighten the compression nut of the cable entry gland. The seal
ring must completely encircle the cable
10. Reinsertthedisplayandadjustmentmodule,ifonewasinstalled
11. Screw the housing lid back on
Theelectricalconnectionisnished.
4.2 Single chamber housing
Thefollowingillustrationappliestothenon-Ex,Ex-iaandEx-dver-
sion.
5
12
+
( ) (-)
678
4...20mA
2
3
4
1
Fig. 4: Electronics and connection compartment - single chamber housing
1 Voltage supply, signal output
2 For display and adjustment module or interface adapter
3 For external display and adjustment unit or Slave sensor
4 Ground terminal for connection of the cable screening
4.3 Double chamber housing
The following illustrations apply to the non-Ex as well as to the Ex-ia
version.
Electronics and connec-
tion compartment

11
4 Connecting to power supply
VEGABAR 82 • 4 … 20 mA/HART
46306-EN-190404
5
12
+
( ) (-)
678
4...20mADisplay
2
3
4
1
Fig. 5: Connection compartment - double chamber housing
1 Voltage supply, signal output
2 For display and adjustment module or interface adapter
3 For external display and adjustment unit
4 Ground terminal for connection of the cable screening
Connection compartment

12
5 Set up with the display and adjustment module
VEGABAR 82 • 4 … 20 mA/HART
46306-EN-190404
5 Set up with the display and adjustment
module
5.1 Insert display and adjustment module
The display and adjustment module can be inserted into the sensor
andremovedagainatanytime.Youcanchooseanyoneoffourdier-
ent positions - each displaced by 90°. It is not necessary to interrupt
the power supply.
Proceed as follows:
1. Unscrew the housing lid
2. Place the display and adjustment module on the electronics in the
desired position and turn it to the right until it snaps in.
3. Screw housing lid with inspection window tightly back on
Disassembly is carried out in reverse order.
Thedisplayandadjustmentmoduleispoweredbythesensor,anad-
ditional connection is not necessary.

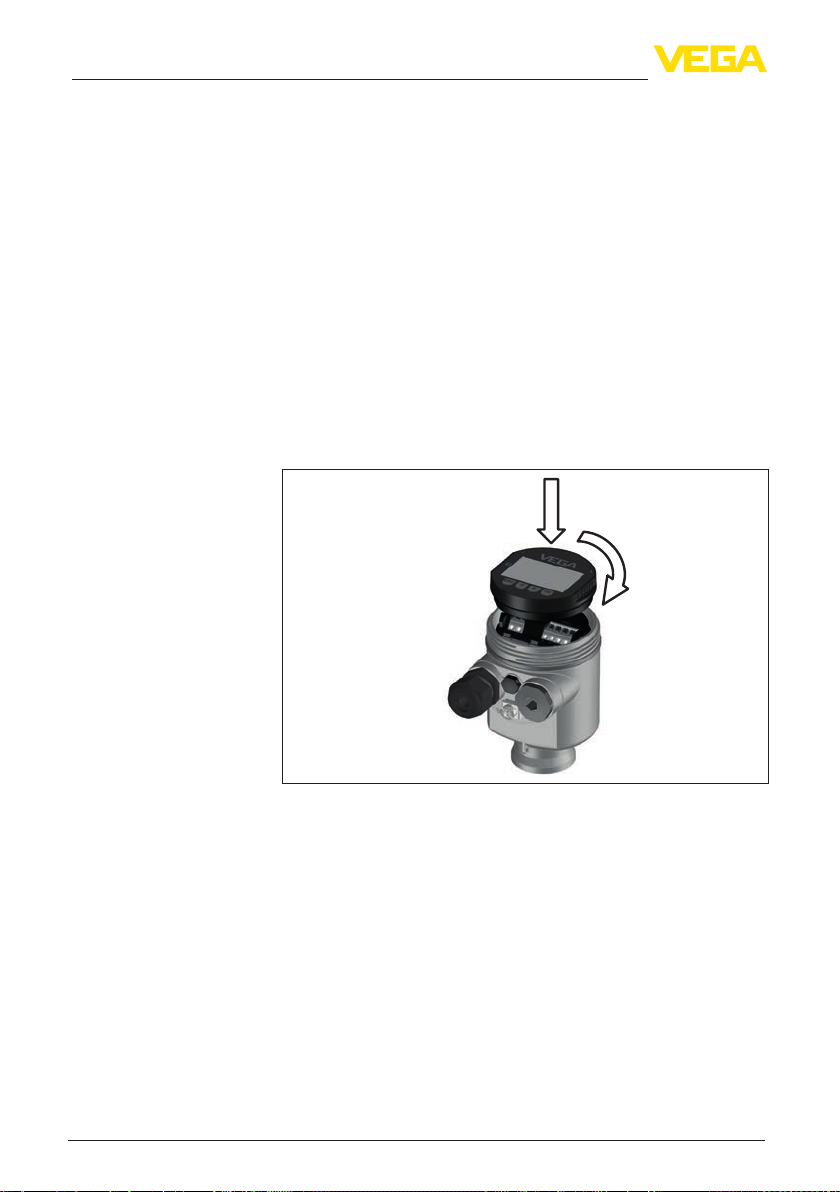

Fig. 6: Installing the display and adjustment module in the electronics compart-
ment of the single chamber housing

13
5 Set up with the display and adjustment module
VEGABAR 82 • 4 … 20 mA/HART
46306-EN-190404
1 2

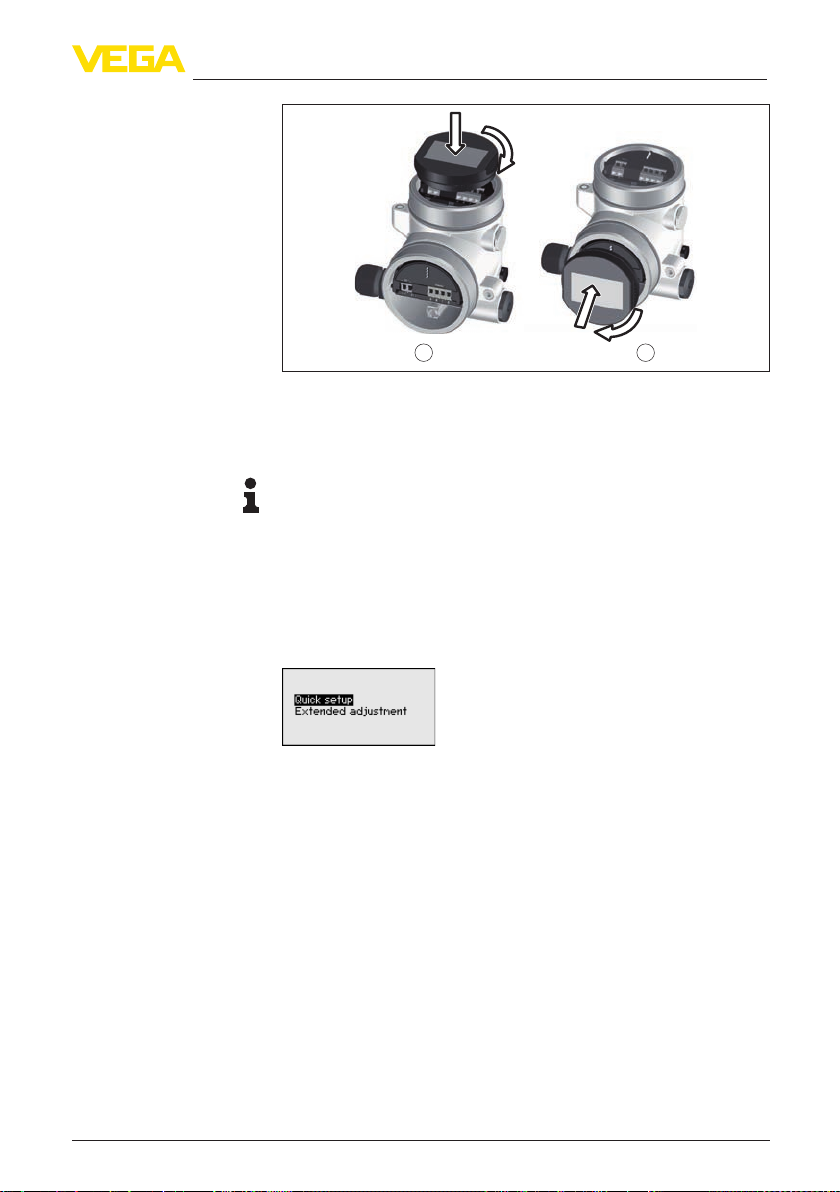

Fig. 7: Installing the display and adjustment module in the double chamber
housing
1 In the electronics compartment
2 In the connection compartment
Note:
Ifyouintendtoretrottheinstrumentwithadisplayandadjustment
moduleforcontinuousmeasuredvalueindication,ahigherlidwithan
inspection glass is required.
5.2 Parameter adjustment - Quick setup
Toquicklyandeasilyadaptthesensortotheapplication,select
the menu item "Quick setup" in the start graphic on the display and
adjustment module.
Carry out the following steps in the below sequence.
Youcannd"Extended adjustment" in the next sub-chapter.
1. Measurement loop name
Intherstmenuitemyouassignasuitablemeasurementloopname.
Permitted are names with max. 19 characters.
2. Application
Inthismenuitem,youactivate/deactivatetheslavefortheelectronic
dierentialpressureandselecttheapplication.Theapplicationcom-
prises process pressure and level measurement.
3. Units
In this menu item you determine the adjustment and temperature
units of the instrument. Depending on the selected application in the
menu item "Application",dierentadjustmentunitsareavailable.
Presettings

14
5 Set up with the display and adjustment module
VEGABAR 82 • 4 … 20 mA/HART
46306-EN-190404
4. Position correction
Inthismenuitemyoucompensatetheinuenceoftheinstallation
positionoftheinstrument(oset)onthemeasuredvalue.
5. Zero adjustment
Inthismenuitemyoucarryoutthezeroadjustmentfortheprocess
pressure.
Enter the corresponding pressure value for 0 %.
6. Span adjustment
In this menu item you carry out the span adjustment for the process
pressure
Enter the corresponding pressure value for 100 %.
4. Position correction
Inthismenuitemyoucompensatetheinuenceoftheinstallation
positionoftheinstrument(oset)onthemeasuredvalue.
5. Max. adjustment
In this menu item you carry out the max. adjustment for level
Enter the percentage value and the corresponding value for the max.
level.
6. Min. adjustment
In this menu item you carry out the min. adjustment for level
Enter the percentage value and the corresponding value for the min.
level.
Thequicksetupisnished.
VEGABAR 82 always measures pressure independently of the pro-
cess variable selected in the menu item "Application".To output the
selectedprocessvariablecorrectly,anallocationoftheoutputsignal
to 0 % and 100 % must be carried out (adjustment).
With the application "Level",thehydrostaticpressure,e.g.withfull
andemptyvessel,isenteredforadjustment.Seefollowingexample:
Quick setup - Process
pressure measurement
Quick setup - Level meas-
urement
Parameterization example

15
5 Set up with the display and adjustment module
VEGABAR 82 • 4 … 20 mA/HART
46306-EN-190404
2
1
100%
0%
5 m
(196.9
")
Fig. 8: Parameter adjustment example "Min./max. adjustment, level measure-
ment"
1 Min. level = 0 % corresponds to 0.0 mbar
2 Max. level = 100 % corresponds to 490.5 mbar
Ifthesevaluesarenotknown,anadjustmentwithllinglevelsofe.g.
10%and90%isalsopossible.Bymeansofthesesettings,thereal
llingheightisthencalculated.
Therealproductlevelduringtheadjustmentisnotimportant,because
the min./max. adjustment is always carried out without changing the
product level.These settings can be made ahead of time without the
instrument having to be installed.
5.3 Parameter adjustment - Extended adjustment
Fortechnicallydemandingmeasuringpoints,youcancarryout
extended settings in "Extended adjustment".
Themainmenuisdividedintovesectionswiththefollowingfunc-
tions:
Setup:Settings,e.g.,formeasurementloopname,application,units,
positioncorrection,adjustment,signaloutput
Display:Settings,e.g.,forlanguage,measuredvaluedisplay,lighting
Diagnosis:Information,e.g.oninstrumentstatus,pointer,measure-
mentreliability,simulation
Additional adjustments:PIN,date/time,reset,copyfunction
Main menu

16
5 Set up with the display and adjustment module
VEGABAR 82 • 4 … 20 mA/HART
46306-EN-190404
Info:Instrumentname,hardwareandsoftwareversion,dateofmanu-
facture,sensorfeatures
Note:
Foroptimumadjustmentofthemeasuringpoint,theindividualsub-
menu items in the main menu item "Setup" should be selected one
aftertheotherandprovidedwiththecorrectparameters.Ifpossible,
go through the items in the given sequence.
The submenu points are described below.
5.4 Menu overview
Menu item Parameter Default setting
Measurement
loop name
Sensor
Application Application level
Slave for elec-
tronicdierential
pressure
Deactivated
Units Unit of measure-
ment
mbar (with nominal measuring range
≤400mbar)
bar (with nominal measuring ranges
≥1bar)
Temperature unit °C
Position correc-
tion
0.00 bar
Adjustment Zero/Min. adjust-
ment
0.00 bar
0.00 %
Span/Max. adjust-
ment
Nominal measuring range in bar
100.00 %
Damping Integration time 1.0 s
Linearization Characteristics Linear
Current output Current output -
Mode
Output characteristics
4 … 20 mA
Reaction when malfunctions occur
≤3.6mA
Current output -
Min./Max.
3.8 mA
20.5 mA
Lock adjustment Released
Menu item Default setting
Menu language Order-specic
Displayed value 1 Current output in %
Setup
Display

17
5 Set up with the display and adjustment module
VEGABAR 82 • 4 … 20 mA/HART
46306-EN-190404
Menu item Default setting
Displayed value 2 Ceramic measuring cell: Measuring cell tempera-
ture in °C
Metallic measuring cell: Electronics temperature
in °C
Display format 1 and 2 Numberofpositionsafterthedecimalpoint,auto-
matically
Backlight Switched on
Menu item Parameter Default setting
Sensor status -
Peak value Pressure Actual measured value
Temperature Actual temperature values from meas-
uringcell,electronics
Simulation Pressure
Menu item Parameter Default setting
PIN 0000
Date/Time Actual date/Actual time
Reset -
Copy in-
strument
settings
-
Special pa-
rameters
-
Scaling Scalingsize Volume in l
Scaling format 0 % corresponds to 0 l
100 % corresponds to 0 l
Current out-
put 1
Current output - Meas. vari-
able
Lin. percent - Level
Current output - Adjustment 0 … 100 % correspond to
4 … 20 mA
Current out-
put 2
Current output - Meas. vari-
able
Measuring cell temperature
(ceramic measuring cell)
Current output - Adjustment 0 … 100 °C correspond to
4 … 20 mA
HART mode Address 0
Menu item Parameter
Device name Device name
Instrument version Hardware and software version
Diagnostics
Additional adjustments
Info

18
5 Set up with the display and adjustment module
VEGABAR 82 • 4 … 20 mA/HART
46306-EN-190404
Menu item Parameter
Factory calibration
date
Date
Sensor characteristics Order-speciccharacteristics

19
6 Supplement
VEGABAR 82 • 4 … 20 mA/HART
46306-EN-190404
6 Supplement
6.1 Technical data
Note for approved instruments
The technical data in the respective safety instructions are valid for approved instruments (e.g. with
Exapproval).Thesedatacandierfromthedatalistedherein,forexampleregardingtheprocess
conditions or the voltage supply.
Electromechanical data - version IP 66/IP 67 and IP 66/IP 68 (0.2 bar)1)
Options of the cable entry
ƲCable entry M20 x 1.5; ½ NPT
ƲCable gland M20x1.5,½NPT(cableøseebelowtable)
ƲBlind plug M20 x 1.5; ½ NPT
ƲClosing cap ½ NPT
Material cable gland/Seal insert Cable diameter
5 … 9 mm 6 … 12 mm 7 … 12 mm 10 … 14 mm
PA/NBR ● ● –●
Brass,nickel-plated/NBR ● ● – –
Stainless steel/NBR – – ●–
Wire cross-section (spring-loaded terminals)
Ʋ Massivewire,strandedwire 0.2 … 2.5 mm² (AWG 24 … 14)
ƲStranded wire with end sleeve 0.2 … 1.5 mm² (AWG 24 … 16)
Voltage supply
Operating voltage UB
ƲNon-Ex instrument 9.6 … 35 V DC
ƲEx-d instrument 9.6 … 35 V DC
ƲEx-ia instrument 9.6 … 30 V DC
Operating voltage UBwith lighting switched on
ƲNon-Ex instrument 16 … 35 V DC
ƲEx-d instrument 16 … 35 V DC
ƲEx-ia instrument 16 … 30 V DC
Reverse voltage protection Integrated
Permissibleresidualripple-Non-Ex,Ex-iainstrument
Ʋfor UN12 V DC (9.6 V < UB< 14 V) ≤0.7Ve(16…400Hz)
Ʋfor UN24 V DC (18 V < UB< 35 V) ≤1.0Ve(16…400Hz)
Permissible residual ripple - Ex-d-ia instrument
Ʋfor UN24 V DC (18 V < UB< 35 V) ≤1Ve(16…400Hz)
Load resistor
ƲCalculation (UB- Umin)/0.022 A
1) IP66/IP68(0.2bar),onlywithabsolutepressure.

20
6 Supplement
VEGABAR 82 • 4 … 20 mA/HART
46306-EN-190404
ƲExample - Non-Ex instrument with
UB= 24 V DC
(24V-9.6V)/0.022A=655Ω
