Vega VEGABAR 87 User manual

Operating Instructions
Pressure transmitter with metallic
measuring cell
VEGABAR 87
Slave sensor for electronic di󰀨erential pres-
sure
Document ID: 45053

2
Contents
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
Contents
1 About this document ............................................................................................................... 4
1.1 Function ........................................................................................................................... 4
1.2 Target group..................................................................................................................... 4
1.3 Symbols used................................................................................................................... 4
2 For your safety ......................................................................................................................... 5
2.1 Authorised personnel ....................................................................................................... 5
2.2 Appropriate use................................................................................................................ 5
2.3 Warning about incorrect use............................................................................................. 5
2.4 General safety instructions............................................................................................... 5
2.5 EU conformity................................................................................................................... 5
2.6 Installation and operation in the USA and Canada ........................................................... 6
2.7 Environmental instructions ............................................................................................... 6
3 Product description ................................................................................................................. 7
3.1 Conguration.................................................................................................................... 7
3.2 Principle of operation........................................................................................................ 8
3.3 Packaging, transport and storage................................................................................... 11
3.4 Accessories.................................................................................................................... 11
4 Mounting................................................................................................................................. 12
4.1 General instructions ....................................................................................................... 12
4.2 Ventilation and pressure compensation.......................................................................... 14
4.3 Combination Master - Slave ........................................................................................... 16
4.4 Dierential pressure measurement ................................................................................ 17
4.5 Interface measurement .................................................................................................. 17
4.6 Density measurement .................................................................................................... 18
4.7 Density-compensated level measurement ..................................................................... 19
4.8 External housing ............................................................................................................ 21
5 Connecting to power supply................................................................................................. 22
5.1 Preparing the connection ............................................................................................... 22
5.2 Connecting..................................................................................................................... 22
5.3 Single chamber housing................................................................................................. 24
5.4 External housing with version IP68 (25 bar) ................................................................... 25
5.5 Connection example ...................................................................................................... 27
6 Set up with the display and adjustment module ................................................................ 28
6.1 Parameter adjustment .................................................................................................... 28
7 Diagnosis, asset management and service ........................................................................ 41
7.1 Maintenance .................................................................................................................. 41
7.2 Rectify faults................................................................................................................... 41
7.3 Exchanging the electronics module................................................................................ 41
7.4 Exchange process module on version IP68 (25 bar) ...................................................... 42
7.5 How to proceed if a repair is necessary.......................................................................... 43
8 Dismount................................................................................................................................. 44
8.1 Dismounting steps.......................................................................................................... 44
8.2 Disposal ......................................................................................................................... 44
9 Supplement ............................................................................................................................ 45
9.1 Technical data ................................................................................................................ 45

3
Contents
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
9.2 Calculation of the total deviation..................................................................................... 52
9.3 Practical example........................................................................................................... 53
9.4 Dimensions .................................................................................................................... 55
9.5 Industrial property rights................................................................................................. 61
9.6 Trademark ...................................................................................................................... 61
Safety instructions for Ex areas
Take note of the Ex specic safety instructions for Ex applications.
These instructions are attached as documents to each instrument
with Ex approval and are part of the operating instructions.
Editing status: 2020-05-12

4
1 About this document
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
1 About this document
1.1 Function
This instruction provides all the information you need for mounting,
connection and setup as well as important instructions for mainte-
nance, fault rectication, the exchange of parts and the safety of the
user. Please read this information before putting the instrument into
operation and keep this manual accessible in the immediate vicinity
of the device.
1.2 Target group
This operating instructions manual is directed to trained personnel.
The contents of this manual must be made available to the qualied
personnel and implemented.
1.3 Symbols used
Document ID
This symbol on the front page of this instruction refers to the Docu-
ment ID. By entering the Document ID on www.vega.com you will
reach the document download.
Information, note, tip: This symbol indicates helpful additional infor-
mation and tips for successful work.
Note: This symbol indicates notes to prevent failures, malfunctions,
damage to devices or plants.
Caution: Non-observance of the information marked with this symbol
may result in personal injury.
Warning: Non-observance of the information marked with this symbol
may result in serious or fatal personal injury.
Danger: Non-observance of the information marked with this symbol
results in serious or fatal personal injury.
Ex applications
This symbol indicates special instructions for Ex applications.
• List
The dot set in front indicates a list with no implied sequence.
1 Sequence of actions
Numbers set in front indicate successive steps in a procedure.
Battery disposal
This symbol indicates special information about the disposal of bat-
teries and accumulators.

5
2 For your safety
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
2 For your safety
2.1 Authorised personnel
All operations described in this documentation must be carried out
only by trained, qualied personnel authorised by the plant operator.
During work on and with the device, the required personal protective
equipment must always be worn.
2.2 Appropriate use
VEGABAR 87 is a slave sensor for electronic dierential pressure
measurement.
You can nd detailed information about the area of application in
chapter "Product description".
Operational reliability is ensured only if the instrument is properly
used according to the specications in the operating instructions
manual as well as possible supplementary instructions.
2.3 Warning about incorrect use
Inappropriate or incorrect use of this product can give rise to applica-
tion-specic hazards, e.g. vessel overll through incorrect mounting
or adjustment. Damage to property and persons or environmental
contamination can result. Also, the protective characteristics of the
instrument can be impaired.
2.4 General safety instructions
This is a state-of-the-art instrument complying with all prevailing
regulations and directives. The instrument must only be operated in a
technically awless and reliable condition. The operator is responsi-
ble for the trouble-free operation of the instrument. When measuring
aggressive or corrosive media that can cause a dangerous situation
if the instrument malfunctions, the operator has to implement suitable
measures to make sure the instrument is functioning properly.
The safety instructions in this operating instructions manual, the na-
tional installation standards as well as the valid safety regulations and
accident prevention rules must be observed by the user.
For safety and warranty reasons, any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer. Arbi-
trary conversions or modications are explicitly forbidden. For safety
reasons, only the accessory specied by the manufacturer must be
used.
To avoid any danger, the safety approval markings and safety tips on
the device must also be observed.
2.5 EU conformity
The device fulls the legal requirements of the applicable EU direc-
tives. By axing the CE marking, we conrm the conformity of the
instrument with these directives.

6
2 For your safety
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
The EU conformity declaration can be found on our homepage.
2.6 Installation and operation in the USA and
Canada
This information is only valid for USA and Canada. Hence the follow-
ing text is only available in the English language.
Installations in the US shall comply with the relevant requirements of
the National Electrical Code (ANSI/NFPA 70).
Installations in Canada shall comply with the relevant requirements of
the Canadian Electrical Code.
2.7 Environmental instructions
Protection of the environment is one of our most important duties.
That is why we have introduced an environment management system
with the goal of continuously improving company environmental pro-
tection. The environment management system is certied according
to DIN EN ISO 14001.
Please help us full this obligation by observing the environmental
instructions in this manual:
• Chapter "Packaging, transport and storage"
• Chapter "Disposal"

7
3 Product description
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
3 Product description
3.1 Conguration
The scope of delivery encompasses:
• Pressure transmitter VEGABAR 87 - Slave sensor
• Ready-made connection cable, unassembled cable gland
The further scope of delivery encompasses:
• Documentation
– Quick setup guide VEGABAR 87
– Test certicate for pressure transmitters
– Instructions for optional instrument features
– Ex-specic "Safety instructions" (with Ex versions)
– If necessary, further certicates
Information:
Optional instrument features are also described in this operating
instructions manual. The respective scope of delivery results from the
order specication.
This operating instructions manual applies to the following instrument
versions:
• Hardware from 1.0.0
• Software version from 1.0.0
Note:
You can nd the hardware and software version of the instrument as
follows:
• On the type plate of the electronics module
• In the adjustment menu under "Info"
The type label contains the most important data for identication and
use of the instrument:
7
6
4
5
2
3
1
Fig. 1: Layout of the type label (example)
1 Product code
2 Field for approvals
3 Technical data
4 Serial number of the instrument
5 QR code
6 Symbol of the device protection class
7 ID numbers, instrument documentation
Scope of delivery
Scope of this operating
instructions
Type label

8
3 Product description
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
The type label contains the serial number of the instrument. With it
you can nd the following instrument data on our homepage:
• Product code (HTML)
• Delivery date (HTML)
• Order-specic instrument features (HTML)
• Operating instructions and quick setup guide at the time of ship-
ment (PDF)
• Order-specic sensor data for an electronics exchange (XML)
• Test certicate (PDF) - optional
Move to "www.vega.com" and enter in the search eld the serial
number of your instrument.
Alternatively, you can access the data via your smartphone:
• Download the VEGA Tools app from the "Apple App Store" or the
"Google Play Store"
• Scan the DataMatrix code on the type label of the instrument or
• Enter the serial number manually in the app
3.2 Principle of operation
The VEGABAR 87 is a pressure transmitter for pressure and level
measurements of liquids with higher temperatures in the chemical,
food processing and pharmaceutical industry.
Measured products are liquids.
Depending on the instrument version and the measurement setup,
the measured products can be also viscous.
The dierential pressure measurement is suitable for the measure-
ment of the following process variables:
• Level
• Flow
• Dierential pressure
• Density
• Interface
The VEGABAR 87 slave sensor is combined with a sensor from the
VEGABAR 80 series for electronic dierential pressure measurement.
Serial number - Instru-
ment search
Application area
Measured products
Measured variables
Electronicdierential
pressure

9
3 Product description
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
2
1
Fig. 2: Example, electronic dierential pressure for interface measurement
1 VEGABAR 87
2 VEGABAR 87 - Slave sensor
The sensors are connected via a screened four-wire cable.The
measured value from the slave sensor is read in and factored into the
calculations. Power supply and parameter adjustment are carried out
through the master sensor.
Information:
The sensor versions "Relative pressure climate-compensated" as
well as "Double chamber housing" are not suitable for connection of a
slave sensor.
You can nd further information in chapter "Combination Master -
Slave " of this operating instructions.
The process pressure acts on the sensor element via the stainless
steel diaphragm and an internal transmission liquid. The process
pressure causes a resistance change which is converted into a cor-
responding output signal and output as measured value.
The METEC®measuring cell is the measuring unit. It consists of
the ceramic-capacitive CERTEC® measuring cell and a special,
temperature-compensated isolating system.
Measuring system

10
3 Product description
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
4321

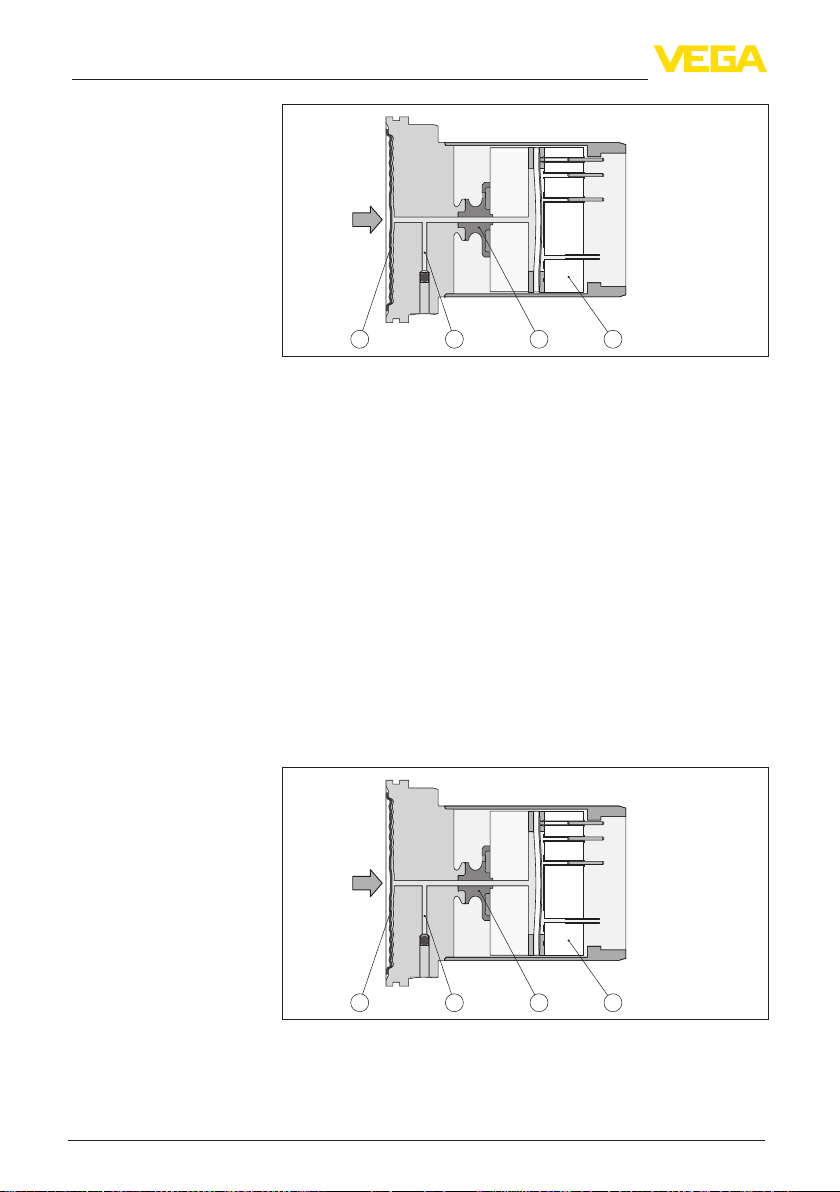

Fig. 3: Conguration of the METEC®measuring cell with VEGABAR 87
1 Process diaphragm
2 Isolating liquid
3 FeNi adapter
4 CERTEC®measuring cell
Relative pressure: the measuring cell is open to the atmosphere.
The ambient pressure is detected in the measuring cell and compen-
sated. It thus has no inuence on the measured value.
Absolute pressure: the measuring cell contains vacuum and is
encapsulated. The ambient pressure is not compensated and does
hence inuence the measured value.
The process pressure acts on the sensor element via the stainless
steel diaphragm and an internal transmission liquid. The process
pressure causes a resistance change which is converted into a cor-
responding output signal and output as measured value.
The METEC®measuring cell is the measuring unit. It consists of
the ceramic-capacitive CERTEC® measuring cell and a special,
temperature-compensated isolating system.
4321
Fig. 4: Conguration of the METEC®measuring cell with VEGABAR 87
1 Process diaphragm
2 Isolating liquid
3 FeNi adapter
4 CERTEC®measuring cell
Pressure types
Measuring system

11
3 Product description
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
3.3 Packaging, transport and storage
Your instrument was protected by packaging during transport. Its
capacity to handle normal loads during transport is assured by a test
based on ISO 4180.
The packaging consists of environment-friendly, recyclable card-
board. For special versions, PE foam or PE foil is also used. Dispose
of the packaging material via specialised recycling companies.
Transport must be carried out in due consideration of the notes on the
transport packaging. Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt. Ascertained transit damage or con-
cealed defects must be appropriately dealt with.
Up to the time of installation, the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated, the packages must be stored only under
the following conditions:
• Not in the open
• Dry and dust free
• Not exposed to corrosive media
• Protected against solar radiation
• Avoiding mechanical shock and vibration
• Storage and transport temperature see chapter "Supplement -
Technical data - Ambient conditions"
• Relative humidity 20 … 85 %
With instrument weights of more than 18 kg (39.68 lbs) suitable and
approved equipment must be used for lifting and carrying.
3.4 Accessories
The instructions for the listed accessories can be found in the down-
load area on our homepage.
The protective cover protects the sensor housing against soiling and
intense heat from solar radiation.
Screwed anges are available in dierent versions according to the
following standards: DIN 2501, EN 1092-1, BS 10, ASME B 16.5,
JIS B 2210-1984, GOST 12821-80.
Welded sockets are used to connect the sensors to the process.
Threaded adapters enable simple adaptation of sensors with stand-
ard threaded ttings, e.g. to process-side hygiene connections.
Packaging
Transport
Transport inspection
Storage
Storage and transport
temperature
Lifting and carrying
Protective cover
Flanges
Welded sockets and
adapters

12
4 Mounting
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
4 Mounting
4.1 General instructions
Note:
For safety reasons, the instrument must only be operated within the
permissible process conditions. You can nd detailed information on
the process conditions in chapter "Technical data" of the operating
instructions or on the type label.
Hence make sure before mounting that all parts of the instrument ex-
posed to the process are suitable for the existing process conditions.
These are mainly:
• Active measuring component
• Process tting
• Process seal
Process conditions in particular are:
• Process pressure
• Process temperature
• Chemical properties of the medium
• Abrasion and mechanical inuences
Protect your instrument against moisture ingress through the following
measures:
• Use a suitable connection cable (see chapter "Connecting to
power supply")
• Tighten the cable gland or plug connector
• Lead the connection cable downward in front of the cable entry or
plug connector
This applies mainly to outdoor installations, in areas where high
humidity is expected (e.g. through cleaning processes) and on cooled
or heated vessels.
Note:
Make sure that the degree of contamination specied in chapter
"Technical data" meets the existing ambient conditions.
Note:
Make sure that during installation or maintenance no moisture or dirt
can get inside the instrument.
To maintain the housing protection, make sure that the housing lid is
closed during operation and locked, if necessary.
Devices with threaded tting are screwed into the process tting with
a suitable wrench via the hexagon.
See chapter "Dimensions" for wrench size.
Process conditions
Protection against mois-
ture
Screwing in

13
4 Mounting
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
Warning:
The housing or the electrical connection may not be used for screw-
ing in! Depending on the device version, tightening can cause dam-
age, e. g. to the rotation mechanism of the housing.
If there is strong vibration at the mounting location, the instrument
version with external housing should be used. See chapter "External
housing".
The permissible process pressure range is specied on the type label
with "MWP" (Maximum Working Pressure), see chapter "Congura-
tion". This applies even if a measuring cell with a measuring range
(order-related) higher than the permissible pressure range of the
process tting is installed.
In addition, a temperature derating of the process tting, e. g. with
anges, can limit the permissible process pressure range according
to the respective standard.
The permissible process pressure range is stated on the type label.
The instrument should only be operated with these pressures if the
mounting accessory used also fulls these values. This should be en-
sured by suitable anges, welded sockets, tension rings with Clamp
connections, sealings, etc.
Higher process temperatures often mean also higher ambient
temperatures. Make sure that the upper temperature limits stated in
chapter "Technical data" for the environment of the electronics hous-
ing and connection cable are not exceeded.
2
1
Fig. 5: Temperature ranges
1 Process temperature
2 Ambient temperature
Vibrations
Permissible process
pressure (MWP) - Device
Permissible process
pressure (MWP) - Mount-
ing accessory
Temperature limits

14
4 Mounting
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
Depending on the transmitter, the VEGABAR 87 is supplied with a
protective cap or a transport and mounting protection.
1
2
Fig. 6: VEGABAR 87, transport and mounting protection
1 Transmitter
2 Transport and mounting protection
Remove this protection after mounting and before setting up the
instrument.
In case of slightly contaminated measured media, the transport and
mounting protection can remain on the instrument as an impact pro-
tection during operation.
4.2 Ventilation and pressure compensation
The lter element in the electronics housing has the following func-
tions:
• Ventilation of the electronics housing
• Atmospheric pressure compensation (with relative pressure meas-
uring ranges)
Caution:
The lter element causes a time-delayed pressure compensation.
When quickly opening/closing the housing cover, the measured value
can change for approx. 5 s by up to 15 mbar.
For an eective ventilation, the lter element must be always free from
buildup. In case of horizontal mounting, turn the housing so that the
lter element points downward after the instrument is installed. This
provides better protection against buildup.
Caution:
Do not use a high-pressure cleaner. The lter element could be dam-
aged, which would allow moisture into the housing.
The following paragraphs describe how the lter element is arranged
in the dierent instrument versions.
Transport and mounting
protection
Filter element - Function

15
4 Mounting
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
1 2 3
4 4 4

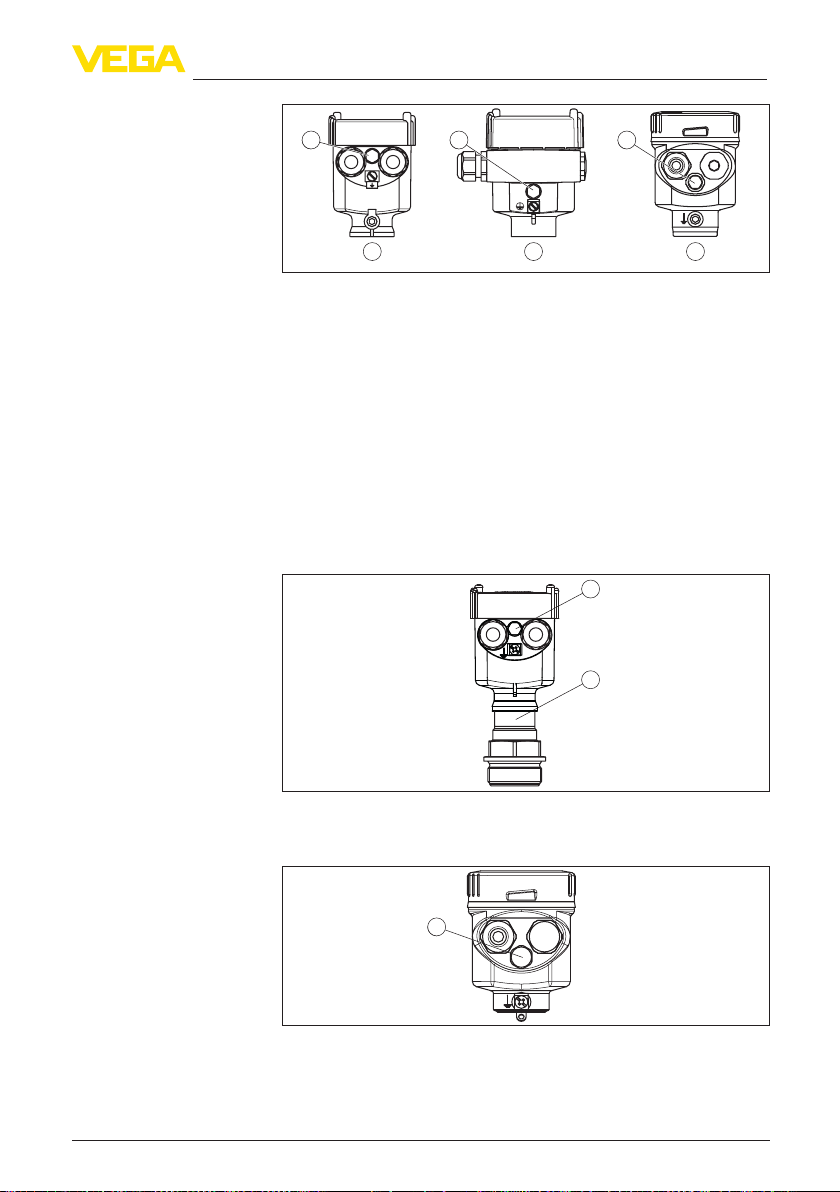

Fig. 7: Position of the lter element - non-Ex, Ex-ia version
1 Plastic, stainless steel housing (precision casting)
2 Aluminium housing
3 Stainless steel housing (electropolished)
4 Filter element
With the following instruments a blind plug is installed instead of the
lter element:
• Instruments in protection IP66/IP68 (1 bar) - ventilation via capillar-
ies in non-detachable cable
• Instruments with absolute pressure
The process assembly of instruments with Second Line of Defense
(gastight leadthrough) is completely encapsulated. An absolute pres-
sure measuring cell is used so that no ventilation is required.
1
2
Fig. 8: Position of the lter element - gastight leadthrough
1 Filter element
1
Fig. 9: Position of the lter element - IP69K version
1 Filter element
Filter element - Position
Instruments with Second
Line of Defense
Filter element - Position
IP69K version

16
4 Mounting
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
Instruments with absolute pressure have a blind plug mounted
instead of the lter element.
4.3 Combination Master - Slave
In principle, any sensor combination within the VEGABAR 80 series is
allowed. The following requirements must be fullled:
• Conguration, Master sensor suitable for electronic dierential
pressure
• Pressure type is identical for both sensors, i.e. relative pressure/
relative pressure or absolute pressure/absolute pressure
• Master sensor measures the higher pressure
• Measurement setup as shown in the following chapters
The measuring range of each sensor is selected such that it ts the
measuring loop. For this, the max. recommended turn down must be
noted. See chapter "Technical data". It is absolutely necessary the the
measuring ranges of Master and Slave correspond.
Measurement result = Measured value of Master (total pres-
sure) - measured value of Slave (static pressure)
Depending on the application, individual combinations can result, see
following examples:
Data
Application: Level measurement
Medium: Water
Vessel height: 12 m, pressure = 12 m x 1 Kg/m3x 9.81 m/s2 = 1.18 bar
Superimposed pressure: 1 bar
Total pressure: 1.18 bar + 1 bar = 2.18 bar
Instrument selection
Nominal measuring range Master: 2.5 bar
Nominal measuring range Slave: 1 bar
Turn Down: 2.5 bar/1.18 bar = 2.1 : 1
Data
Application: Level measurement
Medium: Water
Vessel height: 250 mm, pressure = 0.25 m x 1 Kg/m3x 9.81 m/s2 =
0.025 bar
Superimposed pressure: 350 mbar = 0.35 bar
Total pressure: 0.25 bar + 0.35 bar = 0.375 bar
Instrument selection
Nominal measuring range Master: 0.4 bar
Nominal measuring range Slave: 0.4 bar
Turn Down: 0.4 bar /0.025 bar = 16 : 1
The measuring result (level, pressure dierence) as well as meas-
ured value Slave (static or superimposed pressure) are output by the
Example - large vessel
Example - small vessel
Output measured values

17
4 Mounting
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
sensor. Depending on the instrument version, output as 4 … 20 mA
signal or digitally via HART, Probus PA or Foundation Fieldbus.
4.4 Dierentialpressuremeasurement
With the Master/Slave combination, a gauge dierent measurement
can be realized.
2
3
1
Fig. 10: Measurement setup with a level dierence measurement
1 Master sensor
2 Slave sensor
3 Screen
4.5 Interface measurement
With the Master/Slave combination also an interface measurement
can be realised.
Requirements for a functioning measurement are:
• Vessel with changing level
• Products with steady densities
• Interface always between the measurement points
• Total level always above the upper measurement point
Measurement setup
Measurement setup

18
4 Mounting
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
12
h
0,8
1,0
Fig. 11: Measurement setup with interface measurement, h = distance between
the two measuring points
1 VEGABAR 87
2 VEGABAR 87 - Slave sensor
The interface measurement is possible in open as well as in closed
vessels.
4.6 Density measurement
With the Master/Slave combination also a density measurement can
be realised.
Requirements for a functioning measurement are:
• Vessel with changing level
• Distance between the measurement points as large as possible
• Level always above the upper measuring point
Measurement setup

19
4 Mounting
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
12
h

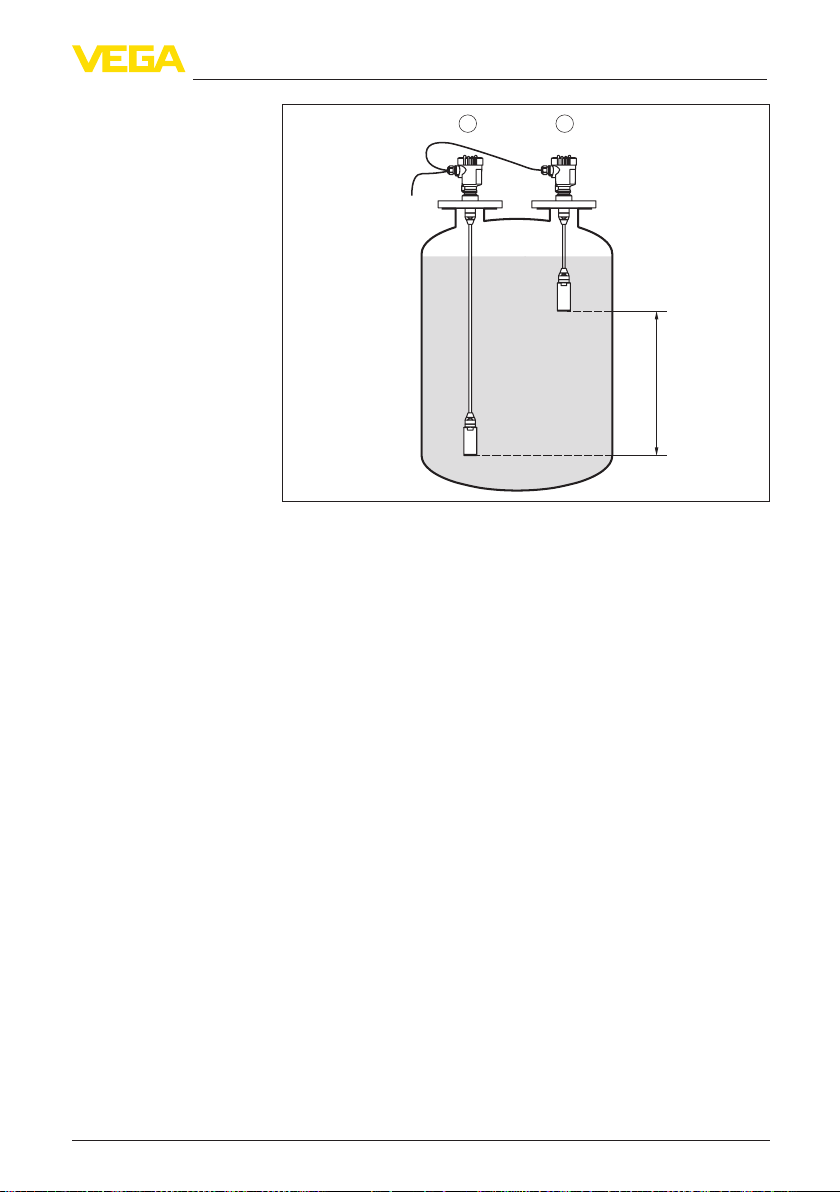

Fig. 12: Measurement setup for density measurement, h = distance between the
two measuring points
1 VEGABAR 87
2 VEGABAR 87 - Slave sensor
The length distance h of the two sensors should be at least 10 %,
better 20 %, of the nal value of the sensor measuring range. A bigger
dierence increases the accuracy of the density measurement.
Slight density changes cause only slight changes of the measured
dierential pressure. The measuring range must hence be selected
accordingly.
The density measurement is possible in open as well as in closed
vessels.
4.7 Density-compensated level measurement
The master/slave combination is suitable for density-compensatedlev-
el measurement in an atmospherically open vessel
Keep the following in mind when setting up the measuring system:
• Mount the master sensor below the min. level
• Mount the slave sensor above the master sensor
• Mount both sensors away from the lling stream and emptying and
protected against pressure shocks from the stirrer
Measurement setup

20
4 Mounting
VEGABAR 87 • Slave sensor for electronic dierential pressure
45053-EN-200529
12
h

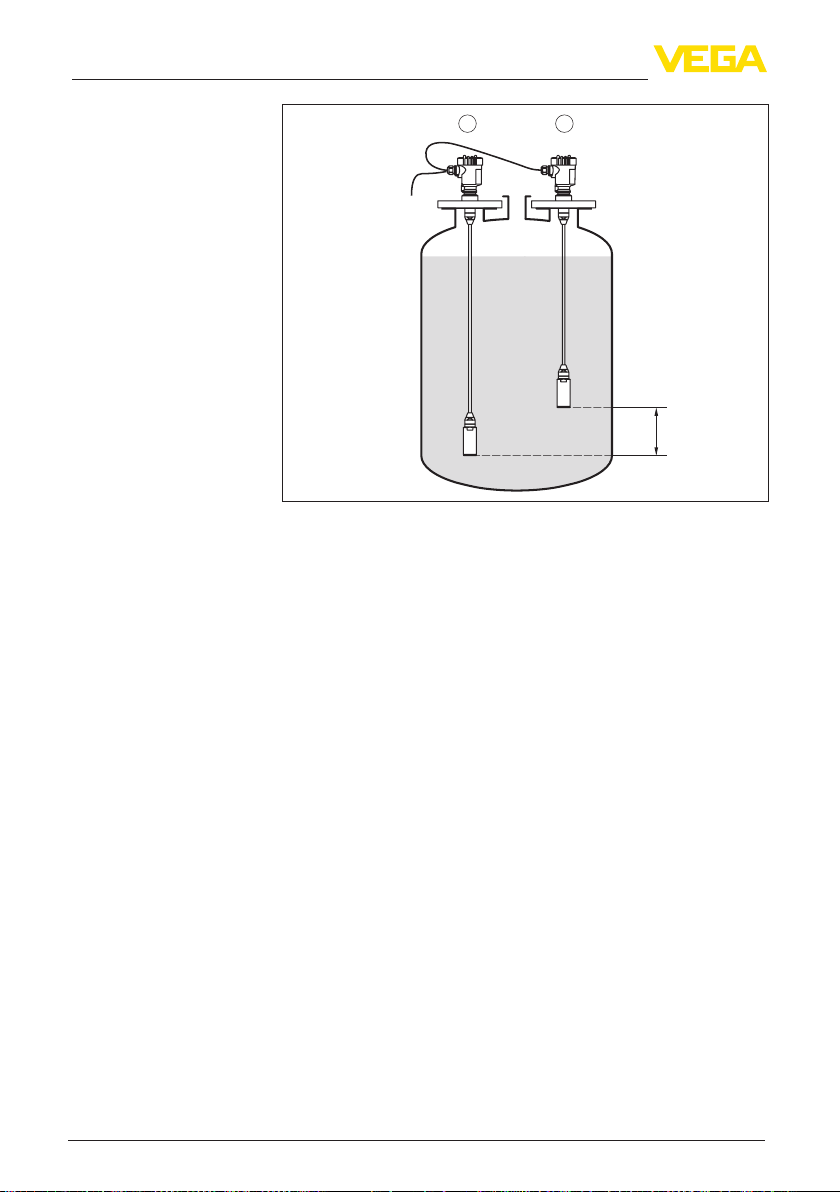

Fig. 13: Measurement setup for density-compensated level measurement, h =
distance between the two measuring points
1 VEGABAR 87
2 VEGABAR 87 - Slave sensor
The length distance h of the two sensors should be at least 10 %,
better 20 %, of the nal value of the sensor measuring range. A bigger
dierence increases the accuracy of the density compensation.
The density-compensated level measurement starts with the stored
density 1 kg/dm3. As soon as both sensors are covered, this value will
be replaced by the calculated distance.
The density-compensated level measurement is only possible in
open, i.e. unpressurized vessels.
