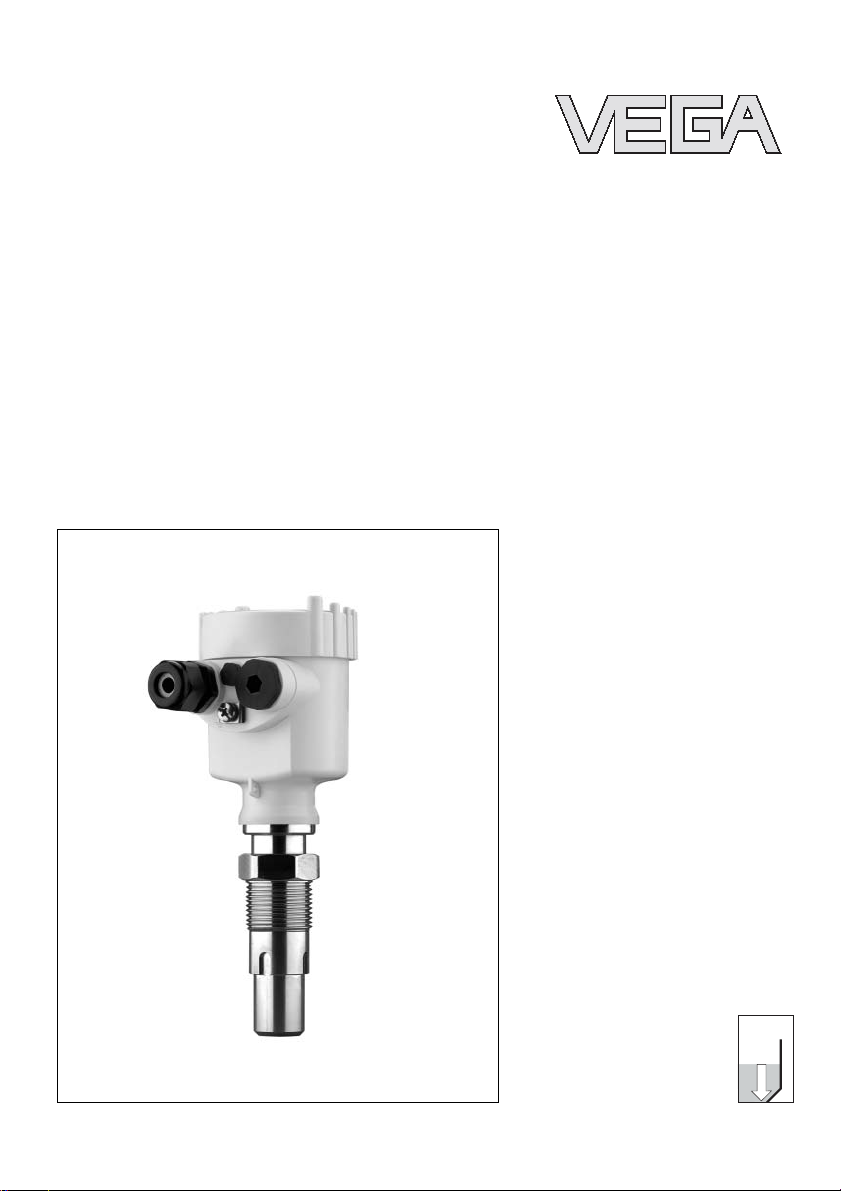

Vega VEGABAR 54 User manual

Operating Instructions
VEGABAR 54
Foundation Fieldbus
p

Contents
1About this document
1.1Function ............................. 5
1.2Target group .......................... 5
1.3Symbolism used ....................... 5
2For your safety
2.1Authorised personnel .................... 6
2.2Appropriate use........................ 6
2.3Warning about misuse ................... 6
2.4CE conformity ......................... 6
2.5Fulfilling NAMUR recommendations ......... 7
2.6Safety instructions for Ex areas ............ 7
2.7Manufacturer declaration ................. 7
2.8Functional range of approved instruments ..... 8
2.9Environmental instructions ................ 9
3Product description
3.1Configuration.......................... 10
3.2Principle of operation.................... 11
3.3Operation ............................ 12
3.4Storage and transport ................... 12
4Mounting
4.1General instructions..................... 13
4.2Mounting steps ........................ 13
4.3Mounting steps,remote housing ............ 14
5Connecting to voltage supply
5.1Preparing the connection ................. 16
5.2Connection procedure ................... 17
5.3Wiring plan,single chamber housing......... 20
5.4Wiring plan,double chamber housing ........ 21
5.5Wiring plan,version IP 66/IP 68,1bar ....... 23
5.6Wiring plan,remote housing with version IP 68 .24
5.7Switch-on phase ....................... 27
6Setup with the indicating and adjustment module
PLICSCOM
6.1Short description ....................... 28
6.2Insert the indicating and adjustment module ... 28
6.3Adjustment system ..................... 30
6.4Setup procedure ....................... 31
6.5Menu schematic ....................... 40
2VEGABAR 54 -Foundation Fieldbus
Contents
29728-EN-061219

6.6Saving the parameter adjustment data ....... 42
7Setup with PACTware™and other adjustment
programs
7.1Connecting the PC ..................... 43
7.2Parameter adjustment with PACTware™...... 43
7.3Parameter adjustment with AMS™.......... 44
7.4Saving the parameter adjustment data ....... 44
8Maintenance and fault rectification
8.1Maintenance .......................... 45
8.2Rectify faults .......................... 45
8.3Exchange of the electronics module ......... 47
8.4Instrument repair ....................... 47
9Dismounting
9.1Dismounting procedure .................. 48
9.2Disposal ............................. 48
10 Supplement
10.1Technical data......................... 49
10.2Information on Foundation Fieldbus ......... 58
10.3Dimensions ........................... 63
10.4Industrial property rights.................. 71
10.5Trademark ........................... 71
VEGABAR 54 -Foundation Fieldbus 3
Contents
29728-EN-061219

Supplementary operating instructions manuals
Information:
VEGABAR 54 is available in many versions and is thus
supplied according to customer order.Depending on the
selected version,supplementary operating instructions man-
uals also come with the delivery.You will find the supple-
mentary operating instructions manuals in chapter "Product
description".
Operating instructions manuals for accessories and
replacement parts
Tip:
To ensure reliable setup and operation of your VEGABAR 54,
we offer accessories and replacement parts.The associated
documents are:
lSupplementary instructions manual "Welded socket and
seals"
lOperating instructions manual "External indicating and
adjustment unit VEGADIS 61"
lOperating instructions manual "Oscillator VEGABAR series
50 and 60"
4VEGABAR 54 -Foundation Fieldbus
Contents
29728-EN-061219

1About this document
1.1Function
This operating instructions manual has all the information you
need for quick setup and safe operation.Please read this
manual before you start setup.
1.2Target group
This operating instructions manual is directed to trained,
qualified personnel.The contents of this manual should be
made available to these personnel and put into practice by
them.
1.3Symbolism used
Information,tip,note
This symbol indicates helpful additional information.
Caution:If this warning is ignored,faults or
malfunctions can result.
Warning:If this warning is ignored,injury to persons and/or
serious damage to the instrument can result.
Danger:If this warning is ignored,serious injury to persons
and/or destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
lList
The dot set in front indicates a list with no implied sequence.
àAction
This arrow indicates a single action.
1Sequence
Numbers set in front indicate successive steps in a procedure.
VEGABAR 54 -Foundation Fieldbus 5
About this document
29728-EN-061219

2For your safety
2.1Authorised personnel
All operations described in this operating instructions manual
must be carried out only by trained specialist personnel
authorised by the operator.For safety and warranty reasons,
any internal work on the instruments must be carried out only
by personnel authorised by the manufacturer.
2.2Appropriate use
VEGABAR 54 is a pressure transmitter for measurement of
gauge pressure,absolute pressure and vacuum.
2.3Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards,e.g.vessel overfill or damage to
system components through incorrect mounting or adjustment.
2.4General safety instructions
VEGABAR 54 is a high-tech instrument requiring the strict
observance of standard regulations and guidelines.The user
must take note of the safety instructions in this operating
instructions manual,the country-specific installation standards
(e.g.the VDE regulations in Germany)as well as all prevailing
safety regulations and accident prevention rules.
2.5CE conformity
VEGABAR 54 is in CE conformity with EMC (89/336/EWG),
fulfils NAMUR recommendation NE 21 and is in CE conformity
with LVD (73/23/EWG).
Conformity has been judged according to the following
standards:
lEMC:
-Emission EN 61326:2004 (class B)
-Susceptibility EN 61326:2004 including supplement A
lLVD:EN 61010-1:2001
VEGABAR 54 is not subject to the pressure device guideline.1)
1)Due to the flush diaphragm,no own pressure compartment is formed.
6VEGABAR 54 -Foundation Fieldbus
For your safety
29728-EN-061219

2.6Fulfilling NAMUR recommendations
With regard to interference resistance and interference
emission,VEGABAR 54 fulfils NAMUR recommendation
NE 21.
VEGABAR 54 and its indicating and adjustment components
fulfill NAMUR recommendation NE 53 in respect to compat-
ibility.VEGA instruments are generally upward and downward
compatible:
lSensor software to DTM VEGABAR 54 HART,PA or FF
lDTM VEGABAR 54 for adjustment software PACTware™
lIndicating and adjustment module for sensor software
The parameter adjustment of the basic sensor functions is
independent of the software version.The range of available
functions depends on the respective software version of the
individual components.
The software version of VEGABAR 54 can be determined as
follows:
lvia PACTware™
lon the type label of the electronics
lvia the indicating and adjustment module
You can view all software histories on our website www.vega.
com.Make use of this advantage and get registered for update
information via e-mail.
2.7Safety instructions for Exareas
Please note the Ex-specific safety information for installation
and operation in Ex areas.These safety instructions are part of
the operating instructions manual and come with the Ex-
approved instruments.
2.8Manufacturer declaration
In conformity with DIN EN 60079-14/2004,para.5.2.3,point
c1,VEGABAR 54 is suitable for use in zone 2.
The operator must use the instrument as it was intended to be
used and follow the specifications of the following documents:
lthis operating instructions manual
lthis manufacturer declaration (24633)
lthe applicable installation regulations
VEGABAR 54 -Foundation Fieldbus 7
For your safety
29728-EN-061219

Max.increase of the surface temperature during operation:
20 K(individual components in the instrument)
With an ambient temperature of 70 °C(158 °F)on the housing
and a process temperature of 70 °C(158 °F), the max.surface
temperature during operation (single component in the instru-
ment)is 90 °C(194 °F).
Measures to maintain explosion protection during operation:
lOperate the instrument in the range of the specified
electrical limit values.Permissible supply voltage:see
"Technical data"
lMount and operate the instrument in such a way that no
danger of ignition by electrostatic charges is to be
expected.Process fitting or housing (as the case may be
depending on instrument version)are made of electrically
non-conductive plastic.
lMake sure that the seal is mounted correctly between
lower part of the housing and cover.Screw the cover on
tightly.
lMake sure there is no explosive atmosphere present if you
intend to operate the instrument with opened cover
lMake sure that the cable gland is tight and strain-relieved.
The outer diameter of the connection cable must be
adapted to the cable gland.Tighten the pressure screw of
the cable gland carefully.
lCover unused openings for cable glands tightly
lThe surface temperature of the housing must not exceed
the ignition temperature of the surrounding explosive
atmosphere
This instrument was assessed by a person who fulfils the DIN
EN 60079-14 requirements.
2.9Functional range of approved instruments
Instruments with StEx,WHG or ship approval as well as
national approvals such as according to FM or CSA are partly
supplied with a previous hardware or software version.For
approval-technical reasons,some functions for these instru-
ments will be only available at a later date.
You will find corresponding instructions in the description of
the individual functions in this operating instructions manual.
8VEGABAR 54 -Foundation Fieldbus
For your safety
29728-EN-061219

2.10 Environmental instructions
Protection of the environment is one of our most important
duties.That is why we have introduced an environment
management system with the goal of continuously improving
company environmental protection.The environment man-
agement system is certified according to DIN EN ISO 14001.
Please help us fulfil this obligation by observing the environ-
mental instructions in this manual:
lChapter "Storage and transport"
lChapter "Disposal"
VEGABAR 54 -Foundation Fieldbus 9
For your safety
29728-EN-061219

3Product description
3.1Configuration
The scope of delivery encompasses:
lVEGABAR 54 pressure transmitter
lDocumentation
-this operating instructions manual
-test certificate
-Ex specific safety instructions (with Ex versions), if
necessary further certificates
-Operating instructions manual "Indicating and adjust-
ment module"(optional)
-Supplementary instructions manual "Heating for indi-
cating and adjustment module"(optional)
-Supplementary instructions manual "Plug connector for
continuously measuring sensors"(optional)
VEGABAR 54 consists of the following components:
lProcess fitting with measuring cell
lHousing with electronics,optionally available with plug
connector
lHousing cover,optionally available with indicating and
adjustment module
The components are available in different versions.
1
2
3
Fig.1:Example of a VEGABAR 54 with process fitting G1Aand plastic housing
1Housing cover with integrated PLICSCOM (optional)
2Housing with electronics
3Process fitting with measuring cell
Scope of delivery
Components
10 VEGABAR 54 -Foundation Fieldbus
Product description
29728-EN-061219

3.2Principle of operation
VEGABAR 54 is a pressure transmitter for use in the paper,
food processing and pharmaceutical industries as well as in
water/sewage water plants.Depending on the version,it is
used for level,gauge,absolute pressure or vacuum meas-
urement.Measured products are gases,vapours and liquids,
also those containing abrasive substances.
The sensor element is the small CERTEC
®
measuring cell with
flush,abrasion resistant ceramic diaphragm.The hydrostatic
pressure of the medium or the process pressure causes a
capacitance change in the measuring cell via the diaphragm.
This change is converted into an appropriate output signal and
outputted as measured value.
The CERTEC
®
measuring cell is also equipped with a
temperature sensor.The temperature value can be displayed
via the indicating and adjustment module or processed via the
signal output.
Power is supplied via the H1Fieldbus.Atwo-wire cable
according to Fieldbus specification serves as carrier of both
power and digital data signals for multiple sensors.This cable
can be operated in two versions:
lvia an H1interface card in the control system and
additional power supply
lvia a linking device with HSE (High speed Ethernet)and
additional voltage supply according to IEC 61158-2
The DD (Device Descriptions)and CFF (capability files)
necessary for planning and configuration of your FF (Founda-
tion Fieldbus)communication network are available in the
download area of the VEGA homepage www.vega.com under
"Services -Downloads -Software -Foundation Fieldbus".The
appropriate certificates are also available there.ACDwith the
appropriate files and certificates can be ordered via e-mail
under [e-mail] or by phone from one of the VEGA
agencies under the order number "DRIVER.S".
The backlight of the indicating and adjustment module is
powered by the sensor.Requirement is a certain height of the
supply voltage.
The data for power supply are stated in chapter "Technical
data"in the "Supplement".
Area of application
Functional principle
Power supply and bus com-
munication
DD/CFF
VEGABAR 54 -Foundation Fieldbus 11
Product description
29728-EN-061219

This function is for instruments with StEx,WHG or ship
approval as well as country-specific approvals such as those
according to FM or CSA,available at a later date.
The optional heating requires its own power supply.You can
find further details in the supplementary instructions manual
"Heating for indicating and adjustment module".
This function is generally not available for approved instru-
ments.
3.3Operation
VEGABAR 54 can be adjusted with different adjustment
media:
lwith indicating and adjustment module
lwith the suitable VEGA DTM in conjunction with an
adjustment software according to the FDT/DTM standard,
e.g.PACTware™and PC
la configuration tool
The entered parameters are generally saved in VEGABAR 54,
optionally also in the indicating and adjustment module or in
PACTware™.
3.4Storage and transport
Your instrument was protected by packaging during transport.
Its capacity to handle normal loads during transport is assured
by a test according to DIN EN 24180.
The packaging of standard instruments consists of environ-
ment-friendly,recyclable cardboard.For special versions,PE
foam or PE foil is also used.Dispose of the packaging material
via specialised recycling companies.
lStorage and transport temperature see "Supplement -
Technical data -Ambient conditions"
lRelative humidity 20 …85 %
Packaging
Storage and transport tem-
perature
12 VEGABAR 54 -Foundation Fieldbus
Product description
29728-EN-061219

4Mounting
4.1General instructions
Make sure that the wetted parts of VEGABAR 54,especially
the seal and process fitting,are suitable for the existing
process conditions such as pressure,temperature etc.as well
as the chemical properties of the medium.
You will find specification in chapter "Technical data"in the
"Supplement".
Select an installation position you can easily reach for
mounting and connecting as well as later retrofitting of an
indicating and adjustment module.The housing can be rotated
by 330°without the use of any tools.You can also install the
indicating and adjustment module in four different positions
(each displaced by 90°).
Use the recommended cables (see chapter "Connecting to
power supply")and tighten the cable gland.
You can give your VEGABAR 54 additional protection against
moisture penetration by leading the connection cable down-
ward in front of the cable entry.Rain and condensation water
can thus drain off.This applies mainly to mounting outdoors,in
areas where moisture is expected (e.g.by cleaning processes)
or on cooled or heated vessels.
Fig.2:Measures against moisture penetration
4.2Mounting steps
For mounting VEGABAR 54,a welded socket is required.You
find the components in the line of the VEGA accessory in the
Wetted materials
Installation position
Moisture
Welding the socket
VEGABAR 54 -Foundation Fieldbus 13
Mounting
29728-EN-061219

supplementary instructions manual "Welded socket and
seals".
Seal the thread with teflon,hemp or a similar resistant seal
material on the process fitting thread 1½NPT.
àScrew VEGABAR 54 into the welded socket.Tighten the
hexagon screw on the process fitting.Wrench size,see
chapter "Dimensions".
Warning:
The housing must not be used to screw the instrument in!
Applying tightening force on the housing can damage its
rotational mechanical parts.
Seal the flange connections according to DIN/ANSI with a
suitable,resistant seal and mount VEGABAR 54 with suitable
screws.
Use the seal corresponding to the instrument.
àShift VEGABAR 54 with PMC connection into the socket
and fasten with two screws M8x10.
4.3Mounting steps,remote housing
1Mark the holes according to the following drilling template
2Depending on the mounting surface,fasten the wall
mounting plate with 4screws
Sealing/Screwing in threaded
versions
Sealing/Screwing in flange
versions
Mounting,socket versions
Wall mounting
14 VEGABAR 54 -Foundation Fieldbus
Mounting
29728-EN-061219

90mm (3 35/64")
R3,5mm
(
9
/
64
")
3mm
(1/8")
70mm (2 3/4") 8mm
(5/16")
93mm (3 21/32")
110mm (4 21/64")
Fig.3:Drilling template -wall mounting plate
Tip:
Mount the wall mounting plate so that the cable entry of the
socket housing points downward.The socket housing can be
displaced by 180°to the wall mounting plate.
Warning:
The four screws for the socket housing must only be hand-
screwed.Atorque >5Nm can damage the wall mounting plate.
VEGABAR 54 -Foundation Fieldbus 15
Mounting
29728-EN-061219

5Connecting to voltage supply
5.1Preparing the connection
Generally note the following safety instructions:
lConnect only in the complete absence of line voltage
lIf overvoltage surges are expected,overvoltage arresters
should be installed according to Foundation Fieldbus
specification
In hazardous areas you should take note of the appropriate
regulations,conformity and type approval certificates of the
sensors and power supply units.
VEGABAR 54 requires a supply voltage of 9…32 VDC.
Power and the digital bus signal are carried on the same two-
wire connection cable.Power is supplied via the H1power
supply.
VEGABAR 54 is connected with screened cable according to
Fieldbus specification.Acable diameter of 5…9mm ensures
the seal effect of the cable gland.
Make sure that the entire installation is carried out according to
the Fieldbus specification.In particular,make sure that the
termination of the bus is done with appropriate terminating
resistors.
OnVEGABAR 54 with cable gland ½NPT and plastic housing,
a metal ½" threaded insert is moulded in the plastic housing.
Caution:
No grease should be used when screwing the NPT cable
gland or steel tube into the threaded insert.Standard grease
can contain additives affecting the connection between
threaded insert and housing.This will influence the stability of
the connection and the tightness of the housing.
In systems with potential equalisation,connect the cable
screen directly to ground potential at the power supply unit,in
the connection box and at the sensor.The screen in the sensor
must be connected directly to the internal ground terminal.The
ground terminal outside on the housing must be connected to
the potential equalisation (low impedance).
Note safety instructions
Take note of safety
instructions for Ex
applications
Select power supply
Selecting connection cable
Cable gland ½NPT
Cable screening and ground-
ing
16 VEGABAR 54 -Foundation Fieldbus
Connecting to voltage supply
29728-EN-061219

In systems without potential equalisation,connect the cable
screen directly to ground potential at the power supply unit and
at the sensor.In the connection box or T-distributor,the screen
of the short stub to the sensor must not be connected to
ground potential or to another cable screen.The cable screens
to the power supply unit and to the next distributor must be
connected to each other and also connected to ground
potential via a ceramic capacitor (e.g.1nF,1500 V). The low
frequency potential equalisation currents are thus suppressed,
but the protective effect against high frequency interference
signals remains.
The total capacitance of the cable and of all capacitors must
not exceed 10 nFin Ex applications.
Take note of the corresponding installation regulations for Ex
applications.In particular,make sure that no potential equal-
isation currents flow over the cable screen.In case of
grounding on both sides this can be achieved by the use of a
capacitor or a separate potential equalisation.
5.2Connection procedure
Proceed as follows:
1Unscrew the housing cover
2If an indicating and adjustment module is installed,remove
it by turning it slightly to the left.
3Loosen compression nut of the cable entry
4Remove approx.10 cm of the cable mantle,strip approx.
1cm insulation from the individual wires
5Insert the cable into the sensor through the cable entry

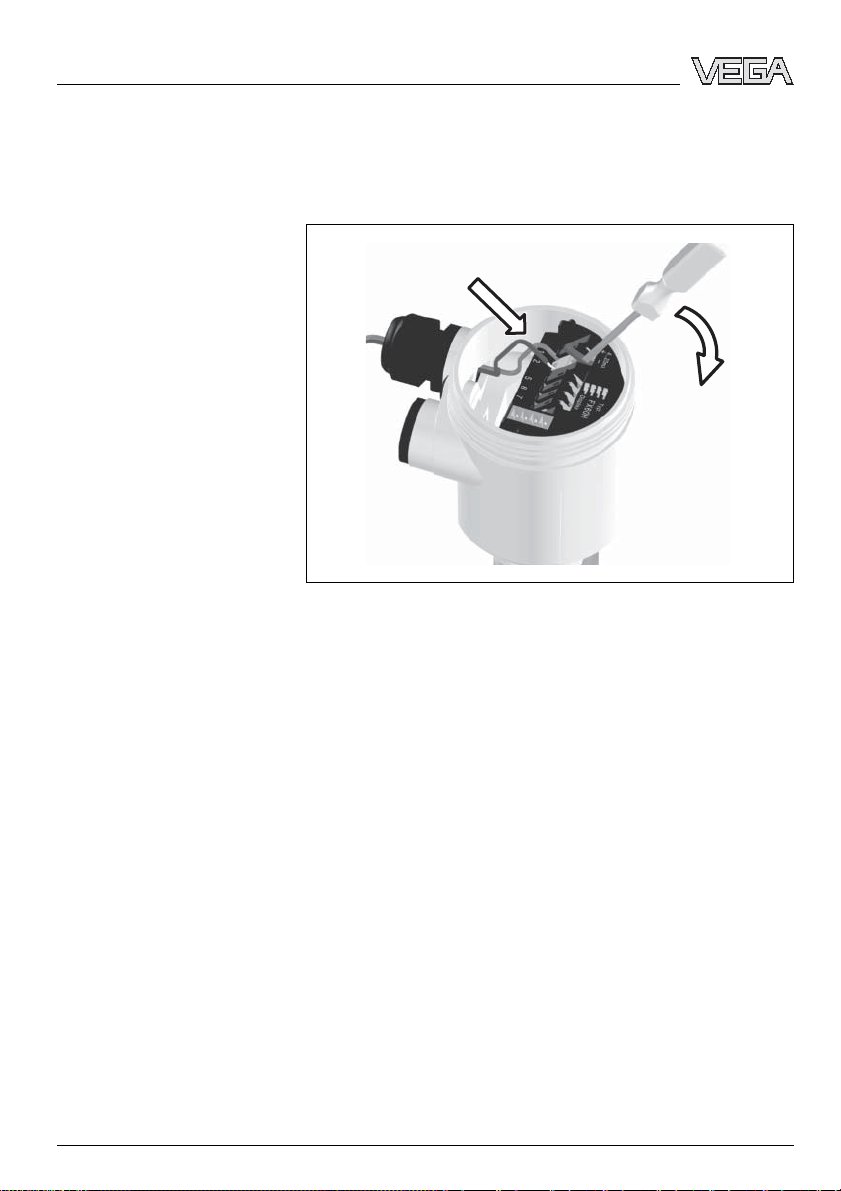

6Lift the opening levers of the terminals with a screwdriver
(see following illustration)
7Insert the wire ends into the open terminals according to
the wiring plan
8Press down the opening lever of the terminals,you will
hear the terminal spring closing
9Check the hold of the wires in the terminals by lightly
pulling on them
10 Connect the screen to the internal ground terminal and the
external ground terminal to potential equalisation
Select connection
cable for Ex applica-
tions
Single/Double chamber hous-
ing
VEGABAR 54 -Foundation Fieldbus 17
Connecting to voltage supply
29728-EN-061219

11 Tighten the compression nut of the cable entry.The seal
ring must completely encircle the cable
12 Screw the housing cover back on
The electrical connection is finished.
Fig.4:Connection steps 6and 7
Proceed as follows:
1Loosen the four screws on the housing socket with an Allen
key size 4
2Remove the mounting plate from the housing socket
IP 68 version with remote
housing
18 VEGABAR 54 -Foundation Fieldbus
Connecting to voltage supply
29728-EN-061219

3
2
1
Fig.5:Components of the remote housing for plics
®
devices
1Screws
2Wall mounting plate
3Cable gland
3Lead the connection cable through the cable gland on the
housing socket2)
Information:
The cable gland can be mounted in three positions each
displaced by 90°.Simply exchange the cable gland against the
blind plug in the suitable thread opening.
4Connect the wire ends as described under "Single/Double
chamber housing"according to the numbering
5Connect the screen to the internal ground terminal and the
external ground terminal on top of the housing to potential
equalisation
6Tighten the compression nut of the cable entry.The seal
ring must completely encircle the cable
7Attach the mounting plate again and tighten the screws
The electrical connection of the sensor to the remote housing
is finished.
2)The connection cable is already preconfectioned.If necessary,shorten it to
the requested length,cut the breather capillaries clean.Remove approx.
5cm of the cable mantle,strip approx.1cm insulation from the ends of the
individual wires.After shortening the cable,fasten the type plate with sup-
port back onto the cable.
VEGABAR 54 -Foundation Fieldbus 19
Connecting to voltage supply
29728-EN-061219

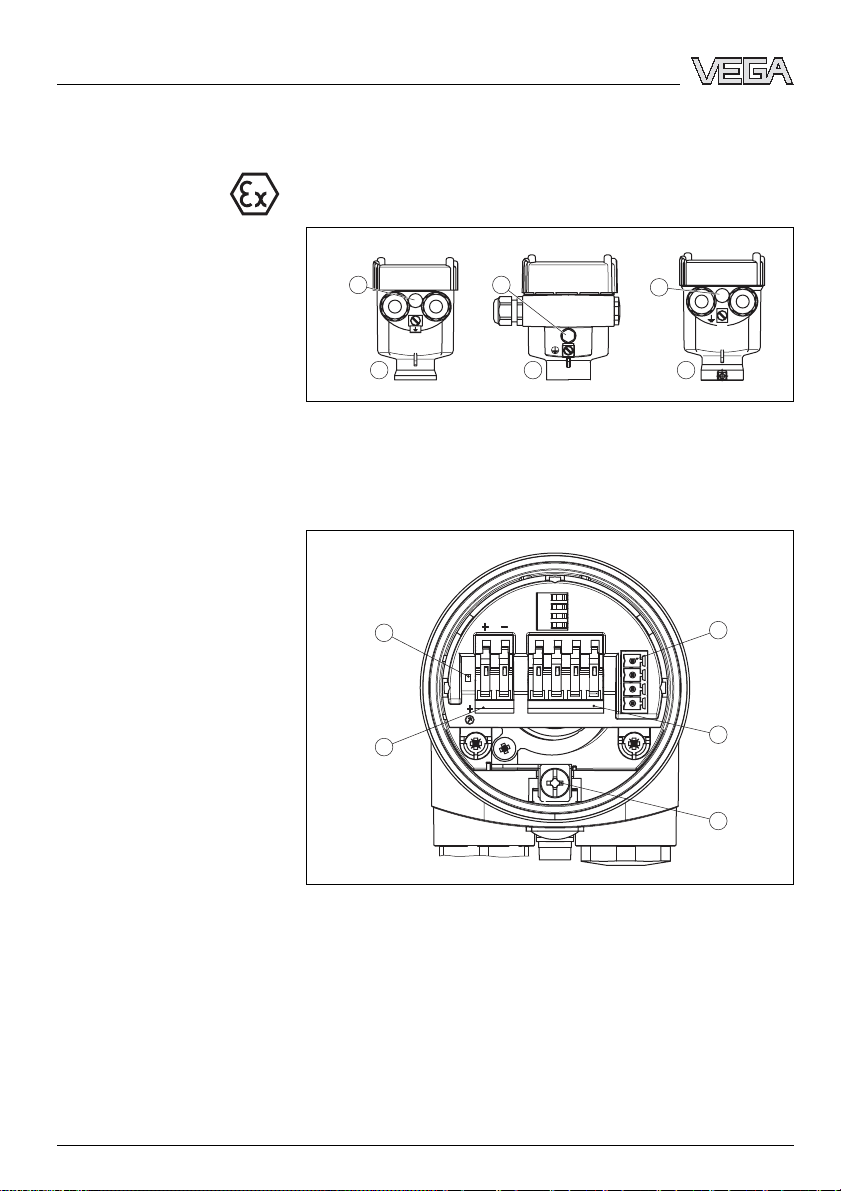

5.3Wiring plan,single chamber housing
The following illustrations apply to the non-Ex as well as to the
Ex ia version.
1
4
44
2 3
Fig.6:Material versions,single chamber housing
1Plastic
2Aluminium
3Stainless steel
4Filter element for air pressure compensation of all material versions.Blind
stopper with version IP 66/IP 68,1bar for Aluminium and stainless steel
I2C
3
4
51
2
Display
Ty p :
12 5678
Bus
Sim.
Fig.7:Electronics and connection compartment,single chamber housing
1Plug connector for VEGACONNECT (I²Cinterface)
2Spring-loaded terminals for connection of the external indication VEGADIS
61
3Ground terminal for connection of the cable screen
4Spring-loaded terminals for Foundation Fieldbus connection
5Simulation switch ("on"=mode for simulation release)
Housing overview
Electronics and connection
compartment
20 VEGABAR 54 -Foundation Fieldbus
Connecting to voltage supply
29728-EN-061219
