Vega VEGABAR 82 User manual

Operating Instructions
Pressure transmitter with ceramic
measuring cell
VEGABAR 82
4 … 20 mA
Document ID: 45027

2
Contents
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
Contents
1 About this document
1.1 Function ........................................................................................................................... 4
1.2 Target group ..................................................................................................................... 4
1.3 Symbols used................................................................................................................... 4
2 For your safety
2.1 Authorised personnel ....................................................................................................... 5
2.2 Appropriate use................................................................................................................ 5
2.3 Warning about incorrect use............................................................................................. 5
2.4 General safety instructions............................................................................................... 5
2.5 EU conformity................................................................................................................... 6
2.6 Permissible process pressure .......................................................................................... 6
2.7 NAMUR recommendations .............................................................................................. 6
2.8 Installation and operation in the USA and Canada ........................................................... 6
2.9 Environmental instructions ............................................................................................... 7
3 Product description
3.1 Conguration.................................................................................................................... 8
3.2 Principle of operation........................................................................................................ 9
3.3 Supplementary cleaning procedures.............................................................................. 13
3.4 Packaging, transport and storage................................................................................... 14
3.5 Accessories and replacement parts ............................................................................... 14
4 Mounting
4.1 General instructions ....................................................................................................... 16
4.2 Ventilation and pressure compensation.......................................................................... 17
4.3 Process pressure measurement..................................................................................... 20
4.4 Level measurement........................................................................................................ 22
4.5 External housing ............................................................................................................ 23
5 Connecting to power supply
5.1 Preparing the connection ............................................................................................... 24
5.2 Connecting..................................................................................................................... 25
5.3 Ex-d-ia double chamber housing.................................................................................... 27
5.4 Single chamber housing................................................................................................. 27
5.5 Housing IP 66/IP 68 (1 bar) ............................................................................................ 28
5.6 External housing with version IP 68 (25 bar)................................................................... 29
5.7 Switch-on phase............................................................................................................. 30
6 Set up with the display and adjustment module
6.1 Insert display and adjustment module............................................................................ 32
6.2 Adjustment system......................................................................................................... 33
6.3 Measured value indication.............................................................................................. 34
6.4 Parameter adjustment - Quick setup .............................................................................. 35
6.5 Parameter adjustment - Extended adjustment................................................................ 35
6.6 Saving the parameterisation data................................................................................... 48
7 Setup with PACTware
7.1 Connect the PC.............................................................................................................. 49
7.2 Parameter adjustment .................................................................................................... 49
7.3 Saving the parameterisation data................................................................................... 50

3
Contents
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
8 Diagnostics and servicing
8.1 Maintenance .................................................................................................................. 51
8.2 Cleaning - hygienic connection with compression nut .................................................... 51
8.3 Diagnosis function.......................................................................................................... 52
8.4 Rectify faults................................................................................................................... 54
8.5 Exchange process assembly with version IP 68 (25 bar)................................................ 55
8.6 Exchanging the electronics module................................................................................ 56
8.7 Software update ............................................................................................................. 56
8.8 How to proceed if a repair is necessary.......................................................................... 56
9 Dismount
9.1 Dismounting steps.......................................................................................................... 58
9.2 Disposal ......................................................................................................................... 58
10 Supplement
10.1 Technical data ................................................................................................................ 59
10.2 Calculation of the total deviation..................................................................................... 71
10.3 Calculation of the total deviation - Practical example...................................................... 72
10.4 Dimensions .................................................................................................................... 74
10.5 Industrial property rights................................................................................................. 84
10.6 Trademark ...................................................................................................................... 84
Safety instructions for Ex areas
TakenoteoftheExspecicsafetyinstructionsforExapplications.
These instructions are attached as documents to each instrument
with Ex approval and are part of the operating instructions manual.
Editing status: 2017-05-17

4
1 About this document
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
1 About this document
1.1 Function
This operating instructions manual provides all the information you
need for mounting, connection and setup as well as important instruc-
tionsformaintenance,faultrectication,theexchangeofpartsand
the safety of the user. Please read this information before putting the
instrument into operation and keep this manual accessible in the im-
mediate vicinity of the device.
1.2 Target group
This operating instructions manual is directed to trained specialist
personnel.The contents of this manual should be made available to
these personnel and put into practice by them.
1.3 Symbols used
Information, tip, note
This symbol indicates helpful additional information.
Caution: If this warning is ignored, faults or malfunctions can result.
Warning: If this warning is ignored, injury to persons and/or serious
damage to the instrument can result.
Danger: If this warning is ignored, serious injury to persons and/or
destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
• List
The dot set in front indicates a list with no implied sequence.
→ Action
This arrow indicates a single action.
1 Sequence of actions
Numbers set in front indicate successive steps in a procedure.
Battery disposal
This symbol indicates special information about the disposal of bat-
teries and accumulators.

5
2 For your safety
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
2 For your safety
2.1 Authorised personnel
All operations described in this operating instructions manual must
be carried out only by trained specialist personnel authorised by the
plant operator.
During work on and with the device the required personal protective
equipment must always be worn.
2.2 Appropriate use
The VEGABAR 82 is a pressure transmitter for process pressure and
hydrostatic level measurement.
Youcannddetailedinformationabouttheareaofapplicationin
chapter "Product description".
Operational reliability is ensured only if the instrument is properly
usedaccordingtothespecicationsintheoperatinginstructions
manual as well as possible supplementary instructions.
2.3 Warning about incorrect use
Inappropriate or incorrect use of this product can give rise to applica-
tion-specichazards,e.g.vesseloverllthroughincorrectmounting
or adjustment.Thus damage to property, to persons or environmental
contamination can be caused. Also the protective characteristics of
theinstrumentcanbeinuenced.
2.4 General safety instructions
This is a state-of-the-art instrument complying with all prevailing
regulations and directives.The instrument must only be operated in a
technicallyawlessandreliablecondition.Theoperatorisresponsi-
ble for the trouble-free operation of the instrument.When measuring
aggressive or corrosive media where a malfunction of the instrument
can cause a danger, the operator has to convince himself on the cor-
rect function of the instrument by taking suitable measures.
During the entire duration of use, the user is obliged to determine the
compliance of the necessary occupational safety measures with the
current valid rules and regulations and also take note of new regula-
tions.
The safety instructions in this operating instructions manual, the na-
tional installation standards as well as the valid safety regulations and
accident prevention rules must be observed by the user.
For safety and warranty reasons, any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer. Arbi-
traryconversionsormodicationsareexplicitlyforbidden.Forsafety
reasons,onlytheaccessoryspeciedbythemanufacturermustbe
used.

6
2 For your safety
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
To avoid any danger, the safety approval markings and safety tips on
the device must also be observed and their meaning looked up in this
operating instructions manual.
2.5 EU conformity
ThedevicefullsthelegalrequirementsoftheapplicableEUdirec-
tives.ByaxingtheCEmarking,weconrmtheconformityofthe
instrument with these directives.
YoucanndtheEUconformitydeclarationonourwebsiteunder
www.vega.com/downloads.
2.6 Permissible process pressure
For safety reasons, the instrument must only be operated within the
permissibleprocessconditions.Youcannddetailedinformationon
the process conditions in chapter "Technical data" as well as on the
type label.
Thepermissibleprocesspressurerangeisspeciedonthetypelabel
with "Process pressure", see chapter "Conguration".This applies
even if a measuring cell with a measuring range (order-related) higher
thanthepermissiblepressurerangeoftheprocessttingisinstalled.
Atemperaturederating,e.g.withanges,canlimitthepermissible
process pressure range.
2.7 NAMUR recommendations
NAMUR is the automation technology user association in the process
industry in Germany.The published NAMUR recommendations are
acceptedasthestandardineldinstrumentation.
ThedevicefullstherequirementsofthefollowingNAMURrecom-
mendations:
• NE 21 – Electromagnetic compatibility of equipment
• NE 43 – Signal level for fault information from measuring transduc-
ers
• NE53–Compatibilityofelddevicesanddisplay/adjustment
components
• NE107-Self-monitoringanddiagnosisofelddevices
For further information see www.namur.de.
2.8 Installation and operation in the USA and
Canada
This information is only valid for USA and Canada. Hence the follow-
ing text is only available in the English language.
Installations in the US shall comply with the relevant requirements of
the National Electrical Code (ANSI/NFPA 70).
Installations in Canada shall comply with the relevant requirements of
the Canadian Electrical Code

7
2 For your safety
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
2.9 Environmental instructions
Protection of the environment is one of our most important duties.
That is why we have introduced an environment management system
with the goal of continuously improving company environmental pro-
tection.Theenvironmentmanagementsystemiscertiedaccording
to DIN EN ISO 14001.
Pleasehelpusfullthisobligationbyobservingtheenvironmental
instructions in this manual:
• Chapter "Packaging, transport and storage"
• Chapter "Disposal"

8
3 Product description
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
3 Product description
3.1 Conguration
Thetypelabelcontainsthemostimportantdataforidenticationand
use of the instrument:
2
1
13
14
12
10
11
5
3
6
4
7
8
9
Fig. 1: Layout of the type label (example)
1 Instrument type
2 Product code
3 Field for approvals
4 Power supply and signal output, electronics
5 Protection rating
6 Measuring range
7 Permissible process pressure
8 Material, wetted parts
9 Order number
10 Serial number of the instrument
11 QR code
12 Symbol of the device protection class
13 ID number, instrument documentation
14 Reminder to observe the instrument documentation
The type label contains the serial number of the instrument. With it
youcanndthefollowinginstrumentdataonourhomepage:
• Product code (HTML)
• Delivery date (HTML)
• Order-specicinstrumentfeatures(HTML)
• Operating instructions and quick setup guide at the time of ship-
ment (PDF)
• Order-specicsensordataforanelectronicsexchange(XML)
• Testcerticate(PDF)-optional
Go to "www.vega.com", "Instrument search (serial number)". Enter
the serial number.
Alternatively, you can access the data via your smartphone:
• Download the smartphone app "VEGA Tools" from the "Apple App
Store" or the "Google Play Store"
• Scan the Data Matrix code on the type label of the instrument or
• Enter the serial number manually in the app
Type label
Serial number - Instru-
ment search

9
3 Product description
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
This operating instructions manual applies to the following instrument
versions:
• Hardware from 1.0.0
• Software version from 1.3.0
Note:
Youcanndthehardwareandsoftwareversionoftheinstrumentas
follows:
• On the type plate of the electronics module
• In the adjustment menu under "Info"
The scope of delivery encompasses:
• Pressure transmitter
• Documentation
– Quick setup guide VEGABAR 82
– Characteristicstestcerticate
– Instructions for optional instrument features
– Ex-specic"Safety instructions" (with Ex versions)
– Ifnecessary,furthercerticates
• DVD "DTM Collection", included therein
– PACTwa re
– DTM Collection
– Instrumentmasterles(GSD)forProbusPA
– FDTcerticates
Note:
Optional instrument features are also described in this operating
instructions manual.The respective scope of delivery results from the
orderspecication.
3.2 Principle of operation
The VEGABAR 82 is suitable for the measurement of the following
process variables:
• Process pressure
• Level

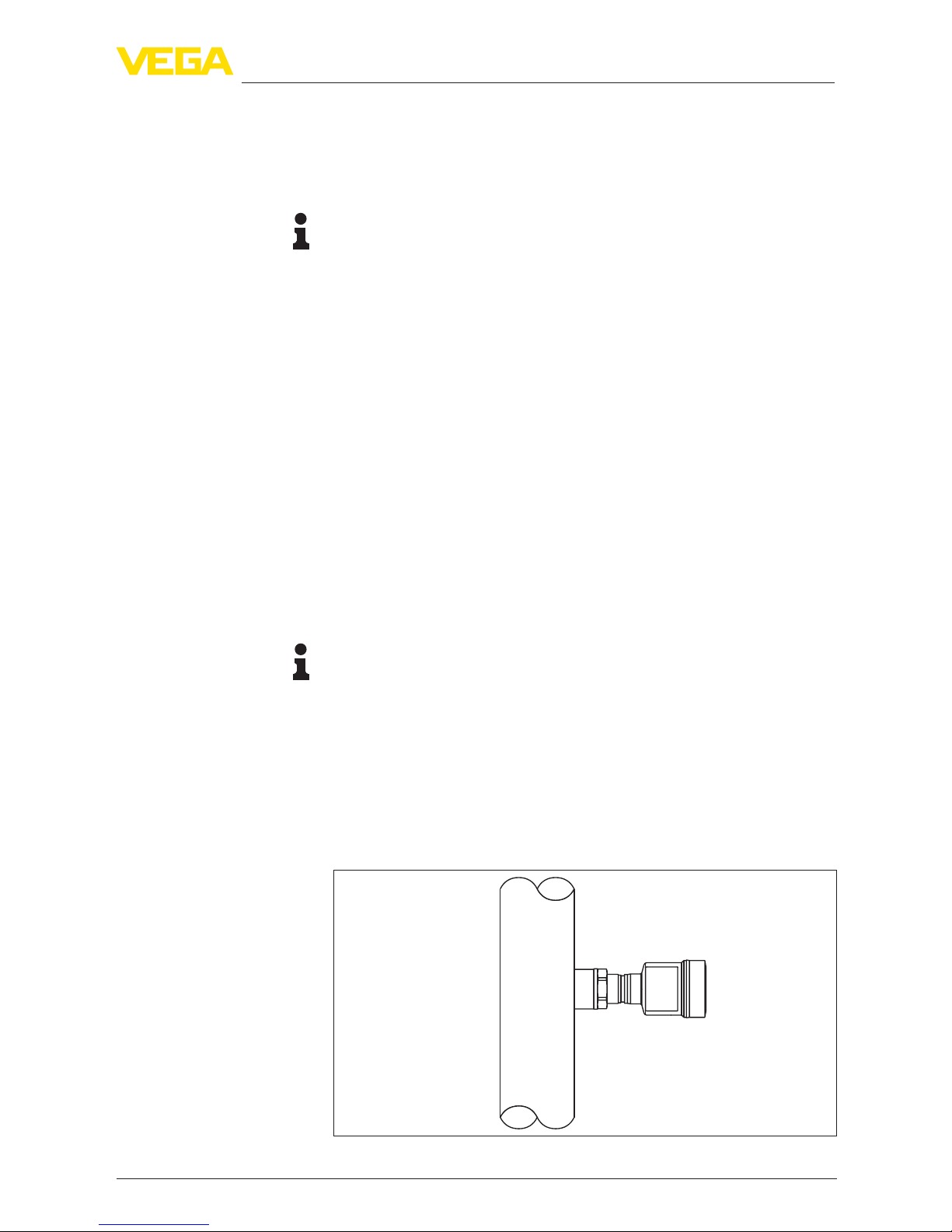

Fig. 2: Process pressure measurement VEGABAR 82
Scope of this operating
instructions manual
Scope of delivery
Measured variables

10
3 Product description
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
VEGABAR 82 is suitable for applications in virtually all industries. It is
used for the measurement of the following pressure types.
• Gauge pressure
• Absolute pressure
• Vacuum
Measured products are gases, vapours and liquids.
Dependingontheprocessttingandmeasurementsetup,measured
products can be also viscous or contain abrasive substances.
The sensor element is the CERTEC®measuring cell with robust
ceramicdiaphragm.Theprocesspressuredeectstheceramic
diaphragm and causes a capacitance change in the measuring cell.
This capacitance change is converted into an electrical signal and
outputted as measured value via the output signal.
The CERTEC®measuringcellisavailableintwosizes:
• CERTEC®(ø28mm)withlargeprocessandangeconnections
as well as with measuring ranges 25 mbar and 100 bar
• Mini-CERTEC®(ø17.5mm)withsmallprocessttings
A temperature sensor in the ceramic diaphragm of the CERTEC®or
on the ceramic base of the Mini-CERTEC®measuring cell detects the
actual process temperature.The temperature value is outputted via:
• The display and adjustment module
Extreme process temperature jumps are also immediately detected
by the CERTEC®measuring cell.The values are compared with that
of an additional temperature measurement on the ceramic base body.
Within only a few measuring cycles the intelligent sensor electronics
compensates unavoidable measurement deviations due to tempera-
ture shocks. Such shocks cause (depending on the set damping) only
slight, brief changes to the output signal.
The measuring cell design depends on the selected pressure type.
Relative pressure: the measuring cell is open to the atmosphere.
The ambient pressure is detected in the measuring cell and compen-
sated.Itthushasnoinuenceonthemeasuredvalue.
Absolute pressure: the measuring cell is evacuated and encapsu-
lated.The ambient pressure is not compensated and does hence
inuencethemeasuredvalue.
Relative pressure, climate-compensated: the measuring cell is
evacuated and encapsulated.The ambient pressure is detected
through a reference sensor in the electronics and compensated. It
thushasnoinuenceonthemeasuredvalue.
The following presentations show examples for the installation of the
ceramicmeasuringcellintotheprocessttingandthedierentseal
concepts.
Application area
Measured products
Measuring system pres-
sure
Measuring system tem-
perature
Pressure types
Seal concepts

11
3 Product description
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
The recessed installation is particularly suitable for applications with
gases, vapours and clear liquids.The measuring cell seal is posi-
tioned laterally as well as in addition in front.
1
2
5
6
3
4

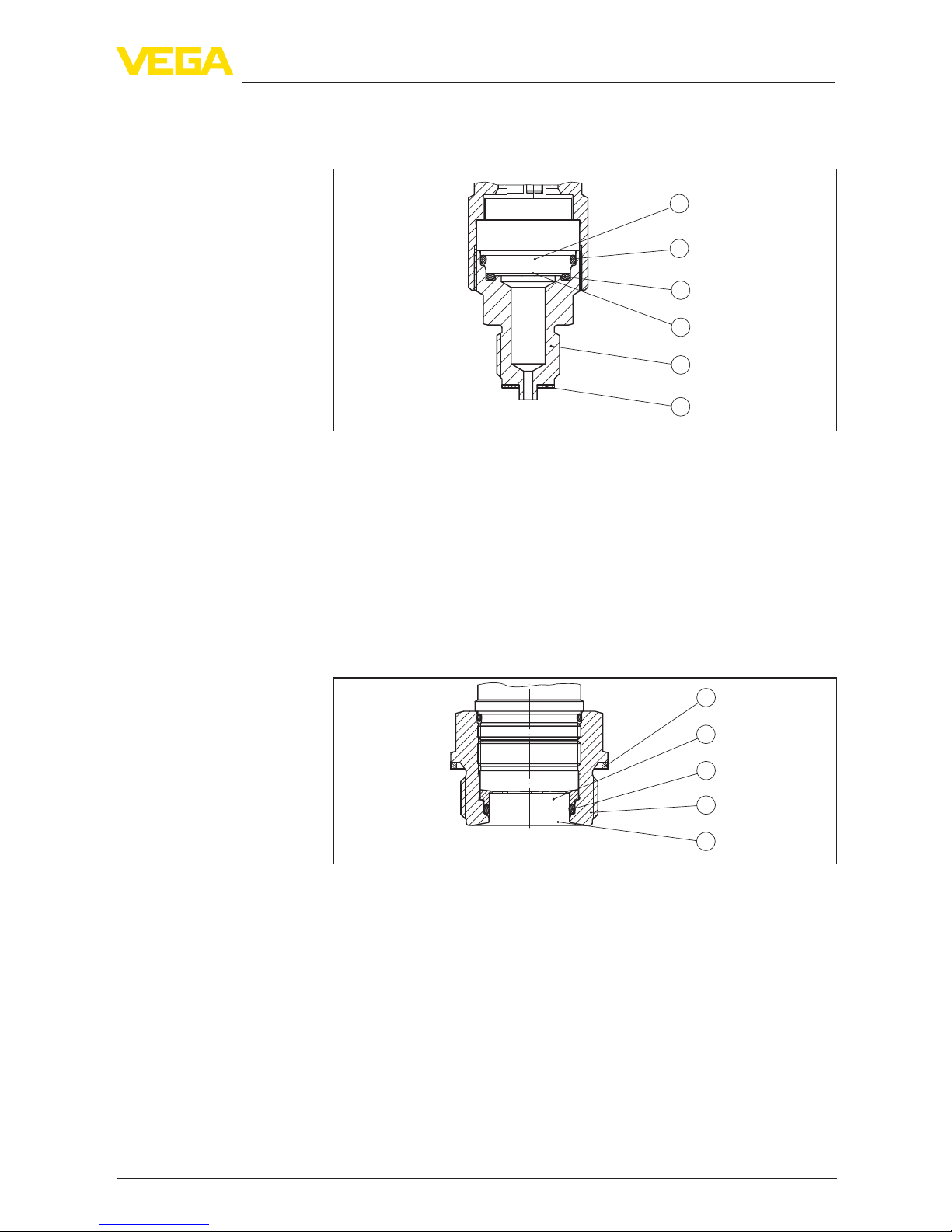

Fig. 3: Recessed installation of the measuring cell (example: manometer con-
nection G½)
1 Measuring cell
2 Seal for the measuring cell
3 Additional, front seal for measuring cell
4 Diaphragm
5 Process tting
6 Seal for the process tting
Thefront-ushinstallationisparticularlysuitableforapplicationswith
viscous and abrasive media and in case of buildup. The measuring
cell seal is positioned laterally.
2
3
4
1
5

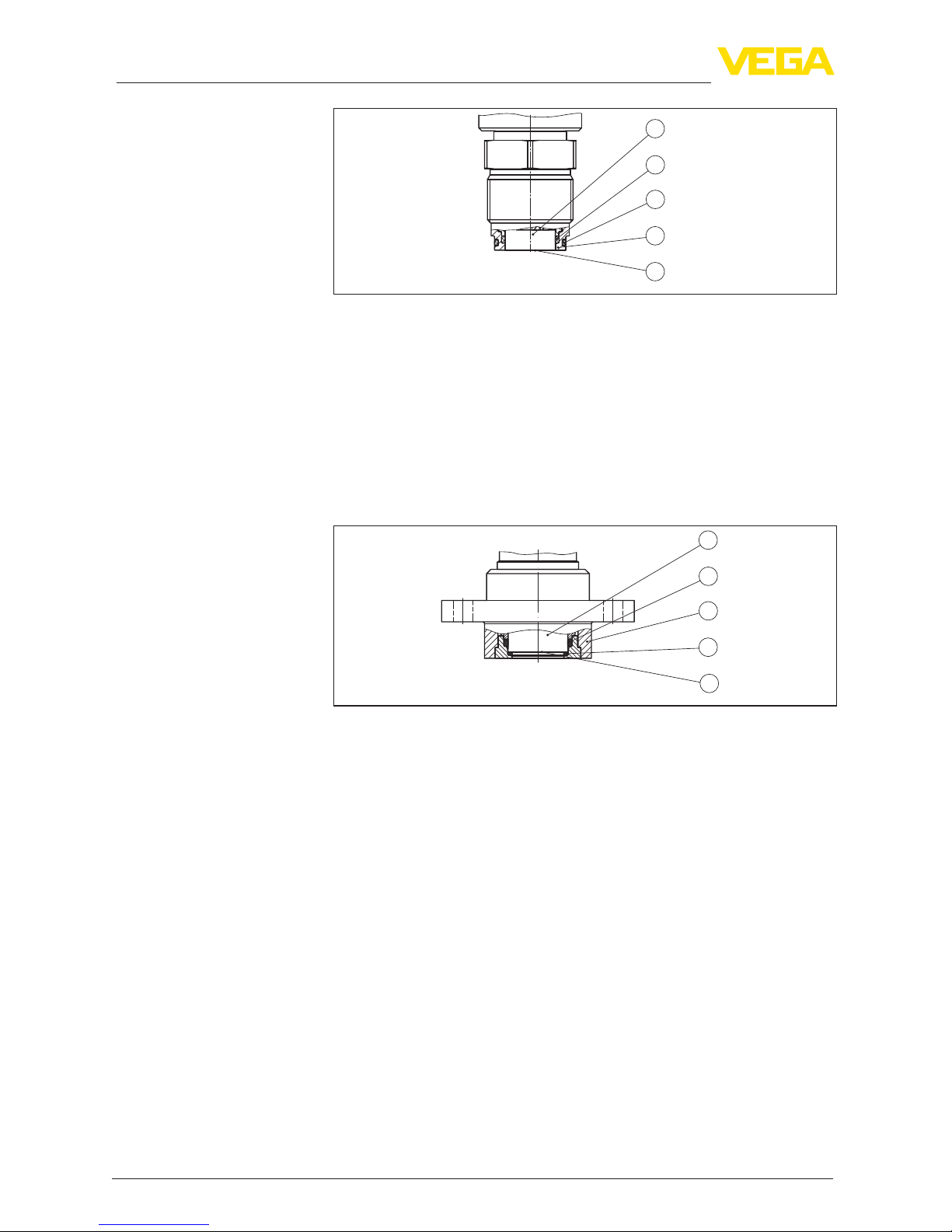

Fig. 4: Front-ush installation of the measuring cell (example: thread G1½)
1 Seal for the process tting
2 Measuring cell
3 Seal for the measuring cell
4 Process tting
5 Diaphragm
Thecompletelyfront-ushmountingisparticularlysuitableforap-
plicationsinthepaperindustry.Thediaphragmisinthepulpow,is
hence cleaned and protected against buildup.
Recessed installation
Front-ushmountingwith
single seal
Completelyfront-ush
mounting with single seal

12
3 Product description
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
1
2
3
4
5
Fig. 5: Front-ush installation of the measuring cell (example: M30 x 1.5)
1 Measuring cell
2 Seal for the measuring cell
3 Seal for the process tting
4 Process tting
5 Diaphragm
Thefront-ushinstallationisparticularlysuitableforapplicationswith
viscous media.The additional, front sealing protects the glass joint
of the measuring cell against chemical attack and the measuring cell
electronicsagainstdiusionofaggressivegasesfromtheprocess.
1
2
3
4
5
Fig. 6: Front-ush installation of the measuring cell with double seal (example:
ange connection with extension)
1 Measuring cell
2 Seal for the measuring cell
3 Process tting
4 Additional, front seal for measuring cell
5 Diaphragm
Thefront-ush,hygienicinstallationofthemeasuringcellisparticu-
larly suitable for food applications.The sealings are installed gap-free.
The form seal of the measuring cell protects also the glass joint.
Front-ushmountingwith
double seal
Installation in hygienic
tting

13
3 Product description
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
1
2
3
4
5

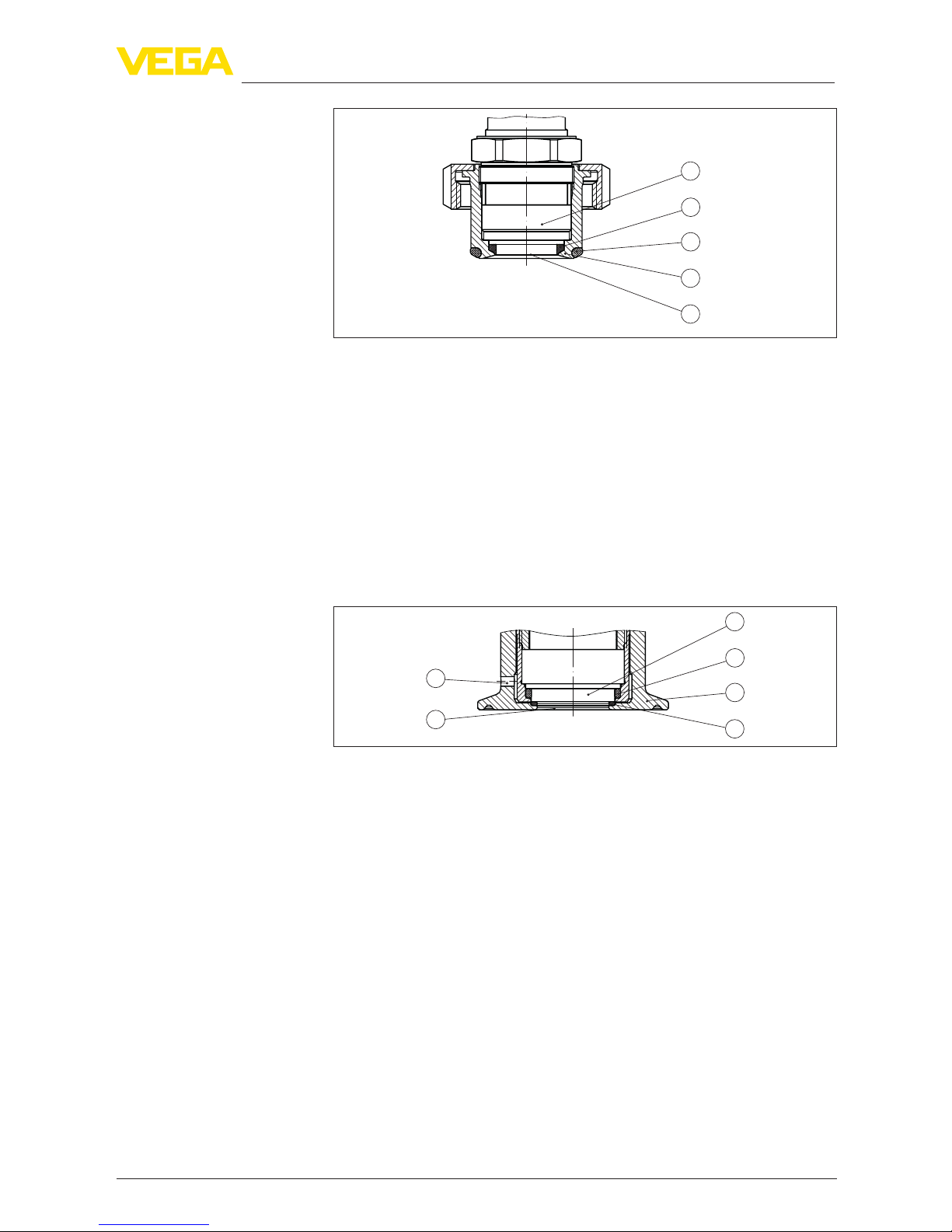

Fig. 7: Hygienic installation of the measuring cell (example: hygienic tting with
compression nut)
1 Measuring cell
2 Form seal for the measuring cell
3 Gap-free seal for process tting
4 Process tting
5 Diaphragm
Thefront-ush,hygienicinstallationofthemeasuringcellacc.to3A
is particularly suitable for food applications.The sealings are installed
gap-free. The additional front sealing for the measuring cell protects
alsotheglassjoint.Aholeintheprocessttingisusedforleakage
detection.
1
6
2
3
4
5
Fig. 8: Hygienic installation of the measuring cell acc. to 3-A (example: Clamp
connection)
1 Measuring cell
2 Seal for the measuring cell
3 Process tting
4 Additional, front seal for measuring cell
5 Diaphragm
5 Hole for leakage detection
3.3 Supplementary cleaning procedures
The VEGABAR 82 is also available in the version "Oil, grease and
silicone-free".These instruments have passed through a special
cleaning procedure to remove oil, grease and paint-wetting impair-
ment substances (PWIS).
The cleaning is carried out on all wetted parts as well as on surfaces
accessible from outside. To keep the purity level, the instruments are
immediately packed in plastic foil after the cleaning process. The
purity level remains as long as the instrument is kept in the closed
original packaging.
Installation in hygienic
ttingacc.to3-A

14
3 Product description
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
Caution:
The VEGABAR 82 in this version may not be used in oxygen ap-
plications. For this purpose, instruments are available in the special
version "Oil and grease-free for oxygen applications".
3.4 Packaging, transport and storage
Your instrument was protected by packaging during transport. Its
capacity to handle normal loads during transport is assured by a test
based on ISO 4180.
The packaging of standard instruments consists of environment-
friendly, recyclable cardboard. For special versions, PE foam or PE
foil is also used. Dispose of the packaging material via specialised
recycling companies.
Transport must be carried out in due consideration of the notes on the
transport packaging. Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt. Ascertained transit damage or con-
cealed defects must be appropriately dealt with.
Up to the time of installation, the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated, the packages must be stored only under
the following conditions:
• Not in the open
• Dry and dust free
• Not exposed to corrosive media
• Protected against solar radiation
• Avoiding mechanical shock and vibration
• Storage and transport temperature see chapter "Supplement -
Technical data - Ambient conditions"
• Relative humidity 20 … 85 %
With an instrument weight of more than 18 kg (39.68 lbs) suitable and
approved equipment must be used for lifting and carrying.
3.5 Accessories and replacement parts
The display and adjustment module PLICSCOM is used for measured
value indication, adjustment and diagnosis. It can be inserted into the
sensor and removed at any time.
The integrated Bluetooth module (optional) enables wireless adjust-
ment via standard adjustment devices:1)
• Smartphone/tablet (iOS or Android operating system)
Packaging
Transport
Transport inspection
Storage
Storage and transport
temperature
Lifting and carrying
PLICSCOM
1) Bluetooth function with VEGADIS 82 can only be used at a later date.

15
3 Product description
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
• PC/notebook with Bluetooth USB adapter (Windows operating
system)
Youcanndfurtherinformationintheoperatinginstructions"Display
and adjustment module PLICSCOM" (Document-ID 27835).
The interface adapter VEGACONNECT enables the connection of
communication-capable instruments to the USB interface of a PC. For
parameter adjustment of these instruments, the adjustment software
PACTware with VEGA-DTM is required.
Youcanndfurtherinformationintheoperatinginstructions"Interface
adapter VEGACONNECT" (Document-ID 32628).
The VEGADIS 82 is suitable for measured value indication of
4 … 20 mA and 4 … 20 mA/HART sensors. It is looped into the signal
cable.
Youcanndfurtherinformationintheoperatinginstructions
"VEGADIS 82 4 … 20 mA" (Document-ID 46591).
The overvoltage arrester B81-35 is used in the single or double
chamber housing instead of the connection terminals. It reduces any
voltage surges that may reach the signal cables to a harmless level.
Youcanndfurtherinformationinthesupplementaryinstructions
"Overvoltage arrester B81-35" (Document-ID 50708).
The protective cover protects the sensor housing against soiling and
intense heat from solar radiation.
Youwillndadditionalinformationinthesupplementaryinstructions
manual "Protective cover" (Document-ID 34296).
Screwedangesareavailableindierentversionsaccordingtothe
following standards: DIN 2501, EN 1092-1, BS 10, ASME B 16.5,
JIS B 2210-1984, GOST 12821-80.
Youcanndadditionalinformationinthesupplementaryinstructions
manual "Flanges according to DIN-EN-ASME-JIS".
Welded sockets are used to connect the sensors to the process.
Youcanndfurtherinformationinthesupplementaryinstructions
"Welded socket VEGABAR series 80" (Document-ID 48094).
The electronics module VEGABAR series 80 is a replacement part
forpressuretransmittersofVEGABARseries80.Thereisadierent
version available for each type of signal output.
Youcanndfurtherinformationintheoperatinginstructions"Elec-
tronics module VEGABAR series 80" (Document-ID 45054).
VEGACONNECT
VEGADIS 82
Overvoltage protection
Protective cover
Flanges
Welded socket
Electronics module

16
4 Mounting
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
4 Mounting
4.1 General instructions
Make sure before mounting that all parts of the instrument exposed to
the process are suitable for the existing process conditions.
These are mainly:
• Active measuring component
• Processtting
• Process seal
Process conditions in particular are:
• Process pressure
• Process temperature
• Chemical properties of the medium
• Abrasionandmechanicalinuences
Youcannddetailedinformationontheprocessconditionsinchapter
"Technical data" as well as on the type label.
The instrument is suitable for standard and extended ambient condi-
tions acc. to DIN/EN/IEC/ANSI/ISA/UL/CSA 61010-1.
Protect your instrument against moisture ingress through the following
measures:
• Use the recommended cable (see chapter "Connecting to power
supply")
• Tighten the cable gland
• Whenmountinghorizontally,turnthehousingsothatthecable
gland points downward
• Loop the connection cable downward in front of the cable gland
This applies mainly to outdoor installations, in areas where high
humidity is expected (e.g. through cleaning processes) and on cooled
or heated vessels.
To maintain the housing protection, make sure that the housing lid is
closed during operation and locked, if necessary.
Makesurethatthedegreeofcontaminationspeciedinchapter
"Technical data" meets the existing ambient conditions.
Metric threads
In the case of instrument housings with metric thread, the cable
glands are screwed in at the factory. They are sealed with plastic
plugs as transport protection.
You have to remove these plugs before electrical connection.
NPT thread
In the case of instrument housings with self-sealing NPT threads, it is
not possible to have the cable entries screwed in at the factory. The
free openings for the cable glands are therefore covered with red dust
protection caps as transport protection.The dust protection caps do
notprovidesucientprotectionagainstmoisture.
Suitability for the process
conditions
Suitability for the ambient
conditions
Protection against mois-
ture
Cable glands

17
4 Mounting
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
Prior to setup you have to replace these protective caps with ap-
proved cable glands or close the openings with suitable blind plugs.
Oninstrumentswiththreadedprocesstting,thehexagonmustbe
tightenedwithasuitablewrench.Fortheproperwrenchsizesee
chapter "Dimensions".
Warning:
The housing must not be used to screw the instrument in! Applying
tightening force can damage internal parts of the housing.
If there is strong vibration at the mounting location, the instrument
version with external housing should be used. See chapter "External
housing".
The permissible process pressure range is stated on the type label.
The instrument should only be operated with these pressures if the
mountingaccessoryusedalsofullsthesevalues.Thisshouldbeen-
suredbysuitableanges,weldedsockets,tensionringswithClamp
connections, sealings, etc.
Higher process temperatures often mean also higher ambient
temperatures. Make sure that the upper temperature limits stated in
chapter "Technical data" for the environment of the electronics hous-
ing and connection cable are not exceeded.
1
2
Fig. 9: Temperature ranges
1 Process temperature
2 Ambient temperature
4.2 Ventilation and pressure compensation
Ventilation and pressure compensation are carried out with
VEGABAR82viaalterelement.Itisairpermeableandmoisture-
blocking.
Caution:
Thelterelementcausesatime-delayedpressurecompensation.
When quickly opening/closing the housing cover, the measured value
can change for approx. 5 s by up to 15 mbar.
Foreectiveventilation,thelterelementmustalwaysbefreeof
buildup.
Screwing in
Vibrations
Process pressure range -
Mounting accessory
Temperature limits
Filter elements

18
4 Mounting
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
Caution:
Donotuseahigh-pressurecleaner.Thelterelementcouldbedam-
aged, which would allow moisture into the housing.
Thefollowingparagraphsdescribehowthelterelementisarranged
inthedierentinstrumentversions.
Thelterelementismountedintotheelectronicshousing.Ithasthe
following functions:
• Ventilation of the electronics housing
• Atmospheric pressure compensation (with relative pressure meas-
uring ranges)
→ Incaseofhorizontalmounting,turnthehousingsothatthelter
element points downward after the instrument is installed. This
provides better protection against buildup.
1 2 3
6
6
6 6
6
5
4
Fig. 10: Position of the lter element - non-Ex, Ex-ia and Ex-d-ia version
1 Plastic, stainless steel single chamber (precision casting)
2 Aluminium - single chamber
3 Stainless steel single chamber (electropolished)
4 Plastic double chamber
5 Aluminium, stainless steel double chamber housing (precision casting)
6 Filter element
With the following instruments a blind plug is installed instead of the
lterelement:
• Instruments in protection IP 66/IP 68 (1 bar) - ventilation via capil-
laries in non-detachable cable
• Instruments with absolute pressure
Thelterelementisintegratedintheprocessassembly.Itislocatedin
a rotatable metal ring and has the following function:
• Atmospheric pressure compensation (with relative pressure meas-
uring ranges)
Instruments in non-Ex,
Ex-ia and Ex-d-ia version
Instruments in Ex-d ver-
sion

19
4 Mounting
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
→ Turnthemetalringinsuchawaythatthelterelementpoints
downward after installation of the instrument. This provides better
protection against buildup.
1
2
Fig. 11: Position of the lter element - Ex-d version
1 Rotatable metal ring
2 Filter element
Instruments with absolute pressure have a blind plug mounted
insteadofthelterelement.
The Second Line of Defense (SLOD) is a second level of the process
separation in form of a gas-tight leadthrough in the housing neck,
preventing products from penetrating into the housing.
With these instruments, the process assembly is completely en-
capsulated. An absolute pressure measuring cell is used so that no
ventilation is required.
With relative pressure measuring ranges, the ambient pressure is
detected and compensated by a reference sensor in the electronics.
Thelterelementismountedintotheelectronicshousing.Ithasthe
following functions:
• Ventilation of the electronics housing
• Atmospheric pressure compensation (with relative pressure meas-
uring ranges)
→ Turnthehousingsothatthelterelementpointsdownwardafter
the instrument is installed.This provides better protection against
buildup.
1
2
1
2
Fig. 12: Position of the lter element - gastight leadthrough
1 Filter element
2 Gas-tight leadthrough
Instruments with Second
Line of Defense

20
4 Mounting
VEGABAR 82 • 4 … 20 mA
45027-EN-170522
Thelterelementismountedintotheelectronicshousing.Ithasthe
following functions:
• Ventilation of the electronics housing
• Atmospheric pressure compensation (with relative pressure meas-
uring ranges)
→ Turnthehousingsothatthelterelementpointsdownwardafter
the instrument is installed.This provides better protection against
buildup.
1
Fig. 13: Position of the lter element - IP 69K version
1 Filter element
Instruments with absolute pressure have a blind plug mounted
insteadofthelterelement.
4.3 Process pressure measurement
Keep the following in mind when setting up the measuring system:
• Mount the instrument above the measuring point
Possiblecondensationcanthendrainointotheprocessline.
1
2
3
Fig. 14: Measurement setup for process pressure measurement of gases in
pipelines
1 VEGABAR 82
2 Blocking valve
3 Pipeline
Keep the following in mind when setting up the measuring system:
• Connect via a siphon
• Do not insulate the siphon
• Fill the siphon with water before setup
Instruments in IP 69K
version
Measurement setup in
gases
Measurement setup in
vapours
