Vega VEGABAR 51 User manual

Operating Instructions
VEGABAR 51
Foundation Fieldbus
Document ID:
36715
Process pressure

Contents
1About this document
1.1Function.................................. 4
1.2Target group .............................. 4
1.3Symbolism used............................ 4
2For your safety
2.1Authorised personnel ........................ 5
2.2Appropriate use ............................ 5
2.3Warning about misuse ....................... 5
2.4General safety instructions .................... 5
2.5Safety label on the instrument .................. 6
2.6CE conformity ............................. 6
2.7Measuring range -permissible process pressure . . . . 6
2.8Fulfillment of NAMUR recommendations .......... 6
2.9Safety instructions for Ex areas ................. 6
2.10 Safety instructions for oxygen applications ......... 6
2.11 Environmental instructions..................... 7
3Product description
3.1Structure ................................. 8
3.2Principle of operation ........................ 9
3.3Configuration .............................. 10
3.4Packaging,transport and storage ............... 10
3.5Accessories and replacement parts .............. 11
4Mounting
4.1General instructions ......................... 13
4.2Mounting steps............................. 15
4.3Mounting steps,tube isolating diaphragm.......... 16
4.4Mounting steps,external housing................ 16
5Connecting to power supply
5.1Preparing the connection ..................... 18
5.2Connection procedure........................ 19
5.3Wiring plan,single chamber housing ............. 21
5.4Wiring plan,double chamber housing ............ 22
5.5Wiring plan with double chamber housing Ex d . . . . . 24
5.6Wiring plan -version IP 66/IP 68,1bar ........... 26
5.7Wiring plan,external housing with version IP 68 . . . . . 26
5.8Switch on phase............................ 28
6Set up with the indicating and adjustment module PLICSCOM
6.1Short description ........................... 30
6.2Insert indicating and adjustment module........... 30
6.3Adjustment system .......................... 32
6.4Setup steps ............................... 33
6.5Menu schematic ............................ 42
6.6Saving the parameter adjustment data ............ 44
2VEGABAR 51 •Foundation Fieldbus
Contents
36715-EN-110629

7Set up with PACTware and other adjustment programs
7.1Connecting the PC .......................... 45
7.2Parameter adjustment with PACTware ............ 46
7.3Parameter adjustment with AMS™.............. 46
7.4Saving the parameter adjustment data ............ 46
8Maintenance and fault rectification
8.1Maintenance .............................. 47
8.2Fault rectification ........................... 47
8.3Exchanging the electronics module .............. 49
8.4Software update ............................ 49
8.5Instrument repair ........................... 50
9Dismounting
9.1Dismounting steps .......................... 51
9.2Disposal ................................. 51
10 Supplement
10.1Technical data ............................. 52
10.2Information on Foundation Fieldbus .............. 62
10.3Dimensions ............................... 66
Supplementary documentation
Information:
Supplementary documents appropriate to the ordered version come
with the delivery.You can find them listed in chapter "Product
description".
Editing status:2011-06-20
VEGABAR 51 •Foundation Fieldbus 3
Contents
36715-EN-110629

1About this document
1.1Function
This operating instructions manual provides all the information you
need for mounting,connection and setup as well as important
instructions for maintenance and fault rectification.Please read this
information before putting the instrument into operation and keep this
manual accessible in the immediate vicinity of the device.
1.2Target group
This operating instructions manual is directed to trained qualified
personnel.The contents of this manual should be made available to
these personnel and put into practice by them.
1.3Symbolism used
Information,tip,note
This symbol indicates helpful additional information.
Caution:If this warning is ignored,faults or malfunctions can
result.
Warning:If this warning is ignored,injury to persons and/or serious
damage to the instrument can result.
Danger:If this warning is ignored,serious injury to persons and/or
destruction of the instrument can result.
Exapplications
This symbol indicates special instructions for Ex applications.
lList
The dot set in front indicates a list with no implied sequence.
àAction
This arrow indicates a single action.
1Sequence
Numbers set in front indicate successive steps in a procedure.
4VEGABAR 51 •Foundation Fieldbus
1About this document
36715-EN-110629

2For your safety
2.1Authorised personnel
All operations described in this operating instructions manual must be
carried out only by trained specialist personnel authorised by the plant
operator.
During work on and with the device the required personal protective
equipment must always be worn.
2.2Appropriate use
VEGABAR 51 is a pressure transmitter for measurement of gauge
pressure,absolute pressure and vacuum.
You can find detailed information on the application range in chapter
"Product description".
Operational reliability is ensured only if the instrument is properly used
according to the specifications in the operating instructions manual as
well as possible supplementary instructions.
For safety and warranty reasons,any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer.Arbitrary
conversions or modifications are explicitly forbidden.
2.3Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards,e.g.vessel overfill or damage to system
components through incorrect mounting or adjustment.
2.4General safety instructions
This is a high-tech instrument requiring the strict observance of
standard regulations and guidelines.The user must take note of the
safety instructions in this operating instructions manual,the country-
specific installation standards as well as all prevailing safety
regulations and accident prevention rules.
The instrument must only be operated in a technically flawless and
reliable condition.The operator is responsible for trouble-free
operation of the instrument.
During the entire duration of use,the user is obliged to determine the
compliance of the necessary occupational safety measures with the
current valid rules and regulations and also take note of new
regulations.
VEGABAR 51 •Foundation Fieldbus 5
2For your safety
36715-EN-110629

2.5Safety label on the instrument
The safety approval markings and safety tips on the device must be
observed.
2.6CE conformity
This device fulfills the legal requirements of the applicable EC
guidelines.By attaching the CE mark,VEGA provides a confirmation
of successful testing.You can find the CE conformity declaration in the
download area of www.vega.com.
2.7Measuring range -permissible process pres-
sure
Due to the application,a measuring cell with a measuring range higher
than the permissible pressure range of the process pressure may have
been integrated.The permissible process pressure is stated with
"Process pressure"on the type label,see chapter 3.1"Configuration".
For safety reasons,this range must not be exceeded.
2.8Fulfillment of NAMUR recommendations
With respect to compatibility,the NAMUR recommendation NE 53 is
fulfilled.This applies also to the corresponding indicating and
adjustment components.VEGA instruments are generally upward and
downward compatible.
lSensor software to DTM VEGABAR 51
lDTM VEGABAR 51 for adjustment software PACTware
lIndicating and adjustment module for sensor software
The parameter adjustment of the basic sensor functions is independ-
ent of the software version.The range of available functions depends
on the respective software version of the individual components.
2.9Safety instructions for Ex areas
Please note the Ex-specific safety information for installation and
operation in Ex areas.These safety instructions are part of the
operating instructions manual and come with the Ex-approved
instruments.
2.10 Safety instructions for oxygen applications
For instruments in oxygen applications the special instructions in
chapters "Storage and transport","Mounting"as well as "Technical
data"under "Process conditions"must be noted.Furthermore the valid
national regulations,implementation instructions and memorandums
of the professional assocations must be noted.
6VEGABAR 51 •Foundation Fieldbus
2For your safety
36715-EN-110629

2.11 Environmental instructions
Protection of the environment is one of our most important duties.That
is why we have introduced an environment management system with
the goal of continuously improving company environmental protection.
The environment management system is certified according to DIN
EN ISO 14001.
Please help us fulfil this obligation by observing the environmental
instructions in this manual:
lChapter "Packaging,transport and storage"
lChapter "Disposal"
VEGABAR 51 •Foundation Fieldbus 7
2For your safety
36715-EN-110629

3Product description
3.1Structure
The scope of delivery encompasses:
lVEGABAR 51 pressure transmitter
lDocumentation
-this operating instructions manual
-Test certificate for pressure transmitters
-Ex specific safety instructions (with Ex versions), if necessary
further certificates
-Operating instructions manual 27835 "Indicating and adjust-
ment module PLICSCOM"(optional)
-Supplementary instructions manual 31708 "Heating for in-
dicating and adjustment module"(optional)
-Supplementary instructions manual "Plug connector for con-
tinuously measuring sensors"(optional)
The VEGABAR 51 consists of the components:
lProcess fitting with measuring cell
lHousing with electronics,optionally available with plug connector
lHousing cover,optionally available with indicating and adjustment
module
The components are available in different versions.
3
2
1
Fig.1:Example of a VEGABAR 51 with flange connection DN 50 PN 40 and
plastic housing
1Housing cover with integrated indicating and adjustment module (optional)
2Housing with electronics
3Process fitting with measuring cell
Scope of delivery
Constituent parts
8VEGABAR 51 •Foundation Fieldbus
3Product description
36715-EN-110629

The type label contains the most important data for identification and
use of the instrument:
2
1
11
10
5
4
3
6
7
8
9
Fig.2:Structure of the type label (example)
1Instrument type
2Product code
3Approvals
4Electronics
5Protection rating
6Measuring range
7Process and ambient temperature,process pressure
8Material,wetted parts
9Hardware and software version
10 Order number
11 Serial number of the instrument
12 ID numbers,instrument documentation
With the serial number,you can access the delivery data of the
instrument via www.vega.com,"VEGA Tools"and "serial number
search".In addition to the type label outside,you can also find the
serial number on the inside of the instrument.
Instruments in the version "Oil and grease-free for oxygen applica-
tions"or "Oil,grease and silicone-free for lacquers"are equipped with
an optional label.The optional label contains references to the oil,
grease and silicone-free parts of the instrument.
3.2Principle of operation
The VEGABAR 51 is a pressure transmitter with isolating diaphragm
for pressure measurement of highly corrosive and hot liquids.
Type label
Optional label
Application area
VEGABAR 51 •Foundation Fieldbus 9
3Product description
36715-EN-110629

The process pressure acts on the sensor element via the stainless
steel diaphragm.The process pressure causes a resistance change
which is converted into a corresponding output signal and outputted as
measured value.1)
Power is supplied via the H1Fieldbus.Atwo-wire cable according to
Fieldbus specification serves as carrier of both power and digital data
for multiple sensors.This cable can be operated in two versions:
lvia an H1interface card in the control system and additional power
supply
lvia a Linking device with HSE (High speed Ethernet)and
additional power supply according to IEC 61158-2
The DD (Device Descriptions)and CFF (capability files)necessary for
planning and configuration of your FF (Foundation Fieldbus)commu-
nication network are available in the download area of the VEGA
homepage www.vega.com under "Services -Downloads -Software -
Foundation Fieldbus".The appropriate certificates are also available
there.A CD with the appropriate files and certificates can be ordered
via e-mail under [e-mail] or by phone from one of the VEGA
agencies under the order number "DRIVER.S".
The backlight of the indicating and adjustment module is powered by
the sensor.Prerequisite is a certain level of operating voltage.
The data for power supply are specified in chapter "Technical data".
The optional heating requires its own operating voltage.You can find
details in the supplementary instructions manual "Heating for indicat-
ing and adjustment module".
This function is generally not available for approved instruments.
3.3Configuration
The instrument can be adjusted with the following adjustment media:
lwith indicating and adjustment module
lwith the suitable VEGA DTM in conjunction with an adjustment
software according to the FDT/DTM standard,e.g.PACTware and
PC
la configuration tool
3.4Packaging,transport and storage
The device was protected by packaging during transport.Its capacity
to handle normal loads during transport is assured by a test according
to DIN EN 24180.
1)Measuring ranges up to 16 bar:piezoresistive sensor element with internal
transmission liquid.Measuring ranges up to 25 bar:strain gauge (DMS)
sensor element on the rear of the stainless steel diaphragm (dry).
Functional principle
Power supply and bus
communication
DD/CFF
Packaging
10 VEGABAR 51 •Foundation Fieldbus
3Product description
36715-EN-110629

The packaging of standard instruments consists of environment-
friendly,recyclable cardboard.For special versions,PE foam or PE foil
is also used.Dispose of the packaging material via specialised
recycling companies.
Caution:
Instruments for oxygen applications are sealed in PE foil and provided
with a label "Oxygen!Use no Oil".Remove this foil just before
mounting the instrument!See instruction under "Mounting".
Transport must be carried out under consideration of the notes on the
transport packaging.Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt.Ascertained transit damage or
concealed defects must be appropriately dealt with.
Up to the time of installation,the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated,the packages must be stored only under
the following conditions:
lNot in the open
lDry and dust free
lNot exposed to corrosive media
lProtected against solar radiation
lAvoiding mechanical shock and vibration
lStorage and transport temperature see chapter "Supplement -
Technical data -Ambient conditions"
lRelative humidity 20 …85 %
3.5Accessories and replacement parts
The indicating and adjustment module PLICSCOM is used for
measured value indication,adjustment and diagnosis.It can be
inserted into the sensor and removed at any time.
You can find further information in the operating instructions "Indicating
and adjustment module PLICSCOM"(Document-ID 27835).
The interface adapter VEGACONNECT 4enables the connection of
communication-capable instruments to the USB interface of a PC.For
parameter adjustment of these instruments,an adjustment software
such as PACTware with VEGA-DTM is required.
You can find further information in the operating instructions "Interface
adapter VEGACONNECT"(Document-ID 32628).
Transport
Transport inspection
Storage
Storage and transport
temperature
Indicating and adjust-
ment module
Interface adapter
VEGABAR 51 •Foundation Fieldbus 11
3Product description
36715-EN-110629

VEGADIS 61 is suitable for external measured value indication and
adjustment of plics®sensors.It is connected to the sensor with an up
to 25 m long,four-wire,screened standard cable.
You can find further information in the operating instructions
"VEGADIS 61"(Document-ID 27720).
Flanges are available in different versions according to the following
standards:DIN 2501,EN 1092-1,ANSI B 16.5,JIS B 2210-1984,
GOST 12821-80.
You will find additional information in the supplementary instructions
manual "Flanges according to DIN-EN-ASME-JIS"(Document-ID
31088).
The measuring instrument holder is used for wall/tube mounting of
VEGABAR series 50 pressure transmitters and VEGAWELL 52
suspension pressure transmitters.Supplied reducers enable the
adaptation to different instrument diameters.The material used is
316L.
The protective cover protects the sensor housing against soiling and
intense heat from solar radiation.
You will find additional information in the supplementary instructions
manual "Protective cover"(Document-ID 34296).
The electronics module is a replacement part for pressure transmitter
VEGABAR.One version is available for each type of signal output.
You find further information in the operating instructions "Electronics
module VEGABAR series 50 and 60 "(Document-ID 30175).
External indicating and
adjustment unit
Flanges
Measuring instrument
holder
Protective cap
Electronics module
12 VEGABAR 51 •Foundation Fieldbus
3Product description
36715-EN-110629

4Mounting
4.1General instructions
Make sure that all parts of the instrument exposed to the process,in
particular the sensor element,process seal and process fitting,are
suitable for the existing process conditions.These include above all
the process pressure,process temperature as well as the chemical
properties of the medium.
You can find the specifications in chapter "Technical data"or on the
type label.
To protect the diaphragm,the process fitting is covered by a protective
cap.
Remove the protective cap just before installation so that the
diaphragm will not get damaged.It is recommended to keep the cap
and use it again later for storage or transport.
Select an installation position you can easily reach for mounting and
connecting as well as later retrofitting of an indicating and adjustment
module.The housing can be rotated by 330°without the use of any
tools.You can also install the indicating and adjustment module in four
different positions (each displaced by 90°).
Use the recommended cables (see chapter "Connecting to power
supply")and tighten the cable gland.
You can give your instrument additional protection against moisture
penetration by leading the connection cable downward in front of the
cable entry.Rain and condensation water can thus drain off.This
applies mainly to outdoor mounting as well as installation in areas
where high humidity is expected (e.g.through cleaning processes)or
on cooled or heated vessels.
Fig.3:Measures against moisture penetration
Suitability for the pro-
cess conditions
Diaphragm protection
Mounting position
Moisture
VEGABAR 51 •Foundation Fieldbus 13
4Mounting
36715-EN-110629

The ventilation of the electronics housing as well as the atmosperic
pressure compensation for the measuring cell are realised via a filter
element in the area of the cable gland.
2
1
2
1
2
1
1
2
Fig.4:Position of the filter element
1Filter element
2Blind stopper
Caution:
Due to the filter effect,the pressure compensation is time delayed.
When opening/closing the housing cover quickly,the measured value
can change for a period of approx.5s by up to 15 mbar.
Information:
Make sure that the filter element is always free of buildup during
operation.Ahigh-pressure cleaner may not be used for cleaning.
With instrument versions in protection IP 66/IP 68,1bar,the ventilation
is realised via the capillaries in the permanently connected cable.The
filter element is replaced by a blind stopper.
Higher process temperatures often mean also higher ambient
temperatures.Make sure that the upper temperature limits stated in
chapter "Technical data"for the environment of the electronics housing
and connection cable are not exceeded.
Ventilation and pressure
compensation
Temperature limits
14 VEGABAR 51 •Foundation Fieldbus
4Mounting
36715-EN-110629

1
2

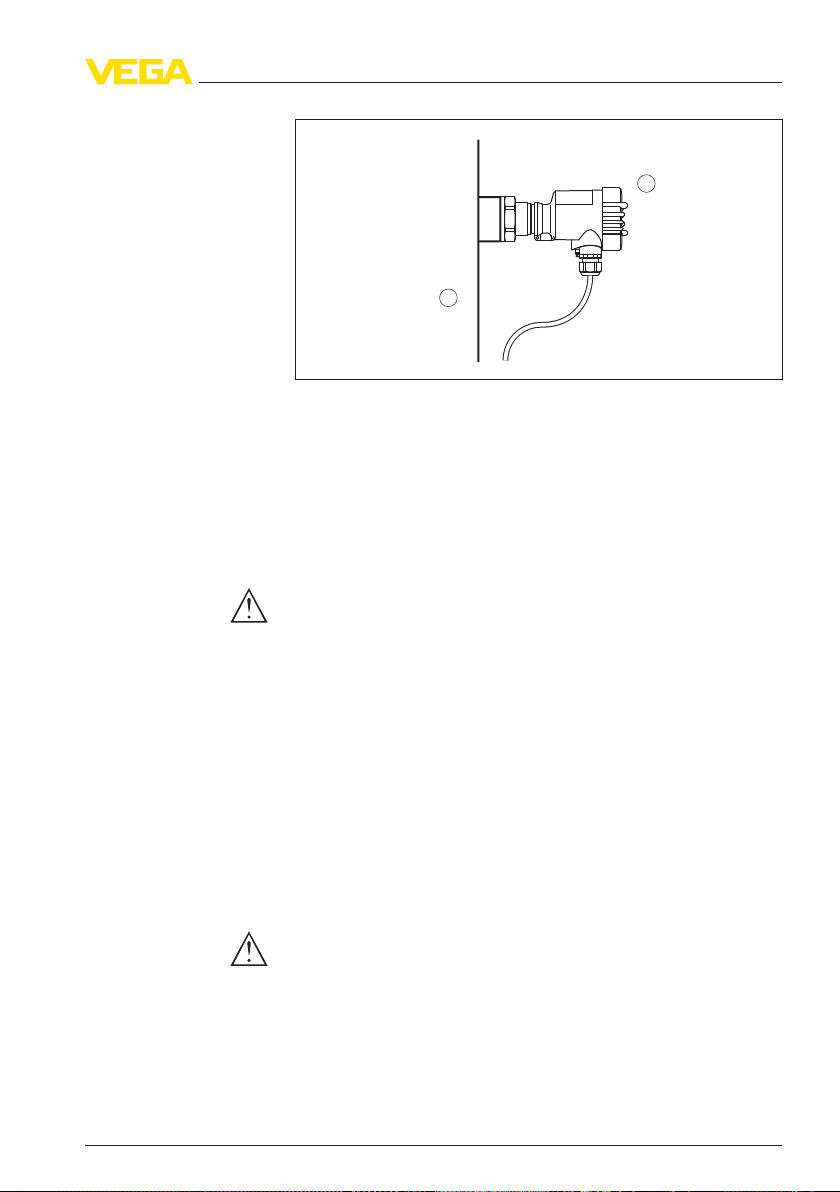

Fig.5:Temperature ranges
1Process temperature
2Ambient temperature
Instruments in the version "Oil and grease free for oxygen"should be
unpacked just before mounting.After the protective cover of the
process fitting has been removed,the label "O₂"on the process fitting
is visible.
Danger:
Avoid oil,grease or contamination.Explosion danger!
4.2Mounting steps
For mounting VEGABAR 51,a welded socket is required.You can find
these components in the supplementary instructions manual "Welded
socket and seals".
Seal the thread with teflon,hemp or a similar resistant seal material on
the process fitting thread 1½NPT.
àScrew VEGABAR 51 into the welded socket.Tighten the hexagon
on the process fitting with a suitable wrench.Wrench size,see
chapter "Dimensions".
Warning:
The housing must not be used to screw the instrument in!Applying
tightening force can damage internal parts of the housing.
Oxygen applications
Welding the socket
Sealing/Screwing in
threaded versions
VEGABAR 51 •Foundation Fieldbus 15
4Mounting
36715-EN-110629

4.3Mounting steps,tube isolating diaphragm
The isolating systems are temperature and pressure-aged at 80 °C
and 18 bar.The zero point is adjusted at 22 °C±2°Cand a torque of
275 Nm.The defined installation position is:Tube isolating diaphragm
horizontally,VEGABAR 51 vertically.
For mounting proceed as follows:
1Position VEGABAR 51 with tube isolating diaphragm
2Tighten the threaded fittings step-by-step once on the right and on
the left
3Hold VEGABAR 51,to avoid distortion from the defined installation
position.
Caution:
Apart from mounting,the tube isolating diaphragm must not be
permanently under torsion.
4Check current after mounting.The current must be between 3.9
and 4.1mA.In case of a deviating value,losen threaded fitting and
mount again.
Information:
By slightly increasing or reducing the torque,the current can be set
exactly to 20 mA.
4.4Mounting steps,external housing
1Mark the holes according to the following drilling template
2Depending on the mounting surface,fasten the wall mounting
plate with 4screws
Wall mounting
16 VEGABAR 51 •Foundation Fieldbus
4Mounting
36715-EN-110629

90 mm (3.54")
R 3,5 mm
(0.14")
3mm
(0.12")
70 mm (2.76") 8 mm
(0.32")
93 mm (3.66")
110 mm (4.33")

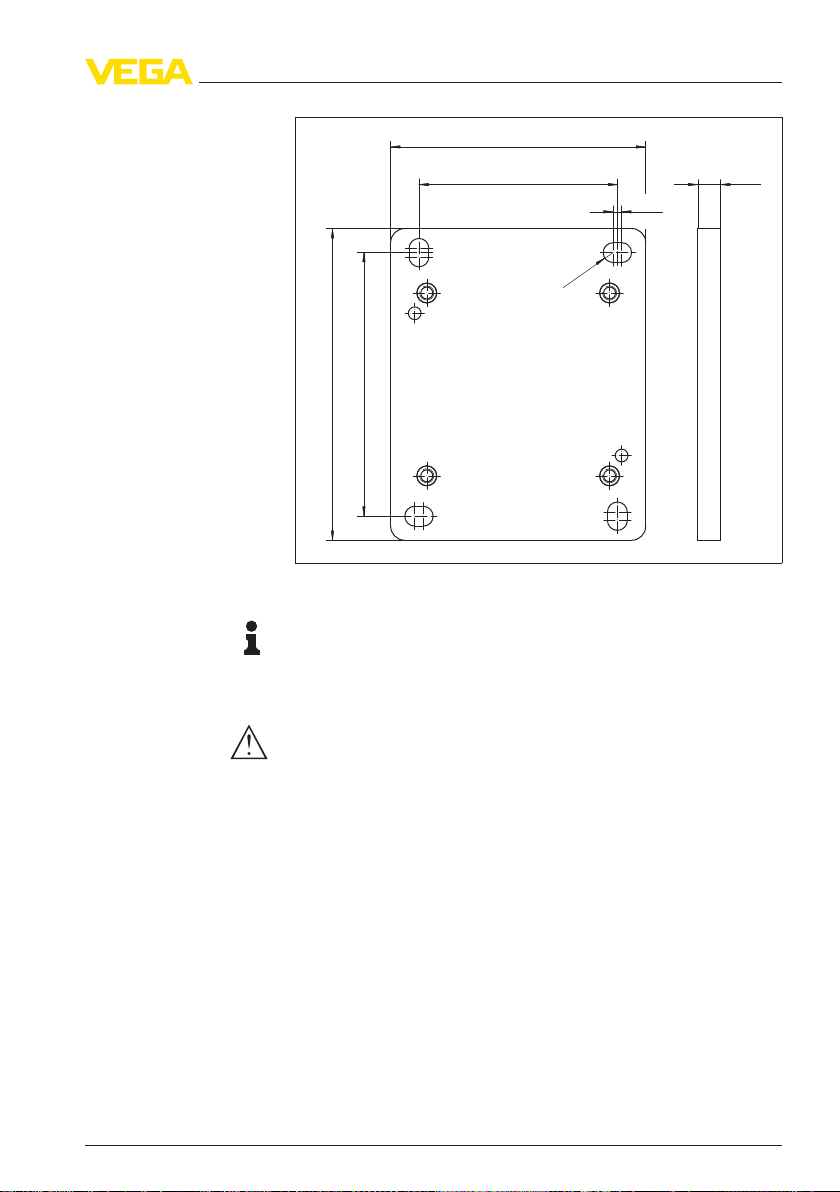

Fig.6:Drilling template -wall mounting plate
Tip:
Mount the wall mounting plate so that the cable entry of the socket
housing points downward.The socket housing can be displaced by
180°to the wall mounting plate.
Warning:
The four screws of the socket housing must only be hand screwed.A
torque >5Nm(3.688 lbf ft)can damage the wall mounting plate.
VEGABAR 51 •Foundation Fieldbus 17
4Mounting
36715-EN-110629

5Connecting to power supply
5.1Preparing the connection
Always keep in mind the following safety instructions:
lConnect only in the complete absence of line voltage
lIf overvoltage surges are expected,overvoltage arresters should
be installed according to Foundation Fieldbus specification
Tip:
We recommend VEGA overvoltage arrester B63-32.
Inhazardous areas you must take note of the respective regulations,
conformity and type approval certificates of the sensors and power
supply units.
The instrument requires a operating voltage of 9…32 V DC.
Operating voltage and the digital bus signal are carried on the same
two-wire connection cable.Power is supplied via the H1power supply.
Connection is carried out with screened cable according to Fieldbus
specification.
Use cable with round cross-section.Acable outer diameter of 5…9mm
(0.2…0.35 in)ensures the seal effect of the cable gland.If you are
using cable with a different diameter or cross-section,exchange the
seal or use a suitable cable gland.
Make sure that the entire installation is carried out according to the
Fieldbus specification.In particular,make sure that the bus is
terminated with suitable terminating resistors.
On the instrument with cable entry ½NPT and plastic housing there is
a metallic ½" threaded insert moulded into the plastic housing.
Caution:
Nogrease should be used when screwing the NPT cable gland or
steel tube into the threaded insert.Standard grease can contain
additives that corrode the connection between threaded insert and
housing.This would influence the stability of the connection and the
tightness of the housing.
In systems with potential equalisation,connect the cable screen
directly to ground potential at the power supply unit,in the connection
box and at the sensor.The screen in the sensor must be connected
directly to the internal ground terminal.The ground terminal outside on
the housing must be connected to the potential equalisation (low
impedance).
Safety instructions
Voltage supply
Connection cable
Cable gland ½NPT
Cable screening and
grounding
18 VEGABAR 51 •Foundation Fieldbus
5Connecting to power supply
36715-EN-110629

Insystems without potential equalisation,connect the cable screen
directly to ground potential at the power supply unit and at the sensor.
In the connection box or T-distributor,the screen of the short stub to
the sensor must not be connected to ground potential or to another
cable screen.The cable screens to the power supply unit and to the
next distributor must be connected to each other and also connected
to ground potential via a ceramic capacitor (e.g.1nF,1500 V). Low-
frequency potential equalisation currents are thus suppressed,but the
protective effect against high frequency interference signals remains.
The total capacitance of the cable and of all capacitors must not exceed
10 nFin Ex applications.
Take note of the corresponding installation regulations for Ex
applications.In particular,make sure that no potential equalisation
currents flow over the cable screen.In case of grounding on both sides
this can be achieved by the use of a capacitor or a separate potential
equalisation.
5.2Connection procedure
Proceed as follows:
1Unscrew the housing cover
2If an indicating and adjustment module is installed,remove it by
turning it slightly to the left.
3Loosen compression nut of the cable entry
4Remove approx.10 cm of the cable mantle,strip approx.1cm
insulation from the individual wires
5Insert the cable into the sensor through the cable entry
6Lift the opening levers of the terminals with a screwdriver (see
following illustration)
7Insert the wire ends into the open terminals according to the wiring
plan
8Press down the opening levers of the terminals,you will hear the
terminal spring closing
9Check the hold of the wires in the terminals by lightly pulling on
them
10 Connect the screen to the internal ground terminal,connect the
outer ground terminal to potential equalisation
11 Tighten the compression nut of the cable entry.The seal ring must
completely encircle the cable
12 Screw the housing cover on
Single/Double chamber
housing
VEGABAR 51 •Foundation Fieldbus 19
5Connecting to power supply
36715-EN-110629

The electrical connection is finished.
Fig.7:Connection steps 6and 7
Proceed as follows:
1Loosen the four screws on the housing base with an Allen key size
4
2Remove the housing socket from the mounting plate
3
2
1
Fig.8:Components of the external housing
1Screws
2Wall mounting plate
3Cable gland
IP 68 version with exter-
nal housing
20 VEGABAR 51 •Foundation Fieldbus
5Connecting to power supply
36715-EN-110629
