Vega VEGABAR 54 User manual

Operating Instructions
VEGABAR 54
Profibus PA
Document ID:
36729
Process pressure

Contents
1About this document
1.1Function.................................. 4
1.2Target group .............................. 4
1.3Symbolism used............................ 4
2For your safety
2.1Authorised personnel ........................ 5
2.2Appropriate use ............................ 5
2.3Warning about misuse ....................... 5
2.4General safety instructions . . . . . . . . . . . . . . . . . . . . 5
2.5Safety label on the instrument . . . . . . . . . . . . . . . . . . 6
2.6CE conformity ............................. 6
2.7Measuring range -permissible process pressure . . . . 6
2.8Fulfillment of NAMUR recommendations . . . . . . . . . . 6
2.9Safety instructions for Ex areas . . . . . . . . . . . . . . . . . 6
2.10 Environmental instructions..................... 6
3Product description
3.1Structure ................................. 7
3.2Principle of operation ........................ 8
3.3Operation................................. 9
3.4Packaging,transport and storage ............... 10
3.5Accessories and replacement parts . . . . . . . . . . . . . . 10
4Mounting
4.1General instructions ......................... 12
4.2Mounting steps............................. 12
4.3Mounting steps,external housing. . . . . . . . . . . . . . . . 13
5Connecting to power supply
5.1Preparing the connection ..................... 15
5.2Connection procedure........................ 16
5.3Wiring plan,single chamber housing . . . . . . . . . . . . . 18
5.4Wiring plan,double chamber housing . . . . . . . . . . . . 19
5.5Wiring plan -version IP 66/IP 68,1bar . . . . . . . . . . . 21
5.6Wiring plan,external housing with version IP 68 . . . . . 22
5.7Switch-on phase............................ 24
6Set up with the indicating and adjustment module PLICSCOM
6.1Short description ........................... 26
6.2Insert indicating and adjustment module. . . . . . . . . . . 26
6.3Adjustment system .......................... 28
6.4Setup steps ............................... 29
6.5Menu schematic ............................ 38
6.6Saving the parameter adjustment data . . . . . . . . . . . . 40
2VEGABAR 54 •Profibus PA
Contents
36729-EN-120324

7Set up with PACTware and other adjustment programs
7.1Connect the PC via VEGACONNECT . . . . . . . . . . . . 41
7.2Parameter adjustment with PACTware . . . . . . . . . . . . 42
7.3Parameter adjustment with PDM ................ 42
7.4Saving the parameter adjustment data . . . . . . . . . . . . 42
8Maintenance and fault rectification
8.1Maintenance .............................. 43
8.2Remove interferences ........................ 43
8.3Calculation of total deviation (according to DIN 16086). 45
8.4Exchanging the electronics module . . . . . . . . . . . . . . 47
8.5Software update ............................ 47
8.6Instrument repair ........................... 48
9Dismounting
9.1Dismounting steps .......................... 49
9.2Disposal ................................. 49
10 Supplement
10.1Technical data ............................. 50
10.2Information on Profibus PA .................... 60
10.3Dimensions ............................... 65
Supplementary documentation
Information:
Supplementary documents appropriate to the ordered version come
with the delivery.You can find them listed in chapter "Product
description".
Editing status:2012-03-09
VEGABAR 54 •Profibus PA 3
Contents
36729-EN-120324

1About this document
1.1Function
This operating instructions manual provides all the information you
need for mounting,connection and setup as well as important
instructions for maintenance and fault rectification.Please read this
information before putting the instrument into operation and keep this
manual accessible in the immediate vicinity of the device.
1.2Target group
This operating instructions manual is directed to trained qualified
personnel.The contents of this manual should be made available to
these personnel and put into practice by them.
1.3Symbolism used
Information,tip,note
This symbol indicates helpful additional information.
Caution:If this warning is ignored,faults or malfunctions can
result.
Warning:If this warning is ignored,injury to persons and/or serious
damage to the instrument can result.
Danger:If this warning is ignored,serious injury to persons and/or
destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
lList
The dot set in front indicates a list with no implied sequence.
àAction
This arrow indicates a single action.
1Sequence
Numbers set in front indicate successive steps in a procedure.
4VEGABAR 54 •Profibus PA
1About this document
36729-EN-120324

2For your safety
2.1Authorised personnel
All operations described in this operating instructions manual must be
carried out only by trained specialist personnel authorised by the plant
operator.
During work on and with the device the required personal protective
equipment must always be worn.
2.2Appropriate use
VEGABAR 54 is a pressure transmitter for measurement of gauge
pressure,absolute pressure and vacuum.
You can find detailed information on the application range in chapter
"Product description".
Operational reliability is ensured only if the instrument is properly used
according to the specifications in the operating instructions manual as
well as possible supplementary instructions.
For safety and warranty reasons,any invasive work on the device
beyond that described in the operating instructions manual may be
carried out only by personnel authorised by the manufacturer.Arbitrary
conversions or modifications are explicitly forbidden.
2.3Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards,e.g.vessel overfill or damage to system
components through incorrect mounting or adjustment.
2.4General safety instructions
This is a high-tech instrument requiring the strict observance of
standard regulations and guidelines.The user must take note of the
safety instructions in this operating instructions manual,the country-
specific installation standards as well as all prevailing safety
regulations and accident prevention rules.
The instrument must only be operated in a technically flawless and
reliable condition.The operator is responsible for trouble-free
operation of the instrument.
During the entire duration of use,the user is obliged to determine the
compliance of the necessary occupational safety measures with the
current valid rules and regulations and also take note of new
regulations.
VEGABAR 54 •Profibus PA 5
2For your safety
36729-EN-120324

2.5Safety label on the instrument
The safety approval markings and safety tips on the device must be
observed.
2.6CE conformity
This device fulfills the legal requirements of the applicable EC
guidelines.By attaching the CE mark,VEGA provides a confirmation
of successful testing.You can find the CE conformity declaration in the
download area of "www.vega.com".
2.7Measuring range -permissible process pres-
sure
Due to the application,a measuring cell with a measuring range higher
than the permissible pressure range of the process fitting may have
been integrated.The permissible process pressure is stated with
"Process pressure"on the type label,see chapter 3.1"Configuration".
For safety reasons,this range must not be exceeded.
2.8Fulfillment of NAMUR recommendations
The device fulfills the requirements of the applicable NAMUR
recommendations.
2.9Safety instructions for Ex areas
Please note the Ex-specific safety information for installation and
operation in Ex areas.These safety instructions are part of the
operating instructions manual and come with the Ex-approved
instruments.
2.10 Environmental instructions
Protection of the environment is one of our most important duties.That
is why we have introduced an environment management system with
the goal of continuously improving company environmental protection.
The environment management system is certified according to DIN
EN ISO 14001.
Please help us fulfil this obligation by observing the environmental
instructions in this manual:
lChapter "Packaging,transport and storage"
lChapter "Disposal"
6VEGABAR 54 •Profibus PA
2For your safety
36729-EN-120324

3Product description
3.1Structure
The scope of delivery encompasses:
lVEGABAR 54 pressure transmitter
lDocumentation
-this operating instructions manual
-Test certificate for pressure transmitters
-Test certificate
-Ex specific safety instructions (with Ex versions), if necessary
further certificates
-Operating instructions manual 27835 "Indicating and adjust-
ment module PLICSCOM"(optional)
-Supplementary instructions manual 31708 "Heating for in-
dicating and adjustment module"(optional)
-Supplementary instructions manual "Plug connector for con-
tinuously measuring sensors"(optional)
The VEGABAR 54 consists of the components:
lProcess fitting with measuring cell
lHousing with electronics,optionally available with plug connector
lHousing cover,optionally available with indicating and adjustment
module
The components are available in different versions.
1
2
3

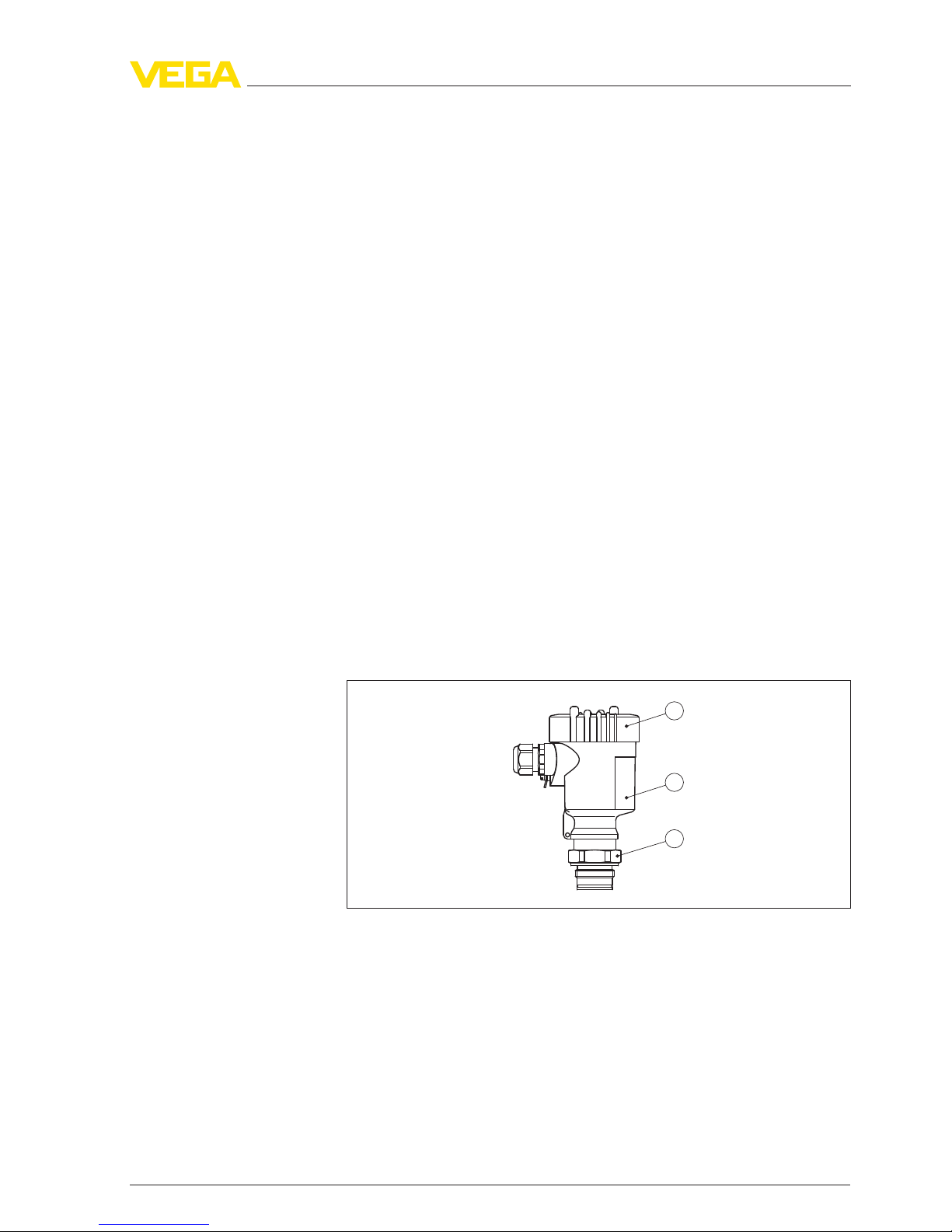

Fig.1:Example of a VEGABAR 54 with process fitting G1Aand plastic housing
1Housing cover with integrated PLICSCOM (optional)
2Housing with electronics
3Process fitting with measuring cell
Scope of delivery
Constituent parts
VEGABAR 54 •Profibus PA 7
3Product description
36729-EN-120324

The type label contains the most important data for identification and
use of the instrument:
2
1
11
10
5
4
3
6
7
8
9
Fig.2:Structure of the type label (example)
1Instrument type
2Product code
3Approvals
4Electronics
5Protection rating
6Measuring range
7Process and ambient temperature,process pressure
8Material,wetted parts
9Hardware and software version
10 Order number
11 Serial number of the instrument
12 ID numbers,instrument documentation
With the serial number,you can access the delivery data of the
instrument via www.vega.com,"VEGA Tools"and "serial number
search".In addition to the type label outside,you can also find the
serial number on the inside of the instrument.
This operating instructions manual applies to the following instrument
versions:
lSoftware from 3.82
3.2Principle of operation
VEGABAR 54 is a pressure transmitter for use in the paper,food
processing and pharmaceutical industries as well as in water/sewage
water plants.Depending on the version,it is used for level,gauge,
absolute pressure or vacuum measurement.Measured products are
gases,vapours and liquids,also those containing abrasive substan-
ces.
Type label
Scope of the operating
instructions manual
Application area
8VEGABAR 54 •Profibus PA
3Product description
36729-EN-120324

Sensor element is the CERTEC
®
measuring cell with robust,
dependent on the process fitting also front-flush,abrasion-resistant
ceramic diaphragm.The process pressure causes a capacitance
change in the measuring cell via the ceramic diaphragm.This change
is converted into an appropriate output signal and outputted as
measured value.
The CERTEC
®
measuring cell is also equipped with a temperature
sensor.The temperature value can be displayed via the indicating and
adjustment module as well as processed via the signal output (with
digital versions).
As a standard feature,the CERTEC
®
measuring cell is equipped with
a lateral,recessed seal.
Instruments with double seal have an additional front seal.
Instruments with hygienic fitting are equipped with a gap-free form
seal.
Power supply via the Profibus DP/PA segment coupler or VEGALOG
571 EP cards.Atwo-wire cable according to Profibus specification
serves as carrier of both power and digital data transmission for
multiple sensors.The instrument profile of VEGABAR 54 corresponds
to profile specification version 3.0.
The backlight of the indicating and adjustment module is powered by
the sensor.Prerequisite is a certain level of operating voltage.
The data for power supply are specified in chapter "Technical data".
The optional heating requires its own operating voltage.You can find
details in the supplementary instructions manual "Heating for indicat-
ing and adjustment module".
This function is generally not available for approved instruments.
The GSD (instrument master files)and bitmap files necessary for
planning your Profibus-DP-(PA)communication network are available
from the download section on the VEGA homepage www.vega.com
under "Services -Downloads -Software -Profibus".There you can
also find the appropriate certificates.In a PDM environment,an EDD
(Electronic Device Description)is also required to enable the full range
of sensor functions (also available as a download).A CD with the
appropriate files can be ordered via e-mail under [e-mail] or
by phone from one of the VEGA agencies under the order number
"DRIVER.S".
3.3Operation
The instrument can be adjusted with the following adjustment media:
lWith indicating and adjustment module
Functional principle
Seal concept
Power supply and bus
communication
GSD/EDD
VEGABAR 54 •Profibus PA 9
3Product description
36729-EN-120324

lwith the suitable VEGA DTM in conjunction with an adjustment
software according to the FDT/DTM standard,e.g.PACTware and
PC
lwith the adjustment program PDM
3.4Packaging,transport and storage
Your instrument was protected by packaging during transport.Its
capacity to handle normal loads during transport is assured by a test
according to DIN EN 24180.
The packaging of standard instruments consists of environment-
friendly,recyclable cardboard.For special versions,PE foam or PE foil
is also used.Dispose of the packaging material via specialised
recycling companies.
Transport must be carried out under consideration of the notes on the
transport packaging.Nonobservance of these instructions can cause
damage to the device.
The delivery must be checked for completeness and possible transit
damage immediately at receipt.Ascertained transit damage or
concealed defects must be appropriately dealt with.
Up to the time of installation,the packages must be left closed and
stored according to the orientation and storage markings on the
outside.
Unless otherwise indicated,the packages must be stored only under
the following conditions:
lNot in the open
lDry and dust free
lNot exposed to corrosive media
lProtected against solar radiation
lAvoiding mechanical shock and vibration
lStorage and transport temperature see chapter "Supplement -
Technical data -Ambient conditions"
lRelative humidity 20 …85 %
3.5Accessories and replacement parts
The indicating and adjustment module PLICSCOM is used for
measured value indication,adjustment and diagnosis.It can be
inserted into the sensor and removed at any time.
You can find further information in the operating instructions "Indicating
and adjustment module PLICSCOM"(Document-ID 27835).
Packaging
Transport
Transport inspection
Storage
Storage and transport
temperature
Indicating and adjust-
ment module
10 VEGABAR 54 •Profibus PA
3Product description
36729-EN-120324

The interface adapter VEGACONNECT 4enables the connection of
communication-capable instruments to the USB interface of a PC.For
parameter adjustment of these instruments,an adjustment software
such as PACTware with VEGA-DTM is required.
You can find further information in the operating instructions "Interface
adapter VEGACONNECT"(Document-ID 32628).
VEGADIS 61 is suitable for external measured value indication and
adjustment of plics®sensors.It is connected to the sensor with an up
to 25 m long,four-wire,screened standard cable.
You can find further information in the operating instructions
"VEGADIS 61"(Document-ID 27720).
Flanges are available in different versions according to the following
standards:DIN 2501,EN 1092-1,ANSI B 16.5,JIS B 2210-1984,
GOST 12821-80.
You can find additional information in the supplementary instructions
manual "Flanges according to DIN-EN-ASME-JIS"(Document-ID
31088).
The measuring instrument holder is used for wall/tube mounting of
VEGABAR series 50 pressure transmitters and VEGAWELL 52
suspension pressure transmitters.Supplied reducers enable the
adaptation to different instrument diameters.The material used is
316L.
The protective cover protects the sensor housing against soiling and
intense heat from solar radiation.
You will find additional information in the supplementary instructions
manual "Protective cover"(Document-ID 34296).
The electronics module is a replacement part for pressure transmitter
VEGABAR.One version is available for each type of signal output.
You find further information in the operating instructions "Electronics
module VEGABAR series 50 and 60 "(Document-ID 30175).
Interface adapter
External indicating and
adjustment unit
Flanges
Measuring instrument
holder
Protective cover
Electronics module
VEGABAR 54 •Profibus PA 11
3Product description
36729-EN-120324

4Mounting
4.1General instructions
Make sure that all parts of the instrument exposed to the process,in
particular the sensor element,process seal and process fitting,are
suitable for the existing process conditions.These include above all
the process pressure,process temperature as well as the chemical
properties of the medium.
You can find the specifications in chapter "Technical data"and on the
type label.
Select an installation position you can easily reach for mounting and
connecting as well as later retrofitting of an indicating and adjustment
module.The housing can be rotated by 330°without the use of any
tools.You can also install the indicating and adjustment module in four
different positions (each displaced by 90°).
Use the recommended cables (see chapter "Connecting to power
supply")and tighten the cable gland.
You can give your instrument additional protection against moisture
penetration by leading the connection cable downward in front of the
cable entry.Rain and condensation water can thus drain off.This
applies mainly to outdoor mounting as well as installation in areas
where high humidity is expected (e.g.through cleaning processes)or
on cooled or heated vessels.

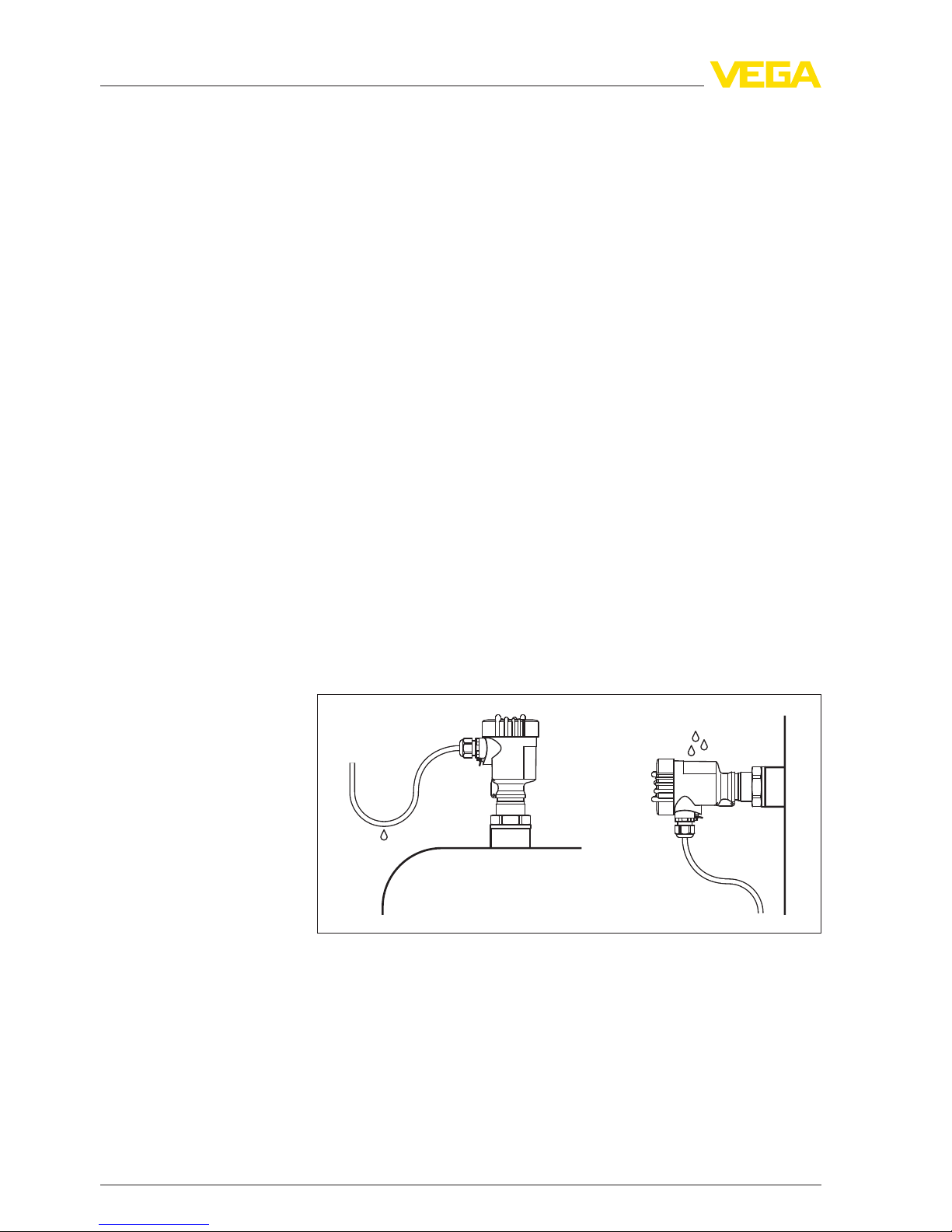

Fig.3:Measures against moisture penetration
4.2Mounting steps
For mounting VEGABAR 54,a welded socket is required.You can find
these components in the supplementary instructions manual "Welded
socket and seals".
Suitability for the pro-
cess conditions
Mounting position
Moisture
Welding the socket
12 VEGABAR 54 •Profibus PA
4Mounting
36729-EN-120324

Seal the thread with teflon,hemp or a similar resistant seal material on
the process fitting thread 1½NPT.
àScrew VEGABAR 54 into the welded socket.Tighten the hexagon
on the process fitting with a suitable wrench.Wrench size,see
chapter "Dimensions".
Warning:
The housing must not be used to screw the instrument in!Applying
tightening force can damage internal parts of the housing.
Seal the flange connections according to DIN/ANSI with a suitable,
resistant seal and mount VEGABAR 54 with suitable screws.
Use the seal corresponding to the instrument.
àShift VEGABAR 54 with PMC connection into the socket and
fasten with two screws M8x10.
4.3Mounting steps,external housing
1Mark the holes according to the following drilling template
2Depending on the mounting surface,fasten the wall mounting
plate with 4screws
90 mm (3.54")
R 3,5 mm
(0.14")
3mm
(0.12")
70 mm (2.76") 8 mm
(0.32")
93 mm (3.66")
110 mm (4.33")
Fig.4:Drilling template -wall mounting plate
Sealing/Screwing in
threaded versions
Sealing/Screwing in
flange versions
Mounting,socket ver-
sions
Wall mounting
VEGABAR 54 •Profibus PA 13
4Mounting
36729-EN-120324

Tip:
Mount the wall mounting plate so that the cable entry of the socket
housing points downward.The socket housing can be displaced by
180°to the wall mounting plate.
Warning:
The four screws of the socket housing must only be hand screwed.A
torque >5Nm(3.688 lbf ft)can damage the wall mounting plate.
14 VEGABAR 54 •Profibus PA
4Mounting
36729-EN-120324

5Connecting to power supply
5.1Preparing the connection
Always keep in mind the following safety instructions:
lConnect only in the complete absence of line voltage
lIf voltage surges are expected,overvoltage arresters should be
installed according to Profibus specifications
Tip:
We recommend VEGA overvoltage arrester B63-32.
In hazardous areas you must take note of the respective regulations,
conformity and type approval certificates of the sensors and power
supply units.
Power is supplied via a Profibus DP/PA segment coupler or a
VEGALOG 571 EP input card.The power supply range can differ
depending on the instrument version.
The data for power supply are specified in chapter "Technical data".
Connection is made with screened cable according to the Profibus
specification.Power supply and digital bus signal are carried over the
same two-wire connection cable.
Use cable with round cross-section.Acable outer diameter of 5…9mm
(0.2…0.35 in)ensures the seal effect of the cable gland.If you are
using cable with a different diameter or cross-section,exchange the
seal or use a suitable cable gland.
Please make sure that your installation is carried out according to the
Profibus specification.In particular,make sure that the termination of
the bus is done with appropriate terminating resistors.
On the instrument with cable entry ½NPT and plastic housing there is
a metallic ½" threaded insert moulded into the plastic housing.
Caution:
No grease should be used when screwing the NPT cable gland or
steel tube into the threaded insert.Standard grease can contain
additives that corrode the connection between threaded insert and
housing.This would influence the stability of the connection and the
tightness of the housing.
With systems with potential equalisation,connect the cable screen
directly to ground potential at the power supply unit,in the connection
box and at the sensor.The screen in the sensor must be connected
directly to the internal ground terminal.The ground terminal outside on
the housing must be connected to the potential equalisation (low
impedance).
Safety instructions
Voltage supply
Connection cable
Cable gland ½NPT
Cable screening and
grounding
VEGABAR 54 •Profibus PA 15
5Connecting to power supply
36729-EN-120324

In systems without potential equalisation,connect the cable screen
directly to ground potential at the power supply unit and at the sensor.
In the connection box or T-distributor,the screen of the short stub to
the sensor must not be connected to ground potential or to another
cable screen.The cable screens to the power supply unit and to the
next distributor must be connected to each other and also connected
to ground potential via a ceramic capacitor (e.g.1nF,1500 V). Low-
frequency potential equalisation currents are thus suppressed,but the
protective effect against high frequency interference signals remains.
The total capacitance of the cable and of all capacitors must not exceed
10 nFin Ex applications.
Take note of the corresponding installation regulations for Ex
applications.In particular,make sure that no potential equalisation
currents flow over the cable screen.In case of grounding on both sides
this can be achieved by the use of a capacitor or a separate potential
equalisation.
5.2Connection procedure
Proceed as follows:
1Unscrew the housing cover
2If an indicating and adjustment module is installed,remove it by
turning it to the left.
3Loosen compression nut of the cable entry
4Remove approx.10 cm of the cable mantle,strip approx.1cm
insulation from the individual wires
5Insert the cable into the sensor through the cable entry
6Lift the opening levers of the terminals with a screwdriver (see
following illustration)
7Insert the wire ends into the open terminals according to the wiring
plan
8Press down the opening levers of the terminals,you will hear the
terminal spring closing
9Check the hold of the wires in the terminals by lightly pulling on
them
10 Connect the screen to the internal ground terminal,connect the
outer ground terminal to potential equalisation
11 Tighten the compression nut of the cable entry.The seal ring must
completely encircle the cable
12 Screw the housing cover back on
Single/Double chamber
housing
16 VEGABAR 54 •Profibus PA
5Connecting to power supply
36729-EN-120324

The electrical connection is finished.
Fig.5:Connection steps 6and 7
Proceed as follows:
1Loosen the four screws on the housing base with an Allen key size
4
2Remove the housing socket from the mounting plate
3
2
1
Fig.6:Components of the external housing
1Screws
2Wall mounting plate
3Cable gland
IP 68 version with exter-
nal housing
VEGABAR 54 •Profibus PA 17
5Connecting to power supply
36729-EN-120324

3Loop the connection cable through the cable entry on the housing
base1)
Information:
The cable gland can be mounted in three positions each displaced by
90°.Simply exchange the cable gland against the blind plug in the
suitable thread opening.
4Connect the wire ends as described under "Single/Double
chamber housing"according to the numbering
5Connect the screen to the internal ground terminal,connect the
outer ground terminal above on the housing to potential equal-
isation
6Tighten the compression nut of the cable entry.The seal ring must
completely encircle the cable
7Attach the mounting plate again and tighten the screws
The electrical connection of the sensor to the external housing is
finished.
5.3Wiring plan,single chamber housing
The following illustrations apply to the non-Ex as well as to the Ex-ia
version.
1)The connection cable is already preconfectioned.If necessary,shorten it to
the requested length,cut the breather capillaries clean.Remove approx.
5cm of the cable mantle,strip approx.1cm insulation from the ends of the
individual wires.After shortening the cable,fasten the type plate with sup-
port back onto the cable.
18 VEGABAR 54 •Profibus PA
5Connecting to power supply
36729-EN-120324

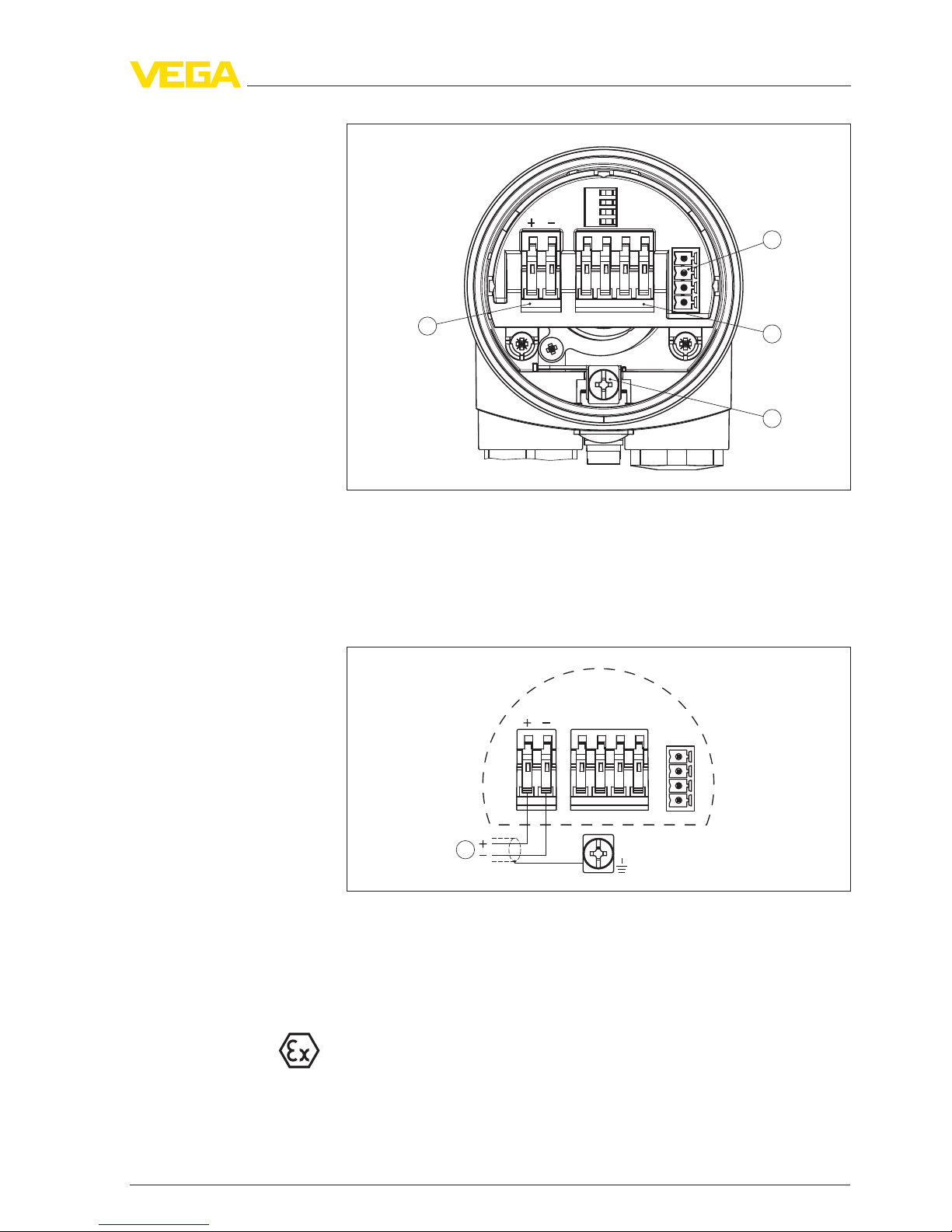

I²C
Display
1 2 5 6 7 8
3
4
1
2
Fig.7:Electronics and connection compartment,single chamber housing
1Plug connector for VEGACONNECT (I²Cinterface)
2Spring-loaded terminals for connection of the external indication VEGADIS
61
3Ground terminal for connection of the cable screen
4Spring-loaded terminals for voltage supply
I2C
Display
1
1 2 5 6 7 8
Fig.8:Wiring plan,single chamber housing
1Voltage supply,signal output
5.4Wiring plan,double chamber housing
The following illustrations apply to the non-Ex as well as to the Ex-ia
version.
Electronics and connec-
tion compartment
Wiring plan
VEGABAR 54 •Profibus PA 19
5Connecting to power supply
36729-EN-120324

1
32
Display
1 2 5 6 7 8
I2C

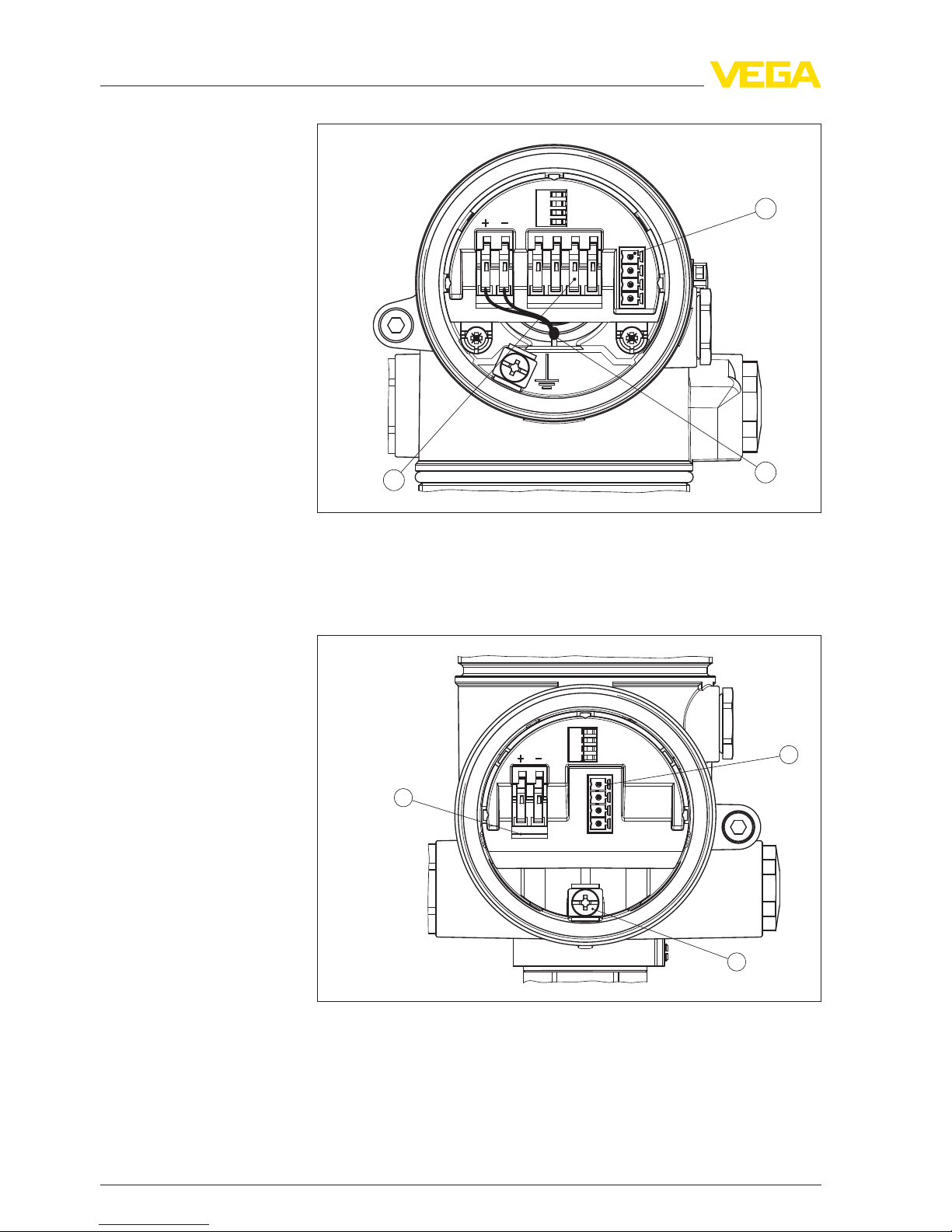

Fig.9:Electronics compartment,double chamber housing
1Plug connector for VEGACONNECT (I²Cinterface)
2Internal connection cable to the connection compartment
3Terminals for VEGADIS 61
1
2
3
Display
1 2 I2C
Fig.10:Connection compartment double chamber housing
1Spring-loaded terminals for voltage supply
2Plug connector for VEGACONNECT (I²Cinterface)
3Ground terminal for connection of the cable screen
Electronics compart-
ment
Connection compart-
ment
20 VEGABAR 54 •Profibus PA
5Connecting to power supply
36729-EN-120324
