Verano DROP-ARM AWNING V120 NAPOLI User manual

INSTALLATION MANUAL
DROP-ARM AWNING V120 - NAPOLI

INSTALLATION MANUAL
DROP-ARM AWNING V120 - NAPOLI
13227648-190828EN
1
Subject to misprints, errors and technical modifications.
Content

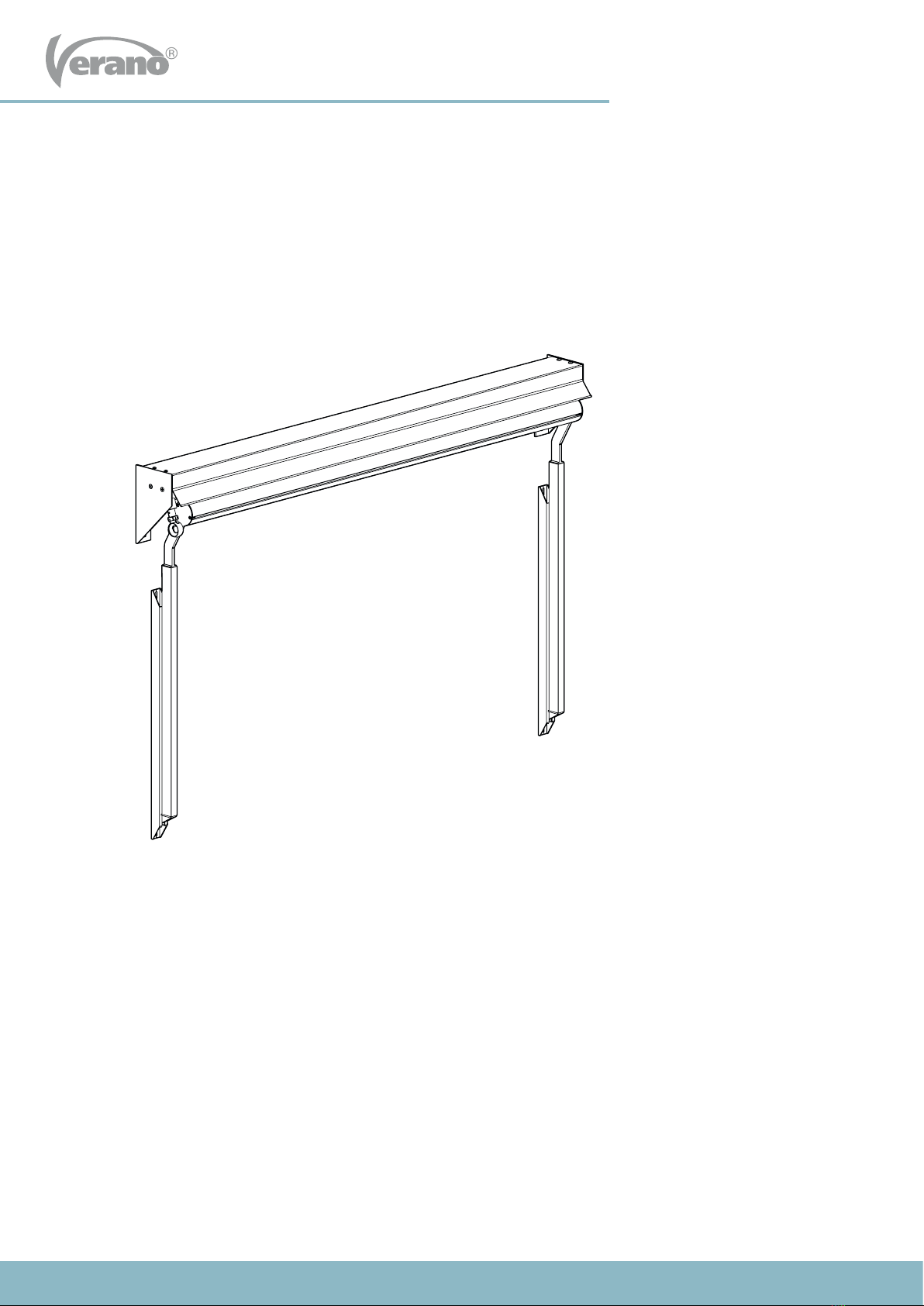

1. Drop-arm awning *
2. Control
a. Manual control: crank handle
b. Manual control: strap coiler
c. Electrical control: switch + plug
d. Remote control: remote control + plug
* Depicted awning has manual control
Necessary tools
• Drilling machine
• Masonry drill
• Crosshead screwdriver
• Socket wrench
• Allen key set
• Rattle with extension piece, cap
• Tapeline
• Level
• Pencil
In case of electrical control:
• Shears
• Flathead screwdriver
2
1

INSTALLATION MANUAL
DROP-ARM AWNING V120 - NAPOLI
13227648-190828EN
2
Subject to misprints, errors and technical modifications.
Important before installation
Be careful for damages
Don’t use a knife or any other sharp object when opening the packing. This may cause damage to the content
of the package.
Put the content of the package on a so surface. Be careful when drilling, falling drill cuttings can cause damages.
Check if the window frame or façade is at and smooth.
General warning
Installing the Verano® product yourself is at your own risk. Only use this instruction as a tool and for the installation
of this specic Verano® product.
If you cannot install the product yourself, you can always opt for professional installation. The installation team
of Verano® is pleased to help you.

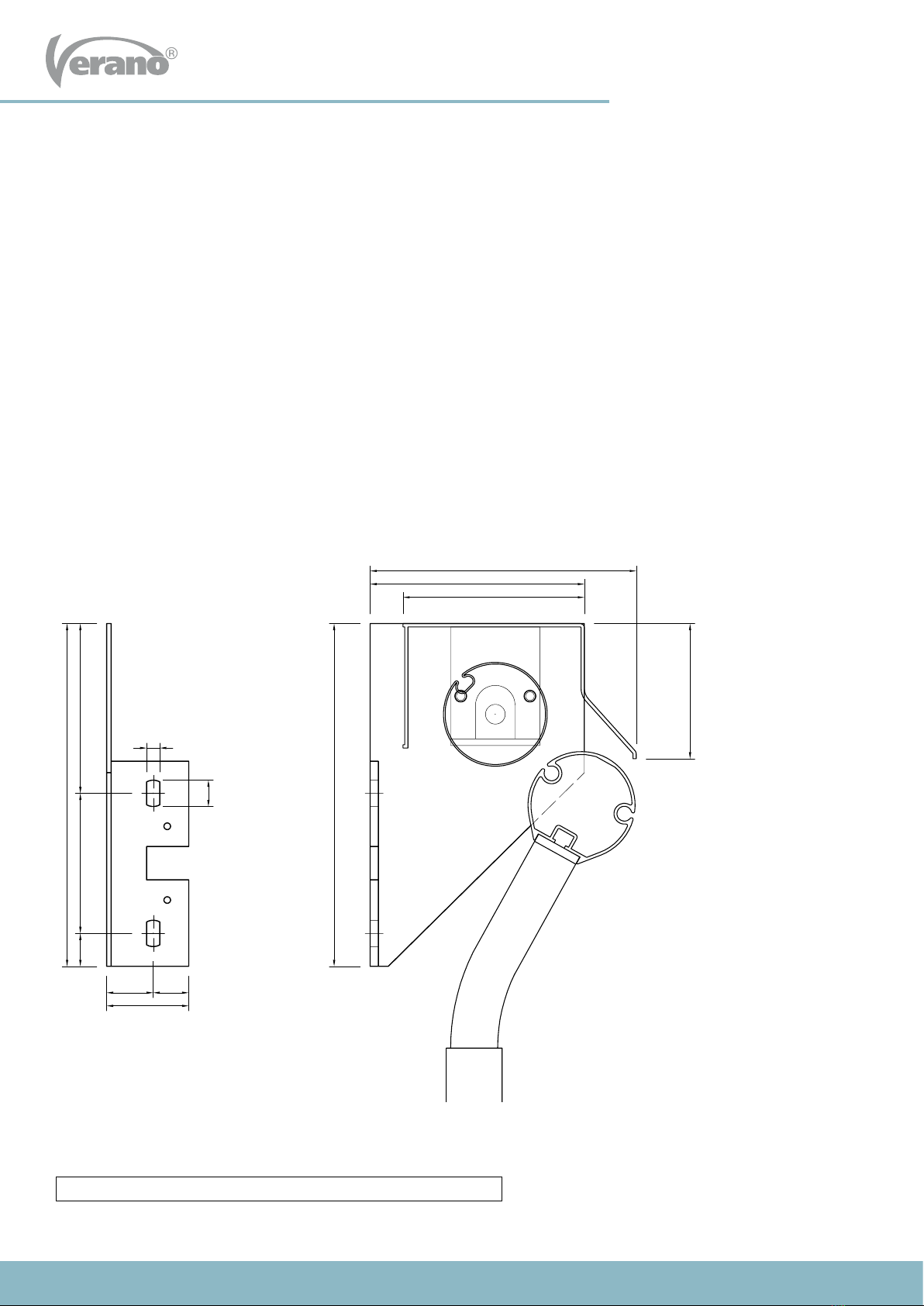

Specications V120 - Napoli
82
110
130
160
28
50
22
20 85 103
208
8
16
208
wall support awning cross section
Installation
Width (W)
minimal 2000 mm maximal 10000 mm
Measurements in mm

INSTALLATION MANUAL
DROP-ARM AWNING V120 - NAPOLI
13227648-190828EN
3
Subject to misprints, errors and technical modifications.

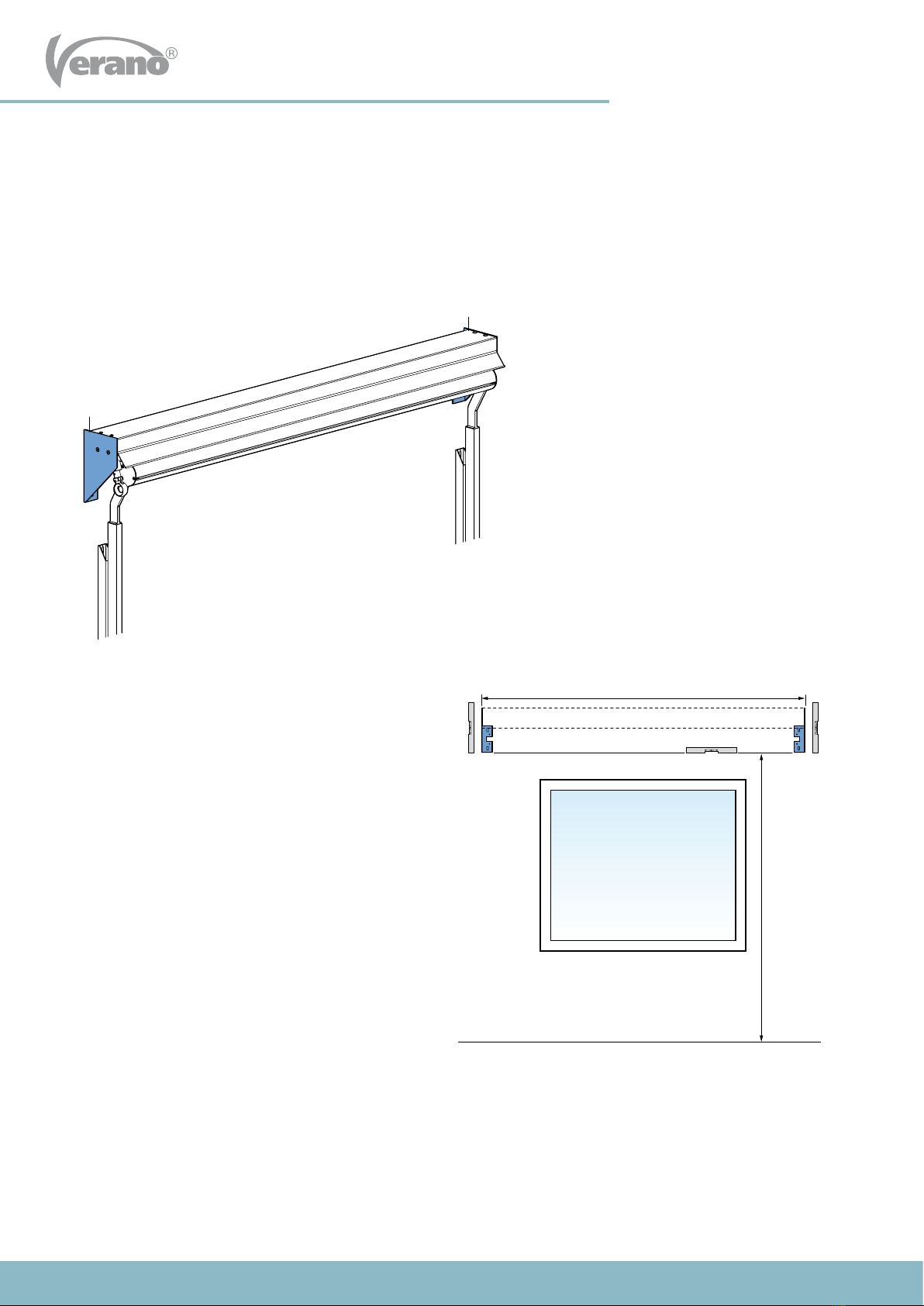

1.1 Marking the holes for the wall supports
The two wall supports (A) need to be levelled, both horizontal and vertical. See gure 1.1 and 1.2. They need to
be installed to the wall in one line. If the wall supports are not levelled (unequal position of the arms as a result),
the awning will not function well.
Precisely mark the drill holes for the wall supports (A)
on the wall according to size X and size Y in gure 1.2.
Make sure that the installation holes on top are in the
middle of the stone.
X
Y
AA
g. 1.2 Placement of the wall supports
g. 1.1 Wall supports drop-arm awning
1. Wall installation
X = awning width
Y = window frame plus minimal 30 cm
A = wall supports
A
A
1.2 Drilling the holes
Drill the installation holes. We advise to use a masonry drill if the wall is made of stone or concrete. Use matching,
high quality plugs and bolts (standard A2 or for a sea climate A4). Install the awning to the wall and xate the bolts
in the wall supports (A). Use a rattle with extension piece.

INSTALLATION MANUAL
DROP-ARM AWNING V120 - NAPOLI
13227648-190828EN
4
Subject to misprints, errors and technical modifications.
1.3 Drilling the hole for control
1. Carefully mark the extension hole where the cable or strap needs to go inside for the control.
- Cable: the hole needs to be exactly at the same height as where the cable comes out of the box.
- Strap: use the cle in the wall support (g. 1.4).
Drill the hole for the wall lead-through.
Before drilling, check if there are no pipes or other obstacles in the wall. Always use a shelf inside the wall
to prevent damages to the plaster.
- Lead-through for the pull-up strap: 20 mm (drill 10 mm, aer that 20 mm).
- Lead-through for electrical cable: 10 mm.

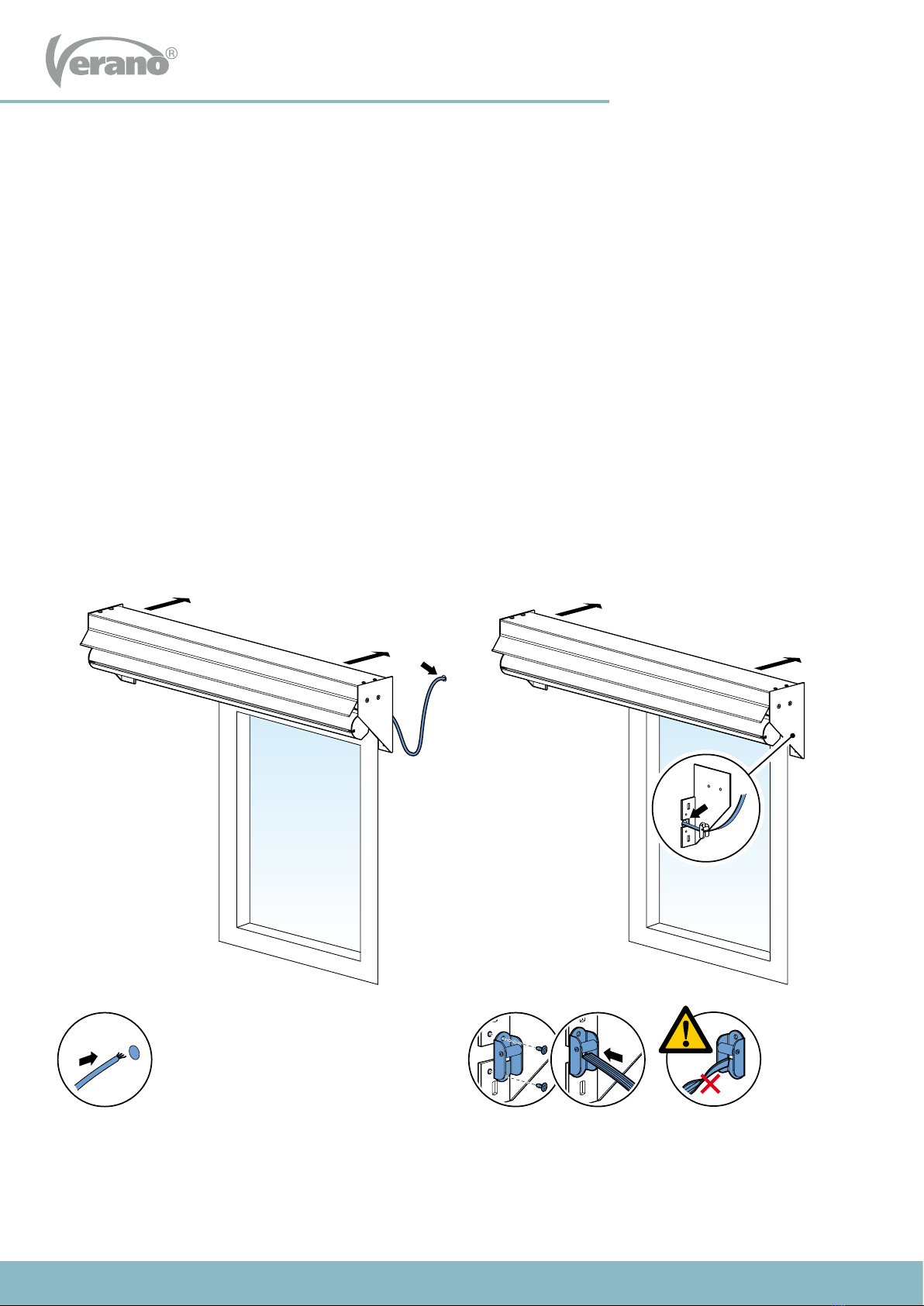

1.4 Installation of the awning with inside control
1. Hang the awning in the wall supports. See gure 1.3 for electrical control or 1.4 for strap control.
2. Cable: lead the electrical cable inside through the drill lead-through hole.
Strap: install the strap guide to the wall support with the pulley on top. Guide the strap inside
through the strap guide and the drilled lead-through hole.
band
12
snoer band
12
snoer
g. 1.3 Hanging a motorized awning
Cable Strap
g. 1.4 Hanging an awning with inside strap control

INSTALLATION MANUAL
DROP-ARM AWNING V120 - NAPOLI
13227648-190828EN
5
Subject to misprints, errors and technical modifications.
2.1 Marking the holes for the drop-arms
Mark the drop-arms following the drawing below. The drop-arms need to be placed in one line. If the positions
of the drop-arms are not levelled, the awning will not function well. The pictured sizes are the minimal sizes that
the drop-arm needs to fall inside the drop-arm awning.
2.2 Drilling the holes
Drill the installation holes. We advise to use a masonry drill if the wall is made of stone or concrete. Use matching,
high quality plugs and bolts (standard A2 or for a sea climate A4). Install the drop-arm to the wall by rst xing it on
the bottom side (g 2.2).
Remove the tape from the arm (g 2.3). Attention! The arm is under tension and will unfold immediately!
Fixate the top side (g. 2.4).
2. Installation of the drop-arms
g. 2.1 Measuring the drop-arms
g. 2.2 Fixate the bottom of the drop-arm g. 2.3 Remove the tape g. 2.4 Fixate the top of the drop-arm
Control side
Manual outside: 48 mm
Manual inside: 13 mm
Electrical: 13 mm
Projection + 120 mm =
Bottom arm guide
13 mm

INSTALLATION MANUAL
DROP-ARM AWNING V120 - NAPOLI
13227648-190828EN
6
Subject to misprints, errors and technical modifications.

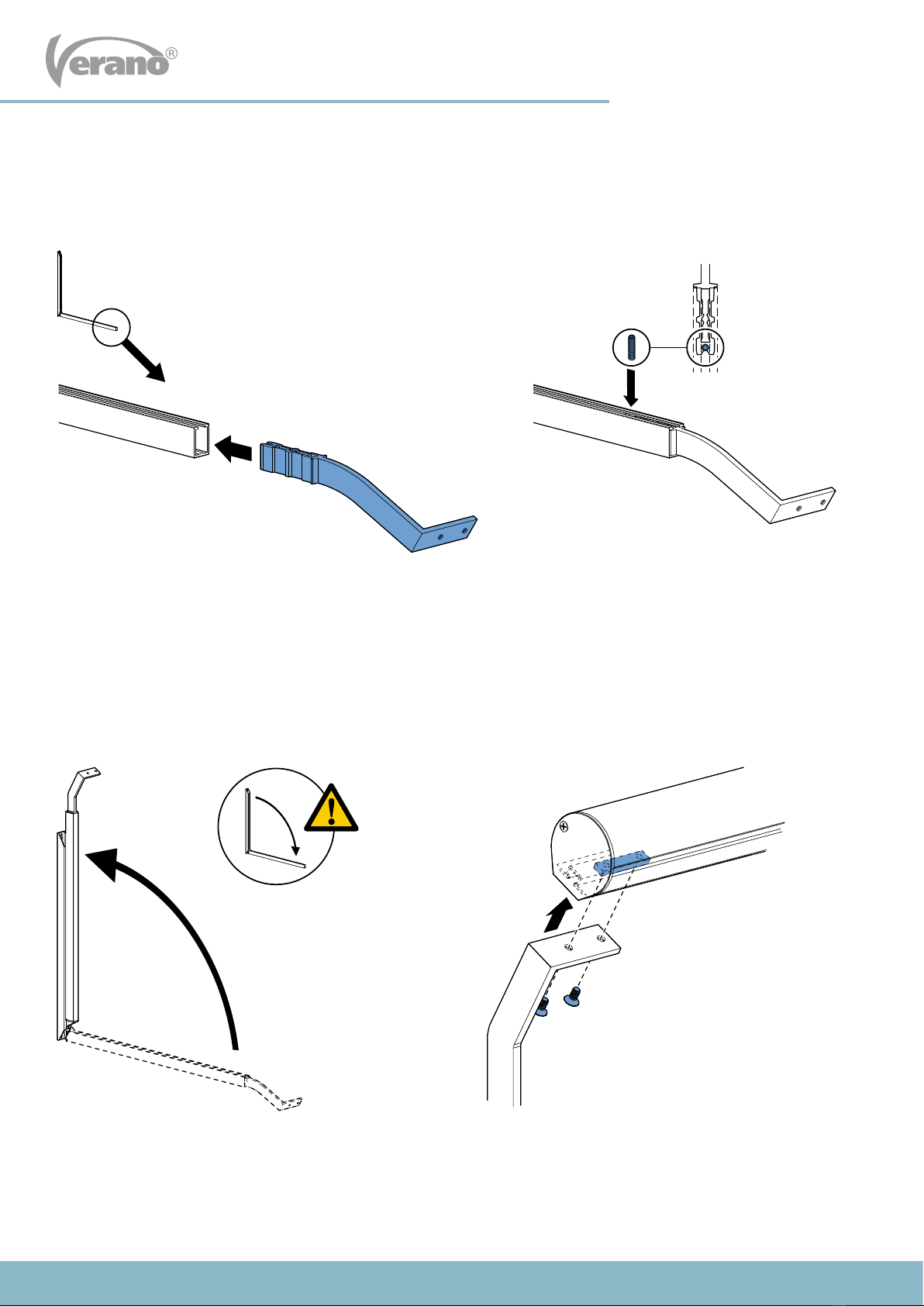

2.3 Setting the sheets to the arms
Slide the sheets in the ends of the arms. Make sure that the sheets are faced downwards (g. 2.5).
Fixate the sheets with the included screws (g. 2.6)
2.4 Fixing the arms to the front bar
Turn the drop-arm up (g 2.7) Attention! The arm is under pressure.
Screw the drop-arm to the xing plate in the front bar (g. 2.8).
Repeat these steps for all arms.
g. 2.5 Sheet in the arms
g. 2.7 Folding back the drop-arm
g. 2.6 Fixating of the sheets
g. 2.8 Fixating the drop-arm

INSTALLATION MANUAL
DROP-ARM AWNING V120 - NAPOLI
13227648-190828EN
7
Subject to misprints, errors and technical modifications.
5mm
50mm
1. Install the strap guide to the wall support using
two recessed screws.
2. Lead the pull-up strap through the strap guide.
Make sure that the pull-up strap is not twisted.
3. Determine the position of the strap coiler and
mark two holes on the window frame or the wall.
Make sure that the strap and the coiler are
placed in one line.
4. Drill the holes.
5. Place the plugs and install the strap coiler with
two recessed screws.
6. Fold the end of the pull-up strap and cut a
small hole.
3. Installation of the strap coiler (outside)

INSTALLATION MANUAL
DROP-ARM AWNING V120 - NAPOLI
13227648-190828EN
8
Subject to misprints, errors and technical modifications.

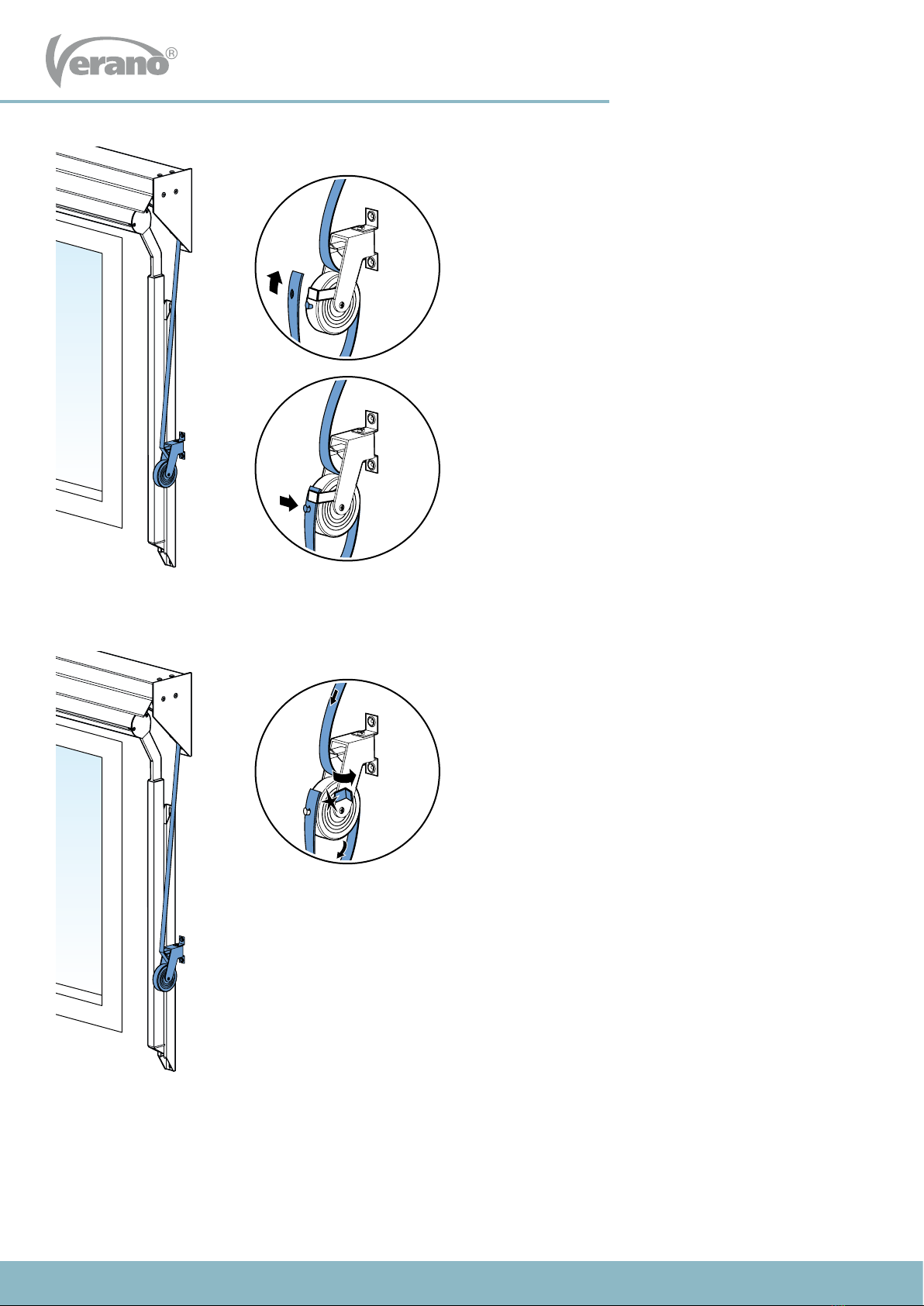

9. The manual operated awning is ready for use and can be controlled from the outside.
7. Lead the end of the pull-up strap through
the strap coiler and place the holes over
the ap.
Attention! Never shorten the strap before
installation! You need the strap length when
the drop-arm awning opens.
8. Break the plastic hook to bring tension to the
strap coiler. Now, the full length of the strap
automatically rolls on the strap coiler.
1
2
2

INSTALLATION MANUAL
DROP-ARM AWNING V120 - NAPOLI
13227648-190828EN
9
Subject to misprints, errors and technical modifications.
1. Put the pull-up strap through the guide pulley.
Make sure that the pull-up strap is not twisted.
2. Place the guide pulley in the control hole.
3. Determine the position of the strap coiler and
mark two holes on the window frame or the wall.
Make sure that the strap and the coiler are
placed in one line.
4. Drill the holes.
5. Place the plugs and install the strap coiler with
two recessed screws.
6. Fold the end of the pull-up strap and cut a
small hole.
5mm
50mm
4. Installation of the strap coiler (inside)

INSTALLATION MANUAL
DROP-ARM AWNING V120 - NAPOLI
13227648-190828EN
10
Subject to misprints, errors and technical modifications.
1
2
1
2
2
10. The manual operated awning is ready for use and can be controlled from the inside.
7. Lead the end of the pull-up strap through
the strap coiler and place the holes over
the ap.
Attention! Never shorten the strap before
installation! You need the strap length when
the drop-arm awning opens.
8. Break the plastic hook to bring tension to the
strap coiler. Now, the full length of the strap
automatically rolls on the strap coiler.
9. Place the cap over the strap coiler.

INSTALLATION MANUAL
DROP-ARM AWNING V120 - NAPOLI
13227648-190828EN
11
Subject to misprints, errors and technical modifications.

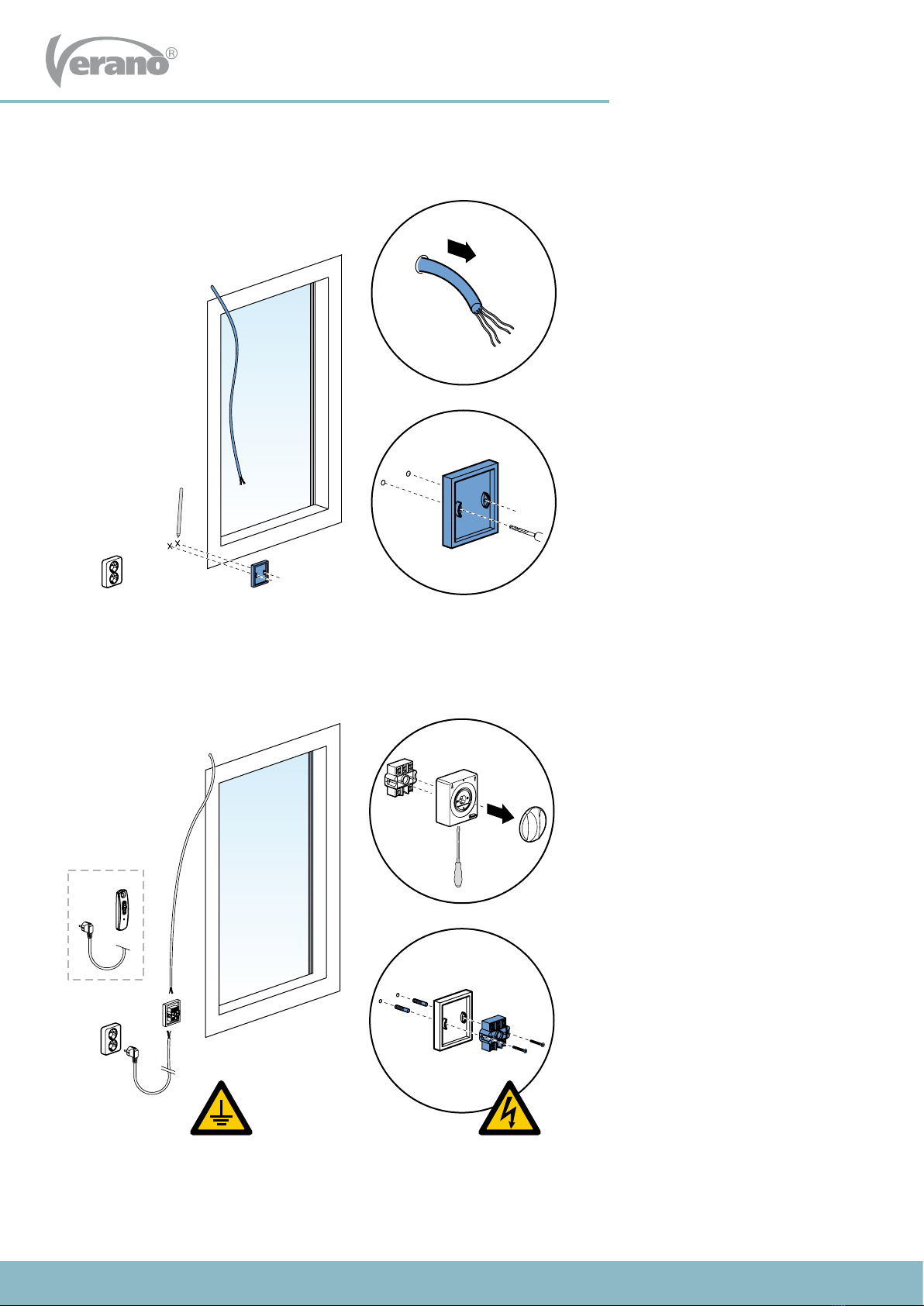

1. Determine the position of the
switch and mark two holes on the
inside of the wall.
2. Drill the holes with a 6 mm drill.
3. Open the switch using a athead
screwdriver.
4. Place the plugs and install the
switch using two recessed screws.
Make sure that the power is
switched o and without voltage!
Ø6
230 V
5. Installation of electrical control (inside)
Optioneel
230 V
Optional

INSTALLATION MANUAL
DROP-ARM AWNING V120 - NAPOLI
13227648-190828EN
12
Subject to misprints, errors and technical modifications.
5. Connect the 4-wired cable of the motor and the 3-wired cable and plug following the scheme below.
If necessary, ask an installer for advise.
yellow/green blue
brown
yellow/green blue black
brown brown
yellow/green blue brown yellow/green blue
black brown brown
yellow/green blue
brown
yellow/green blue black
brown brown
yellow/green blue brown yellow/green blue
black brown brown
Motor le (seen from the outside) Motor right (seen from the outside)
Optioneel
230 V
6. Install the switch.
When a wireless remote control is
used, the 3-wired cable can be
connected directly to the socket.
7. Put the plug in the socket and turn
the power on.
The drop-arm awning is now ready.
* See the included SOMFY instruction for the setting of the remote control.
*
Optional *

INSTALLATION MANUAL
DROP-ARM AWNING V120 - NAPOLI
13227648-190828EN
13
Subject to misprints, errors and technical modifications.

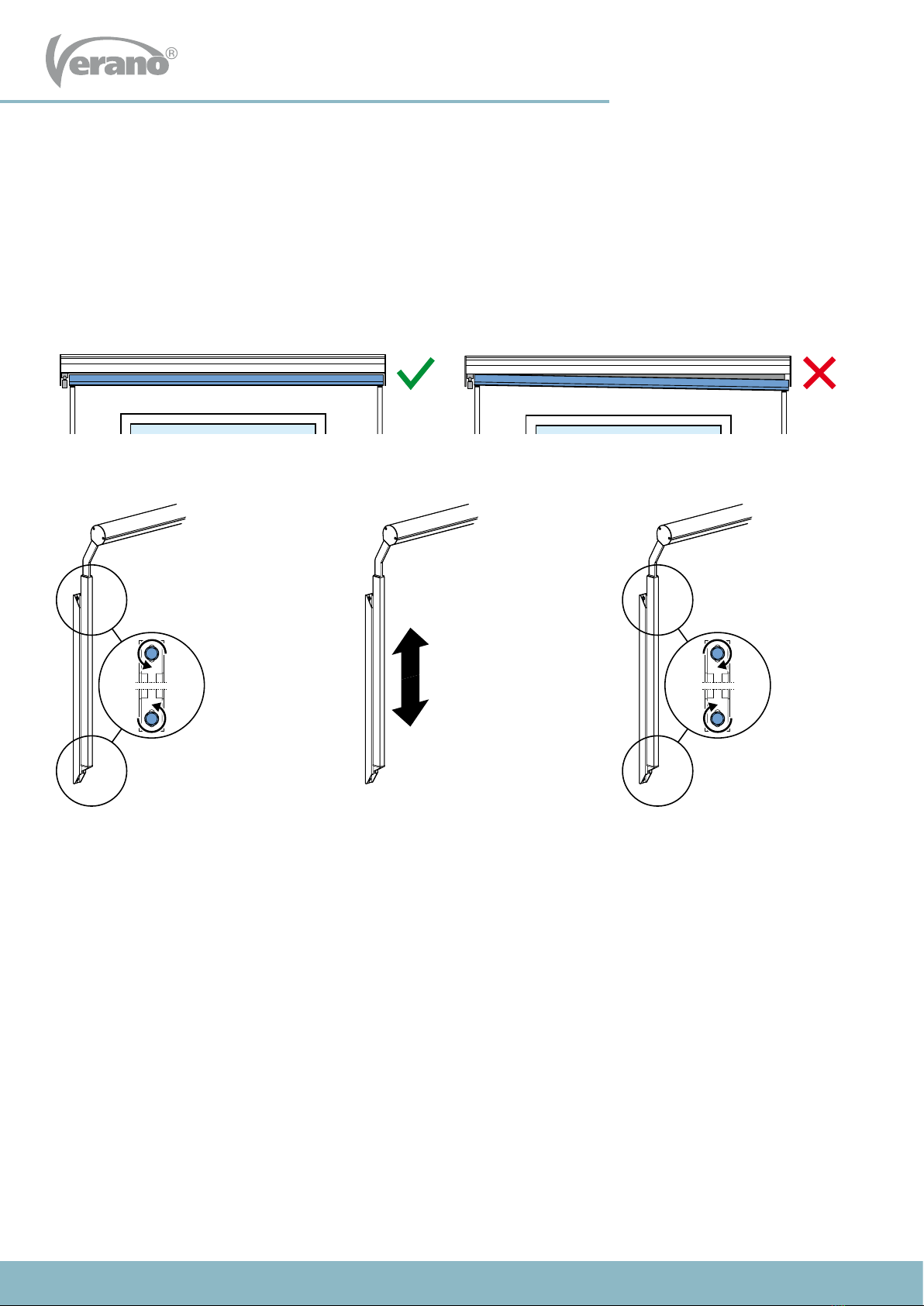

Make sure that the front bar is located at an equal distance from the cap over the whole width (g. 6.1). Set the front bar
by loosening the bolts of the drop-arm in one turn (g 6.2). Aer that, the drop-arm can slide up and down (g. 6.3). If the
front bar is set well, you can x the bolts of the drop-arm (g 6.4).
6. Setting of the front bar
g. 6.1 Examples of settings
g. 6.2 Loosening the bolts g. 6.3 Setting of the front bar g. 6.4 Fixing of the bolts
1x
1x

INSTALLATION MANUAL
DROP-ARM AWNING V120 - NAPOLI
13227648-190828EN
14
Subject to misprints, errors and technical modifications.

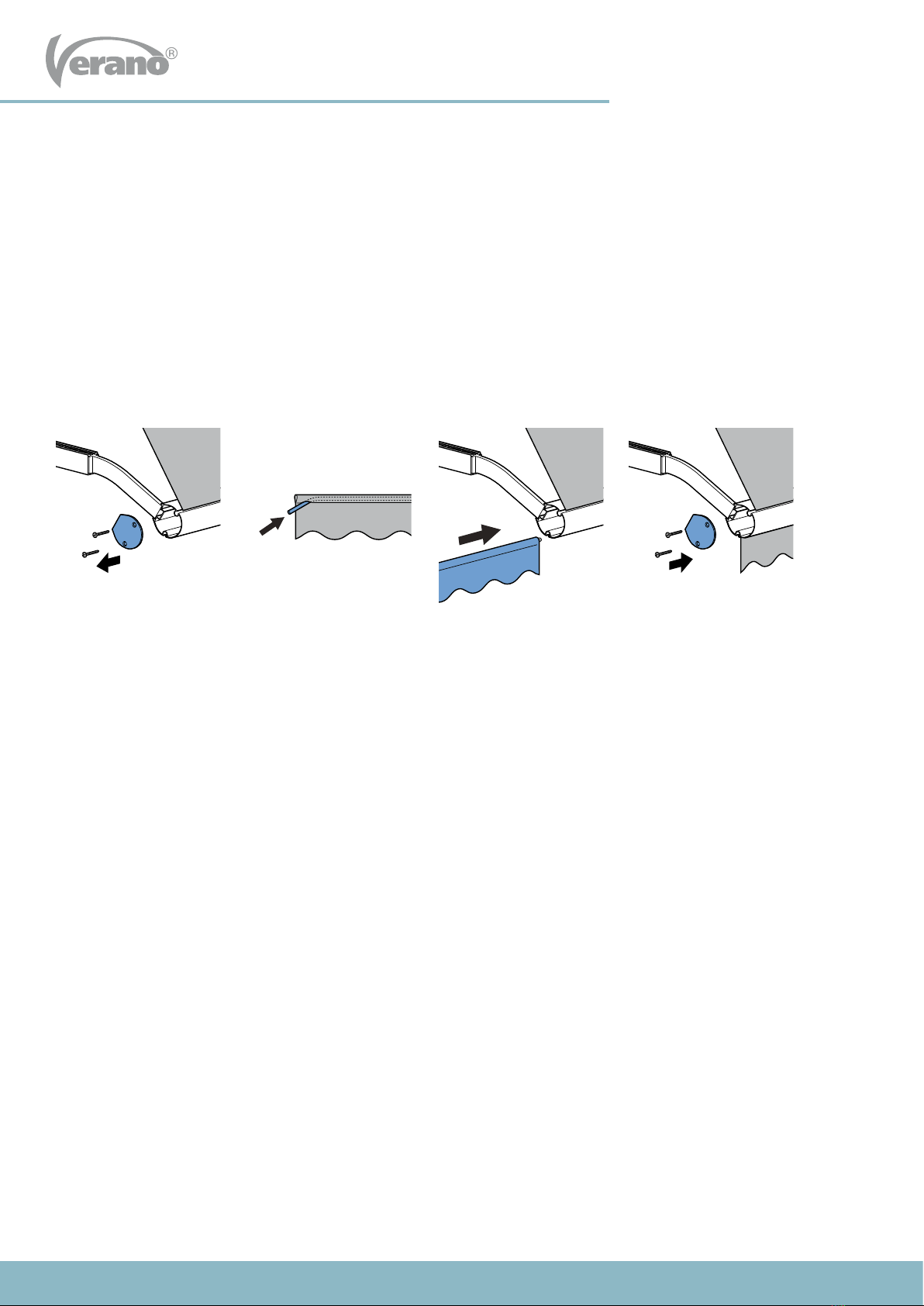

7.1 Installation of the valance
Follow the steps below to install the valance. See gure 7.1.
1. Remove the cap of the front bar at one side. The fabric tendon is hidden in the front bar.
2. Slide the fabric tendon in the valance at the open side.
3. Slide the valance carefully in the designated recess. Guide the valance to prevent ripping.
4. Install the cap.
7. Valance
1
234
g. 7.1 Installation of the valance

INSTALLATION MANUAL
DROP-ARM AWNING V120 - NAPOLI
13227648-190828EN
15
Subject to misprints, errors and technical modifications.
User information
A high quality cloth is integrated into your chosen screen. In view of optimal quality we have chosen a high technology
production process in which every step of the production is strictly selected. By way of automation, permanent checks,
laboratory tests and nely detailed aer-care, nothing is le to chance. This allows us to guarantee the resistance as well as
the strength and durability of the colours of your screen for many years to come.
Starting with a completely pigmented poly-acryl material, which gives it its exceptional quality, our screens have the advantage
of total monitoring during the production process. In spite of all this there may be small irregularities in your screen that
are diicult to detect and impossible to avoid. They are inherent in all technical materials butdo not reduce the technical
presentation and durability of your screen.

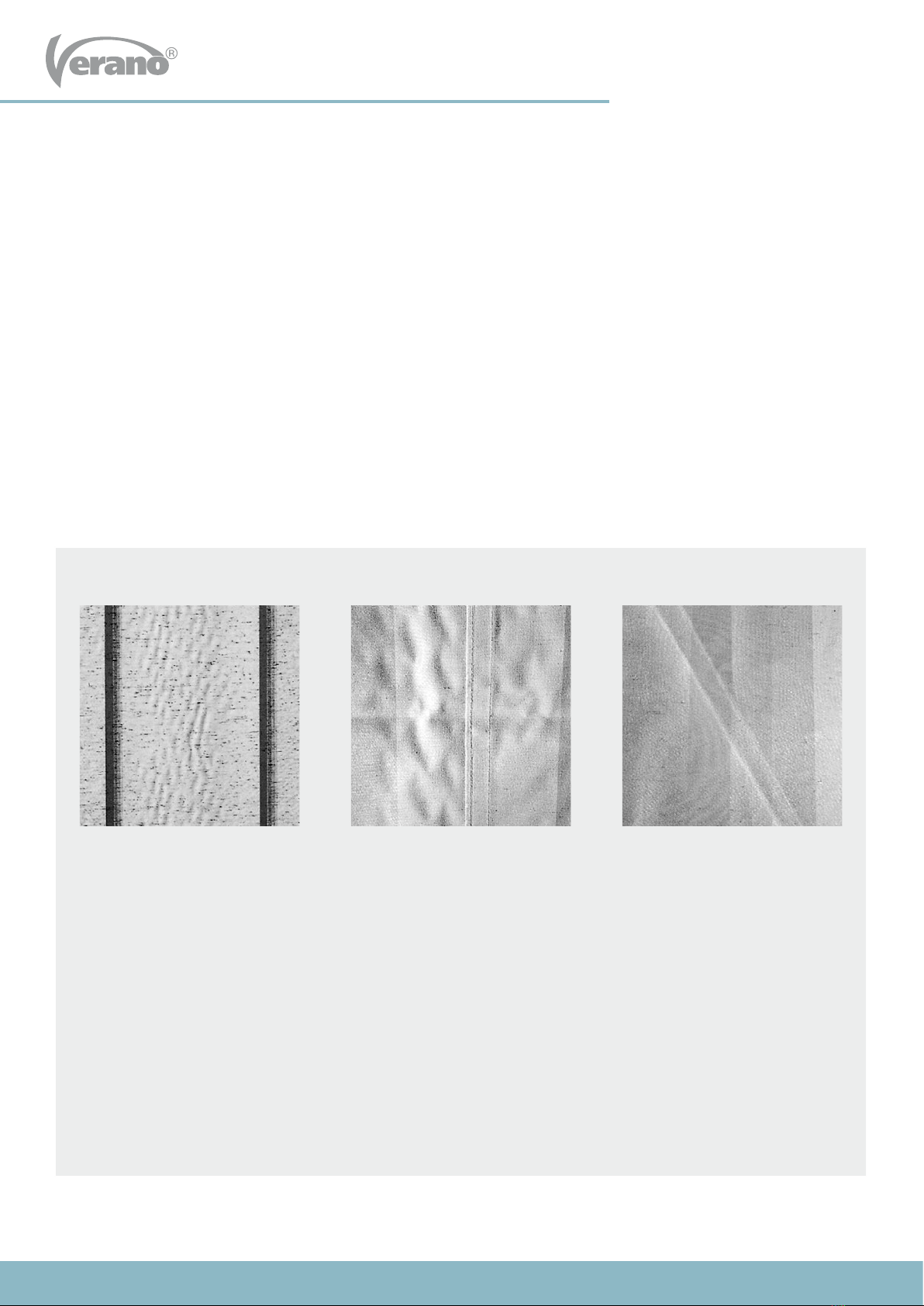

Waling, chalk stripes, small pleats next to the seam or in the middle of the screen or nap can appear. The retailer cannot be
held responsible for these irregularities.
Cable motor: if broken o, cannot be guaranteed.
These small irregularities have no eect whatsoever on the quality of the screen and do not constitute the screen being
replaced. However do inform us if you notice any irregularities in colour fastness, decay or resistance, in fact in any of the
basic characteristics of our 2-year guarantee.
Wave forming or wrinkle forming
All technical materials can display
these symptoms in the middle of
a canvas. They are especially
noticeable with backlight through
the dierence in light reection.
Wave forming
Next to the seams, caused by the
unavoidable tension dierence in
rolling up.
Fold stripes/ chalk stripes
A fold caused during the
manufacture, can show a darker
stripe by light reection. This is
mostly noticeable in lighter
coloured blinds.
