Verano V360 User manual

INSTALLATION MANUAL
AWNING V360 - ST. TROPEZ

INSTALLATION MANUAL AWNING V360 - ST. TROPEZ
13080130-190906EN
1
Subject to misprints, errors and technical modifications.
* The displayed awning is the electrical version.
Content
1. Awning
2. Wall supports
3. Control
a) Manual controle: Crank handle
b) Electrical: Switch and plug
c) Remote controlled: Remote control and plug
1
2
2
2
Necessary tools
• Drilling machine
• Masonry drill 10/14 mm
• Crosshead screwdriver
• Socket wrench 10/13/17
• Allen keyset
• Tapeline
• Level
• Pencil
In case of electrical control:
• Nippers
• Flathead screwdriver

INSTALLATION MANUAL AWNING V360 - ST. TROPEZ
13080130-190906EN
2
Subject to misprints, errors and technical modifications.

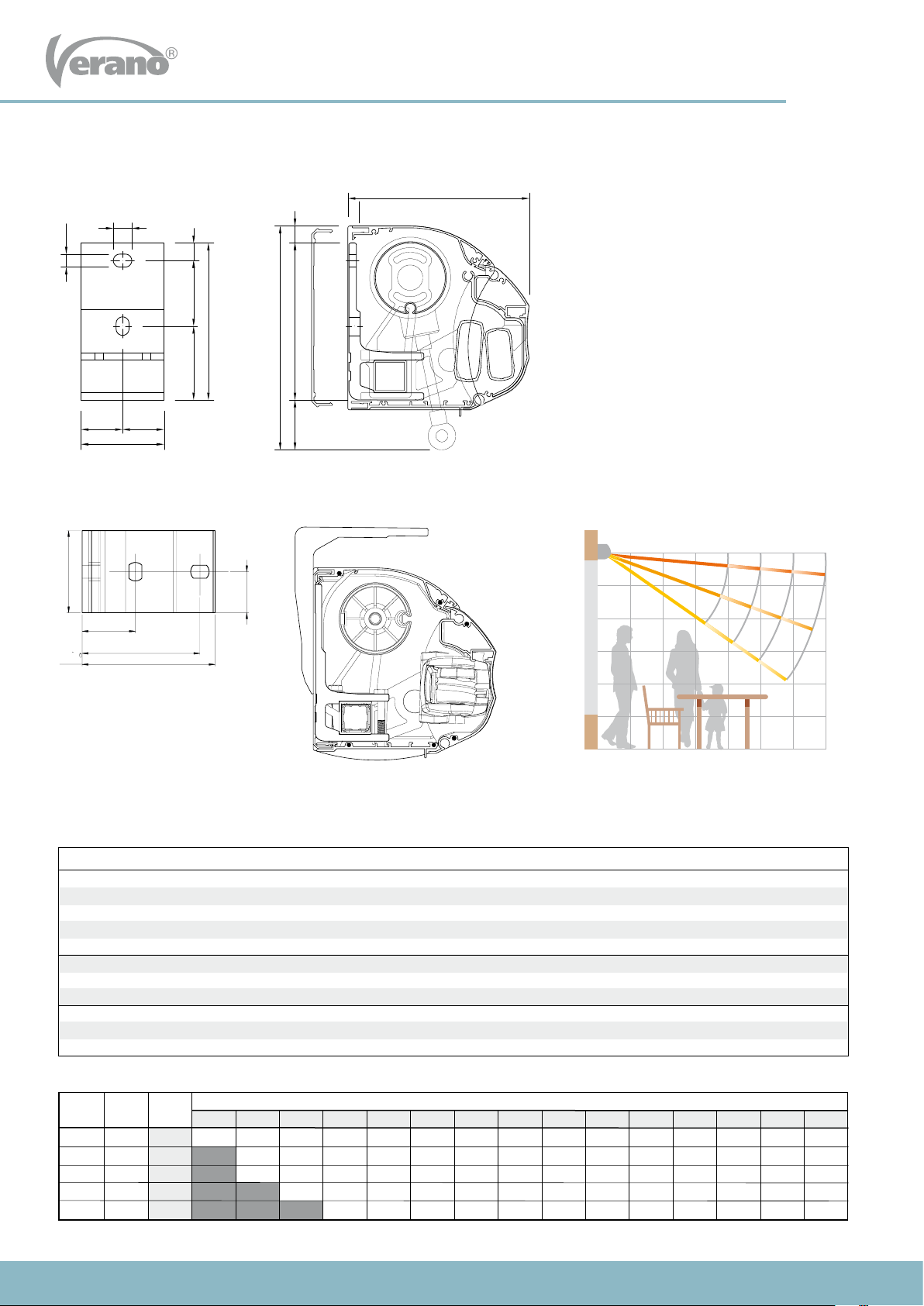

Specications V360 St. Tropez
0cm
100
cm
200
cm
300
cm
20º
35º
Projection 250cm
200cm
300cm 350
cm
5º
Projection
Wall mounting Sizes in mm
Front view wall support
Top view ceiling support
Awning section
Awning section
Ceiling mounting
Minimal width per fabric projection
Projection [mm] Manual control [mm] Electrical control [mm]
1500 2-Armen 2060 2040
2000 2-Armen 2620 2610
2500 2-Armen 2850 2800
3000 2-Armen 3380 3330
3500 2-Armen 3870 3820
2500 3-Armen 4250 4200
3000 3-Armen 5050 5000
3500 3-Armen 5780 5730
2500 4-Armen 5600
3000 4-Armen 6660
3500 4-Armen 7640
Wall support scheme
1700
2200
2700
3200
1500
2000
2500
3000
Fabric
type
Fabric
length
[mm]
Projec-
tion
[mm]
Width [mm] Required number of wall supports
2500 3000 3500 4000 4500 5000 5500 6000 6500 7000 8000 9000 10000 11000 12000
Dickson
Dickson
Dickson
Dickson
3500 3500
Dickson
2 2 2 3 3 3 4 4 4 5 5 6 6 7 8
2 2 3 3 3 4 4 5 5 6 6 7 7 8
2 2 3 3 4 4 4 5 5 6 7 7 7 8
3 3 4 4 4 5 5 5 6 7 7 8 8
4 4 4 4 5 5 6 7 7 8 8 8
197
1817054
243
19
71
80
170
45 45
90
20
14
89
57,7
144
127,5
44,5
Back cover is optional

INSTALLATION MANUAL AWNING V360 - ST. TROPEZ
13080130-190906EN
3
Subject to misprints, errors and technical modifications.

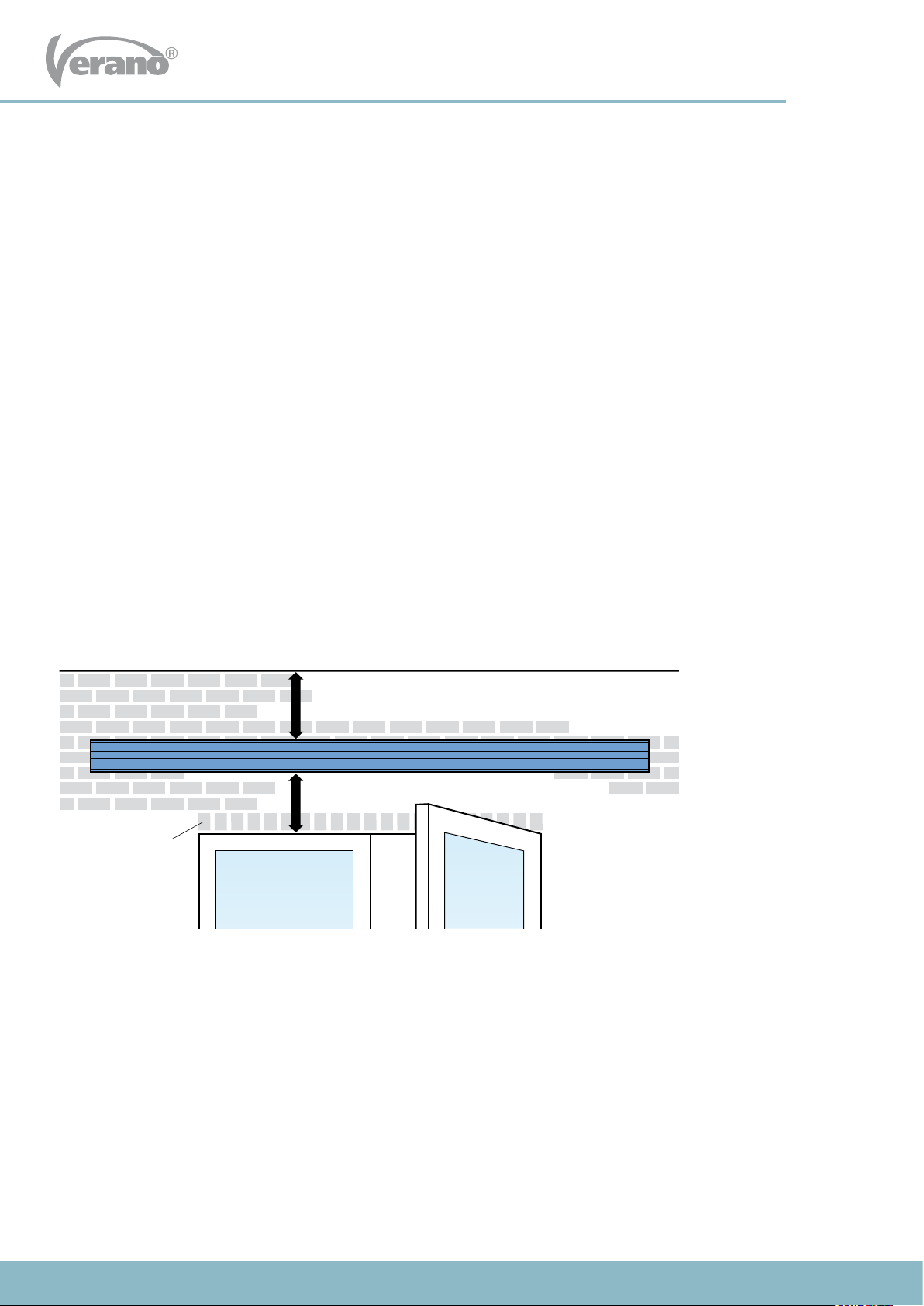

Important before mounting
1
2
3
4
5
rollaag
min. 30 cm
Patio door
When the awning is fully open, it hangs down under the angle. Therefore we advise to keep at least 30 centimeters
between the window frame and the awning in a situation with patio doors to the outside. When possible, it is advisable to
hang the awning higher than 30 centimeters above the window frame.
General warning
Installation of the Verano® product yourself is at your own risk. Only use this instruction as a tool and for the installation
of this specic Verano® product. If you cannot install the product yourself, you can always opt for professional installation.
The installation team of Verano® is pleased to help you.
Be careful for damages
Don’t use a knife or any other sharp object when opening the packing. This may cause damage to the content of the
package. Put the content of the package on a so surface. Be careful when drilling, falling drill cuttings can cause damages.
Check that the window frame or façade is at.
Check the installation height
Make sure that you have enough installation height on your façade to place the awning. Above the wall support
(mounting support) have to be 5 rows of stones to prevent to much pressure on the façade. This is not oen the case with
a house-extension. It is recommended to drill the installation hole in the h stone (minimum) measured from the top.
Wall strips
When there are fewer than ve rows of stones above the wall support, wall strips have to be used. These strips divide the
forces over a bigger wall surface when the walls are to weak. View page 5 for extensive instructions.
Attention! Make sure there is no installation point in the soldier course. These are oen half stones.
Soldier course

INSTALLATION MANUAL AWNING V360 - ST. TROPEZ
13080130-190906EN
4
Subject to misprints, errors and technical modifications.

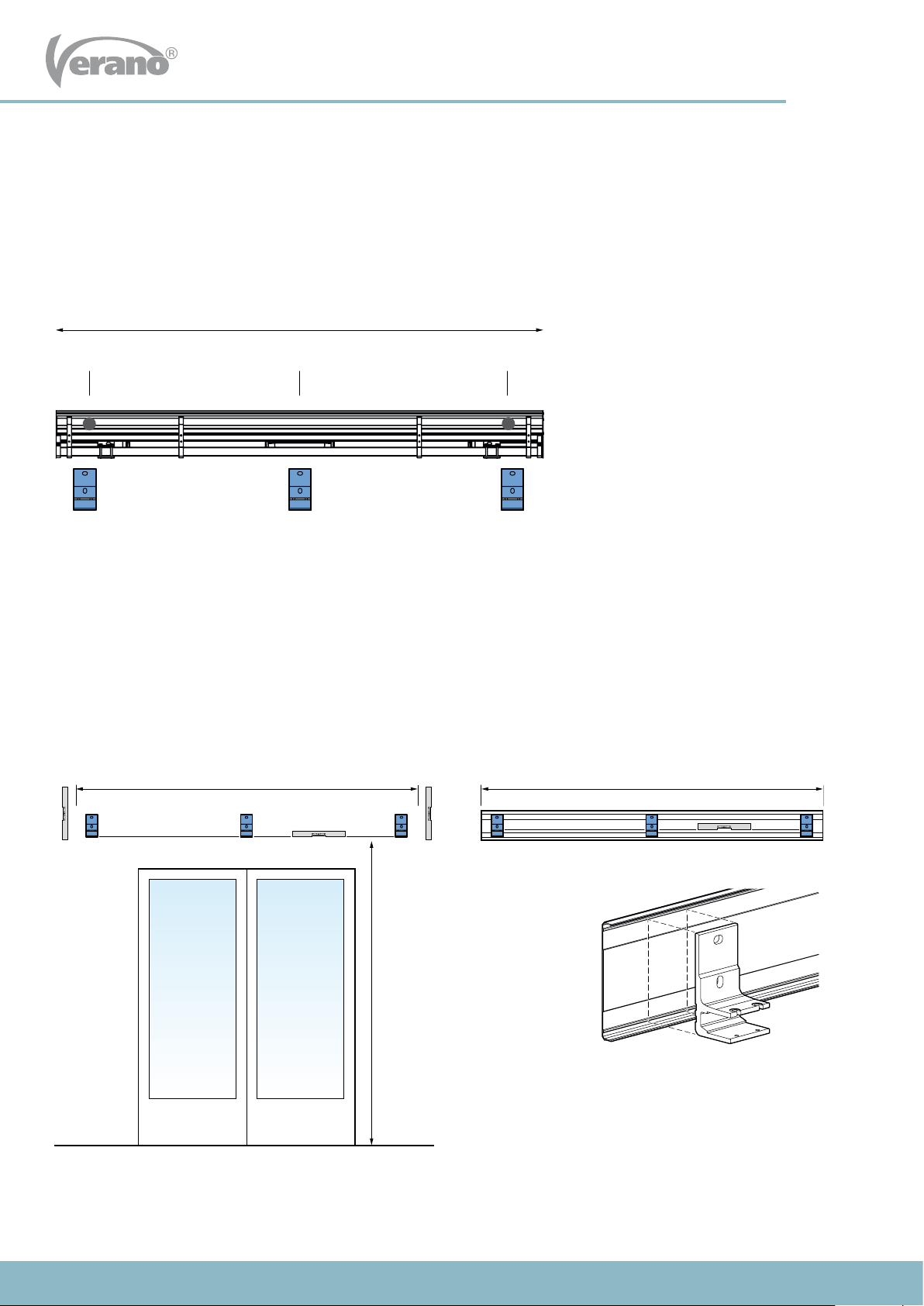

1.1 Marking the holes
View the stickers on the back side of the awning. See gure 1.1.
The wall supports need to be placed where the stickers are located.
The remaining wall supports should be equaly divided between the two outer supports.
Mark the drill holes of the wall supports (A) and, if necessary, the center support (B) on the wall. The holes need to be
levelled aligned both horizontal and vertical. See gure 1.2.
Make sure that at least two of the four installation holes per wall supports are located in the middle of the stone.
See gure 1.3. If necessary, use an alignment cord.
When the back cover is used you must also mark the wall supports on the back cover. Use the same measurements
between the wall supports as you used on the wall.
g. 1.2 Placing the wall supports
g. 1.1 Location stickers
middensticker sticker
A
muursteun
A
muursteun
X
A
muursteun

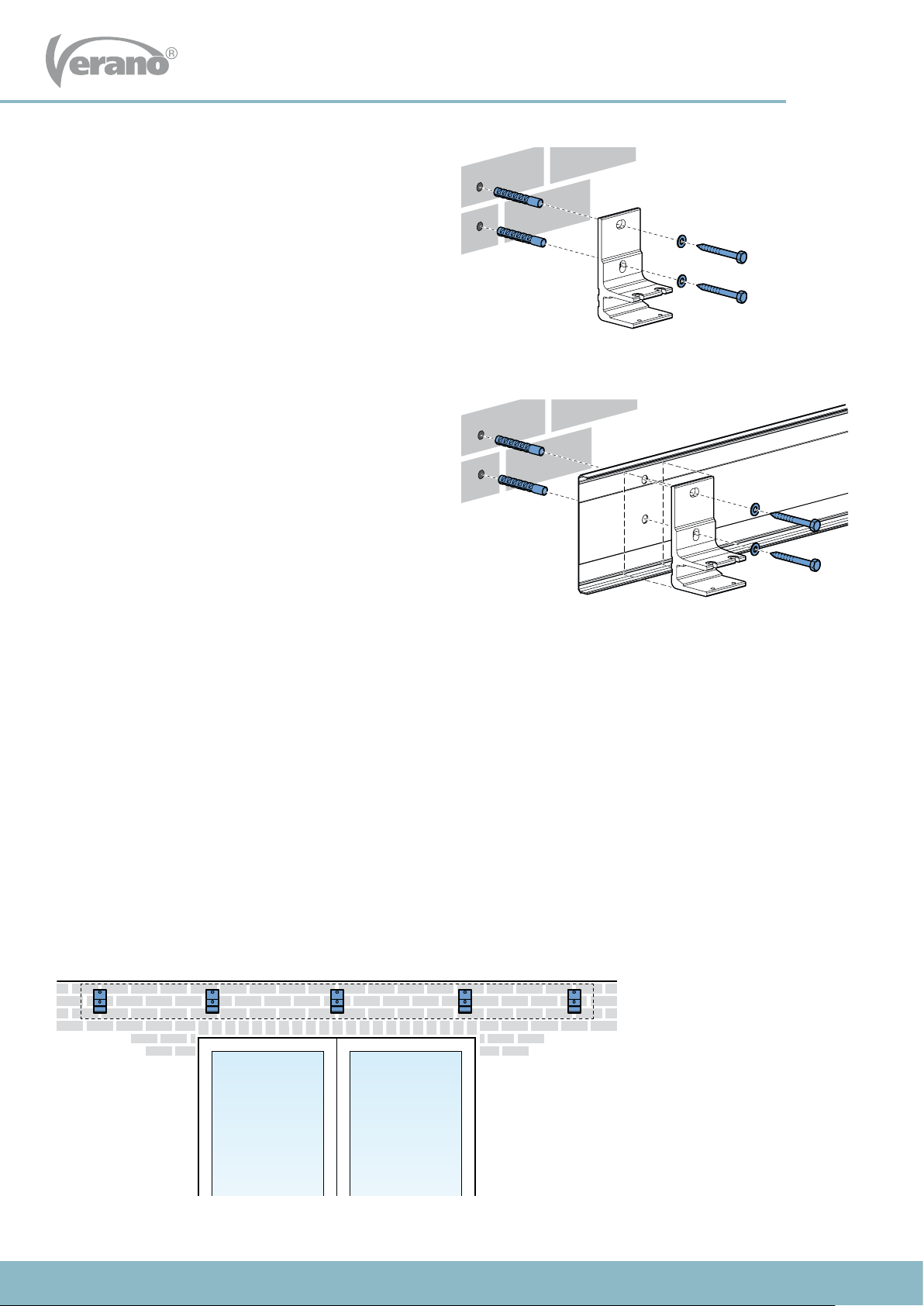

1. Installation of the wall supports
W = width of the awning
Y = window frame height plus a minimum of 30 cm
A = wall supports
X
Y
AAA
X
AAA
W = width of the awning
center
wall support wall support wall support

INSTALLATION MANUAL AWNING V360 - ST. TROPEZ
13080130-190906EN
5
Subject to misprints, errors and technical modifications.
1.3 Drilling the control hole
If you want to connect your wall control on the inside, measure the place of the control hole carefully. This depends on
your personal preference and situation.
Drill inwards with a 10 millimeter drill. When drilling through the wall, it is advisable to place a shelf against the inner side
of the wall to prevent damages to the wall.
g. 1.3a Installation of wall support
g. 1.3b Installation of back cover and wall support
1.2 Drilling the holes
Drill the installation holes. Our advise is to drill with
a 14 millimeter masonry drill in case of a wall made
of concrete or stone. Use matching plugs and bolts of
high quality. Install the wall supports (A) and, if necessary,
the center support(s) (B) and tighten the bolts.
See gure 1.3a.
When the back cover is used, also drill the holes in the
back cover. Install the back cover together with the wall
supports (A). See gure 1.3b.
1.4 Extra wall support weak wall
If there are less than ve rows of stones above the installation location, extra wall supports are needed.
The extra wall supports divide the power over a larger wall surface. This way the wall can carry more weight.
See gure 1.4.
extraextra
g. 1.4 Applying extra wall supports
A
A

INSTALLATION MANUAL AWNING V360 - ST. TROPEZ
13080130-190906EN
6
Subject to misprints, errors and technical modifications.

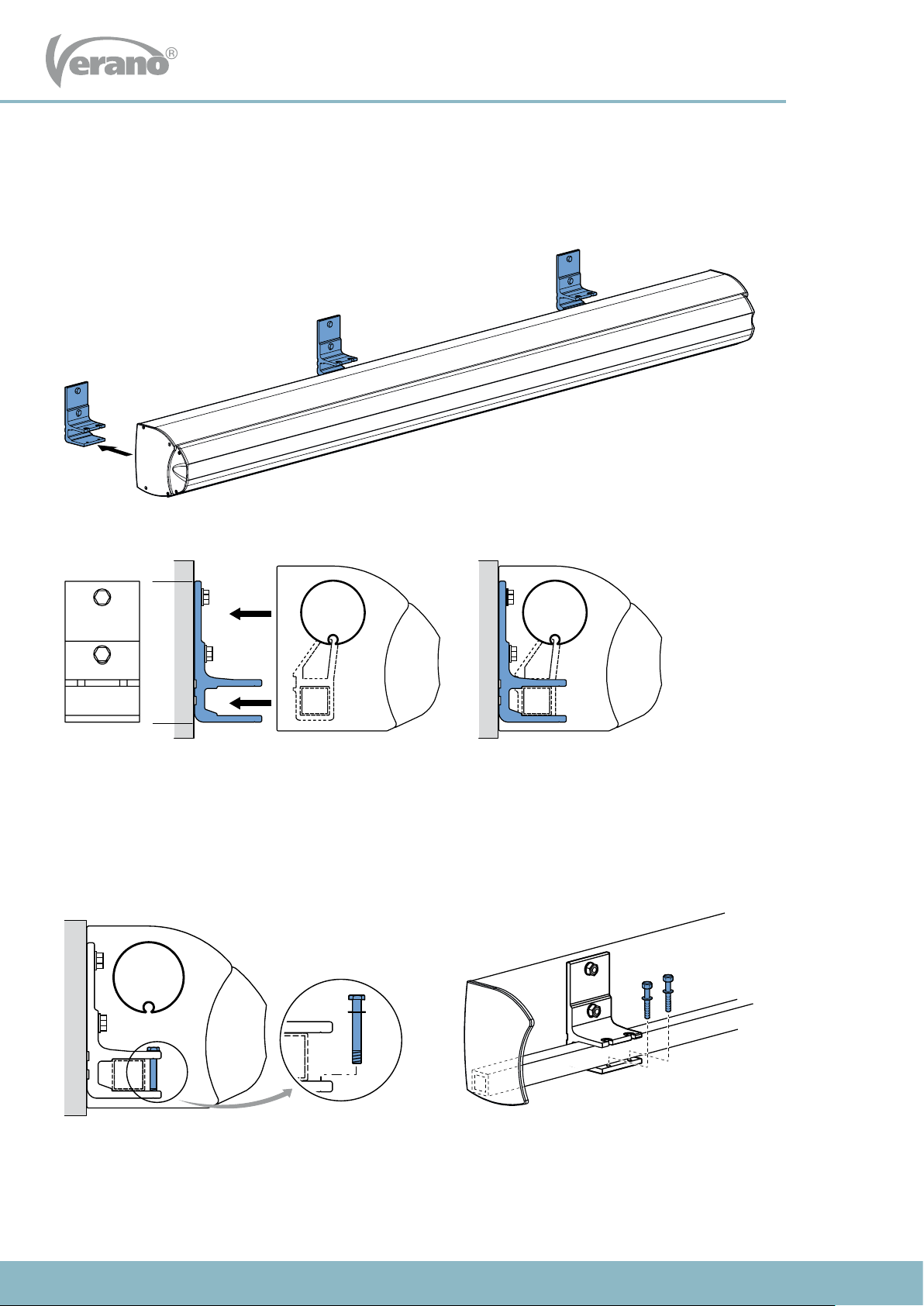

2.1 Placing the awning
Hang the awning in the wall supports. See gure 2.1 and 2.2.
2.2 Securing the awning
Lock the wall supports by using the included locking bolts. See gure 2.3.
Attention! The awning may not be opened before the locking bolts are applied!
2. Installation of the awning
g. 2.2 Detail wall support
g. 2.1 Placing the awning
g. 2.3 Applying the locking bolts

INSTALLATION MANUAL AWNING V360 - ST. TROPEZ
13080130-190906EN
7
Subject to misprints, errors and technical modifications.
3. Electrical wall control
TIP! Sealing the hole
In case of an electrical wire to the inside, we advise to seal the hole where the wire comes in. This to prevent moisture from
running inwards. Attention! Do this both on the in- and outside.
3.2 Standard factory setting
The motor control is set standardly.
See the included manual of the motor and the possible remote control.
g. 3.1 Motor le (seen from the outside) g. 3.2 Motor right (seen from the outside)
3.1 Connecting the wall control
1. Check the position of the motor (le or right), seen from the outside!
2. If you have inside control, rst guide the cable through the hole in the wall you drilled before.
3. Connect the four-wired cord of the motor and the three-wired cored with plug following the scheme below.
4. Put the plug in the power point.
5. The awning is now connected. Before you continue the installation, check if the awning rolls out correctly.
geel/groen blauw
bruin
geel/groen blauw zwart
bruin bruin
geel/groen blauw bruin geel/groen blauw
zwart bruin bruin
geel/groen blauw
bruin
geel/groen blauw zwart
bruin bruin
geel/groen blauw bruin geel/groen blauw
zwart bruin bruin
brown
brown
brown brown brown brown black black
blue blue
blue blue
yellow/green yellow/green yellow/green yellow/green

INSTALLATION MANUAL AWNING V360 - ST. TROPEZ
13080130-190906EN
8
Subject to misprints, errors and technical modifications.
4.1 Connecting the remote control
1. If the power point is located on the inside, rst guide the wire through the hole in the wall you drilled before.
2. Install the plug according to the color scheme below:
Brown 220V power supply
Blue 220V power supply
Yellow/green grounding
Black (do not connect)
White (do not connect)
Orange (do not connect)
3. Put the plug in the power point.
4. The awning is now connected. Before you continue the installation, check if the awning rolls out correctly by using the
remote control.
TIP! Sealing the hole
In case of an electrical wire to the inside, we advise to seal the hole where the wire comes in. This to prevent moisture
from running inwards. Attention! Do this both on the in- and outside.
4. Remote control

INSTALLATION MANUAL AWNING V360 - ST. TROPEZ
13080130-190906EN
9
Subject to misprints, errors and technical modifications.
21 3
1
2
3

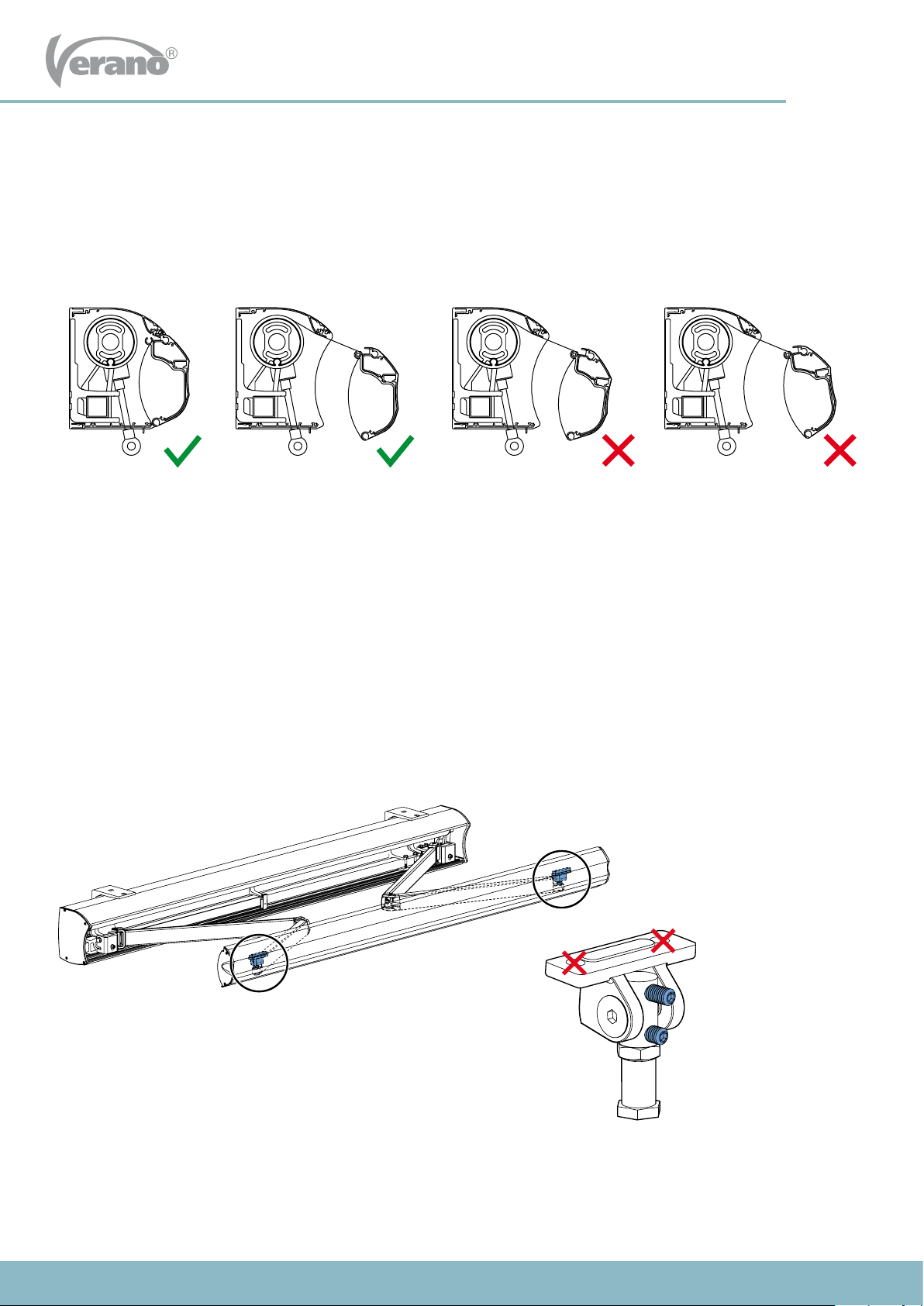

5.1 Standard factory setting
The passage height for the front bar is standard set between 1,80 and 1,90 meter at an installation height of 2,70 meter.
5.2 Setting the pitch
If you want to set the awning dierent from the standard factory setting, please follow the steps below:
1. Unroll the awning completely. The arm-connections are located le and right at the beginning of the folding arms
(on the side of the box). See gure 5.1.
2. Loosen nut #1 with one stroke (wrench 17). Li the front bar during the twisting, this way the set bolt moves easily.
See gure 5.2.
3. Completely turn out hexagon bolt #2. Then turn allen bolt #3 for the adjustment.
Le = front bar moves up, right = front bar moves down.
4. Repeat step 3 on the other side until the front bar is level.
5. WHen the front bar is at the desired height, put allen bolt #2 back in place and tighten nut #1.
Attention! Never touch the nuts with a red cross.
g. 5.2 Detail le arm-connection
g. 5.1 Location arm-connections
5. Pitch

INSTALLATION MANUAL AWNING V360 - ST. TROPEZ
13080130-190906EN
10
Subject to misprints, errors and technical modifications.
g. 6.2 Location arm-connections
6. Front bar
6.1 Setting the front bar
The right position is reached if the front bar connects perfectly to the top- and bottom cover when the awning is closed.
See gure 6.1.
g. 6.3 Detail arm-connection
Follow the steps below if the opening between the cap and the front bar is to big:
1. Unroll the awning about half a meter.
2. The arm-connections are located at the end of the folding arms (side of the front bar). See gure 6.2.
3. In case of situation A; rst unscrew the top allen a bit, aer that screw the bottom allen a bit.
In case of situation B; rst unscrew the bottom allen a bit, aer that screw the top allen a bit. See gure 6.1 and 6.3.
4. Put the front bar in the desired position.
5. Tighten the allen screws.
6. Pull in the awning.
Attention! Make sure that the fabric rolls up on the top of
the roller tube.
g. 6.1 Position front bar
Situatie A Situatie BSituatie dicht Situatie open
Situation closed Situation open Situation A Situation B

INSTALLATION MANUAL AWNING V360 - ST. TROPEZ
13080130-190906EN
11
Subject to misprints, errors and technical modifications.
23 1 4
g. 7.1 Placing the valance
7.1 Installation of the valance
Follow the steps below for the installation of the valance. See gure 6.1.
1. Unscrew the cover of the front bar on one side. The fabric tendon is locked in the front bar.
2. Slide the fabric tendon in the valance at the side where the fabric is open.
3. Slide the valance carefully in the intended recess. Make sure that you guide the valance well to prevent ripping of
the fabric!
4. Mount the cover on the front bar.
7. Valance

INSTALLATION MANUAL AWNING V360 - ST. TROPEZ
13080130-190906EN
12
Subject to misprints, errors and technical modifications.
2 x
M12
2 x
M10x70
g. 8.1 Ceiling mounting
8.1 Mounting the ceiling brackets
The awning can also be mounted to the ceiling using ceiling supports (view gure 9.1).
1. Mount the wall supports to the ceiling supports.
2. Measure the ceiling supports on the ceiling. Please mind the placing of the wall supports to the ceiling supports and
width size X in gure 1.1.
3. Mount the ceiling supports including the wall supports to the sealing. Always use two bolts!
4. Follow the instructions from page four in this instruction manual.

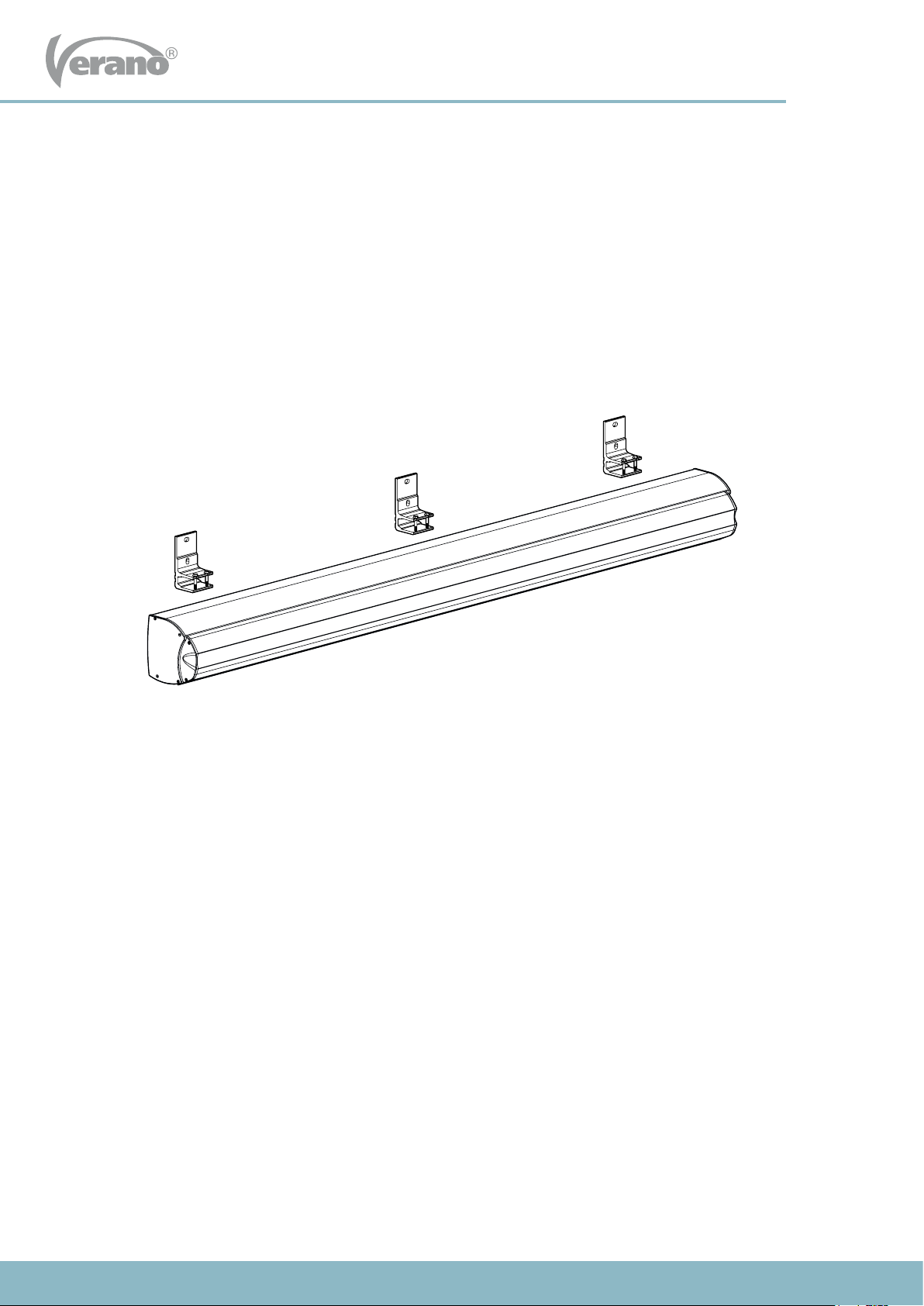

8. Ceiling mounting

INSTALLATION MANUAL AWNING V360 - ST. TROPEZ
13080130-190906EN
13
Subject to misprints, errors and technical modifications.
User information
A high quality cloth is integrated into your chosen screen. In view of optimal quality we have chosen a high technology production
process in which every step of the production is strictly selected. By way of automation, permanent checks, laboratory tests and nely
detailed aer-care, nothing is le to chance. This allows us to guarantee the resistance as well as the strength and durability of the
colours of your screen for many years to come.
Starting with a completely pigmented poly-acryl material, which gives it its exceptional quality, our screens have the advantage of
total monitoring during the production process. In spite of all this there may be small irregularities in your screen that are diicult to
detect and impossible to avoid. They are inherent in all technical materials butdo not reduce the technical presentation and durability
of your screen.
Waling, chalk stripes, small pleats next to the seam or in the middle of the screen or nap can appear. The retailer cannot be held
responsible for these irregularities.
Cable motor: if broken o, cannot be guaranteed.
These small irregularities have no eect whatsoever on the quality of the screen and do not constitute the screen being
replaced. However do inform us if you notice any irregularities in colour fastness, decay or resistance, in fact in any of the
basic characteristics of our 2-year guarantee.
Wave forming or wrinkle forming
All technical materials can display
these symptoms in the middle of
a canvas. They are especially
noticeable with backlight through
the dierence in light reection.
Wave forming
Next to the seams, caused by the
unavoidable tension dierence in
rolling up.
Fold stripes/ chalk stripes
A fold caused during the
manufacture, can show a darker
stripe by light reection. This is
mostly noticeable in lighter
coloured blinds.
