Infrared Forehead
Thermometer
Model 09-349
Please read this instruction manual
completely before operating this unit.

2 • ENGLISH
STOP!

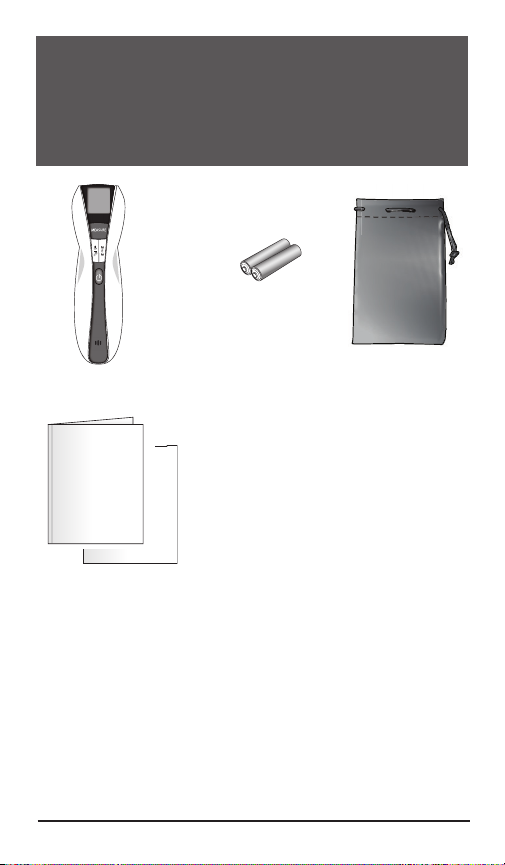

PLEASE ENSURE YOU HAVE ALL OF THE
FOLLOWING COMPONENTS BEFORE
USING YOUR INFRARED THERMOMETER.
IF YOU ARE MISSING ANY PARTS,
INCLUDING INSERTS OR INSTRUCTION
MANUALS, DO NOT RETURN TO PLACE OF
PURCHASE. CONTACT CUSTOMER CARE AT
8663261313.
Thermometer 2 AAA Batteries Storage Bag
Instruction Manual
Quick Start Guide

ENGLISH • 3
INDEX
Toll-Free Customer Care Help Line:
1-866-326-1313
Monday – Friday 8:30 a.m. – 4:30 p.m. CST
Distributed by:
Veridian Healthcare
1175 Lakeside Drive
Gurnee, IL 60031
www.veridianhealthcare.com
Made in China
#93-1044 07/19
©2019 Veridian Healthcare, LLC
Introduction............................................................................... 4
Body Temperature & Fever / Tips for Measuring.............. 5
Product Features ...................................................................... 6
Display Symbols........................................................................ 7
Replacing the Battery.............................................................. 8
Switching Between Fahrenheit and Celsius ...................... 8
Measuring Modes Definition/Selection.............................. 9
Proper Sensor Placement....................................................... 9
Measuring Body Temperature ......................................10-11
Measuring Object/Liquid Tempetature............................12
Recalling & Clearing Memory..............................................13
Care & Safety Information....................................................14
Cleaning & Storage ................................................................15
Troubleshooting.....................................................................16
Device & Label Symbols........................................................17
FCC Statement ........................................................................18
Electromagnetic Compatibility.....................................19-20
Product Specifications...........................................................21
Warranty...................................................................................22
Instrucionnes en Espanol ...............................................23-44

4 • ENGLISH
INTRODUCTION
Thank you for purchasing this Infrared Forehead Thermometer. Please
read this instruction manual completely before using your unit to
ensure safe use, accurate results and long life of the thermometer.
This product is intended for household use; this product is not
intended to diagnose or treat any health problem or disease and
should not be used as a substitute for the consultation and advice of a
physician or other medical professional. Thermometers should only be
used under the supervision of an adult.
The infrared technology used in this thermometer takes the
temperature of people and objects without any physical contact
between the thermometer and the person or object. The thermometer
measures body temperature from approximately 1”” from the
forehead, making it less invasive and threatening than other
thermometers, as well as more sanitary. It can even be used when the
patient is sleeping. This thermometer also measures the temperature
of objects and liquids, making it useful for determining if a baby’s milk
or bathwater is ready.
All people and objects emit infrared energy. The Infrared Forehead
Thermometer measures that energy, taking 512 readings in one
second and converting those data to a single peak temperature, which
appears on the display. With proper care, your new thermometer
will provide your entire family with many years of safe, accurate and
comfortable temperature readings.

ENGLISH • 5
BODY TEMPERATURE AND FEVER
Body temperature can vary from 97°F(36.1°C) and 99°F(37.2°C) and
still be considered normal. The medically accepted ‘normal’ body
temperature is 98.6°F(37°C). Body temperature is commonly lower
upon waking than at any point during the rest of an individual’s active
hours.
A fever is defined as a body temperature that is elevated above the
normal for that person. It is important to determine what is normal
for an individual before determining if a fever is present. Tracking an
individual’s temperature on a consistent basis, at the same body site
and at the same time every day will help determine an individual’s
normal temperature.
TIPS FOR MEASURING
BODY TEMPERATURE
• Wait at least one minute between consecutive readings, to ensure
accuracy.
• Attempting to take temperature readings from sites on the body
other than the forehead may produce inaccurate results.
• The patient should remain still while the reading is being taken.
• If “Lo,” “Hi,” “Err,” or another error message appears, see the
Troubleshooting section of this manual for instructions on how to
resolve the problem.
• Infrared forehead temperature readings are equivalent to oral
temperature readings.
• Readings taken while asleep should not be compared directly to
readings taken while awake, as body temperature while asleep is
typically lower.
• Do not take body temperature readings within 30 minutes of being
outdoors, exercising or bathing.
• Level of activity, time of day, and other factors may affect body
temperature. Keep records of your individual body temperature to
use as a reference when judging a fever.

6 • ENGLISH
PRODUCT FEATURES
MEM Memory
Button
Speaker
LCD
Display
Positioning
Sensor
Battery
Cover
MEASURE
Button
POWER
Button
Person/
Object Button
Infrared
Lens

ENGLISH • 7
Measurement in progress
Degrees Fahrenheit
Degrees Celsius
Person measurement mode
Object measurement mode
Night/Silent measurement mode
Temperature normal; below
100.4° F (38.0° C); person mode
only
Fever alert; temperature
above 100.4° F (38.0° C); person
mode only
Low battery
Memory recall

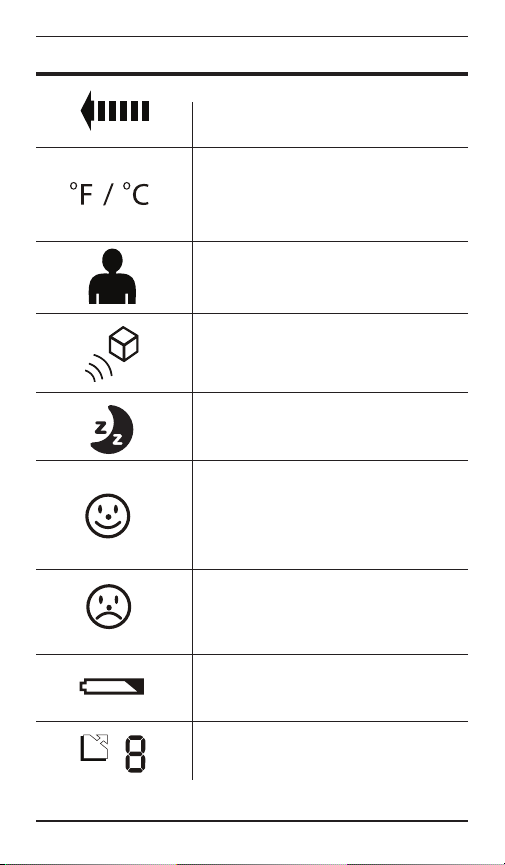

DISPLAY SYMBOLS

8 • ENGLISH
REPLACING BATTERY
The Forehead Infrared Thermometer comes complete with two AAA
batteries.
When the battery power becomes low, the low battery symbol
will appear on the display. The thermometer can still be used
during this time, but the batteries should be replaced soon.
If the batteries run out completely, “Lo” will be displayed along with
the low battery symbol. In this case, the batteries will need to be
replaced immediately. To replace the batteries, follow these steps:

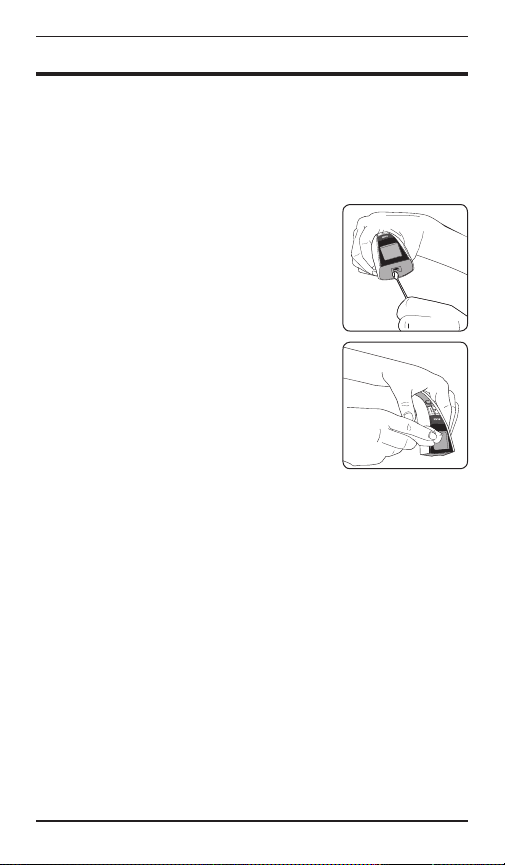

1. Slide the battery cover off.
2. Carefully remove the old
batteries. Do not use a metal-
pointed tool.
3. Insert the new batteries,
ensuring that the positive and negative ends are aligned correctly.
4. Replace the battery cover.
5. Dispose of the expired batteries in accordance with local
environmental policies.
+
SWITCHING BETWEEN ºF / ºC
Your thermometer can display results in either
degrees Fahrenheit (°F) or degrees Celsius (°C).
To switch between Fahrenheit and Celsius,
while the unit is on press and release both the
PERSON/OBJECT button and the MEM Memory
button simultaneously until the °F icon on the
display switches to the °C icon, or vise versa, at
which time the mode has been changed and you
may release the buttons.

ENGLISH • 9
The Forehead Infrared Thermometer offers a selection of settings for
use in the day or night and for person or object measurements.
To toggle between modes:
1. Press the POWER button to turn the thermometer on. The device
will default the last mode used.
2. Press and release the PERSON/OBJECT button to toggle through
the four measurement options.
MEASUREMENT MODES
DEFINITION & SELECTION
Person Mode Object Mode Silent Person
Mode Silent Object Mode
PROPER SENSOR PLACEMENT
The rectangle lens on this thermometer is a placement sensor,
designed to help ensure the thermometer is in the optimum position
for measurement.
• The correct sensor placement is 1” from the center
of the forehead; the device should never touch the
forehead or skin. Forehead should be clean and
clear of excessive hair, lotion or oils.
• The unit will sense if the device is positioned
properly and guide you to the correct position as
outlined in the measurement steps on the following page.
• When properly placed, the measurement happens in 1-second,
with results appearing on the display.

10 • ENGLISH
Fig. 1
Fig. 2

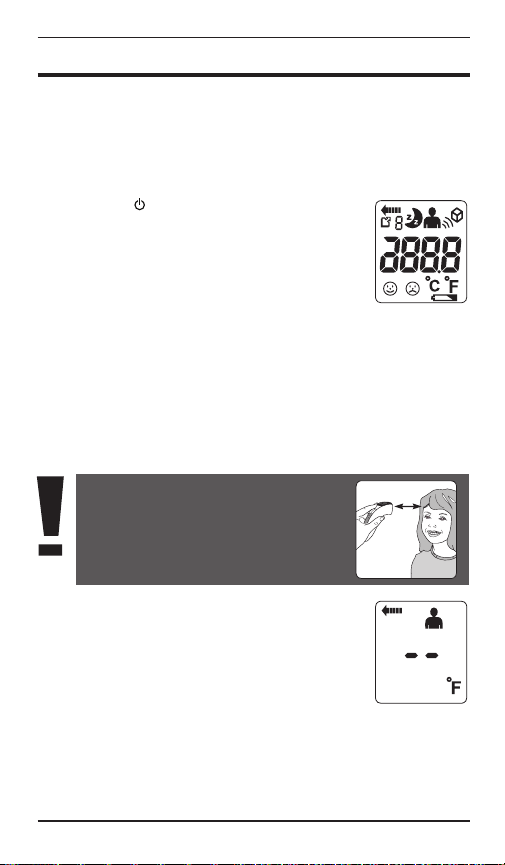

MEASURING BODY TEMPERATURE
1. Press the POWER button to turn the
thermometer on. The unit will run a self-
test and all symbols on the display will
momentarily appear, Fig. 1.
2. Ensure that the thermometer is in Person
mode; the Person symbol will be on the
display. To alternate between modes press and
release the PERSON/OBJECT Mode button
until you see the desired measurement symbol
on the display
3. Aim the infrared lens at the individual’s
forehead, holding the thermometer
approximately 1” away.
NOTE: Proper placement and position
of the sensor is crucial for eective and
accurate measurement.
To measure body temperature using your Infrared Thermometer,
follow the below steps.
NOTE: See page 9 of this manual for more information
on Measurement Modes.

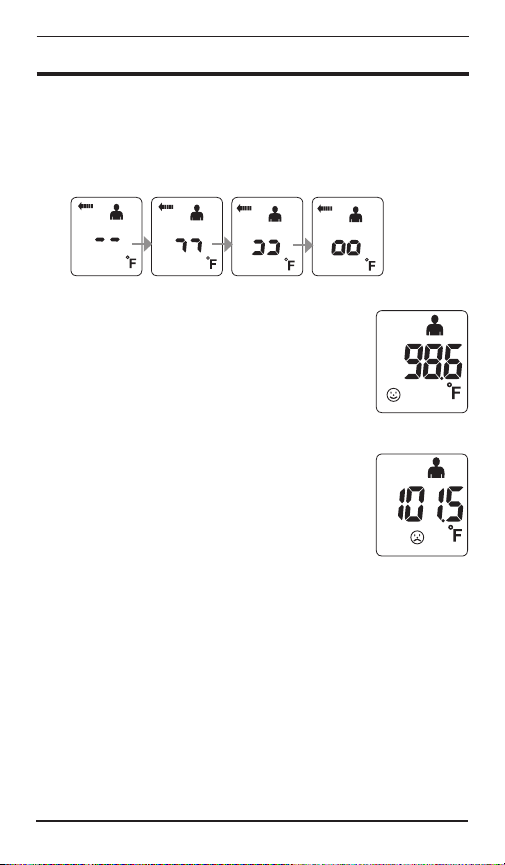

4. Press and release the MEASURE button. The
Person symbol, Scan in Progress symbol and
“- - ” will be displayed, Fig. 2.

ENGLISH • 11
Fig. 3
5. The positioning sensor will detect if the thermometer is in the
correct position. As necessary, slowly and steadily move the
thermometer toward or further from the forehead until the
thermometer is positioned correctly. The display will show
flashing dashes and will beep steadily while finding the position.
6. When the location is correct, the reading will
will occur in 1-second. The thermometer will
emit a final beep, and the results will appear
on the display, Fig 3.
7. If the temperature measurement is below
100.4°F (38°C), a happy face will appear on the
display. If the reading is at or above 100.4°F
(38°C), a sad face will display and the device
will sound 1 long and 2 short beeps, Fig 4.
8. After about one minute after use, the
thermometer will automatically beep and
shut off.
MEASURING BODY TEMPERATURE
Fig. 4

12 • ENGLISH
Fig. 1
Fig. 2
Fig. 5
Fig. 4
MEASURING OBJECT/LIQUID
TEMPERATURE
The Infrared Thermometer can measure objects
and liquids from 32°F to 221°F (0°C - 105°C). To
measure the temperature of an object or liquid
using your Digital Infrared Thermometer, follow
these steps:
1. Press the POWER button to turn the
thermometer on. All symbols on the
display will momentarily appear, Fig. 1.
2. Ensure that the thermometer is in Object
mode; the Object symbol will be on the
display, Fig 2. To alternate between modes
press and release the PERSON/OBJECT
Mode button until you see the desired
measurement symbol on the display.
3. Aim the infrared lens at the object you
wish to measure, holding the thermometer
approximately 1” away from the surface,
Fig 3.
4. Press and release the MEASURE button.
The Object symbol, the Scan in Progress
symbol, and “00” will show on the display,
Fig. 4.
5. Within one-second, the thermometer will
beep once, and the temperature reading
will be displayed, Fig. 5.
6. After about one minute after use, the
thermometer will automatically beep and
shut off.
Fig. 3

ENGLISH • 13
Your Infrared Thermometer automatically stores
the last 10 readings taken. To view the readings
stored in memory, follow these steps:
1. Press the MEASURE button to turn the
thermometer on.
2. Press the Memory button (marked, “MEM”)
to recall the most recent measurement,
Fig. 1.
3. Press and release the MEM button to scroll
through the readings in memory.
4. The index number above the temperature
reading indicates the sequential number
of the stored reading you are currently
viewing. The Person/Object icon will
indicate what mode the temperature
was taken in. For example, the device
may show reading 1 was a ‘person’
measurement, while reading 2 was an
object measurement.
5. After 10 measurements have been stored
in the memory, the oldest reading will be
automatically deleted.
6. To clear all records from the memory, hold
the MEM button down until you hear a
beep and two dashes appear on the display,
Fig. 2.
RECALLING & CLEARING
READINGS
Fig. 1
Fig. 2

14 • ENGLISH
CARE & SAFETY INFORMATION
Improper care or use of your thermometer may result in injury,
damage to the unit or inaccurate readings, which can lead to a
misdiagnosed fever. Following these instructions will ensure the
thermometer’s accuracy and long life.
• Never allow the thermometer to be used without adult
supervision.
• The infrared technology used in this thermometer is safe and
is not harmful in any way. However, we recommend avoiding
looking into the lens during use.
• Clean the lens before and after each use.
• Do not touch the lens with fingers.
• Dropping the thermometer or causing other heavy impact may
damage it.
• When not in use, store the thermometer in the provided storage
case.
• Do not store the thermometer in direct sunlight, dusty or humid
environments, or extreme temperatures.
• Do not disassemble the thermometer or attempt to repair it.
• If a reading cannot be taken, and the troubleshooting steps do
not fix the problem, the thermometer must be replaced.

ENGLISH • 15
CLEANING & STORAGE
The lens should be cleaned before and after each use, to eliminate
dirt and fingerprints and ensure the accuracy of your readings. Proper
storage will prevent degradation and damage to the unit.
CLEANING:
• An alcohol swab, or a soft cotton cloth
moistened with 70% isopropyl alcohol,
should be used to gently cleanse the lens.
Do not use water to wash the thermometer.
• The body of the thermometer can be
cleaned with a soft, dry cloth.
• Never use a paper towel to clean the probe
tip, as it may scratch the lens.
• Do not immerse the thermometer or allow
liquid to enter the casing.
• Do not use cleaning agents other than
alcohol to clean the thermometer;
abrasives, thinners or gasoline will damage
the unit.
STORAGE:
• Store the unit in the provided storage pouch.
• Protect the thermometer from mechanical shock or heavy
impact.
• Store the unit in an area away from sunlight, dust and humidity.
• Avoid extended exposure to extreme temperatures. The
thermometer should be stored in an environment between
-13°F and 131°F (-25°C - 55°C), and with relative humidity of 95%
or lower.
• Remove the battery during extended storage.

16 • ENGLISH
TROUBLE SHOOTING
Performance may be degraded should one or more of the following
occur:
• Operation outside stated temperature and humidity range.
• Storage outside state temperature and humidity range.
• Mechanical shock.
• Patient temperature is below ambient temperature.
The following chart indicates error messages that may appear on your
display, why they appear, and how you may solve the problem.
Low battery warning.
Low battery.
Unit turned off or
battery problem.
Temperature measure-
ment is below typical
temperature range.
Temperature measure-
ment is above typical
temperature range.
Ambient air temperature
is outside of the
acceptable operating
range (60.8° F - 95° F
or 16° C - 35° C).
Replace battery when
possible (thermometer will
work).
Replace battery before
using thermometer again.
Press Power button to
activate unit. Check battery
type or polarity (position in
the unit). Replace battery.
Reposition the
thermometer and try again.
Reposition the
thermometer and try again.
Wait 45 minutes to
stabilize the unit, then use
the thermometer in an
environment within the
permissible temperature
range.
Error Symbol Problem or Cause Solution
(blank display)

ENGLISH • 17
DEVICE & LABEL SYMBOLS
These symbols may appear on your device, instructions
or packaging and may vary by make and model.
Read This Manual—All included manuals should
be read prior to first use
Warning—Symbol indicates a warning,
prohibition or mandatory action that mitigates a
risk that is not necessarily obvious to the device
operator
Type BF Applied Parts—Indicates that a part of
this unit comes in contact with the patient in order
to carry out it’s intended function; in the case of
this device the cuff is the Type BF Applied Part
Environment Protection—dispose of this product
properly; consult with your local recycling
ordinances for proper recycling and disposal
Manufacturer—This symbol indicates the date of
manufacture
Serial Number
Symbol Meaning

2012

18 • ENGLISH
FCC STATEMENT
IMPORTANT INFORMATION REQUIRED BY THE FCC
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference; and (2) this device must accept any interference
received, including interference that may cause undesirable operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.This equipment
generates, uses, and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.

ENGLISH • 19
ELECTROMAGNETIC COMPATIBILITY
AViTA NT13 is intended for use in the electromagnetic environment specied below. The
customer or the user of AViTA NT13 must make sure that it is used in such an environment.
Guidance and manufacturer’s declaration - Electromagnetic emissions
a) The equipment is suitable for use in Home Health Environments and Professional Health
Care Environments limited to patient rooms and respiratory treatment facilities in hospital
or clinics. The more restrictive acceptance limits of Group 1 Class B (CISPR 11) have been
considered and applied. The equipment is suitable for use in the mentioned envi-ronments
when directly connected to the Public Mains Network.
b) The test is not applicable in this environment unless the ME EQUIP-MENT and ME SYSTEM
used will be connected to the PUBLIC MAINS NETWORK and the power input is otherwise
within the scope of the Basic EMC standard.
Guidance and manufacturer’s declaration - Electromagnetic immunity - Enclosure port
Phenomenon Professional healthcare HOME HEALTHCARE ENVIRONMENT a)
facility environment a)
Conducted and radiated
RF EMISSIONS
Harmonic distortion
Voltage uctuations
and icker-ing
Phenomenon
ELECTROSTAT-IC
DISCHARGE
Radiated RF EM elds
Proximity elds
from RF wireless
communications
equipment
a)
Not applicable
Not applicable
Basic EMC
standard or test
method
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-3
CISPR 11
Group 1 Class B
Immunity test levels
COMPLIANT
NOTE: Further information about distances
to be maintained between portable and
mobile RF communica-tions equipment
(transmitters) and the AViTA NT13 can be
requested from AViTA using the contact infor-
mation provided in this manual. However, it
is advisable to keep the electromechani-cal
aerosol equipment at an ade-quate distance
of, at least, 0.5 m from mobile phones or
other RF communications transmitters to
mini-mise possible interference.
± 8kV contact
± 2 kV, ±4kV ±, ±8 kV, ±15 kV air
a) 10 V/m b) 80MHz - 2.7
GHz 80% AM at 1kHz
Professional
healthcare facility
envi-ronment
HOME HEALTHCARE
ENVIRONMENT

20 • ENGLISH
RATED power frequency
magnetic elds. IEC 61000-4-8 30 A/m c)
50 Hz or 60 Hz
a) The equipment is suitable for use in Home Health Environments and Professional Health
Care Environments limited to patient rooms and respiratory treatment facilities in hospital or
clinics. The more restrictive IMMUNITY acceptance limits have been considered and applied.
b) Before modulation is applied.
c) This test level assumes a minimum distance of at least 15 cm between the ME EQUIPMENT
or ME SYSTEM and sources of power frequency magnetic elds.
ELECTROMAGNETIC COMPATIBILITY
