NetSure™ -48 VDC Battery Tray Kit
Installation Manual
Kit Specification Number: 588820200SK001, 588820200SK002,
588820200SK003, 588820200SK004,
582136700SK001, 582136700SK002,
582136700SK007, 582136700SK008,
582137100SK001, 60075254, 60075329

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
The information contained in this document is subject to change without
notice and may not be suitable for all applications. While every precaution has
been taken to ensure the accuracy and completeness of this document, Vertiv
assumes no responsibility and disclaims all liability for damages resulting from
use of this information or for any errors or omissions. Refer to other local
practices or building codes as applicable for the correct methods, tools, and
materials to be used in performing procedures not specifically described in
this document.
The products covered by this instruction manual are manufactured and/or
sold by Vertiv. This document is the property of Vertiv and contains
confidential and proprietary information owned by Vertiv. Any copying, use or
disclosure of it without the written permission of Vertiv is strictly prohibited.
Names of companies and products are trademarks or registered trademarks of
the respective companies. Any questions regarding usage of trademark
names should be directed to the original manufacturer.
Technical Support Site
If you encounter any installation or operational issues with your product, check the pertinent section of this
manual to see if the issue can be resolved by following outlined procedures.
Visit https://www.vertiv.com/en-us/support/ for additional assistance.

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
iii
TABLE OF CONTENTS
Admonishments Used in this Document.............................................................................................................................iv
Important Safety Instructions..................................................................................................................................................v
Safety Admonishments Definitions ..........................................................................................................................................................................................................................v
General Safety ..............................................................................................................................................................................................................................................................................v
Voltages..............................................................................................................................................................................................................................................................................................v
AC Input Voltages ...................................................................................................................................................................................................................................................v
DC Output and Battery Voltages ..............................................................................................................................................................................................................v
Battery ................................................................................................................................................................................................................................................................................................vi
Personal Protective Equipment (PPE) ...............................................................................................................................................................................................................vii
1NetSure™ -48V Battery Tray Kit .......................................................................................................................................1
1.1 Kit Description ..................................................................................................................................................................................................................................................................1
1.2 Kit Contents ........................................................................................................................................................................................................................................................................1
1.3 Tools and Material Required ..............................................................................................................................................................................................................................5
1.4 Installation Procedure...............................................................................................................................................................................................................................................5
1.4.1 Mounting the Battery Tray............................................................................................................................................................................................................6
1.4.2 Installing the Battery Disconnect Circuit Breaker Kit (If Equipped).......................................................................................................7
1.5 Installing and Connecting Batteries in the Battery Tray..........................................................................................................................................................8
1.5.1 Wiring to the Battery Tray..............................................................................................................................................................................................................8
1.5.2 Installing and Connecting Batteries......................................................................................................................................................................................9

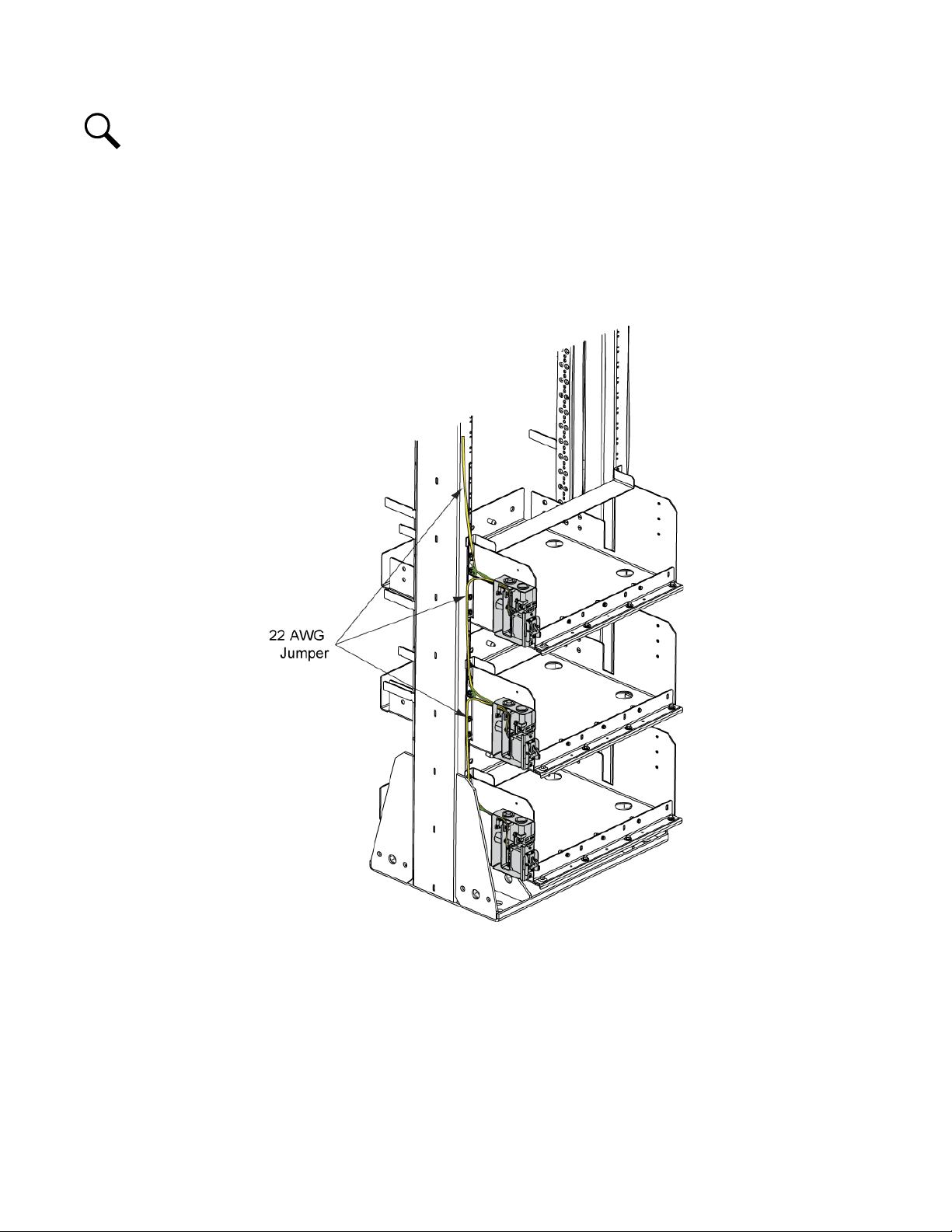

1.5.3 Alarm Jumper Routing .................................................................................................................................................................................................................... 11

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
iv
Admonishments Used in this Document
DANGER
! Warns of a hazard the reader will be exposed to that will likely result
in death or serious injury if not avoided. (ANSI, OSHA)
WARNING
! Warns of a potential hazard the reader may be exposed to that could
result in
death or serious injury if not avoided. This admonition is not used for situations that pose a
risk only to equipment, software, data, or service. (ANSI)
CAUTION
! Warns of a potential hazard the reader may be exposed to that could
result in minor or moderate injury if not avoided. (ANSI, OSHA) This admonition is not
used for situations that pose a risk only to equipment, data, or service, even if such use
appears to
be permitted in some of the applicable standards. (OSHA)
ALERT
! Alerts the reader to an action that must be avoided in order to protect
equipment, software, data, or service. (ISO)
ALERT
! Alerts the reader to an action that must be performed in order to prevent
equipment damage, software corruption, data loss, or service interruption. (ISO)
FIRE SAFETY
! Informs the reader of fire safety information, reminders, precautions,
or policies,
or of the locations of fire-fighting and fire-safety equipment. (ISO)
SAFETY
! Informs the reader of general safety information, reminders, precautions, or
policies not related to a particular source of hazard or to fire safety. (ISO, ANSI, OSHA)

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
v
Important Safety Instructions
Safety Admonishments Definitions
Definitions of the safety admonishments used in this document are listed under “Admonishments Used in this Document” on page iv.
General Safety
DANGER! Installation of this kit should only be performed by a qualified technician following approved safety procedures. If a
qualified technician is not available, arrangements can be made with a Vertiv service facility to have the kit installed.
DANGER! YOU MUST FOLLOW APPROVED SAFETY PROCEDURES.
Performing the following procedures may expose you to hazards. These procedures should be performed by qualified
technicians familiar with the hazards associated with this type of equipment. These hazards may include shock, energy,
and/or burns. To avoid these hazards:
a) The tasks should be performed in the order indicated.
b) Remove watches, rings, and other metal objects.
c) Prior to contacting any uninsulated surface or termination, use a voltmeter to verify that no voltage or the expected
voltage is present. Check for voltage with both AC and DC voltmeters prior to making contact.
d) Wear eye protection.
e) Use certified and well maintained insulated tools. Use double insulated tools appropriately rated for the work to be
performed.
Voltages
AC Input Voltages
DANGER! This system operates from AC input voltage capable of producing fatal electrical shock.
DC Output and Battery Voltages
DANGER! This system produces DC power and may have a battery source connected to it. Although the DC voltage is not
hazardously high, the rectifiers and/or battery can deliver large amounts of current. Exercise extreme caution not to
inadvertently contact or have any tool inadvertently contact an output terminal or battery terminal or exposed wire
connected to an output terminal or battery terminal. NEVER allow a metal object, such as a tool, to contact more than one
termination or battery terminal at a time, or to simultaneously contact a termination or battery terminal and a grounded
object. Even a momentary short circuit can cause sparking, explosion, and injury.

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
vi
Battery
Refer to the battery manufacturer documentation for specific battery safety instructions. The following are general guidelines.
WARNING! Correct polarity must be observed when connecting battery leads.
WARNING! Special safety precautions are required for procedures involving handling, installing, and servicing batteries.
Observe all battery safety precautions in this manual and in the battery instruction manual. These precautions should be
followed implicitly at all times.
WARNING! A battery can present a risk of electrical shock and high short circuit current. Servicing of batteries should be
performed or supervised only by properly trained and qualified personnel knowledgeable about batteries and the required
precautions.
The following precautions should be observed when working on batteries:
•Remove watches, rings, and other metal objects.
•Eye protection should be worn to prevent injury from accidental electrical arcs.
•Use certified and well maintained insulated tools. Use double insulated tools appropriately rated for the work to be
performed. Ensure that wrenches with more than one working end have only one end exposed.
•Do not lay tools or metal parts on top of batteries.
•Disconnect charging source prior to connecting or disconnecting battery terminals.
•Risk of explosion if battery is replaced with an incorrect type or if polarity is reversed. Recommended to replace
batteries with the same manufacturer and type, or equivalent.
•Dispose of used batteries according to the instructions provided with the batteries. Do not dispose of batteries in a fire.
They may explode.
•ALWAYS FOLLOW THE BATTERY MANUFACTURER’S RECOMMENDATIONS AND SAFETY INSTRUCTIONS.
DANGER! This equipment may be used in conjunction with lead-acid batteries. Working near lead-acid batteries is
dangerous!
In addition to the hazard of electric shock, gas produced by batteries can be explosive and sulfuric acid can cause severe
burns.
•Do not open or mutilate batteries. Released electrolyte is harmful to the skin and eyes, and is toxic.
•Batteries contain sulfuric acid.
•Batteries generate explosive gases during normal operation. Systems containing batteries should never be installed in
an airtight room or space. Only install in a ventilated environment.
•Batteries are an energy source that can produce high amounts of electrical current.
FOR THESE REASONS, IT IS OF CRITICAL IMPORTANCE THAT YOU READ THESE INSTRUCTIONS AND FOLLOW THEM
EXACTLY.

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
vii
WHEN WORKING WITH LEAD-ACID BATTERIES:
•Follow the recommended PPE requirements per the SDS for the battery to be used.
•If battery acid enters your eye, immediately flush your eye with running cold water for at least 15 minutes. Get medical
attention immediately.
•If battery acid contacts skin or clothing, wash immediately with soap and water.
Personal Protective Equipment (PPE)
DANGER! ARC FLASH AND SHOCK HAZARD.
Appropriate PPE and tools required when working on this equipment. An appropriate flash protection boundary analysis
should be done determine the “hazard/risk” category, and to select proper PPE.
This product is intended only for installation in a Restricted Access Location.
Only authorized and properly trained personnel should be allowed to install, inspect, operate, or maintain the equipment.
Do not work on LIVE parts. If required to work or operate live parts, obtain appropriate Energized Work Permits as required
by the local authority, per NFPA 70E “Standard for Electrical Safety in the Workplace”.

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
viii
This page intentionally left blank.

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
1
1NetSure™ -48V Battery Tray Kit
1.1 Kit Description
This document provides installation instructions for the -48V Battery Tray Kits.
The NetSure™ -48V Battery Tray Kit provides a battery tray for a 19" or 23” wide relay rack. The battery tray holds four (4) 12V front
terminal valve regulated lead acid (VRLA) batteries. Battery cabling is provided and shall be connected to the system’s battery
connection point. Batteries are configured as one (1) -48V string per tray.
NOTE! The battery cabling is not provided in 582136700SK001, 582136700SK002 and 582136700SK007 kits.Only 3' of
cabling from the disconnect to the negative terminal of the battery is provided.
It is advisable that the procedure be conducted with the power plant shut down (all AC circuits to the rectifiers turned off and
battery disconnected). If this is not possible, extra care must be taken due to working with live DC power.
1.2 Kit Contents
The following items are furnished as a part of this kit. Before starting the procedure, check the items furnished against those listed to
ensure that there are no shortages.
Table 1.1 Kit 588820200SK001
Qty. Description P/N
1 Battery Tray, 23” Mount, 21” Depth 58882020011
1 Circuit Breaker, 100 Amp 80VDC 256695900
2 Crimp Lug, 2 AWG 245350005
0.666 ft Heat Shrink Tubing 182778000
1 1-Pole Battery Disconnect Breaker Kit (Left) 559814
1 Kit, Battery lugs, 2 AWG, 90 deg, Short Tongue 528234
2 Bracket, Battery Tray Mounting SXA2300174/1
2 Bracket, Cable 362736700
1 2 AWG Lug and Cable Kit 528155
1 Jumper for Battery Disconnect Breaker Alarm 524384
1 Installation Instructions IM588820200SK001
N/A Hardware, Miscellaneous N/A

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
2
Table 1.2 Kit 588820200SK002
Qty. Description P/N
1 Battery Tray, 23” Mount, 21” Depth 58882020011
1 Circuit Breaker, 150 Amp 80VDC 100763
1 2-Pole Battery Disconnect Breaker Kit (Left) 559816
1 Kit, Battery lugs, 2 AWG, 90 deg, Short Tongue 528234
2 Bracket, Battery Tray Mounting SXA2300174/1
2 Bracket, Cable 362736700
1 2 AWG Lug and Cable Kit 528155
1 Jumper for Battery Disconnect Breaker Alarm 524384
2 Crimp Lug, 2 AWG 245350815
1 Installation Instructions IM588820200SK001
N/A Hardware, Miscellaneous N/A
Table 1.3 Kit 588820200SK003
Qty. Description P/N
1 Battery Tray, 23” Mount, 21” Depth, 5” Deep Rail Mount 565421
1 Circuit Breaker, 150 Amp 80VDC 100763
1 2-Pole Battery Disconnect Breaker Kit, (Left) 559816
1 Kit, Battery lugs, 2 AWG, 90 deg, Short Tongue 528234
2 Bracket, Cable 362736700
1 2 AWG Battery Lugs and Cable Kit 528155
1 Jumper for Battery Disconnect Breaker Alarm 524384
2 Crimp Lug, 2 AWG 245350815
1 Installation Instructions IM588820200SK001
N/A Hardware, Miscellaneous N/A
Table 1.4 Kit 588820200SK004
Qty. Description P/N
1 Battery Tray, 23” Mount, 21” Depth 58882020011
1 Circuit Breaker, 200 Amp 80VDC 121810
1 2-Pole Battery Disconnect Breaker Kit, (Left) 559816
1 Kit, Battery lugs, 1/0 AWG, 90 deg, Short Tongue 528235
1 ft Heat Shrink Tubing 182778600
2 Bracket, Battery Tray Mounting SXA2300174/1
2 Bracket, Cable 362736700
1 1/0 AWG Battery Lugs and Cable Kit 528156
1 Jumper for Battery Disconnect Breaker Alarm 524384
1 Kit, Battery Lugs, 1/0AWG, 90 deg, Long Tongue 528237
2 Crimp Lug, 1/0 AWG 245351000
1 Installation Instructions IM588820200SK001
N/A Hardware/Miscellaneous N/A

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
3
Table 1.5 Kit 582136700SK001
Qty. Description P/N
1 Battery Tray, 19” Mount 541034
1 Circuit Breaker, 100 Amp 80VDC 256695900
1 1-Pole Battery Disconnect Breaker Kit, (Left) 528501
3 ft 2 AWG Wire 104694
1 Jumper for Battery Disconnect Breaker Alarm 524384
2 ft Heat Shrink Tubing 182778600
1 Installation Instructions IM588820200SK001
N/A Hardware/Miscellaneous N/A
Table 1.6 Kit 582136700SK002
Qty. Description P/N
1 Battery Tray, 23” Mount, 21” Depth 528496
1 Circuit Breaker, 100 Amp 80VDC 256695900
1 1-Pole Battery Disconnect Breaker Kit, (Left) 528501
3 ft 2 AWG Wire 104694
1 Jumper for Battery Disconnect Breaker Alarm 524384
2 ft Heat Shrink Tubing 182778600
1 Installation Instructions IM588820200SK001
N/A Hardware, Miscellaneous N/A
Table 1.7 Kit 582136700SK007
Qty. Description P/N
1 Battery Tray, 19” Mount, 5” Deep Rail Mount 561974
1 Circuit Breaker, 100 Amp 80VDC 256695900
1 1-Pole Battery Disconnect Breaker Kit, (Left) 528501
3 ft 2 AWG Wire 104694
1 Jumper for Battery Disconnect Breaker Alarm 524384
2 ft Heat Shrink Tubing 182778600
1 Installation Instructions IM588820200SK001
N/A Hardware, Miscellaneous N/A

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
4
Table 1.8 Kit 582136700SK008
Qty. Description P/N
1 Battery Tray, 19” Mount 559810
1 Circuit Breaker, 100 Amp 80VDC 256695900
1 1-Pole Battery Disconnect Breaker Kit, (Left) 559814
3 ft 2 AWG Wire 104694
1 Jumper for Battery Disconnect Breaker Alarm 524384
2 ft Heat Shrink Tubing 182778600
4 Crimp Lug, 2 AWG, 1/4” 245350815
1 Battery Cables, 2 AWG, 15ft long 565456
1 Installation Instructions IM588820200SK001
N/A Hardware, Miscellaneous N/A
Table 1.9 Kit 582137100SK001
Qty. Description P/N
1 Battery Tray, 19” Mount 559812
1 Circuit Breaker, 100 Amp 80VDC 256695900
1 1-Pole Battery Disconnect Breaker Kit, (Left) 559814
1 Kit, Battery Lugs, 2 AWG, 90 deg, Long Tongue 528236
1 Pad, Battery 562834
2 Bracket, Cable 362736700
1 2AWG Battery Lugs and Cable Kit 545623DCP
1 Jumper for Battery Disconnect Breaker Alarm 524384
1 Installation Instructions IM588820200SK001
N/A Hardware, Miscellaneous N/A
Table 1.10 Kit 60075254
Qty. Description P/N
1 Battery Tray, 19” Mount 559810
2 ft Heat Shrink Tubing 182778600
1 Battery Cables, 2 AWG, 15ft long 565456
1 Installation Instructions IM588820200SK001
N/A Hardware, Miscellaneous N/A

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
5
Table 1.11 Kit 60075329
Qty. Description P/N
1 Battery Tray, 23” Mount 559806
2 ft Heat Shrink Tubing 182778600
1 Battery Cables, 2 AWG, 15ft long 565456
1 Installation Instructions IM588820200SK001
N/A Hardware, Miscellaneous N/A
1.3 Tools and Material Required
The following items are required to install this kit.
Table 1.12 Tools and Material Required
Description
Adjustable Torque Wrench
Crimp Tool
Wire Stripper
Socket Set
6-32 x 1/2” Screws
1.4 Installation Procedure
THESE INSTRUCTIONS SHOULD BE READ THROUGH COMPLETELY BEFORE INSTALLING THE KIT.
The following is a step-by-step procedure to install the kit. The procedure has been written for ease of use and to minimize the
possibility of contact with potentially hazardous energy. This procedure should be performed in the sequence given, and each step
should be completely read and fully understood before performing that step. Observe all “Important Safety Instructions” located at
the beginning of this document and also those presented in the following procedure. As each step of the procedure is completed, the
box adjacent to the respective step should be checked. This will minimize the possibility of inadvertently skipping any steps. If the
step is not required to be performed for your site, also check the box to indicate that it was read.
DANGER! Observe the Important Safety Instructions located at the beginning of this document.

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
6
1.4.1 Mounting the Battery Tray
Procedure
[ ] 1. To install a Battery Tray, perform the procedure in Figure 1.1.
Figure 1.1 Mounting and Securing the Battery Tray onto the Rack
1. Slide battery tray into relay rack and
secure to relay rack with 12-24 x 3/4"
thread forming hex head screws and
#10/12 ground washers (2 places per
side) or #12 flat washers (3 places per
side). (Torque to 70 in-lbs).
2. Secure rear angle brackets (both sides)
to battery tray with 1/4-20 x 3/4” bolts,
1/4” flat washers, 1/4” lock washers, and
1/4” nuts. (Torque to 84 in-lbs).
3. Secure rear angle brackets (both sides)
to relay rack with 12-24 x 3/4" thread
forming hex head screws and #10/12
ground washers (1 place per bracket)
or #12 flat washers (1 place per bracket).
(Torque to 70 in-lbs).
4. Secure cabling brackets if provided (both sides) to
relay rack with 12-24 x 1/2" thread forming
hex head screws. (Torque to 70 in-lbs).
Cabling
Bracket
Rear
Angle
Bracket
Battery Tray
Front Rear
Rear Angle Bracket

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
7
1.4.2 Installing the Battery Disconnect Circuit Breaker Kit (If Equipped)
Procedure
[ ] 1. Remove the cover from the battery disconnect circuit breaker assembly. Secure the battery disconnect circuit breaker
assembly to the battery tray using 6-32 x 1/2” screws and 6-32 KEPS nuts (2-places). Refer to Figure 1.2.
[ ] 2. Secure the ground lead under a battery tray relay rack mounting bolt. After wiring to the battery disconnect circuit
breaker, replace the cover.
Figure 1.2 Installing Circuit Breaker on Battery Tray
Front view
ground lead secured
to rack mounting bolt
Installed view
The 588820200SK001 provides a
100 A Circuit Breaker and a 1-Pole
Battery Disconnect Circuit Breaker Kit
(as shown)
The 588820200SK002 provides a
150 A Circuit Breaker and a 2-Pole
Battery Disconnect Circuit Breaker Kit
(mounts similar 1-Pole Kit)
The 588820200SK003 provides a
150 A Circuit Breaker and a 2-Pole
Battery Disconnect Circuit Breaker Kit
(mounts similar 1-Pole Kit)
The 588820200SK004 provides a
200 A Circuit Breaker and a 2-Pole
Battery Disconnect Circuit Breaker Kit
(mounts similar 1-Pole Kit)
The 582136700SK001 provides a
100 A Circuit Breaker and a 1-Pole
Battery Disconnect Circuit Breaker Kit
(as shown)
The 582136700SK002 provides a
100 A Circuit Breaker and a 1-Pole
Battery Disconnect Circuit Breaker Kit
(as shown)
The 582136700SK007 provides a
100 A Circuit Breaker and a 1-Pole
Battery Disconnect Circuit Breaker Kit
(as shown)
The 582136700SK008 provides a
100 A Circuit Breaker and a 1-Pole
Battery Disconnect Circuit Breaker Kit
(as shown)
The 582137100SK001 provides a
100 A Circuit Breaker and a 1-Pole
Battery Disconnect Circuit Breaker Kit
(as shown)

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
8
1.5 Installing and Connecting Batteries in the Battery Tray
1.5.1 Wiring to the Battery Tray
. DANGER! Adhere to the “Important Safety Instructions” presented at the front of this document.
Procedure
[ ] 1. Refer to the wiring diagram provided in Figure 1.3 and wire the battery tray for your application. Cut the cables to the
appropriate length for the installation. Label the ends of each cable with "+1" (bottom), "+2", etc. or "-1" (bottom), "-2", etc.
as needed. Apply the appropriate lugs to the ends of each cable as needed.
[ ] 2. Lace the cables to the cable lacing brackets mounted on the rear of the relay rack.

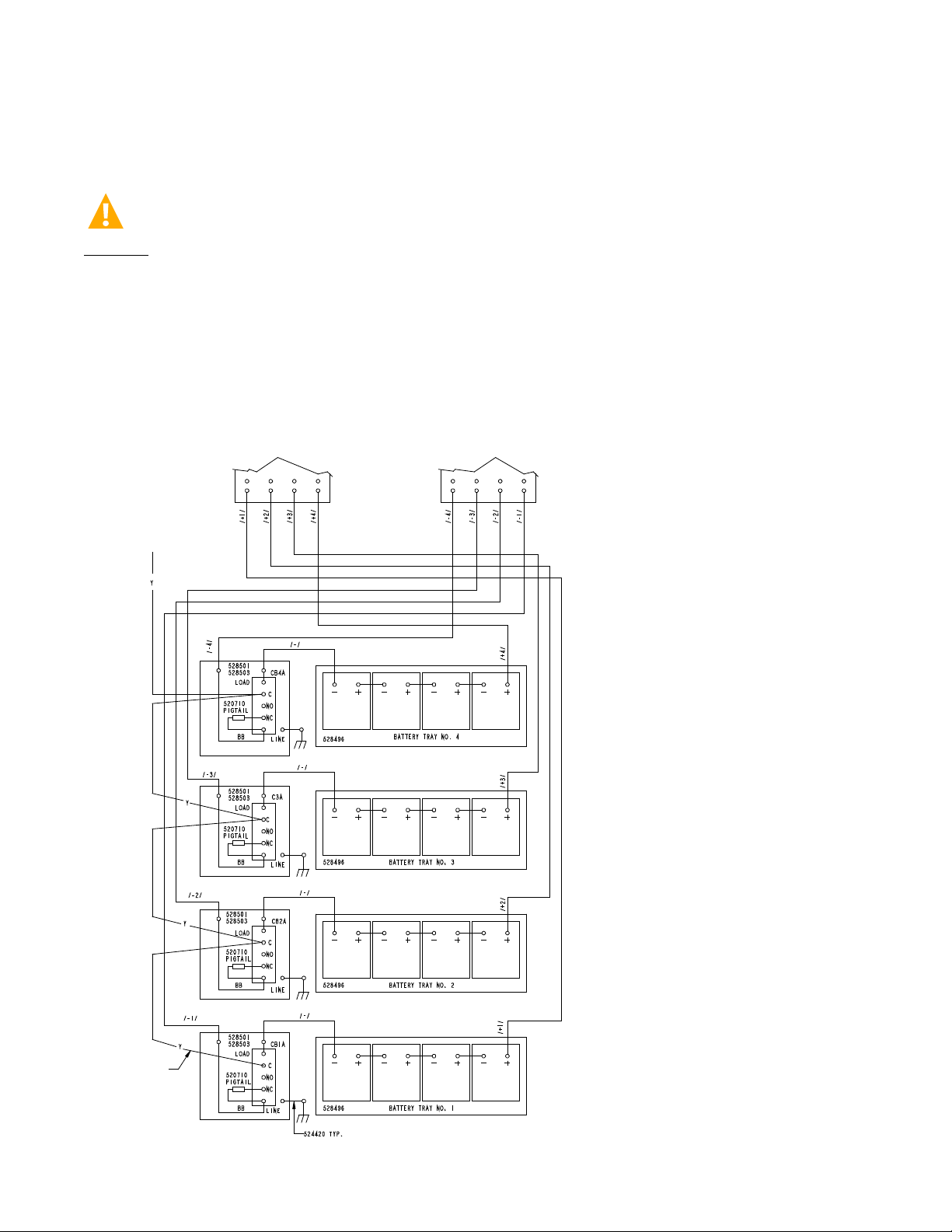

Figure 1.3 Wiring Diagram - Battery Tray
-48V Battery
Battery Return
524384
Alarm
Jumper
BATTERY TRAY
WITH LEFT-MOUNTED
DISCONNECT BREAKER
The 588820200SK001 provides a
100 A Battery Disconnect Circuit Breaker
and 2 AWG Cables and Lugs
The 588820200SK002 provides a
150 A Battery Disconnect Circuit Breaker
and 2 AWG Cables and Lugs
The 588820200SK003 provides a
150 A Battery Disconnect Circuit Breaker
and 2 AWG Cables and Lugs
The 588820200SK004 provides a
200 A Battery Disconnect Circuit Breaker
and 1/0 AWG Cables and Lugs
The 582136700SK001 provides a
100 A Battery Disconnect Circuit Breaker
and 3’ of 2 AWG Wire
The 582136700SK002 provides a
100 A Battery Disconnect Circuit Breaker
and 3’ of 2 AWG Wire
The 582136700SK007 provides a
100 A Battery Disconnect Circuit Breaker
and 3’ of 2 AWG Wire
The 582136700SK008 provides a
100 A Battery Disconnect Circuit Breaker
and 3’ of 2 AWG Wire
The 582137100SK001 provides a
100 A Battery Disconnect Circuit Breaker
and 2 AWG Cables and Lugs
Note: Location and lug type vary and
dependent on host system.

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
9
1.5.2 Installing and Connecting Batteries
. DANGER! Adhere to the “Important Safety Instructions” presented at the front of this document.
Procedure
NOTE! Refer to Figure 1.4 and Figure 1.5 as this procedure is performed.
1. If Battery Trays are Equipped with Circuit Breakers: Turn OFF the Battery Disconnect circuit breakers located on all
battery trays. Refer to Figure 1.4 for locations.
2. Remove the battery retention bracket as shown in Figure 1.4. To do so, remove the four 1/4-20 x 5/8” bolts and associated
washers.
3. Slide batteries into the tray, with the battery terminals toward the front as shown in Figure 1.4. Slide batteries into the tray as
far as they will go.
NOTE! The battery retention bracket can be oriented two ways to accommodate batteries of different lengths. A correctly
oriented bracket will fit snuggly against the batteries. If your batteries require the alternate bracket orientation shown in
Detail A of Figure 1.4, remove and reinstall the bullet-shaped spacers as shown in Detail A before performing the next step.
4. Reinstall the battery retention bracket. The spacers on the bracket should separate the batteries from each other. Secure
with the hardware removed in a previous step. Refer to Figure 1.4 for washer location.
5. Connect the links supplied by the battery manufacturer between pairs of battery terminals as shown in Figure 1.4. Use
hardware furnished by the battery manufacturer. Torque hardware to battery manufacturer’s recommendations.
6. Ensure the battery cable ends in all trays are insulated with sleeving before performing the next step.
. . WARNING! In the next step, observe correct polarity. Connect only cables labeled “+” to battery terminals labeled “+”.
Likewise, connect only cables labeled “–” to battery terminals labeled “–”.
7. Connect the cables found in the battery tray to the battery terminals, “+” to “+” and “–” to “–”. Observe correct polarity. Refer
to Figure 1.4. Secure with hardware furnished with the battery. Torque hardware to battery manufacturer’s
recommendations.
8. Repeat steps 1 through 7 for any remaining battery trays.
9. If Battery Trays Are Equipped With Circuit Breakers: To connect the batteries to the power system, turn ON the Battery
Disconnect circuit breakers located on all battery trays.

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
10

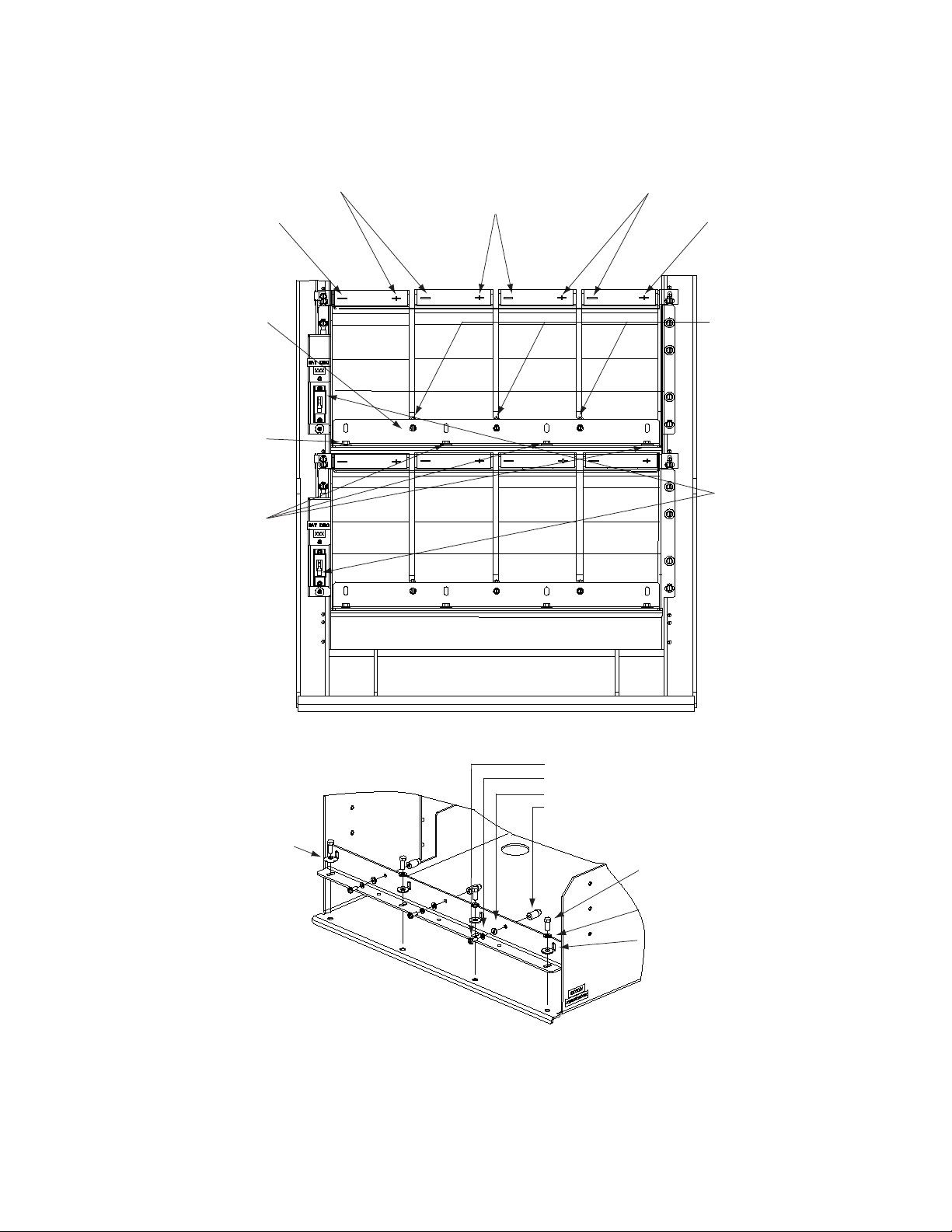

Figure 1.4 Battery Tray Installation Details
Connect Link
Furnished with Battery
to these Two
Terminals
Connect Link Furnished
with Battery to these
Two Terminals
Connect NEG (-)
Battery Cable
from battery disconnect
Battery Retention
Bracket. See Detail A
f
or alternate orientation.
1/4-20 x 5/8” Bolt
1/4” Ground Washer
(1 place)
1/4-20 x 5/8” Bolt
1/4” Lock Washer
1/4” Flat Washer
(3 places)
Note:
1. Two trays shown as example.
2. Cabling detail omitted.
1/4” Ground
Washer
(1 place)
DETAIL A
Alternate Orientation
of Retention Bracket
No. 10 Flat Washer (3 places)
10-32 x 1/2” Pan Head Screw (3 places)
No. 10 Lock Washer (3 places)
Spacer (3 places)
1/4-20 x 5/8” Hex
Head Screw
(4 places)
1/4-20 Lock Washer
(3 places)
1/4-20 Flat Washer
(3 places)
If trays are
equipped with
circuit breakers,
TURN OFF ALL
circuit breakers
before installing
and connecting
any batteries!
Spacers Separate
Batteries (3 place
s
per tray, front and
back)
Connect POS (+)
Battery Cable
to this Terminal
(string 2)
Connect Link Furnished
with Battery to these
Two Terminals

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
11
Figure 1.5 Cable Routing - Battery Tray with Circuit Breaker
1.5.3 Alarm Jumper Routing
NOTE! Refer to Figure 1.6 this procedure is performed.
Procedure
1. Connect the YELLOW 22 GA jumper to “COM” terminal of breaker.
2. Route jumper up to the next circuit breaker. Refer to Figure 1.3 and Figure 1.6.
NOTE! If Alarm jumper is not required or there is no battery tray mounted on top, Ty-rap unused jumper back onto the
harness.
3. Connect stripped end of alarm jumper into power system’s fuse alarm input connection point. Refer to the manual provided
with the host system for proper alarm input wiring to the system.
Routes up to
(+) Input Battery
Routes up to
(-) Input Battery
Battery Tray # 1
Wire marked per
battery tray
[+1] or [+2] or [+3] or [+4]
Wire marked per battery tray [-1] or [-2] or [-3] or [-4]

Vertiv™ NetSure™ -48 VDC Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
12
NOTE! For the Vortex or NetSure 701 system, this is PIN 11 of TB1 (System Fuse Alarm Input) on the Interconnect/Inhibit
Card on the right side of the base of the power system distribution cabinet. For NetSure 721 system this is PIN 1 of TB1
(Battery Tray FA) on the System Interface circuit card inside the distribution cabinet. Verify that when the battery
disconnect breaker is turned off, the controller generates a FA alarm.
For the NetSure 502 system this is normally the negative terminal of the 2nd digital input on the IB2 Interface card PIN 3.
For the 582137100 NetSure 5100 system this is normally the negative terminal on the 3rd digital input on the IB2 Interface
card PIN 5.
Figure 1.6 Alarm Jumper Routing
