IMPORTANT SAFETY INFORMATION
IMPORTANT! This manual contains important safety instructions that must be followed during the
installation and maintenance of the UPS and batteries. Read this manual thoroughly and the safety and
regulatory information, available at https://www.vertivco.com/ComplianceRegulatoryInfo, before
attempting to install, connect to supply, or operate this UPS.
1

Vertiv | Liebert® EXS™ Installer/User Guide
2
This page intentionally left blank

1 PRODUCT DESCRIPTION
The Liebert® EXS™ uninterruptible power system (UPS) is an intelligent, online UPS with sine wave
output. The UPS offers reliable, high-quality AC power to small-scale computer centers, networks,
communication systems, automatic control systems, and similar sensitive electronic equipment.
1.1 Model Configurations
Model Rating Input/Outpus
10 kVA - (208 and 220 V)
Single-input configuration (default), dual-input is field-configurable.
10 kVA - (208 and 220 V) with Battery Cabinet*
*Optional battery cabinet can only be ordered with internal batteries that are factory-installed.
Table 1.1 Model Configurations
1.2 Front-panel Components
The outside front panel of the UPS provides ventilation holes and an operation/display panel with LED
indicators and function keys. See Operation and Display Panel on page 31, for details about using the
display panel.
1 Product Description 3

Figure 1.1 UPS Front and Rear View
Vertiv | Liebert® EXS™ Installer/User Guide
4

1.3 Rear-panel Components
Figure 1.2 Rear-panel Connectors
Item Description
1 REPO port
2 USB port
3 RS-232 port
4 Parallel/LBS ports
1 Product Description 5

1.4 Major Internal Components and Operating Principle
The UPS is composed the components described in Figure 1.3 on the facing page. Table 1.2 below,
describes the operation of various circuits through the components.
Component Operation/Function
Transient Voltage
Surge
Suppression
(TVSS) and
EMI/RFI Filters
Provide surge protection. Filter electromagnetic interference (EMI) and radio frequency interference (RFI).
Minimize any surges or interference present in the utility line and protect the sensitive equipment even when on
internal bypass power.
Rectifier/Power
Factor
Correction (PFC)
Circuit
In normaloperation, converts utility AC power to regulated DC power for use by the inverter while ensuring that
the wave shape of the input current used by the UPS is near ideal. Extracting this sine-wave input current
ensures efficient use of utility power and reduces distortion reflected on the utility making cleaner power
available to devices that are not protected by the UPS.
Inverter
In normaloperation, inverts the DC output of the power-factor-correction circuit into precise, regulated sine-
wave AC power. When utility power fails, the inverter receives energy from the batteries through the rectifier. In
both Normal mode and Bypass mode, the UPS inverter remains on-line, generating clean, precise, regulated AC-
output power.
DC-DC Charger When the UPS is connected to utility power and the rectifier is operating, the battery charger regulates energy
output from the rectifier/PFC to continuously recharge the batteries.
Static Bypass
Switch
In the event of an output overload, over-temperature condition, or other failure, the switch automatically
transfers connected equipment to bypass power.
Batteries
Up to 4 strings of long-life, valve-regulated, non-spillable, lead-acid batteries depending on back-up run-time
requirements. See Table 7.3 on page55, for approximate run times.
NOTE: To maintain battery design life, operate the UPS in an ambient temperature of 68°F to 77°F (20°C
to 25°C).
Maintenance
Bypass Breaker electrically isolates the UPS and internal batteries for maintenance.
Table 1.2 Major Component Operation
Vertiv | Liebert® EXS™ Installer/User Guide
6

Figure 1.3 UPS Operating-principle
Item Description
1 Bypass input
2 Maintenance byass breaker
3 Bypass input breaker
4 Static switch
5 Rectifier input
6 Rectifier input breaker
7 Rectifier
8 Battery charger
9 Battery
10 Inverter
11 Automatic inverter switch
12 Output breaker
13 UPSoutput
1.5 UPS States and Operating Modes
NOTE: See Table 3.2 on page32, for description of the run-indicator and alarm-indicator LEDs
mentioned in this section.
1 Product Description 7

1.5.1 Normal Mode
Normal operation supplies clean, conditioned, sine-wave power to connected equipment from normal
utility input. The battery charger charges the batteries. On the front-panel display, the run-indicator
(green)is On, the alarm indicator is OFF, and the buzzer is silent.

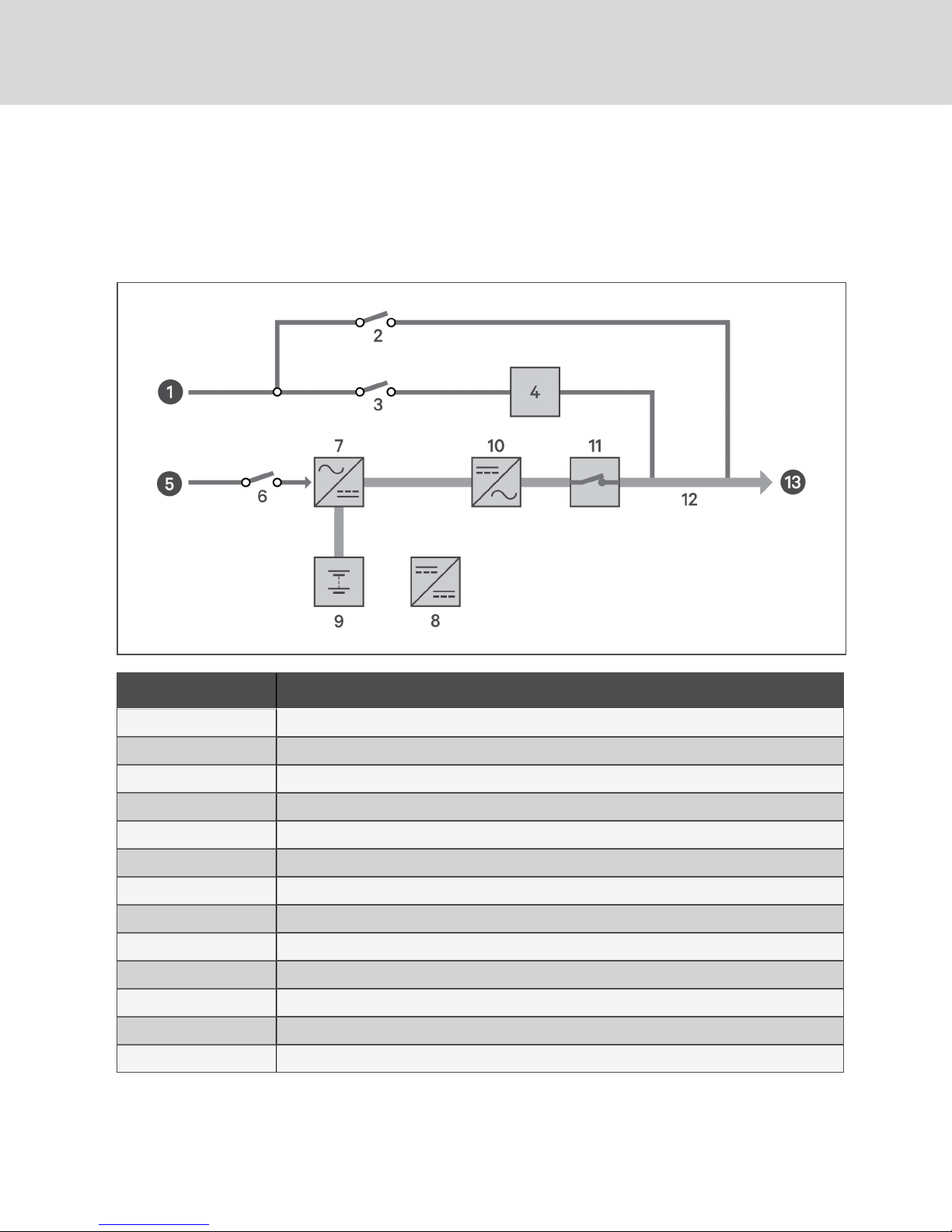

Figure 1.4 Normal-mode Operation
Item Description
1 Bypass input
2 Maintenance byass breaker
3 Bypass input breaker
4 Static switch
5 Rectifier input
6 Rectifier input breaker
7 Rectifier
8 Battery charger
9 Battery
10 Inverter
11 Automatic inverter switch
12 Output breaker
13 UPSoutput
Vertiv | Liebert® EXS™ Installer/User Guide
8

Item Description
1 Mains/Utility input (by-pass input)
2 Rectifier/PFC
3 Inverter
4 Battery charger
5 Battery
6 Bypass static switch
7 UPS output
1 Product Description 9

1.5.2 Battery Mode
Battery mode supplies battery power to the load if utility power fails or if the utility voltage goes outside of
the permissible range. On the front-panel display, the run indicator (green) is On, the alarm indicator
(yellow)is On, and the buzzer beeps once each second. The LCD "Current" screen displays "On Battery."
Figure 1.5 Battery-mode Operation
Item Description
1 Bypass input
2 Maintenance byass breaker
3 Bypass input breaker
4 Static switch
5 Rectifier input
6 Rectifier input breaker
7 Rectifier
8 Battery charger
9 Battery
10 Inverter
11 Automatic inverter switch
12 Output breaker
13 UPSoutput
Vertiv | Liebert® EXS™ Installer/User Guide
10

1.5.3 Bypass Mode
Bypass mode supplies power to the load from the bypass source if an overload or fault occurs during
normal operation. On the front-panel display, the run indicator (green) is On, the alarm indicator
(yellow)is On, and the buzzer beeps once each second. The LCD "Current" screen displays "On Bypass."

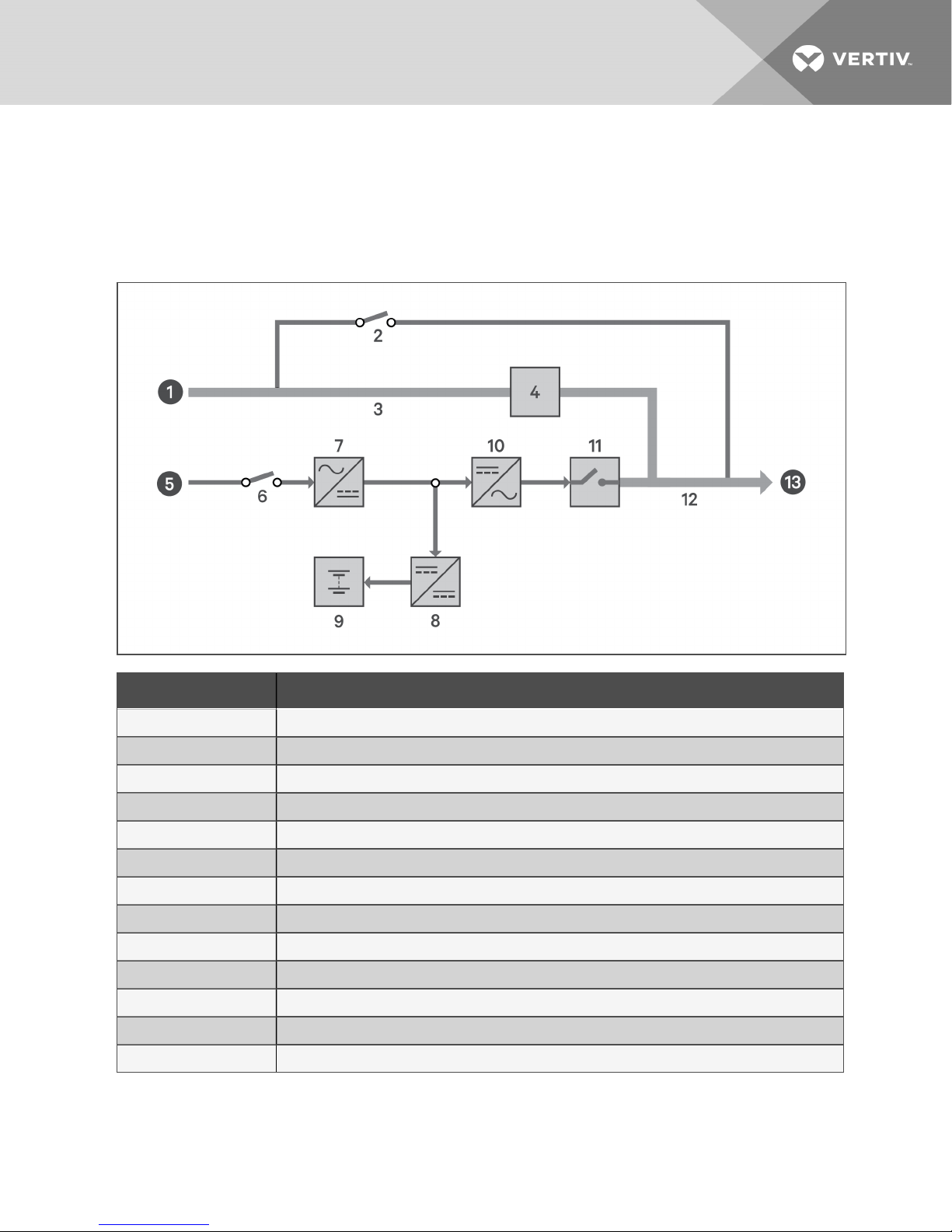

Figure 1.6 Bypass-mode Operation
Item Description
1 Bypass input
2 Maintenance byass breaker
3 Bypass input breaker
4 Static switch
5 Rectifier input
6 Rectifier input breaker
7 Rectifier
8 Battery charger
9 Battery
10 Inverter
11 Automatic inverter switch
12 Output breaker
13 UPSoutput
1 Product Description 11

1.5.4 Auto Restart Mode
When enabled, which is the default setting, Auto Restart mode automatically re-starts the UPS after a
shut-down that resulted from depleted batteries after an extended power outage. A built-in 10-second
delay after utility power is restored allows other equipment to start first and stabilize before the UPS
restarts.
Vertiv | Liebert® EXS™ Installer/User Guide
12

1.5.5 Eco Mode—Single UPS
The UPS ships in Eco mode as the factory-default setting. Eco mode reduces power consumption and
provides UPS efficiency approaching 99% by powering the load via bypass if the bypass voltage is normal
or by powering the load via the inverter when the bypass voltage is outside the specified range.
NOTE: During Eco mode, if a bypass-failure or abnormal-bypass-voltage notification appears when the
output is not overloaded, the UPS will transfer to Normal Mode. However, if a notification showing
bypass failure or abnormal bypass voltage appears when the output is overloaded, the UPS will shut
down the bypass.
Figure 1.7 Eco-mode Operation
Item Description
1 Bypass input
2 Maintenance byass breaker
3 Bypass input breaker
4 Static switch
5 Rectifier input
6 Rectifier input breaker
7 Rectifier
8 Battery charger
9 Battery
10 Inverter
1 Product Description 13

Item Description
11 Automatic inverter switch
12 Output breaker
13 UPSoutput
1.5.6 Fault State
When the UPS is in Normal mode and the inverter fails or UPS over-temperature occurs, operation
transfers to Bypass mode. When the UPS is in Battery mode (with no bypass utility), and the inverter fails
or over-temperature occurs, the UPS shuts down and stops output power. During a Fault state, the front-
panel display alarm indicator (red)is On, the buzzer beeps continuously, and fault information displays on
the LCD screen.
Vertiv | Liebert® EXS™ Installer/User Guide
14

1.5.7 Maintenance Bypass Mode
Used when the UPS requires maintenance or repair, Maintenance-bypass-mode operation powers the
connected equipment with utility power while electrically isolating the internal UPS components.
NOTICE
Risk of power interruption. Can damage the connected equipment.
If utility power fails or if its quality is out of range while the UPS is in Maintenance Bypass Mode,
the UPS may shut down without notice and shut-off output power to the load.
NOTE: The UPS has no user-serviceable parts. If the UPS malfunctions and requires service, visit
http://www.VertivCo.com/en-us/support/ or contact your local Vertiv representative.
Figure 1.8 Maintenance-bypass Operation
Item Description
1 Bypass input
2 Maintenance byass breaker
3 Bypass input breaker
4 Static switch
5 Rectifier input
6 Rectifier input breaker
7 Rectifier
8 Battery charger
9 Battery
1 Product Description 15

Item Description
10 Inverter
11 Automatic inverter switch
12 Output breaker
13 UPSoutput
Vertiv | Liebert® EXS™ Installer/User Guide
16
