Vertiv | Liebert®ITA2™, 8-10kVA, 208/220V Three-Phase UPS Quick-Start Guide | Rev. 0 | 01/18 | 1
LIEBERT®ITA2™UPS
Quick-Start Guide—60Hz, 208V, 8-10kVA
The complete Liebert ITA2 UP user manual is available at Vertiv’s Web site,
www.vertivco.com/en-us/products-catalog/critical-power/uninterruptible-power-
supplies-ups/ or by using the QR code at right.
Unpacking and Inspection
Unpack and inspect the UPS and its accessories,
shown at right
1. If any problem is found, file a damage claim with the
carrier immediately and send a copy to Vertiv at:
Vertiv
1050 Dearborn Drive
P.O. Box 29186
Columbus, Ohio 43085 USA
2. Check the accessories and models against the
delivery list. If any problem is found, notify your local
Vertiv representative immediately.
Single-Input Configuration
1. Remove the conduit box cover to gain access to the
input and output terminal blocks.
2. Remove the knockout plates and attach the
conduits to the rear of the conduit box.
Hardwire Connections—UPS Input
3. Leave the shorting busbars in place on the UPS
input terminal block.
4. Using Figure 1, make these connections:
• Phase A cable from the upstream feeder panel
to UPS Jumper 11
• Phase B cable from the upstream feeder panel
to UPS Jumper 12
• Phase C from the upstream feeder panel to
UPS Terminal 13
• Neutral from the upstream feeder panel to UPS
Terminal 14 or 15
• The safety equipment ground cable from
upstream feeder panel to UPS ground stud 10
Hardwire Connections—UPS Output
The UPS has two output terminal block sections, one is always on and the other is programmable/controllable.
These instructions will list the always-on connections first, followed by the programmable connections inside
parentheses.
1. Using Figure 1, make these connections:
• Phase A cable from UPS Terminal 4 (9) to the downstream distribution panel Phase A on the panelboard main breaker
• Phase B cable from UPS Terminal 3 (8) to the downstream distribution panel Phase B on the panelboard main breaker
• Phase C cable from UPS terminal 2 (7) to the downstream distribution panel Phase C on the panelboard main breaker
• Neutral cable from UPS terminal 5 (6) to the downstream distribution panel neutral bus
• The safety equipment ground cable from UPS Ground Stud 1 to the downstream distribution panel ground bus
2. Replace the conduit box cover and secure it.
Corner
Braces
Protective
Packing
Protective
Packing
Bag of
Hardware
Front
Panel
Liebert ITA2
Support
Base

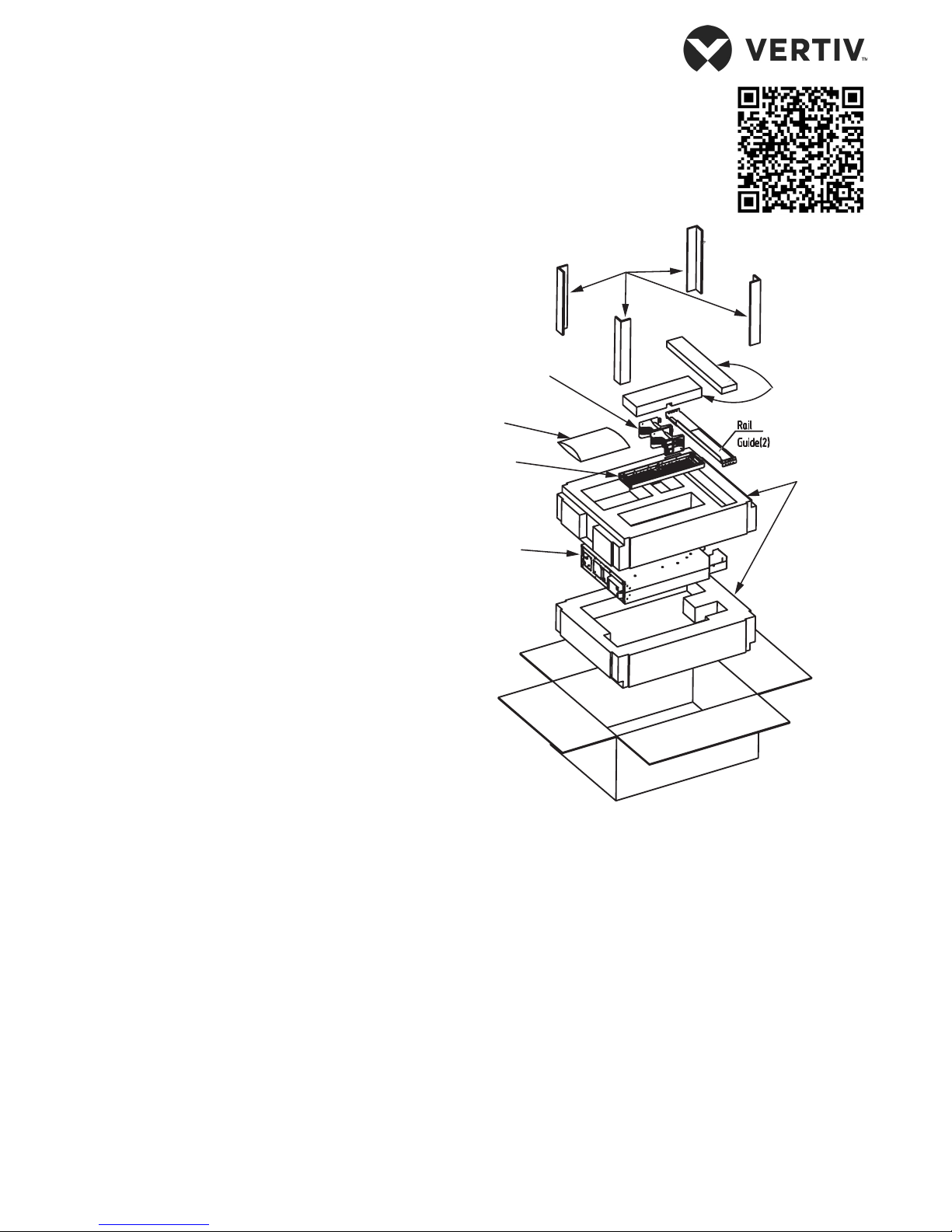

Liebert ITA2 and Accessories as Shipped

Vertiv | Liebert®ITA2™, 8-10kVA, 208/220V Three-Phase UPS Quick-Start Guide | Rev. 0 | 01/18 | 2
Figure 1 Wiring diagram—Single-input configuration
Dual-Input Configuration
Dual input configuration for the UPS requires that both feeds be from the same source.
1. Remove the conduit box cover to gain access to the input and output terminal blocks.
2. Remove the knockout plates and attach the conduits to the rear of the conduit box.
Dual-Input Hardwire Connections—Main Input
3. Remove the shorting busbars from the UPS input terminal block on Terminals 11, 12 and 13
Dual-Input Hardwire Connections—UPS Rectifier Input
4. With the shorting busbars removed from the UPS input terminal block, using Figure 2, make these connections:
• Phase A cable from the upstream feeder panel to UPS Terminal 11
• Phase B cable from the upstream feeder panel to UPS Terminal 13
• Phase C from the upstream feeder panel to UPS Terminal 15
• Neutral from the upstream feeder panel to UPS Terminal 17
• The safety equipment ground cable from the upstream feeder panel to UPS ground stud 10.
1. PE: Output PE Terminal 2. C: AC Output Terminal Phase C 3. B: AC Output Terminal Phase B
4. A: AC Output Terminal Phase A 5. N: Output Neutral Line Terminal 6. N: Output Neutral Line Terminal
7. pC: AC Output Terminal Phase C 8. pB: AC Output Terminal Phase B 9. pA: AC Output Terminal Phase A
10. PE: Output PE Terminal. 11. L1: Input Line Phase A 12. L2: Input Line Phase B
13. L3: Input Line Phase C 14. N: Input Neutral Line Terminal 15. N: Input Neutral Line Terminal
16. BAT+: Battery Positive Terminal 17. BATN: Battery Neutral Terminal 18. BAT-: Battery Negative Terminal
19. PE: Battery PE Terminal
Table 1 Shorting copper bar
Bypass Shorting Copper Bar Drawing
2-Pin Copper Bar
1234 56 789 10
12131415161718 11
19

Vertiv | Liebert®ITA2™, 8-10kVA, 208/220V Three-Phase UPS Quick-Start Guide | Rev. 0 | 01/18 | 3
Dual-Input Hardwire Connections—UPS Bypass Input
5. With the shorting busbars removed on the UPS input terminal block, using Figure 2, make these connections:
• Phase A cable from the upstream feeder panel to UPS Terminal 12
• Phase B cable from the upstream feeder panel to UPS Terminal 14
• Phase C from the upstream feeder panel to UPS Terminal 16
• Neutral from the upstream feeder panel to UPS Terminal 18
• The safety equipment ground cable from the upstream feeder panel to UPS Ground Stud 10.
Dual-Input Hardwire Connections—UPS Output
The UPS has two output terminal block sections, one is always on and the other is programmable/controllable.
These instructions will list the always-on connections followed by the programmable connections inside
parentheses.
6. Using Figure 2, make these connections:
• Phase A cable from UPS Terminal 4 (9) to the downstream distribution panel Phase A on the panelboard main breaker
• Phase B cable from UPS Terminal 3 (8) to the downstream distribution panel Phase B on the panelboard main breaker
• Phase C cable from UPS Terminal 2 (7) to the downstream distribution panel Phase C on the panelboard main breaker
• Neutral cable from UPS Terminal 5 (6) to the downstream distribution panel neutral bus
• The safety equipment ground cable from UPS Ground Stud 1 to the downstream distribution panel ground bus
7. Replace the conduit box cover and secure it.
Figure 2 Wiring diagram—Dual input configuration
Install Auxiliary Equipment
If the installation will include a Liebert ITA2 Maintenance Bypass Cabinet or Liebert ITA2 Battery Cabinet, refer to
the quick start guides or user manuals to install those units.
The UPS startup procedures can be performed after the installation is finished and the external input MBC’s are
closed.
1. PE: Output PE Terminal 2. C: AC Output Terminal Phase C 3. B: AC Output Terminal Phase B
4. A: AC Output Terminal Phase A 5. N: Output Neutral Line Terminal 6. N: Output Neutral Line Terminal
7. pC: AC Output Terminal Phase C 8. pB: Programmable AC Output Terminal Phase B 9. pA: Programmable AC Output Terminal Phase A
10. PE: Input PE Terminal. 11. rA: AC Rectifier Input Phase A 12. bA: Bypass Input Phase A
13. rB: AC Rectifier Input Phase B 14. bB: Bypass Input Phase B 15. rC: AC Rectifier Input Phase C
16. bC: Bypass Input Phase C 17. N: Input Neutral Line Terminal 18. N: Input Neutral Line Terminal
19. BAT+: Battery Positive Terminal 20. BATN: Battery Neutral Terminal 21. BAT-: Battery Negative Terminal
22. PE: Battery PE Terminal.
1234 56789 10
12131415161718 11
19
2021
22

Vertiv | Liebert®ITA2™, 8-10kVA, 208/220V Three-Phase UPS Quick-Start Guide | Rev. 0 | 01/18 | 4
Initial Startup
When the UPS is first started, the interfaces below will appear to guide in setting basic parameters At the
Welcome Screen, press the Enter button to start the guide...
© 2018 Vertiv Co. All rights reserved. Vertiv and the Vertiv logo are trademarks or registered trademarks of Vertiv Co. All other names and logos referred to are trade
names, trademarks or registered trademarks of their respective owners.
While every precaution has been taken to ensure accuracy and completeness herein, Vertiv Co. assumes no responsibility, and disclaims all liability, for damages resulting
from use of this information or for any errors or omissions. Specifications are subject to change without notice.
Enter
Welcome Screen Language, Date and Time
Battery Parameters Screen
(Default is 32)
Output Voltage and Frequency Screen
Finish Screen
Click Finish at the final guidance screen
to enter the UPS Mimic Screen. The UPS
will begin normal operation.
Technical Support Three-Phase UPS & Power Systems
800-543-2378
Outside North America: 614-841-6598
