Liebert® GXT4™ UPS
208V, 5000VA – 10,000VA, 6000RTL630
Installer/User Guide

Technical Support Site
If you encounter any installation or operational issues with your product, check the pertinent section of
this manual to see if the issue can be resolved by following outlined procedures. For additional assistance,
visit https://www.VertivCo.com/en-us/support/

TABLE OF CONTENTS
1 Important Safety Precautions 7
2 Product Description 11
2.1 Features 11
2.2 Available Models 11
2.3 Front Panel and Controls 12
2.4 Rear Panel Features 12

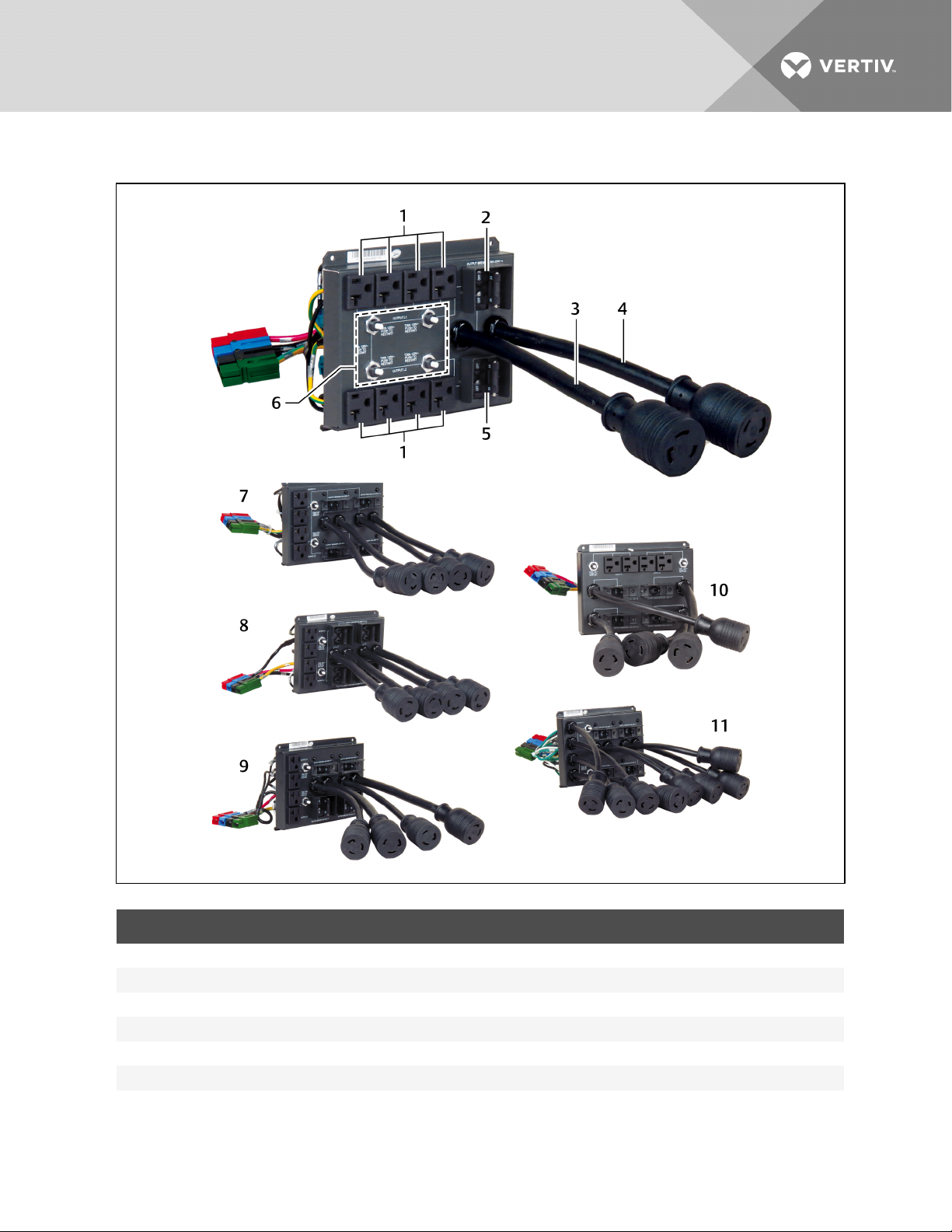

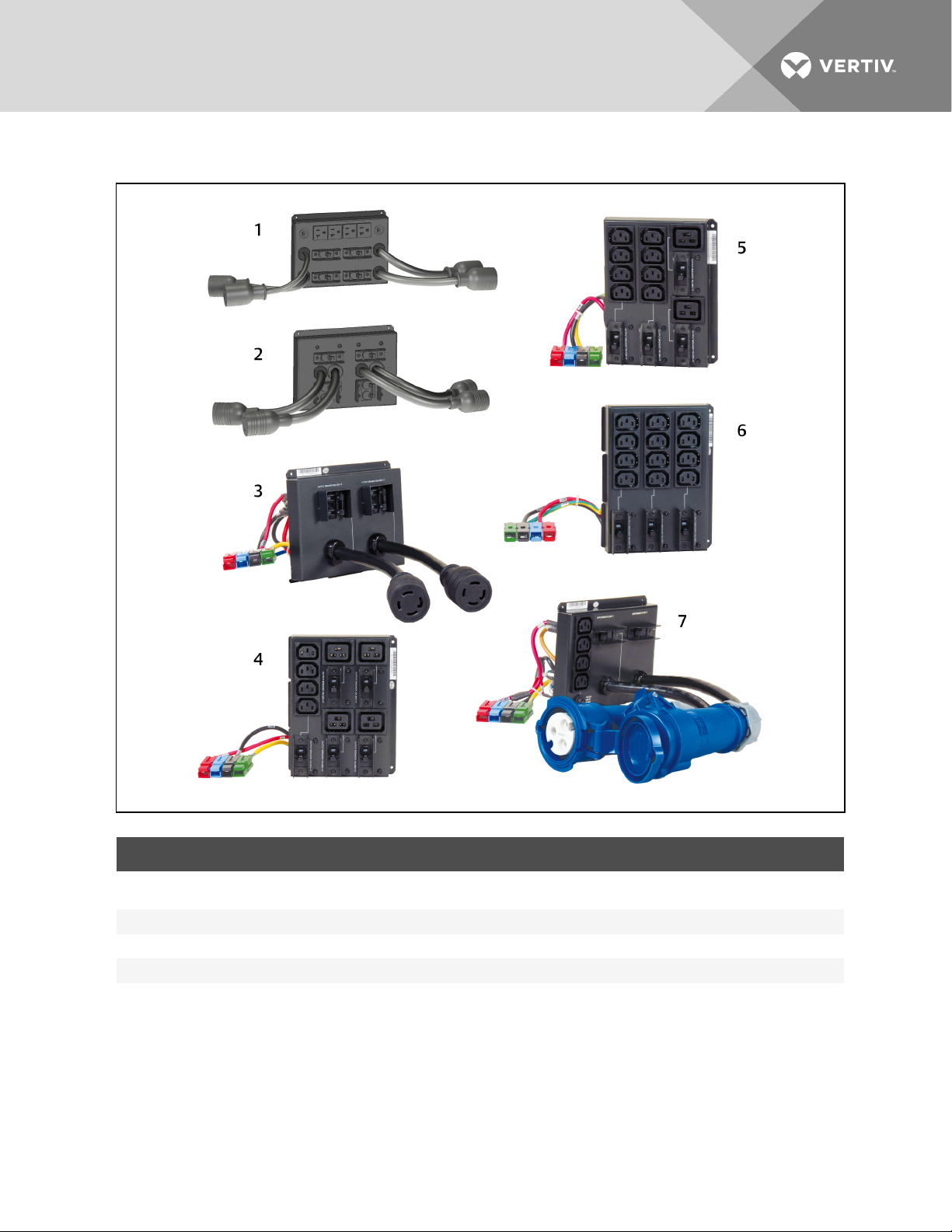

2.5 Removable Power Distribution Box 15
2.6 Internal Battery Packs 18

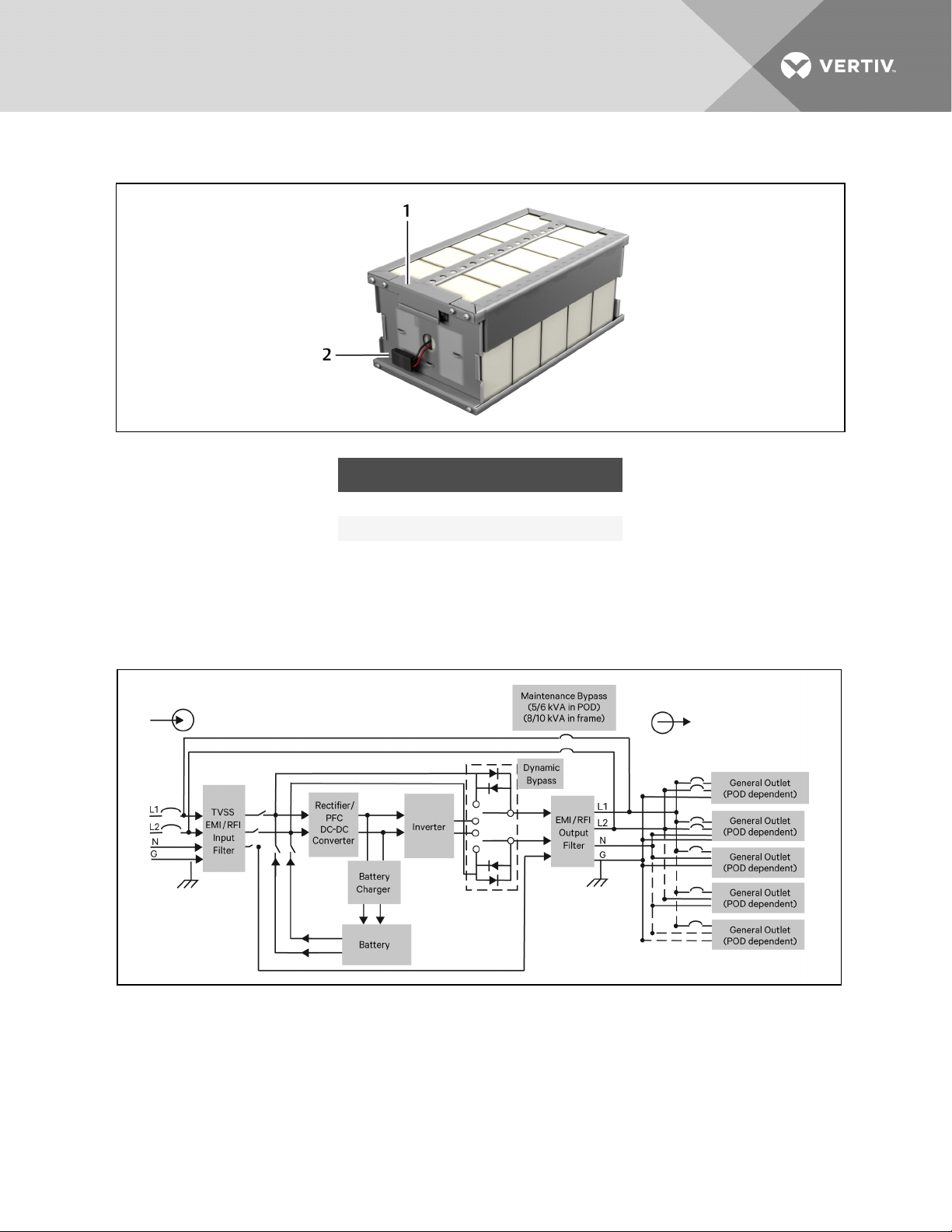

2.7 Major Components 19
2.7.1 Transient Voltage Surge Suppression (TVSS) andEMI/RFIFilters 19
2.7.2 Rectifier/Power Factor Correction (PFC) Circuit 20
2.7.3 Inverter 20
2.7.4 Battery Charger 20
2.7.5 DC-to-DC Converter 20
2.7.6 Battery 20
2.7.7 Internal Bypass 20
2.7.8 Maintenance Bypass 21
2.8 Operating Modes 21
2.8.1 Mains Mode 21
2.8.2 Manual Bypass Mode 21
2.8.3 Battery Mode 21
2.8.4 Battery Recharge Mode 22
2.8.5 Frequency Converter Mode 22
2.8.6 Active ECO Mode 22
3 Installation 23
3.1 What’s Included 23
3.2 Unpacking and Inspection 23
3.3 Preparation for Installation 23
3.3.1 Installation Environment 23
3.3.2 Installation Clearances 24
3.4 Installing the UPS 24
3.4.1 Tower Installation 24
3.4.2 Rack Installation 25
3.4.3 Installing the Internal Battery Kit(s) 25
3.5 Installing External Battery Cabinets 26
3.6 Connecting Input/Output Power 28
3.6.1 Installing the Power Distribution Box on 5000VA and 6000VA Models 28
3.6.2 Install the Power Distribution Box on8000VAand10,000VAModels 28
3.6.3 Electrical Connections for the Power-distribution Box 29
3.6.4 Removing the Power Distribution Box from5000VAand6000VAModels 31
Vertiv | Liebert GXT4 Installer/User Guide | 3

3.6.5 Removing the Power Distribution Cover from8000VAand10,000VAModels 32
4 Operation and Display Panel 33
4.1 LED Indicators 33
4.2 Control Buttons 34
4.3 LCD 34
4.4 Menu Structure 35
4.4.1 Startup Screen 36
4.4.2 Default Screen 36
4.4.3 Main Menu Screen 36
4.5 Prompt List 39
4.6 Warning List 40
4.7 Fault List 40
5 Operation 43
5.1 Startup Checklist for the GXT4 43
5.2 Starting the UPS 43
5.3 Performing a Manual Battery Test 43
5.4 Performing Manual Bypass 44
5.5 Shutting Down the GXT4 44
5.6 Disconnecting Input Power from the GXT4 44
5.7 Placing UPS in Maintenance Bypass 44
6 Communication 45
6.1 Liebert IntelliSlot Communication Cards 45
6.1.1 Liebert MultiLink 45
6.2 USB Port Communication 45
6.2.1 Configuration Program 46
6.3 Terminal Block Communication 47
6.3.1 Any Mode Shutdown 48
6.3.2 Battery Mode Shutdown 48
6.3.3 On Battery 48
6.3.4 Low Battery 49
6.4 Remote Emergency Power Off—GXT4-6000RTL630 49
6.5 Remote Emergency Power Off—GXT4-5000RT208, GXT4-6000RT208,GXT4-8000RT208,
GXT4-10000RT208 50
7 Maintenance 53
7.1 Replacing the Internal Battery Pack 53
7.1.1 Battery Replacement Procedures 54
7.2 Battery Charging 55
7.3 Precautions 56
7.4 Checking UPS Status 56
7.5 Checking UPS Functions 56
7.6 Replacing the Power Module on8000and10,000VA models 56
8 Troubleshooting 59
Vertiv | Liebert GXT4 Installer/User Guide | 4

8.1 UPS Symptoms 59
8.1.1 Indicator and LCD 59
8.1.2 Audible Alarm 60
8.2 Troubleshooting UPS Issues 60
9 Specifications 63
9.1 Auto-Learning Battery Run Times 71
Appendices 73
Appendix A: Technical Support 73
Vertiv | Liebert GXT4 Installer/User Guide | 5

Vertiv | Liebert GXT4 Installer/User Guide | 6

1 IMPORTANT SAFETY PRECAUTIONS
SAVETHESEINSTRUCTIONS
This manual contains important safety instructions that must be followed during the installation and
maintenance of the UPS and batteries. Read this manual thoroughly before attempting to install or
operate this UPS. Adhere to all warnings on the unit and in this manual. Follow all operating and user
instructions. This equipment can be operated by individuals without previous training.
UPS Safety Notes
This UPS contains no user-serviceable parts except the internal battery pack. The Off/Bypass
pushbutton does not electrically isolate internal parts. Under no circumstances attempt to gain internal
access other than to replace the batteries due to risk of electric shock or burn. Do not continue to use the
UPS if the front panel indications are not in accordance with these operating instructions or if the UPS
performance alters in use. Refer all faults to your local dealer, Vertiv™ representative or Vertiv™ Channel
Support.
This UPS has an internal battery, and the output receptacles of the UPS may carry live voltage even if the
UPS is not connected to utility input power.
Before moving or rewiring this UPS, disconnect utility input power and the battery and make sure that the
UPS is completely shut down. Otherwise, the output terminal may carry live voltage, presenting an electric
shock hazard.
To ensure human safety and normal UPS operation, the UPS must be properly grounded before use.
When the UPS is connected to an IT power distribution system, a short-circuit protection device must be
installed on the neutral line.
Install and use the Liebert GXT4 in the following environments:
•Temperature: 32°F - 104°F (0°C - 40°C), relative humidity: 0% to 95% non-condensing
•Out of direct sunlight
•Away from heat sources
•Stable surface, not subject to vibrations or shocks
•Away from dust and other particulates
•Away from corrosive substances, salts and flammable gases
Keep the air inlet and outlet of this UPS unobstructed. Poor ventilation will increase the internal
temperature of the UPS and can adversely affect the UPS and its batteries.
Keep liquid and foreign objects away from the UPS. Turn Off and isolate the UPS before cleaning it. Use
only a soft cloth, never liquid or aerosol cleaners.
In case of fire, use a dry chemical fire extinguisher to put out the fire. Using a fluid fire extinguisher may
cause electric shock.
DO NOT CONNECT equipment that could overload the UPS or demand DC current from the UPS, for
example: electric drills, vacuum cleaners, laser printers, hair dryers or any appliance using half-wave
rectification.
Storing magnetic media on top of the UPS may result in data loss or corruption.
Vertiv | Liebert GXT4 Installer/User Guide | 7

This product is designed for commercial/industrial use only. This UPS is not intended for use with life
support and other designated critical devices. Maximum load must not exceed that shown on the UPS
rating label. This UPS is designed for data processing equipment. If uncertain, consult your local dealer or
Vertiv™ representative.
This UPS is not for use in a computer room as defined in the standard for the Protection of Electronic
Computer/Data Processing Equipment, ANSI/NFPA 75.
This UPS is designed for use on a properly grounded (earthed), 100/200, 110/220, 115/230,
120/208,120/240 or 127/220VAC, 50 or 60Hz supply. The factory default setting is 120/208VAC, 60Hz.
Installation instructions and warning notices are in this manual.
The Liebert GXT4 208VAC 5000 - 10000 is designed for use with a 4-wire input (L1, L2, N, G).
The Liebert GXT4-6000RTL630 is designed be used with a 3-wire, 2-phase utility source (L1,L2, G).
Battery Safety
WARNING! Risk of electric shock and explosion. Can cause equipment damage, injury and
death. Do not dispose of the battery in a fire. The battery may explode. Do not open or damage
the battery. Released electrolyte is toxic and is harmful to skin and eyes. If electrolyte comes
into contact with the skin, wash the affected area immediately with plenty of clean water and
get medical attention.
WARNING! Risk of electric shock. Can cause equipment damage, injury and death. A battery
can present a risk of electrical shock and high short-circuit current.
The following precautions should be observed when working on batteries:
•Remove watches, rings and other metal objects.
•Use tools with insulated handles.
•Wear rubber gloves and boots.
•Do not lay tools or metal parts on top of batteries.
•Disconnect charging source prior to connecting or disconnecting battery terminals.
•If the battery kit is damaged in any way or shows signs of leakage, contact your local Vertiv™
representative immediately.
•Handle, transport and recycle batteries in accordance with local regulations.
•Determine if the battery is inadvertently grounded. If it is inadvertently grounded, remove the
source of the ground. Contact with any part of a grounded battery can result in electrical
shock. The likelihood of such shock will be reduced if grounds are removed during installation
and maintenance (applicable to a UPS and a remote battery supply not having a grounded
supply circuit).
ELECTROMAGNETIC COMPATIBILITY
The Liebert GXT4 series complies with the requirements of EMC Directive 2004/108/EC and the
published technical standards. Continued compliance requires installation in accordance with these
instructions and use of accessories approved by Vertiv™.
Vertiv | Liebert GXT4 Installer/User Guide | 8

Notice
This is a product for restricted sales distribution to informed partners. Installation restrictions
or additional measures may be needed to prevent radio interference.
Information for the Protection of the Environment
UPS Servicing: UPS makes use of components dangerous for the environment (electronic cards,
electronic components). The components removed must be taken to specialized collection and disposal
centers.
NOTICE TO EUROPEAN UNION CUSTOMERS: DISPOSAL OF OLD APPLIANCES—This product has
been supplied from an environmentally aware manufacturer that complies with the Waste Electrical and
Electronic Equipment (WEEE) Directive 2002/96/CE.
The “crossed-out wheelie bin” symbol at right is placed on this product to encourage you to recycle
wherever possible. Please be environmentally responsible and recycle this product through your
recycling facility at its end of life. Do not dispose of this product as unsorted municipal waste. Follow local
municipal waste ordinances for proper disposal provisions to reduce the environmental impact of waste
electrical and electronic equipment (WEEE).
For information regarding the scrapping of this equipment, please browse
h ttp s:/ /w ww .ver tiv co.c om / en -em ea/ (“Products session” or “Contact us” session)
or call our worldwide technical support.
•Toll Free: 00 80011554499
•Toll Number Based in Italy: [phone]
SYMBOL DESCRIPTION SYMBOL DESCRIPTION
Risk of electrical shock Recycle
Indicates caution followed by important instructions DC voltage
AC input Equipment grounding conductor
AC output Bonded to ground
Requests the user to consult the manual AC voltage
Indicates the unit contains a valve-regulated lead acid battery
Table 1.1 Glossary of Symbols
Vertiv | Liebert GXT4 Installer/User Guide | 9

Vertiv | Liebert GXT4 Installer/User Guide | 10
This page intentionally left blank.

2 PRODUCT DESCRIPTION
The Liebert GXT4 is a compact, online uninterruptible power system (UPS) that continuously conditions
and regulates its output voltage. The Liebert GXT4 is designed to supply microcomputers and other
sensitive equipment with clean sine-wave input power.
Upon generation, AC power is clean and stable. However, during transmission and distribution it is subject
to voltage sags, spikes and complete failure that may interrupt computer operations, cause data loss, and
damage equipment.
The Liebert GXT4 protects equipment from these disturbances. The Liebert GXT4 continuously charges
its batteries from the mains, enabling it to supply power to connected loads, even when the mains fail.
2.1 Features
•Intelligent battery management to extend the battery life
•LCD for user-friendly operation and local monitoring and configuration of operational
parameters
•Flexible network management with Liebert MultiLink™ software
•Fan fault self-inspection and automated diagnostic function
•Intelligent fan operation, automatically changing rotation speed depending on system
requirements, to decrease power consumption and noise
•Input circuit breaker to ease recovery from overloads
•Safety approval from UL and cUL
•Communication options: USB port, Liebert IntelliSlot® port and terminal-block communication
•Dry contacts for remote monitoring
•Input power factor greater than0.99
•Output voltage selection function
2.2 Available Models
Available models of the UPS are listed in the following table.
MODEL NUMBER NOMINAL POWER RATING
GXT4-5000RT208 5000VA / 4000W
GXT4-6000RT208 6000VA / 4800W
GXT4-6000RTL630 6000VA / 4200W
GXT4-8000RT208 8000VA / 7200W
GXT4-10000RT208 10000VA / 9000W
Table 2.1 UPS models, power ratings
Vertiv | Liebert GXT4 Installer/User Guide | 11

2.3 Front Panel and Controls
The Liebert GXT4 rack/tower models in various power ratings have the same general appearance,
controls and features as shown in the following figure. The various rack/towermodels differ largely in the
type of receptacles each has.
Figure 2.1 Front view
NO. DESCRIPTION
1 Upper bezel
2 Operation and display panel
3 Lower bezel and battery-access door
2.4 Rear Panel Features
The rear panel of the Liebert GXT4 has these features:
•Liebert IntelliSlot® Port
•USB port
•Input Circuit Breaker
•Maintenance Bypass Circuit Breaker (not present on all optional PODs)
•REPO connection
•Input Receptacle
•General Output Receptacles (on optional PODs)
•External Battery Connector
•Cooling Fan
•Terminal Block Communication
•Output Circuit Breakers (only onoptional PODs)
Vertiv | Liebert GXT4 Installer/User Guide | 12

Figure 2.2 Rear panel—5000VA and 6000VA with input power hard-wired box
NO. DESCRIPTION NO. DESCRIPTION
1 Liebert IntelliSlot Unity-DP card 5 Input breaker
2 External battery connector 6 Terminal block communication
3 Knockouts for hard-wired power input and output 7 REPO
4 USB port
NOTE: Hard-wired and hard-wired/receptacle boxes that include a manual bypass switch permit AC
power to continue to flow from the utility input to the load while the box is removed from the UPS. For
details, refer to Connecting Input/Output Power on page 28.
Vertiv | Liebert GXT4 Installer/User Guide | 13

Figure 2.3 Rear panel—GXT4-6000RTL630
NO. DESCRIPTION NO. DESCRIPTION
1 Liebert IntelliSlot Unity-DP card 6 Maintenance bypass breaker
2 Input breaker for L6-30P #1 7 Output breaker for L6-20R #2 and #3
3 Terminal block communication 8 Output breaker for L6-30R #4
4 REPO connection block 9 Output breaker for L6-30R #5
5 USB port 10 External battery connector
Vertiv | Liebert GXT4 Installer/User Guide | 14

Figure 2.4 Rear panel—8000VA and 10,000VA
NO. DESCRIPTION NO. DESCRIPTION
1 Liebert IntelliSlot Unity-DP card 6 Maintenance bypass switch
2 Terminal block communication 7 Knockouts for hard-wired power input
3 REPO connection block 8 External battery connectors
4 USB port 9 Cover for power-distribution box connections
5 Input breaker switch 10 Output breaker switch
2.5 Removable Power Distribution Box
The 5000- and 6000-VA RT208 UPS ships with a power-distribution pack installed. This box contains the
UPS input circuit breaker.
Vertiv | Liebert GXT4 Installer/User Guide | 15

Figure 2.5 Power distribution models for 5000VA and 6000VA models
NO. DESCRIPTION NO. DESCRIPTION
1 Input breaker switch 8 PD2-002 Receptacles: two 5-20R, twoL6-20R
2 Output-power breakers for pigtails 9 PD2-003 Receptacles: four5-20R, twoL6-30R
3 L14-30 input-power connector 10 PD2-004 Receptacles: four L5-20R, twoL5-30R
4 Push-button output-power breakers for L5-20R receptacles 11 PD2-005 Receptacles: four L5-20R, twoL6-30R
5 PD2-001 Receptacles: four 5-20, one L14-30, oneL6-30R 12 PD2-006 Receptacles: four L6-30R, twoL6-20R
6 L14-30 output-power connectors 13 PD2-007 Receptacles: two L6-30R, twoL6-20R
7 Maintenance bypass breaker
NOTE: PD2-001 is shown with labeled examples. Other boxes are arranged differently.
Vertiv | Liebert GXT4 Installer/User Guide | 16

Figure 2.6 Power distribution models for 8000VA and 10,000VA models
NO. DESCRIPTION NO. DESCRIPTION
1 5-20R output receptacles 7 PD2-102 Receptacles: four L6-20R, four 5-20R
2 Output circuit-breaker switch for L6-30R pigtail #1 8 PD2-103 Receptacles: four L6-30R, four 5-20R
3 L6-30R output receptacle 9 PD2-104 Receptacles: four 5-20R, two L6-30R, twoL6-20R
4 L6-30R output receptacle 10 PD2-105 Receptacles: four 5-20R, two L5-30R, twoL5-20R
5 Output circuit-breaker switch for L6-30R pigtail #2 11 PD2-106 Receptacles: four L6-20R, four L5-20R
6 Push-button circuit breakers for 5-20 receptacles
NOTE: PD2-101 is shown with labeled examples. Other boxes are arranged differently.
Vertiv | Liebert GXT4 Installer/User Guide | 17

Figure 2.7 Power distribution models for 8000VA and 10,000VA models (co n tin u ed )
NO. DESCRIPTION NO. DESCRIPTION
1 PD2-107 Receptacles: four L5-20R, four 5-15R 5 PD2-201
Receptacles: two IEC320-C19, eightIEC320-C13
2 PD2-108 Receptacles: two L6-30R, two L6-20R 6 PD2-202 Receptacles: twelveIEC320-C13
3 PD2-109 Receptacles: two L14-30R 7 PD2-204 Receptacles: two IEC309-32A, fourIEC320-C13
4 PD2-200 Receptacles: four IEC320-C19, fourIEC320-C13
2.6 Internal Battery Packs
The UPS has two internal battery packs behind a battery-access door on the front of the unit. Each
internal battery pack is fitted with a connector to link to the UPS.
GXT4 10,000-VA battery pack shown is shown in the figure. 5000-VA and 6000-VA battery packs have
the same features.
Vertiv | Liebert GXT4 Installer/User Guide | 18

Figure 2.8 Internal battery pack with connector
NO. DESCRIPTION
1 Battery handle
2 Battery connector
2.7 Major Components
The UPS is composed of mains input, TVSS and EMI/RFI filters, rectifier/PFC, inverter, battery charger, DC-
to-DC converter, battery, dynamic bypass and UPS output.
Figure 2.9 Operating principle diagram
2.7.1 Transient Voltage Surge Suppression (TVSS) andEMI/RFIFilters
The UPS has surge protection and filters that protect the connected load from power surges,
electromagnetic interference (EMI) and radio frequency interference (RFI). These features can minimize
any surges or interference present in the mains power. The filters also prevent surges or interference
generated by the UPS from adversely affecting devices connected on the same branch as the UPS.
Vertiv | Liebert GXT4 Installer/User Guide | 19

2.7.2 Rectifier/Power Factor Correction (PFC) Circuit
In normal operation, the rectifier/PFC circuit converts mains power to regulated DC power for use by the
inverter while ensuring that the wave shape of the input current used by the UPS is near ideal. Extracting
this sine-wave input current achieves two objectives:
•Efficient power use by the UPS
•Reduced reflected harmonics
This results in cleaner power available to other devices in the building that are not protected by the
GXT4.
2.7.3 Inverter
In normal operation, the inverter utilizes the DC output of the PFC circuit to produce precise, regulated
sine-wave AC power. When mains power fails, the inverter receives DC power from the DC-to-DC
Converter. In either operation mode, the UPS inverter is online, continuously generating clean, precise,
regulated AC output power.
2.7.4 Battery Charger
The battery charger utilizes energy from the mains power and precisely regulates it to continuously float
charge the batteries. The batteries are being charged whenever the GXT4 is plugged in, even when the
UPS is not turned On.
2.7.5 DC-to-DC Converter
The DC-to-DC converter raises the DC voltage from the battery to the optimum operating voltage for the
inverter. This allows the inverter to operate continuously at its optimum efficiency and voltage, thus
increasing reliability.
2.7.6 Battery
The GXT4 uses valve-regulated, non-spillable, lead acid batteries. To maintain battery design life, Operate
the GXT4 in an ambient temperature of 15°Cto25°C (59°Fto 77°F).
Optional external battery cabinets are available to extend battery run times.
2.7.7 Internal Bypass
The GXT4 provides an alternate path for mains power to the connected load in the unlikely event of a
UPS malfunction. Should the UPS have an overload, over-temperature or any other UPS failure condition,
the UPS automatically transfers the connected load to bypass. Bypass operation is indicated by an
audible alarm and illuminated amber Bypass LED (other LEDs may be illuminated to indicate the
diagnosed problem).
To manually transfer the connected load from the inverter to bypass, press the Standby/Manual Bypass
button once and hold it for about 2 seconds
Vertiv | Liebert GXT4 Installer/User Guide | 20
