Vertiv™ NetSure™ +24V Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
iii
TABLE OF CONTENTS
Admonishments Used in this Document.............................................................................................................................iv
Important Safety Instructions..................................................................................................................................................v
Safety Admonishments Definitions ..........................................................................................................................................................................................................................v
Safety and Regulatory Statements...........................................................................................................................................................................................................................v
Déclarations de Sécurité et de Réglementation...........................................................................................................................................................................................v
1Description ................................................................................................................................................................................1
2Installation Procedures........................................................................................................................................................2
2.1 Mounting the Battery Tray...................................................................................................................................................................................................................................2
2.2 Installing the Circuit Breakers ...........................................................................................................................................................................................................................3
3Installing and Connecting Batteries in the Battery Tray ........................................................................................4
3.1 Important Safety Instructions............................................................................................................................................................................................................................4
3.2 Wiring to the Battery Tray....................................................................................................................................................................................................................................4
3.3 Installing and Connecting Batteries.............................................................................................................................................................................................................5
4Alarm Jumper Routing .........................................................................................................................................................8

Vertiv™ NetSure™ +24V Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
iv
Admonishments Used in this Document
DANGER
! Warns of a hazard the reader will be exposed to that will likely result
in death or serious injury if not avoided. (ANSI, OSHA)
WARNING
! Warns of a potential hazard the reader may be exposed to that could
result in
death or serious injury if not avoided. This admonition is not used for situations that pose a
risk only to equipment, software, data, or service. (ANSI)
CAUTION
! Warns of a potential hazard the reader may be exposed to that could
result in minor or moderate injury if not avoided. (ANSI, OSHA) This admonition is not
used for situations that pose a risk only to equipment, data, or service, even if such use
appears to be permitted in some of the applicable st
andards. (OSHA)
ALERT
! Alerts the reader to an action that must be avoided in order to protect
equipment, software, data, or service. (ISO)
ALERT
! Alerts the reader to an action that must be performed in order to prevent
equipment damage, software corruption, data loss, or service interruption. (ISO)
FIRE SAFETY
! Informs the reader of fire safety information, reminders, precautions,
or policies, or of the locations of fire
-fighting and fire-safety equipment. (ISO)
SAFETY
! Informs the reader of general safety information, reminders, precautions, or
policies not
related to a particular source of hazard or to fire safety. (ISO, ANSI, OSHA)

Vertiv™ NetSure™ +24V Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
v
Important Safety Instructions
Safety Admonishments Definitions
Definitions of the safety admonishments used in this document are listed under “Admonishments Used in this Document” on page iv.
Safety and Regulatory Statements
Refer to Section 4154 (provided with your customer documentation) for Safety and Regulatory Statements.
Déclarations de Sécurité et de Réglementation
Reportez-vous à la Section 4154 (fourni avec les documents de votre client) pour les déclarations de sécurité et de réglementation.

Vertiv™ NetSure™ +24V Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
vi
This page intentionally left blank.

Vertiv™ NetSure™ +24V Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
1
1Description
This document provides installation practice for the 588810200SK001 Battery Tray Kit.
The Vertiv™ NetSure™ +24V Battery Tray Kit, part number 588810200SK001, provides a 22" deep battery tray for 23" wide relay rack.
The battery tray holds four (4) 12V front terminal valve regulated lead acid (VRLA) batteries. Battery cabling is provided and shall be
connected to the system’s main battery busbars. Batteries are configured as two (2) 24V strings per tray.
It is advisable that the procedure be conducted with the power plant shut down (all AC circuits to the rectifiers turned off and
battery disconnected). If this is not possible, extra care must be taken due to working with live DC power.
The materials included with the kit are listed here:
Qty. Part No. Description
1 58881020011 Battery Tray, 23” Mount, 21” Depth
2 256695900 Circuit Breaker, 1-100Amp 80VDC
4 245350005 Crimp Lug
1.33ft 182778000 Heat Shrink Tubing
1 528500 1-Pole Battery Disconnect Breaker Kit (Right)
1 528501 1-Pole Battery Disconnect Breaker Kit (Left)
2 528234 Kit, Battery lugs, 2AWG, 90deg, Short Tongue
2 528236 Kit, Battery lugs, 2AWG, 90deg, Long Tongue
2 528498 Bracket, Battery Tray Mounting
2 362736700 Bracket, Cable
2 528155 2GA Lug and Cable Kit
2 524384 Jumper for Battery Disconnect Breaker Alarm

Vertiv™ NetSure™ +24V Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
2
2Installation Procedures
2.1 Mounting the Battery Tray
Procedure
1. To install a Battery Tray, perform the procedure in Figure 2.1.
Figure 2.1 Mounting and Securing the 588810200SK001 Battery Tray onto the Rack
Battery Tray
Rear
Angle
Bracket
Rear Angle Bracket
C
abling
B
racket
Front Rear
1. Slide battery tray into relay rack and
secure to relay rack with 12-24 x 3/4"
thread forming hex head screws and
#10/12 ground washers (1 place per
side) or #12 flat washers (3 places per
side). (Torque to 70 in-lbs).
2. Secure rear angle brackets (both sides)
to battery tray with 1/4-20 x 3/4” bolts,
1/4” flat washers, 1/4” lock washers, and
1/4” nuts. (Torque to 84 in-lbs).
3. Secure rear angle brackets (both sides)
to relay rack with 12-24 x 3/4" thread
forming hex head screws and #10/12
ground washers (1 place per bracket)
or #12 flat washers (1 place per bracket).
(Torque to 70 in-lbs).
4. Secure cabling brackets (both sides) to
relay rack with 12-24 x 1/2" thread forming
hex head screws. (Torque to 70 in-lbs).

Vertiv™ NetSure™ +24V Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
3
2.2 Installing the Circuit Breakers
Procedure
1. Remove the cover from the battery disconnect circuit breaker assembly. Secure the battery disconnect circuit breaker
assembly to the battery tray using 6-32 x 1/2” screws and 6-32 KEPS nuts (2-places).
2. Secure the ground lead under a battery tray relay rack mounting bolt. After wiring to the battery disconnect circuit breaker,
replace the cover.
3. Repeat for the other side of the battery tray.

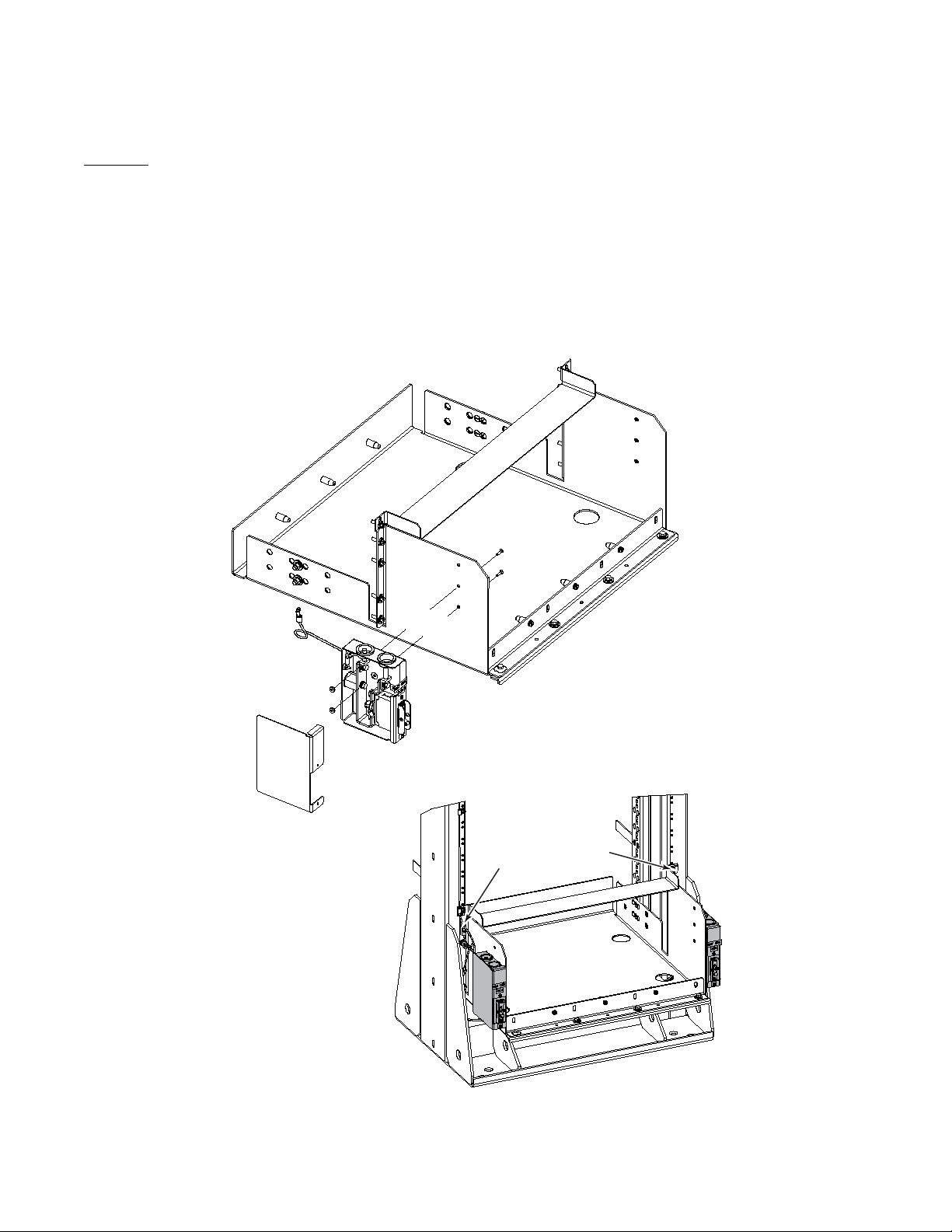

Figure 2.2 Installing Circuit Breakers on Battery Tray
Front view
ground lead secured
to rack mounting bolt
Installed view

Vertiv™ NetSure™ +24V Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
4
3Installing and Connecting Batteries in the Battery Tray
3.1 Important Safety Instructions
DANGER! Adhere to the “Important Safety Instructions” presented at the front of this document.
3.2 Wiring to the Battery Tray
Procedure
1. Refer to the wiring diagram provided in Figure 3.1 and wire the battery tray for your application.
2. Lace the cables to the cable lacing brackets mounted on the rear of the relay rack.

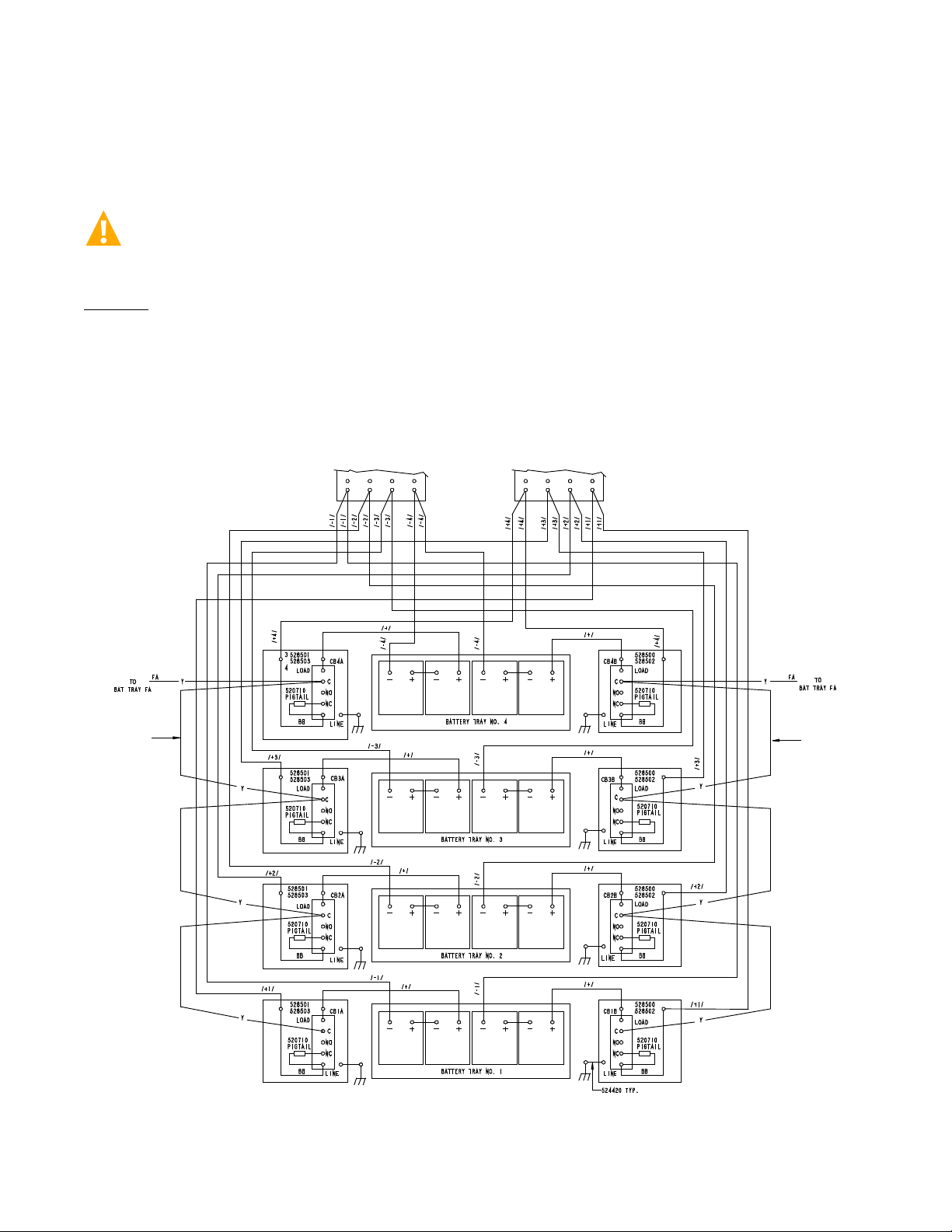

Figure 3.1 Wiring Diagram - Battery Tray
524384
Alarm
Jumper
524384
Alarm
Jumper
BATTERY TRAY WITH
BAT DISCONNECT BREAKER
Battery Return
Bus Bar
+24V Battery
Bus Bar

Vertiv™ NetSure™ +24V Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
5
3.3 Installing and Connecting Batteries
Procedure
NOTE! Refer to Figure 3.2 as this procedure is performed.
1. If Battery Trays are Equipped With Circuit Breakers: Turn OFF the Battery Disconnect circuit breakers located on all
battery trays. Refer to Figure 3.2 for locations.
2. Remove the battery retention bracket as shown in Figure 3.2. To do so, remove the four 1/4-20 x 5/8” bolts and associated
washers.
3. Slide batteries into the tray, with the battery terminals toward the front as shown in Figure 3.2. Slide batteries into the tray as
far as they will go.
NOTE! The battery retention bracket can be oriented two ways to accommodate batteries of different lengths. A correctly
oriented bracket will fit snuggly against the batteries. If your batteries require the alternate bracket orientation shown in
Detail A of
Figure 3.2 , remove and reinstall the bullet-shaped spacers as shown in Detail A before performing the next step.
4. Reinstall the battery retention bracket. The spacers on the bracket should separate the batteries from each other. Secure
with the hardware removed in a previous step. Refer to Figure 3.2 for washer location.
5. Connect two links supplied by the battery manufacturer between pairs of battery terminals as shown in Figure 3.2. Use
hardware furnished by the battery manufacturer. Torque hardware to battery manufacturer’s recommendations.
6. Ensure the battery cable ends in all trays are insulated with sleeving before performing the next step.
DANGER! In multiple-tray installations, when batteries in one tray are connected, the battery cables in all trays will be
energized. Remove sleeving from and connect one cable at a time. Do not allow a cable end to contact the battery tray or
equipment rack.
WARNING! In the next step, observe correct polarity. Connect only cables labeled “+” to battery terminals labeled “+”.
Likewise, connect only cables labeled “–” to battery terminals labeled “–”.
7. Connect the cables found in the battery tray to the battery terminals, “+” to “+” and “–” to “–”. Observe correct polarity. Refer
to Figure 3.2. Secure with hardware furnished with the battery. Torque hardware to battery manufacturer’s
recommendations.
8. Repeat steps 1 through 7 for any remaining battery trays.
9. If Battery Trays Are Equipped With Circuit Breakers: To connect the batteries to the power system, turn ON the Battery
Disconnect circuit breakers located on all battery trays.

Vertiv™ NetSure™ +24V Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
6

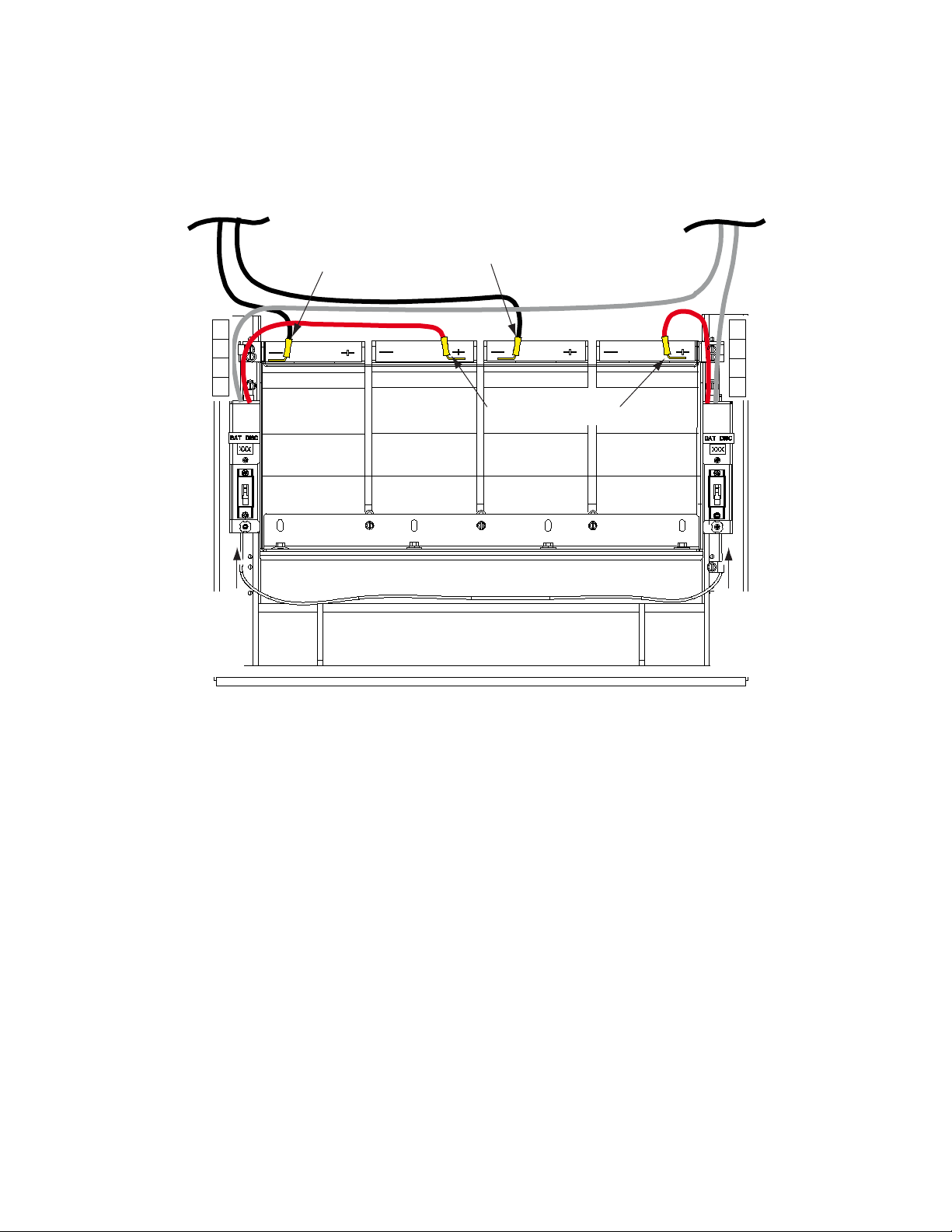

Figure 3.2 Battery Tray Battery Installation Details
Connect Link Furnished
with Battery to these
Two Terminals
Connect NEG (-)
Battery Cable
to this Terminal
(string 1)
Battery Retention
Bracket. See Detail A
for alternate orientation.
1/4-20 x 5/8” Bolt
1/4” Ground Washer
(1 place)
1/4-20 x 5/8” Bolt
1/4” Lock Washer
1/4” Flat Washer
(3 places)
Note:
1. Two trays shown as example.
2. Cabling detail omitted.
1/4” Ground
Washer
(1 place)
DETAIL A
Alternate Orientation
of Retention Bracket
No. 10 Flat Washer (3 places)
10-32 x 1/2” Pan Head Screw (3 places)
No. 10 Lock Washer (3 places)
Spacer (3 places)
1/4-20 x 5/8” Hex
Head Screw
(4 places)
1/4-20 Lock Washer
(3 places)
1/4-20 Flat Washer
(3 places)
If trays are
equipped with
circuit breakers,
TURN OFF ALL
circuit breakers
before installing
and connecting
any batteries!
Spacers Separate
Batteries (3 places
per tray, front and
back)
Connect POS (+)
Battery Cable
to this Terminal
(string 2)
Connect Link Furnished
with Battery to these
Two Terminals
Connect POS (+)
Battery Cable
to this Terminal
(string 1)
Connect NEG (-)
Battery Cable
to this Terminal
(string 2)

Vertiv™ NetSure™ +24V Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
7
Figure 3.3 Cable Routing - Battery Tray with Circuit Breakers
Routes up to
(
-) Input Battery Busbar
(Rear of Cabinet)
Routes up to
(+) Input Battery Busbar
(Rear of Cabinet)
Battery Tray # 1
Varies
per
tray
+1
+2
+3
+4
Varies
per
tray
+1
+2
+3
+4
Wire marked per
battery tray
[-1] or [-2] or [-3] or [-4]
Wire marked [+]
Route
(+) number
wires up
this side
Route
(-) number
wires up
this side

Vertiv™ NetSure™ +24V Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
8
4Alarm Jumper Routing
Procedure
NOTE! Refer to Figure 4.1 as this procedure is performed.
1. Connect the YELLOW 22GA jumper to “COM” terminal of breaker.
2. Route jumper up to the next circuit breaker. Refer to Figure 4.1.
NOTE! If Alarm jumper is not required or there is no battery tray mounted on top, Ty-rap unsed jumper back onto the
harness.
3. Connect stripped end of alarm jumper into power system’s fuse alarm input connection point.
NOTE! For the Vertiv™ Vortex™ or Vertiv™ NetSure™ 700 system, this is PIN 11 of TB1 (System Fuse Alarm Input) on the
Interconnect/Inhibit Card on the right side of the base of the power system distribution cabinet. For Vertiv™ NetSure™ 710
system this is PIN 1 of TB1 (Battery Tray FA) on the System Interface circuit card inside the distribution cabinet. Verify that
when the battery disconnect breaker is turned off, the controller generates a FA alarm.

Vertiv™ NetSure™ +24V Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
9
Figure 4.1 Alarm Jumper Routing
22 G
A
jumper

Vertiv™ NetSure™ +24V Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
10
This page intentionally left blank.

Vertiv™ NetSure™ +24V Battery Tray Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
Connect with Vertiv on Social Media
https://www.facebook.com/vertivI
https://www.instagram.com/vertiv/
https://www.linkedin.com/company/vertiv/
https://www.twitter.com/vertiv/

Vertiv.com | Vertiv Headquarters, 1050 Dearborn Drive, Columbus, OH, 43085, USA
© 2022 Vertiv Group Corp. All rights reserved. Vertiv™ and the Vertiv logo are trademarks or registered trademarks of Vertiv Group
Corp. All other names and logos referred to are trade names, trademarks or registered trademarks of their respective owners. While
every precaution has been taken to ensure accuracy and completeness here, Vertiv Group Corp. assumes no responsibility, and
disclaims all liability, for damages resulting from use of this information or for any errors or omissions. Specifications, rebates and
other promotional offers are subject to change at Vertiv’s sole discretion upon notice.
IM588810200SK001_REVB
Proprietary and Confidential © 2022 Vertiv Group Corp.
