WTC/S AND WTC/SW RETAIL SCALES
TABLE OF CONTENTS
1. FUNCTIONS 2
2. STRUCTURE 2
3. OPERATION KEYS AND FUNCTIONS 2
4. POWER 3
5. OPERATION 3
5.1. Turning on and o 3
5.2. Zero setting 4
5.3. Tare setting 4
5.4. Unit price inputting and clearing 4
5.5. Unit price storing 5
5.6. Recall the stored unit prices 5
5.7. Checking the stored unit price 6
5.8. Voltage saving function 6
5.9. Overload warning 6
5.10. Checking the voltage of the battery 6
5.11. Turn on and turn o backlight ( LCD display) 6
6. RS232INTERFACE 7
7. TECHNICAL PARAMETERS 8
8. CARE AND MAINTENANCE 8
Disclaimer
We’ve been tried to provide complete and accurate information in this manual, however, we
make no representations and warranties with respect to the contents of this manual, and reserve
the right to make change to our products and manual without notice.

user manual
www.vetek.com [email protected] 2
1. FUNCTIONS
• Auto zero tracking (AZT)
• Full range tare
• Dual weighing span conversion
• 99 unit price of cargo number store and recall
• Check goods number according to the unit price or check unit price
• according to goods number
• Overload warning
• 9 unit prices recalling directly(M1-M9)
2. STRUCTURE
2.1. Structure diagram
1. Platter
2. Support pad
3. Cover
4. Keypad
5. Frame
6. PCB 7. Base
8. Battery
9. Battery box cover
10.Adjustable foot
11.I/O switch
12.Adapter socket
13; 14; 15.Tower assembly
Caution:
Before using the scale remove the protection foil from the weight pan.
3. OPERATION KEYS AND FUNCTIONS
3.1. [*]
Used in calibration
3.2. [ZERO/BL]
a. Zeroing the scale within permitted range
b. Used in calibration
c. Used when storing the unit price
d. Switch on or switch o backlight
1. FUNCTIONS
x Auto zero tracking (AZT)
x Full range tare
x Dual weighing span conversion
x 99 unit price of cargo number store and recall
x Check goods number according to the unit price or check unit price
x according to goods number
x Overload warning
x 9 unit prices recalling directly(M1-M9)
2. STRUCTURE
2.1. Structure diagram
1. Platter
2. Support pad
3. Cover
4. Keypad
5. Frame
6. PCB
7. Base
8. Battery
9. Battery box cover
10. Adjustable foot
11. I/O switch
12. Adapter socket
13; 14; 15.Tower assembly
Caution:
Before using the scale remove the protection foil from the weight pan.
- 4 -

user manual
www.vetek.com [email protected] 3
3.3. TARE/ENTER
a. Tare
b. Conrm the present operation when checking or storing unit price, displaying the accumulated
value or calibrating
3.4. +
N/A
3.5. MODE/PLU
a. Check corresponding unit price of the goods number
b. Store and recall the unit price
c. Enter or exit unit price storing state
d. Shift the division valued cooperating with [8] in calibrating state
3.6. M1...M9
Directly recall the unit price of goods No. from 1 to 9
3.7. C 
a. Clear unit price b. Clear goods number c. Clear the accumulated value
3.8. DIGIT KEYS
a. Input unit price
b. Input goods number when recalling the unit price
c. Input the Max. Capacity and the value of the loaded weight under calibrating state
4. POWER
The scale has dual power . There are a switch and a socket on the bottom of its right side of scale
body. The socket is used for connecting AC adapter.
5. OPERATION
5.1. TURNING ON AND OFF
A. When AC power is used, insert the adaptor rst and turn on switch. When DC power is
used turn on switch directly. Turn o the switch to cut o the power of the scale.
B. Turn on switch, the display window will rstly display a version number for 1 second
and then execute self-checking in sequence of 9~0. When zero position is normal the
weight window displays* 0.00*. *LLLLL* While if the scale gives out a warning sound
and displays *HHHHH* *S-HXX* or , 2 seconds Iater the weight window displays
*XXXXX* or* X - X X X * *( X * is an arbitrary digit), then check the scale.
C. If the *BAT* indicating light is on , connect adapter to AC power and turn on switch to
charge the battery in time. The scale can also be operated when the battery is
being charged. When the scale is on, turn switch o, all the display will disappear.
D. After nishing the daily work, please turn power o. For the sake of safety, please
disconnect the adaptor form, AC power.

user manual
www.vetek.com [email protected] 4
5.2. ZERO SETTING
5.2.1.
Under power o condition, turn on the scale, it will stay within zero tracking range , the initial
zeroing range is K1.
5.2.2.
When the weight is within repeat zeroing range, press [ZERO] key, the weight window will display
*00000*. The manual zeroing range each time is K2 and the repeated zeroing range is K3.
5.3. TARE SETTING
When the container or package is loaded on the platform, press [TARE] eye to enter tare mode.
The scale will display *0 * and* N .W * cursor will be light on. Press [TARE] again, it will return to
the original weighing state and * N . W * cursor will disappear. The tare may be a negative value.
The tare processes are shown in the following table:
TABLE:
Steps Display Meaning
load the package or container 0,10 The weight of the package or container is
0,1kg
Press [TARE] key once 0,00 Taring and the indicating cursor (light)
*N.W* (T) is on
Take away the package -0,10 Display negative tare value
Press [TARE] key again 0,00 Clear the negative tare and the indicating
cursor (light)* N .W * (T) is o.
5.4. UNIT PRICE INPUTTING AND CLEARING
5.4.1.
Directly press digit keys to input the unit price. At this time the unit price and total price of the
current goods will display in the corresponding window.
5.4.2. Two ways to clear or change unit price
• Directly clear the unit price by [C] key.
• After the previous unit price has been input for 5 seconds, press the digit keys to replace the
previous unit price value.

user manual
www.vetek.com [email protected] 5
5.5. UNIT PRICE STORING
This scale can store 99 unit prices totally.
5.5.1.
Under normal state, press and hold [ZERO] key and then press [PLU]
the total price window will display*1d X* ( X is goods number, from 1~99), the weight window
display weight and the price window display unit price.
5.5.2.
To change the unit price, just rstly press [C] key to clear the original unit price and then input the
new unit price.
5.5.3.
Press [ENTER] key to conrm the unit price corresponding to a goods number, then the number
and unit price will be stored in the scale. At this time the goods number in the total price window
will automatically add 1.
Note:
When the goods number exceeds 99, it will change to 1 automatically!
5.5.4.
Repeat 6.7.2 and 6.7.3 operations to input all the needed unit prices.
5.5.5.
Press and hold [ZERO] key and then press [PLU], the scale will return to normal weighing state.
5.6.
Recall the stored unit prices
5.6.1.
Press [PLU] key, the total price window will display* 1 d - - * , the weight window display weight
and the unit price window display *----- * to wait for inputting the cargo number. Input the
goods number through digit keys, the total price window will display*1d X*, X is the input goods
number .Pressing digit key[3] means the goods number is 3. Pressing [3] twp times means the
cargo number is 33.
5.6.2.
Press [ENTER] key to conrm the current goods number, the unit price window will display the
unit price corresponding to the goods number, and the scale will return to normal weighing
state.
5.6.3.
Press [M1]...[M9], the unit price corresponding to cargo number 1 to 7 will be displayed in unit
price window and the scale will then return to normal weighing state.

user manual
www.vetek.com [email protected] 6
5.7. CHECKING THE STORED UNIT PRICE
5.7.1.
Press [PLU] key twice , the total price window will display *1dc 1* (1 is goods number), the
weight window display weight and the unit price window display the unit price corresponding to
the goods number 1. There are two ways to check:
A. Keep pressing the [PLU] key, press the goods number once, the total price window will
add 1 and the unit price window displays the unit price corresponding to the goods
number each time. When the goods number exceeds 99, it will back to 1 automatically.
B. Keep pressing and hold [PLU] key for 2 seconds to check the stored unit prices quickly. At
this time, the goods number in the total price window will add 1 automatically and the
unit price in the unit price window will change according to the goods number. When in
unit price display, just loose [PLU] key to make a checking.
5.7. 2 .
Press [ENTER] key. the scale will back to normal weighing state and display the unit price need to
check.
5.8.
Voltage saving function
When the scale is type of LED, it has the function of battery saving display to prolong the working
time of the battery, That means if the scale remains zero for 5 seconds and if you don’t operate
the keypad, the weight window will display *0* and the total price window will display.
5.9. OVERLOAD WARNING
When the scale leaves factory, the overload warning value is set at the point of Max. Capacity
plus 9d(d is division value). When the weight of the goods exceeds or is equal to the set value, the
weight window of the scale will display * *and the scale gives out a buzz sound.
5.10. CHECKING THE VOLTAGE OF THE BATTERY
The scale is equipped with 6V/4.5Ah battery. When the voltage is fully charged, it can work about
60 hours with LCD type, and it can work about 24 hours with LED type. The scale can excute
self-checking of the battery voltage. When the battery is running out of voltage, the battery
indicating light will be on. If go on working, it will automatically turn o in a few minutes to
protect the battery. At this time, connect adapter to AC power to charge the battery.
5.11. TURN ON AND TURN OFF BACKLIGHT  LCD DISPLAY
5.11.1.
When the backlight is o, hold [ZERO] key for 3 seconds and then loose it, the total price window
will display* b 1 o n * . At this time the backlight is on and about 3 seconds later, the scale will
back to normal weighing state.
5.11. 2 .
When the backlight is on, and hold [ZERO] key for 3 seconds and then loose it, the total price
window will display* b 1 o f f * . At this time the backlight is o and about three seconds later the
scale will back to normal weighing state.
5.7. Checking the stored unit price
5.7.1. Press [PLU] key twice , the total price window will display
*1dc 1* (1 is goods number), the weight window display weight
and the unit price window display the unit price corresponding to the
goods number 1. There are two ways to check:
A. Keep pressing the [PLU] key, press the goods number once, the
total price window will add 1 and the unit price window displays the
unit price corresponding to the goods number each time. When the
goods number exceeds 99, it will back to 1 automatically.
B. Keep pressing and hold [PLU] key for 2 seconds to check the
stored unit prices quickly. At this time, the goods number in the
total price window will add 1 automatically and the unit price in the
unit price window will change according to the goods number.
When in unit price display, just loose [PLU] key to make a
checking.
5.7.2. Press [ENTER] key. the scale will back to normal weighing state
and display the unit price need to check.
5.8. Voltage saving function
When the scale is type of LED, it has the function of battery saving display
to prolong the working time of the battery, That means if the scale remains
zero for 5 seconds and if you don’t operate the keypad, the weight window
will display *0* and the total price window will display.
5.9. Overload warning
When the scale leaves factory, the overload warning value is set at the
point of Max. Capacity plus 9d(d is division value). When the weight of the
goods exceeds or is equal to the set value, the weight window of the scale
will display * and the scale gives out a buzz sound.
- 9 -

user manual
www.vetek.com [email protected] 7

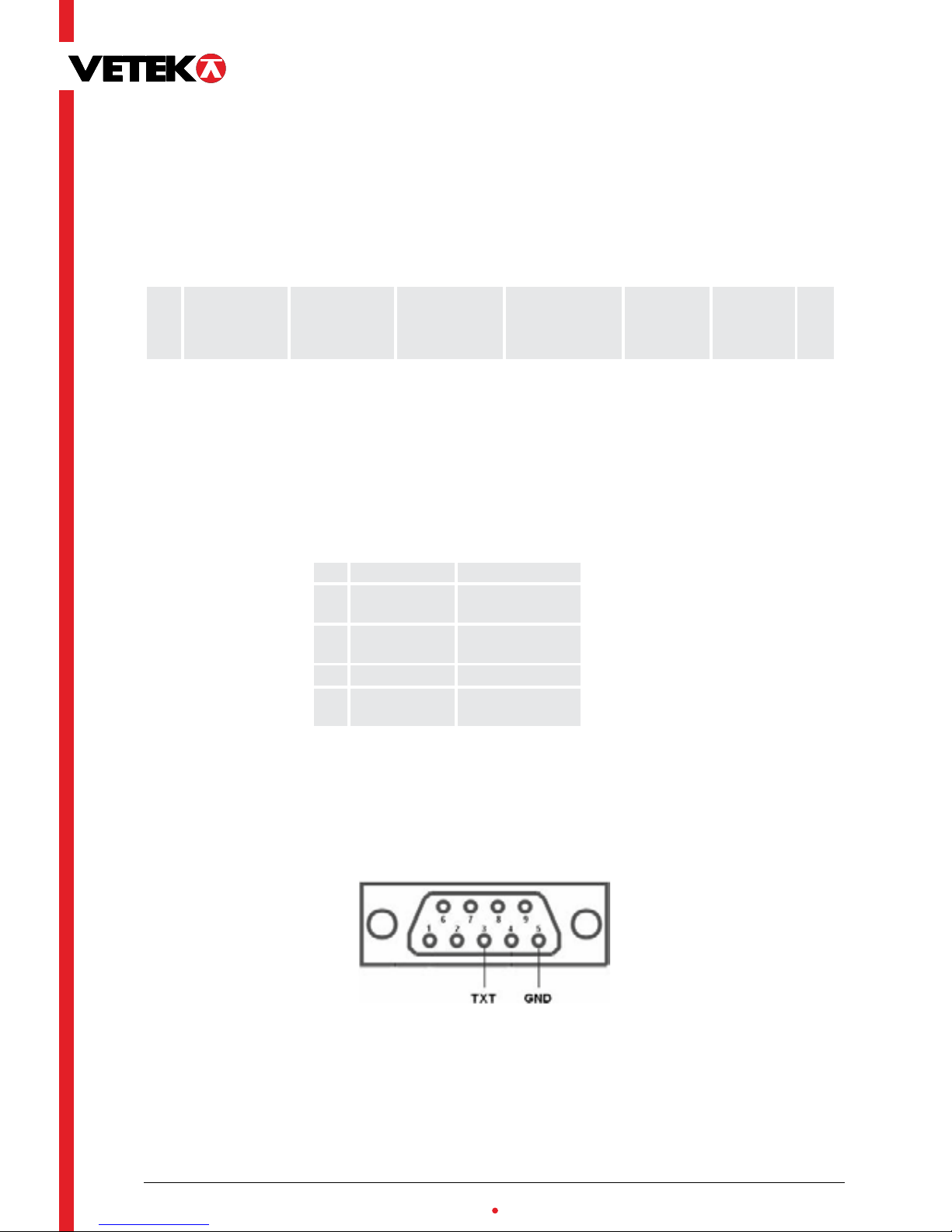

6. RS232 INTERFACE
WTC retail scales can be optionally equipped in an RS232 interface allowing transmission from
the scale to an external device. Transmission parameters: 1200.7.N.1. (baud rate 1200, 7 bits of
data, no parity, 1 stop bit). There is continuous transmission set without possibility to change it.
Frame format:
STATUS BYTE A
Unit and work mode– always 2Dh in retail scales.
STATUS BYTE B
Scale status and point position:
More signicant nibble – always 3.
STATUS BYTE C
Reserved, always 20h (space).
Indications from displays are sent in a format of 6 digits, justied to the right, with leading zeros.
RS232 connector
02H STATUS BYTE A STATUS BYTE B STATUS BYTE C WEIGHT DISPLAY
6DIGITS
UNIT PRICE
DISPLAY
6DIGITS
TOPAY
VALUE
DISPLAY
6DIGITS
0DH
STATUS VALUE
D3 Equilibrium 0 - stabilisation
1 - no stabilisation
D2 Overweight 0 - weighing
1 - overweight
D1 Indication N/A
D0 tare 0 - no tare
1 - tare set
Status byte A
Unit and work mode– always 2Dh in retail scales.
Status byte B
Scale status and point position:
More significant nibble – always 3.
Status value
D3 Equilibrium 0 - stabilisation
1 – no stabilisation
D2 Overweight 0 – weighing
1 – overweight
D1 Indication sign N/A
D0 tare 0 – no tare
1 – tare set
Status byte C
Reserved, always 20h (space).
Indications from displays are sent in a format of 6 digits, justified to the
right, with leading zeros.
RS232 connector
- 11 -

user manual
www.vetek.com [email protected] 8
7. TECHNICAL PARAMETERS
8. CARE AND MAINTENANCE
8.1.
To make sure the scale in good maintenance and avoid using it in dust and trembling
environment and put it under level state.
8.2.
When weighing, put the load in the center of the scale as far as possible.
8.3.
Don’t wash the scale with corrosive impregnate.
8.4.
The weight of the load should be less than the Max. Capacity +9d( dis division value). If it exceeds
the overload warning value, the indicate will display * and the scale will give out a buzz
sound.
8.5.
Don’t put the heavy load on scale for a long time and don’t shock the platform with heavy load,
or the load cell may be damaged.
8.6.
Be sure to insert the adapter to a quality power source. 8.7. When the scale doesn’t respond cut
o all the power (AC and DC) rst, then connect power on it again.
8.8.
When there is a malfunction, please cut o the power immediately and pull out the plug.
8.9.
Without authorization, never try to disassemble or repair the scales. Send it to the service agent
in local area or contact us immediately.
The calibration and simple rectifying methods are not open to users. For details, please contact
our sales agent in your country. Forbid to change the setting data of trading scale without the
permission of the law !
WTC 6/SW W TC 15/SW WTC 30/SW
Capacity Max 6 kg 15kg 30kg
Readability 2g 5g 10g
Tare range -6kg -15kg -30kg
Pan 250 x 300 mm
Operating temp. +5°C  +35°C
Power supply 230V AC / 9V DC and accumulator
Display LCD × 3 pcs.
WTC 6/S W TC 15/S WTC 30/S
Capacity Max 6 kg 15kg 30kg
Readability 2g 5g 10g
Tare range -6kg -15kg -30kg
Pan 250 x 300 mm
Operating temp. +5°C  +35°C
Power supply 230V AC / 9V DC and accumulator
Display LCD × 3 pcs.
