Vetek FR-H-100 User manual

FUNCTION SETTINGS
1. Press [ON/OFF] to turn on the scale, the display will show flash digits and
then --------,press [PRINT], the display will show XXXX BAU value ( press
[UNIT] to select among 1200,2400,4800,9600), our default setting is 9600.
Press [ZERO] to enter Parity mode, the display will show none PAR,press [UNIT] to
select odd,even,none (odd stands for 7 data bits with odd parity, even stands for 7
data bits with even parity,none stands for 8 data bit without parity)our default setting
is none.
Press [ZERO] to enter Print mode, the display will show X mod, press [UNIT]to
select 0,1,2,3 (0 stands for serial data output disabled,1 stands for demand mode by
press [PRINT],2 stands for automatic print when scale is stable, 3 stands for continuous
print, our default setting is 1.press [ZERO] again to return to weighing mode.
2. Press [ON/OFF] to turn on the scale, the display will show flash digits and
then ----------,press [UNIT] to enter auto off function, the display will show OFF
PWR, press [UNIT] to select among 3,5,10,off ( 3 stands for 3minutes, 5 stands for
5minutes, 10 stands for10 minutes, off stands for inactivate auto off function )
press [ZERO] to select backlight, the display will show X BL ,press [UNIT] to select
X value (Xstands for 0,1,2) , 0 stands for inactivate backlight function, 1 stands for
the backlight is always make function. 2 satnds for auto backlight .
Press [ZERO] to enter unit selecting function, the display will show ON X ( X stands
for the units :g,oz, lb,twt…tola) press
[UNIT] to select ON (activate the selected
unit) or OFF ( inactivate the selected unit), press [ZERO] again to return to weighing
mode.
3. Switch the power to “ON”and than press [ON/OFF]to turn on the scale。The
display shows F-E-9 to 0 and than “- - - - - - -”， press[PCS]key to enter ZERO track
function setting，display shows x.xd ZER，press [UNIT] key to select ZERO track
value（0.0d-0.5d-1.0d-1.5d-2.0d-3.0d）; press [ZERO]key to enter ZERO setting，
display shows x.xd RTZ, press [UNIT] key to select ZERO value（0.5d-1.0d-2.0d-
3.0d）; press [ZERO] key to enter single segment setting or double segment setting ,
press [UNIT] key to switch between them ,SIN dsp means single segment setting
(default setting),db 1 dsp means double segment setting; press [ZERO] key to enter
FIL setting, press [UNIT] key to select filter rangn amond (0-1-2-3-4),”2”is default
setting; press [ZERO] key to select zero range when turn on the scale, press [UNIT]
key to select percent (2 PZR-5 PZR -10 PZR -20 PZR); press [ZERO] key to set zero
range, press [UNIT] key to select percent (5 KZR or10 KZR); press [ZERO] key to
set TARE range, press [UNIT] key select percent (50 KTR or100 KTR); press [ZERO]
key to enter overload protection setting, press [UNIT] key to select overload
protection value (9d OVR-1 OVR-2 OVR-10 OVR); press [ZERO] key to set beep
function, press [UNIT] key to choose turn on or turn off the beep, “ON”means
activate the beep, “OFF” means inactivate the beep; press [ZERO] key to unite the
function of TARE and ZREO, press [UNIT] to switch between them.“ON”means
unite function activate, “OFF”means unite function inactivate. press [ZERO]key
again to return weighing mode..
4. Press [ZERO] to return to weighing mode.
COMPACT SCALE/BALANCE
INSTRUCTION MANUAL
Manual_FR-H_V1 ENG

SAFETY PRECAUTIONS
All safety messages are identified by the following the words "WARNING" and
"CAUTION". These words mean the following:
△
WARNING
Important information to alert you to a
situation that might cause serious injury and
damage to your property if instructions are
not followed.
△CAUTION
Important information that tells how to prevent
damage to equipment.
When using the scale/balance, the following safety precautions should always be
followed.
△WARNING
Use only the AC adaptor with the scale/balance. Other adaptor may cause
damage. (AC adaptor is optional)
△CAUTION
Avoid installing the scale/balance in direct sunlight, this may cause discoloration or
malfunctions.
Do not mix the type of batteries. Replace all other batteries at the same time.
If the scale/balance is not to be used for a long period of time, remove all batteries
from the battery compartment to avoid leakage which may cause damage to the
instrument.
Avoid overloading that could cause damage to the scale/balance.
Do not drop water in the scale/balance that is not water-resistant. It causes damage,
if inside of the scale/balance is wet.
Matter charged static electricity could influence the weighing. Discharge the static
electricity. As example, the method is to use the electrification prevention spray, to
spray it to both side of weighing platform.
1
SPECIFICATIONS
Model number
Capacity
Division
FR-H -100
100g
0.001g/0.005g
FR-H -200
200g
0.005g
FR-H -300
300g
0.005g/0.01g
FR-H -600
600g
0.01g/0.005g
FR-H -1000
1000g
0.01g/0.02g
FR-H -3000
3000g
0.05g/0.1g
FR-H -6000
6000g
0.1g/0.2g
FR-H -10000
10000g
0.2g/0.5g/1g
Platter
φ
115mm or 170 x 180mm
Net/gross weight
1350/1500g
Package
Standard carton: 34
×
22
×
14(cm3)
6 Units in one box: 47.5
×
38.5
×
45(cm
3
)
Operating Temperature
0-40
℃
(32-104
℉
)
Power source
Batteries or AC/DC
Adapter 9V/100mA (optional)
Counting procedures
1.Press [ON/OFF] to turn on the scale.
Wait for "0" to appear on the display.
2.Start the Count Procedure
If necessary, press [ZERO] key to set the display to “0”.
3. Press the [PCS]key to put the scale in PCS mode. ,the display will show P=X
X ,press UNIT to select XX value (10 20 50 100),Place a given number of samples
of an item on the pan (the Sample Size should be either 10、20、50 or 100 pieces).
The weight of these samples will show on the display.
4. Press the [PCS]key, the display will show “XX pcs”, then the scale will recall the
sample size you selected and show the starting sample size on the display (you can
now remove the samples if you want to return the scale to 0)
5. Press the [PCS]key to return to the weighing mode
6

CALIBRATION
When to calibrate
Calibration may be required when it is initially installed, if the scale/balance is moved
to a substantial distance. This is necessary because the weight of a mass in one
location is not necessarily the same in another location. Also, with time and use,
mechanical deviations may occur.
How to calibrate
1.Before entering calibration mode, There is a switch key on the bottom of the
scale. Turn on the switch key first, press [ON/OFF] to turn the power on for
1minutes.
2.Enter calibration mode
Press [ON/OFF] to turn the power on. the display will show flash digits and then “-
-------”, Press [ZERO] , the display will show “CAL” , Press [ZERO] again ,the
display will show “X0000 CAL”, Xis flash digit. Press [UNIT] key the flash digit
will move to right; Press [PCS] key to increase the flash digit.(X is the calibration
weight which can be setted according to your requirement)
3.Calibration by the weight
When you selected the calibration weight ,then place the calibration weight on
platform. Then press [ZERO] key,the display return to the weight value, Now the
calibration is complete.
4.Press [ON/OFF], turn off the power, press [ON/OFF] turn on the power again,
place the weight on the platform to make sure whether weighing is correct, if not,
repeat steps 2-4.
5.Return to weighing mode
Press [ON/OFF] to turn the power off. Press [ON/OFF] again to turn on the power
and the scale/balance return to the weighing mode.
5

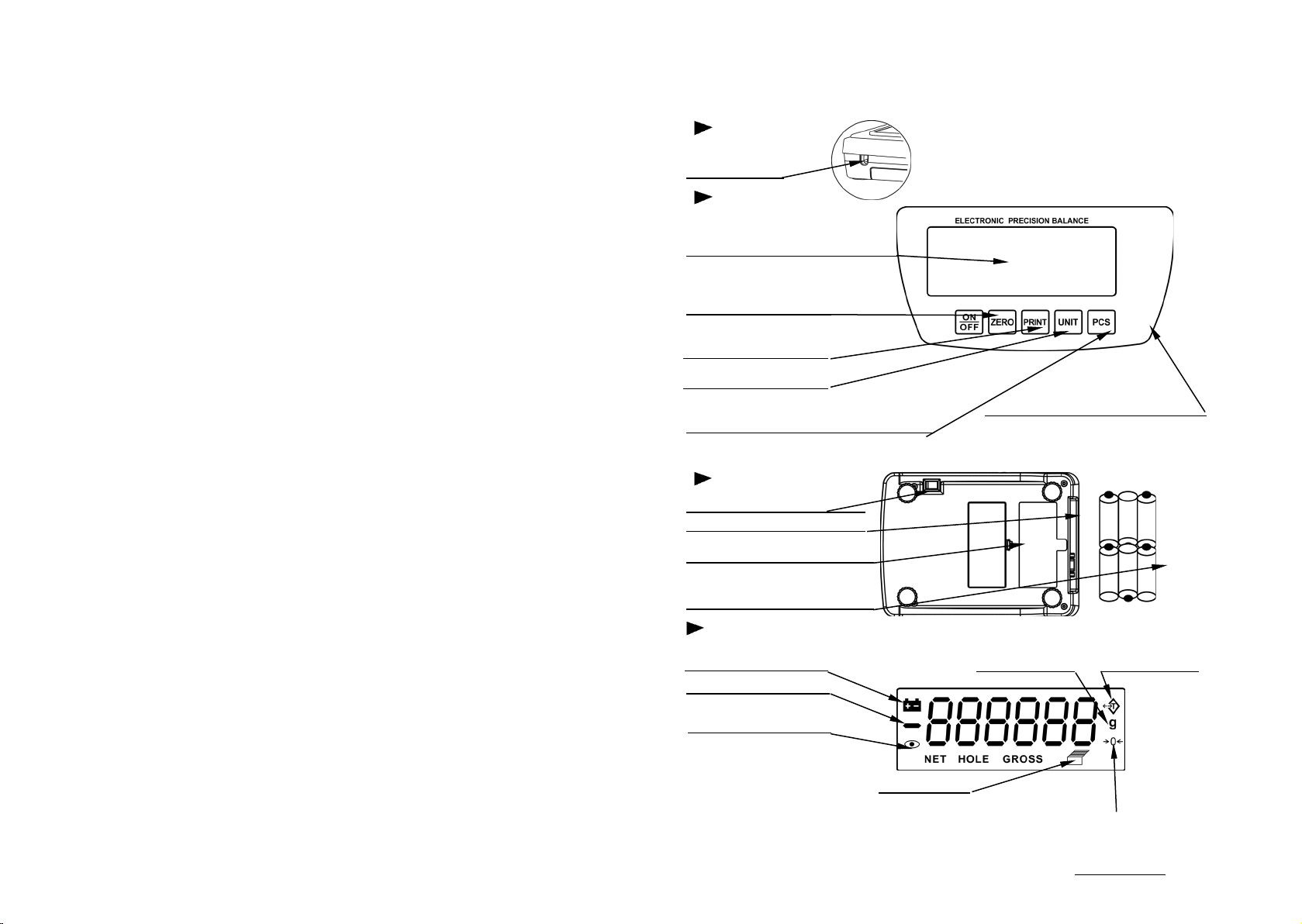

PARTS DESCRIPTION
RIGHT SIDE
AC adaptor
Socket
TOP
Display
ON/OFF key
Turns the scale
power on/off.
ZERO key
ets display to zero
PRINT key
UNIT key PCS key
Changes weighing units, g ,ct, oz, tola
BOTTOM
Switch key
Battery compartment
Battery compartment cover
Batteries
Use 6 AA batteries
DISPLAY
Low battery indicator weighing unit TARE indicator
Negative value indicator
STABLE indicator
when the reading is stable.
Print indicator
ZERO indicator
2

PREPARATION

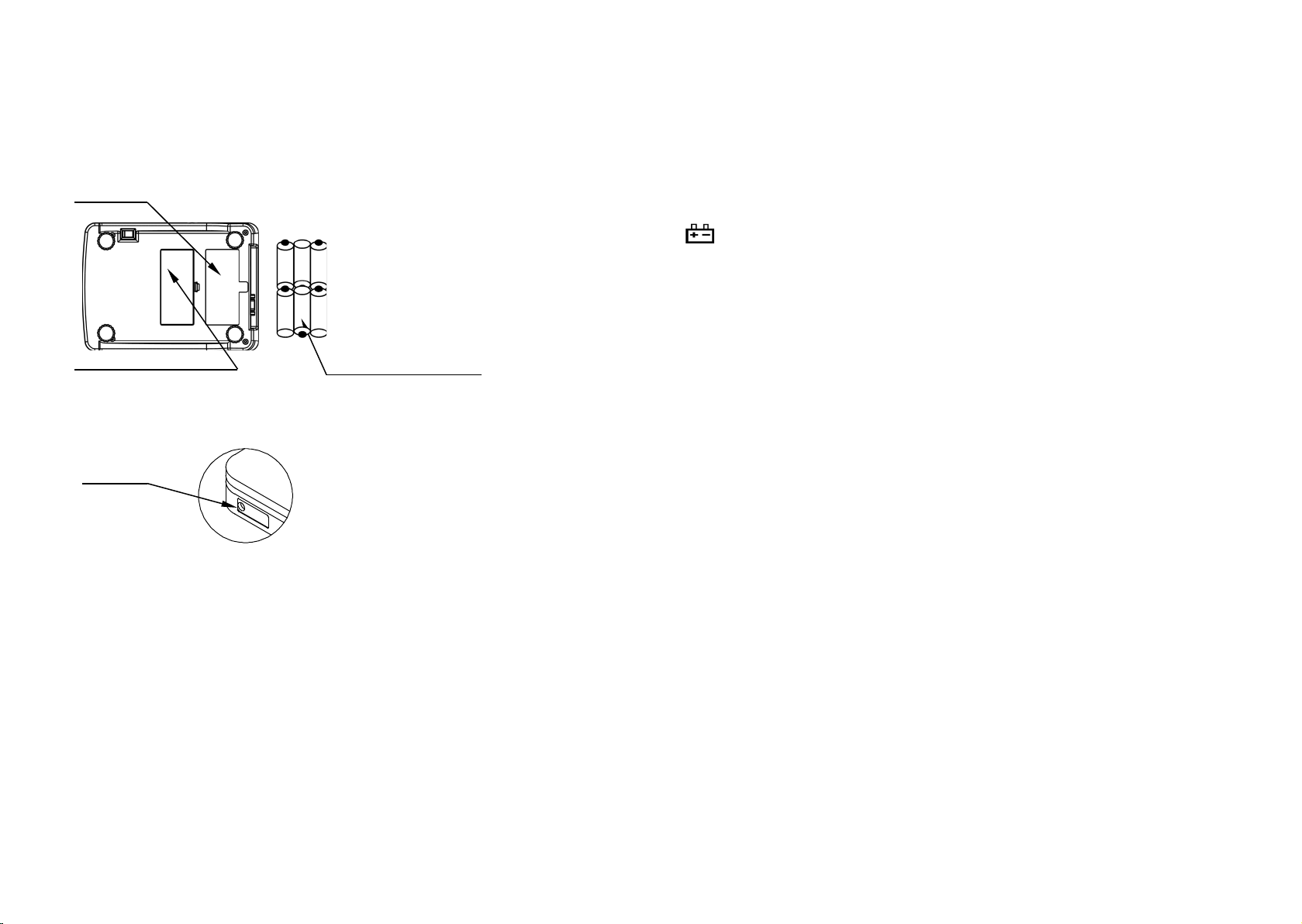

1.Installing batteries/Connecting the AC adaptor
atteries
Battery Remove the battery compartment
compartment cover and insert six batteries(R6P/LR6
/AAsize) into the battery compartment,
taking extreme care that the polarities
plus and minus is observed.
R6P/LR6/AA size
Dry batteries.
Battery compartment cover (batteries are not included)
AC adapter (optional)
Plug the AC adapter to the AC
AC adaptor adapter socket on the side.
socket The AC input requirement could
be 110,120,220,230 or 240Volts
(50/60Hz) depending on the area
where used, so please verify that
the adaptor is correct
2.Setting up the scale/balance
△,!CAUTION
Avoid installing the scale/balance in direct sunlight, that may cause discoloration or
malfunctions. Place your scale/balance on a firm weighing table so that the
scale/balance is level. (The scale/balance will not perform accurately when it is not
level.)
Place the scale/balance on the firm surface that is flat and level for an accurate
weighing.
3
WEIGHING
Before weighing
Whenever possible, please allow the balance to warm up for 10 minutes after first
turning to power on, so that the balance will function. Properly and accurately.
Error messages
EEEE: Overload
: Low battery
Calibration may be required before weighing.
Read "CALIBRATION" first and if necessary, calibrate your scale/balance for
accurate weighing.
Weighing procedures
1.Press [ON/OFF] to turn on the balance.
When power is turned on, all display segments appear on LCD for a few seconds and
finally "0" will appear on the display.
2.Select the weighing unit with [UNIT].
Press [UNIT]to select a weighing unit, eg. "g"、" ct " 、" oz "、" tola " …….
Once the unit has been selected, the selected unit will be displayed to the weight value.
3.Start weighing
If you do not use a container for weighing
Verify the reading is "0". If not, press [ZERO] to display "0".
Place objects on the weighing platform to weigh.
When the reading becomes stable, the stable indicator is displayed.
If you use a container for weighing
Place an empty container on the platform.
Wait for the stability indicator to be displayed and press [ZERO].
Place the objects to be weighed in the container.
When the reading becomes stable, the stable indicator is displayed.
FEATURES
Auto shut off (optional). ● Auto calibration
Auto zero tracking ● Auto backlight (optional)
Low battery indication ●g/ct/oz/tola….. conversion(optional)
Lager LCD Display ● with counting function(optional)
Large square weighting pan ●Net weight/stability indication
1/120000&1/15000 division available
4
FRH RS-232 OUTPUT FORMAT

Baud Rate :1200、2400、4800、9600
Data Bit :8/7/7
Parity : None/ Even/Odd
Stop Bit :1
Code :ASCII
Data Format :
W=WEIGHT M=MESSAGE
1
2
3
4
5
6
7
8
9
1
0
1
1
1
2
1
3
1
4
1
5
1
6
1
7
1
8
1
9
2
0
HEA
D
DATA
UNIT
CR
W/
M
：
+
/-
g
C
R
L
F
Example:
100.00g ：W:+ 100.00g
500.00ct ：W:+ 500.00ct
Err-0 ：M:over
