Viega 6163.2 User manual

Model Year built:
6163.2 from 06/2015
en_INT
Multiplex drain/overflow functional unit
Instructions for Use

Multiplex drain/overflow functional unit 2 from 17

Table of contents
1About these instructions for use 4
1.1 Target groups 4
1.2 Labelling of notes 4
1.3 About this translated version 5
2Product information 6
2.1 Intended use 6
2.1.1 Areas of use 6
2.2 Product description 6
2.2.1 Overview 6
2.2.2 Technical data 7
2.3 Accessories 8
3Handling 10
3.1 Assembly information 10
3.1.1 Mounting conditions 10
3.1.2 Installation dimensions 10
3.1.3 Required tools and materials 10
3.2 Assembly 11
3.2.1 Mounting overflow 11
3.2.2 Mounting the drain 11
3.2.3 Connecting overflow and drain 12
3.2.4 Connecting the wastewater system 13
3.2.5 Mounting equipment set 14
3.2.6 Leakage test 15
3.3 Control 16
3.4 Maintenance 16
3.5 Disposal 17
Table of contents
Multiplex drain/overflow functional unit 3 from 17

1 About these instructions for use
Trade mark rights exist for this document, further information can be
found at www.viega.com/legal-notices.
1.1 Target groups
The information in this instruction manual is directed at the following
groups of people:
nHeating and sanitary professionals and trained personnel
nOperators
nConsumers
It is not permitted for individuals without the abovementioned training or
qualification to mount, install and, if required, service this product. This
restriction does not extend to possible operating instructions.
The installation of Viega products must take place in accordance with
the general rules of engineering and the Viega instructions for use.
1.2 Labelling of notes
Warning and advisory texts are set aside from the remainder of the text
and are labelled with the relevant pictographs.
DANGER!
This symbol warns against possible life-threatening injury.
WARNING!
This symbol warns against possible serious injury.
CAUTION!
This symbol warns against possible injury.
NOTICE!
This symbol warns against possible damage to property.
Notes give you additional helpful tips.
About these instructions for use
Multiplex drain/overflow functional unit 4 from 17

1.3 About this translated version
This instruction for use contains important information about the choice
of product or system, assembly and commissioning as well as intended
use and, if required, maintenance measures. The information about the
products, their properties and application technology are based on the
current standards in Europe (e. g. EN) and/or in Germany
(e. g. DIN/DVGW).
Some passages in the text may refer to technical codes in Europe/
Germany. These should serve as recommendations in the absence of
corresponding national regulations. The pertinent national laws, stand-
ards, regulations and guidelines, as well as other technical guidelines,
have priority over German/European guidelines in this manual: The
information is not binding for other countries and territories and should,
as mentioned, be considered as support.
About these instructions for use
Multiplex drain/overflow functional unit 5 from 17

2 Product information
2.1 Intended use
2.1.1 Areas of use
NOTICE!
Risk of damage due to unsuitable liquids.
To avoid damaging the drain, only introduce the following
liquids:
– Liquids with a pH-value higher than 4
– typical household water with a maximum temperature of
95 °C
The Multiplex drain/overflow is a combined drain and overflow with
odour trap for bathtubs with a 52 mm drain hole.
The drain / overflow is suitable for extra long bathtubs.
Detailed information regarding all bathtub models and the corre-
sponding Viega drains / overflows can be found in the catalogue or on
the Internet.
An equipment set with rotatable rosette and valve cone must be pur-
chased separately.
2.2 Product description
2.2.1 Overview
The following components are included in the scope of delivery of the
Multiplex drain / overflow:
Product information
Multiplex drain/overflow functional unit 6 from 17

1
2
3
46 57811 765976510
13 14 15 16
12

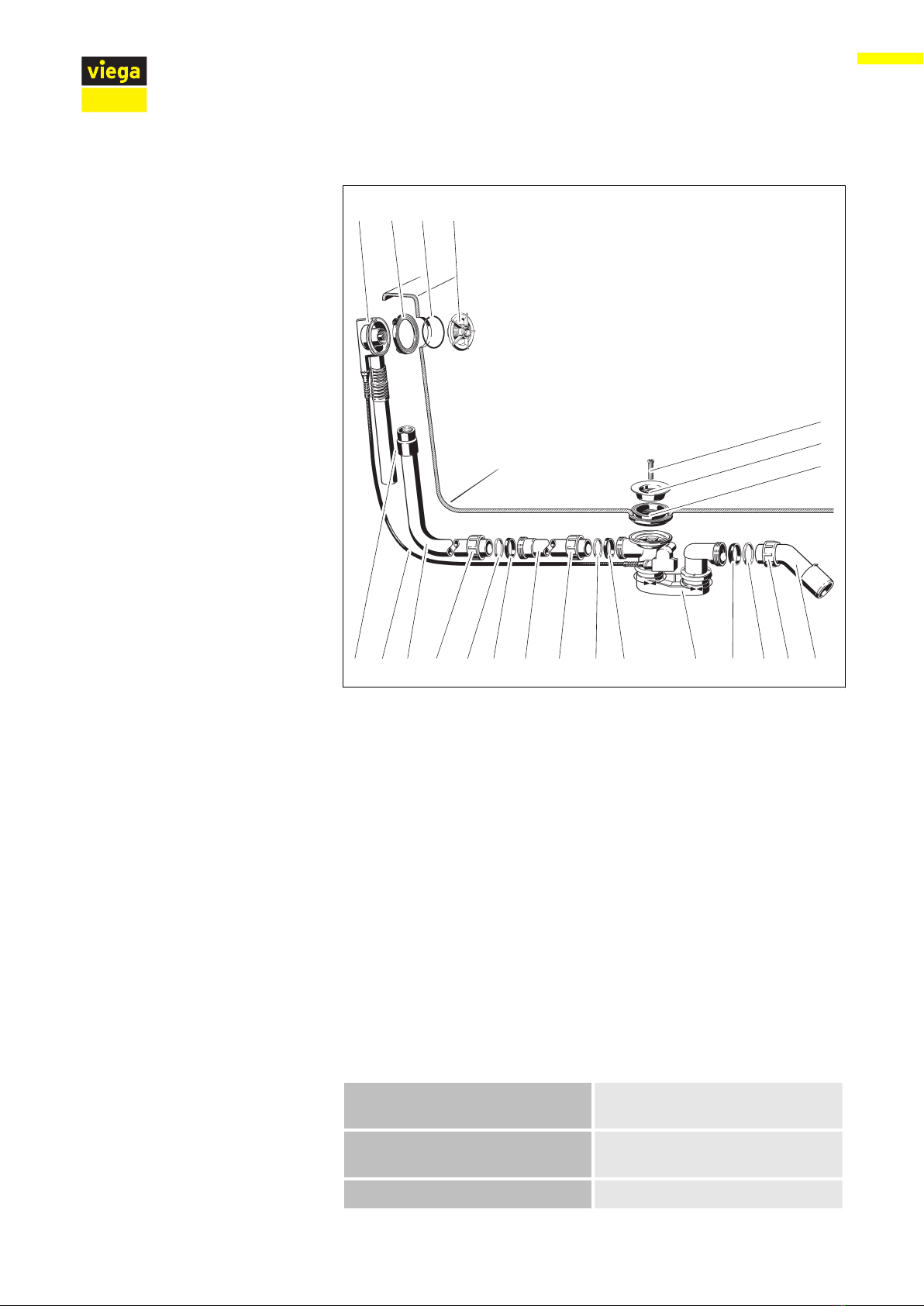

Fig. 1: Component overview
1 - fixing screw
2 - valve top
3 - double seal
4 - drain elbow
5 - union nut
6 - sliding ring
7 - seal
8 - odour trap
9 - pipe extension
10 - overflow pipe
11 - Bowden cable
12 - sleeve
13 - overflow unit
14 - profile seal
15 - O-ring
16 - fixing flange
2.2.2 Technical data
Drainage capacity (at an accumu-
lation height of 300 mm)
0.87 l/s
Overflow capacity (at an accumu-
lation height of 60 mm)
0.63 l/s
Diameter of bathtub drain hole 52 mm
Product information
Multiplex drain/overflow functional unit 7 from 17

DN (nominal diameter) drain sup-
port
40 / 50 mm
Length of Bowden cable 1070 mm
Length 100–680 mm
Height 180–480 mm
Dimensions and installation depth
ÄChapter 3.1.2 „Installation
dimensions“ on page 10
Water head seal 50 mm
2.3 Accessories
The accessories shown here are not included in the scope
of delivery. If required, it must be purchased separately.

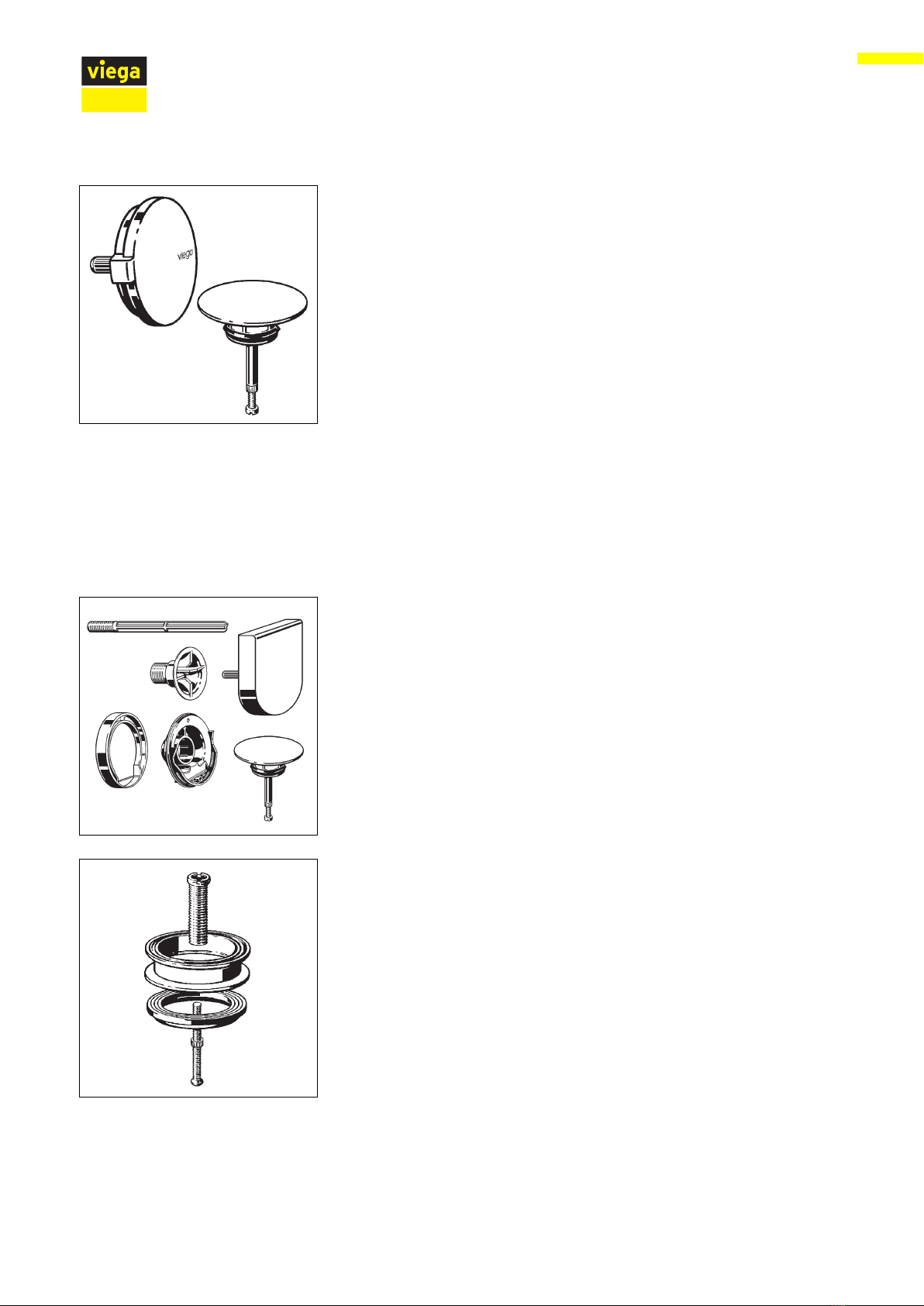

Equipment sets
As this product is a the functional unit (without rotatable rosette and
valve cone), you require an equipment set to enable complete mounting.
Equipment sets contain a rotatable rosette for the overflow and a valve
cone for the drain of the functional unit. You can find a choice of dif-
ferent models in various designs in the catalogue.
Equipment set Multiplex Visign M3: Model 6154.0
Required accessories
Product information
Multiplex drain/overflow functional unit 8 from 17

Equipment set Multiplex Visign M5: Model 6162.01
Equipment set with water level increase
The water level of the overflow can be increased by 5 cm with the
equipment set. The equipment set contains a rotatable rosette, a fixing
flange, a valve cone, a fixing screw, a flange cover and a mounting aid
for the drain of the functional unit.
Equipment set Multiplex Visign M9: Model 6171.0
Multiplex extension set
It is possible to extend the odour trap below the bathtub in the case of
bathtubs with a very thick floor. The extension set, model 6161.7, is
available for such cases.
Optional accessories
Product information
Multiplex drain/overflow functional unit 9 from 17

3 Handling
3.1 Assembly information
3.1.1 Mounting conditions
The following requirements exist for the mounting of the drain / over-
flow:
nThe bathtub is installed.
nThe drainage line is installed all the way to the bathtub.
nThe underside of the bathtub is accessible.
3.1.2 Installation dimensions

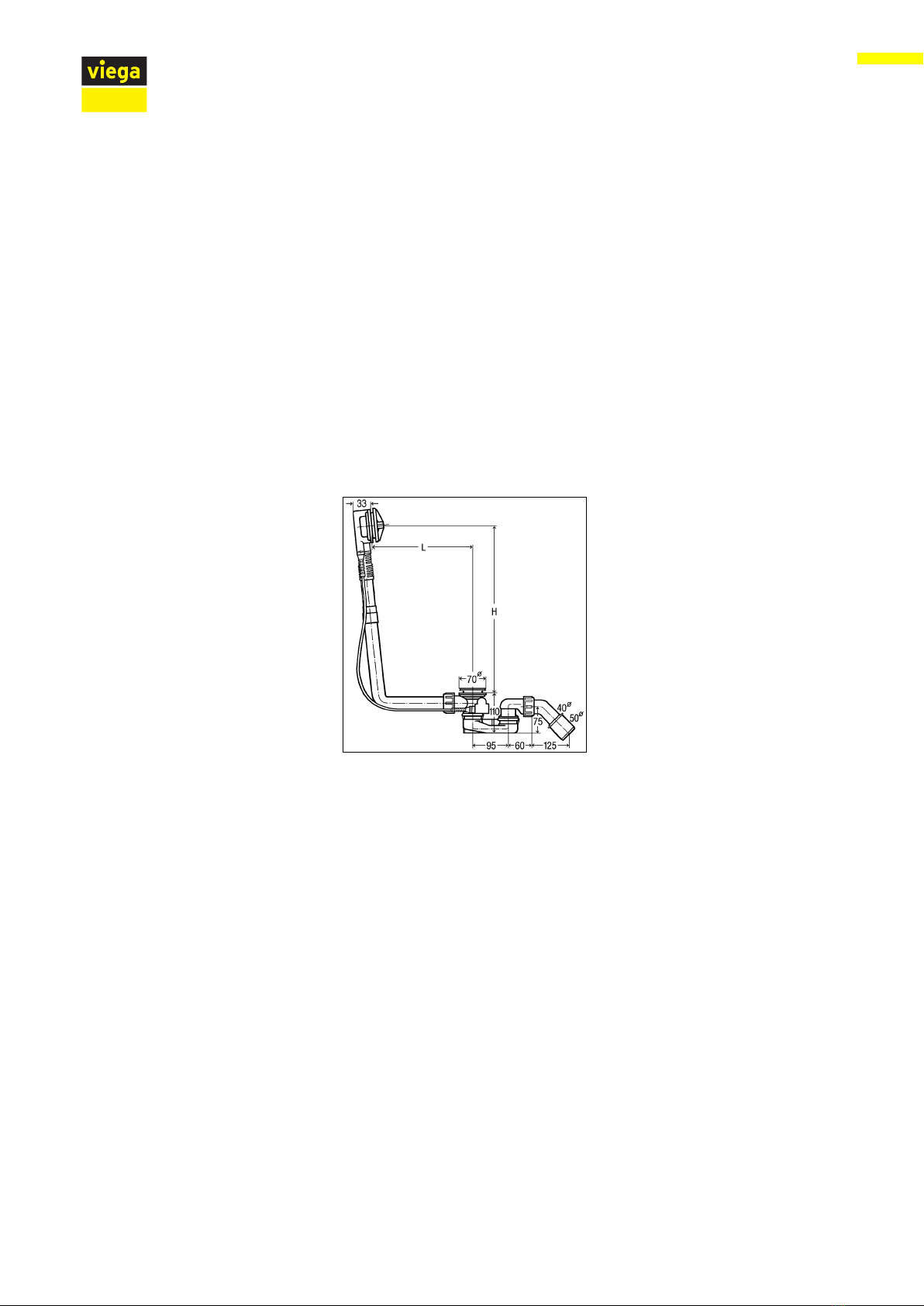

Fig. 2: Dimensional drawing
The following values are valid for L (length) and H (height):
L = 100–680
H = 180–480
3.1.3 Required tools and materials
The following tools are required for mounting:
nsocket wrench (SW 14)
nfine-toothed saw
nslotted screwdriver
The following material must be purchased separately and must be avail-
able during mounting:
nequipment set
Tool
Material
Handling
Multiplex drain/overflow functional unit 10 from 17

3.2 Assembly
3.2.1 Mounting overflow
Proceed as follows to the mounting of the overflow:
Fit profile seal in the overflow unit.
Push the rubber sleeve onto the overflow unit pipe until the lower
edge is flush with the edge of the overflow pipe.
Place the O-ring in the annular gap of the fixing flange.
Hold the overflow unit on the overflow opening of the bathtub from
the outside.
Screw the fixing flange into the overflow unit by hand.
Pliers or other tools may damage the fixing flange. Only turn the
fixing flange by hand.
3.2.2 Mounting the drain
Proceed as follows to mount the drain:
Handling
Multiplex drain/overflow functional unit 11 from 17

Place the double seal onto the drain unit in such a way that the
recess is positioned over the connecting pipe.
Pull the edge of the double seal over the edge of the drain.
Hold the drain with double seal onto the drain opening from below.
Pull the upper part of the double seal through the drain hole.
Fit the valve top in the double seal.
INFO! The cross-shaped structures of the drain units and the
valve top must be positioned parallel on top of each other to
ensure the full drainage capacity.
Place the fixing screw in the drain unit and tighten using a socket
wrench (SW 14).
3.2.3 Connecting overflow and drain
After the overflow and the drain have been mounted, you must connect
them both using the overflow pipe. Proceed as follows:
Handling
Multiplex drain/overflow functional unit 12 from 17

Requirements:
nThe overflow is mounted in the overflow opening.
nThe drain is securely mounted on the base of the bathtub.
NOTICE! Connections where the pipes are not inserted far
enough into each other become leaky. For this reason, maintain
a minimum insertion depth of 15 mm for every connection.
Mount union nut, sliding ring and seal.
Screw together overflow and extension pipes.
Maintain an insertion depth of at least 15 mm!
Hold the pipe of the overflow unit parallel to the overflow pipe and
mark the positions where the drain and the overflow should be con-
nected.
Maintain an insertion depth of at least 15 mm!
Cut the overflow pipe to the marked length and, if necessary,
deburr.
Push the top end of the overflow pipe into the rubber sleeve.
Maintain an insertion depth of at least 15 mm!
Push the union nut, sliding ring and seal onto the bottom end of the
drain elbow.
Screw the union nut on the drain unit.
3.2.4 Connecting the wastewater system
Proceed as follows to connect the drain/overflow to the wastewater
system:
Handling
Multiplex drain/overflow functional unit 13 from 17

Requirements:
nThe overflow and drain units are installed on the bathtub.
nThe connection between overflow and drain has been made.

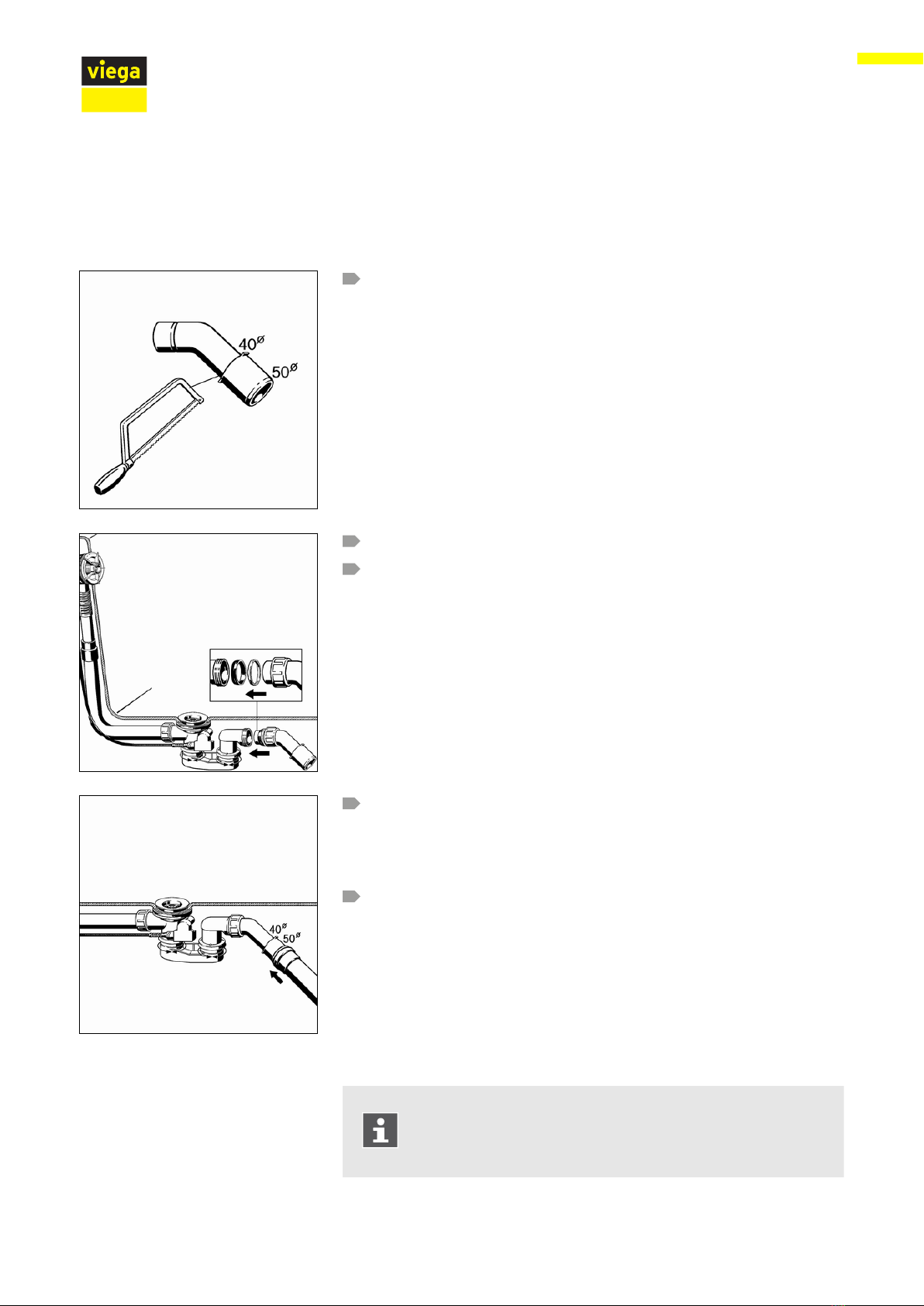

If the wastewater pipe only has a diameter of 40 mm, cut off drain
elbow.
Push union nut, sliding ring and seal onto the drain elbow.
Screw the union nut on the drain unit.
Align the odour trap in such a way that the drain elbow can be con-
nected to the wastewater pipe.
Turn the drain at the joints until the required position has been
reached.
Push wastewater pipe in the drain elbow.
3.2.5 Mounting equipment set
The equipment set is not included in the scope of delivery
and must be purchased separately.
Handling
Multiplex drain/overflow functional unit 14 from 17

To avoid damage to the rosette and valve cone, only mount the equip-
ment set after finishing all other work on the building site. Proceed as
follows:
Align and fit rotatable rosette.
Fit valve cone.
Turn rotatable rosette to check function and alignment.
The opening of the valve cone should be 2–3 cm wide when
opened. If necessary, regulate the width of the opening of the valve
cone using the adjusting screw (see next step).
Set the valve cone with the help of the adjusting screw and counter
with union nut.
3.2.6 Leakage test
The leakage test is only carried out as a visual inspection.
Check the points marked in the following drawing with particular care:
Check drain fitting for visible leaks.
Handling
Multiplex drain/overflow functional unit 15 from 17

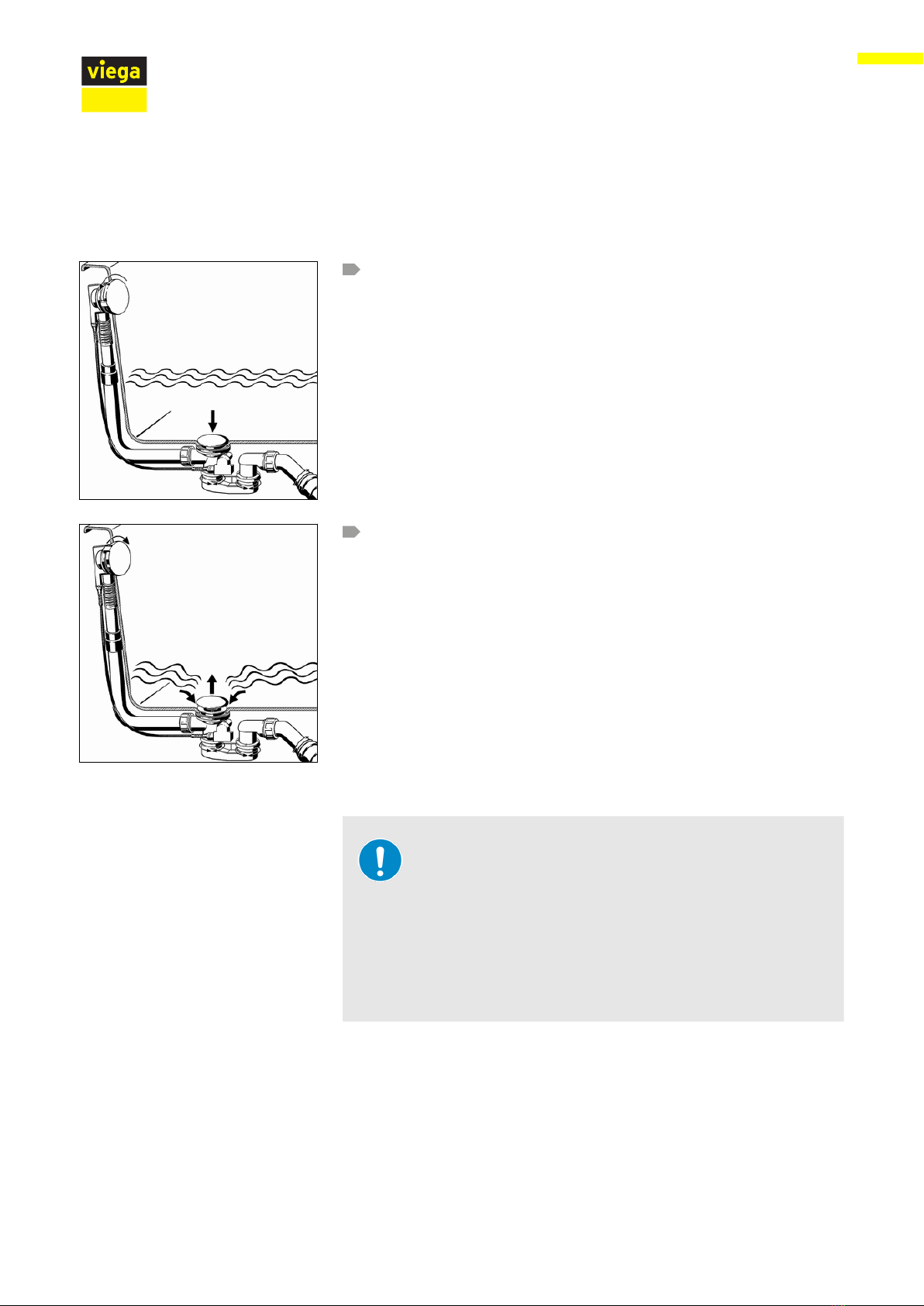

3.3 Control
The drain / overflow are controlled via rotatable rosette on the overflow.
Proceed as follows to open or close the drain:
Turn rotatable rosette to the left.
ðThe drain closes itself.
Turn rotatable rosette to the right.
ðThe drain opens itself.
3.4 Maintenance
NOTICE!
Risk of damage due to unsuitable cleaning agent.
The following cleaning agents can damage chrome-plated
surfaces and therefore may not be used:
– scouring agent
– abrasive sponges
– lime, plaster or cement dissolver
– solvents or other acidic cleaning agents
Normal soap or a mild cleaning agent can be used for regular care and
prevention of lime scale on the rotatable rosette and valve cone. Under
no circumstances should scouring agent or scratching objects be used.
Strong stains, even around the drain unit and the siphon, can be
removed using typical household cleaner. It should be noted that the
cleaning agent should be rinsed off after the prescribed soaking time.
There should be no residue on the components.
Handling
Multiplex drain/overflow functional unit 16 from 17

3.5 Disposal
Separate the product and packaging materials (e. g. paper, metal,
plastic or non-ferrous metals) and dispose of in accordance with valid
national legal requirements.
Handling
Multiplex drain/overflow functional unit 17 from 17
