Viega Advantix 4935.1 User manual

Model Year built:
4935.1 from 01/2003
en_INT
Advantix bathroom drain
Instructions for Use

Advantix bathroom drain 2 from 25

Table of contents
1About this instruction for use 4
1.1 Target groups 4
1.2 Labelling of notes 4
1.3 About this translated version 5
2Product information 6
2.1 Intended use 6
2.1.1 Areas of use 6
2.1.2 Media 6
2.1.3 Drainage capacity 7
2.2 Product description 7
2.2.1 Overview 7
2.2.2 Technical data 7
2.3 Information for use 8
2.3.1 Installation variations 8
2.3.2 Sealing 9
2.3.3 Fire protection 13
2.4 Required accessories 14
3Handling 16
3.1 Assembly information 16
3.1.1 Important note 16
3.1.2 Installation dimensions 16
3.1.3 Tools and materials 16
3.2 Assembly 17
3.2.1 Connecting the drain 17
3.2.2 Prepare for subsequent work 18
3.2.3 Sealing the drain 19
3.2.4 Mounting the top 22
3.3 Maintenance 24
3.3.1 Maintenance tips 24
3.3.2 Cleaning the drain 24
3.4 Disposal 25
Table of contents
Advantix bathroom drain 3 from 25

1 About this instruction for use
Trade mark rights exist for this document, further information can be
found at www.viega.com/legal-notices.
1.1 Target groups
The information in this instruction manual is directed at the following
groups of people:
nHeating and sanitary professionals and trained personnel
nTilers
nConsumers
It is not permitted for individuals without the abovementioned training or
qualification to mount, install and, if required, service this product. This
restriction does not extend to possible operating instructions.
The installation of Viega products must take place in accordance with
the general rules of engineering and the Viega instructions for use.
1.2 Labelling of notes
Warning and advisory texts are set aside from the remainder of the text
and are labelled with the relevant pictographs.
DANGER!
This symbol warns against possible life-threatening injury.
WARNING!
This symbol warns against possible serious injury.
CAUTION!
This symbol warns against possible injury.
NOTICE!
This symbol warns against possible damage to property.
Notes give you additional helpful tips.
About this instruction for use
Advantix bathroom drain 4 from 25

1.3 About this translated version
This instruction for use contains important information about the choice
of product or system, assembly and commissioning as well as intended
use and, if required, maintenance measures. The information about the
products, their properties and application technology are based on the
current standards in Europe (e. g. EN) and/or in Germany
(e. g. DIN/DVGW).
Some passages in the text may refer to technical codes in Europe/
Germany. These should serve as recommendations in the absence of
corresponding national regulations. The pertinent national laws, stand-
ards, regulations and guidelines, as well as other technical guidelines,
have priority over German/European guidelines in this manual: The
information is not binding for other countries and territories and should,
as mentioned, be considered as support.
About this instruction for use
Advantix bathroom drain 5 from 25

2 Product information
2.1 Intended use
2.1.1 Areas of use
The drain is designed for small to medium volumes of water, which
occur in e. g. residential building.
Technical information, see ÄChapter 2.2.2 ‘Technical data’ on page 7 .
The drain with a horizontal drain support is suitable for both mounting in
a floor recess as well as for mounting on the floor.
The low drainage capacity and water head seal of 30 mm
do not fulfil the provisions of EN 1253-1.
Check if the drainage capacity is sufficient before mounting!
2.1.2 Media
The drain is intended to be in constant operation for the channelling off
of typical household wastewater in acc. with DIN 1986-3.
nThe short-term temperature of the wastewater may reach up to
95° C. The temperature must be considerably lower in constant
operation.
nThe pH value must be higher than 4 but lower than 10.
It is not permitted to introduce wastewater which would damage the
product material.
Product information
Advantix bathroom drain 6 from 25

2.1.3 Drainage capacity
Drainage capacity at an accumulation height of 10 mm above the grate:
0.4 l/s
Drainage capacity at an accumulation height of 20 mm above the grate:
0.6 l/s
Drainage capacity through the lateral inlet: 1.2 l/s
The values are dependent on the total height (H) of the drain unit.
2.2 Product description
2.2.1 Overview
1
2
3
4
7 6
5
1 - grate
2 - top, can be cut to length
3 - removable odour trap
4 - flange for the application of the conventional sealing
5 - horizontal drain support (DN 50) with ball joint socket
6 - base unit
7 - inlet (DN 40) for the connection of additional drain pipes (
e. g. from washbasin, shower, etc.)
2.2.2 Technical data
Nominal width [DN] (drain
support)
50
Nominal width [DN] (inlet) 40
10
20
Product information
Advantix bathroom drain 7 from 25

Drainage capacity
ÄChapter 2.1.3 ‘Drainage capacity’
on page 7
Dimensions and installa-
tion height
ÄChapter 3.1.2 ‘Installation dimensions’
on page 16
Water head seal 30 mm
Load class K = 300 kg
2.3 Information for use
2.3.1 Installation variations
The mounting of the drain in a bare concrete floor is as follows:
nThe drain is placed in a floor recess and then cast-in.
During the mounting on the floor, the drain is integrated into the floor
construction. At the same time, it can e. g. be integrated into the level-
ling screed or heat insulation. If necessary, a vertical drain pipe can be
led through a drill hole in the floor at the same time.
Mounting in a bare concrete floor
Fig. 1: General installation example – Floor
recess
Mounting on a floor
Fig. 2: General mounting example – Mounting
on the floor
Product information
Advantix bathroom drain 8 from 25

NOTICE!
The creation of a floor recess must be agreed with the fol-
lowing people:
– a structural engineer
–the on-site fire protection inspector or the specialist
engineer for fire protection
If necessary, proof of compliance with building code or an
expert's report must exist.
2.3.2 Sealing
The drain can be sealed both conventionally as well as with bonded
sealing.
Depending on the type of sealing, you will require the relevant equip-
ment set
ÄChapter 2.4 ‘Required accessories’ on page 14 .
Product information
Advantix bathroom drain 9 from 25

The flange of the drain is intended for conventional sealing. To be able
to seal the drain conventionally, you require a suitable sealing cuff and a
clamping ring with which the cuff is secured ÄChapter 2.4 ‘Required
accessories’ on page 14 .
Fig. 3: Construction diagram of a conventional sealing
NOTICE!
Not suitable for floor-level showers
Conventional sealing is not recommended with floor-level
showers, because dampness can enter the screed and
damp proof layer.
The bonded sealing should be used in the case of floor-
level showers.
Principle
Conventional sealing occurs with sealing lanes made of bitumen or
EPDM. The sealing lanes are laid directly onto the bare concrete or heat
insulation. This process has proved itself to be particularly effective for
sealing balconies, patios, floor panels and cellar floors. In addition,
sealing lanes are often used as an additional second sealing layer below
the bonded seal.
The following components are required for the installation of a drain
with conventional sealing:
nDrain
nClamping ring with sealing cuff for EPDM and bitumen sealing lane
Information for processing
The sealing cuff is coated differently on both sides: EPDM/ Bitumen
The sealing cuff is placed on the drain and secured using the flange
ring. It depends on the sealing lane used which material layer of the
sealing cuff is placed upwards. You can find more information in the
instruction manual of the sealing flange.
Conventional sealing
Product information
Advantix bathroom drain 10 from 25

To protect against dampness, sealing foils which are to be processed
as liquids are applied directly below the tiles on screed and walls. The
provisions of the wear class, of the foundation and the choice of suit-
able bonded sealing must be carried out in acc. with
ZBD data sheet 1/2010 and in acc. with the guideline for bonded sealing
(BS).
Bonded sealing can be carried out with the help of a suitable stacking
element. You have the possibility to double seal, using conventional and
bonded sealing or only using bonded sealing.
Fig. 4: Diagram of a bonded seal
Bonded sealing
Product information
Advantix bathroom drain 11 from 25

Careful planning is required for professional sealing. In addition,
depending on the individual dampness wear class and the type of foun-
dation, a suitable BS system with a building regulations certificate of
suitability must be chosen.
Furthermore, the following factors should be taken into account:
nDrain or shower channel must be equipped with a special flange,
which has an adhesive surface and a width of at least 30 mm
nTo enable the material change from drain to screed, either a suitable
sealing cuff or sealing strip, which is designed for overlapping with
the BS with a width of at least 50 mm must be used.
nThe screed must be laid at a minimum incline of 1–2 %.
nThe installation must be carried out properly in acc. with the installa-
tion manual and the manufacturer's information.
1
9 8 7 6
2 3 4 5
Fig. 5: Construction diagram of the bonded seal - min. screed incline 1–2 %
1 - grate
2 - top piece with adhesive flange
3 - tile
4 - tile adhesive
5 - bonded sealing
6 - screed
7 - sealing cuff
8 - mat
9 - adhesive flange
Important note
Product information
Advantix bathroom drain 12 from 25

Only approved bonded seals with proof of practicability in keeping with
building law may be used with suitable drains, e. g.:
nfor the wear classes A and AO:
in accordance with ETAG 022 T1
nfor the wear classes A, B and C:
in accordance with DiBt Rule list A, Part 2 of the DiBt and the test
principles for bonded sealing (PG AIV-F)
nin acc. with DIN EN 14891:
"Liquid-applied impermeable products for use below ceramic tiling
boded with adhesives"
Information regarding the procedure can be found in the instructions for
use of the corresponding product.
2.3.3 Fire protection
Advantix shower channels and drains can both be fitted to be fire proof.
The R120 pipe lead-in can be used for this purpose in the floor con-
struction. In this way, a fire resistance time of up to 120 minutes can be
achieved.
Fig. 6: Example: Fire protection pipe lead-in
Mounting instruction of the R120 pipe lead-in see model 4923.5, Art.-
No. 491 673.
Permitted bonded seals
Product information
Advantix bathroom drain 13 from 25

2.4 Required accessories
Advantix tops are available in a number of sizes and variations. You can
also only buy an Advantix top frame and then purchase a suitable
designer grate separately (see catalogue).
The drain can be fitted with a sieve insert (model 4958) to collect dirt.
If a conventional sealing is to be made, a suitable sealing collar and a
clamping ring will be required.
You will find a corresponding set in the catalogue (model 4948.31).
Top
Sieve insert
Accessories for the conventional sealing
Product information
Advantix bathroom drain 14 from 25

If a bonded sealing is to be applied, a suitable stacking element with
sealing collar is required.
You will find a corresponding set in the catalogue (model 4925).
Advantix drains can be equipped with an additional odour barrier, which
also closes the drain odour-tight, if the water seal in the odour trap has
evaporated. Odour nuisance is even avoided with drains that are only
seldom used. Odour barriers can be found in the catalogue.
Accessories for the bonded sealing
Odour barrier
Product information
Advantix bathroom drain 15 from 25

3 Handling
3.1 Assembly information
3.1.1 Important note
Before assembly:
ncheck if the drainage capacity of the drain is sufficient for the arising
water volume ÄChapter 2.1.3 ‘Drainage capacity’ on page 7
ncheck if the installation height of the drain corresponds with the
planned floor construction
nensure that the required connection line is installed with the neces-
sary incline to the planned installation location
nif necessary, supply the required accessories
ÄChapter 2.4
‘Required accessories’ on page 14
During assembly:
nobserve installation dimensions
ndecide whether or not a backflow seal is required in the insertion part
of the top
After assembly:
nthe drain flange must be fully lined with mortar
3.1.2 Installation dimensions
Ø100
Ø220
165105
75
35
Ø50 Ø40
Fig. 7: Dimensional drawing model 4935.1
3.1.3 Tools and materials
nif necessary, sealing cuff, clamping ring, fitting screws
nTop with grate, if not included in scope of delivery
ÄChapter 2.2.1
‘Overview’ on page 7
Required material
Handling
Advantix bathroom drain 16 from 25

nif necessary, stacking element for bonded sealing model 4925
nMaterial for securing the drain
3.2 Assembly
3.2.1 Connecting the drain
The connection to the wastewater system must be completed before
the drain can be installed in the floor construction. Proceed as follows:
Requirements:
nA pipe to the planned drainage position is already in place for the
connection to the waste water system.
nThe drainpipe has an internal sealing lip.
Push the drain support into the drainpipe completely.
The connection to the inlet must first be made to be able to mount the
drain. Proceed as follows:
Requirements:
nInlet pipe has been mounted.
Unscrew the union nut from the drain inlet.
Connecting to the wastewater system
Connecting the inlet
Handling
Advantix bathroom drain 17 from 25

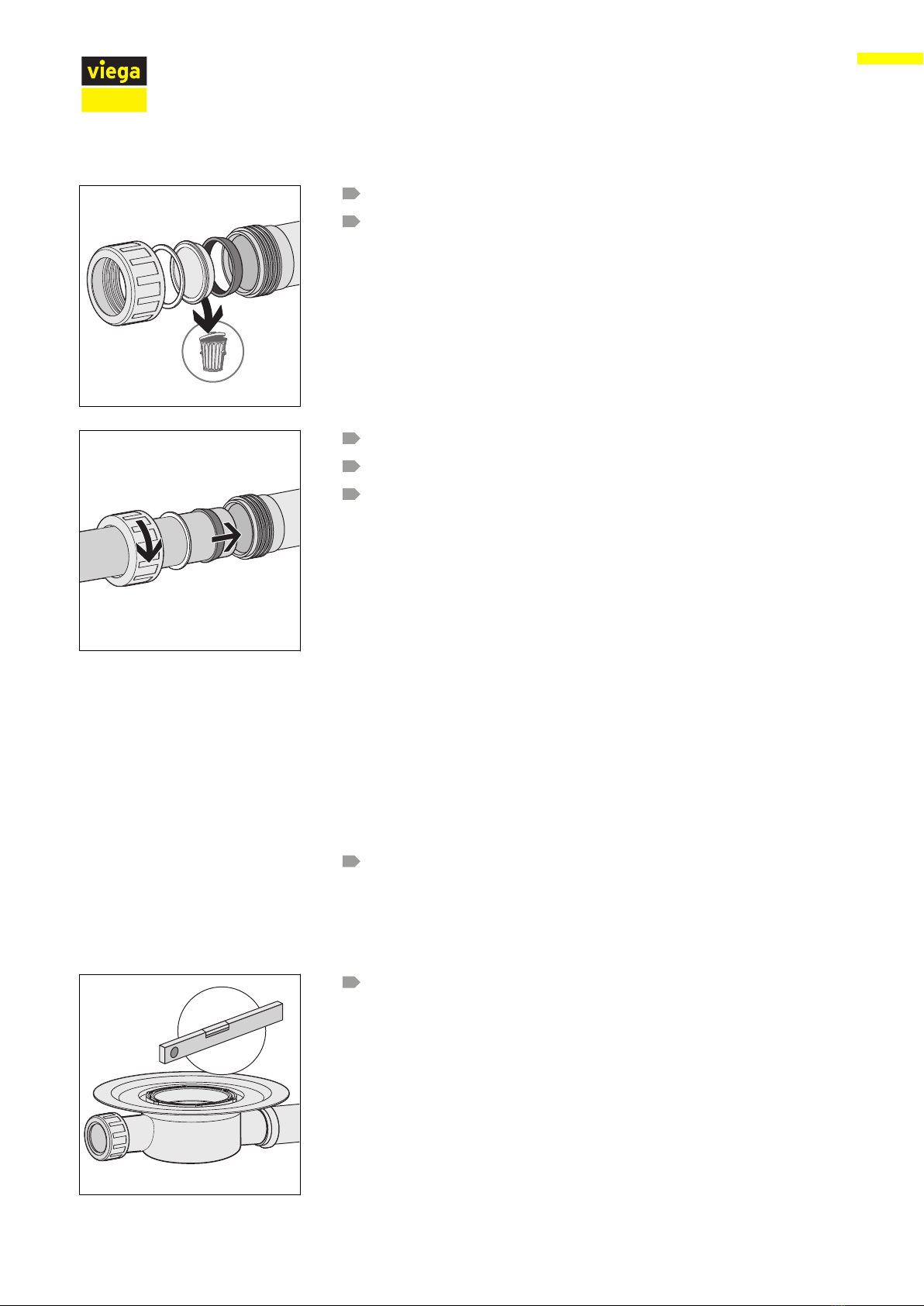

Remove protective plug.
Remove sliding ring and sealing from the protective plug.
Push the union nut, sliding ring and sealing onto the inlet pipe.
Push inlet pipe at least 1.5 cm deep into the drain inlet.
Screw the inlet pipe with the coupling onto the drain inlet.
3.2.2 Prepare for subsequent work
A few points must be observed to integrate the drain into the floor con-
struction properly. For this reason, proceed as follows to prepare the
drain for subsequent work:
Requirements:
nThe drain is connected.
nThe inlet is connected.
Position the drain at the desired height at the place of use.
Depending on planning, the drain can be integrated into concrete,
screed or a heat insulation layer, for example. It is important that the
upper edge of the drain flange is flush with the upper edge of the
sealing layer. If necessary, raise or lower the drain in the existing
floor using suitable material.
Align drain horizontally using a spirit level.
Handling
Advantix bathroom drain 18 from 25

Secure the drain in such a way that it cannot shift when the subse-
quent works are applied.

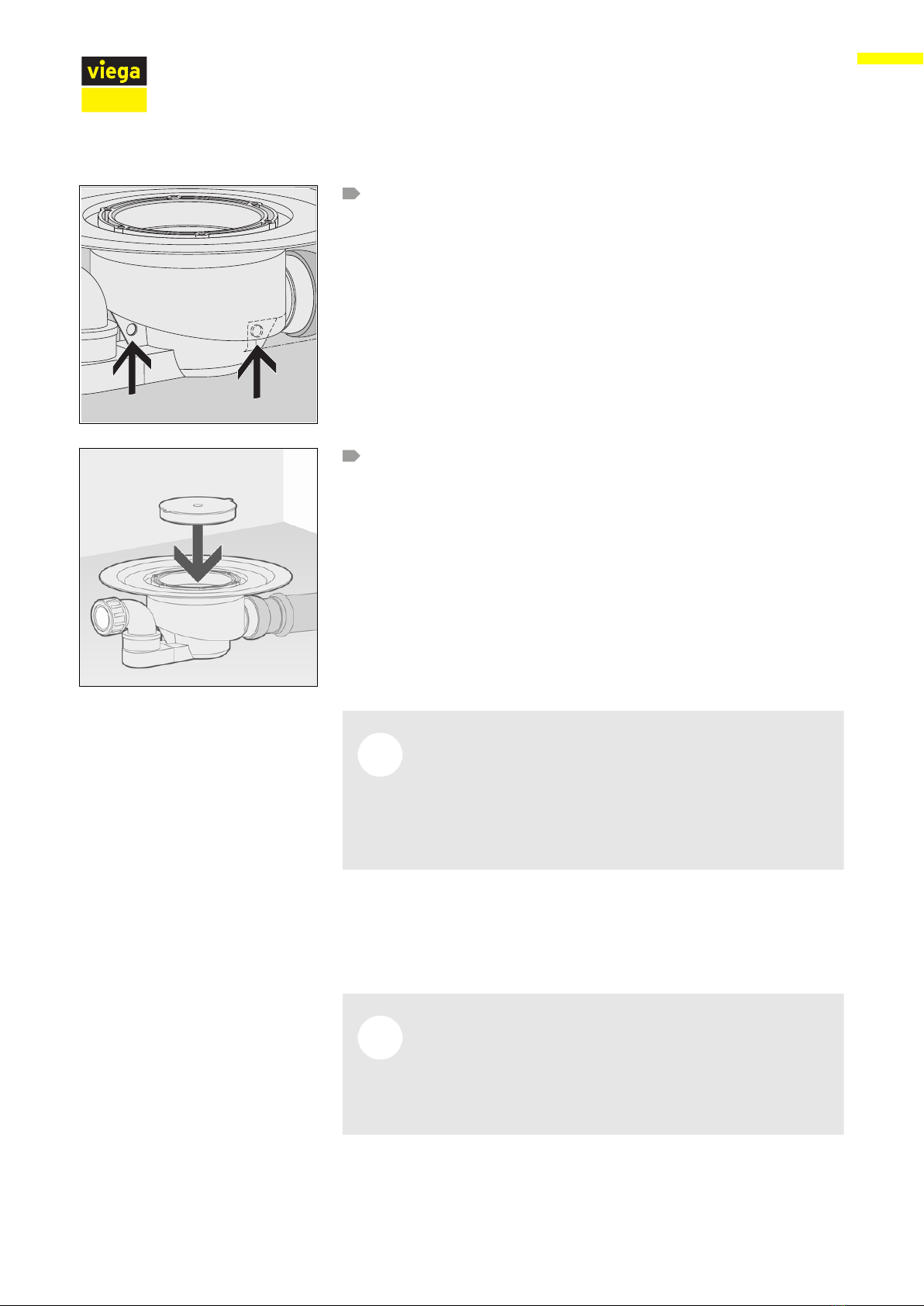

The fixing eyelets, which are to be found on the underside of the
drain, can be used for fixing.
Most importantly, it must be ensured that the drain does not float
when the concrete or screed is poured in.
Insert yellow protective plugs.
NOTICE!
Product damage due to improper installation
If hollow spaces occur during the lining of the drain, leaks
may occur when pressure is applied.
Inform the subsequent workers that the drain must be fully
lined and that there must be no hollow spaces.
3.2.3 Sealing the drain
NOTICE!
Product damage due to improper installation
If hollow spaces occur during the lining of the drain, leaks
may occur when pressure is applied.
Check the proper completion of the subsequent work.
Handling
Advantix bathroom drain 19 from 25

Screed and floor tiles must be laid at an incline of 1–2 % in
the direction of the drain.
Requirements:
nA suitable sealing collar and a clamping ring are available.
nThe flange is free of heavy soil.
nThe complete surface of the flange is lined with material and undam-
aged.
If required, clean the flange of heavy soil (e. g. from screed).
Insert sealing ring.
The sealing ring must lie in the groove between the flange and the
screw holes.
INFO! The Viega sealing collar has two differently coated sides.
One side is coated with bitumen and the other with EPDM. If the
additional sealing takes place with bitumen lanes, the sealing
collar must be used with the bitumen side facing upwards. If
EPDM lanes are used, the EPDM side must face upwards.
Position the sealing collar on the drain.
The screw holes must be visible through the recesses.
Conventional sealing
Handling
Advantix bathroom drain 20 from 25
