Viega Advantix 4960.81 User manual

for bonded sealing (tiled shower) with sealing mat
Model Year built:
4960.81 from 01/2008
en_INT
Advantix shower channel, base unit
Instructions for Use

Advantix shower channel, base unit 2 from 32

Table of contents
1About these instructions for use 4
1.1 Target groups 4
1.2 Labelling of notes 4
1.3 About this translated version 5
2Product information 6
2.1 Standards and regulations 6
2.2 Intended use 7
2.2.1 Areas of use 7
2.2.2 Media 7
2.2.3 Drainage capacity 7
2.3 Product description 8
2.3.1 Overview 8
2.3.2 Technical data 9
2.3.3 Sound protection 9
2.4 Information for use 9
2.4.1 Sealing 9
2.4.2 Fire protection 11
2.5 Required accessories 11
3Handling 12
3.1 Assembly information 12
3.1.1 Important note 12
3.1.2 Installation dimensions 12
3.1.3 Tools and materials 14
3.2 Assembly 14
3.2.1 Determine height 14
3.2.2 Mount base unit 19
3.2.3 Align shower channel 20
3.2.4 Connect shower channel 21
3.2.5 Preparing for further work 22
3.2.6 Sealing the shower channel 24
3.2.7 Insert grate frame 27
3.3 Care 29
3.3.1 Care tips 29
3.3.2 Cleaning 30
3.4 Disposal 32
Table of contents
Advantix shower channel, base unit 3 from 32

1 About these instructions for use
Trade mark rights exist for this document, further information can be
found at viega.com/legal.
1.1 Target groups
The information in this instruction manual is directed at the following
groups of people:
nHeating and sanitary professionals and trained personnel
nTilers
nConsumers
It is not permitted for individuals without the abovementioned training or
qualification to mount, install and, if required, maintain this product. This
restriction does not extend to possible operating instructions.
The installation of Viega products must take place in accordance with
the general rules of engineering and the Viega instructions for use.
1.2 Labelling of notes
Warning and advisory texts are set aside from the remainder of the text
and are labelled with the relevant pictographs.
DANGER!
This symbol warns against possible life-threatening injury.
WARNING!
This symbol warns against possible serious injury.
CAUTION!
This symbol warns against possible injury.
NOTICE!
This symbol warns against possible damage to property.
Notes give you additional helpful tips.
About these instructions for use
Advantix shower channel, base unit 4 from 32

1.3 About this translated version
This instruction for use contains important information about the choice
of product or system, assembly and commissioning as well as intended
use and, if required, maintenance measures. The information about the
products, their properties and application technology are based on the
current standards in Europe (e. g. EN) and/or in Germany
(e. g. DIN/DVGW).
Some passages in the text may refer to technical codes in Europe/
Germany. These should serve as recommendations in the absence of
corresponding national regulations. The relevant national laws, stand‐
ards, regulations, directives and other technical provisions take priority
over the German/European directives specified in this manual: The
information herein is not binding for other countries and regions; as said
above, they should be understood as a recommendation.
About these instructions for use
Advantix shower channel, base unit 5 from 32

2 Product information
2.1 Standards and regulations
The following standards and regulations apply to Germany / Europe.
National regulations can be found on the relevant web site of your
country at viega.com/standards.
Regulations from section: Sealing
Scope / Notice Regulations applicable in Ger‐
many
Stress class of the underground,
as well as suitable bonded sealing
ZDB-Merkblatt 8/2012
Stress class of the underground,
as well as suitable bonded sealing
Leitfaden zur Abdichtung im Ver‐
bund (AIV)
Approved bonded sealings with
proof of practicability in keeping
with building law for stress
classes A and AO
ETAG 022 T1
Approved bonded sealings with
proof of practicability in keeping
with building law for stress
classes A, B and C
DIBt-Bauregelliste A, Teil 2 des
DIBt und Prüfgrundsätze für
Abdichtungen im Verbund
(PG AIV-F)
Permitted bonded sealings EN 14891
Regulations from section: Media
Scope / Notice Regulations applicable in Ger‐
many
Typical domestic wastewater DIN 1986-3
Regulations from section: Sound protection
Scope / Notice Regulations applicable in Ger‐
many
Fulfilled noise protection require‐
ments
DIN 4109
Fulfilled noise protection require‐
ments
VDI 4100
Product information
Advantix shower channel, base unit 6 from 32

Regulations from section: Important notes
Scope / Notice Regulations applicable in Ger‐
many
Dimensions of slots and recesses EN 1996
2.2 Intended use
2.2.1 Areas of use
The shower channel is used in the bathroom as a drain for a floor-level
shower. It is designed for small to medium volumes of water, which
occur in e. g. residential building.
Technical information, see Ä Chapter 2.3.2 „Technical data“ on page 9.
2.2.2 Media
The shower channel is intended for draining of household-type waste‐
water in constant operation, see Ä „Regulations from section: Media“
on page 6.
nThe short-term temperature of the wastewater may reach up to
95° C. The temperature must be considerably lower in constant
operation.
nThe pH value must be higher than 4 but lower than 10.
It is not permitted to introduce wastewater which would damage the
product material.
2.2.3 Drainage capacity

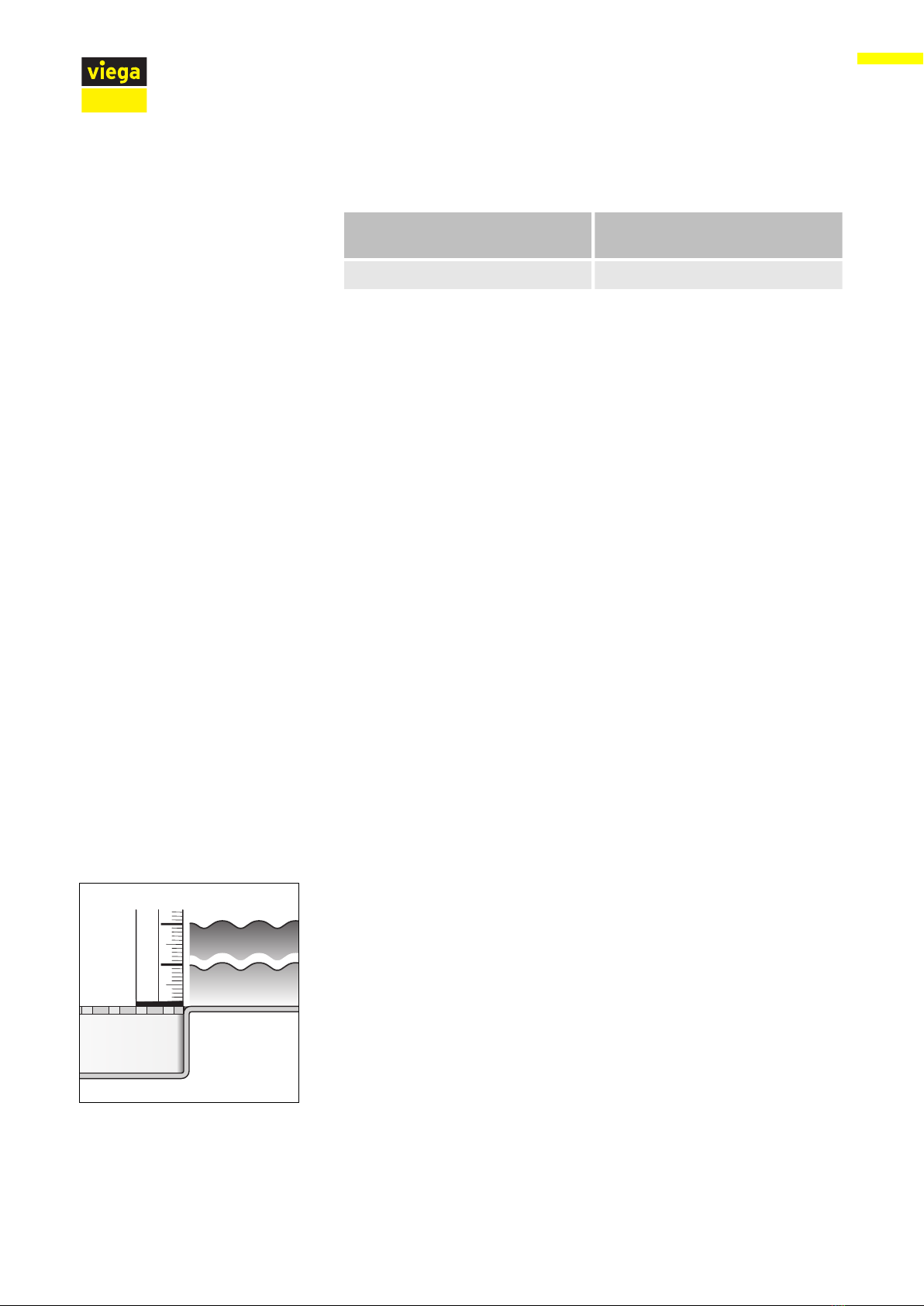

The drainage capacity is dependent on the chosen installation height.
The installation height is the distance from the drain to the flange.
Drainage capacity at an accumulation height of 10 mm above the grate:
0.65–0.85 l/s
Drainage capacity at an accumulation height of 20 mm above the grate:
0.8–1.0 l/s
10
20
Product information
Advantix shower channel, base unit 7 from 32

2.3 Product description
2.3.1 Overview
1
2
4
6
7
8
9
5
10
12
11
13
14
3

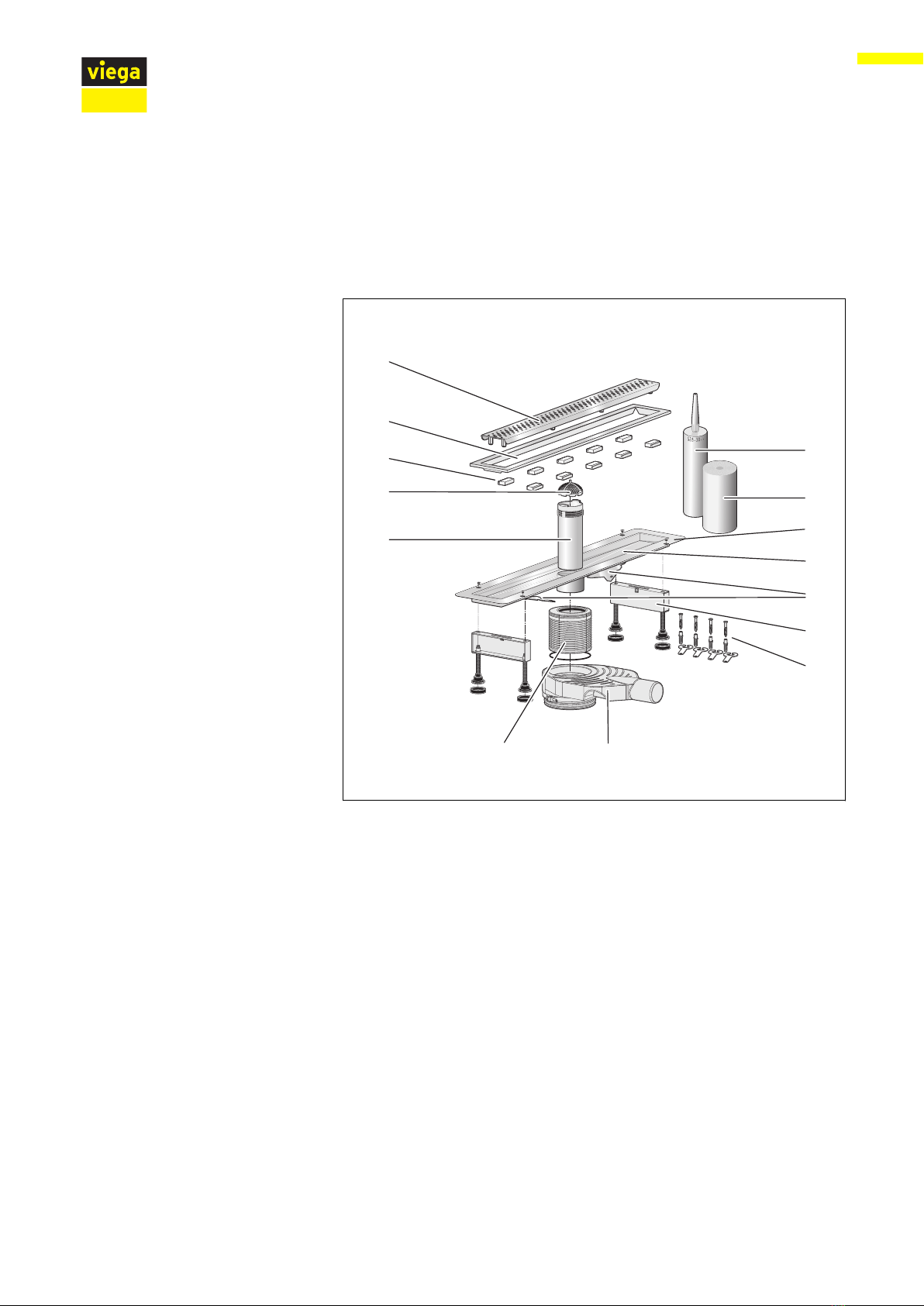

Fig. 1: Components and scope of delivery
1 - mounting adhesive
2 - sealing tape
3 - drain flange
4 - shower channel
5 - mortar anchor with connection for potential equalisation
6 - feet, height-adjustable
7 - fixing material for the feet
8 - odour trap, adjustable in two stages
9 - height adjustment piece, can be cut to length
10 - immersion pipe, removable
11 - sieve
12 - spacer
13 - height- and lateral adjustable grate frame
14 - grate*, height-adjustable
* Not included in scope of delivery
Product information
Advantix shower channel, base unit 8 from 32

2.3.2 Technical data
Nominal width [DN] 50
Material Stainless steel 1.4301
Drainage capacity Ä Chapter 2.2.3 „Drainage capacity“
on page 7
Dimensions and installa‐
tion height
Ä Chapter 3.1.2 „Installation dimen‐
sions“ on page 12
Water seal level 90–99 mm installation height: 35 mm
100–109 mm installation height: 40 mm
110–190 mm installation height: 50 mm
Load class K = 300 kg
2.3.3 Sound protection
The measured sound level during water drainage is 19 dB(A). For infor‐
mation on sound protection requirements met, see Ä „Regulations from
section: Sound protection“ on page 6.
2.4 Information for use
2.4.1 Sealing
To protect against moisture penetration, apply sealing foils, which are to
be processed in liquid state, directly below the tiles on screed and
walls. The determination of the stress class and the underground as well
as the selection of the suitable bonded sealing must be carried out in
compliance with the valid standards and regulations, see: Ä „Regula‐
tions from section: Sealing“ on page 6.

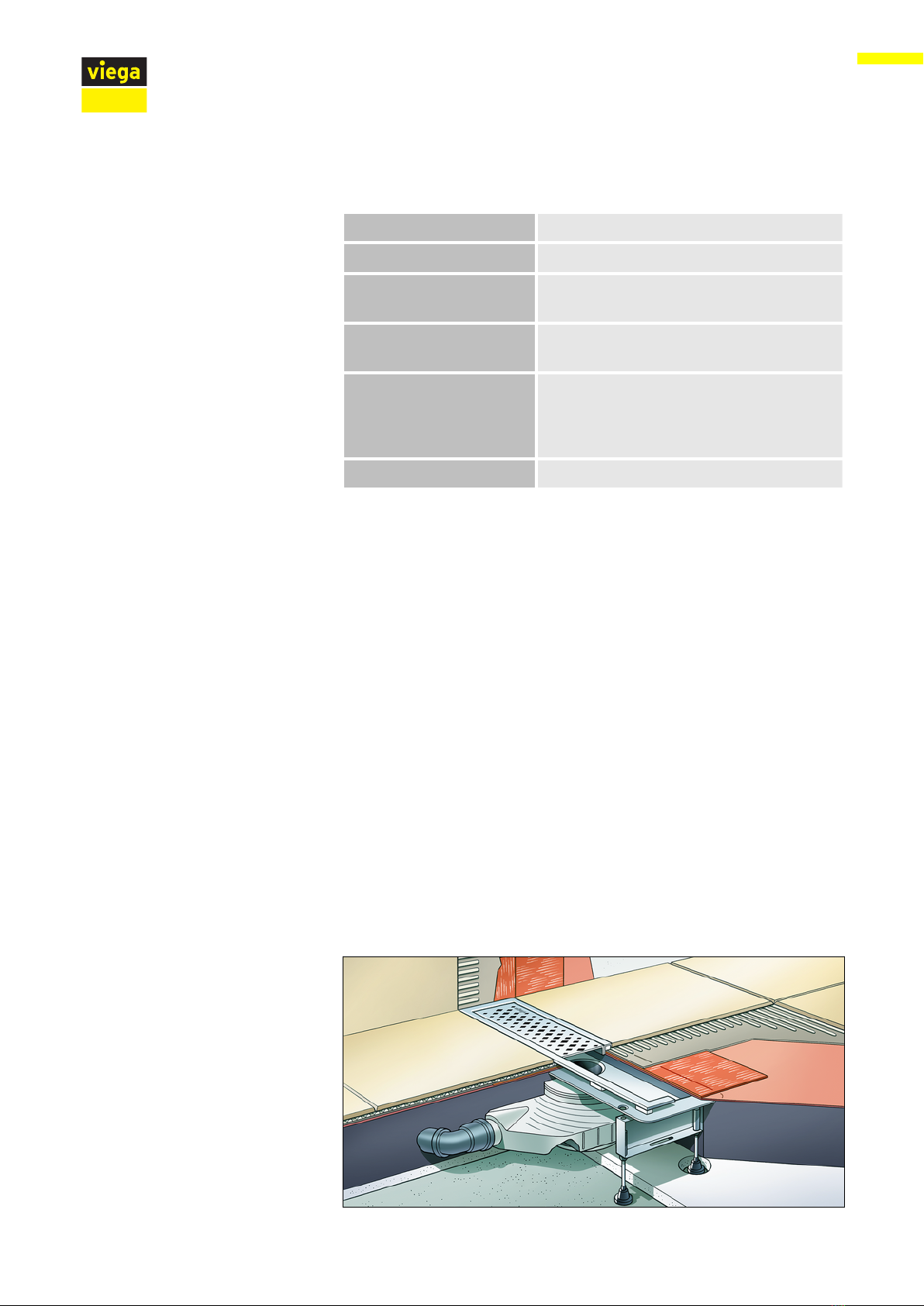

Fig. 2: Diagram of a bonded seal
Bonded sealing
Product information
Advantix shower channel, base unit 9 from 32

Careful planning is required for professional sealing. In addition,
depending on the individual dampness wear class and the type of foun‐
dation, a suitable BS system with a building regulations certificate of
suitability must be chosen.
Furthermore, the following factors should be taken into account:
nDrain or shower channel must be equipped with a special flange,
which has an adhesive surface and a width of at least 30 mm.
nFor bridging the material change from drain to screed, either a suit‐
able sealing collar or sealing tape designed for overlapping with the
BS over a width of at least 50 mm must be used.
nThe screed must be laid at a minimum incline of 1–2 %.
nThe installation must be carried out properly in acc. with the
mounting instructions and the manufacturer's information.
1
9 8 7 6
2 3 4 5
Fig. 3: Construction diagram of the bonded seal - min. screed incline 1–2 %
1 - Grate
2 - Top piece with adhesive flange
3 - Tile
4 - Tile cement
5 - Bonded sealing
6 - Screed
7 - Sealing collar
8 - Mat
9 - Adhesive flange
In connection with suitable drains, only approved bonded sealings with
proof of practicability in keeping with building law may be used. See
Ä „Regulations from section: Sealing“ on page 6.
Information regarding the procedure can be found in the instructions for
use of the corresponding product.
Important note
Permitted bonded seals
Product information
Advantix shower channel, base unit 10 from 32

2.4.2 Fire protection
Advantix shower channels and drains can both be fitted to be fire proof.
The R120 pipe lead-in can be used for this purpose in the floor con‐
struction. In this way, a fire resistance time of up to 120 minutes can be
achieved.
Fig. 4: Example: fire protection pipe lead-in
Mounting instruction of the R120 pipe lead-in see model 4923.5,
Art.-No. 491 673.
2.5 Required accessories
The grate is not included in the scope of delivery and can be ordered
separately (see catalogue).
Product information
Advantix shower channel, base unit 11 from 32

3 Handling
3.1 Assembly information
3.1.1 Important note
Before assembly:
nCheck if the drainage capacity of the model chosen is sufficient for
the arising water volume Ä Chapter 2.2.3 „Drainage capacity“
on page 7.
nAn adequate level of floor covering stability must be guaranteed
Ä Chapter 2.3.2 „Technical data“ on page 9. This can be achieved
either through an adequate covering of screed or another alternative
solution. Relevant measures must be considered before mounting.
nThe dimensions of slots and recesses must be in compliance with
the regulations from section Ä „Regulations from section: Important
notes“ on page 7.
During assembly:
nObserve installation dimensions.

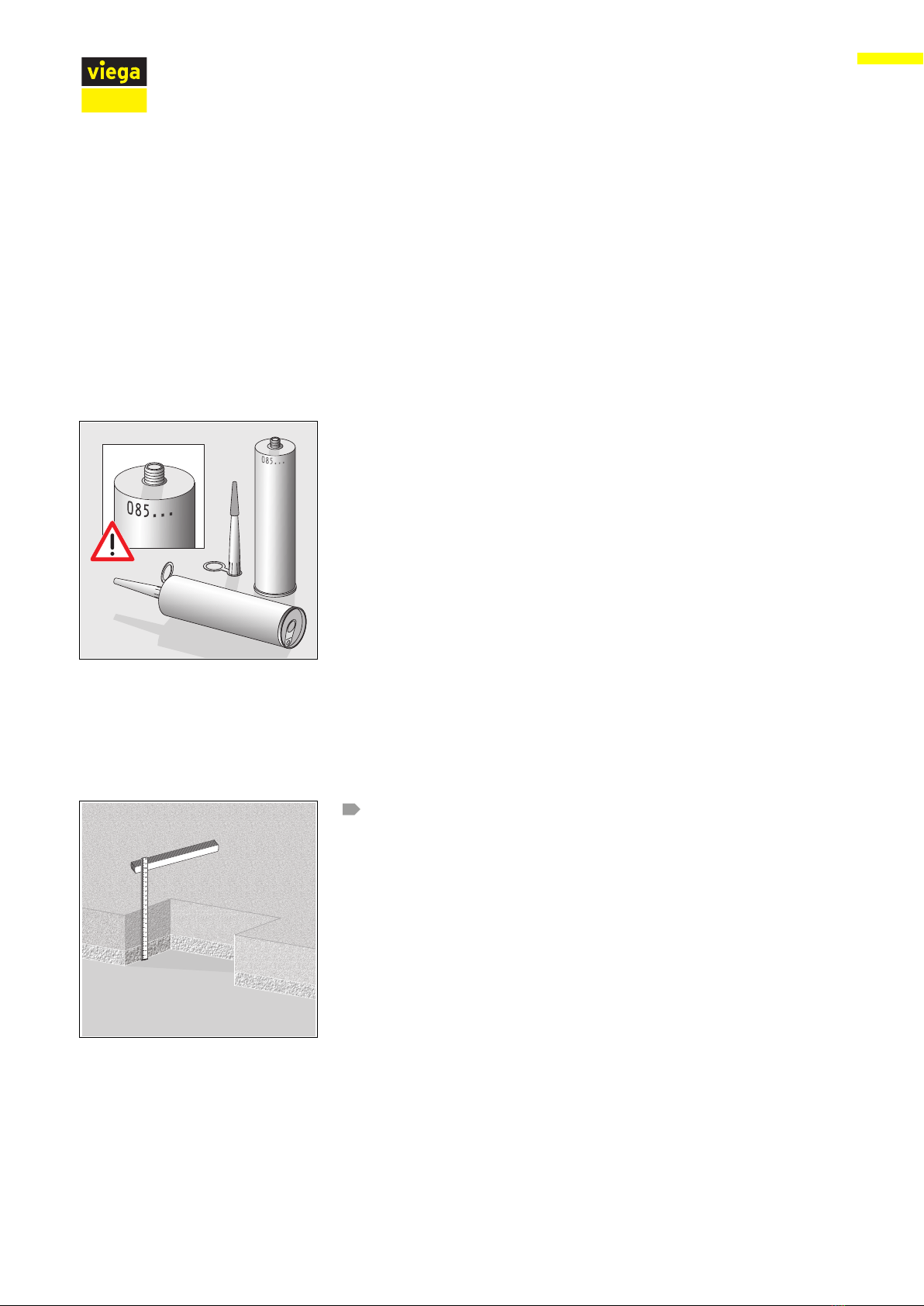

nDo not use mounting adhesive older than 18 months.
nPosition the shower channel in such a way that the grate is remov‐
able.
After assembly:
nThe shower channel must be fully lined with mortar.
nThe sealing accessories should be given to the person responsible
for the bonded sealing (e. g. tiler).
nCoordinate all relevant installation details, especially regarding the
bonded sealing, with those responsible for the subsequent work.
3.1.2 Installation dimensions
When fitting a shower channel in a niche, to be able to remove the grate
and to avoid a strip of tiles next to the channel, the correct size of niche
is of importance.
nDimension A = Channel length
nDimension B = Minimum width of the niche from plaster inside edge
to plaster inside edge
nDimension C = Minimum width of the niche from tile inside edge to
tile inside edge
Dimension "B" is important so that the flange does not need to be mor‐
tised and the sealing on the flange and wall can be completed properly.
Dimension "C" is important so that the grate remains removable.
Handling
Advantix shower channel, base unit 12 from 32

Fig. 5: Niche dimensions
Art. no. A B C Standard dimen‐
sion
of shower door
571 160
619 541
750 795 720 750
571 177
619 756
800 845 770 800
571 184
619 763
900 945 870 900
571 191
619 770
1000 1045 970 1000
571 207
619 787
1200 1245 1170 1200
Handling
Advantix shower channel, base unit 13 from 32

3.1.3 Tools and materials
nSpanner size 8 for mounting grate
nDrill, 6 mm
nTool for the removal of the grate (e. g. model 4965.90,
art. no. 689 704)
Mounting adhesive can be used for a maximum of 18 months.
The filling date is found on the top edge of the cartridge. The first two
numbers represent the month, the following number the year.
Example
085...
Filling date = August (08) 2015 (5)
3.2 Assembly
3.2.1 Determine height
Determine screed height.
There are three different installation heights:
n110–190 mm Ä „Installation height 110–190 mm“ on page 15
n100–109 mm
Ä „Installation height 100–109 mm“ on page 16
n90–99 mm Ä „Installation height 90–99 mm“ on page 17
In its delivery condition, the height of the base unit is 190 mm.
Special tools
Mounting adhesive
Fig. 6: Filling date of the mounting adhesive
Handling
Advantix shower channel, base unit 14 from 32

Shorten height adjustment piece accordingly.
The water seal level remains 50 mm.
Further: Ä Chapter 3.2.2 „Mount base unit“ on page 19.
Installation height 110–190 mm
Handling
Advantix shower channel, base unit 15 from 32

Loosen fastening ring with screwdriver.
Push the floor piece in by one ring (1 x 10 mm).
The fine tuning within these dimensions takes place using the height
adjustment piece.
The water seal level reduces to 40 mm.
Fit the mounting ring and tighten to a maximum 2.5 Nm ± 0.2 Nm
using a screwdriver.
Alternatively, the screw can be tightened until the markings on the
mounting ring match up.
Further: Ä Chapter 3.2.2 „Mount base unit“ on page 19.
Installation height 100–109 mm
1x
10 mm
Handling
Advantix shower channel, base unit 16 from 32

Loosen fastening ring with screwdriver.
Push in the floor piece around 2 rings (2 x 10 mm).
The fine tuning within these dimensions takes place using the height
adjustment piece.
The water seal level reduces to 35 mm.
Fit the mounting ring and tighten to a maximum 2.5 Nm ± 0.2 Nm
using a screwdriver.
Alternatively, the screw can be tightened until the markings on the
mounting ring match up.
Further: Ä Chapter 3.2.2 „Mount base unit“ on page 19
Installation height 90–99 mm
2x
10 mm
Handling
Advantix shower channel, base unit 17 from 32

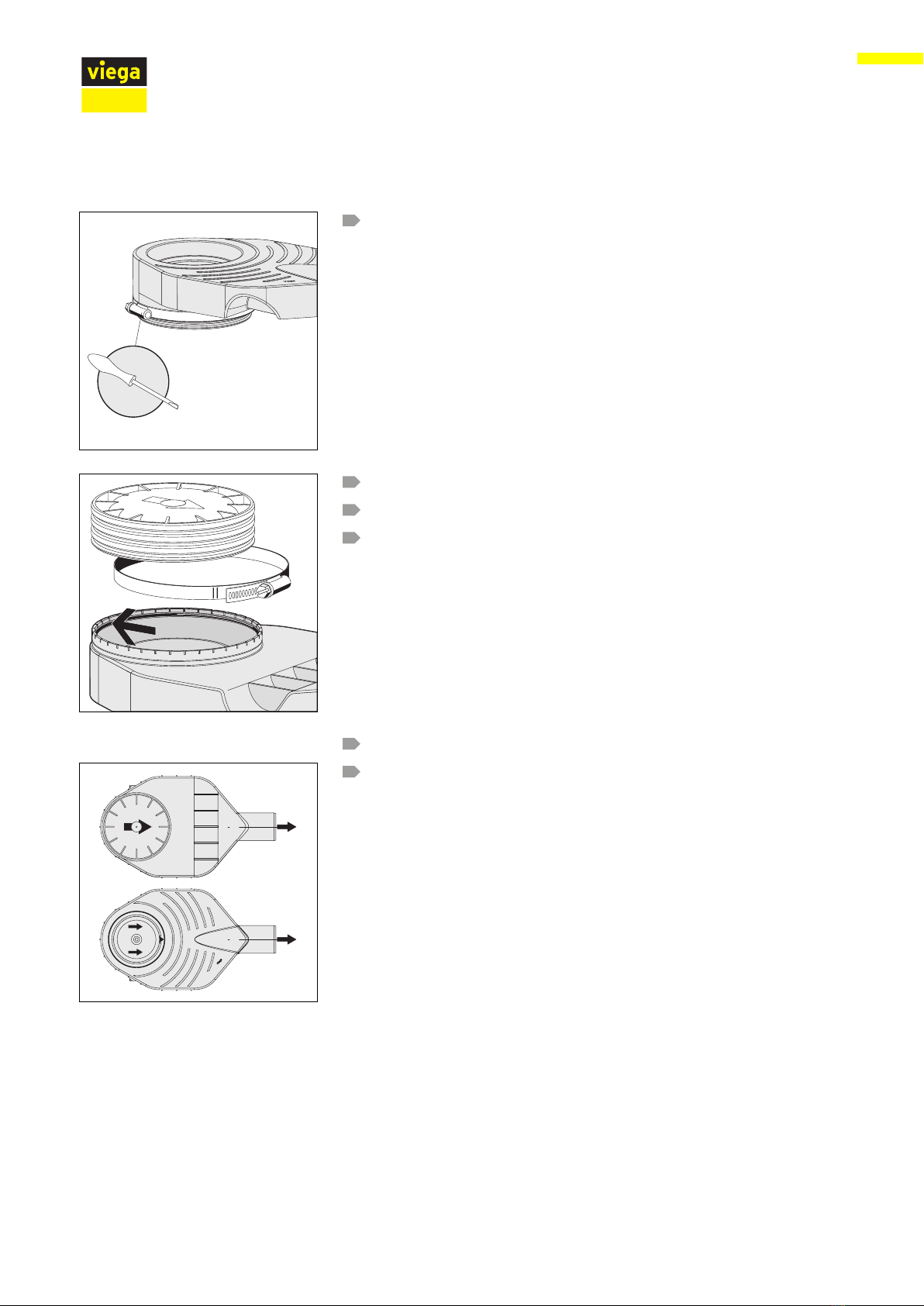

Loosen fastening ring with screwdriver.
Remove the floor piece or push it into the drain.
Remove the floor piece.
Lay the greased O-Ring into the casing (see arrow).
Push the floor piece straight into the required position in the drain.
The arrow on the base of the odour trap must be pointed towards
the drain.
Correct height adjustment
Handling
Advantix shower channel, base unit 18 from 32

Fit the mounting ring and tighten to a maximum 2.5 Nm ± 0.2 Nm
using a screwdriver.
Alternatively, the screw can be tightened until the markings on the
mounting ring match up.
3.2.2 Mount base unit
Insert height adjustment piece with O-ring.
Screw the height adjustment into the foot.
Handling
Advantix shower channel, base unit 19 from 32

Insert rubber caps.
Push feet into the retaining brackets.
3.2.3 Align shower channel
Bend open the mortar anchor (1).
Press the drain support into the height adjustment piece as far as it
will go (2).
Correct drain position, if necessary. Turn the height adjustment
piece to do so (3).
If required, earth the shower channel in accordance with the local
national electrical regulations.
1
2
3
Handling
Advantix shower channel, base unit 20 from 32
