Viking K-1900-6-IP User manual

PRODUCT MANUAL
Designed, Manufactured and Supported in the USA
SECURITY & COMMUNICATION SOLUTIONS
VIKING
Applications
Specifications
Information: 715-386-8861
www.VikingElectronics.com
• Vandal Resistant Features: 12 gauge 316 stainless steel front panel with
permanent laser etched graphics. Heavy duty metal hook switch, armored
cable and T-10 Security Torx drive mounting screws.
• Weather Resistant Features: Marine grade 316 stainless steel faceplate
and Torx Security screws. Faceplate, ear piece, and mouth piece gaskets (on
EWP models). Weather resistant powder paint on optional VE-5X10 surface
mount box or 316 ss on VE-5X10-SS.
• Ring with adjustable volume & cadence
• Hearing aid compatible amplified handset with sealed push button volume
control
• SPDT 2 Amp relay contacts for door/gate or camera control
• Optional RC-4A for Secure Remote Relay Control, see DOD 582
• SIP compliant (see page 2 for list of compatible IP-PBX phone systems)
• PoE powered (class 1, <4 watts)
• Network downloadable firmware
• Standard K-1900-6-IP and K-1900-7-IP: 36” armored handset cable
• K-1900-6-IP-EWP and K-1900-7-IP-EWP: 54” armored handset cable
• Cycles to up to 4 rollover phone numbers on busy or no-answer
• Optional Enhanced Weather Protection (EWP), EWP products are designed
to meet IP66 Ingress Protection Rating, see DOD 859
• Remotely programmable
• Extended temperature range (-40°F to 140°F)
• Selectable auto-answer feature for monitoring
• Optional VE-5x10 Surface Mount Box or 316 Stainless Steel VE-5X10-SS,
see DOD 424 (compatible with model K-1900-7-IP only)
• Optional VE-LIGHT kit to illuminate the front panel at night, see DOD 428
(compatible with model K-1900-7-IP only)
• Diagnostics (for testing relay)
Power: PoE class 1 (<4 watts)
Dimensions for K-1900-6-IP Standard Model
Phone only: 4.6” x 4.6” x 4.97” (127mm x 117mm x 126mm)
Including rough-in box: 4.6” x 4.6” x 5.34” (127mm x 117mm x 136mm)
Dimensions for K-1900-7-IP Standard Model
Phone only: 5.0” x 10.0” x 4.97” (127mm x 254mm x 126mm)
Including rough-in box: 5.0” x 10.0” x 5.34” (127mm x 254mm x 136mm)
Dimensions for K-1900-6-IP EWP Model
Phone only: 4.6” x 4.6” x 5.1” (127mm x 117mm x 130mm)
Including rough-in box: 4.6” x 4.6” x 5.4” (127mm x 117mm x 137mm)
Dimensions for K-1900-7-IP EWP Model
Phone only: 5.0” x 10.0” x 5.1” (127mm x 254mm x 130mm)
Including rough-in box: 5.0” x 10.0” x 5.4” (127mm x 254mm x 137mm)
Shipping Weight for K-1900-6-IP: 2.0 lbs (0.9 kg)
Shipping Weight for K-1900-7-IP: 3.7 lbs (1.7 kg)
Operating Temperature: -40°F to 140°F (-40° C to 60° C)
Humidity - Standard Products: 5% to 95% non-condensing
Humidity - EWP Products: Up to 100%
Handset Cable Length on Standard Model: 34” to 37”
Handset Cable Length on EWP Model: 53” to 58”
Audio Codecs: G711u, G711a, G722
Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto
cross over
Connections: (1) RJ45 10/100 Base-T, (3) gel-filled butt connectors
!
The K-1900-6-IP and K-1900-7-IP VoIP Panel Phones will auto-dial a 1-20 digit programmable phone
number each time the handset is lifted. If the call is not answered, the phone will dial up to 4 additional
phone numbers. The K-1900-6-IP and K-1900-7-IP phones are designed to provide quick and reliable
communication for SIP VoIP phone systems with PoE. The unit can be programmed from any PC on
the same LAN or remotely using a Static IP Address.
When a call initiated by the K-1900-6-IP or K-1900-7-IP phone is answered by an apartment or business
tenant, a built-in relay may be activated to control an electric gate or door strike. The relay can also be
programmed to activate whenever the phone is off hook, ideal for controlling cameras, etc.
The K-1900-6-IP-EWP and K-1900-7-IP-EWP share all of the features of the standard K-1900-6-IP and
K-1900-7-IP in addition to Enhanced Weather Protection (EWP) for outdoor installations where the unit
is exposed to precipitation or condensation. EWP products feature foam rubber gaskets, sealed
connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards. For
more information on EWP, see DOD 859.
• Commercial or Residential
Door / Gate Entrance
• Kiosk Phone
• Apartment Entry Phone
• Door Entry Phone
• Courtesy Assistance Phone
• Customer Service Phone
• Automated Teller (ATM) Phone
• Security or Emergency Phone
• Hot-Line Phone
• Prison Phone
K-1900-6-IP / EWP
K-1900-7-IP / EWP
VoIP Panel Phones with
Auto Dialer and Relay Control
August 20, 2018
Vandal Resistant VoIP Panel Phones
with Auto Dialer and Relay Control
Installation requires the assistance of a Network Administrator / IT Technician
K-1900-6-IP
“Brushed 316
Stainless Steel”
(similar to brushed nickel)
K-1900-7-IP
“Brushed 316
Stainless Steel”
(similar to brushed nickel)
Features

2
Viking VoIP SIP System Compatibility List
NOTE: Exclusion from this list means only that compatibility has not been verified, it does not mean incompatibility.
For detailed configuration instructions for certain vendors below, see Configuring Viking VoIP Phone and SIP
Servers,DOD 944.
* Note: Relay operation commands are Not compatible with Panasonic Phone Systems (Panasonic does not transmit DTMF between station ports).
On-Premise
More information
available, see
DOD 944
3COM VCX
3CX
Allwork 4
Aastra
Asterisk
Atcom
Avaya Aura Platform V6.2.9 or earlier
Avaya IP Office Platform
BlueBox
Brekeke
Cisco Unified Communications
Manager (CUCM)
Cisco Unified Communications
Manager Express (CUCME)
Elastix
epygi QX200 4
Freeswitch
Grandstream 4
Interactive Intelligence
iPECS (Ericsson-LG) 4
Iwatsu ECS 4
Kamailio
Mitel 3000
NEC
OfficeSIP
OpenSIPS
Panasonic* (with SIP Extension Card)
PolyCom (SIP paging only)
Samsung Communications Manager
(SCM)
ShoreTel 4
Siemens Communications Server (SCS)
SIP Express Router (SER)
Snom PBX
Sonus
Switchvox
Teksip
Toshiba
Vertical Wave 4
Yealink T Series SIP Phones
Cloud Based Service Provider
More information
available, see
DOD 944
Callcentric 4
iptel.org
MetaSwitch
sip.antisip.com
Switchvox
unify
Vertical Wave 4
Voice Carrier
VoIP.MS 4

3
Definitions
Client: A computer or device that makes use of a server. As an example, the client might request a particular file from the server.
DHCP: Dynamic Host Configuration Protocol. In this procedure the network server or router takes note of a client’s MAC address and
assigns an IP address to allow the client to communicate with other devices on the network.
DNS Server: A DNS (Domain Name System) server translates domain names (ie: www.vikingelectronics.com) into an IP address.
Ethernet: Ethernet is the most commonly used LAN technology. An Ethernet Local Area Network typically uses twisted pair wires to
achieve transmission speeds up to 1Gbps.
Host: A computer or device connected to a network.
Host Name: A host name is a label assigned to a device connected to a computer network that is used to identify the device in various
forms of network communication.
Hosts File: A file stored in a computer that lists host names and their corresponding IP addresses with the purpose of mapping addresses
to hosts or vice versa.
Internet: A worldwide system of computer networks running on IP protocol which can be accessed by individual computers or networks.
IP: Internet Protocol is the set of communications conventions that govern the way computers communicate on networks and on the
Internet.
IP Address: This is the address that uniquely identifies a host on a network.
LAN: Local Area Network. A LAN is a network connecting computers and other devices within an office or building.
Lease: The amount of time a DHCP server reserves an address it has assigned. If the address isn’t used by the host for a period of
time, the lease can expire and the address can be assigned to another host.
MAC Address: MAC stands for Media Access Control. A MAC address, also called a hardware address or physical address, is a unique
address assigned to a device at the factory. It resides in the device’s memory and is used by routers to send network traffic to the correct
IP address. You can find the MAC address of your K-1900-6-IP or K-1900-7-IP phone printed on a white label on the top surface of the
PoE LAN port.
Router: A device that forwards data from one network to another. In order to send information to the right location, routers look at IP
Address, MAC Address and Subnet Mask.
RTP: Real-Time Transport Protocol is an Internet protocol standard that specifies a way for programs to manage the real-time transmission
of multimedia data over either unicast or multicast network services.
Server: A computer or device that fulfills requests from a client. This could involve the server sending a particular file requested by the
client.
Session Initiation Protocol (SIP): Is a signaling communications protocol, widely used for controlling multimedia communication sessions
such as voice and video calls over Internet Protocol (IP) networks. The protocol defines the messages that are sent between endpoints,
which govern establishment, termination and other essential elements of a call.
Static IP Address: A static IP Address has been assigned manually and is permanent until it is manually removed. It is not subject to the
Lease limitations of a Dynamic IP Address assigned by the DHCP Server. The default static IP Address is: 192.168.154.1
Subnet: A portion of a network that shares a common address component. On TCP/IP networks, subnets are defined as all devices
whose IP addresses have the same prefix. For example, all devices with IP addresses that start with 100.100.100. would be part of the
same subnet. Dividing a network into subnets is useful for both security and performance reasons. IP networks are divided using a subnet
mask.
TCP/IP: Transmission Control Protocol/Internet Protocol is the suite of communications protocols used to connect hosts on the Internet.
TCP/IP uses several protocols, the two main ones being TCP and IP. TCP/IP is built into the UNIX operating system and is used by the
Internet, making it the de facto standard for transmitting data over networks.
TISP: Telephone Internet Service Provider
WAN: Wide Area Network. A WAN is a network comprising a large geographical area like a state or country. The largest WAN is the
Internet.
Wireless Access Point (AP): A device that allows wireless devices to connect to a wired network using Wi-Fi, or related standards. The
AP usually connects to a router (via a wired network) as a standalone device, but it can also be an integral component of the router itself.
Wireless Repeater (Wireless Range Extender): takes an existing signal from a wireless router or access point and rebroadcasts it to
create a second network. When two or more hosts have to be connected with one another over the IEEE 802.11 protocol and the distance
is too long for a direct connection to be established, a wireless repeater is used to bridge the gap.

4
Features Overview
MAC:
18E80FXXXXXX
asdesaxtff
N.C. (Gray)
N.O. (Yellow)
COM. (Blue)
Relay 1
Output Contacts
(2A@30VDC/ 250VAC max)
* 3 Gel-Filled Butt
Connectors (included)
Yellow
Yellow
Black
Black
MAC Address Label: The MAC address is a
unique 12 digit number used by routers to send
network traffic to the correct IP address.
Tip: Record the MAC address that is printed on the
network jack. This number will be used later in
programming.
PoE LAN Port 10/100, PoE Class 1 (<4 Watts):
Connect to your LAN via RJ45 plug and CAT5 or
greater twisted pair wire.
Yellow Network Status LED: Lights steady to
indicate power and data link. Blinks to indicate
network activity.
Green Unit Status LED
Rear (PCB) View of the
K-1900-6-IP or K-1900-7-IP
Red
Red
(Power typically not
required for gate controllers)
Doorstrike /
Magnetic Lock
120V AC
Connect to Optional
Doorstrike, Mag Lock,
Gate Controller, etc.
(not
connected)
Black
Red
SIP Alarm LED
To Handset
To Hookswitch
*Note: The gel-filled (water-tight) butt connectors are designed for insulation displacement on 19-26 gauge wire with a maximum insulation of 0.082 inches.
Front View of the
K-1900-7-IP VoIP Panel Phone
Condensation
Drain Hole
Mounting Screws: (8) 6-32 x 3/4” Marine
grade 316 stainless steel, flat head, T-10
Torx security screws and drive bit (included).
Laser Etched Graphics:
For long lasting easy to
read graphics.
Faceplate Material:
12 gauge 316
stainless steel with a
#4 brushed finish.
Metal Heavy
Duty Vandal
Resistant
Hookswitch
316 Stainless Steel
Armored Cable:
36” on K-1900-7-IP
54” on K-1900-7-IP-EWP
VIKING
Handset:
Hearing aid
compatible
amplified
handset with
sealed push
button volume
control
Front View of the
K-1900-6-IP VoIP Panel Phone
Condensation
Drain Hole
Mounting Screws:
(4) 6-32 x 3/4” Marine
grade 316 stainless
steel, flat head, T-10
Torx security screws
and drive bit (included).
Laser Etched
Graphics:
For long lasting
easy to read
graphics.
Faceplate Material:
12 gauge 316
stainless steel with
a #4 brushed finish.
Metal Heavy Duty
Vandal Resistant
Hookswitch
316 Stainless Steel
Armored Cable:
36” on K-1900-6-IP
54” on K-1900-6-IP-EWP
VIKING
Handset:
Hearing aid
compatible
amplified
handset with
sealed push
button volume
control

5

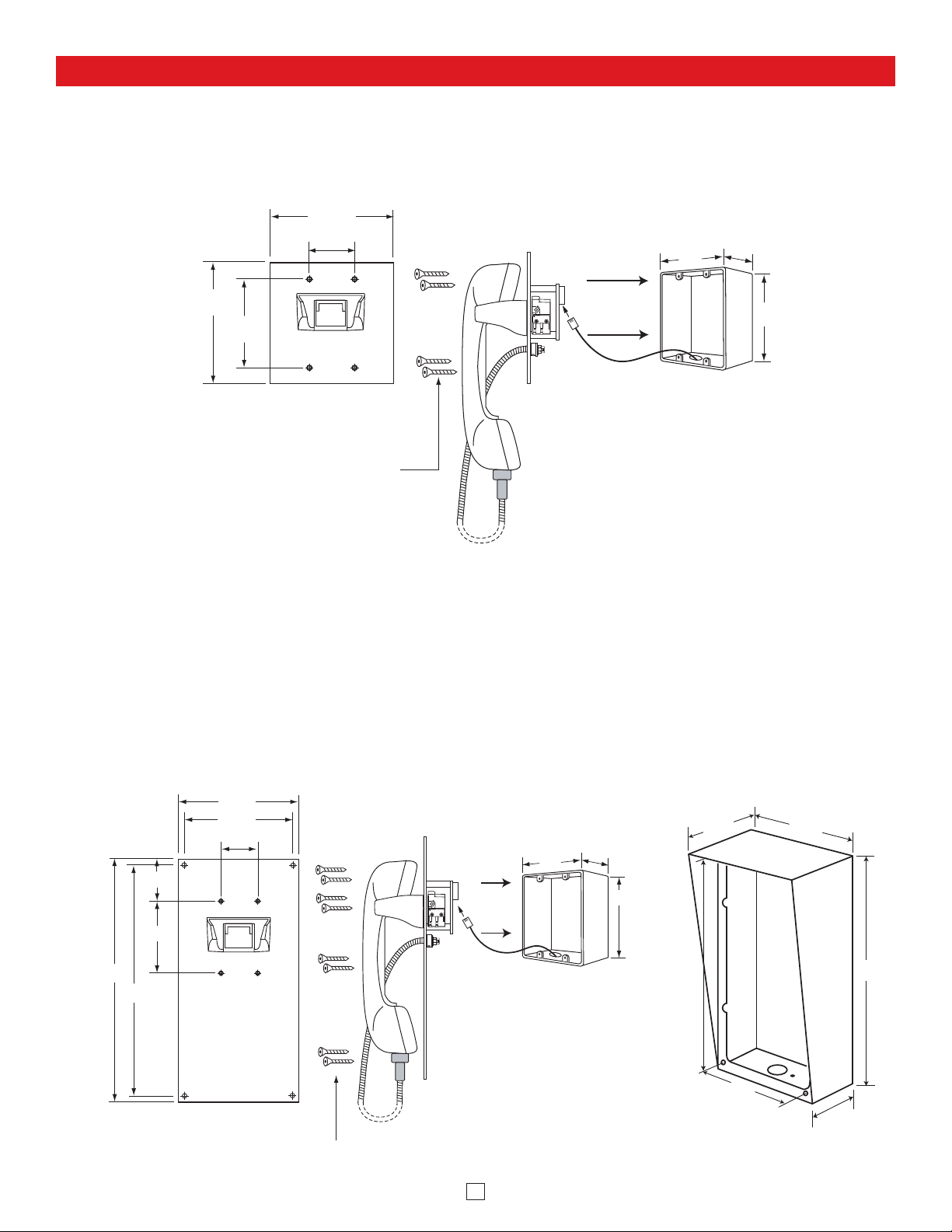

Installation and Mounting
Side View
of the K-1900-7-IP
(8) #6-32 x 3/4" Stainless Steel T-10
Torx Security Screws (included)
Optional VE-5x10 Surface
Mount Box (not included)
- OR -
10.0"9.5"
4.50"
5.00"
3.28"
1.55"
Front View
of the K-1900-7-IP
1.8"
2.75"
2.1"
3.5"
Double Gang Box
(not included)
2.69”
10.14”
5.22”
3.69”
4.50”
9.50”
2.75"
2.1"
3.5"
Double Gang Box
(not included)
Side View of
the K-1900-6-IP
(4) #6-32 x 3/4" Stainless Steel,
Flat Head T-10 Torx Security
Screws and Drive Bit (included)
4.5"
1.8"
4.56"
3.28"
Front View
of the K-1900-6-IP
To install the K-1900-6-IP panel phone, attach the panel to a standard double gang electrical box using the provided screws.
Tip: Record the MAC address that is printed on the network jack. This number will be used later in programming.
A. Installing the K-1900-6-IP
B. Installing the K-1900-7-IP
To install the K-1900-7-IP panel phone, attach the panel to a standard double gang electrical box using the provided
screws or use the optional VE-5x10 or VE-5X10-SS weather resistant surface mount box. Note: Four extra screws
and nuts are provided to fill the unused mounting holes. The optional VE-5x10 surface mount box (shown below) is
designed to be surface mounted to a wall, post, single gang box or a VE-GNP or VE-GNP-2 goose neck pedestal. The
K-1900-7-IP can also be mounted in an optional VE-9x20 Weatherproof Enclosure (DOD 413).
Note: When mounting a K-1900-7-IP-EWP in a VE-9x20, the length of the handset cable must be reduced. Use a
3/32” hex key or bit to loosen the set screw in the brass handset cable retainer. Pull approximately 18 inches of the
cable through the panel and retighten the set screw.
Tip: Record the MAC address that is printed on the network jack. This number will be used later in programming.

6
Using a Viking Model RC-4A for Secure Remote Relay Control
Switch
SIP VoIP PBX,
SIP Cloud based
Service Provider
or
PC with SIP
Server Software
Internet
PoE
Switch
LED 8
LED 7LED 6
LED 4
LED 3
LED 2
LED 1 LED 5
LED 9
123
on
4
1234
VIKING
ELECTRONICS
HUDSON, WI 54016
NETWORK ENABLED
RELAY CONTROLLER
MODEL RC-4A
©
VIKING
1
IN1 C IN2 IN3 C IN4
23456
POWER 12V DC
RELAY 1 RELAY 2 RELAY 3 RELAY 4
1234578910 11 12
STATUS
LED
6NETWORK
LOGIC LEVEL
PROGRAMMING
RESTORE DEFAULTS
SPARE
12V DC Adapter
(included)
Sensor
Examples:
Door Sensor
Gate Sensor
Door Sensor
Door Sensor
N.O.
COM.
Connect to Doorstrike,
Mag Lock, Gate Controller, etc.
2 Gel-Filled Butt
Connectors (included)
Doorstrike /
Magnetic Lock
120V AC
Door / Gate Examples:
Door near Entry Phone 1
N.O.
COM.
2 Gel-Filled Butt
Connectors (included)
(Power typically not
required for gate controllers)
Gate Controller
K-1900-7-IP
Entry Phone 1
Relay 2 Output Contacts (5A@30VDC / 250VAC max)
Connect to Gate Controller, etc.
Gate near Entry Phone 1
1
IN1 C IN2 IN3 C IN4
23456
Relay 1 Output Contacts (5A@30VDC / 250VAC max)
K-1900-6-IP
Entry Phone 2
K-1900-7-IP
Entry Phone 4
K-1900-6-IP
Entry Phone 3
N.O.
COM.
2 Gel-Filled Butt
Connectors (included)
Doorstrike /
Magnetic Lock
120V AC
Door near Entry Phone 2
N.O.
COM.
Relay 4 Output Contacts (5A@30VDC /
250VAC max) Connect to Doorstrike,
Mag Lock, Gate Controller, etc.
2 Gel-Filled Butt
Connectors (included)
Doorstrike /
Magnetic Lock
120V AC
Door near Entry Phone 3
Connect to Doorstrike,
Mag Lock, Gate Controller, etc.
Relay 3 Output Contacts (5A@30VDC / 250VAC max)
The front panel of the K-1900-6/7-IP is mounted using security Torx screws to help prevent intruders from removing the
panel and accessing the on board door strike/gate control relays. For applications requiring additional security, a Viking
model RC-4A remote relay controller can be used. The relay controller is mounted securely inside the building and connected
to the same LAN as the K-1900-6/7-IP. The on board door strike relay would not be used in this case as the K-1900-6/7-IP
will send an encrypted message to the RC-4A to activate its relays which control the door strikes/gates.
Up to 4 K-1900-6/7-IP’s can communicate with one RC-4A allowing you to securely control four entrances.
When using a RC-4A for remote relay control, the K-1900-6/7-IP’s relay should be set to “External” in the PC programming.
For more information, See DOD 582 @ VikingElectronics.com.

7
• IBM compatible personal computer with:
Windows 2000 (service pack 4 or higher)
Windows XP (service pack 2 or higher)
Windows Vista (SP2 or newer), 32 or 64 bit versions
and newer versions of Windows
PC Requirements
PC Programming
A DVD is included with each K-1900-6/7-IP VoIP Phone. The DVD contains the application “Viking IP Programming” used
to program the unit using a PC running Windows 2000, XP, Vista, Windows 7, Windows 8 or Windows 10 (see System
Requirements above). The PC must be connected to the same LAN as the K-1900-6/7-IP VoIP phone. Install the application
on your PC by placing the DVD into your PC’s drive. Click “I Accept” on the bottom of the first screen, then select “Viking IP
Programming” and click the “Install” button. Follow the directions on the screen. To start the Viking IP Programming
application, click on the Viking IP Programming icon on your desk top. The Main screen will appear, allowing the user to
program any K-1900-6/7-IP phone connected to that LAN.

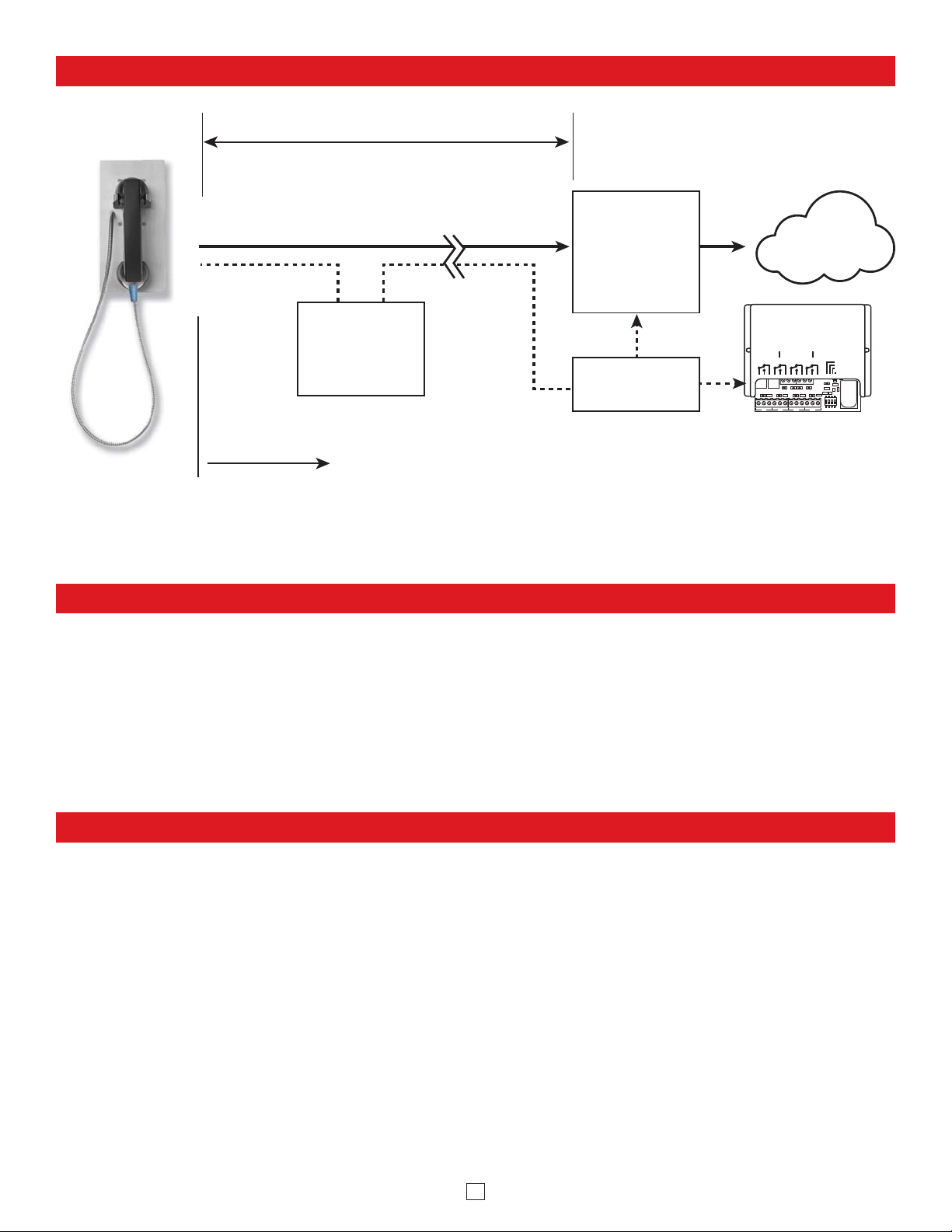

Typical Installation on SIP Based VoIP Phone System
SIP VoIP PBX
or
PC with
SIP Server
Software
100m (328 ft) maximum*
Viking supplies
Customer’s
Responsibility
Internet
10/100 Mbps
Maximum
Viking
K-1900-6/7-IP
VoIP Phone
* Note: A PoE extender can be used for an additional 100 meters per extender. For longer runs (up to 2 km / 1.2 miles)
a ethernet to ber media converter can be used.
Optional
PoE Injector
(If VoIP PBX does
not have PoE) Optional
Switch / Hub
(Extends range of
cable, keeps 1 Gbps
network speed for other
equipment on network)
LED 7LED 5 LED 8LED6
LED 3LED 2LED1
LED 9
LED 4
123
on
4
MAC:
18E80FXXXXXX
asdesaxtff
C NO NC
RL 1
C NO NC
RL 2
C NO NC
RL 3
C NO NC
RL 4 1 2 3 4 NETWORK
1234 NETWORK
VIKING
ELECTRONICS
HUDSON, WI 54016
NETWORK ENABLED
RELAY CONTROLLER
MODEL RC-4A
©
VIKING
1
IN1 C IN2 IN3 C IN4
23456
LOGIC LEVEL
PROGRAMMING
RESTORE DEFAULTS
DEBOUNCE
POWER12VDC
RELAY 1 RELAY 2 RELAY 3 RELAY 4
1 2 3 4 5 7 8 9 10 11 126
STATUS
LED
Optional Viking model
RC-4A Secure Remote
Relay Controller, see
page 8 (DOD# 582)
• Adobe Acrobat Reader 8 or higher
• K-1900-6/7-IP hardware
• Available LAN with PoE (class 1, <4 watts)
• Ethernet cable ( CAT5 min.)
• 1 MB minimum free hard drive space for installation
• 16MB of free physical RAM

8
A. Connect/Disconnect

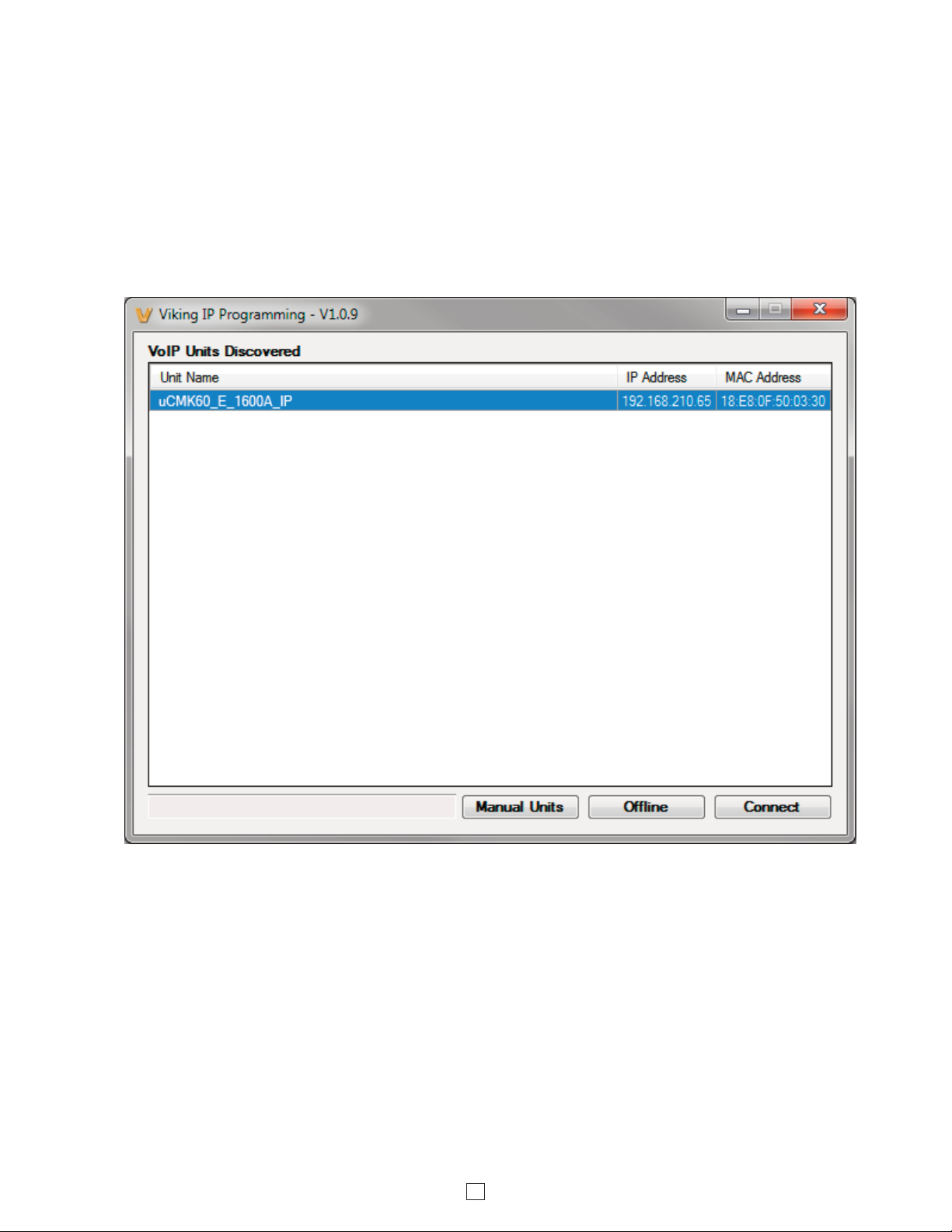

Open the “Viking IP Programming” software on the PC and the start screen shown below will appear. Any Viking IP
phones that are connected to the network will appear on the list. Simply select the K-1900-6/7-IP on the list and click
on the “Connect” button at the bottom or double click the selected phone. If the security code of the selected phone is
still set to default (845464), the PC software will not require entering a security code to connect to the phone. K-1900-
6/7-IP’s have a default name of “uCMK60_E_1600A_IP”, so if many phones are connected to the same network that
all have the default name, MAC addresses must be used to identify each phone.
When finished programming, click on the “Disconnect” button at the bottom. Closing the program will also automatically
disconnect the unit.
With the unit connected and powered (Green LED on and Yellow LED off or blinking) it will output 3 beeps every 30
seconds in the handset of the K-1900-6/7-IP to indicate a SIP registration failure, failure to receive an echo reply from
pinged gateway or Ethernet connection failure. You can manually disable the beeps by clicking the “Mute Current /Next
Alarm” button in the Viking VoIP programming software. The SIP Alarm LED on the PCB will flash once per second if
the unit is not registered. This allows you to continue troubleshooting the failue.
B. Manually Muting SIP/Network Failure Alarm Beeps (3 beeps repeated every 30 seconds)

9
C. Configuring the K-1900-6/7-IP Network Settings
Step 1. Open the “Viking IP Programming” software on a windows PC that is connected to the same LAN as the K-1900-6/7-IP phone to be
programmed.
Step 2. The window will show you each K-1900-6/7-IP phone that is connected to that LAN. Select the unit with the same MAC address
shown on the label located on the top of the Ethernet connector on the K-1900-6/7-IP phone.
Step 3. Click the “Connect” button. If a pop up window appears, enter the unit’s security code (factory set to 845464) then click “OK”.
Step 4. The program will then read and display the K-1900-6/7-IP phone’s IP and programming settings.
Step 5.

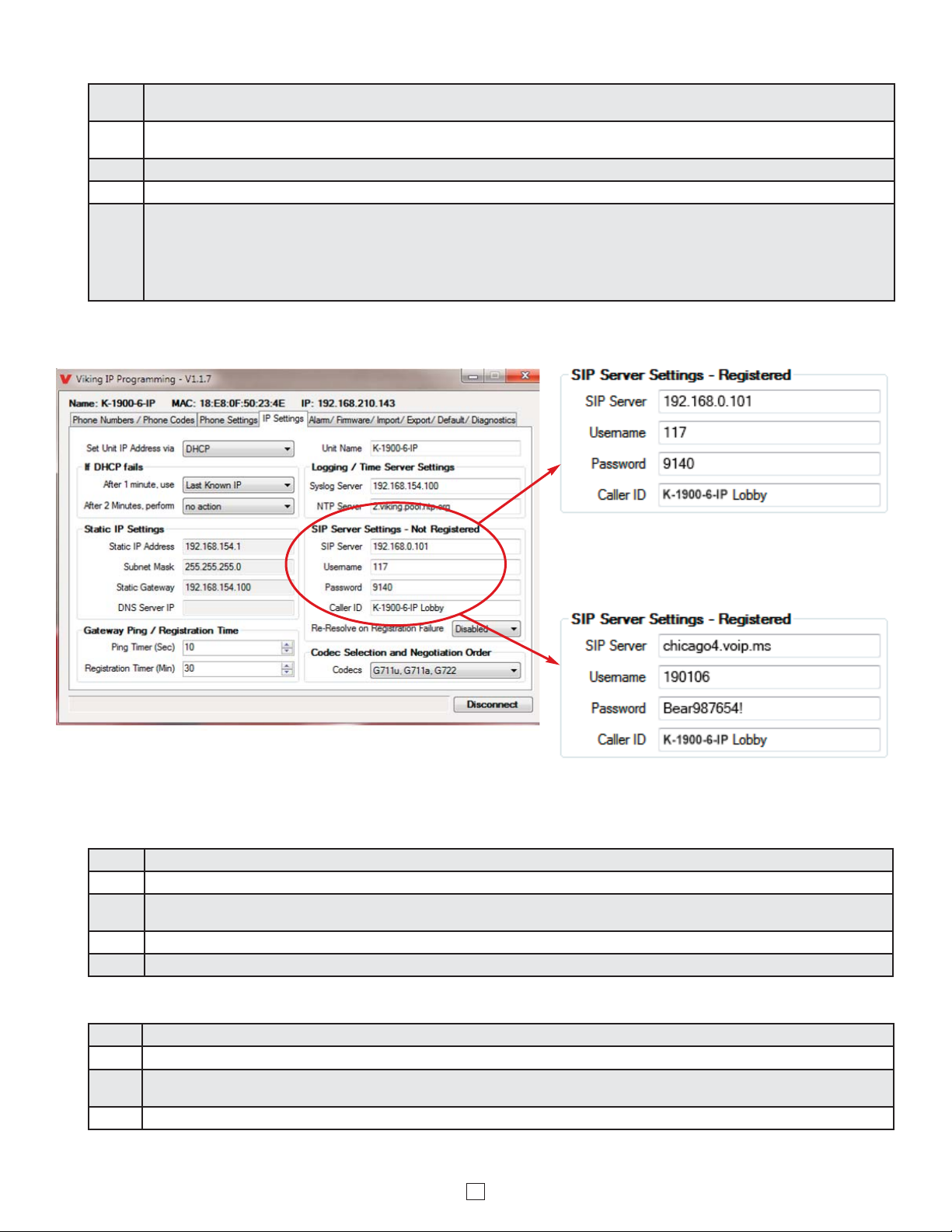

Click on the “IP Settings” tab and fill in the three required fields of SIP Server, Username and Password. The SIP provider or the phone
system programmer provide the information to put in these fields. The SIP Server field can contain an IP address or a fully qualified
domain name. Some examples are shown below. Our phones use port “5060” for traffic by default but another port can be specified by
adding a “:” (colon) and the desired port number at the end of the SIP server IP address (for example “192.168.210.61:5070” to specify
port “5070”). You can also assign a name for the K-1900-6/7-IP in the Unit Name field. When finished, click on the “Apply” button to send
the IP settings to the connected unit. See Examples 1 and 2 of the required fields below:
E. Manually Resetting All Network Parameters to Factory Default
Step 1. Power down the K-1900-6/7-IP phone by disconnecting the LAN Cable (RJ45 plug).
Step 2. Take the handset offhook, then reconnect the LAN Cable (RJ45 plug).
Step 3. 8-12 seconds after connecting the LAN Cable you should hear 2 beeps in the handset. 6 seconds later you should hear 4 beeps, go
back on-hook within *6 seconds. Unit will reset and 2 beeps will be heard in approximately 7 seconds.
Step 4. You can now enter programming by following the steps in section Cabove.
Step 1. Power down the K-1900-6/7-IP phone by disconnecting the LAN Cable (RJ45 plug).
Step 2. Take the handset offhook, then reconnect the LAN Cable (RJ45 plug).
Step 3. 8-12 seconds after connecting the LAN Cable you should hear 2 beeps in the handset. Go back on-hook within 6 seconds and you
should hear 2 more beeps.
Step 4. The security code is now reset to 845464 (factory default).
Step 5. You can now enter programming by following the steps in section C above.
D. Manually Resetting the Security Code to Enter Programming
*Note: if you do not go back on-hook within 6 seconds, the handset will beep twice and provide busy signal until back on-hook. This indicates an
error and network parameters will remain unchanged.
Example 2: Voip.ms
Example 1: Panasonic TDE 100/200

10
Programming Features Index
DESCRIPTION Section Page
Connect/Disconnect A 8
Phone Numbers 111
Unit Name 2 11
Mute Current / Next Alarm 311
Phone Firmware 4 11
IP Firmware 511
Import/Export 6 11
Clear Phone settings 711
Clear IP Settings 8 11
Diagnostics (used to check relay status and operation) 911
Security code (factory set to 845464) 10 12
Access Code (1-6 digits, blank = disabled, factory set to 123456) 11 12
Inbound Call Mode (Disabled, Auto Answer, Auto Answer Secure, Ring-Low, Ring-High, Silent Monitor & Silent Monitor
Secure) (factory set to Auto Answer) 12 12
Ring Cadence (factory Set to Normal Ring) 13 12
Relay Mode (Door Strike, Outbound Call, In/Outbound Call, Doorbell, Alarm Mode, Ring, Ring Flash, factory set to Door
Strike) 14 13
Relay Activation Command (1 or 2 digits, factory set to QQ) (Relay Mode must be set to Door Strike) 15 13
Relay Activation Time (0.5 - 99 sec, factory set to 5 sec) 16 13
Relay Int/Ext (factory set to Internal) 17 13
Relay Latch Commands (Enabled or Disabled, factory set to Enabled) 18 13
In-Band Audio Call Progress (Enabled or Disabled, factory set to Enabled) 19 14
In-Band Audio Detect Sensitivity (1-9, 1 = min, 9 = max, factory set to 5, power cycle unit after setting) 20 14
Call Length Time Out (disabled or 1 to 9 min, factory set to 3 min) 21 14
Dial Next # on Ring No Answer (disabled, 1 - 9 = number of rings, factory set to 7) 22 14
Dial Next # on Busy (disabled or enabled, factory set to enabled) 23 14
Off Hook Dialing Delay (No Delay or 1-6 seconds, Factory set to 3) 24 14
Handset Default Volume (1-4, fixed at 1-4 or last used, factory set to 1) 25 14
