INSTRUCTION MANUAL
FOR WINE CELLAR
Model Number:
VZ143VSUG
Thank you for choosing Vinvautz Wine Cellar.
Before use, please read and follow all safety and operating instructions.
Vinvautz is the world’s famous designer and manufacturer of professional Wine Cellar which
manufactures Wine Cellar for your house and private dwellilngs. We have created aesthetic masterpieces
worldwide by perfectly blending architectural elements and artistic creations in our Wine Cellar designs.

2
The Vinvautz Difference (Vin + Vautz = Wine + Safe!)
Vinvautz is one of the first to develop a self-contained wine cellar suitable for big and small family and
office with excellence in its French craftsmanship and unique stylish design sets for the needs of the
trendy cosmopolitan life. Vinvautz is the famous designer and manufacturer of professional Wine Cellar
and creates aesthetic masterpieces by perfectly blending architectural elements and artistic creations in
its designs.
Vinvautz wine cellar is purposefully engineered for wine storage in a variety of elegant, beautiful, and
stylish that enhances the ensembles in your home.
Digital control
A digital control and multiple sensors ideal for storage of both red and white wine.
Flexible storage
The Label View shelve with sliding system are easily to adjust for difference bottle size.
Durable and High quality
Compressor type cooling offers stability in operation and durability for long lasting storage.

3
CONTENTS
DISPOSAL OF APPLIANCES .................................................................錯誤! 尚未定義書籤。
BEFORE INSTALLING AND USING YOUR NEW APPLIANCE.............錯誤! 尚未定義書籤。
IMPORTANT SAFETY INSTRUCTIONS................................................錯誤! 尚未定義書籤。
INSTALLATION OF YOUR WINE CELLAR............................................錯誤! 尚未定義書籤。
BEFORE USING YOUR WINE CELLAR.......................................... 錯誤! 尚未定義書籤。
INSTALLATION OF YOUR WINE CELLAR.................................... 錯誤! 尚未定義書籤。
OPERATING YOUR WINE CELLAR.......................................................錯誤! 尚未定義書籤。
CONTROL PANEL .......................................................................................................... 8
OTHER FUNCTIONS .............................................................................錯誤! 尚未定義書籤。
REVERSE THE DOOR ............................................................................錯誤! 尚未定義書籤。
CARE & MAINTENANCE.................................................................................................... 11
PROBLEMS WITH YOUR WINE CELLAR..............................................錯誤! 尚未定義書籤。
APPENDIX - LOADING DIAGRAM .................................................................................... 14

4
DISPOSAL OF APPLIANCES
Before disposing any old appliance, please remove any plugs and cut the power leads to ensure that the
appliance is inoperative.
Remove the door but leave the shelves in place to prevent children climbing inside.
Dispose of your Wine Cellar packaging properly. Ensure that any plastic wrappings, bags etc. are
disposed of safely and kept out of the reach of babies and young children. Danger of suffocation!
This symbol indicates that it must not be discarded as general household waste.
Instead, it should be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. Disposal must be carried out in accordance with local
environmental regulations for waste disposal.
By disposing of this product correctly you will help prevent potential negative consequences for the
environment and human health, which would otherwise be caused by inappropriate waste handling of
this product.
Refrigeration equipment must be properly disposed of in a professional and appropriate way, in
accordance with the current local regulations and laws which protects the environment this applies to
your old Wine Cellar and to your new Wine Cellar once it has reached the end of its service life.
Warning: When disposing of old appliance, make sure that the pipe work does not damage.
BEFORE INSTALLING AND USING YOUR NEW APPLIANCE
Warning: Before powering up the appliance, please open the door for 5 minutes to ventilate the cabinet.
Read through the instruction manual supplied with the appliance – failure to install or use this appliance
in accordance with the instruction manual may invalidate any warranty.
The manufacturer does not accept any liability for damage caused through improper use or incorrect
installation.
Do not install this appliance if it has been damaged during transportation. This includes the plug and
power cord.
Please keep this instruction manual in a safe place for future reference.
Note: This appliance is intended to be used exclusively for the storage of wine only.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical Wine Cellar, basic precautions should always be followed to reduce the risk of
fire, electric shock, and injury to persons, including the following:
•To prevent damage to the door and door gasket, make sure the door is fully opened before pulling
out any shelves.
•Do not move the wine cellar when it is loaded with wine, you might distort the appliance.
•If the power lead becomes damaged it should only be replaced by the manufacturer or a qualified
person.
•Never allow children to operate, play with, or crawl inside the appliance.
•Never clean appliance parts with flammable fluids.
•Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any
other appliance. This will cause a fire hazard or explosion.

5
•Warning: Do not allow the refrigerant circuit to become damaged while using or installing the
appliance. Should it become damaged, do not use the appliance until you are instructed to do so by
service engineer. Refrigerant can ignite or cause damage to the eye when leakage.
•Always remember to unplug the appliance before cleaning. When disconnecting from the electricity
supply, pull the plug, not the power cord.
•Do not use anything electrical inside the wine cellar.
•All electrical repairs must be carried out by a qualified service engineer. Inadequate repairs may result
in a major source of danger for the user and invalidate any warranty.
•Never store anything dangerous inside the appliance, such as combustibles, explosives, strong acid, or
alkali etc.
•Always keep any ventilation openings clear of obstruction. Should they become blocked, clear them
straight away.
•Make sure that the plug is in an accessible place when installation is complete.
•Only use this appliance for domestic purposes in accordance with these instructions.
•Do not connect or disconnect the electric plug when your hands are wet.
•The wine cellar is suitable for storing wine only. It is not suitable for storing fresh or frozen foods.
To avoid contamination of wine, please respect the following instructions:
•Opening the door for long periods can cause a significant increase of the temperature in the
compartments of the appliance.
•Clean the surfaces that have contact with bottles regularly.
•If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the
door open to prevent mold developing within the appliance.
•If the refrigerant of these appliances is R600a, flammable and explosive articles should not be put in or
near the cabinet, to avoid the fire or explode caused.
Warning:
•This appliance cannot be used by children aged from 8 years and
below and persons with reduced physical, sensory, or mental
capabilities or lack of experience and knowledge if they have not
been given supervision or not play with the appliance. Cleaning and
user maintenance shall not be made by children without
supervision.
•Children are not allowed to load and unload wine cellar.

6
INSTALLATION OF YOUR WINE CELLAR
Before Using Your Wine Cellar
•Remove the exterior and interior packing.
•Before connecting the Wine cellar to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
•Check that the voltage marked on the product corresponds with your supply voltage.
•Clean the interior surface with lukewarm water using a soft cloth.
•When replace the illuminating lamp, please contact local service provider for replacement.
•When disposing your appliance, please choose an authorized disposal site.
Installation of Your Wine Cellar
•Place your Wine cellar on a floor that is strong enough to support it when it is fully loaded. To
level your Wine cellar, adjust the front leveling leg at the bottom of the Wine cellar.
•Locate the Wine cellar away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
•Avoid locating the unit in moist areas.
•Plug the Wine cellar into an exclusive, properly installed-grounded wall outlet. Do not under any
circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized service center.
•Important: If the lowest temperature is set during periods of high humidity and ambient
temperature, condensation may appear on outside surfaces and the door of wine cellar, this is a
normal phenomenon.
ATTENTION:
This wine cellar has been designed for freestanding and built under installation. In every case, there must
be adequate ventilation and access for service.
Freestanding installation will allow you to install the wine cellar in almost any indoor place you desired.
You must follow the stated instructions for electrical requirements, recommended install area and
leveling of the wine cellar.

7
BUILT-UNDER INSTALLATION

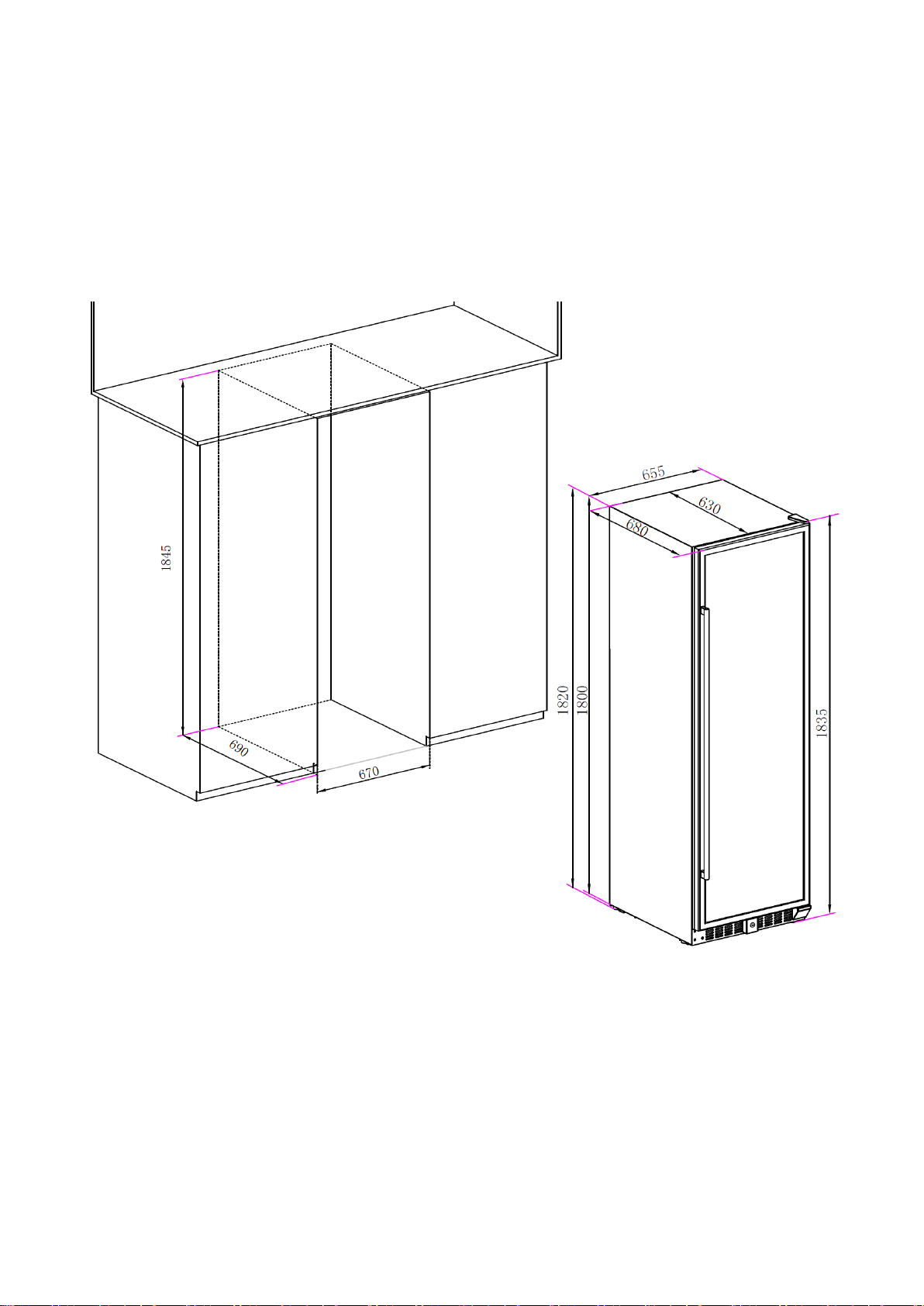

When installing the wine cellar under the counter, follow the recommended spacing dimensions shown.
Always keep any ventilation openings clear of obstruction.
For VZ143VSUG

8
OPERATING YOUR WINE CELLAR
CONTROL PANEL
Display window
Power Lighting Temp Up Temp Down
Lock/Unlock C/F Transfer
The temperature setting can be adjusted from 5°C to 22°C.
•
To control the appliance turn on/off.
When the appliance is plugged in to a power outlet, it connects power automatically.
Touch the power mark and hold for 10 seconds to turn off (or turn on) the appliance.
No matter it is under a locked or unlocked condition, you can turn off the appliance by touching the
power mark and holding for 10 seconds.
Warning: To avoid damaging the compressor, please do not turn on the appliance again within 5
minutes after you turn it off.
•
To control the interior light ON or OFF.
Press for 100% brightness and press again for 50% brightness. Once more press for turn off the light.
It is circular loop to control the on or off and the brightness.
•
Used to raise(warm) the temperature in 1°C.
The screen is set to display the actual temperature, press + or – button to display the set temperature.
•
Used to lower(cool) the temperature in 1°C.
The screen is set to display the actual temperature, press + or – button to display the set temperature.
•
To show the actual temperature of the wine cellar.

9
OTHER FUNCTIONS
To switch between °C and °F
Under the unlocked condition, you can select temperature display setting from Fahrenheit to Celsius
degree by pushing the UP (+) and DOWN (-) button at the same time for 3 seconds.
Attention
If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restart the unit.
If you need attempt to restart before this time delay, the wine cellar will not start.
For first time use or longer absence of using, the temperature will difference between setting and LED
display temperature. After running a certain period, the temperature will be reverted.
Temperature Memory Function
If the power is suddenly lost, the set temperature will be saved by the unit.
Once the power is back on, the unit will be at the same actual temperature.
Door Lock
Your unit is provided with a lock and key combination.
The keys are located inside the plastic bag that contains the instruction manual. Insert the key into the
lock and turn it counterclockwise to unlock the door. To lock the door, do the reverse operation
making sure metal pin is engaged completely. Remove the key and place it in a secure place for
safekeeping.
Note: During periods of high humidity, condensation may appear on outside surfaces of the
appliances.
This condensation will disappear once humidity levels drop. To prevent, it is recommended to install
the appliance with sufficient ventilation in a dry and/or an air-conditioned room. Please ensure that
doors are closing and sealing properly.

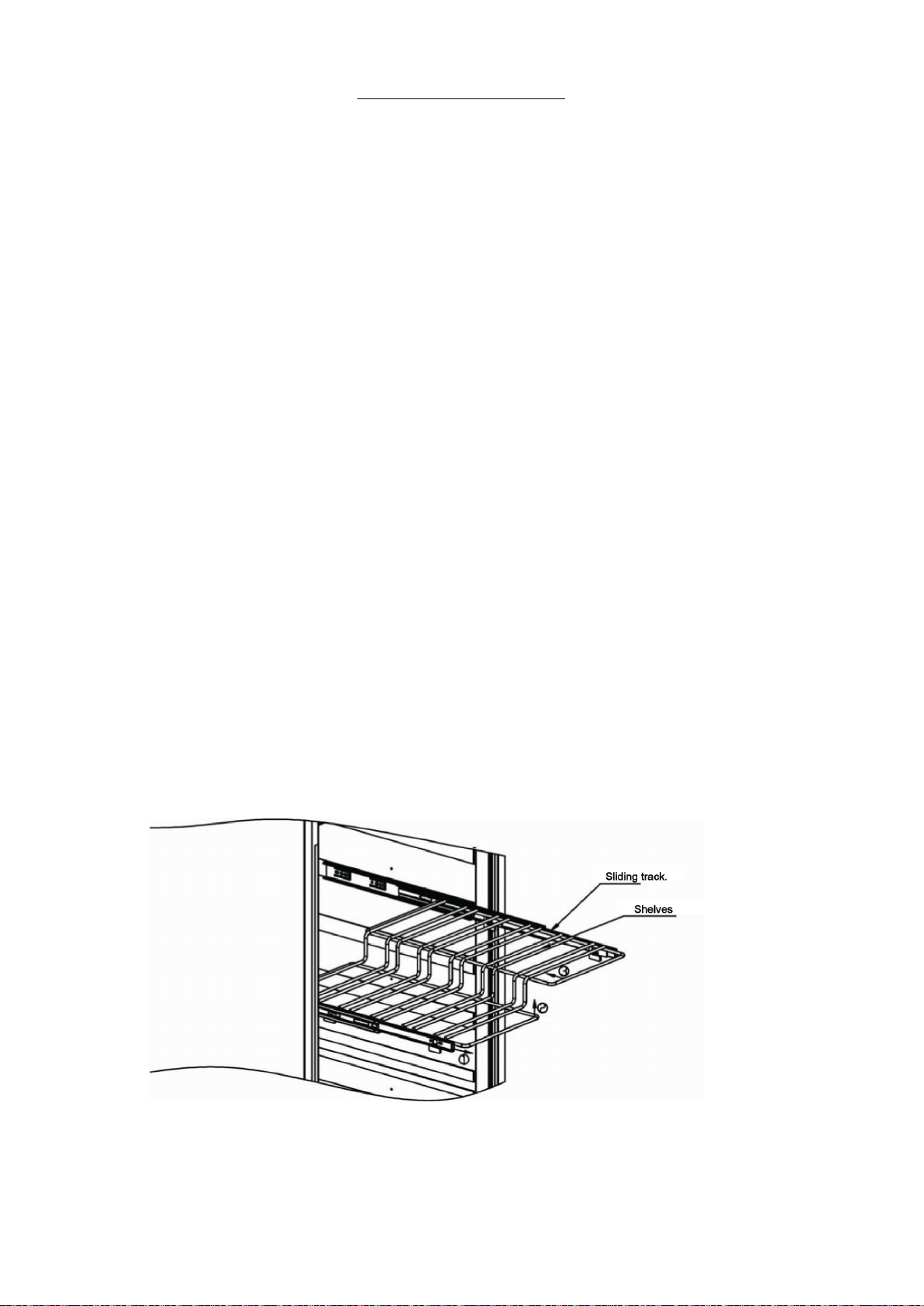

To remove the shelves:
Before removing a telescopic shelf from the appliance, it is necessary to remove all the bottles on the
Shelf.
Pull out the shelf to align the shelf grooves to the stoppers fixed on the inside cabinet.
Push upward the shelf from the telescopic rails and remove it carefully.

10
REVERSE THE DOOR
Before you begin: Tape down shelves to avoid movement during the process
The unit may have been delivered to you with the door opening from the left side (hinges on the right).
The door of this appliance can be hung to open on the left or right side. To reverse the door swing of
your cellar and open from the opposite side, please follow the instructions and diagram below.
1. Using a flat-head screw driver to remove the Hole Cover and Upper Hinge Cover on top side, than
remove the Upper Hinge by unscrewing the Hex Head Screws (4pcs).Carefully lift the Door off the
Bottom Hinge with your assistant and gently set it aside.
2. Move the Hinge Hole Cap (at the top of the door) from the left side to the right side. Move the
Pivot Hinge (at the bottom of the door) from the right to the left side.
3. Remove the Bottom Hinge Cover by prying it off gently with small flat screwdriver. Remove the
Bottom Hinge by unscrewing the Hex Head Screw (4pcs). Unscrew the Pan Head Screw (4pcs)
from bottom left side. Now move the Bottom Hinge to the bottom left side and screw it tightly
with the Hex Head Screws (4pcs). Move the Pan Head Screw (4pcs) to the bottom right side and
screw it.

11
4. Hold the Door carefully with your assistant and place it on the top of Bottom Hinge , make sure the
Pivot Hinge is at correct place through the Hinge Washer. Insert the pin of the Upper Hinge into the
Bushing on the top right and fix it with Hex Head Screw (4pcs). Cover the Upper Hinge and Bottom
Hinge with Upper Hinge Cover and Bottom Hinge Cover. Cover hinge screw holes on the top right
with the Hole Cover.
Note：All the instructions in this manual are for explanatory purpose only your appliance may be slightly
different.
CARE & MAINTENANCE
Clean your wine cellar
Turn off the power, unplug the appliance, and remove all items including shelves.
Wash the inside surfaces with a warm water and diluted mild detergent.
Wash the shelves with a diluted mild detergent.
Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical
parts.

12
Wash the outside cabinet with warm water and diluted mild liquid detergent.
Rinse well and wipe dry with a clean soft cloth.
Power failure
Most power failures are corrected within a few hours and should not affect the temperature of your
appliance if you minimize the number of times the door is opened. If the power is going to be off for
a long period of time, you need to take the proper steps to protect your contents.
Vacation Time
Leave the wine cellar operating during vacations of less than three weeks.
If the appliance will not be used for more than three months, remove all items and turn off the
appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door
open slightly, blocking it open if necessary.
Make sure there will be no children and animals climb into the appliance.
Moving your wine cellar
Remove all items.
Take out the loose items inside the wine cellar (such as shelf) or fix the loose items with the foam.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Be sure the appliance stays secure in the upright position during transportation. Also protect outside
of appliance with a blanket or similar item.
Energy saving tips
The wine cellar should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.
Set temperature according to the characteristics of your wine to maximize energy saving.
Charcoal filter
The Charcoal filter is located in the back of compartment.
Replace it with a new one once a year with properly use.
It can be purchased from your dealer or from the Spare Parts Department.
Remove the shelf in front of the filter.
Grip the filter and turn it 90°clockwise or anti-clockwise to remove.
Insert the new filter in the vertical position and turn it 90° clockwise or anti-clockwise until it
clicks into position.

13
PROBLEMS WITH YOUR WINE CELLAR
You can solve common problems by reading the suggestions below to save the cost of a possible service
call. Try to see if you solve the problem before calling the service.
Troubleshooting Guide
Problem Possible Cause
Wine cellar does not operate No plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
Wine cellar is not
cold enough
Check the temperature control setting.
External environment may require a higher setting.
The door is always opened.
The door is not closed completely.
The door gasket does not seal properly.
Turns on and off frequently
The room temperature is hotter than normal.
Overload of the cabinet
The door is always opened.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work
Not plugged in.
The circuit breaker tripped or a blown fuse.
The light bulb has burned out.
The light button is “OFF”
Abnormal vibrations Check to sure that the Wine cellar is level.
Too much noise
The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling.
Contraction and expansion of the inside walls may
cause popping and crackling noises.
The wine cellar is not level.
The door will not close properly
The wine cellar is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.

14
APPENDIX - LOADING DIAGRAM
VZ143VSUG– Total 143 Bottles

1
酒櫃操作指引
型號:
VZ143VSUG
非常感謝您選用此酒櫃，請仔細閱讀本說明書並妥善保存以供今後參考

2
Vinvautz 是世界著名的酒櫃製造商。多年的專業設計及生產經驗給藏酒愛好者創造了一系列混合美麗及藝術感的
酒櫃。滿足愛好者在不同地方保存珍藏的嚴格要求。
 Vinvautz 與別不同 (Vin + Vautz = Wine + Safe !)
Vinvautz 柔合法國設計及現代製冷技術，表現出獨特時尚品味，為家居及辦公室增添色
 電子操控
獨特的設計，加上電子顯示溫度及輕觸式面版設計，方便使用。
 靈活實用
Label View 滑動層架，可自由調節高低配合實際用途。
 耐用可靠
運用材料採用先進壓縮機技術，確保耐用可靠。

3
目錄
棄置酒櫃須知..........................................................................................錯誤! 尚未定義書籤。
使用酒櫃前注意 ......................................................................................錯誤! 尚未定義書籤。
安全警告 .................................................................................................錯誤! 尚未定義書籤。
安裝酒櫃 .................................................................................................錯誤! 尚未定義書籤。
使用酒櫃之前.................................................................................. 錯誤! 尚未定義書籤。
安裝酒櫃......................................................................................... 錯誤! 尚未定義書籤。
酒櫃操作 .................................................................................................錯誤! 尚未定義書籤。
操作面板......................................................................................... 錯誤! 尚未定義書籤。
其他功能......................................................................................... 錯誤! 尚未定義書籤。
轉改開門方向.................................................................................. 錯誤! 尚未定義書籤。
保養與維護 .............................................................................................錯誤! 尚未定義書籤。
故障分析 .................................................................................................錯誤! 尚未定義書籤。
附錄 – 酒瓶裝載圖.................................................................................錯誤! 尚未定義書籤。

4
棄置酒櫃須知
在棄置酒櫃之前，請拔下所有插頭和剪斷電源線以確保該設備不會進行運作。
拆卸櫃門，將酒架留在原處以防止兒童爬入內部。
請正確處置酒櫃包裝，確保處置任何塑膠包裝材料，安全地存放在嬰幼兒無法觸及的地方。避免窒息！
這符號代表這產品不能以家居垃圾處理。
棄置時應將其移交給適用的回收點，以回收電器和電子零件。 廢物處理必須按照當地的法律進行。
冷藏設備必須按照現行的當地法規和法律以專業及適當的方式進行適當處置，以保護環境。
這適用於您的舊酒櫃和達到使用壽命的新酒櫃。
正確處理本產品有助防止電子產品對環境和人類健康造成的潛在影響。
警告：棄置酒櫃時，請確保電線接駁沒有損壞。
使用酒櫃前注意
警告: 在接通電源之前，請打開櫃門 5分鐘以使機內通風。
請在使用前仔細閱讀本說明書 - 如果未按照說明書指示安裝或使用此設備，則可能導致保養失效。
因使用不當或誤用而損壞產品，製造商將不承擔任何責任。
如果在運輸過程中損壞了本設備(包括插頭和電源線) ，請勿安裝本產品。
請妥善保存本說明書以供今後參考。
注意：本產品僅適用於葡萄酒的存放。

5
安全警告
使用酒櫃時，應遵循基本的預防措施，以減少著火，觸電和人身傷害的風險，包括以下內容：
•為防止損壞櫃門和門墊，拉出任何酒架之前，請確保櫃門已完全打開。
•不要移動裝有酒的酒櫃，否則會使設備變形。
•若電源線損壞，必須由製造商、服務承辦商或有資格的技術人員更換。
•本產品不能供孩子玩弄或爬入內部。
•切勿使用易燃液體清潔本產品。
•在本產品附近不要儲存或使用汽油或其他易燃氣體和液體，否則會引致火災或爆炸。
•警告：在使用或安裝本產品時，請勿損壞製冷劑迴路。 萬一不慎損壞，請不要使用本產品並等待有資格的技
術人員指示。 製冷劑洩漏時會著火或對眼睛造成傷害
•清潔之前，請關閉本產品並拔下插頭。 請勿拉動電線來拔掉電插頭。
•請勿在櫃內使用任何電器。
•所有維修必須由合資格的技術人員進行。 維修不充分可能會給用戶帶來重大危險，並導致保養失效。
•切勿在設備內部存放任何危險物品，例如可燃物，爆炸性物品，強酸或強鹼等。
•保持通風孔暢通無阻。 如果它們被阻塞，請立即清除它們。
•安裝完成後，請確保將插頭放在可觸及的位置。
•本產品僅能按照說明書作家用用途。
•手濕時請勿連接或拔除電源插頭。
•本產品只適合存放葡萄酒，並不適用於儲存新鮮或冷凍食品。
•8歲以下的孩童不允許使用本產品，身體、感官、智力有缺陷或者缺乏相關經驗、知識的人員不能在無人照看
或無操作說明，不瞭解危險性的情況下使用本產品。
•未成年的兒童不可以裝卸葡萄酒。
•為避免葡萄酒受到污染並變質，請遵守以下說明：
– 長時間打開櫃門可能會導致產品內部及部件的溫度明顯升高。
– 定期清潔可能與酒瓶接觸的表面。
– 如果 48 小時內未使用過水箱，則將其清洗乾淨；
•如果設備長期空置，請關閉電源並除霜，清潔，待乾後保持櫃門打開，以防止在設備內發黴。
•如果本設備製冷劑為 R600a，請勿在機櫃內或附近放置易燃易爆物品，以免引起火災或爆炸。

6
安裝酒櫃
使用酒櫃之前
•拆除酒櫃內外包裝。
•在酒櫃連接到電源前或移動後，讓它直立大約 2小時。這將減少冷卻系統發生故障的可能。
•檢查產品上標記的電壓是否與您的電源電壓相符。
•用溫水軟布清潔機內表面。
•當更換照明燈，請聯絡經銷商檢查維修。
•當您棄置設備，請選擇當地法例指定的棄置場所。
安裝酒櫃
•請將您的酒櫃放在一個足夠承托滿載酒櫃的樓層結構上。並在使用前調整酒櫃底部機腳以平衡您的酒櫃。
•把酒櫃放到遠離陽光直接照射的地方和熱源（爐灶，加熱器，散熱器等）。陽光直射可能會影響塗料及機
內溫度，熱源可能會增加耗電量及對存酒造成影響。極端寒冷的環境溫度也可能會導致機器不正確運作。
•避免放到潮濕的地區。
•正確安裝接地插座並連接酒櫃電源。 在任何情況下，不要剪掉或移除電線。任何有關電力連接及操作，
應該交由合資格的電工或代理商產品服務中心處理。
•重要 : 設定溫度時注意如於高溫或高濕度環境下設定最低溫度，機身及櫃門玻璃會形成冷凝水，此為正
常環境影響現象。
注意:
本產品設計僅可用於獨立式或推入式安裝。 在每種情況下，都必須有足夠的通風和維修通道。
只需遵循規定的電氣要求、安裝酒櫃地方的建議及調整酒櫃平衡的說明，您可將酒櫃安裝在任何室內場所。
