Owner’s
Guide
R2850HRT AND E3800HRT
COMMERCIAL FITNESS BIKES

ongratulations on choosing a VISION FITNESS Bike. You’ve taken an
important step in developing and sustaining an exercise program! Your
Bike is a tremendously effective tool for achieving your facility’s fitness
goals. Regular use of your Bike can improve the quality of your members’
lives in so many ways.
Here are just a few of the health benefits of aerobic exercise:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
• Reduced Stress
• Help in Countering Anxiety and Depression
• An Improved Self Image
The key to reaping these benefits is to develop the exercise habit. Your
new Bike will be an important tool in helping your members achieve this
exercise habit. This Owner’s Guide provides you with basic information
on using this VISION FITNESS Bike. A more complete knowledge of your
new Bike will assist you in helping your members achieve their goals.
Some kinds of service to your Bike should only be performed by your
VISION FITNESS retailer. Please contact your authorized VISION FITNESS
retailer should service be required. If a question or problem arises which
cannot be handled by your VISION FITNESS retailer, please contact us:
VISION FITNESS
500 South CP Avenue
P.O. Box 280
Lake Mills, WI 53551
Ph: 1.800.335.4348
Fax: [phone]
www.visionfitness.com
C

1
ALL MODELS R2850HRT E3800HRT GENERAL
SAFETY INSTRUCTIONS . . . . . . . . . . 4
ASSEMBLY & MOVING THE BIKE . . . 6
STABILIZING THE BIKE, PEDAL STRAP
ADJUSTMENT . . . . . . . . . . . . . . . . . 7
E3800HRT SEAT POST ADJUSTMENT . 8
R2850HRT SEAT RAIL ADJUSTMENT,
LUMBAR ADJUSTMENT, TILTING SEAT . 9
CONTACT HEART RATE . . . . . . . . . . 10
HEART RATE CHEST STRAP . . . . . . . 11
SELF-POWERED FEATURES . . . . . . . 12
USING THE OPTIONAL ADAPTER,
REPLACING BATTERY . . . . . . . . . . . 13
USING FACILITY ENGINEERING MODE
SETTINGS . . . . . . . . . . . . . . . . . . . 29
USING ENGINEERING MODE . . . . . . 30
SERVICE AND TROUBLESHOOTING
PREVENTATIVE MAINTENANCE . . . . . 31
TROUBLESHOOTING . . . . . . . . . . . . 32
OBTAINING SERVICE . . . . . . . . . . . 33
LIMITED HOME USE WARRANTY . . . 34
COMMERCIAL WARRANTY . . . . . . . . 36
ALL MODELS GENERAL
Table of Contents
DISPLAY CONSOLE . . . . . . . . . . . . . 14
DISPLAY CONSOLE DESCRIPTIONS . . 15
CSAFE PORTS, USING THE FAN . . . . 17
PROGRAMMING OVERVIEWS . . . . . 18
USING THE CONSOLE . . . . . . . . . . . 20
USING THE PROGRAMS . . . . . . . . . 22
USING THE SPRINT 8 PROGRAM . . . 23
USING THE FIT TEST PROGRAM . . . . 24
USING CUSTOM PROGRAMS . . . . . . 26
USING HRT®PROGRAMS . . . . . . . . 27
CONSOLE
E3800HRT
R2850HRT

2

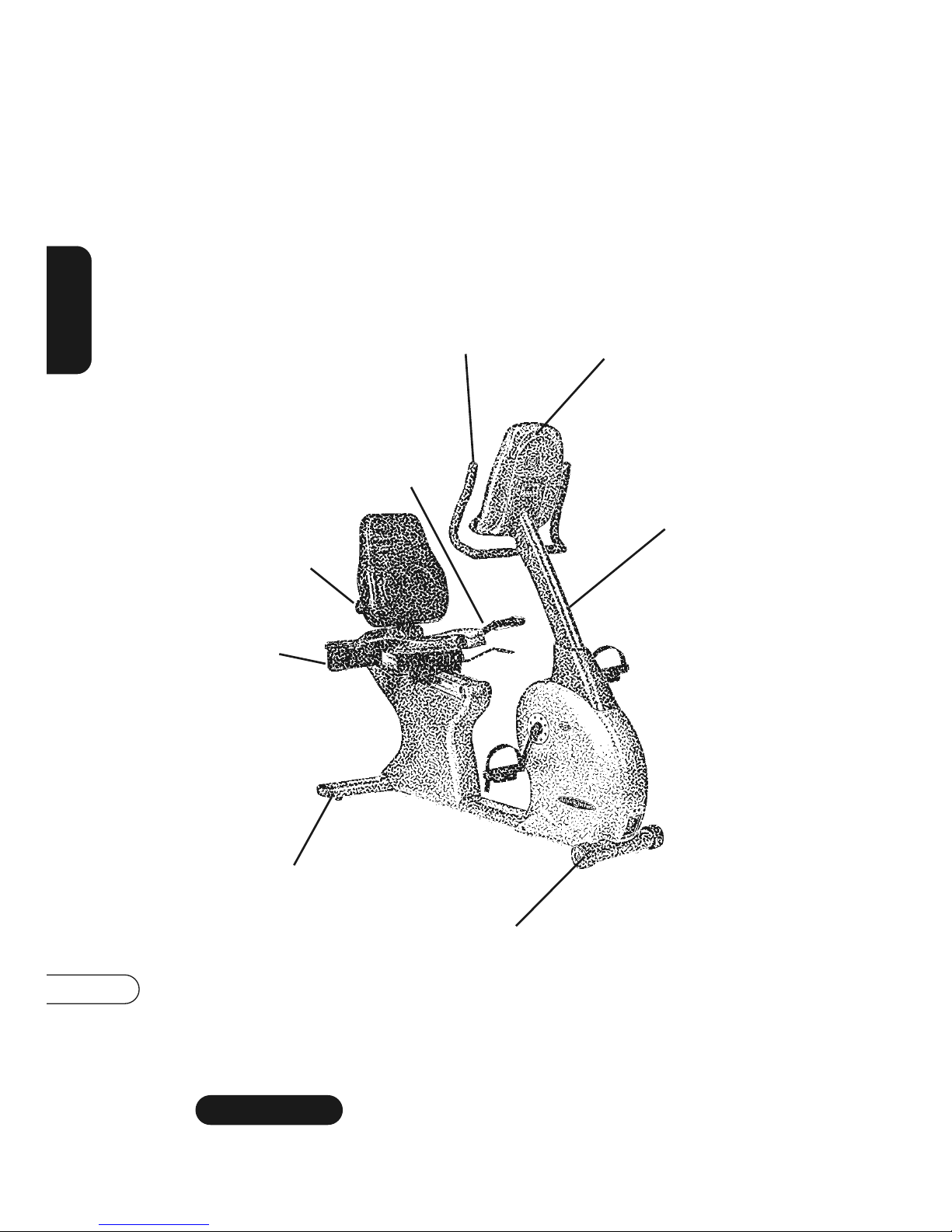

R2850HRT
FRONT FOOT &
TRANSPORT WHEELS
SEAT
ADJUSTMENT
CONSOLE
COMMERCIAL STEP-THRU SEMI-RECUMBENT FITNESS BIKE
R2850HRT
SEAT HANDLEBARS
CONSOLE MAST
HANDLEBARS
CONSOLE MAST
REAR FOOT
ACCESSORY
TRAY

3

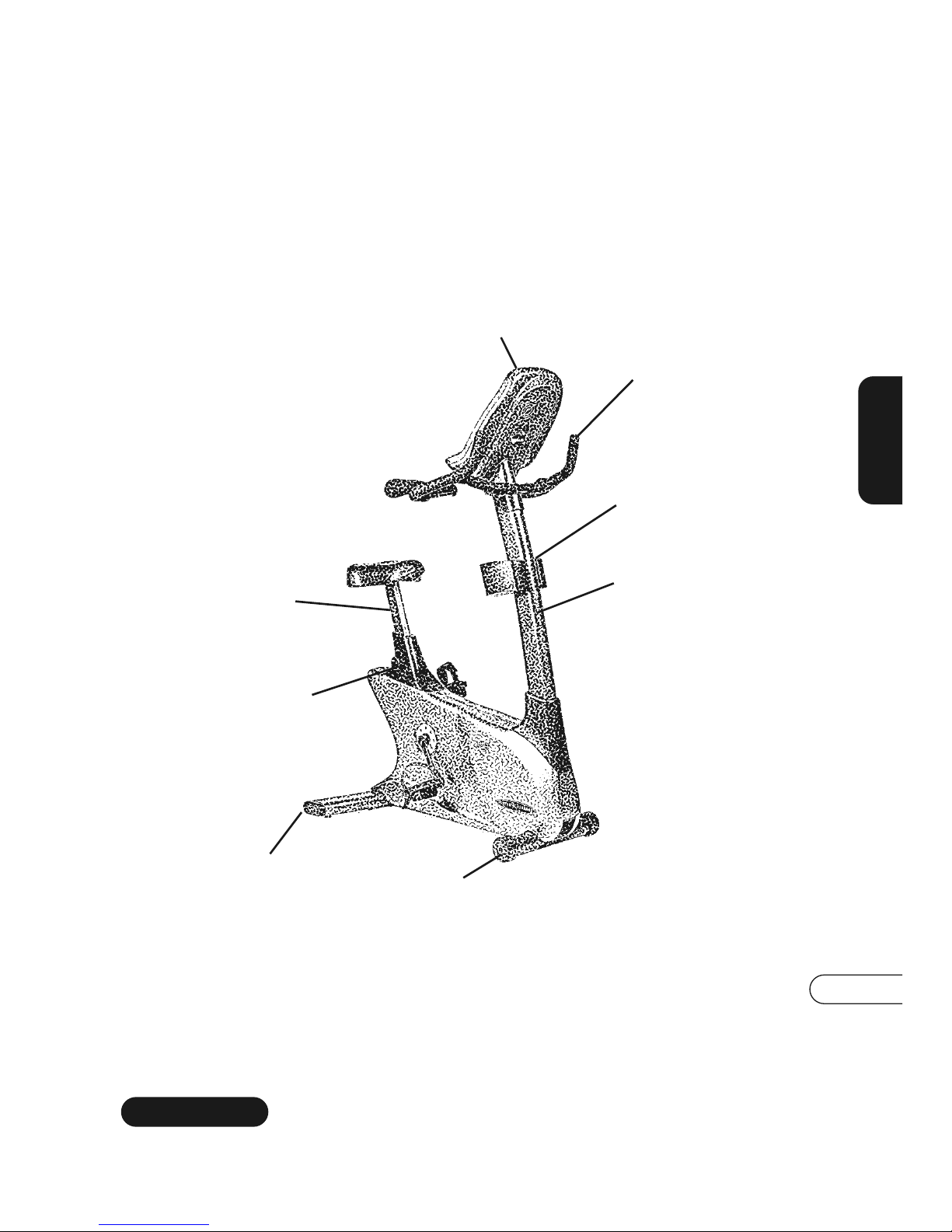

E3800HRT
FRONT FOOT &
TRANSPORT WHEELS
SEAT
ADJUSTMENT
CONSOLE
REAR FOOT
E3800HRT
COMMERCIAL UPRIGHT FITNESS BIKE
SEAT
POST
CONSOLE MAST
MULTI-POSITION
HANDLEBARS
ACCESSORY
TRAY

4
ALL MODELS
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be
followed, including the following:
Read all instructions before using this exercise product.
Your VISION FITNESS Bike is self-generating (requiring no external power
source) and must be pedaled to power-up the console.
To reduce the risk of burns, fire, electrical shock or injury
to persons:
• Use this exercise product for its intended use as described in this
Owner’s Guide. Only use attachments recommended by the
manufacturer.
• Never drop or insert any object into any opening.
• Do not remove the Bike sidecovers. Service should be performed only by
an authorized VISION FITNESS retailer.
• Never operate this Bike if it is not working properly or if it has been
damaged or immersed in water. Return the Bike to a retailer for
examination and repair.
• Do not use outdoors.
CHILDREN
• Keep children off of the Bike at all times.
• When the Bike is in use, young children and pets should be kept at least
10 feet away.
WARNING!

5
ALL MODELS
OTHER SAFETY TIPS FOR YOUR VISION FITNESS BIKE
CAUTION!
If you experience chest pains, nausea, dizziness or shortness of
breath, stop exercising immediately and consult your physician before
continuing.
• Do not wear loose clothing that might catch on any part of the Bike.
• Read this Owner’s Guide before operating this Bike.
• Drink plenty of fluids during your workout.
CLEANING
• Clean only with soap and a slightly damp cloth; never use solvents.

6
ALL MODELS
ASSEMBLY
It is recommended, when possible, that an authorized VISION FITNESS
retailer, service provider or sales representative assemble and install your
Bike. If you have elected to assemble this product yourself, for your safety
please read and follow each of the steps in the included assembly
instructions. If you have any questions regarding any part or function of
your Bike, contact your retailer or service provider.

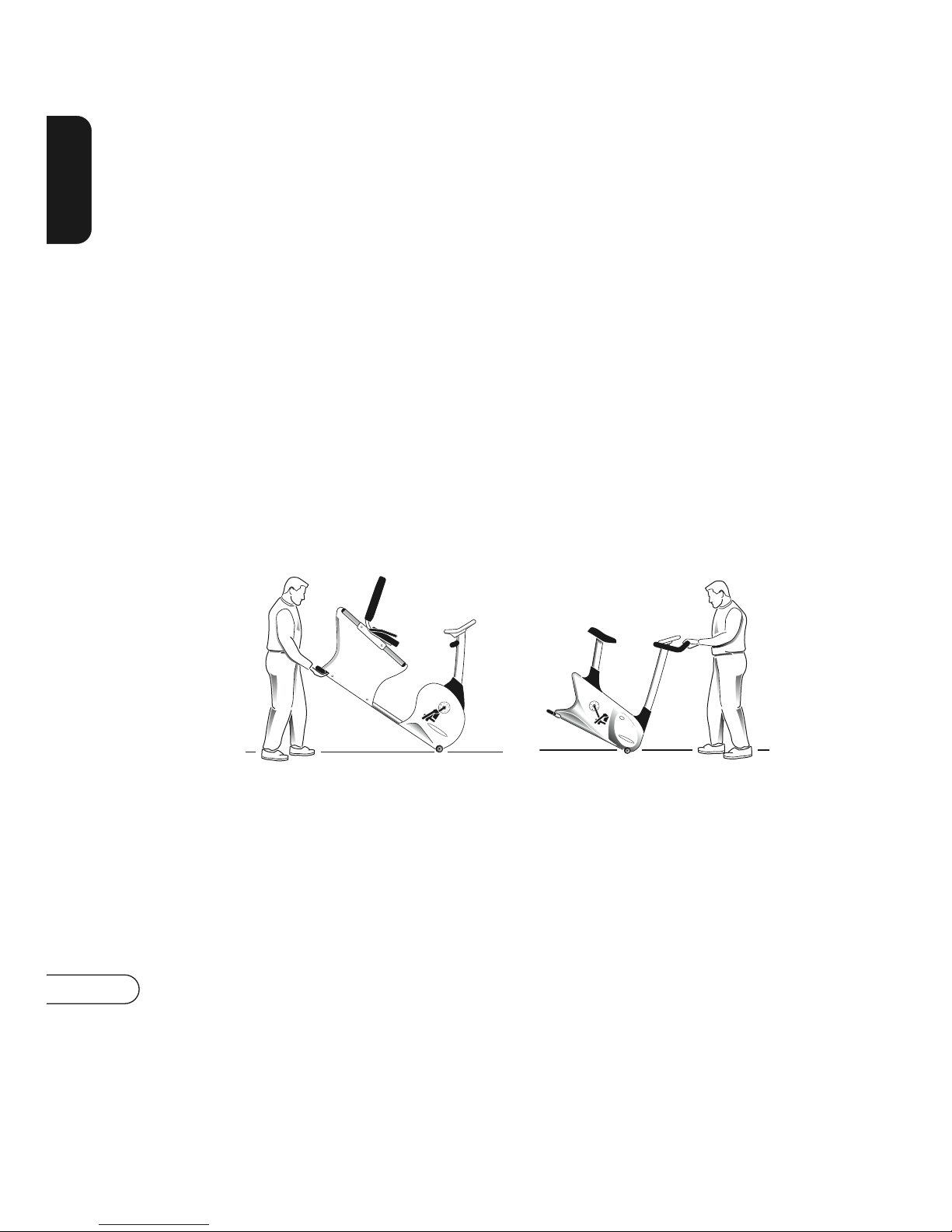

MOVING
Your VISION FITNESS Bike has transport wheels included for ease of
mobility. To move your Semi-Recumbent Bike, firmly grasp the rear of the
frame assembly, or the rear of the seat rail. Carefully lift and roll on the
transport wheels. To move your Upright Bike, firmly grasp the handlebars,
carefully tip toward you, and roll on the transport wheels.
CAUTION: Our Bikes are well-built and heavy, weighing up to 160 pounds!
Use care and additional help if necessary.

7
ALL MODELS

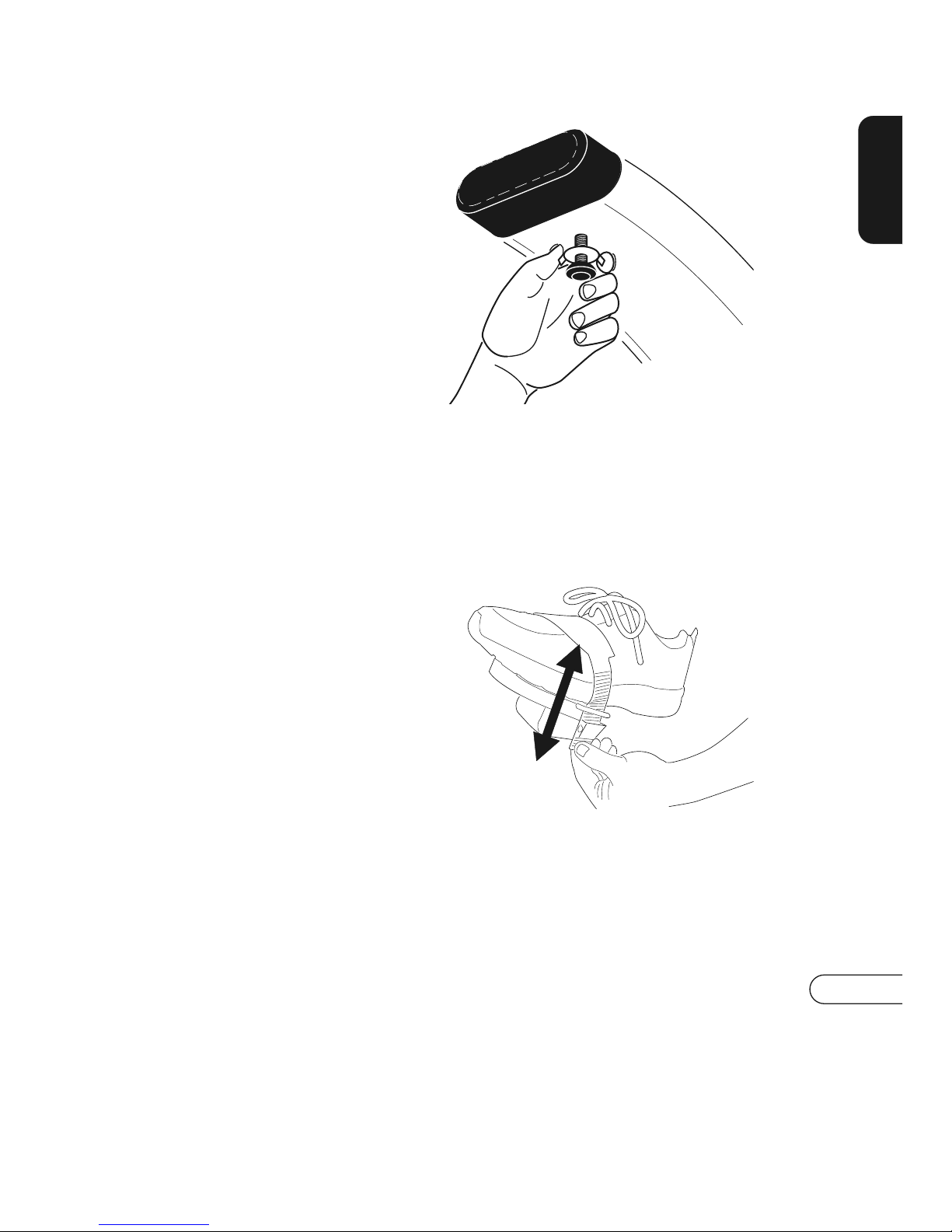

STABILIZING THE BIKE
After positioning the Bike in its
intended location, check its
stability by attempting to rock it
side to side. Rocking or wobbling
indicates that your Bike needs to
be leveled. Determine which
leveler is not resting completely on
the floor. Loosen the wing nut at
the base of the leveler to allow the
leveler to rotate. Now rotate the
leveler to the left or right until the
Bike is stable. Lock the adjustment
by tightening the wing nut against
the rear foot support.
PEDAL STRAP ADJUSTMENT
The straps are designed to fit your
individual foot size and should be
adjusted tight enough to keep your
feet from slipping. The pedals
include spring-loaded clips for
easy adjustment. To tighten the
strap, pull down the open end of
the strap. To loosen the strap, push
down on the top of the clip and
pull the strap up. Release the clip
to lock in place.

8
ALL MODELS
SEAT POST ADJUSTMENT E3800HRT
The E3800HRT uses a simple pull-
pin adjustment knob to adjust seat
height. To adjust, grab hold of the
seat and pull the seat post knob
out. Raise or lower the seat to its
desired position and release the
seat post knob. Push down on the
seat to make sure the pin is secure
in the rail.

9
ALL MODELS

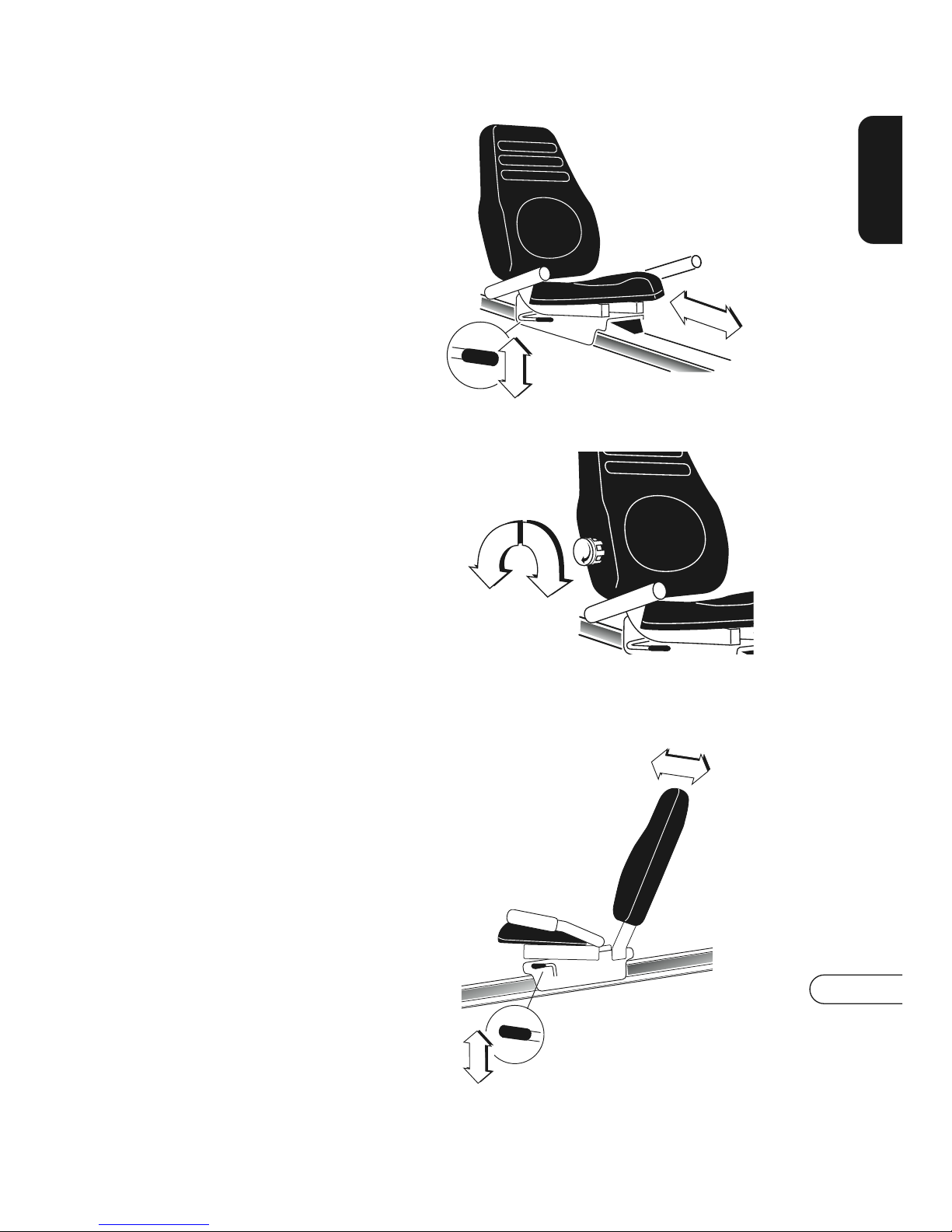

SEAT RAIL ADJUSTMENT R2850HRT
While seated on the Bike, lift the
spring-loaded seat lever on the
right side of the seat to make
adjustments. Slide the seat forward
or backward to desired location.
Release the spring-loaded seat
lever and gently attempt to rock
forward and backward to assure it
is locked in place.
LUMBAR CONTROL ADJUSTMENT
R2850HRT
To adjust the lumbar support, turn
the knob located on the right side
of the back support cushion. To
increase the lumbar support turn
the knob in a clockwise direction;
to decrease support turn the knob
in a counterclockwise direction.
TILTING SEAT BACK R2850HRT
While seated on the Bike, lift the
spring-loaded lever on the left side
of the seat beneath the handlebar.
Lean back on the back support
cushion to get to the desired
position. Release the lever to lock
in place.

10
ALL MODELS
CONTACT HEART RATE
HAND PULSE HEART RATE SENSORS
The Contact Hand Pulse Sensors are included on each product to monitor
your heart rate. To use, grasp both of the sensors with a comfortable grip
during your workout. The console will display your heart rate. Although
your signal will be displayed immediately, it may take the system a few
seconds to zero in on your actual heart rate.

11
ALL MODELS
TELEMETRIC HEART RATE CHEST STRAP
The wireless Telemetric Chest Strap uses a pair of electrodes on the
underside of the strap to send your heart rate signal to the console. Prior
to wearing the chest strap, moisten the two rubber electrode pads with
several drops of water. These electrodes must remain wet to provide an
accurate signal. We advise using the chest strap against your skin, but it
also functions through a thin layer of wet clothing.
STRAP PLACEMENT
Center the transmitter strap just below the breast or pectoral muscles,
directly over your sternum with the logo facing out. Adjust the elastic strap
so it is snug but comfortable enough for proper breathing.

12
ALL MODELS
SELF-POWERED FEATURES
On the R2850HRT and E3800HRT the user’s pedaling generates the
power to initialize and display information on the monitor. A minimum of
20 RPM (revolutions per minute) is required to start and maintain enough
power to keep the monitor functional. If the minimum RPM is not
maintained, the monitor will begin to shutdown in order to maintain the
batteries charge.
An optional adapter can be purchased to recharge the unit if necessary.
This is recommended if your Bike receives inconsistent use, or long time
periods between use. To purchase the optional adapter please contact
your retailer.
SYMPTOMS OF A LOW BATTERY
If the Bike has not been used for an extended period of time, the battery
may require recharging.
Symptoms of a low battery can include:
• A “LOW BATTERY” message will appear on the monitor
• Backlighting on the LCD display will be disabled

13
ALL MODELS
USING THE OPTIONAL ADAPTER
Connect the adapter into the socket at the front of the bike and plug the
opposite end into the appropriate power source (110/120v). There will
be an LED light on the power socket plate. The light will be RED while
charging and GREEN when it has finished charging. The best times to use
the power adapter are on initial installation and when the Bike is not used
for long periods of time.
REPLACING THE BATTERY
The battery should last a long time; however the type of use the Bike
receives will ultimately play a factor in battery life. Please contact your
authorized VISION FITNESS Dealer or Service Provider if you feel the
battery needs to be replaced.
CAUTION:
The battery stored inside your bike contains hazardous materials. It must be disposed of
according to Hazardous Waste Regulations. Please refer to
Hazardous Materials and Proper Disposal.

14
E3800HRT R2850HRT

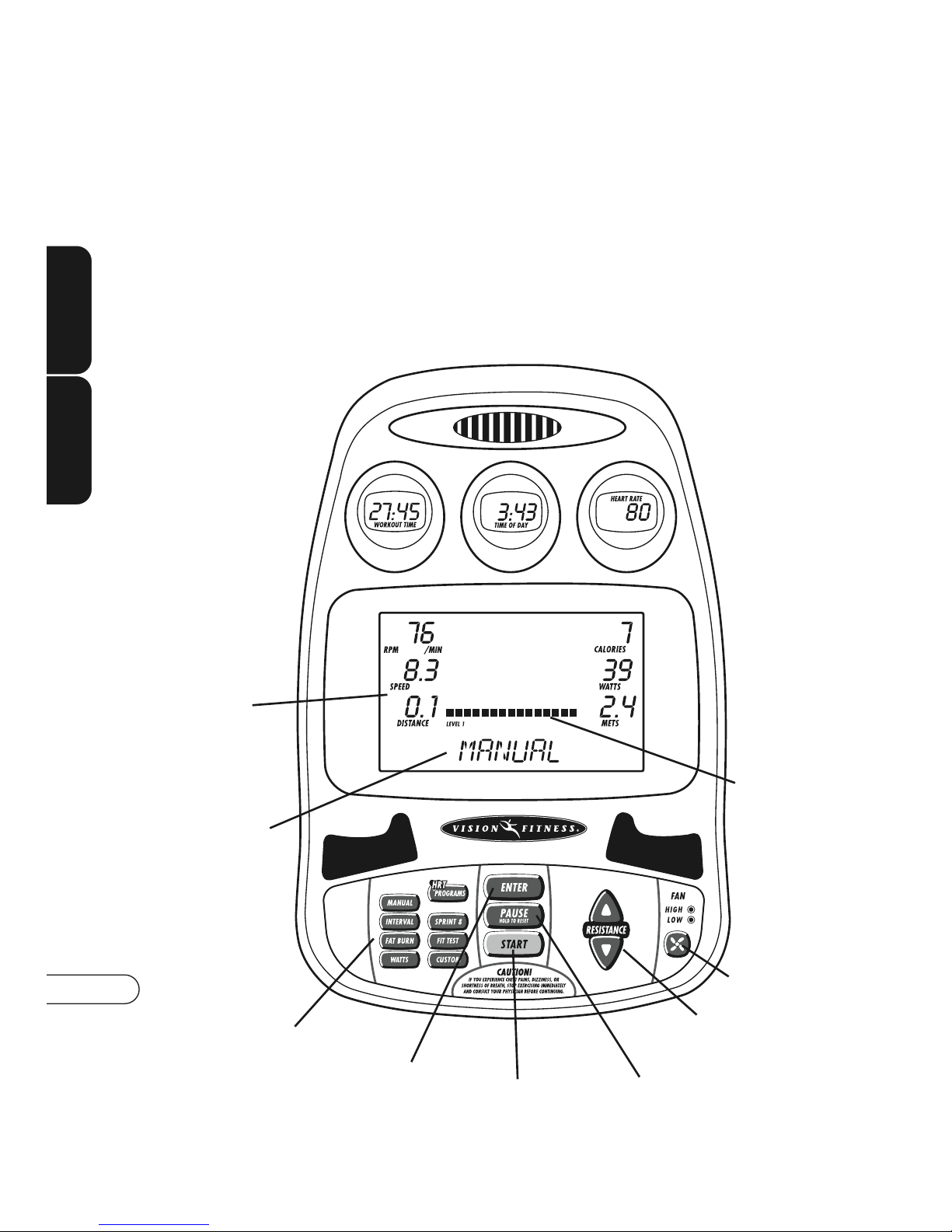

DISPLAY CONSOLE
DISPLAY CONSOLE OVERVIEW
The computerized display allows the user to select a workout that meets
their desired fitness goals. It allows the user to monitor the progress and
feedback of each workout so they can track improvements in overall fitness
over time.
AB
C
D
E
G
F
H
I

15
R2850HRT E3800HRT
DISPLAY CONSOLE DESCRIPTIONS
A. START
Press the START key to begin a MANUAL workout using the default
settings and bypass initial set-up. When the program begins, the user has
the ability to change resistance levels with the ARROW keys. Feedback
information will be calculated using default settings.
B. PAUSE/HOLD TO RESET
PAUSE:
If you need to PAUSE your program during a workout, pressing
the PAUSE key will PAUSE your program for 30 seconds. Pressing
START will return you to your workout.
RESET: If you need to RESET the console during your workout, you can
do so by holding down the PAUSE/RESET button for three seconds,
or until the display resets.
C. ENTER
This key is used to select specific information; such as age, weight, or
resistance level, during setup of the users program.
D. ARROW KEYS
These keys are used to change values in setup mode prior to the
workout. During the workout, they are used to change workout
resistance levels. In Heart Rate Training (HRT®) programs they are used
to change the target heart rate.
E. PROGRAM KEYS
These quick keys provide instant access to the workout programs and
make program setup quick and easy. Additionally you can change
workout profiles on the fly while working out in many of the programs.
F. FAN OPERATION KEY
This key is used to operate the fan and control the amount of air
provided by the fan.
G. PROFILE DISPLAY
This window provides a 10x15 block profile display of workout segments.

16
E3800HRT R2850HRT
DISPLAY CONSOLE DESCRIPTIONS (continued)
H. MESSAGE WINDOW
This window provides fixed and scrolling messages to walk the user
through setup, provide instruction, provide feedback information, or
provide positive re-enforcement.
I. FEEDBACK:
During your workout these windows display exercise feedback
about your workout, including:
WORKOUT TIME: the time elapsed or the time remaining in your
workout.
TIME OF DAY: the current time of day in either 12 or 24 hours.
HEART RATE: the rate at which your heart beats; measured in beats
per minute.
PERCENT OF MAXIMUM HEART RATE: a comparison of your current
heart rate to your predicted maximum heart rate (220 – age).
RPM: the pedal rate or Revolutions Per Minute (RPM).
SPEED: the pedaling speed in miles or kilometers since the start of
your workout.
DISTANCE: the total distance traveled in miles or kilometers since
the start of your workout.
CALORIES: an estimate of calories burned since the beginning of
the workout.
WATTS: a measurement of workload; one watt is equal to six
kilogram-meters per minute.
METS: a measurement of oxygen consumption; one MET equals
the approximate amount of oxygen consumed per minute by a
person at rest.
LEVEL: the current resistance level of your workout.
