Visonic MKP-160 User manual

User Guide
Keyprox User's Guide
MKP-160

1
25
34678910
11 12
13
17
1919
18
20
21
22
24
26
25
27
28
29
23
1415
16
7
7
6
6
1. Present Prox Tag
2. Volume indication
3. System status
(NOT READY/BYPASS)
4. Volume-level, Zone #,
PGM / X-10 display
5. PGM / X-10 indication
6. Partition status indication
7. Partition Selection
8. DISARM
9. ARM HOME / QUICK ARM HOME
10. ARM AWAY / QUICK ARM AWAY
11. LATCHKEY
Quick Reference Guide
12. Mute exit beeps
13. Volume control
14. Show next status of
open / bypass zones
15. PGM/X-10
16. INSTANT
17. FIRE
18. EMERGENCY
19. PANIC: Press both keys
simultaneously for 2 seconds
20. AUX / Enroll MKP-160 /
Back to factory / Cancel
current operation
21. Control panel messages
22. Installer Mode
23. Memory / Alarm
24. Trouble
25. AC failure
26. Communication failure
27. Low battery
28. Status when Partition is
disabled
29. LED (green and red)

D-303503 MKP-160 User's Guide 1
MKP-160
Touch Screen Keyprox
User’s Guide
Table of Contents
Table of ContentsTable of Contents
Table of Contents
1. INTRODUCTION..............................................................................................................2
2. INSTALLATION................................................................................................................3
2.1 Inserting Battery..........................................................................................................3
2.2 Closing Battery Compartment Cover ..........................................................................3
2.3 Wall Mounting Options................................................................................................4
2.4 Enrolling the MKP-160................................................................................................9
2.5 Configuring the MKP-160 Parameters ........................................................................9
2.6 Enrolling Proximity Tags ...........................................................................................10
3. USING THE TOUCH SCREEN KEYPROX....................................................................12
3.1 Arming and Disarming the System ...........................................................................12
3.2 Initiating Alarms ........................................................................................................13
3.3 System Status and Indications .................................................................................13
3.4 Bypassing Zones ......................................................................................................16
3.5 Controlling Home Automation Devices .....................................................................16
3.6 Other Functions ........................................................................................................17
APPENDIX A: SPECIFICATIONS ......................................................................................18
APPENDIX B: COMPLIANCE WITH STANDARDS...........................................................19

2 D-303503 MKP-160 User's Guide
1. INTRODUCTION
1. INTRODUCTION1. INTRODUCTION
1. INTRODUCTION
MKP-160 is a 2-way wireless PowerCode touch screen keyprox for the PowerMax family
control panels. The MKP-160 enables most common everyday user functions:
•Arm and Disarm the alarm system.
•Initiate Emergency, Fire and Panic alarms.
•Control home automation devices.
•Review system status.
•Perform programmable predefined functions.
MKP-160 is operated by proximity tags. When authorization is required the user presents a
valid proximity tag to the built-in tag reader.
In addition, the MKP-160 supports panels featuring Partitions. Partitioning allows you to
select up to three controllable areas; each partition can be armed and disarmed
independently regardless of the status of the other two partitions by the same or different
users (see keys marked "7" in the "Quick Reference Guide").
The MKP-160 can be wall-mounted using the supplied bracket or be used as a desktop unit.
For compliance with various international standards, the MKP-160 is equipped with two
tamper switches that can be defined to detect when the cover of the battery compartment is
removed or when the unit is removed from its mounting bracket.
Other features of the MKP-160 include:
•Easy-to-use intuitive graphical touch user interface
•Employees can use their standard RFID access cards with the MKP-160.
•Proximity-tag operated, no need for user to remember codes
•Allows all users' every day actions
•Panel can be installed in hidden location
•2 per system, suitable for any installation
•Status, Alarm, Memory, Trouble and Ready indications.
•Automatic reporting of low battery.
•Back lighting.
•Audible and visual exit/entry warning beeps
•MKP-160 enables using proximity tags regardless of whether or not the control panel has
a proximity tag reader.
•Long battery life expectancy (for typical use).
•Trouble beeps

D-303503 MKP-160 User's Guide 3
2
22
2. INSTALLATION
. INSTALLATION. INSTALLATION
. INSTALLATION
2.1 Insert ng Battery
CAUTION!
Risk of explosion if
battery is replaced
by an incorrect type.
Dispose of used
battery according to
manufacturer's
instructions.
Figure 1 – Battery Insertion
Insert two 1.5V batteries in each slot while ensuring battery polarity.
2.2 Clos ng Battery Compartment Cover
Desktop Installat on (Us ng Battery Cover w thout Tamper Hole)
1
2
Figure 2 - Battery Cover Mounting (part a)

4 D-303503 MKP-160 User's Guide
Wall-mounted Installat on [V a Battery Cover w thout Tamper Hole (see "A")]
Figure 3 - Battery Cover Mounting (part b)

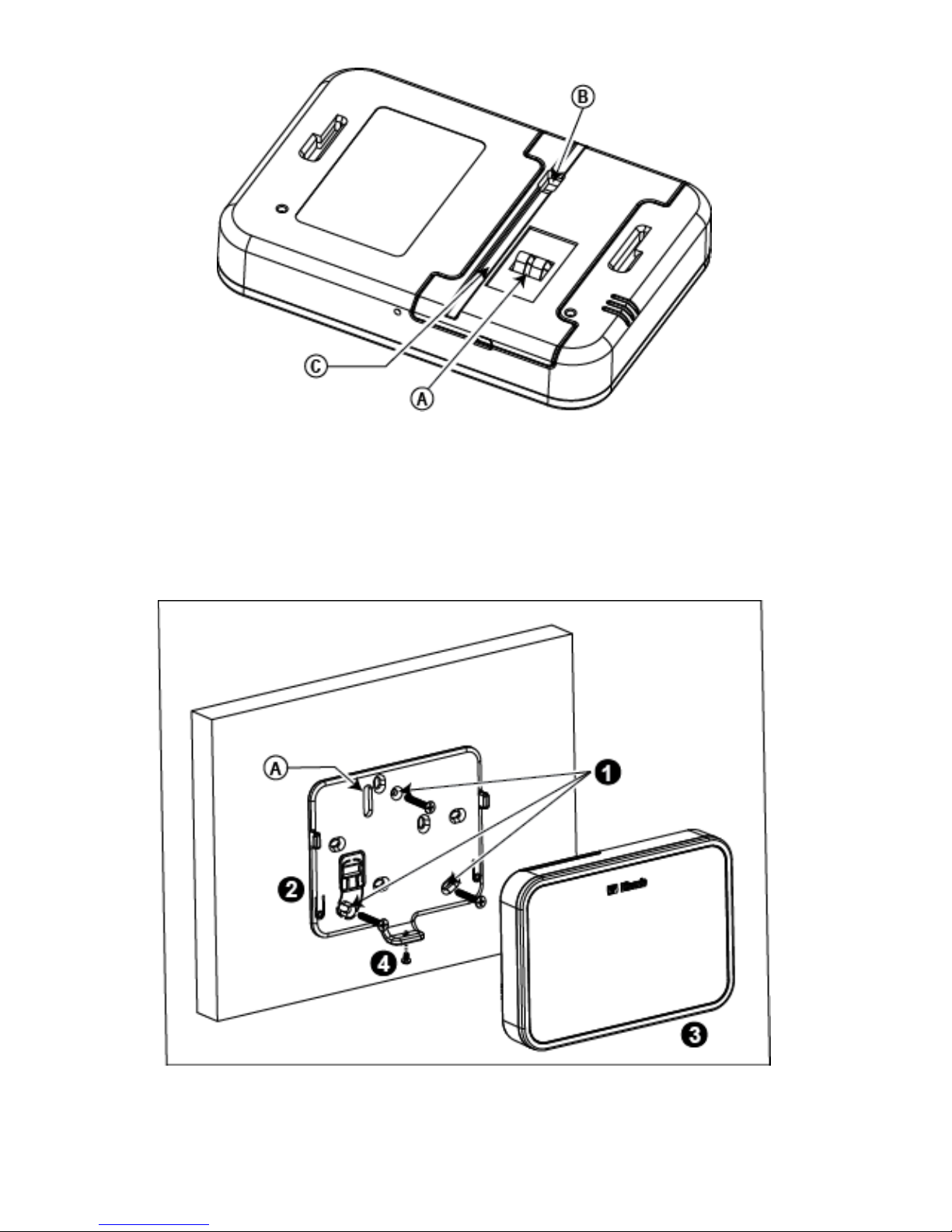

A. Tamper B. DC Power Connection – use supplied cable in addition to batteries
C. Wiring channel for wall installation
Note: The DC cable is available in specific models
2.3 Wall Mount ng Opt ons
The MKP-160 unit mounting options are illustrated in the following drawings.
Wall Mounting
Figure 4 – Wall Mounting
1. Drill 3 mounting holes 3. Attach the unit to the bracket
2. Position the bracket and secure with 3 screws 4. Secure the unit with the screw
A. Hole for DC power source cable installed in wall

D-303503 MKP-160 User's Guide 5
Wall Mounting with External DC Cable
1. Hold the power source cable from the wall and
thread it through its hole in the bracket
2. Drill 2 mounting holes and then
secure bracket with 2 screws
A. Hole for DC power source cable installed in wall B. Hole for tamper
WARNING! The power source (optional) must be 5 - 12VDC.

6 D-303503 MKP-160 User's Guide

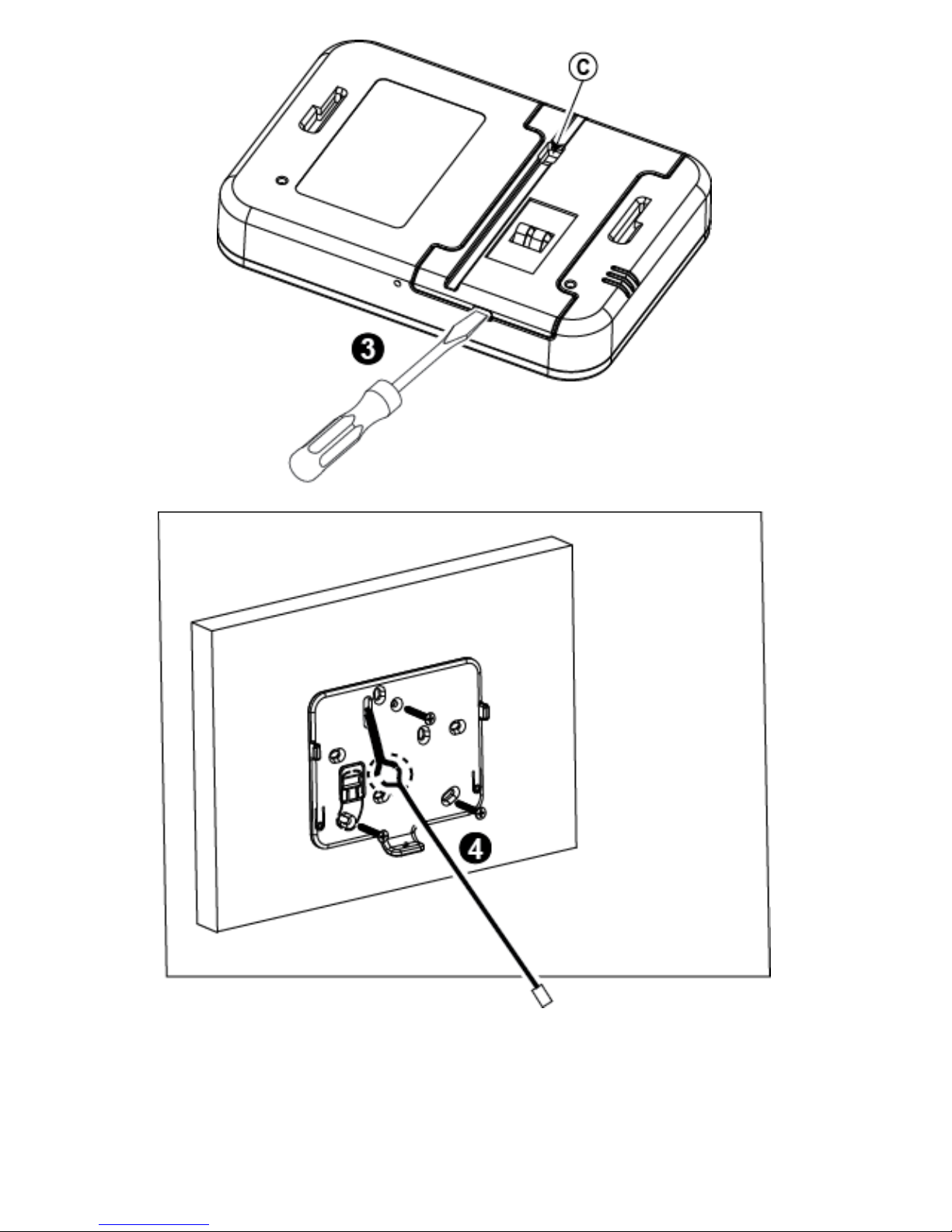

3. Insert screwdriver into slot and lift
upward to separate the battery
compartment cover from the front cover
4. Connect together the power source cable
and the DC cable connector (supplied).
Note: The DC cable connector is available in
specific models
C. DC Power Cable Connection

D-303503 MKP-160 User's Guide 7
5. Connect the DC cable connector to the
DC power connection.
Note: You can connect the DC cable
directly, as shown in the top drawing, or via
one of the wiring inlets indicated by the
arrows.

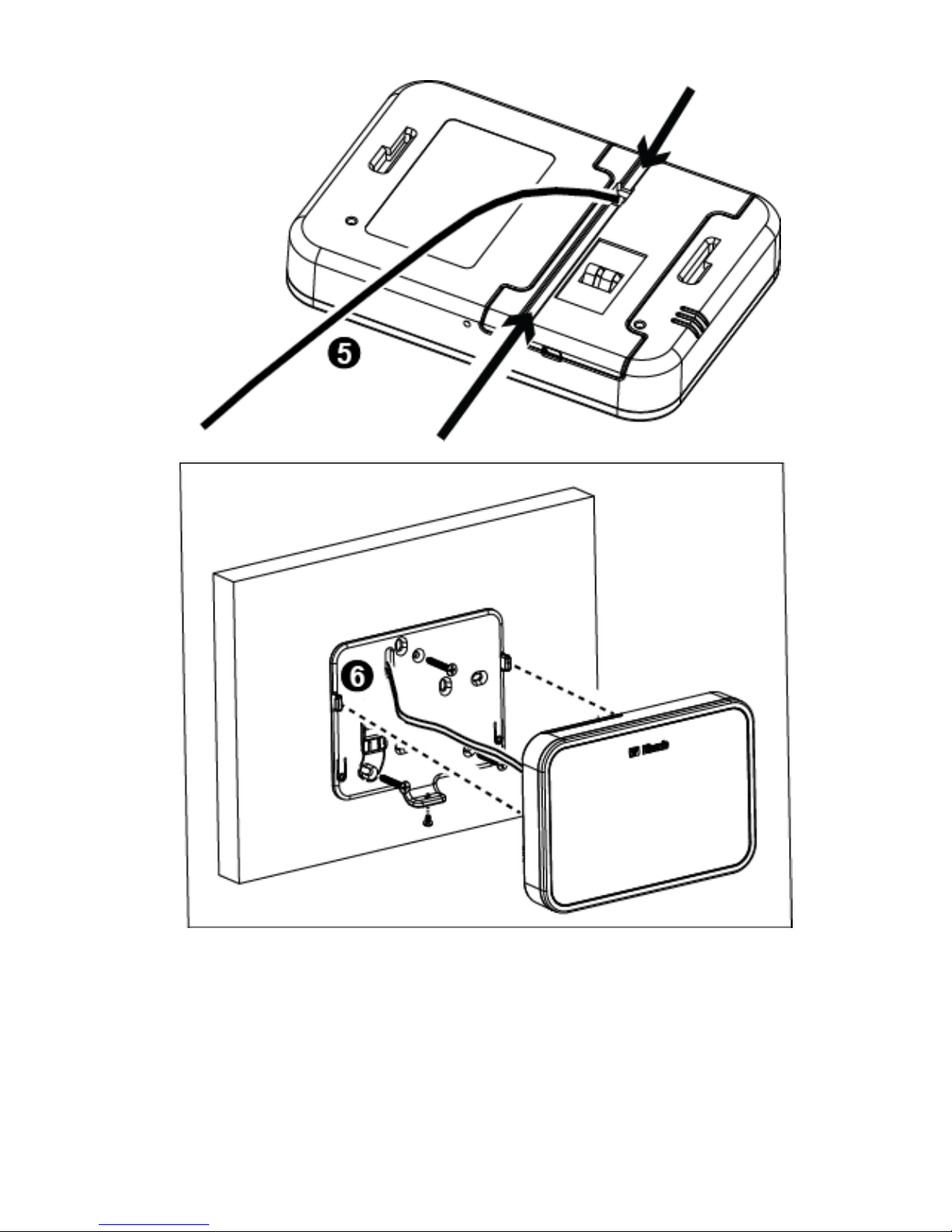

6. Align the bracket pins with their
respective slots.

8 D-303503 MKP-160 User's Guide
7. Push the MKP-160 unit downward on the
bracket
8. Secure the unit with the screw
Figure 5 – Wall Mounting with External DC Cable
Desk mount
1. Insert the bracket pins into
the corresponding slots.
Figure 6 – Desk mount installation

D-303503 MKP-160 User's Guide 9
2.4 Enroll ng the MKP-160
A flowchart of the MKP-160 enrolling procedure is provided below.
Step Action LCD Display
1 Enter the Installer menu and select
“2:ENROLLING”

2 Select "ENROLL WL LCD KP" Option
See Note

3 When "lcd kp No :" appears on the
control panel display, enter the
keyprox number, for example
"lcd kp No : 2".


4 Enroll the device by pressing the
(AUX) button for about 5
seconds until the LED turns ON and
then release the button.

5 The control panel displays the
number of the enrolled device.
6 Configure the MKP-160 Keyprox See section 2.5
 means scroll and select
Note: If the MKP-160 is already enrolled, you can configure the MKP-160 parameters via the
“16.DEFINE ARM ST” main menu.
2.5 Conf gur ng the MKP-160 Parameters
Enter the main menu in the PowerMax control panel, choose the
number of the touch screen keyprox device to configure and follow the configuration
instructions for the MKP-160 touch screen keyprox.
Option Configuration Instructions
Enabling the function will enable a tamper open / close message.
Options settings: disable (default) and enable.
Enabling the function will turn off the display if no key is pressed
for more than several seconds. Tapping on the MKP-160 keyprox
will return the device to normal display.
Options settings: disable (ac) (default) and enable.
Enable/disable AC failure indication on the keyprox device.
Options settings: disable (default) and enable.
TAMPER TYPE
SCREEN SAVER
SHOW AC FAILURE
16 DEFINE ARM ST
arm stn No: 2

TRANSMIT NOW
lcd kp No : 2
lcd kp No :
ENROLL WL LCD KP
2 ENROLLING

10 D-303503 MKP-160 User's Guide
Define whether or not the control panel will monitor supervision
messages sent by the keyprox.
Options settings: disable and enable (default).
Define whether or not the keyprox will sound the exit and entry
beeps or whether the keyprox will sound the beeps only when the
system is armed AWAY and not when it is armed HOME.
Note: When the screen saver is active during an exit/entry delay,
the MKP-160 device will not sound exit-entry beeps (exit-entry
beeps are sounded only through the control panel during this
time). If the MKP-160 returns to normal display during the
entry/exit delay, it will continue to sound the exit-entry beeps until
the next time the screen saver is activated or until the end of the
exit/entry delay, whichever first.
Options settings: off (default); off when home and on.
Define the volume level of the sounder.
Options settings: low, mid (default) and high.
Define if Trouble or Memory events in the control panel will be
indicated on the LCD keyprox.
Options settings: enable (default) and disable.
2.6 Enroll ng Prox m ty Tags
You can enroll proximity tags in the PowerMax control panel either through the MKP-160
touch screen keyprox, as described below, or through the PowerMax control panel, as
described in the corresponding section of the control panel's User or Installer Guide.
Each proximity tag corresponds to its User Code. Therefore, be sure that a corresponding
User Code is programmed for each enrolled proximity tag (code "0000" is not allowed). For
example, "Tag no : 2" must be assigned to User Code 2 and " Tag no : 8" must be assigned
to User Code 8. Partition authorization of each proximity tag is identical to that of the
corresponding User Code. For example, if User Code 3 is set to Partitions 1 and 3,
"Tag no : 3" will also be set to Partitions 1 and 3.
Enrolling Proximity Tags in the PowerMax Panel through the MKP-160 Keyprox
Step Action LCD Display
1 Enter the Installer menu of the control panel and
go to “2 ENROLLING
2 ENROLLING2 ENROLLING
2 ENROLLING”

2 Select "ENROLL PROX TAG" Option

3 Select the Prox Tag number for enrollment


SUPERVISION
Tag no : 8
Tag no :
ENROLL PROX TAG
2 ENROLLING
SOUNDER VOLUME
EXIT-ENTRY BEEPS
SHOW MEM/TRBL

D-303503 MKP-160 User's Guide 11
Step Action LCD Display
4 When "PRESENT TAG
PRESENT TAGPRESENT TAG
PRESENT TAG"is displayed, press the
AWAY key ( ) on the MKP-160. The
AWAY key and the Present Prox Tag key ( )
begin to blink

5 Present the proximity tag to the MKP-160 within
the 5 second timeout period. If the enrollment is
successful, the display reads the selected Prox
Tag number followed by a box.
Tag no : 8

PRESENT TAG

12 D-303503 MKP-160 User's Guide
3
33
3. USING THE
. USING THE . USING THE
. USING THE TOUCH SCREEN
TOUCH SCREEN TOUCH SCREEN
TOUCH SCREEN KEYPROX
KEYPROXKEYPROX
KEYPROX
3.1 Arm ng and D sarm ng the System
Step Operation User Actions Keyboard &
Panel Response
Optional
1 Select a PARTITION
(1)
(if Partition is enabled)
Any combination of The selected
Partition blinks.
2 Arm AWAY
(2)
+ [ ]
(4)
The selected key and
the "Present Prox
Tag" icon ( )
begin to blink and
prompt you to present
your Tag (except for
Quick Arm).
The keyprox's LED
blinks red once to
indicate transmission
of the arming
command to the
control panel.
The LED and the
buzzer then indicate
the control panel's
response – see
“System Status
and Indications”
section 3.3.
Arm HOME
(2)
+ [ ]
(4)
Disarm (OFF)
(2)
+ [ ]
(4)
Quick arm AWAY
(2) (3)
(If Quick Arm is enabled) (≈2 sec.)
Quick arm HOME
(2) (3)
(If Quick Arm is enabled)
(≈2 sec.)
Optional
3 INSTANT (After arming HOME/
AWAY)
(5) (7)
LATCHKEY (After arming
AWAY)
(6) (7)
Notes:
1. If Partition is disabled at the control panel, skip Step 1.
2. If Partition is enabled at the control panel and a partition was not selected in Step 1,
Step 2 will activate all of the partitions assigned to the user.
3. The Quick arm functions only if enabled at the control panel.
4. If the action is not completed while the selected arming key is blinking, the desired
function will not be executed.
5. Press the INSTANT key within maximum 8 seconds timeout period after completing the
previous step. This will delete the entry delay for the current arming session.
•INSTANT is available only if supported in the PowerMax control panel (refer to the
PowerMax Installer Guide).
6. For LATCHKEY activation, press the LATCHKEY key within maximum 8 seconds
timeout period after completing the previous step.

D-303503 MKP-160 User's Guide 13
7. LATCHKEY is available only if the LATCHKEY feature is enabled in the PowerMax
control panel (see PowerMax Installer Guide).You can perform the LATCHKEY and
INSTANT functions, one after the other. The order is not important.
•LATCHKEY and INSTANT functions can be operated only during exit delay.
•While in INSTANT / LATCHKEY, the small circle icon on the upper right side of the
INSTANT / LATCHKEY icon lights.
3.2 In t at ng Alarms
Alarms Actions Response Notes
Emergency
alarm
(≈2 sec.)
See section
3.3.
When pressing the Fire or
Emergency icons, the MKP-160
starts beeping. After pressing the
button for approx. 2 seconds, the
MKP-160 sends the command.
Fire alarm
(≈2 sec.)
See section
3.3.
Panic alarm
(≈2 sec.)
See section
3.3.
When pressing the Fire and
Emergency icons together, the
MKP-160 starts beeping. After
pressing the button for approx. 2
seconds, the MKP-160 sends the
Panic command.
3.3 System Status and Ind cat ons
When executing a command, the MKP-160's LED ("29" in the "Quick Reference Guide")
blinks red once to indicate transmission of the command to the control panel. If the operation
is successfully completed, the green LED lights momentarily and a "happy tune" sounds.
If the operation fails or cannot be completed, for example, when the system is "Not
Ready", the red LED lights steadily and a "sad tune" sounds.
Buzzer Indication LED Indication Panel Response
Happy
(success) tune
Momentary GREEN Success: Operation is
successfully completed
Sad (failure) tune Momentary RED Fail: Operation failed or
invalid key press
None None No communication:
Control panel does not
respond.

14 D-303503 MKP-160 User's Guide
Arming Indications
The table below lists the Arming indication keys and their definition.
Icon/Key Indications Arming Indication
ARM AWAY
ARM HOME
DISARM
(followed by) (followed by)
EXIT DELAY
+ the "Present Prox Tag" icon and
DISARM key blink simultaneously
ENTRY DELAY
If Partition is enabled, the corresponding (house) icon is displayed according to partition state.
General Indications
The Ready/Not Ready, Alarm Memory, Trouble and Low Battery indications are provided via
the indications in the following table:
Number Indication
[
1
]
What it Means
Instructs the user to present the RFID proximity
tag in order to initiate a command.
Volume control mode.
System is NOT READY; one of the zones is not
secured. You cannot arm the system before the
zone is secured or bypassed.
System is READY but one or more zones are
bypassed.
No indication System is READY and all zones are secured.
+
Bypassed ( ) or Open ( ) Zone number
/ +
Selected PGM or X-10 unit number.
+
Volume level

D-303503 MKP-160 User's Guide 15
Number Indication
[
1
]
What it Means
PGM/X-10 control mode.
System is armed in LATCHKEY mode.
Exit beeps are shut off. This mode disables
when the exit delay is over.
[2]
System is armed in the INSTANT mode.
A message is waiting in the system.
The control panel is presently in "INSTALLER
MODE" or "USER SETTINGS".
Memory / Alarm in partition or system.
The partition / system has an active trouble
status that needs to be reviewed and cleared.
[3]
AC failure.
Communication failure: MKP-160 is out of range
of the control panel or did not get an
acknowledge signal of a command from the
control panel.
Indicates that the MKP-160 device's battery is
low and must be replaced (see section 2.1).
[1] The key indication is displayed after the first red LED blinks indicating the status request.
[2] Operates only during Exit Delay.
[3] See respective sections in the control panel's User and Installer's Guides.
[4] If there is more than one status indication at a single time, the keys are displayed
simultaneously.
Zone Status Indications
To view the zone numbers of enrolled detectors that are in NOT READY ( ) or
BYPASSED state ( ), repeatedly press the key. Upon each press of the key,
the next zone number appears on the Zone # display (marked "4" in the "Quick Reference
Guide").
To view the zone numbers that are assigned to a Partition, press the desired Partition
number ( / / ) followed by the key. Upon each press of the key, the
next zone number assigned to the pressed Partition number appears on the Zone # display.

16 D-303503 MKP-160 User's Guide
Notes:
A zone which is BYPASSED and NOT READY is shown as BYPASSED ( ).
When "00" appears on the Zone # display, this indicates a NOT READY state in the alarm
system that is not related to any detector, for example, "tamper open" in a keypad or control
panel.
If all zones are READY and "not bypassed", the button is disabled.
3.4 Bypass ng Zones
A zone can by bypassed by pressing the key until the zone number is shown on the zone #
display (marked "4" in the "Quick Reference Guide") followed by the key.
Note: Zone bypassing on the MKP-160 unit can be operated only if Bypass was enabled via
the control panel (see PowerMax Installer Guide).
3.5 Controll ng Home Automat on Dev ces
To operate home automation devices, see the table below.
Note: Make sure that the relevant PGM and X-10 outputs are configured correctly; refer to
the “OUTPUTS” menu in the control panel’s Installer Guide.
Step X-10 device ON PGM device ON X-10 or PGM
device OFF
X-10 or PGM
device TOGGLE
1 (~2sec)
2 …
[1 to 15]
…
[P0]
[PGM 

P0] or
[X-10

1 to 15]
[PGM 

P0] or
[X-10

1 to 15]
3
The keyprox's LED blinks red once to indicate transmission of the command to the control
panel. The LED and the buzzer then indicate the control panel's response – see “System
Status and Indications” in section 3.3.
Note:
•Long press (more than 2 sec.) of the button initiates the X-10 function and the
PGM/X-10 display (marked "4" in the "Quick Reference Guide") will read "01". This
number is incremented by 1 upon each press of the key.
•Short press of the button initiates the PGM function and the PGM/X-10 display will
read "P0" with the key.

D-303503 MKP-160 User's Guide 17
3.6 Other Funct ons
Output Function Actions Response
AUX Function
Enrollment: Long key press (more than 5 sec.)
until green LED lights and then release key.
Back to Factory: Long key press (more than 7
sec.) to reset the MKP-160 device to factory
default settings.
Cancels current operation: Short key press
Volume control Changes the volume level upon each key press.
Volume level alternates between 1, 2, 3, 0
Mute exit beeps Mutes the exit beeps; small circle key will appear
above the key. Press button again to cancel mute.
Note: Operates only per Exit Delay duration. Upon
next Exit Delay, the exit beeps will not be muted.

18 D-303503 MKP-160 User's Guide
APPENDIX
APPENDIXAPPENDIX
APPENDIX A
AA
A: SPECIFICATIONS
: SPECIFICATIONS: SPECIFICATIONS
: SPECIFICATIONS
Frequency Band (MHz) Europe and rest of world: 433.92 and 868.95
USA: 315
Communication Protocol PowerCode
Battery type Four 1.5V AA Alkaline batteries
Battery Life Expectancy 4 years for supervised mode and 6 years for
non-supervised mode.
Low Battery Threshold 3.8 V
Power source (optional) 5-12VDC
Back light Blue/white or black/white
Operating Temperature 0°C to 55°C (32°F to 131°F)
Dimensions (WxLxD) 150x100x20mm (5-7/8 x 3-7/8 x 13/16 in)
Weight (including battery and bracket) 379 g (13 oz).
Mounting Wall-mounted or desktop
Color White, black, or silver
Compliance with Standards Europe: EN 300220-1, EN 300220-2,
EN300330, EN301489, EN60950, EN50131-1,
EN50131-3, EN50131-6.
USA: CFR 47 part 15
Canada: RSS 210
RFID Tags: ISO-18000-2 (125 kHz)
EN 50131-1 Security Grade Grade 2
EN 50131-1 Environmental Class Class 2
