VitalGo Total-Lift VG-TLBB- 1004 Operating instructions

Elevating Patient Care to a New Level
Total-Lift™Bariatric Bed
ASSEMBLY, OPERATING AND MAINTENANCE MANUAL
DEALER: This Manual MUST be given
to the user of the product.
USER: BEFORE using this product, read
this manual and save for future reference.
© 2008 Vitalgo Systems Ltd. All rights reserved. Vitalgo, the Vitalgo logo, Total-Lift™Bariatric Bed, Joy Bath, Joy Spa, Total-Lift™Armchair and Total-Lift™Toilet Seat are trademarks of Vitalgo Systems
Ltd. Other names are the property of their respective owners.
For more information regarding
VitalGo products, parts, and services,
please visit www.vitalgosys.com
Bed Model:
VG-TLBB- 1004

WARNING
DO NOT OPERATE THIS EQUIPMENT WITHOUT FIRST READING AND UNDERSTANDING THIS MANUAL.
IF YOU ARE UNABLE TO UNDERSTAND THE WARNINGS, CAUTIONS, AND INSTRUCTIONS, CONTACT A HEALTHCARE PROFES-
SIONAL, DEALER OR TECHNICAL PERSONNEL BEFORE ATTEMPTING TO USE THIS EQUIPMENT - OTHERWISE INJURY OR DAMAGE
MAY RESULT.
THE INITIAL SET UP OF THIS BED MUST BE PERFORMED BY A QUALIFIED TECHNICIAN.
PROCEDURES OTHER THAN THOSE DESCRIBED IN THIS MANUAL MUST BE PERFORMED BY A QUALIFIED TECHNICIAN.
FOR DEALERS ONLY - SET-UP AND ASSEMBLY INSTRUCTIONS ARE INCLUDED IN THIS MANUAL. THESE PROCEDURES MUST BE
PERFORMED BY A QUALIFIED TECHNICIAN ONLY.
PLEASE NOTE: Updated versions of this manual are available on www.vitalgosys.com.
SPECIAL NOTES
Signal words are used in this manual and apply to hazards or unsafe practices which could result in personal injury
or property damage. Refer to the text below for denitions of the signal words.
SIGNAL WORD MEANINGS:
DANGER - Danger indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING - Warning indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION - Caution indicates a potentially hazardous situation which, if not avoided, may result in property damage.
NOTICE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.
Vitalgo products are specically designed and manufactured for use in conjunction with Vitalgo accessories.
Accessories designed by other manufacturers have not been tested by Vitalgo and are not recommended for use
with Vitalgo products.
2
WARNING / CAUTION SUMMARY
• KEEP HANDS AND FEET CLEAR OF ALL MOVING PARTS.
• DO NOT ALLOW SMALL CHILDREN ON OR NEAR BED DURING OPERATION.
• DO NOT ALLOW THIS DEVICE TO BE OPERATED BY SMALL CHILDREN.
• WHEN OPERATING THE HI-LO, KNEE, TILTING, LEG REST OR BACK FUNCTION OF THE BED, ALWAYS ENSURE THAT THE
INDIVIDUAL CONFINED TO THE BED IS POSITIONED PROPERLY WITHIN THE CONFINES OF THE BED. DO NOT LET ANY
EXTREMITIES PROTRUDE OVER THE SIDE OR BETWEEN THE BED RAILS WHEN PERFORMING ANY FUNCTIONS.
• DO NOT USE UNAUTHORIZED SIDE RAILS.
• WARNING/CAUTION LABELS APPLIED TO THE BED OUTLINE HAZARDS OR UNSAFE PRACTICES THAT COULD RESULT IN
PERSONAL INJURY AND/OR PROPERTY DAMAGE.
• POWER AND WIRED HAND SET CORD MUST BE ROUTED AND SECURED PROPERLY TO ENSURE THAT THE CORD DOES

3
NOT BECOME ENTANGLED AND EVENTUALLY SEVERED DURING USE. MAKE SURE ELECTRIC CORDS DO NOT GET TANGLED
AROUND THE BED, SIDE RAILS OR LEGS DURING NORMAL OPERATION OF THE BED.
• WHEN USING NASAL OR MASKED TYPE ADMINISTERING EQUIPMENT, OXYGEN OR AIR TUBING MUST BE REMOVED BEFORE
AND DURING THE NORMAL OPERATION OF BED.
THE USAGE OF SUCH EQUIPMENT IN CONJUNCTION WITH THE BED FUNCTIONS COULD RESULT IN PERSONAL INJURY
AND/ OR PROPERTY DAMAGE
• KEEP ALL MOVING PARTS FREE OF OBSTRUCTIONS (I.E. BLANKETS/SHEETS, HEATING BLANKETS/
PADS, TUBING, WIRING, AND OTHER TYPES OF PRODUCTS)
Meaning of the Safety Symbols
In these instructions the following safety symbols are used:
Warning about injuries to persons
Dangerous voltage. Life Threatening.
General danger. Injury or life hazard.
Warning about property damages
Possibility of damage to motor, material or environment.
OTHER SYMBOLS
Useful tip. For easier operation or better understanding of the unit.
Company name and address
Manufacturing date
IPX4 Protected against splashing water
Consult instruction manual
The item meets all the essential requirements of the relevant European Directive(s).
This Symbol applies to European Union only as is dened as“Separate collection for
electrical and electronic equipment waste per Directive 2002/96/EC in the European Union”
Type B device
Reference to the hazards in the instruction manual
Max Patient Weight
Safe Working Load - indicates maximum bed weight handling capacity
The safety symbols used does not replace the text of the safety notes.
Therefore read the safety instructions and follow them exactly!
Danger!
Warning!
Caution!
Important!
!
!

Table Of Contents
WARNING..................................................................................................................................................................................................................... 2
SPECIAL NOTES ......................................................................................................................................................................................................... 2
NOTICE.......................................................................................................................................................................................................................... 2
WARNING /CAUTION SUMMERY ....................................................................................................................................................................... 2
MEANING OF THE SAFETY SYMBOLS............................................................................................................................................................... 3
PREFACE ....................................................................................................................................................................................................................... 6
ABOUT THE VITALGO TOTALLIFT™ BARIATRIC BED .................................................................................................................................. 7
UNPARALLELED SAFETY............................................................................................................................................................... 7
GENERAL GUIDELINES & SAFETY INSTRUCTIONS ...................................................................................................................................... 8
OPERATING INFORMATION ......................................................................................................................................................... 8
ENTRAPMENT WARNING .............................................................................................................................................................. 8
REPLACEMENT PARTS/ACCESSORIES GUIDELINES ........................................................................................................... 8
ELECTRICAL GUIDELINES ............................................................................................................................................................. 9
REPAIR OR SERVICE INFORMATION.......................................................................................................................................... 9
RADIO FREQUENCY INTERFERENCE ......................................................................................................................................10
WEIGHT LIMITATIONS ..................................................................................................................................................................10
BEFORE PUTTING THE BED INTO OPERATION FOR THE FIRST TIME.........................................................................10
WARNINGS FOR USERS AND CAREGIVERS..........................................................................................................................10
DEFINITIONS OF INVOLVED PERSONS..................................................................................................................................11
SAFETY INSTRUCTIONS FOR TECHNICIANS .......................................................................................................................11
SAFETY INSTRUCTIONS FOR USERS AND CAREGIVERS.................................................................................................12
VGTLBB 1004 BED DESCRIPTION..................................................................................................................................................................13
PRODUCT DESCRIPTION .....................................................................................................................................................................................16
NORMAL OPERATING PROCEDURE ................................................................................................................................................................16
SPECIAL FEATURES ................................................................................................................................................................................................16
CLASSIFICATION .....................................................................................................................................................................................................16
TECHNICAL SPECIFICATIONS.............................................................................................................................................................................17
TOTALLIFT™ BARIATRIC BED SIDE RAILS.............................................................................................................................19
DESCRIPTION OF MATERIALS...................................................................................................................................................19
LABEL LOCATIONS.........................................................................................................................................................................19
OPERATION ...............................................................................................................................................................................................................21
WIRED HAND SET ...................................................................................................................................................................................................21
SIDE RAIL CONTROL..............................................................................................................................................................................................21
CONTROL FUNCTIONS .........................................................................................................................................................................................22
4

MANUAL FUNCTIONS...........................................................................................................................................................................................22
ADJUSTMENT OF THE BACK REST...........................................................................................................................................22
RAISING & LOWERING LEGREST.............................................................................................................................................22
RAISING & LOWERING THE BED HORIZONTALLY..............................................................................................................23
WHEELS POSITION........................................................................................................................................................................23
SEATING WITH LEGS UP/ DOWN WITH MEMORY FUNCTION...................................................................................23
CPR SLEEPING POSITION.........................................................................................................................................................23
MEMORY FUNCTION....................................................................................................................................................................24
NURSE FUNCTIONS.......................................................................................................................................................................24
SIDERAIL CONTROL.....................................................................................................................................................................24
INITIALIZATION OF THE BED..............................................................................................................................................................................25
STRAPPING SYSTEMSOPTIONAL...................................................................................................................................................................25
NON AMBULATORY PATIENT STRAPPING SYSTEM .........................................................................................................25
RETRACTABLE HEAD BOARD.............................................................................................................................................................................26
TROUBLESHOOTING .............................................................................................................................................................................................27
MAINTENANCE........................................................................................................................................................................................................28
MAINTENANCE CHECKLIST ...............................................................................................................................................................................28
ELECTRICAL INSPECTION AND MAINTENANCE................................................................................................................28
RECHARGEABLE BATTERIES MAINTENANCE......................................................................................................................28
CLEANING AND DISINFECTING ..............................................................................................................................................29
HOW TO EXTEND THE BED..................................................................................................................................................................................30
CABLE ARRANGEMENT FOR TRANSFERRING BED ....................................................................................................................................31
MATTRESS ATTACHMENT....................................................................................................................................................................................32
TOTALLIFT™ BARIATRIC BED  WEIGHT BEARING CONTROL SYSTEM.............................................................................................33
TLB  BED SCALE PATIENT WEIGHT SYSTEM ...............................................................................................................................................35
FOOTLIFTER SCALE PRESSURE SENSOR ...................................................................................................................................................36
LOW AIR LOSS MATTRESS SYSTEM..................................................................................................................................................................37
OPERATING INSTRUCTIONS ......................................................................................................................................................39
INCLINOMETER  ANGLE SENSOR...................................................................................................................................................................41
ITHE TOTAL DRIVE TDR......................................................................................................................................................................................42
LIMITED WARRANTY..............................................................................................................................................................................................52
ABOUT VITALGO SYSTEMS LTD.........................................................................................................................................................................53
OUR MISSION...........................................................................................................................................................................................................53
FLAGSHIP PRODUCT.............................................................................................................................................................................................53
5

6
Preface
Dear Customer,
Thank you for the condence you have shown in VitalGo Systems products.
The Total-Lift™ Bariatric Bed has been factory checked for electrical safety. All functions have been checked and are operating
perfectly.
Please take your time to read this manual carefully before operating the bed. This manual applies normal use of the bed and
maintenance. It is also a practical reference guide. Keep the instructions in a handy place. These instructions provide informa-
tion for the operator and user regarding the convenient handling and safe operation of the bed.
We hope that the VitalGo Total-Lift™ Bariatric Bed alleviates any problems that you or your caregiver experience in getting in
and out of bed.
VitalGo Systems LTD.

About The Vitalgo Total-Lift™ Bariatric Bed
The Total-Lift™ Bariatric Bed sets new standards in patient and care givers treatment and comfort.
The Total-Lift™ Bariatric Bed is a Bed and so much more. Giving many advantages over conventional beds.
The revolutionary design allows the bed to raise the user to a fully standing position and all positions in between including
chair positions.
Among all its clinical obvious benets, the Total-Lift™ Bariatric Bed is the best solution for safe patient handling and safe lifting.
The Total-Lift™ Bariatric Bed is ideal for –
• Hospitals.
• Nursing Homes.
• Assisted Living Facilities.
• Long Terms Acute Care centers.
• Rehabilitation centers.
• Sports rehabilitation centers.
• Homecare – Aging in Place.
With just a press of a button you can bring the patient to any position desired.
The Patented technology of the Total-Lift™ Bariatric Bed, moves the Foot Lifter™ towards the feet of the patient / user, and only
when making contact will start tilting, thus preventing any danger of sliding while tilted.
While the bed tilts, when in proper angle the Foot Lifter™ will gradually move down so when the bed is in fully standing posi-
tion the Foot Lifter will be parallel to oor allowing to simply walk out of bed, with or without assistance.
The patient can also be just tilted, for treatment, in any desired angle, for as long as needed.

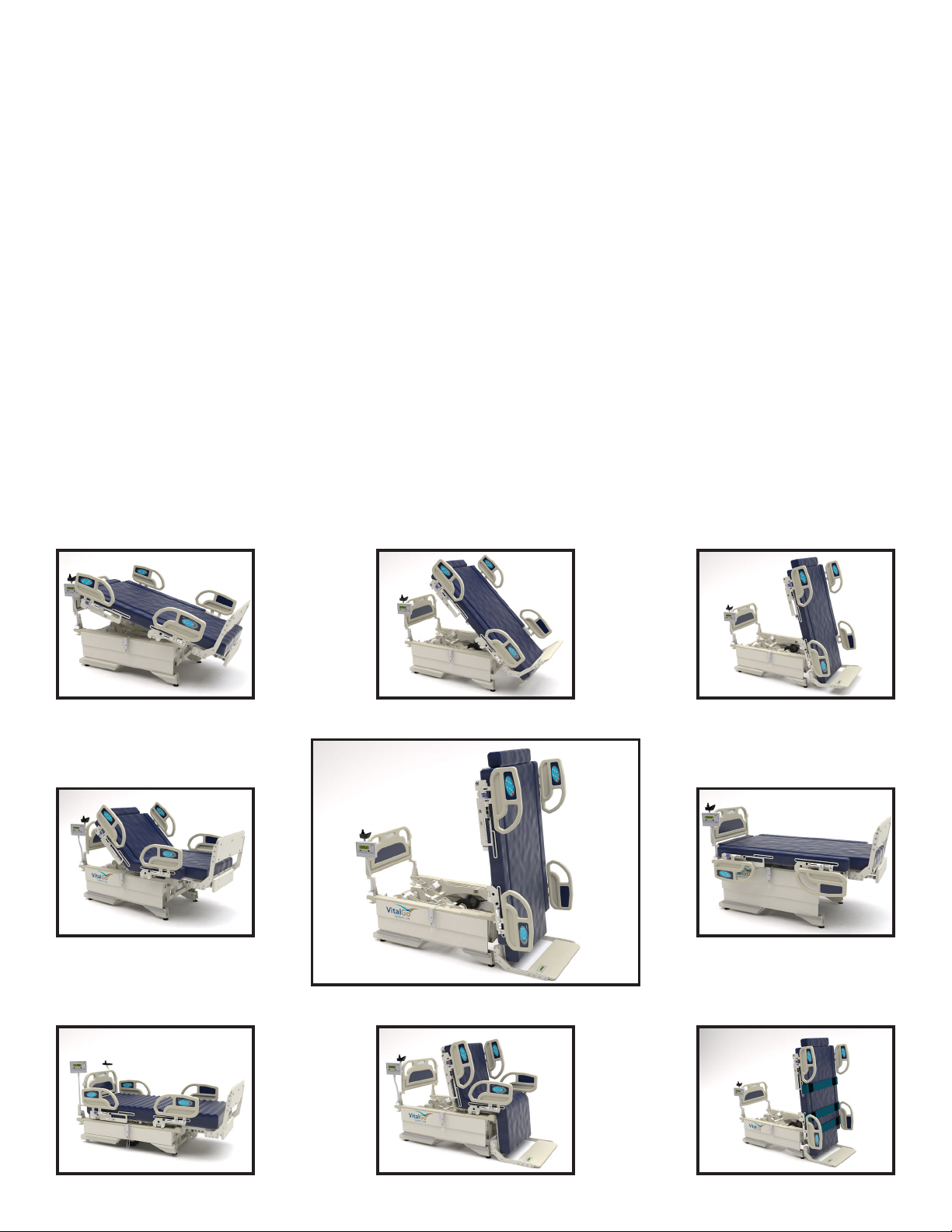

The Total-Lift™ Bariatric Bed has all possible bed and chair positions.
The Total-Lift™ Bariatric Bed can come with powered and non powered mattress in any grade.
Weight Bearing control – The Total-Lift™ Bariatric Bed is the only real true“Weight Bearing control device” . Knowing the exact
amount of pressure placed on the lower extremities of the user, which can be increased or decreased by changing the beds
angle.
UNPARALLELED SAFETY
Safety is the top priority of all Vitalgo products. The Total-Lift™ Bariatric Bed incorporates numerous safety features and mecha-
nisms and meets or exceeds the highest standards for medical electric beds.
The Total-Lift™ Bariatric Bed is FDA and CE Registered and conform with EN\IEC 60601-1:1996, EN\IEC 60-601-2-38:1996 and
UL 60601-1:2003.
The integrated safety features include:
• Exclusive self-adjusting Foot-Lifter™ – Automatically moves up to rest under the user’s feet prior to the bed tilting into an
upright position, preventing the user from sliding down in the bed. Embedded micro-switches ensure the user is properly
positioned and that when the bed is in an upright position, the user’s feet are at ground level.
• Vitalgo has adopted all FDA clinical guidance to reduce Entrapment.
• Electronic braking – Hidden casters are electronically lowered to allow mobility and raised to secure stability;
they are automatically raised before the bed can be tilted or the sitting/reclining positioning adjusted.
7

General Guidelines & Safety Instructions
OPERATING INFORMATION
DO NOT use near explosive gases.
Keep the product a minimum of 12” away from any direct heat source.
Close supervision is necessary when this product is used by or near children or people with disabilities.
Check all parts for shipping damage and test before using. In case of damage, DO NOT use. Contact a qualied
technician for further instruction.
After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely.
DO NOT let any individual underneath the bed or in between the raised bed frame components at anytime.
When bed is not to be used for an extended period, unplug electric bed from the wall outlet.
When operating the bed body weight should be evenly distributed over the surface of the bed. DO NOT lay, sit or lean in such
a way that your entire body weight is placed only on raised head or foot sections of the bed. This includes when assisting the
user in repositioning or transferring in or out of bed.
This Warning DOES NOT apply to the Foot Lifter™.
When operating/moving beds, always ensure that the individual utilizing the bed is positioned properly within
the connes of the bed. DO NOT let any extremities protrude over the side or between the bed rails when per-
forming these functions.
If the unit is not working properly, call a qualied technician to examine the unit and repair it.
Keep all moving parts, including the main frame, mattress deck (head and foot sections) and all drive shafts, free of obstruction
(i.e. Blankets/sheets, heating blankets/pads, tubing, wiring, etc. and other types of products using electric cords which may get
tangled around the bed, side rails or legs) during operation of the bed.
ENTRAPMENT WARNING
Proper patient assessment and monitoring, and proper maintenance and use of equipment is required to reduce the risk of
entrapment. Variations in bed rail dimensions, and mattress thickness, size or density could increase the risk of entrapment.
Visit the FDA web site at http://www.fda.gov to learn about the risks of entrapment.
After any adjustments, repair or service and before use, make sure all attaching hardware is tightened securely. Assist
rails with dimensions dierent from the original equipment supplied or specied by the bed manufacturer may not
be interchangeable and may result in entrapment or other injury. Mattress MUST t bed frame and assist rails snugly to
reduce the risk of entrapment.
REPLACEMENT PARTS/ACCESSORIES GUIDELINES
VitalGo products are specically designed and manufactured for use in conjunction with VitalGo accessories.
Accessories designed by other manufacturers have not been tested by VitalGo and are not recommended for use
with VitalGo products.
Use ONLY VitalGo’s Total-Lift™ Bariatric Bed supplied mattress and connect it to the bed frame according to the instructions in
this manual (see page 37)
8

Bed rails can be deformed or broken if excessive side pressure is exerted on the bed rails. These bed rails are used for the
purpose of preventing an individual from inadvertently rolling out of bed. The bed rails are NOT intended nor may be used
for restraint purposes. If an individual is capable of injuring himself/herself, a physician or a healthcare professional should be
consulted for alternative means of safe restraint.
DO NOT use the side rails as push handles for moving the bed.
Once patient assessment concludes that the patient’s condition increases the chance of entrapment, the bed MUST be in the
at position when left unattended.
Trapeze units must not be used in conjunction with the bed’s operation.
Trapeze units are to be used only for assisting the patient in repositioning or transferring into or out of bed and must be
moved away from the bed as soon as the patient nished using them.
Replacement mattresses and bed side rails with dimensions dierent than the original equipment supplied or specied by the
bed frame manufacturer are not interchangeable.
Variations in bed side rail design, width and thickness or rmness of the mattress could cause/contribute to entrapment. Use
only authorized VitalGo replacement parts and/or accessories otherwise the warranty is void. VitalGo will not be responsible
for any damage or injury that may result.
ELECTRICAL GUIDELINES
DANGER
Connect the bed directly to an electrical outlet. Do not use extension cords and/or multiple outlet extension cords.
Use of three prong adapters can result in improper grounding and present a shock hazard to the user.
NEVER operate if the unit has a damaged cord or plug. If it is not working properly, call a qualied technician for examination
and repair.
Keep all electrical cords away from heated or hot surfaces.
Ensure all cables and cords are routed such that they will not become entangled or pinched. Otherwise damage or injury may
result.
DO NOT unplug power cord from junction box.
The pendant and power cords must be routed and secured properly to ensure that the cords DO NOT become entangled,
pinched and/or severed during operation of the electric bed.
Refer servicing to qualied personnel only. Grounding reliability depends upon a properly grounded wall outlet.
REPAIR OR SERVICE INFORMATION
DO NOT open assemblies such as the motors, pendant, junction boxes or gear boxes. No user serviceable parts are inside. Only
qualied technicians are permitted to repair these parts. If unqualied individuals perform any work on these beds, the war-
ranty is void.
Unplug the power cord from its power source before performing any maintenance on the bed.
DO NOT unplug the power cord from the junction box. Damage to cord will result.
9

RADIO FREQUENCY INTERFERENCE
Electronic equipment may be inuenced by Radio Frequency Interference (RFI). Caution should be exercised with regard to
the use of portable communications equipment in the area around such equipment. If RFI causes erratic behavior, unplug the
electric bed IMMEDIATELY. Leave unplugged while transmission is in progress.
WEIGHT LIMITATIONS
The total weight limit of the VitalGo Total-Lift™ Bariatric Bed is 1000 pounds (454kg) patient weight.
DO NOT permit more than one person on the bed at any time.
When the bed is an operation body weight should be evenly distributed over the surface of the Total-Lift™ Bariatric Bed.
DO NOT lay, sit or lean in such a way that your entire body weight is placed only on raised head or foot sections of the bed.
This includes when repositioning or transferring in or out of bed.
This Warning DOES NOT apply to the Foot Lifter™.
BEFORE PUTTING THE BED INTO OPERATION FOR THE FIRST TIME:
Read these instructions carefully in order to avoid damage or incorrect operation. Before using the Total-Lift™ Bariatric Bed, the
user shall ensure that it is in Proper working order and free of defects, and be aware of the instruction manual. This applies also
to the accessories.
The VitalGo Total-Lift™ Bariatric Bed complies with all requirements of the guidelines for medical products. It is classied as a
Medical Equipment Electrical Operated Hospital Bed in accordance with standard IEC60601(US) and EN60601-2-38(EU).
The VitalGo Total-Lift™ Bariatric Bed was checked by an independent examining institute. As with all technical, electrical de-
vices improper handling can lead to damage and/or injury.
Observe your obligations as operator in accordance with medical devices Operators guidelines for Medical Products in order
to ensure a dependable and safe operation of this medical device without endangering patients, users and third parties.
This manual contains safety guidelines, which must be observed. All persons who work with the VitalGo Total-Lift™ Bariatric
Bed must familiarize themselves with these instructions and follow the safety guidelines.
WARNINGS FOR USERS AND CAREGIVERS
Position the power cable in such a way that during normal operation of the bed the cable will not be stretched, driven over or
interfere with moving parts of the bed.
Before any relocation of the bed it is imperative that the power cable is pulled from the wall socket and that the cable cannot
fall or be dragged over the oor.
Check the power cord regularly for damage (abrasions, exposed wires, kinks, pressure marks, etc.) In particular:
• After every larger mechanical strain (e.g.: Rolling over the power cord with the bed or with an equipment cart.
• After a strong pulling or bending load caused by the bed rolling away with the power cord still attached to the wall outlet.
• After relocating/moving and before plugging in the power cable.
• During prolonged operating by the user.
Do not use the area under the Total-Lift™ Bariatric Bed as a “parking spot” for any utensils.
Lower the bed to sleeping positions (see Page 23) and lift side rails if present when leaving the patient unattended. This re-
duces the risk of injury to the patient getting in and out of the bed.
10

Keep the wired hand set safe from accidentally falling during non-use (Hang it on the its holder). Take care that the cable is not
damaged by the moving parts of the bed.
To protect the patient and especially children from unintentionally adjusting the Wired hand set, place it beyond their reach.
Place the wired hand set out of the patient’s reach when:
• The patient is not able to control the bed safely or he is unable to get out of dangerous positions without help.
• When bed has functioning problem.
• Unsupervised children are in the room with the Total-Lift™ Bariatric Bed.
Initialization/ assembly functions can only be performed by a properly trained personal When the Total-Lift™ Bariatric Bed is
located in institutions (e.g.: Hospitals, nursing homes etc.).
When in home use the Total-Lift™ Bariatric Bed Initialization/ assembly functions should only be used by a qualied technician.
Denitions of involved persons
In this manual the following persons are involved:
TECHNICIAN
Technicians (e.g.: Medical Supply Houses, Dealers and representatives, health insurance companies) are natural persons or
legal entities, who utilize the Total-Lift™ Bariatric Bed or authorize its use.
The technician is responsible for instructing the user in the proper use of the unit.
CARE GIVER
Caregivers are persons who as a result of training and experience are authorized to operate the Total-Lift™ Bariatric Bed. The
care giver can recognize and avoid possible dangers, and judge the clinical condition of the patient.
USER
In this manual a the user is an inrm or injured or disabled person who uses the Total-Lift™ Bariatric Bed (or others who might
nd it useful).
SPECIALIST STAFF
Specialist sta are employees of the suppliers who are authorized as a result of their education and training to deliver, assem-
ble, dismantle and transport the Total-Lift™ Bariatric Bed. Furthermore, they are familiar with the regulations for cleaning and
disinfecting the unit.
Safety instructions for Technicians
Before rst use, instruct every user in the safe operation of the Total-Lift™ Bariatric Bed in accordance with these safety instruc-
tions, which must be supplied along with the unit.
Call attention to the dangers of improper use of the unit, especially in regards to the electrical drives and side rails.
When the Total-Lift™ Bariatric Bed is located in institutions (e.g.: Hospitals, nursing homes etc.) The unit should only be oper-
ated by properly trained personnel.
When in home use the Total-Lift™ Bariatric Bed should only be used by users who read and understood thoroughly the opera-
tion manual.
Make sure that representatives are also familiar with the operation of the VitalGo Total-Lift™ Bariatric Bed.
During long term use it is recommended that the Total-Lift™ Bariatric Bed be inspected for function and visible damage at
regular intervals (Recommendation: yearly) (see Maintenance Checklist - Page 28).
Connect the bed directly to an electrical outlet. Do not use extension cords and/or multiple outlet extension \cords.
11

When attaching other equipment (e.g. compressors for positioning systems) make sure that they are mounted and can func-
tion in a secure and safe manner.
Do not put multiple outlet electrical extensions under the bed. Leaking liquids can cause a re hazard.
Pay special attention to: Securely locating of all wiring, cables, tubes, etc.
For further information please contact the manufacturer of the accessories or VitalGo Systems directly.
Make sure that your personnel follow the safety instructions.
Safety instructions for users and caregivers
Let the technician instruct you in the safe use of the bed.
Before each use make sure that the bed is in proper and faultless condition.
Take care that no obstacles, such as furniture or slanted ceilings interfere with the adjustment functions (See clearing page 17).
Important!
Patients under 5.5’(170cm) tall, should make sure their feet touch the Foot Lifter™ before entering tilting position.
Pay attention that when using additional electrical components, such as patient lifts, reading lights or compressors for posi-
tioning systems that their electrical cords do not get entangled or damaged by the moving parts of the bed.
Connect the bed directly to an electrical outlet. Do not use extension cords and/or multiple outlet extension cords.
Make sure that when attaching other appliances (e.g. Compressors for positioning systems) that a safe mounting and function
is guaranteed.
Remove moveable items from the bed before starting the tilting operation.
Make sure you can see the hand control functions.
Do not put multiple electrical outlets under the nursing bed. Leaking liquids can be a re hazard.
Pay special attention to securely locating all wiring, cables, tubes, etc.
For further information please contact the dealer or person from which you purchased the bed or VitalGo Systems directly.
Take the bed out of operation if damage or a malfunction is suspected: Immediately unplug the electrical plug from the wall
outlet; Call a qualied technician. do not use the bed until a technician has inspected the bed and approved it for use.
12

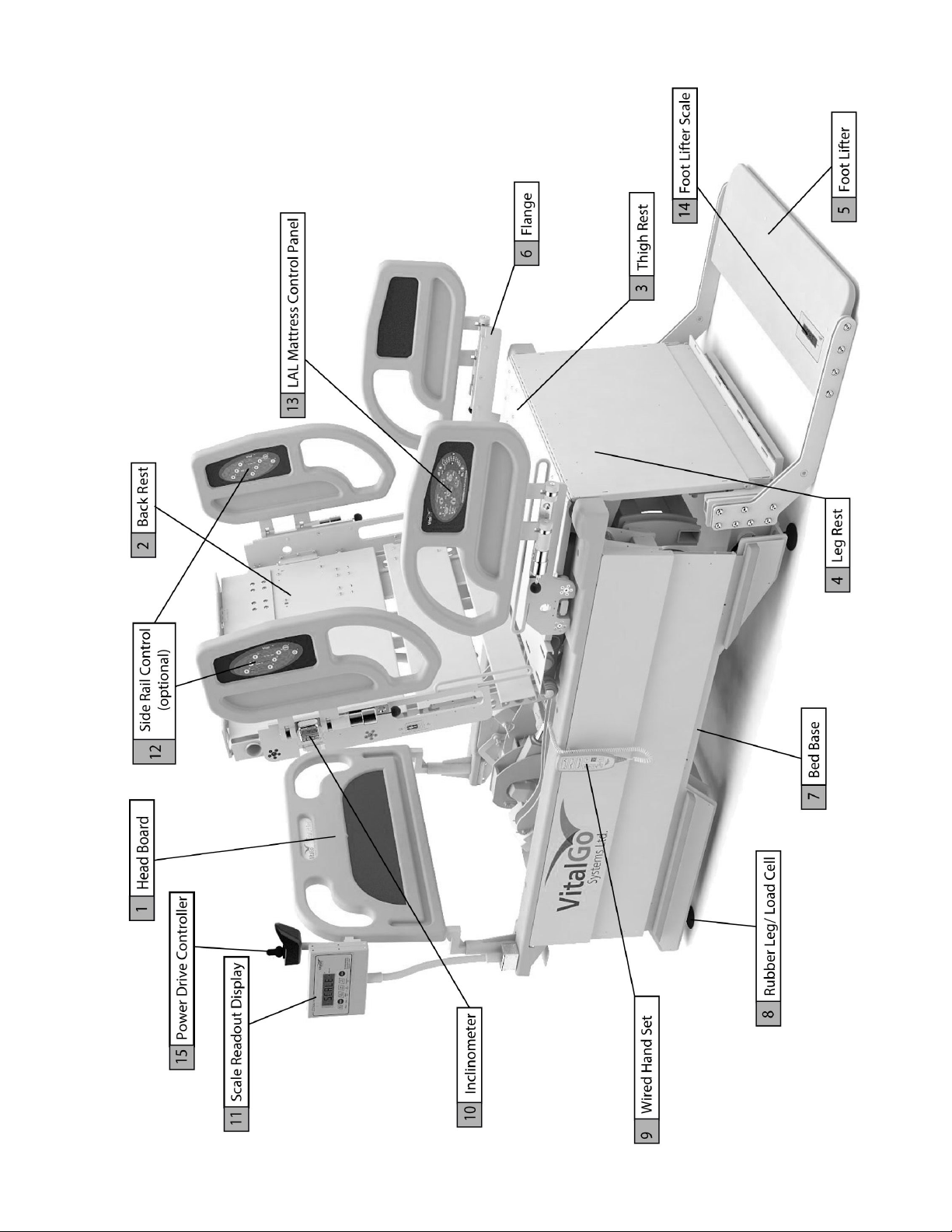

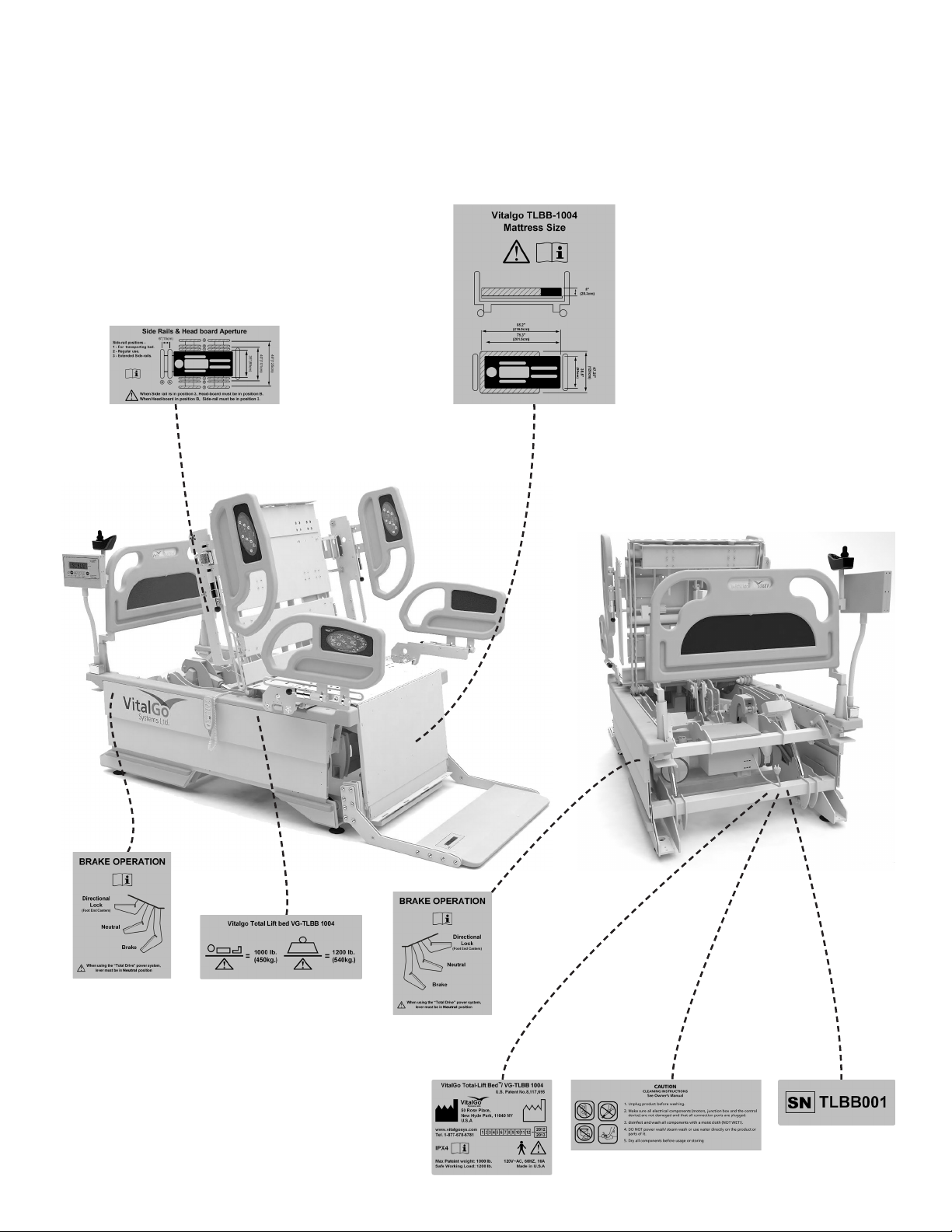

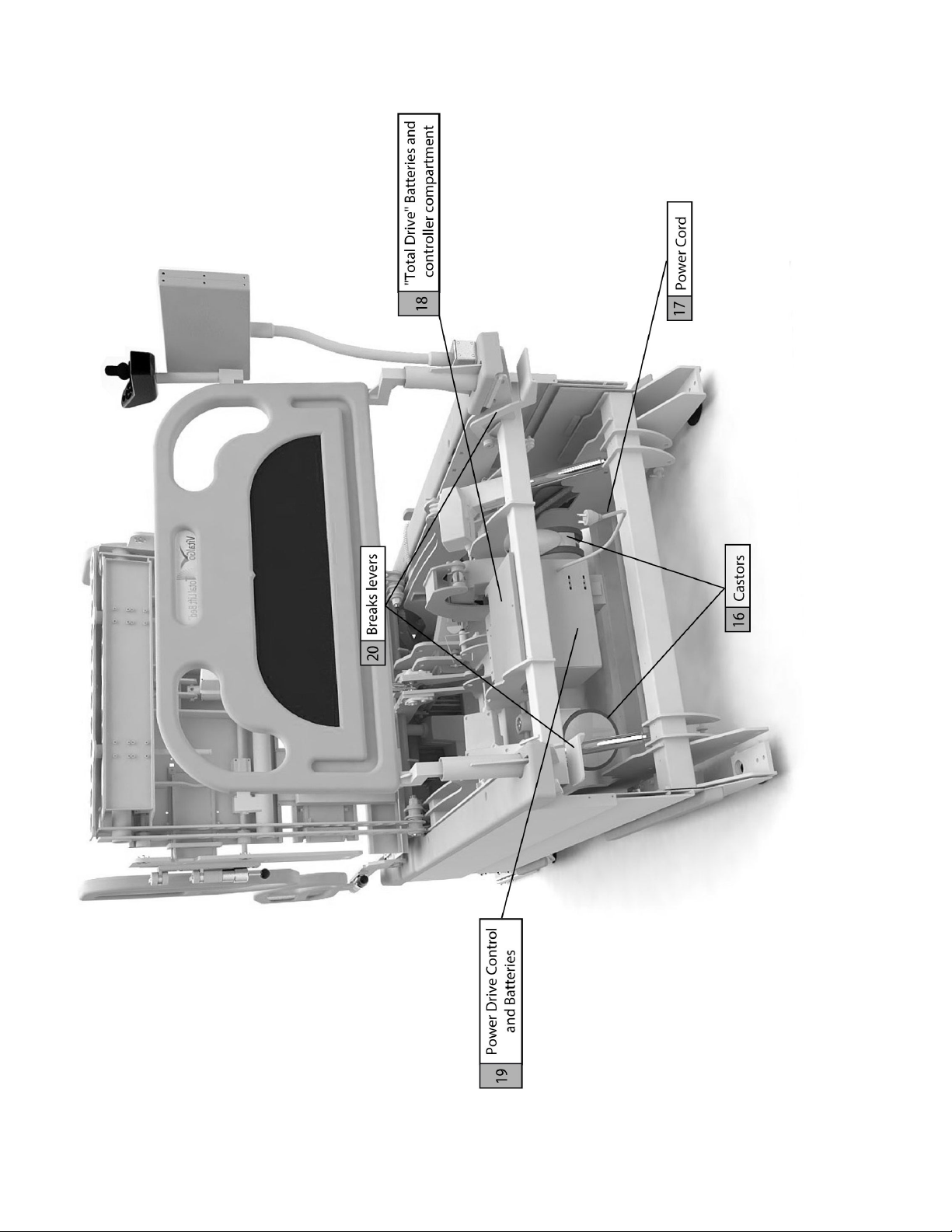

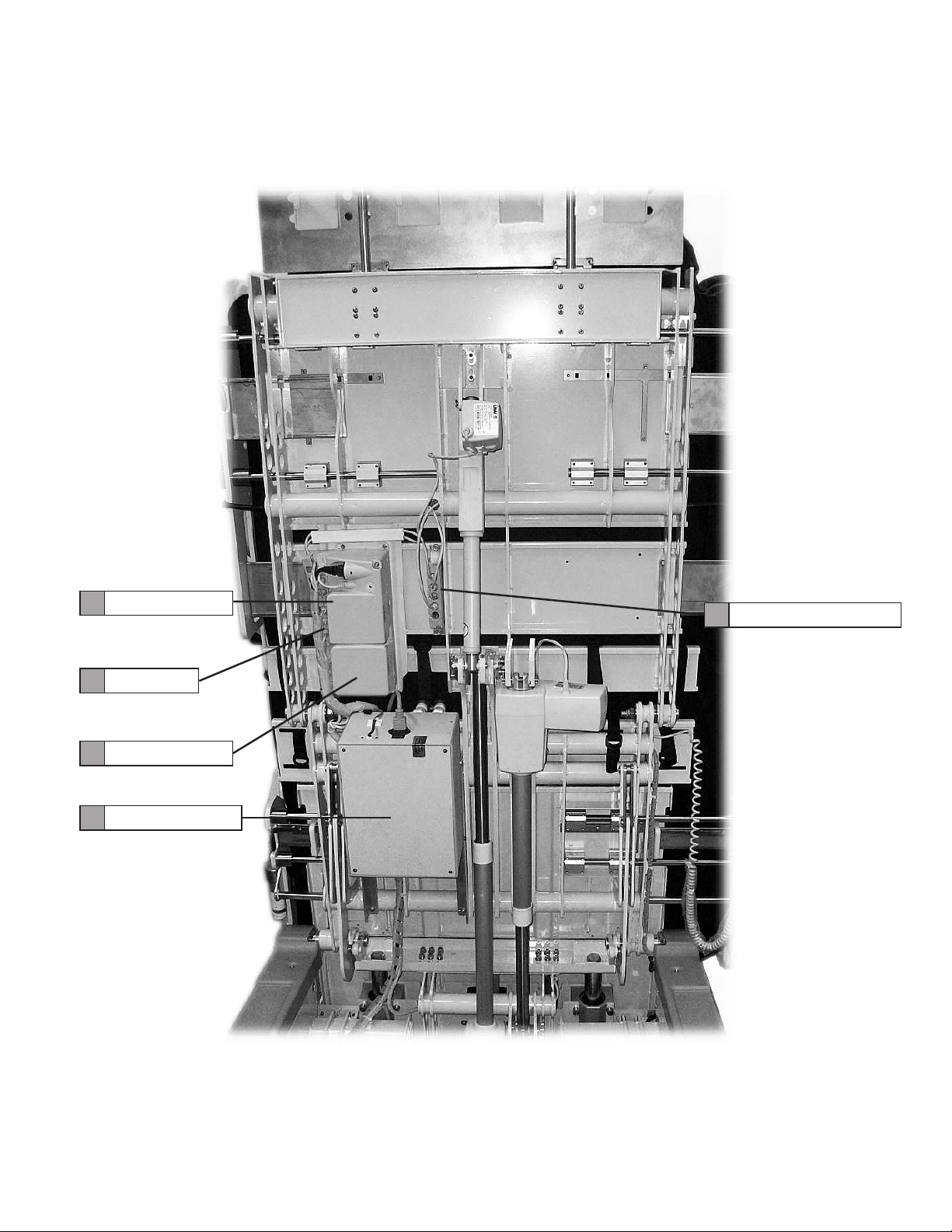

VG-TLBB-1004 Bed Description
13

14

21 25
22
23
24
Power Supply Side Rail Connectors
Controller
Battery Backup
Mattress Blower
15

Product description
NORMAL OPERATING PROCEDURE
The Total-Lift™ Bariatric Bed, Hereafter called bed, is a, one of its kind, lifting Bed which can take the user to a standing position,
seating position with legs down and up and many other positions as described in this manual.
The Total-Lift™ Bariatric Bed has a state of the art preprogramed system, which allows many functions and possibilities, for the
safety, comfort and independence of the user and Care giver.
The Total-Lift™ Bariatric Bed is the perfect bed to assist the recommendation of OSHA for minimal lift and caregiver injury
prevention.
The Bed can be used by one Care Giver and by the user himself, if capable.
The Total-Lift™ Bariatric Bed is the perfect solution for Aging in Place allowing the users to age with comfort dignity and
independence.
Total-Lift™ Bariatric Bed safe working load amounts to patient weight of max. 1000lb (454 kg).
For users under 5’ (150cm), please use Tilting Function only up to 45 degrees, as the foot support may not support user, if not
placed low enough on the support surface.
The Bed can be used with or without a strapping system (see page 25) according to the user’s medical condition.
The Total-Lift™ Bariatric Bed may only be operated under the operating instructions laid out in this instruction manual. Any
other use is deemed to be inappropriate.
SPECIAL FEATURES
HEIGHT ADJUSTMENT
Electrical height adjustment of the reclining surface from approx. 18”(46cm). to 26.5”(67cm).
Electrical movement of the Foot Lifter™ is from approx. 10”(25cm). into the bed (over the mattress) to about 2” (5cm) extending
outside the bed.
LYING/SITTING POSITION
Electrical adjustment of the backrest from 0° to about 82°.
Electrical adjustment of the thigh rest from 0° to about 90° (legs down)
and from 0° to about 25° (legs up).
Electrical adjustment of the Leg rest from 180° to about 50°.
IN STANDING POSITION
The bed joints work in synchronization bringing the bed to around 82°.
The bed is driven with four castors which become functional only when bringing the bed to “WHEELS”position
accessible through the hand set.
Side rails on both sides can be lowered.
CLASSIFICATION
EU  The unit is classied as Class I with B type of applied part, continuously operated, movable and without
signal input output parts. Water resistance comply with IPX4 the device is not intended for use in presence of
ammable mixtures.
FDA  Device Class II, adjustable electric hospital bed, AC-powered regulation number 880.5100
The tested product satises the requirements of EN/IEC 60601-1:1990; UL 60601-1:2003, EN/IEC 60601-2-38:1996
16

17
Technical Specications
Bed Dimensions:
• Length:
Overall Length (in regular position).............................88” (223 cm)
Overall Length –Extended Headboard ....94.5”(240cm)
• Width of Bed:
The TLBB has 3 position of Side rails:
Position 1 – (for transporting bed) Bed Width – 40”(101.6cm) External dimensions.
Position 2 – (Regular use) – Bed width – 43” (110cm)
Position 3 – (Extended Side-Rails) Bed width- 53.25” (135.25cm)
• Height:
Low Position – deck to oor........................................17.7” (45cm)
High Position – deck to oor......................................... 26.5”(67cm)
• Clearance:
From frame to oor (on Casters).........................................................1.5”(3.8cm)
In Standing Position:
From top of Bed to oor Not extended -..........................................82”(208.0cm)
Extended – 88” (223.5cm)
• Mattress Dimensions:
Mattress can be extended with Bolsters (in Foam mattress) and with inated cells (in Air Mattress).
Basic Dimensions – Length -80”(203.2cm) Width – 36”(91.5cm).
Extended Mattress – Length – 86”(218cm) Width – 48”(122cm).
Height - 8” (20.3cm)
• Casters & Breaking System:
Diameter.........................................................................6” (15.25cm)
Smart BreakTM – Casters are lifted from oor when not in “Wheels” position during all positions.
• Break and directional lock – Break lever has three positions. Total Lock, Directional lock and neutral.
• The TLBB may come with a“Total Drive” a power drive system for moving the bed. In such case break lever
must be in neutral position. (See Total Drive chapter page 42)
• Foot Lifter:
Moves over Mattress 9.5”(24cm) towards Head Rest.
Moves out of Bed – 2.3”(6cm).
• Positions and Angles :
Sleeping – 180 degrees.
Chair Position –
Back rest – Up to 81 degrees .
Leg rest – from 23 degrees up to 90 degrees down.
Tilting positions up to Standing Position – 80 degrees.
• Control:
Control by Smart pre-programmed Hand Set.
Tilting function is locked for Nurse / Care giver use only.
Automatic functions with memory.
Hand Set works with constant press only.
Additional control, for basic functions, on side-rail, for patient and care giver.
• Strapping System:
One strap in Waist area.
Two straps in lower extremities area
• Max Patient Weight – 1,000Lb (454Kg)
• Max Safe working load - 1,200lb (540kg)
!
!

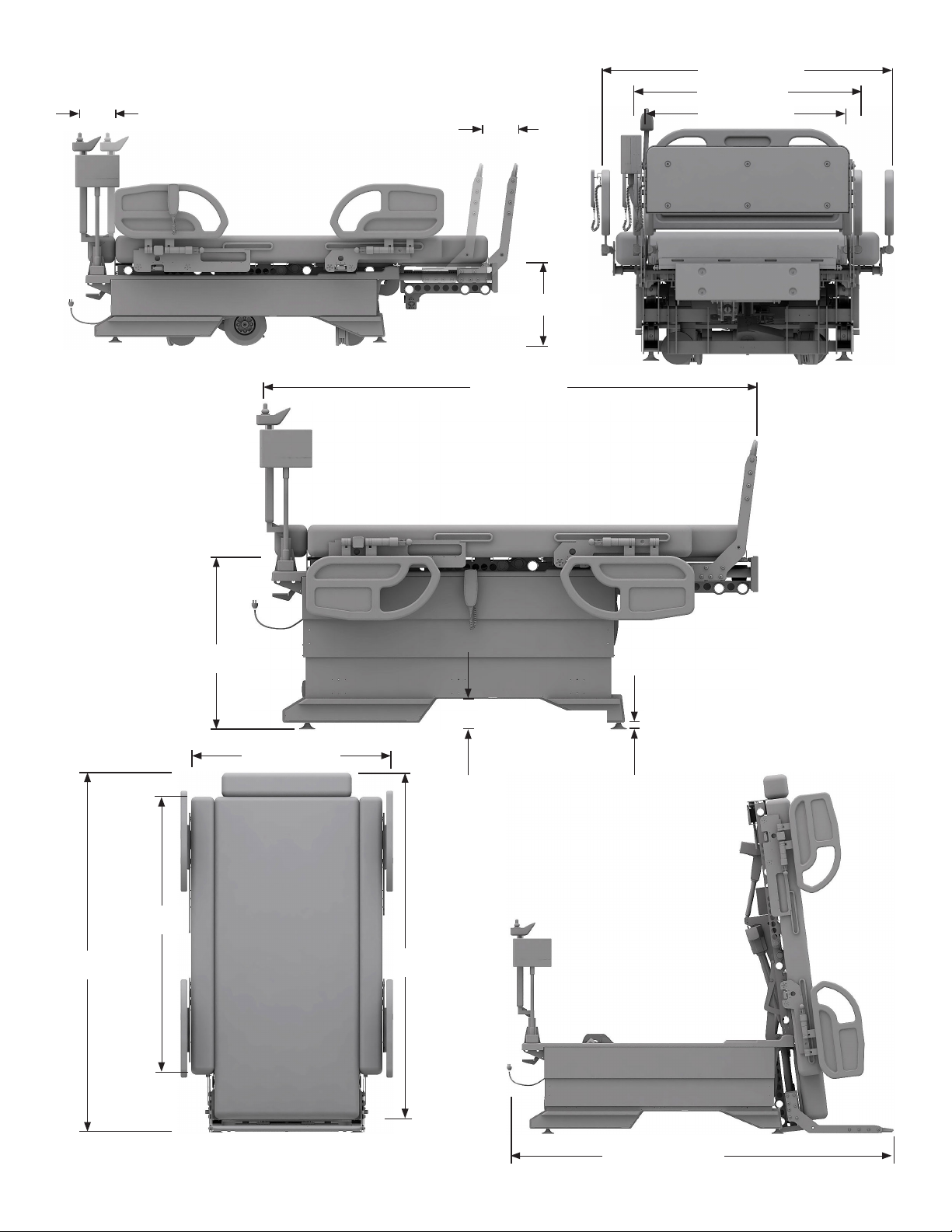

89” (226cm)
0.4” (1cm)
5.1” (13cm)
31” (79cm)
40” (101.6cm)
43” (110cm)
53.25” (135.25cm)
11.8” (30cm)
6” (15.25cm)
17.7” (45cm)
48” (122cm)
88” (223.5cm)
66” (167.6cm)
85.25” (216.5cm)
94” (238.5cm)
18

19
• Casters/ brakes: Electrically and manually controlled
• Caster Break leaver 3 positions – Break, Directional lock (foot side casters), Neutral.
• Electronic Wired hand set: Integrated 12 functions + caregiver function
• Electricity requirements: Voltage - 120V~ AC 230V~ AC
Current - 5A Max
Frequency - 60HZ 50HZ
Power Consumption - Max. 90W
• Environmental conditions : Ambient Temperature in Operation : +10oC (50oF) to +40oC (104oF)
Ambient Temperature in Transport : +5oC (41oF) to +50oC (122oF)
Relative Humidity Range: 30% to 75%
Atmospheric Pressure Range of 700 hPa to 1060 hPa.
• Battery backup: Optional
Battery when fully charged is good for ve cycles of the bed.
RECLINING SURFACE FRAME
The reclining surface frame has four sections: a movable backrest, a moveable thigh rest, a movable leg rest and a movable
Foot Lifter™. All parts can be adjusted by electric motors. The horizontal height of the reclining surface can be adjusted and
inclined. All adjustment functions are controlled by a wired hand set and basic controls are available through the side-rail
controls, located on the side –rails.
The mattress base of the Total-Lift™ Bariatric Bed consists of washable Metal sheet;
ELECTRIC ADJUSTMENT SYSTEM
The electrical adjustment system of this bed is error protected, ame-retardant (V0) and consists of an external transformer
unit which consists of a power cable, the transformer, and a low voltage connection cable.
The transformer creates a 24 volt low voltage, which is safe for patient and user. The transformer supplies all drive motors with
the 24 volt safety low voltage. The connecting socket on the bed frame is moisture proof.
DESCRIPTION OF MATERIALS
The bed is mostly constructed out of steel sections, their surfaces are mostly powder coated and some are painted.
Some steel parts have black oxide coating and chrome-nickel coating. There is also use of aluminum.
Side Rails and Headboard are ABS.
All surfaces are harmless to skin contact.

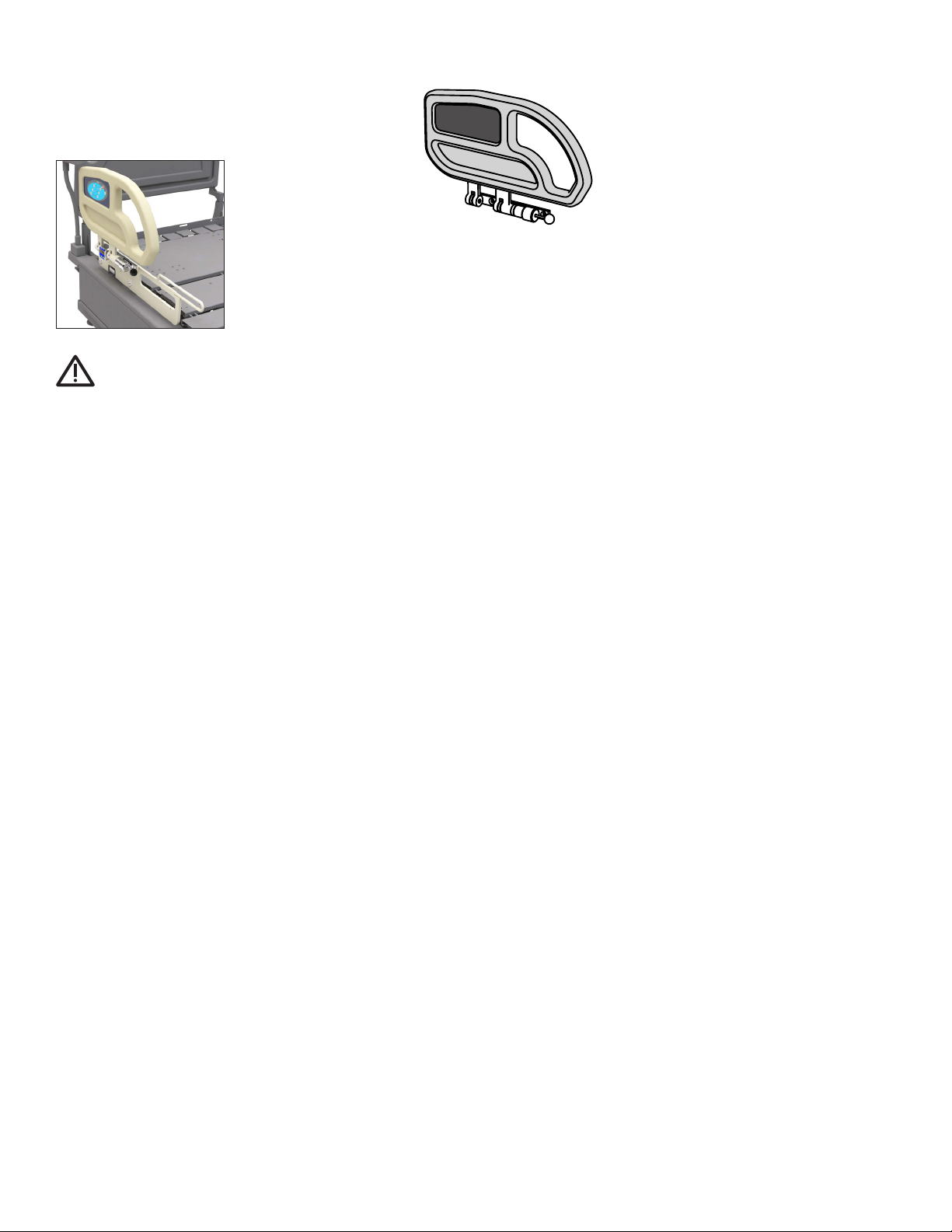

Total-Lift™Bariatric Bed Side Rails
Two sides.
24.5” x 9.5”(616mm x 245mm)
Position 1 - Place the side rail this way for transportaing
the bed and easy enterance through narrow doorway.
WARNING
NEVER USE BED WHEN SIDE RAIL ARE IN INNER POSITION POSITION 1 – THIS IS ONLY FOR TRANSFERRING THE
TLBB THROUGH NARROW DOORWAYS. ONCE BED IS IN LOCATION OPEN SIDE RAILS TO POSITION 2 OR 3.

20
LABEL LOCATIONS
