Vivax ACP-09PT25AEB User manual

ACP-09PT25AEB
Service
manual
ENG
RoHS
NNO-1/09

Content
CONTENT
1 Safety precaution .....................................................................................................1
1.1 Installation ........................................................................................................................... 1
1.2 Caution................................................................................................................................ 1
1.3 Operational.......................................................................................................................... 1
2 Out dimension ..........................................................................................................3
3 Display.......................................................................................................................5
3.1 LED display .........................................................................................................................5
3.2 LCD display.........................................................................................................................5
4 Refrigerant cycle diagram .......................................................................................6
5 PCB drawing & wiring diagram ...............................................................................7
5.1 9K Model ............................................................................................................................. 7
5.2 12K Model ............................................................................................................................7
6 Installation detail ......................................................................................................8
6.1 Position requirement for installation .................................................................................... 8
6.2 Preparation work ................................................................................................................. 8
6.3 Installation in a double-hung sash windows ........................................................................ 9
6.4 Installation in a sliding sash windows................................................................................ 10
7 Features ..................................................................................................................12
8 Basic test procedure ..............................................................................................13
8.1 Defective compressor ....................................................................................................... 13
8.2 Sealed refrigeration system repairs................................................................................... 14
8.3 Fan motor.......................................................................................................................... 16
8.4 Capacitor........................................................................................................................... 17
9 Characteristic of temperature sensor...................................................................18
10 Trouble shooting .................................................................................................19

Safety Precaution
1
1 Safety precaution
1.1 Installation
For electrical work, contact the dealer, seller, a qualified electrician, or an Authorized
service center.
Do not disassemble or repair the product by yourself.
Sharp edges could cause injury, be especially careful of the case edges and the fins on the
condenser and evaporator.
Be sure the installation area does not deteriorate with age.
Take care to ensure that power cable could not be pulled out or damaged during operation.
Do not place anything on the power cable.
Do not plug or unplug the power supply plug during operation.
Do not store or use flammable gas or combustible near the product.
When flammable gas leaks, turn off the gas and open a window for ventilation before turn
the product on.
If strange sounds, or small or smoke comes from product. Turn the breaker off or
disconnect the power supply cable as soon as possible.
When the product is soaked (flooded or submerged), contact an Authorized service center.
Be caution that water could not enter the product.
Turn the main power off when cleaning or maintaining the product.
When the product is not be used for a long time, disconnect the power supply plug or turn
off the breaker.
1.2 Caution
Always check for gas (refrigerant) leakage after installation or repair of product.
Install the drain hose to ensure that water is drained away properly.
Keep level even when installing the product.
Do not install the product where the noise or hot air from the outdoor unit could damage
the neighborhoods.
Use two or more people to lift and transport the product.
Do not install the product where it will be exposed to sea wind (salt spray) directly.
1.3 Operational
Do not expose the skin directly to cool air for long periods of time. (Do not sit in the draft).
Do not use the product for special purposes, such as preserving foods, works of art, etc. It
is a consumer air conditioner, not a precision refrigerant system.
Do not block the inlet or outlet of air flow.
Use a soft cloth to clean. Do not use harsh detergents, solvents, etc.
Do not touch the metal parts of the product when removing the air filter. They are very
sharp.
Do not step on pr put anything on the product. (Outdoor units)
Always insert the filter securely. Clean the filter every two weeks or more often if
necessary.

Safety Precaution
2
Do not insert hands or other object through air inlet or outlet while the product is operated.
Do not drink the water drained from the product.
Use a firm stool or ladder when cleaning or maintaining the product.
Replace the all batteries in the remote control with new ones of the same type. Do not mix
old and mew batteries or different types of batteries.
Do not recharge or disassemble the batteries. Do not dispose of batteries in a fire.
If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water.
Do not use the remote of the batteries have leaked.

Outer dimension
3
2 Out dimension
Model: ACP-09PT25AEB
814

External view, part, display
4
3 Display
Fig.4
Selects t he appropriate oper ating m ode.
Each time you press the button, a mode
is selecte d in a sequence that goes from
AU TO, C OOL, DRY, FAN and HEAT(cooli ng
on ly models wit hout). The mode ind icator light
illuminates under the different mode settings
Fig.4.
MODE select button
Used to adju st (increasing/decre asing)
temperature setting s(1 C/2 F incr ements)
in a range of 17 C(62 F) to 30 C(88 F) o r
the TIMER s etting i n a range of 0~24hrs ..
UP( ) and DOWN( ) button
NOTE: The control is capable of displaying
temperature in degrees Fahrenheit or degrees
Celsius. To convert from one to the other, press
and hold the Up and Down buttons at the same
time, for 3 seconds.
Used to initiate the AUTO ON start time and
AU TO OFF sto p time program, in conjucti on
with the & buttons.
TIMER button
Used to initiate the SL EEP operation.
SLEEP button
Power switch on/off
.
POWER button
FC
Con trol th e f an spe ed. P ress to select the fa n
spe ed in t hr ee ste ps-LOW , M ED, a nd HI.
T he fa n spe ed in dicator lig ht illumina tes un de r
diff eren t fan setting s.
FAN button
S ho ws the se t te mp er atu re in C
O
""
""
or
F a nd th e A uto -time r se ttin gs .
While on DRY and FAN modes, it shows
th e r oom te mp er atu re .
O
LED Display
Error codes:
E1-
E2-
P1-
Room temperature sensor error-
Unplug the unit and plug it back in.
If error repeats, call for service.
Evaporator temperature sensor error-
Unplug the unit and plug it back in.
If error repeats, call for service.
Bottom tray is full - Connect the
drain hose and drai n the collected
water awa y. If e rror re peats, call
fo r ser vi ce.
Remote signal receptor
(Some m ode ls ha ve t he
sig nal rece p tor on th e
fro nt panel , Fi g. 2)
(Themodel has no
autoswing feature
withoutthisbutton)

Refrigerant cycle diagram
5

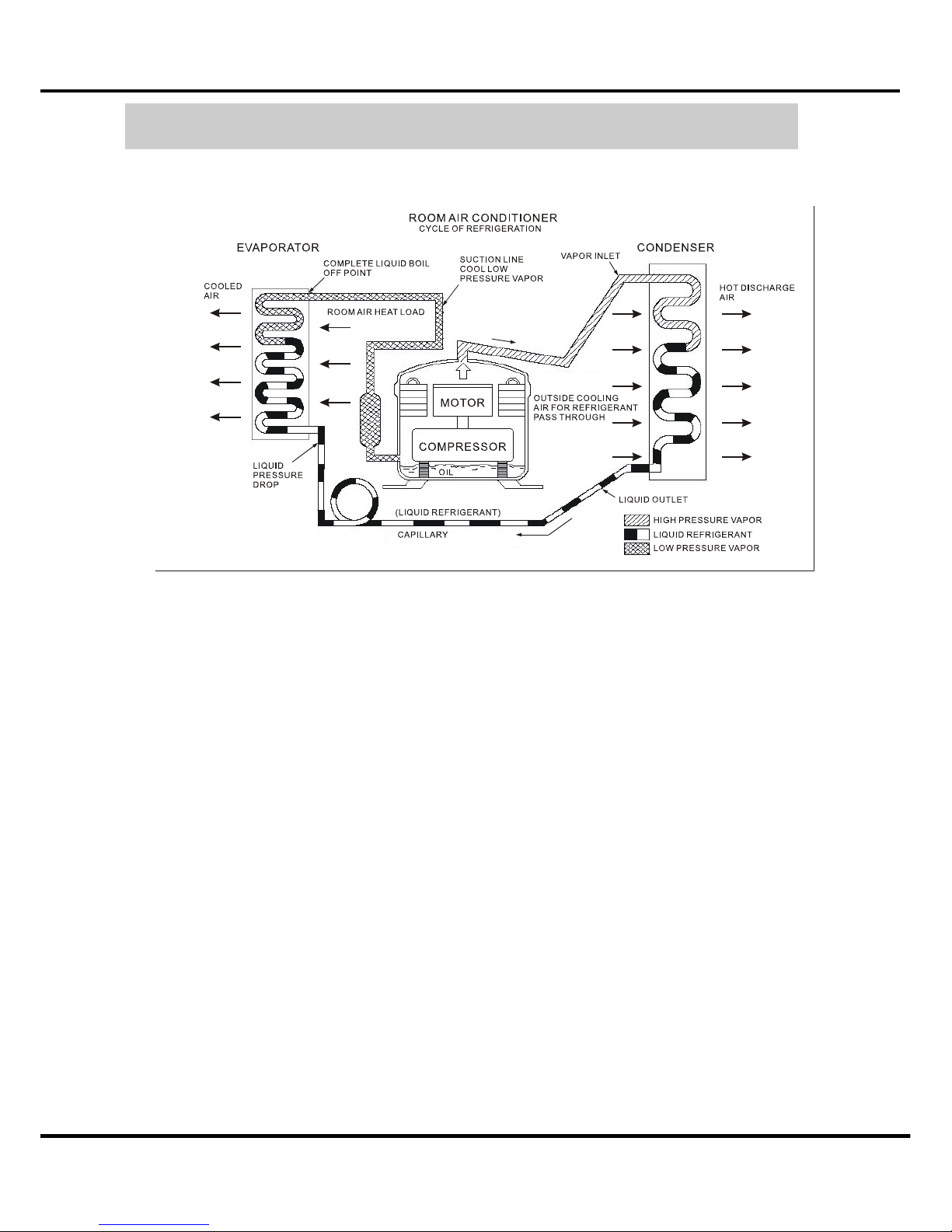

4 Refrigerant cycle diagram
The figure below is a brief description of the important components and their function in
what is called the refrigeration system

PCB drawing & Wiring diagram
6

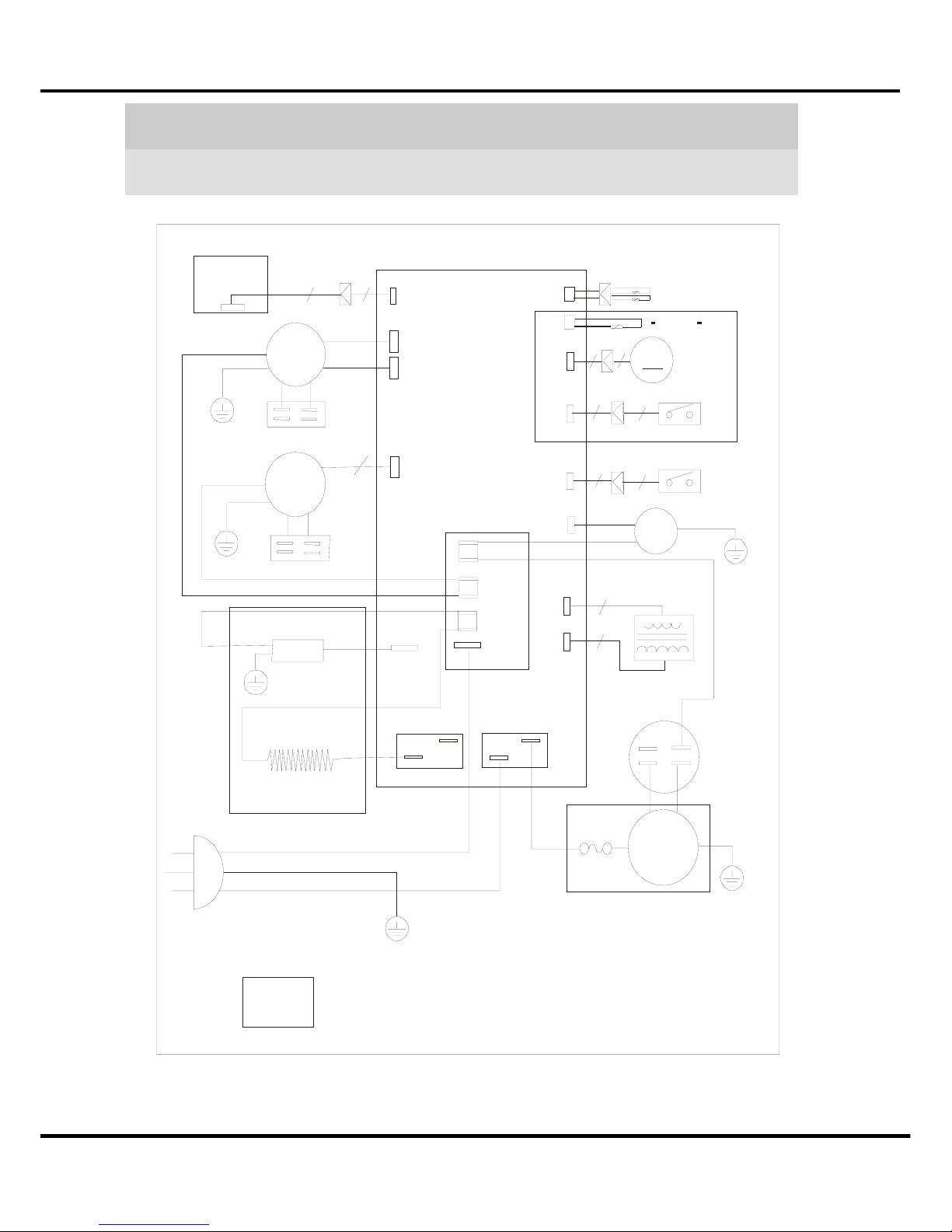

5 PCB drawing & wiring diagram
5.1 8K/9K12K Model
MAIN BOARD
CN8
CN4
UP FAN
DOWN FAN
CN11
P1
CAP
CAP
ION
G R EE N( o rY /G )
WHITE(orBLUE)
BLA CK(or BROW N)
PO W E R
COMP RESSO R
RY8
RY9
P4
3
34
4
PT C
SW1
CN6
BLACK
BLACK
BLUE
RE D
RED
BLACK OPTIONAL
CN2
CN1
MOTOR
TRANSFORMER
RED
BL AC K
M
~
M
~
M
~
BR O W N
BLUE
~
CN3
DISPLAY BOARD
P3
EL
SU
P05 P06
P03 P04
P01 P02
P00
N
BLUE
RED
BLACK
BROWN
BLUE
T hi s sy m bo l indicates th e element is
optional,the actual shape shall prevail
OPT ION AL
Y/G
RED
M
M
SWING
CN10
OPTIONAL
AMBIENT SENSOR
EVAPORATOR SENSOR
CN3
SW2
CN5
P2
YELL OW
BLACK
PIPE S ENSOR
Y/G
Y/G
Y/G

Feature
7
6 Installation detail
6.1 Position requirement for installation
Installation must be in a flat and spacious location where the air outlets will not be covered
up. A minimum clearance of 30cm from a wall or other obstacles should be kept. The
appliance shall not be used in the washroom. The plug shall accessible after appliance is
positioned. Wiring shall be done according to National rules. Please see the picture show
as below.
6.2 Preparation work
First of all, prepare the exhaust hose as the below picture show to you.
Second, connect the exhaust hose with unit, like the blow picture.
After this two steps, please make sure the exhaust hose’s connect is OK.
30cm
30cm

Feature
8

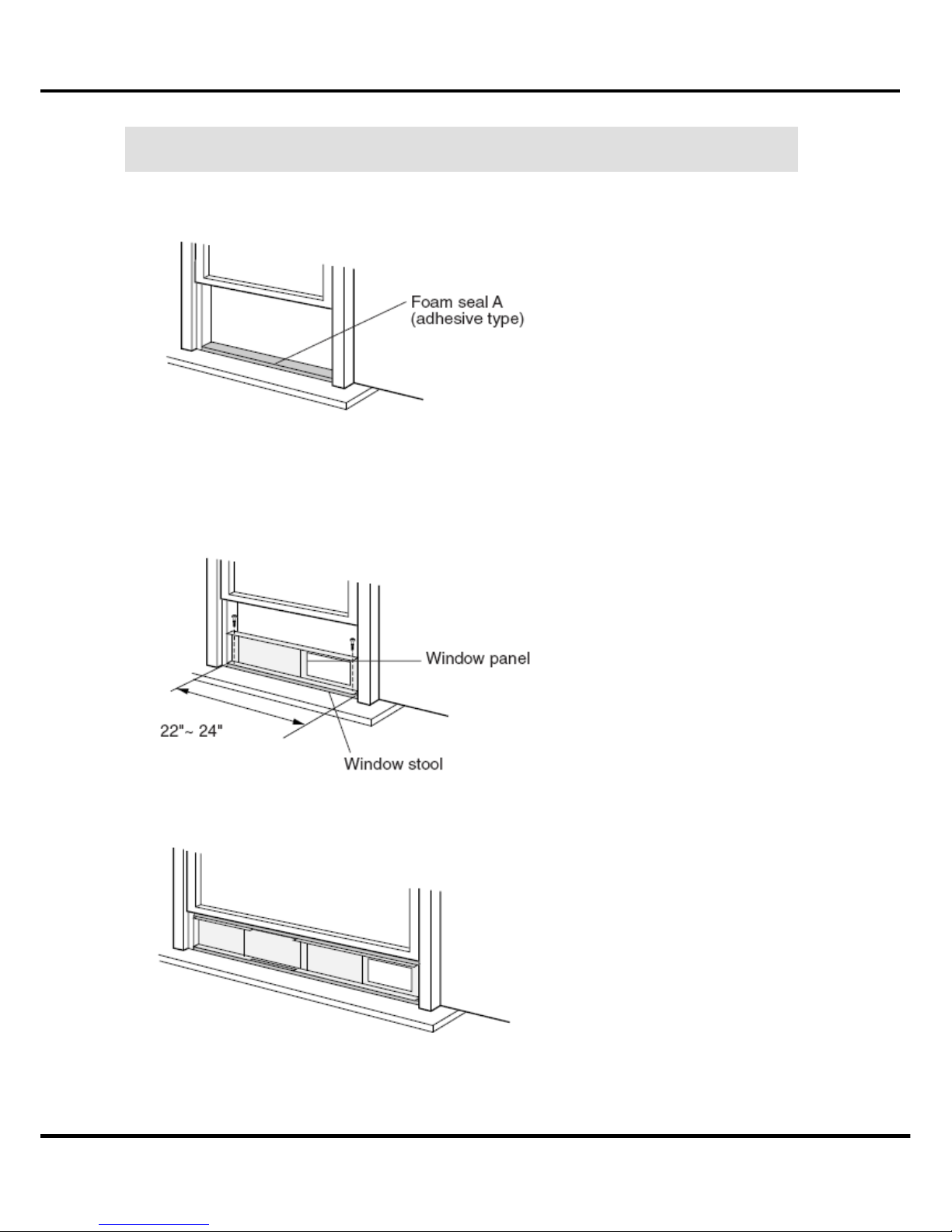

6.3 Installation in a double-hung sash windows
6.3.1 Cut the foam seal (adhesive type) to the proper length and attach it to the window
stool.
6.3.2 Attach the window panel to the window stool.
Adjust the length of the window panel according to the width of window, short the
adjustable panel if the width of window is less than 26”.
Open the window sash and place the window panel on the window stool.
Secure the window panel to the window stool with 2 screws.
6.3.3 Cut the foam seal (adhesive type) to the proper length attach it on the top of window.
Show as below picture.
6.3.4 Close the window sash securely against the window.
6.3.5 Cut the foam seal to an appropriate length and sealing the open gap between the top
window sash and outer window sash. Show as below picture.

Feature
9
6.4 Installation in a sliding sash windows
6.4.1 Cut the foam seal to a proper length and adhesive to the window frame.
6.4.2 Attach the window panel to the window stool.
Adjust the length of the sliding window panel according to the width of window, short the
adjustable panel if the width of window is less than 26”.
Open the sliding sash and place the window panel on the window stool.
Secure the sliding window panel to the window stool with 2 screws.
6.4.3 Cut the foam seal (adhesive type) to the proper length attach it on the top of window.
Show as below picture.

Feature
10
6.4.4 Close the sliding sash securely against the window.
6.4.5 Cut the foam seal to an appropriate length and sealing the open gap between the top
window sash and outer window sash. Show as below picture.

Feature
11

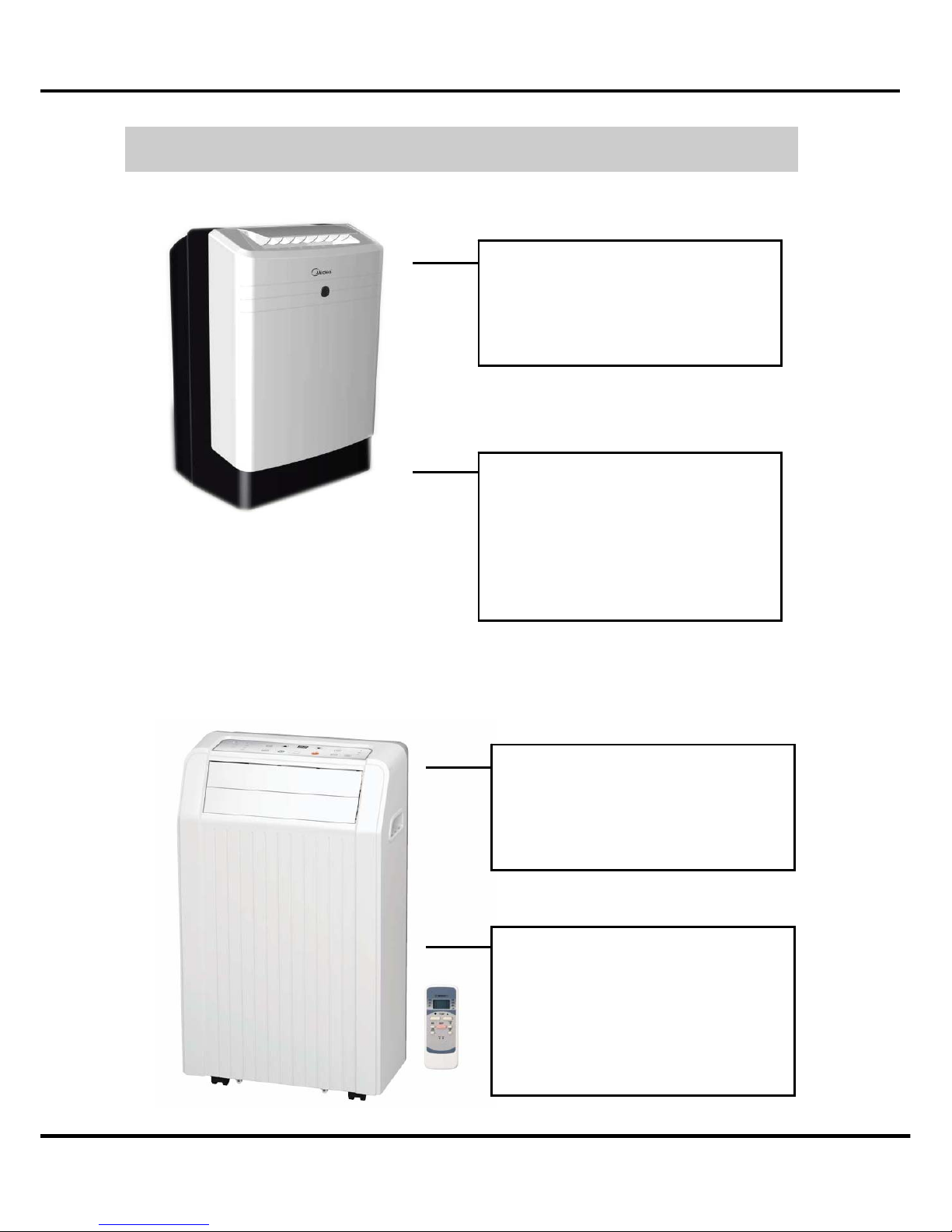

7 Features
single louver
flat appearance，Simple and
generous
Straight condenser ，low cost、
High efficiency
Turbo cooling function
Flexible air exhaust
Advanced shower system
Follow me function
24 hour on/off
Cooling
Dr
y
Double louver
flat appearance，Simple and
generous
Straight condenser ，low cost、
High-efficiency
Turbo cooling function
Flexible air exhaust
Advanced shower system
Follow me function
24 hour on/off
Cooling
Dr
y

Basic test procedure
12
8 Basic test procedure
8.1 Defective compressor
Compressors are single phase, 115 or 230/208 volt, depending on the model unit. All
compressor motors are permanent split capacitor type using only a running capacitor
across the start and run terminal.
All compressors are internally spring mounted and externally mounted on rubber isolators.

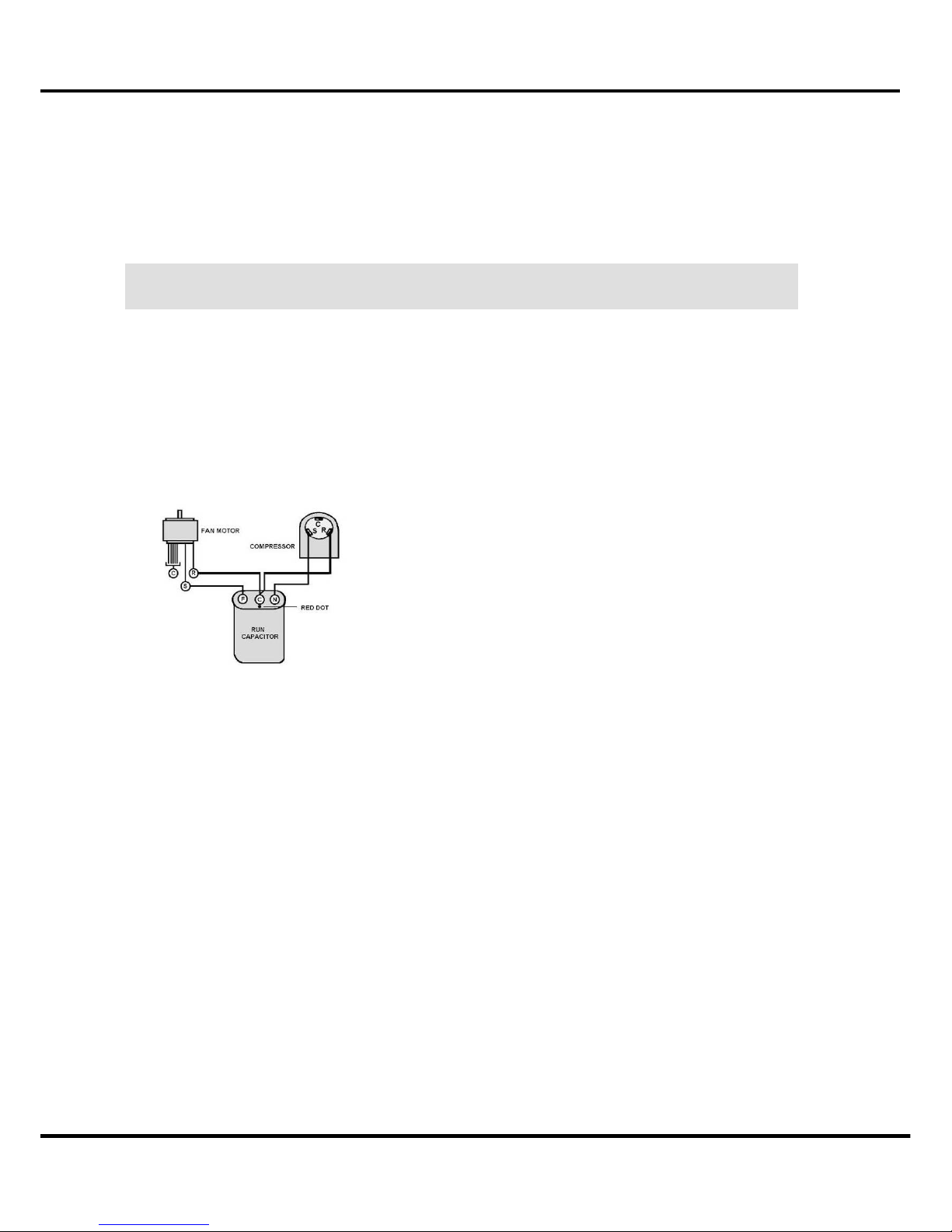

8.1.1 Compressor wiring test
Remove compressor terminal box cover and disconnect wires from terminals. Using an
ohmmeter, check continuity across the following:
Terminal "C" and "S" - no continuity
- Open winding - replace compressor.
Terminal "C" and "R" - no continuity
- Open winding - replace compressor.
Terminal "R" and "S" - no continuity
- Open winding - replace compressor.
8.1.2 Ground test
Use an ohmmeter set on its highest scale. Touch one lead to the compressor body (clean
point of contact as a good connection is a must) and the other probe in turn to each
compressor terminal (see Figure 2.) If a reading is obtained, the compressor is grounded
and must be replaced.
8.1.3 Checking the compressor efficiency
The reason for compressor inefficiency is normally due to broken or damaged suction
and/or discharge valves, reducing the ability of the compressor to pump refrigerant gas.
This condition can be checked as follows:
1. Install a piercing valve on the suction and discharge or liquid process tube.
2. Attach gauges to the high and low sides of the system.

Basic test procedure
13
3. Start the system and run a “cooling or heating performance test.”
If test shows:
A. Below normal high side pressure.
B. Above normal low side pressure.
C. Low temperature difference across coil.
The compressor valves are faulty - replace the compressor.
8.1.4 Terminal overload (external)
Some compressors are equipped with an external overload which is located in the
compressor terminal box adjacent to the compressor body The overload is wired in series
with the common motor terminal. The overload senses both major amperage and
compressor temperature. High motor temperature or amperage heats the disc causing it to
open and break the circuit to the common motor terminal.
Heat generated within the compressor shell is usually due to:
1. High amperage.
2. Low refrigerant charge.
3. Frequent recycling.
4. Dirty condenser.
8.1.5 Terminal overload – Test (compressor external type)
1. Remove overload.
2. Allow time for overload to reset before attempting to test.
3. Apply ohmmeter probes to terminals on overload wires. There should be continuity
through the overload.
8.1.6 Terminal overload (internal)
Some model compressors are equipped with an internal overload. The overload is
embedded in the motor windings to sense the winding temperature and/or current draw.
The overload is connected in series with the common motor terminal.
Should the internal temperature and/or current draw become excessive; the contacts in the
overload will open, turning off the compressor? The overload will automatically reset, but
may require several hours before the heat is dissipated.
8.1.7 Checking the internal overload
1. With no power to unit, remove the leads from the compressor terminals.
2. Using an ohmmeter, test continuity between terminals C-S and C-R. If not continuous,
the compressor overload is open and the compressor must be replaced.
8.2 Sealed refrigeration system repairs
8.2.1 Equipment require
1. Voltmeter
2. Ammeter
3. Ohmmeter

Basic test procedure
14
4. E.P.A. Approved Refrigerant Recovery System.
5. Vacuum Pump (capable of 200 microns or less vacuum.)
6. Acetylene Welder
7. Electronic Halogen Leak Detector (G.E. Type H-6 or equivalent.)
8. Accurate refrigerant charge measuring device such as:
a. Balance Scales - 1/2 oz. accuracy
b. Charging Board - 1/2 oz. accuracy
9. High Pressure Gauge - (0 - 400 lbs.)
10. Low Pressure Gauge - (30 - 150 lbs.)
11. Vacuum Gauge - (0 - 1000 microns)
8.2.2 Equipment must be capable of:
1. Recovery CFC's as low as 5%.
2. Evacuation from both the high side and low side of the system simultaneously.
3. Introducing refrigerant charge into high side of the system.
4. Accurately weighing the refrigerant charge actually introduced into the system.
5. Facilities for flowing nitrogen through refrigeration tubing during all brazing processes.
8.2.3 Hermetic compressor replacement.
The following procedure applies when replacing components in the sealed refrigeration
circuit or repairing refrigerant leaks. (Include Compressor, condenser, evaporator, capillary
tube, refrigerant leaks, etc.)
1. Recover the refrigerant from the system at the process tube located on the high side of
the system by installing a line tap on the process tube. Apply gauge from process tube to
EPA approved gauges from process tube to EPA approved recovery system. Recover
CFCs in system to at least 5%.
2. Cut the process tube below pinch off on the suction side of the compressor.
3. Connect the line from the nitrogen tank to the suction process tube.
4. Drift dry nitrogen through the system and unsolder the more distant connection first.
(Filter drier, high side process tube, etc.)
5. Replace inoperative component, and always install a new filter drier. Drift dry nitrogen
through the system when making these connections.
6. Pressurize system to 30 PSIG with proper refrigerant and boost refrigerant pressure to
150 PSIG with dry nitrogen.
7. Leak test complete system with electric halogen leak detector, correcting any leaks
found.
8. Reduce the system to zero gauge pressure.
9. Connect vacuum pump to high side and low side of system with deep vacuum hoses, or
copper tubing. (Do not use regular hoses.)
10. Evacuate system to maximum absolute holding pressure of 200 microns or less. NOTE:
This process can be speeded up by use of heat lamps, or by breaking the vacuum with
refrigerant or dry nitrogen at 5,000 microns. Pressure system to 5 PSIG and leave in
system a minimum of 10 minutes. Recover refrigerant, and proceed with evacuation of a
pressure of 200 microns or a minimum of 10%.
11. Break vacuum by charging system from the high side with the correct amount of

Basic test procedure
15
refrigerant specified. This will prevent boiling the oil out of the crankcase.
NOTE: If the entire charge will not enter the high side, allow the remainder to enter the low
side in small increments while operating the unit.
12. Restart unit several times after allowing pressures to stabilize. Pinch off process tubes,
cut and solder the ends. Remove pinch off tool, and leak check the process tube ends.
8.2.4 Special procedure in the case of compressor motor burnout.
1. Recover all refrigerant and oil from the system.
2. Remove compressor, capillary tube and filter drier from the system.
3. Flush evaporator condenser and all connecting tubing with dry nitrogen or equivalent, to
remove all contamination from system. Inspect suction and discharge line for carbon
deposits. Remove and clean if necessary.
4. Reassemble the system, including new drier strainer and capillary tube.
5. Proceed with processing as outlined under hermetic component replacement.
8.2.5 Rotary compressor special troubleshooting and service
Basically, troubleshooting and servicing rotary compressors is the same as on the
reciprocating compressor with only a few exceptions.
1. Because of the spinning motion of the rotary, the mounts are critical. If vibration is
present, check the mounts carefully.
2. The electrical terminals on the rotary are in a different order than the reciprocating
compressors. The terminal markings are on the cover gasket. Use your wiring diagram to
insure correct connections.
8.2.6 Refrigerant charge
1. The refrigerant charge is extremely critical. It must be measured charge carefully - as
exact as possible to the nameplate charge.
2. The correct method for charging the rotary is to introduce liquid refrigerant into the high
side of the system with the unit off. Then start compressor and enter the balance of the
charge, gas only, into the low side.
The introduction of liquid into the low side, without the use of a capillary tube, will cause
damage to the discharge valve of the rotary compressor.
NOTE: All inoperative compressors returned to Friedrich must have all lines properly
plugged with the plugs from the replacement compressor.
8.3 Fan motor
A single phase permanent split capacitor motor is used to drive the evaporator blower and
condenser fan. A self-resetting overload is located inside the motor to protect against high
temperature and high amperage conditions.
8.3.1 Fan motor test
1. Determine that capacitor is serviceable.
2. Disconnect fan motor wires from fan speed switch or system switch.

Basic test procedure
16
3. Apply "live" test cord probes on black wire and common terminal of capacitor. Motor
should run at high speed.
4. Apply "live" test cord probes on red wire and common terminal of capacitor. Motor
should run at low speed.
5. Apply "live" test cord probes on each of the remaining wires from the speed switch or
system switch to test intermediate speeds.
8.4 Capacitor
A run capacitor is wired across the auxiliary and main winding of a single phase permanent
split capacitor motor such as the compressor and fan motor. A single capacitor can be
used for each motor or a dual rated capacitor can be used for both.
The capacitor's primary function is to reduce the line current while greatly improving the
torque characteristics of a motor. The capacitor also reduces the line current to the motor
by improving the power factor of the load. Run capacitor hook-up line side of the capacitor
is marked with a red dot and is wired to the line side of the circuit
8.4.1 Capacitor test
1. Remove capacitor from unit.
2. Check for visual damage such as bulges, cracks, or leaks.
3. For dual rated, apply an ohmmeter lead to common (C) terminal and the other probe to
the compressor (HERM) terminal. A satisfactory capacitor will cause a deflection on the
pointer, and then gradually move back to infinity.
4. Reverse the leads of the probe and momentarily touch the capacitor terminals. The
deflection of the pointer should be two times that of the first check if the capacitor is good.
5. Repeat steps 3 and 4 to check fan motor capacitor.
NOTE: A shorted capacitor will indicate a low resistance and the pointer will move to the
"0" end of the scale and remain there as long as the probes are connected.
An open capacitor will show no movement of the pointer when placed across the terminals
of the capacitor.

Characteristic of temperature sensor
17
9 Characteristic of temperature sensor
Temp.℃Resistance
KΩTemp.℃Resistance
KΩTemp.℃Resistance
KΩ
-10 62.2756 17 14.6181 44 4.3874
-9 58.7079 18 13.918 45 4.2126
-8 56.3694 19 13.2631 46 4.0459
-7 52.2438 20 12.6431 47 3.8867
-6 49.3161 21 12.0561 48 3.7348
-5 46.5725 22 11.5 49 3.5896
-4 44 23 10.9731 50 3.451
-3 41.5878 24 10.4736 51 3.3185
-2 39.8239 25 10 52 3.1918
-1 37.1988 26 9.5507 53 3.0707
0 35.2024 27 9.1245 54 2.959
1 33.3269 28 8.7198 55 2.8442
2 31.5635 29 8.3357 56 2.7382
3 29.9058 30 7.9708 57 2.6368
4 28.3459 31 7.6241 58 2.5397
5 26.8778 32 7.2946 59 2.4468
6 25.4954 33 6.9814 60 2.3577
7 24.1932 34 6.6835 61 2.2725
8 22.5662 35 6.4002 62 2.1907
9 21.8094 36 6.1306 63 2.1124
10 20.7184 37 5.8736 64 2.0373
11 19.6891 38 5.6296 65 1.9653
12 18.7177 39 5.3969 66 1.8963
13 17.8005 40 5.1752 67 1.83
14 16.9341 41 4.9639 68 1.7665
15 16.1156 42 4.7625 69 1.7055
16 15.3418 43 4.5705 70 1.6469
